Brand: RISK

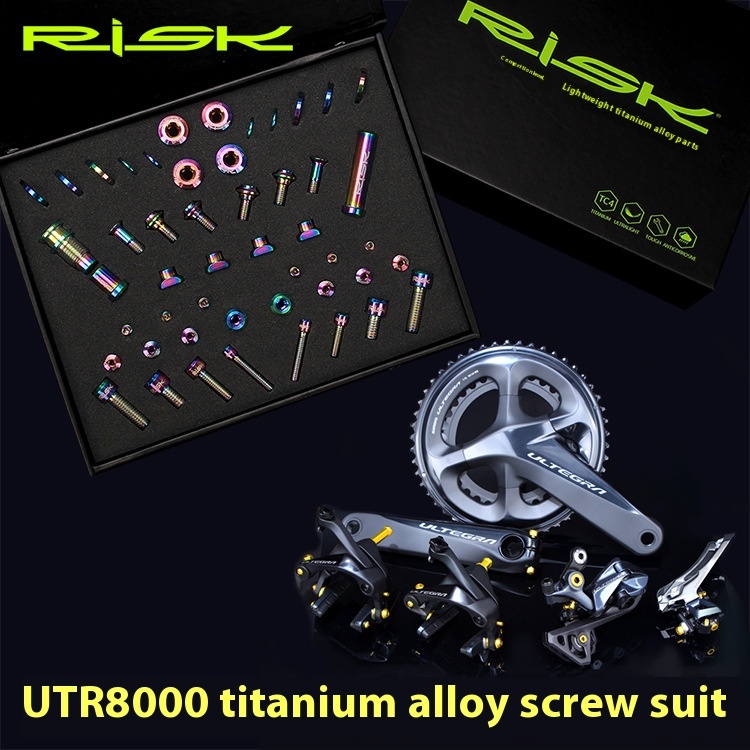

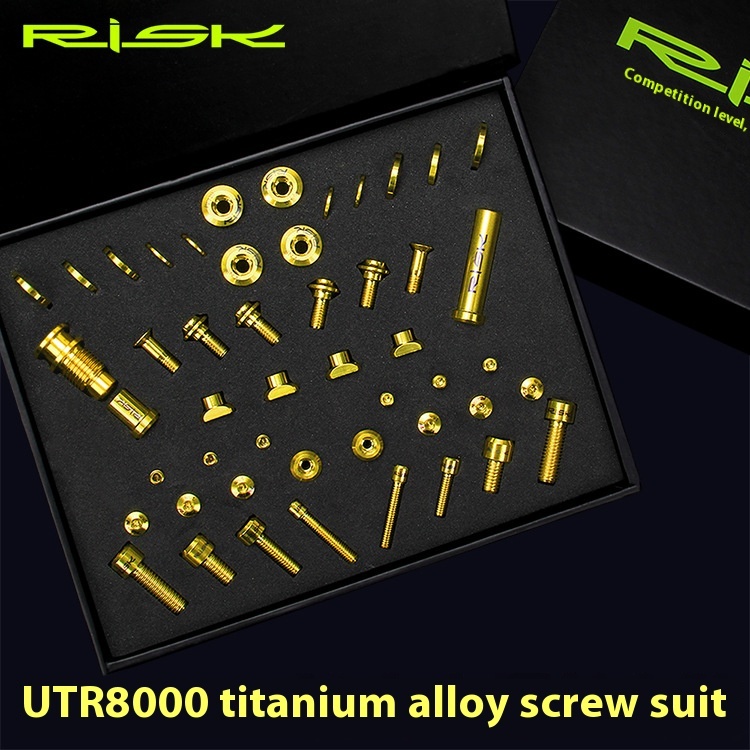

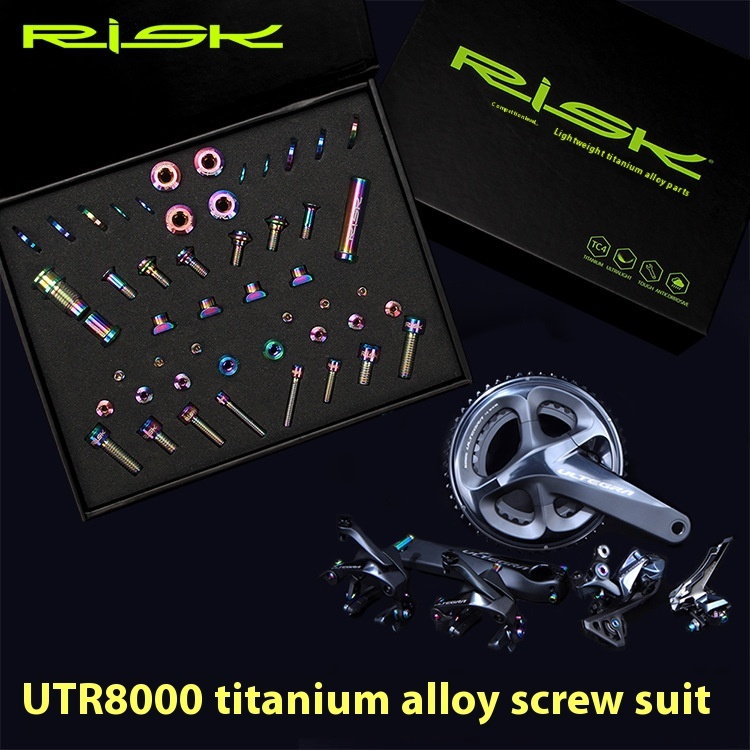

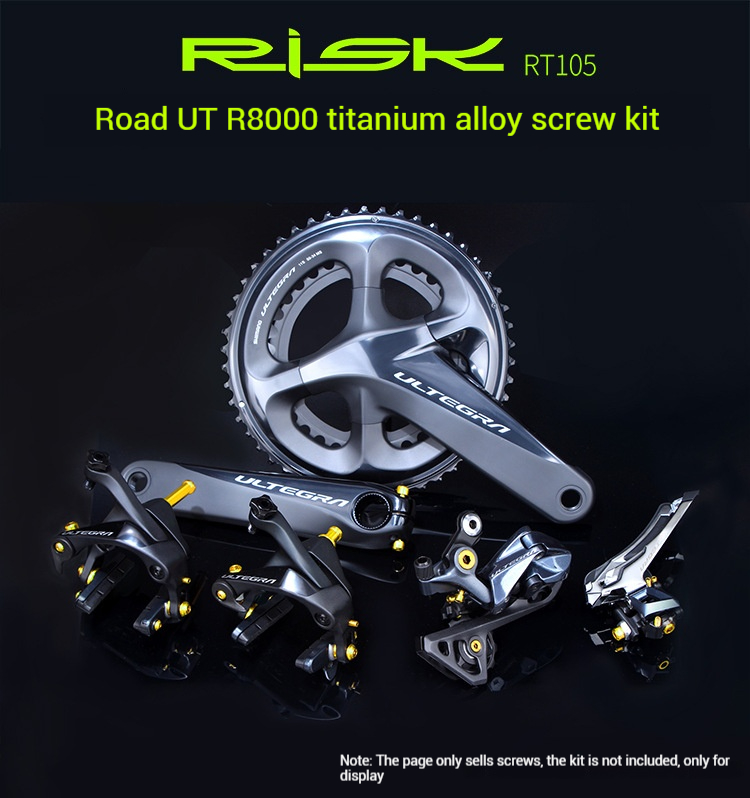

Product Name: UT R8000 Titanium Screw Kit
Material: Titanium
Model: RT105

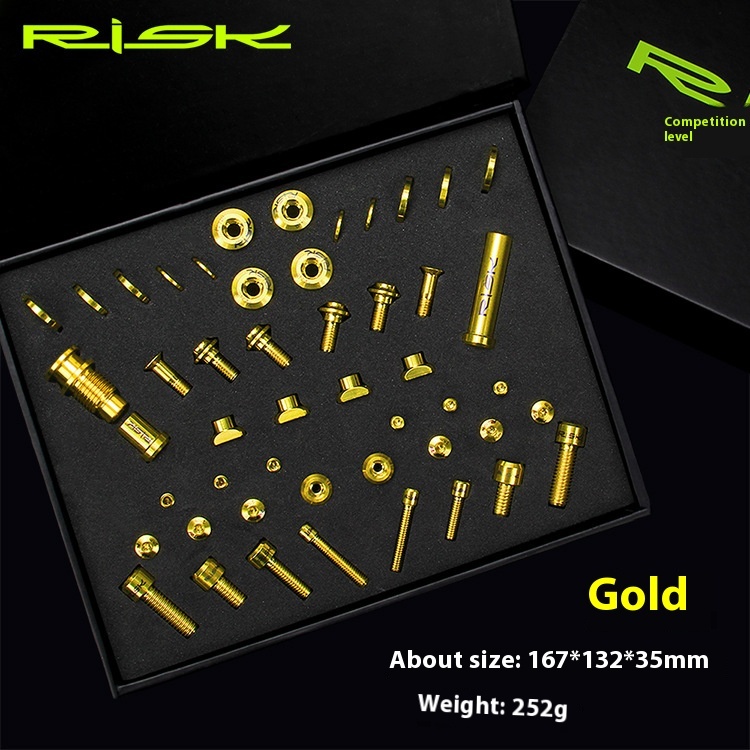

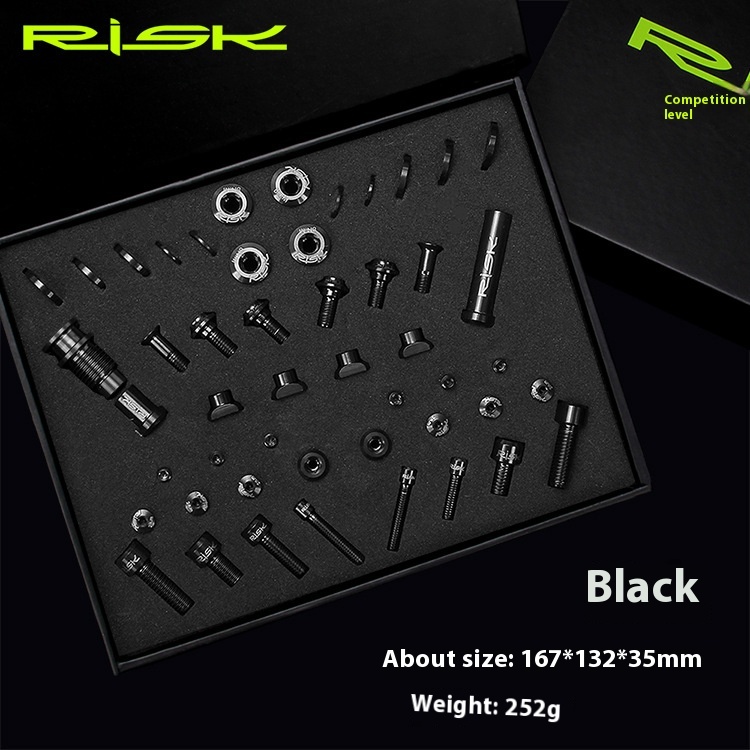

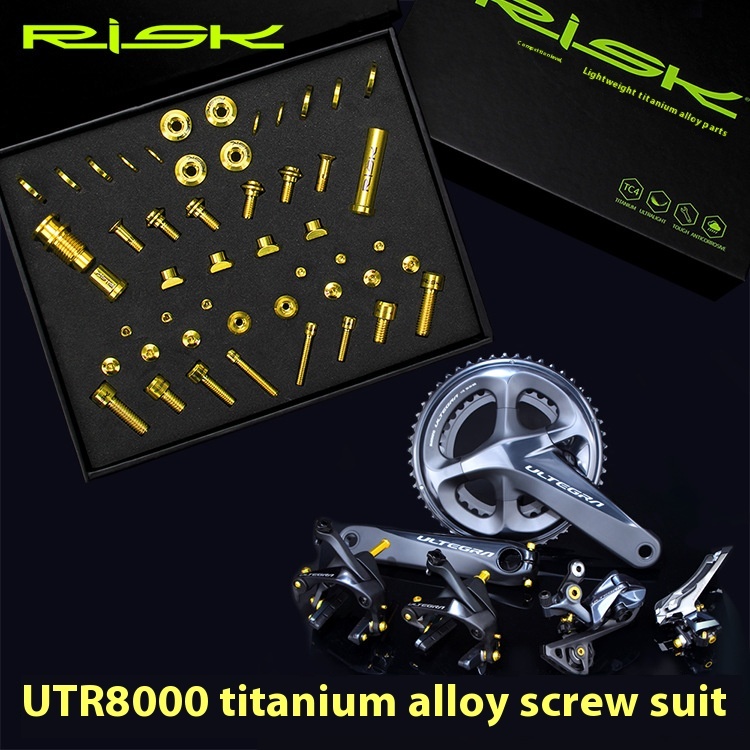

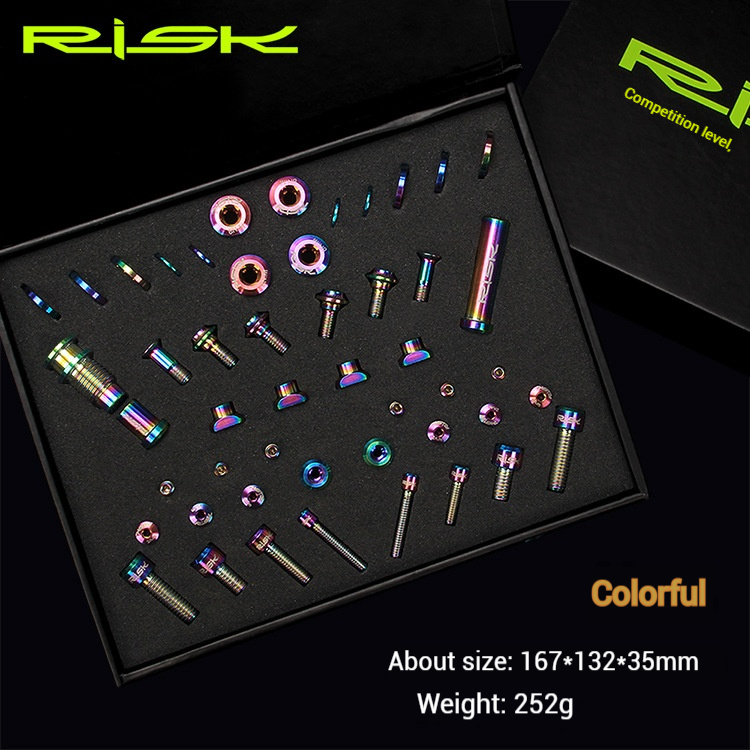

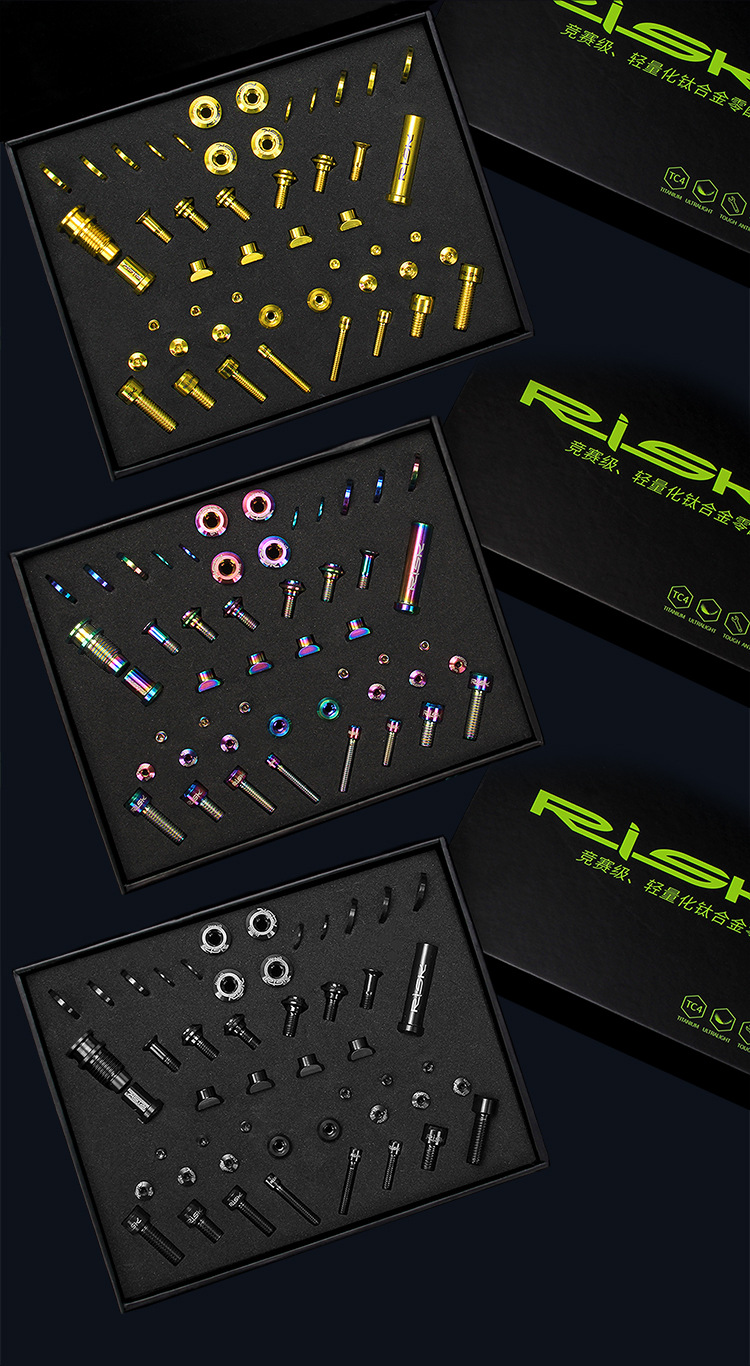

Colors: Rainbow, Gold, Black

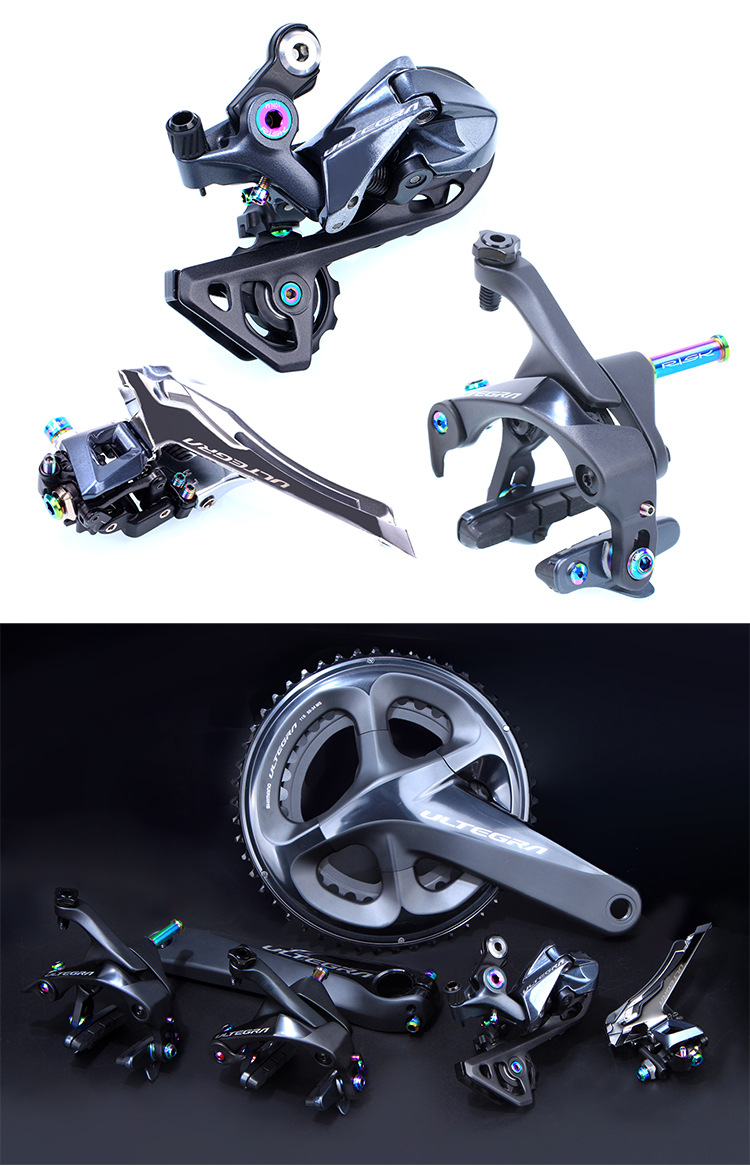

Compatibility: Ultegra R8000

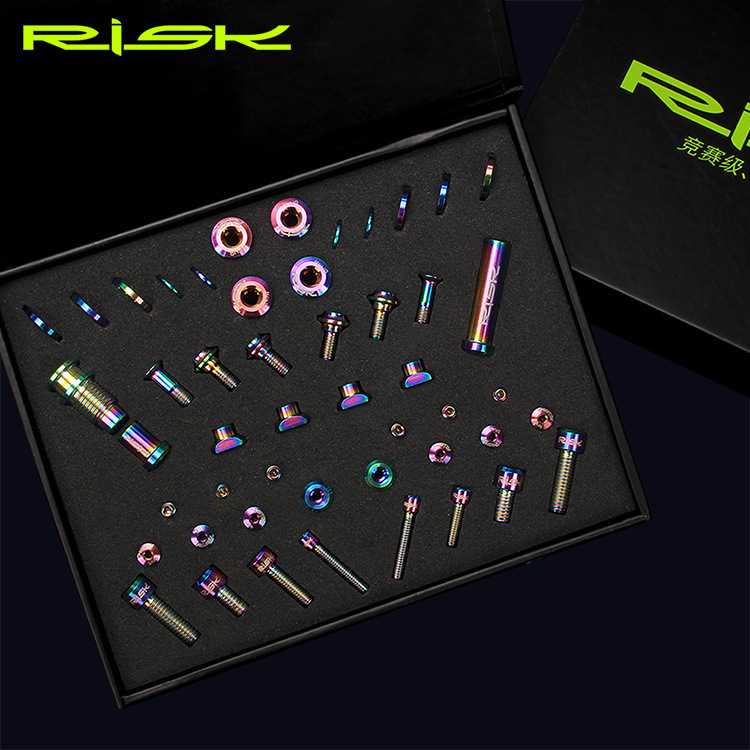

Packaging: 49 pieces per box

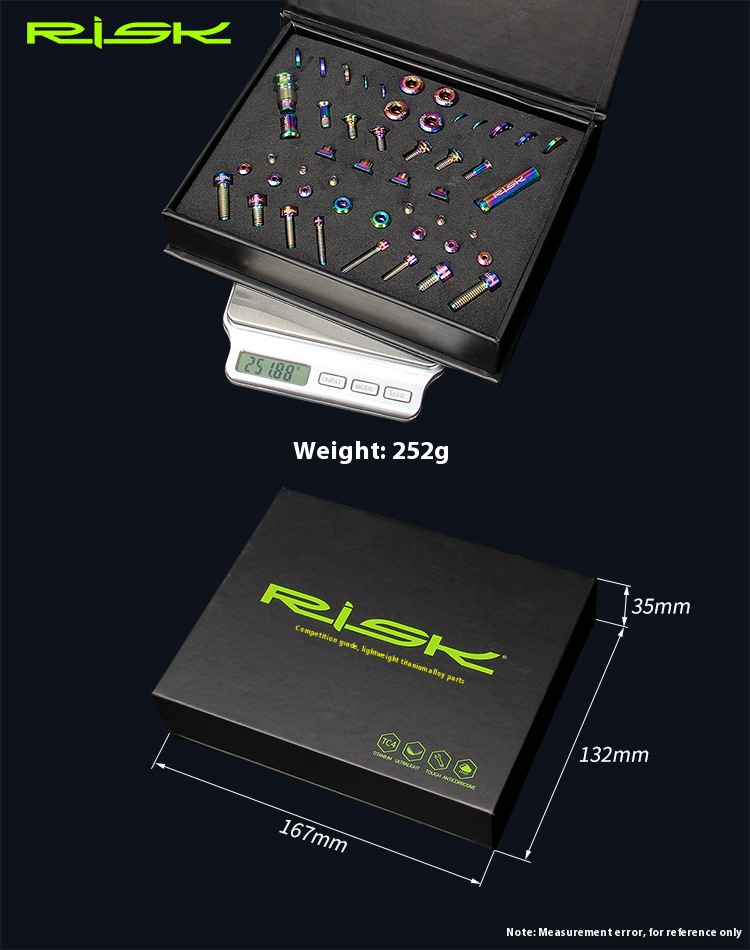

Weight: Approximately 252g
Package Dimensions: Approximately 16.7*13.2*3.5cm
Instructions: This kit is designed for use with the UT-R8000 set. It features screws made from titanium, with a stylish and hollow design compared to the original steel screws. Before installation, carefully compare the specifications of the original screws and follow the recommended torque values. Do not force installation!

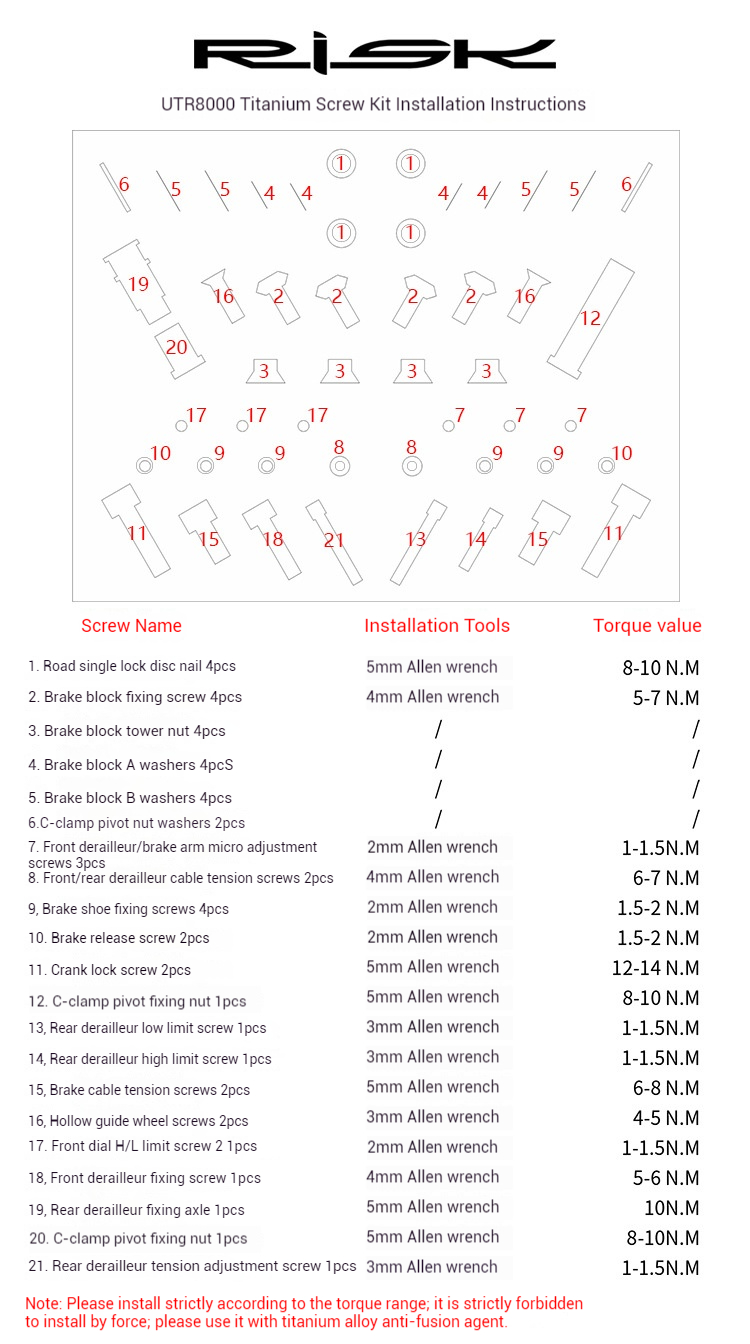

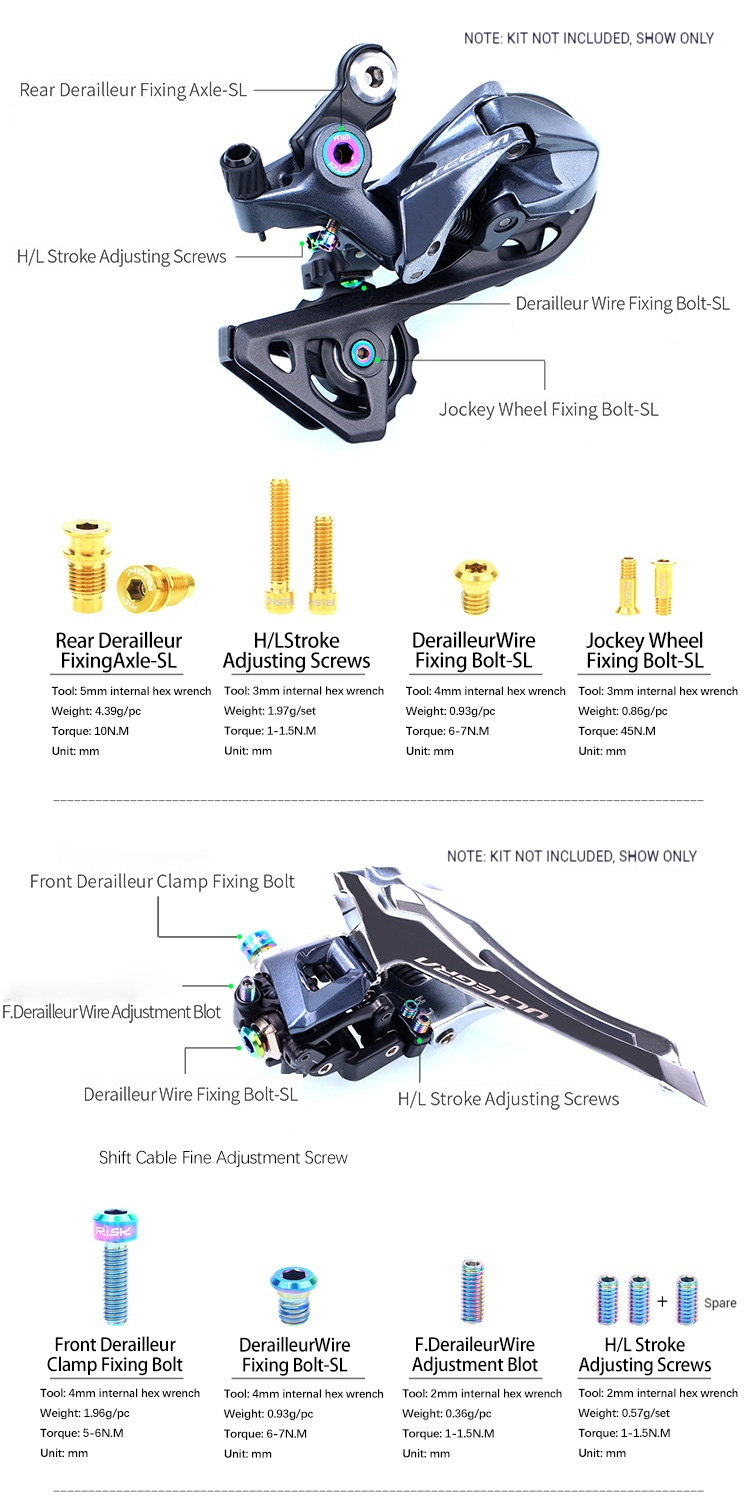

Installation Tools and Torque Values:

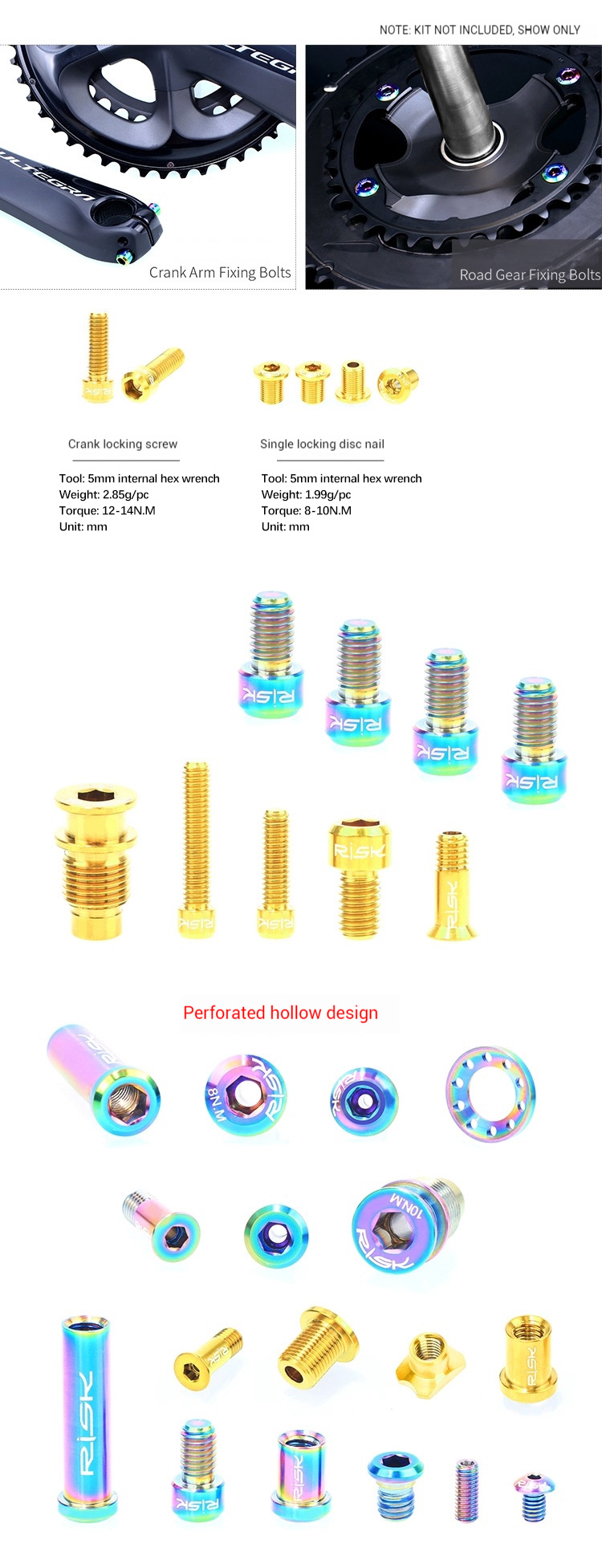

Road single lockring bolts 4pcs - 5mm hex wrench 8-10N.M

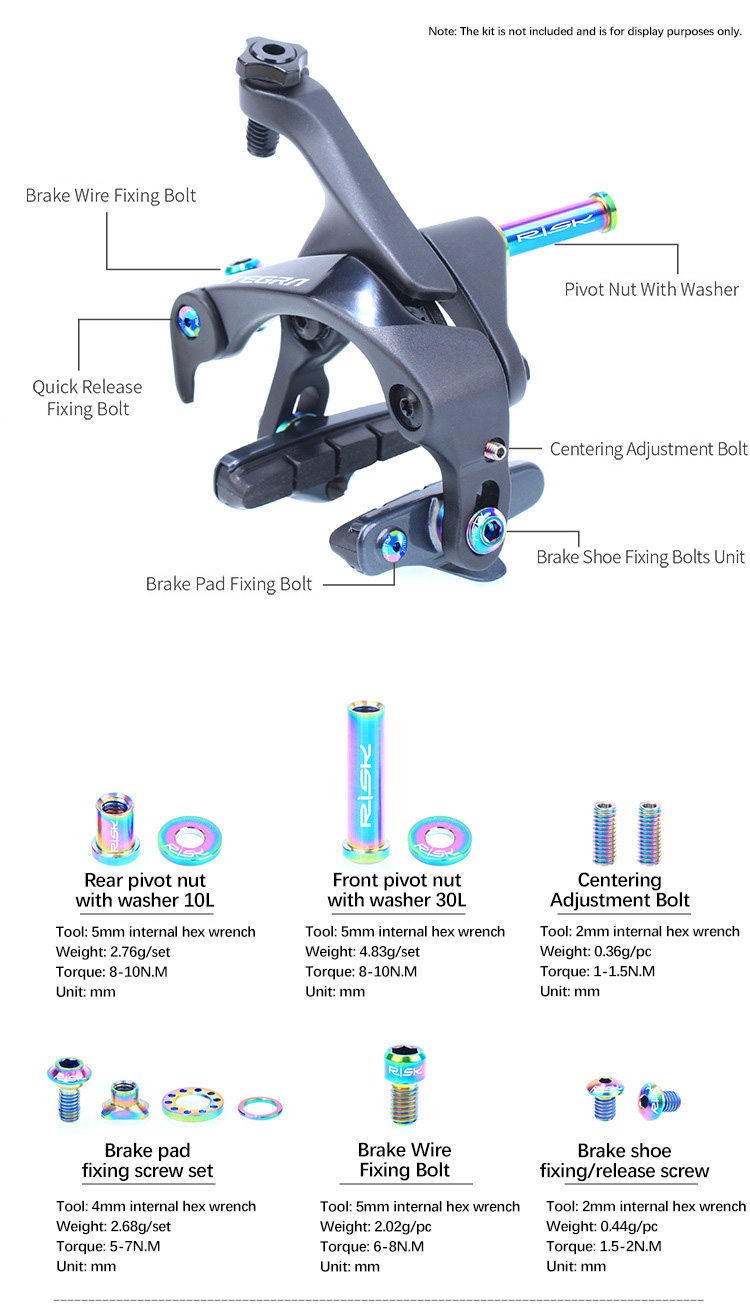

Brake pad fixing screws 4pcs - 4mm hex wrench 5-7N.M
Brake pad cone nuts 4pcs
Brake pad A washers 4pcs
Brake pad B washers 4pcs
C-clamp pivot nut washers 2pcs
Front derailleur/brake arm micro adjustment screws 3pcs - 2mm hex wrench 1-1.5N.M
Front/rear derailleur cable tension screws 2pcs - 4mm hex wrench 6-7N.M
Brake shoe fixing screws 4pcs - 2mm hex wrench 1.5-2N.M
Brake release screws 2pcs - 2mm hex wrench 1.5-2N.M
Crank lock screws 2pcs - 5mm hex wrench 12-14N.M
C-clamp pivot fixing nut 1pcs - 5mm hex wrench 8-10N.M
Rear derailleur low limit screw 1pcs - 3mm hex wrench 1-1.5N.M
Rear derailleur high limit screw 1pcs - 3mm hex wrench 1-1.5N.M
Brake cable tension screws 2pcs - 5mm hex wrench 6-8N.M
Hollow guide wheel screws 2pcs - 3mm hex wrench 4-5N.M
Front derailleur H/L limit screws 2+1pcs - 2mm hex wrench 1-1.5N.M
Front derailleur fixing screw 1pcs - 4mm hex wrench 5-6N.M
Rear derailleur fixing axle 1pcs - 5mm hex wrench 10N.M
C-clamp pivot fixing nut 1pcs- 5mm hex wrench 8-10N.M
Rear derailleur tension adjustment screw 1pcs - 3mm hex wrench 1-1.5N.M
