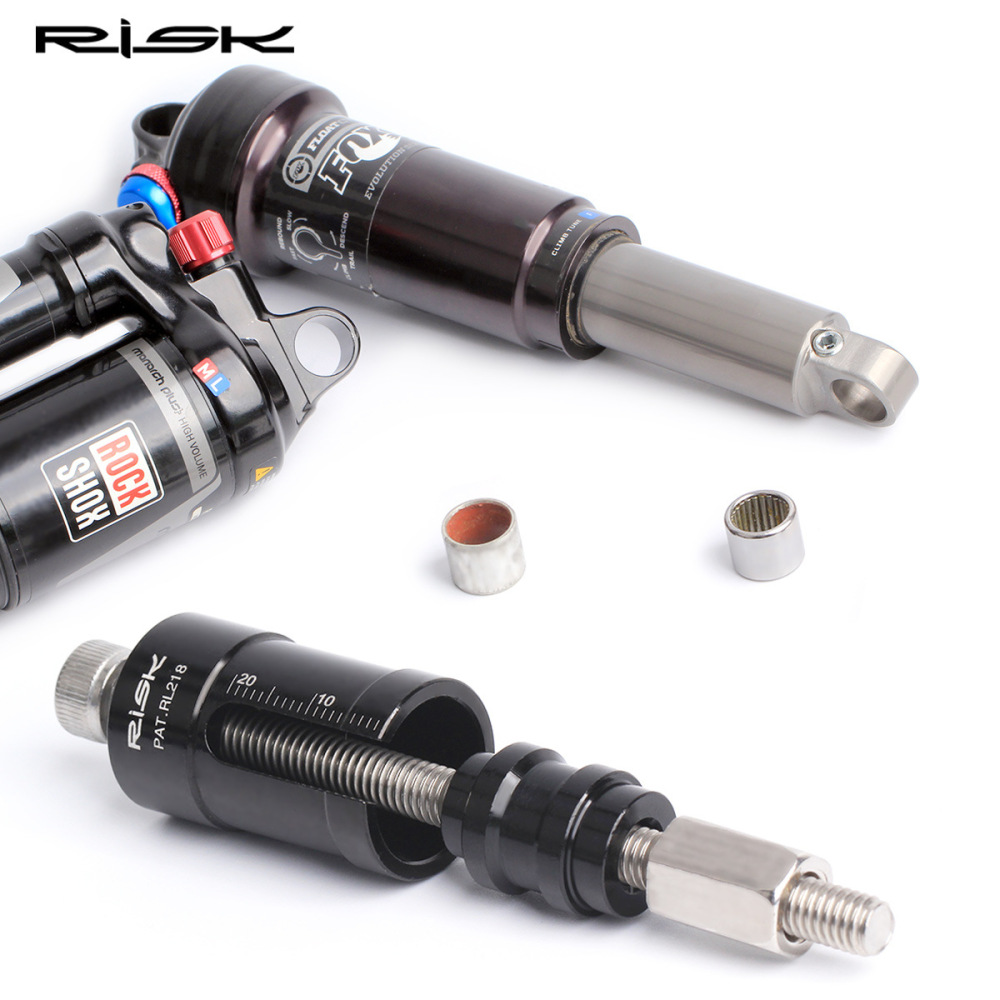

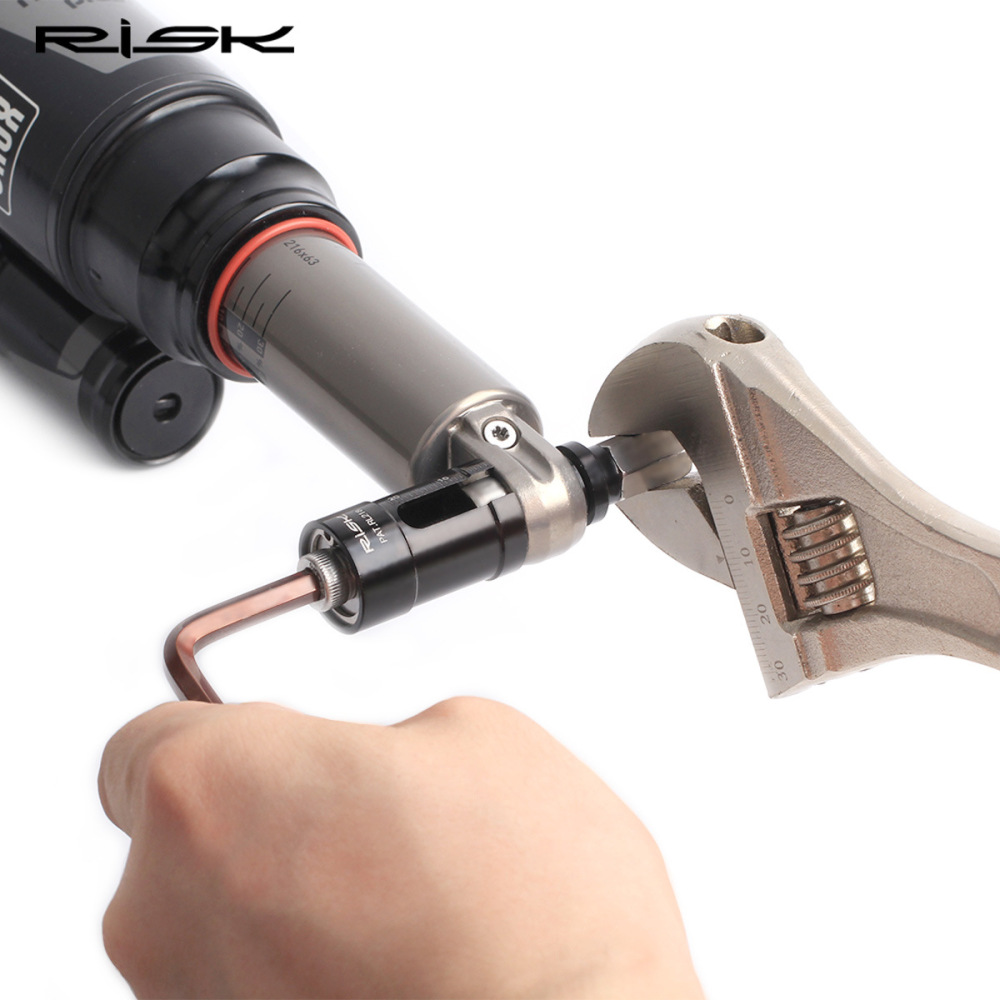

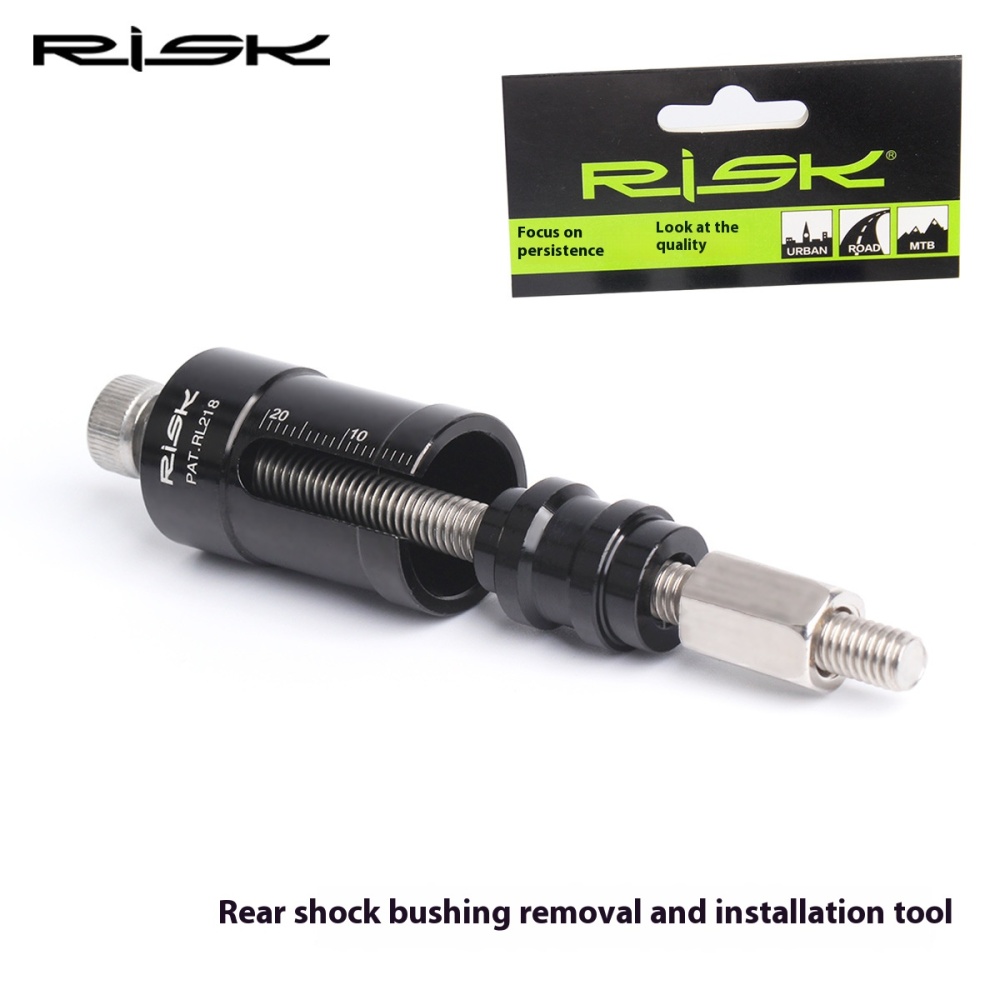

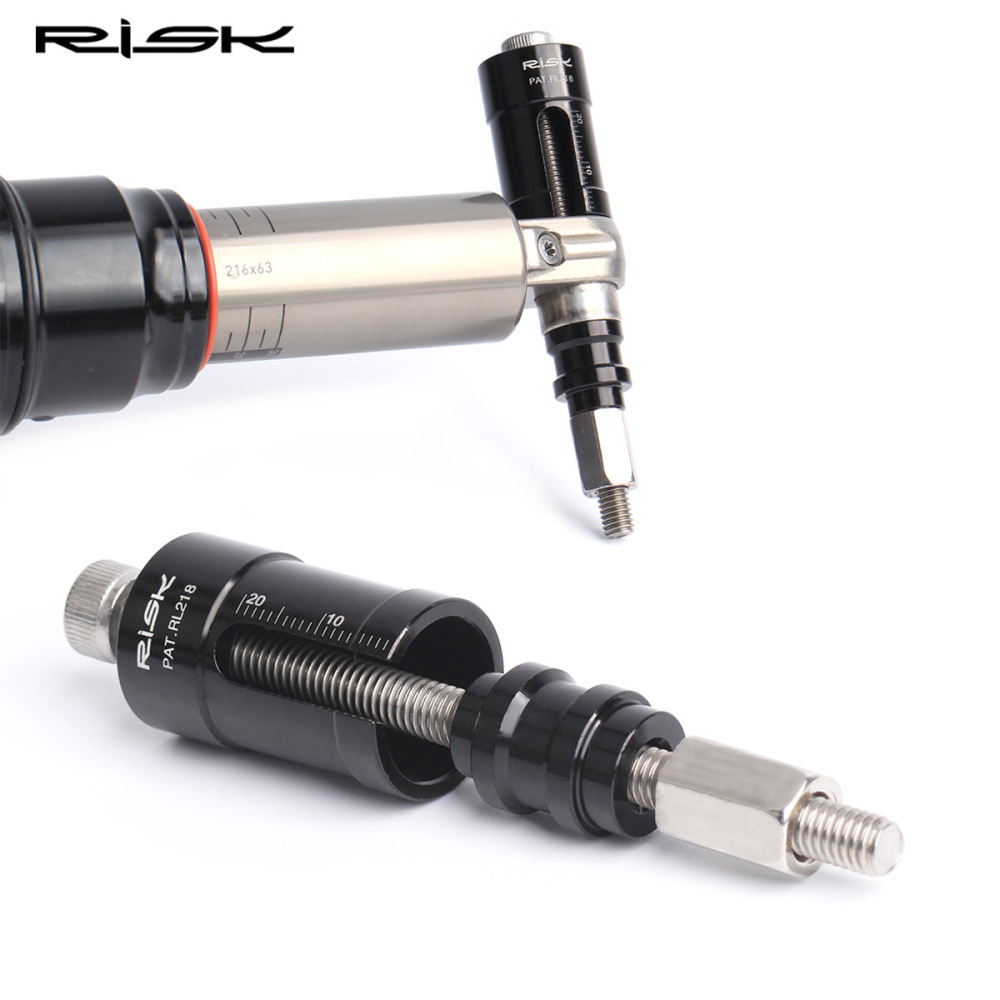

The RISK RL218 Rear Shock Bushing Removal and Installation Tool is designed for servicing mountain bike rear shock bushings. It helps remove and install DU bushings and compatible rear shock bearing sleeves by using a controlled press-fit method, making shock maintenance cleaner, safer, and easier.

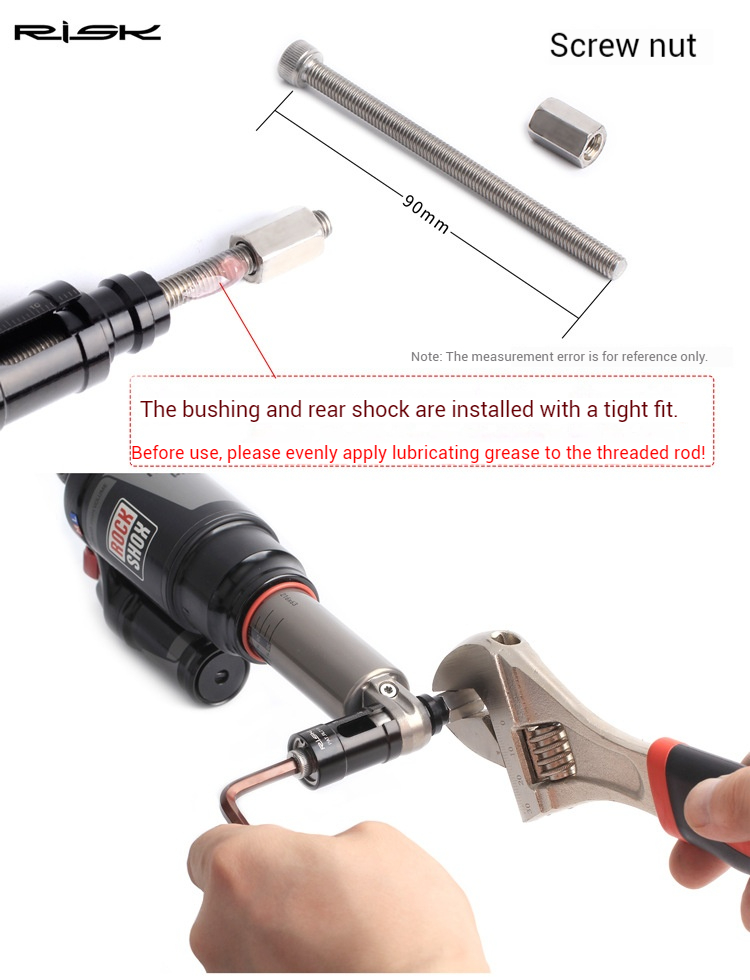

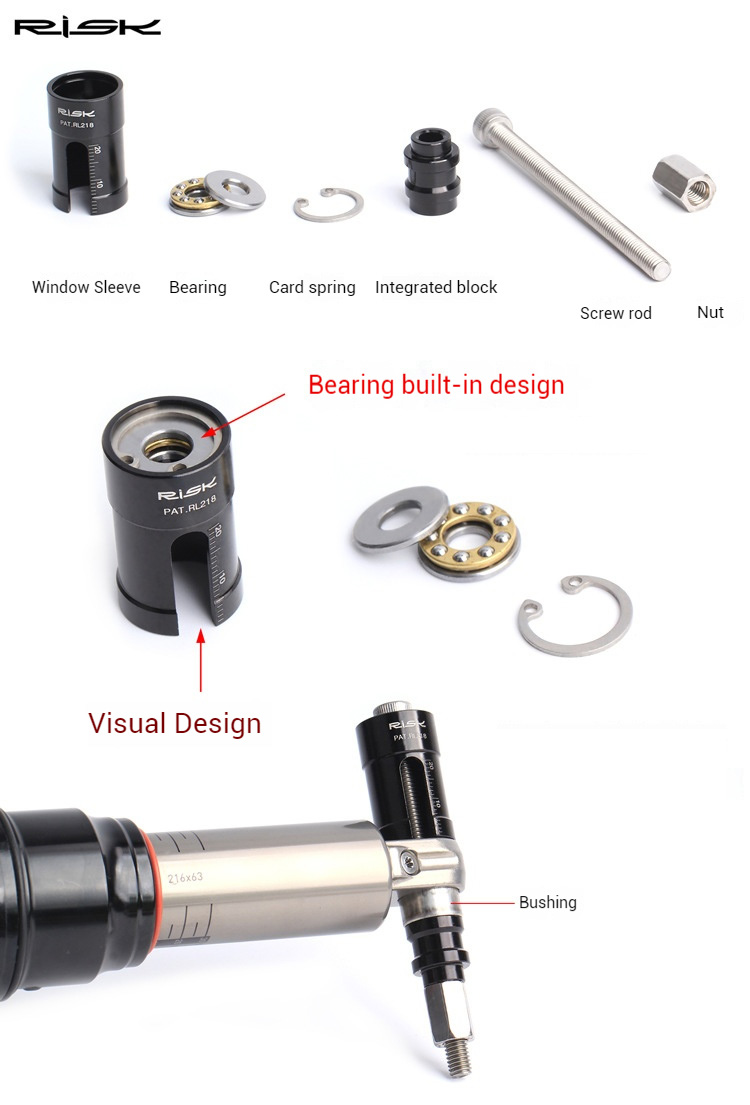

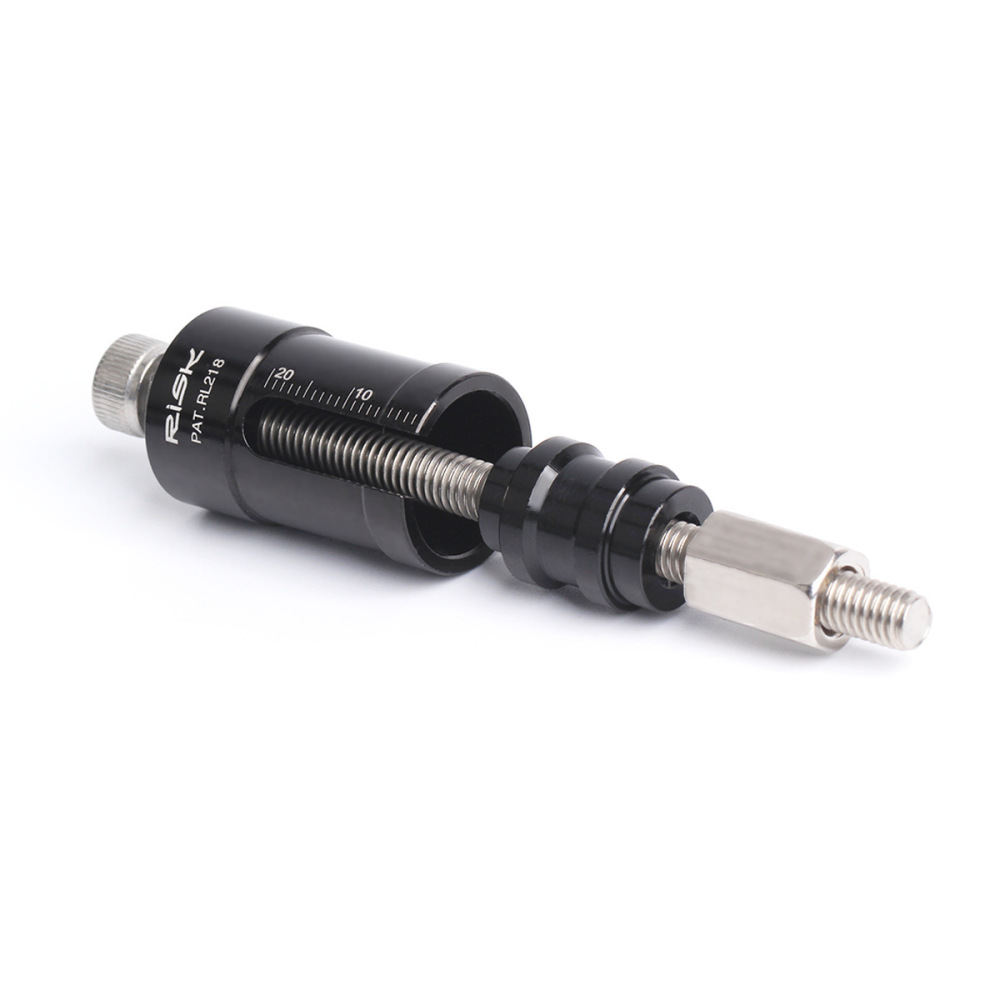

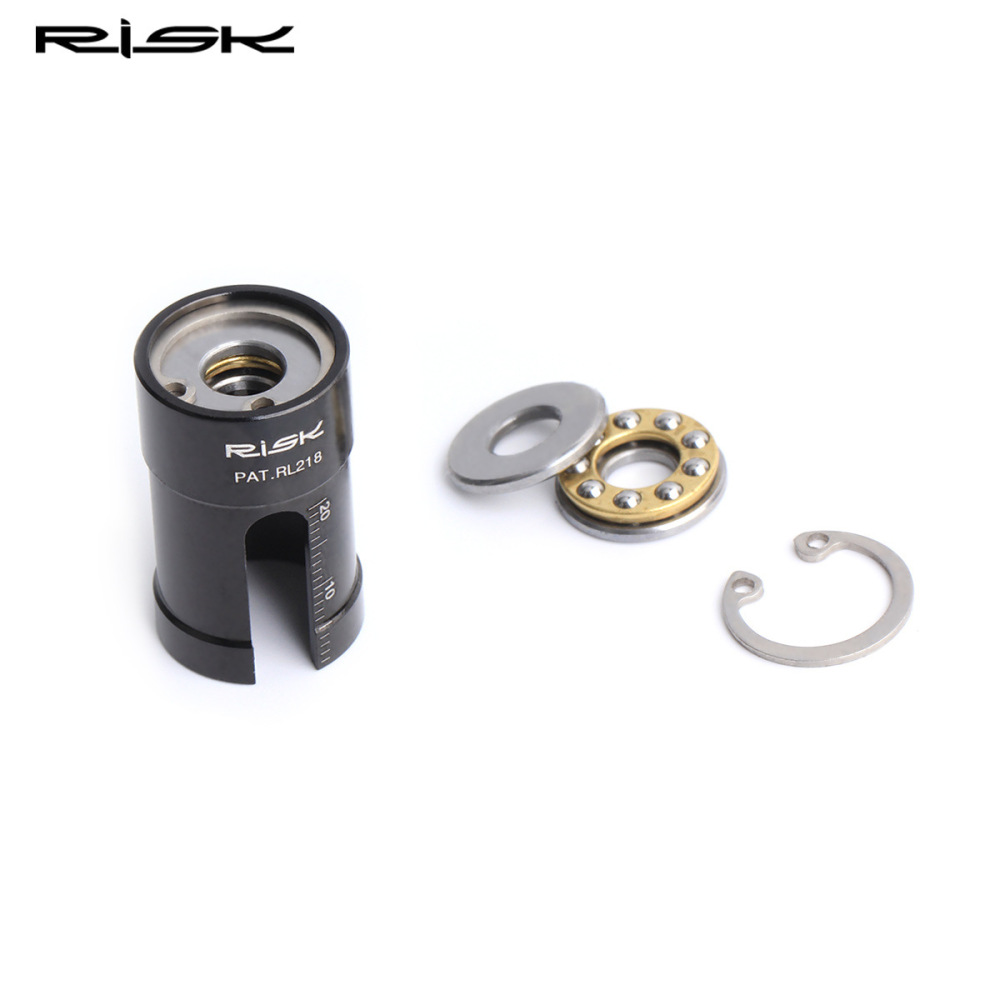

This tool features a compact metal construction with a threaded rod, nut, viewing sleeve, built-in bearing, circlip, and integrated press block. The window and scale design makes it easier to monitor the bushing position during installation, helping improve control and accuracy.

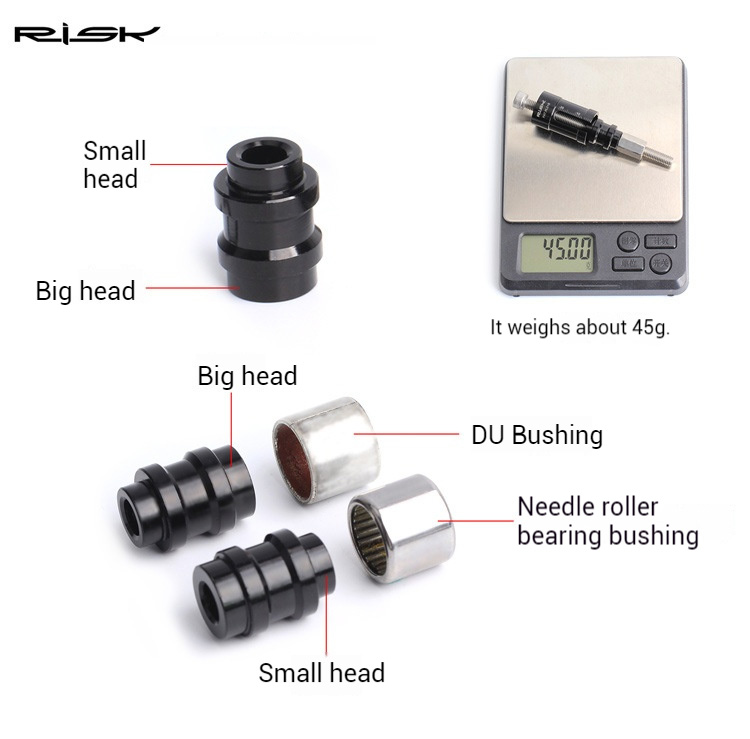

The integrated press block has both large and small ends, making it suitable for different bushing types, including DU bushings and needle bearing sleeves. The built-in bearing design keeps components organized and helps reduce friction during operation.
Ideal for MTB suspension maintenance, workshop use, and home mechanics.
| Item | Details |
|---|---|
| Brand | RISK |
| Model | RL218 |
| Product Name | Rear Shock Bushing Removal & Installation Tool |
| Product Type | Bicycle Suspension Service Tool |
| Material | Metal |
| Application | Rear shock DU bushing removal and installation |
| Compatible Parts | DU bushings, needle bearing sleeves, rear shock eyelet bushings |

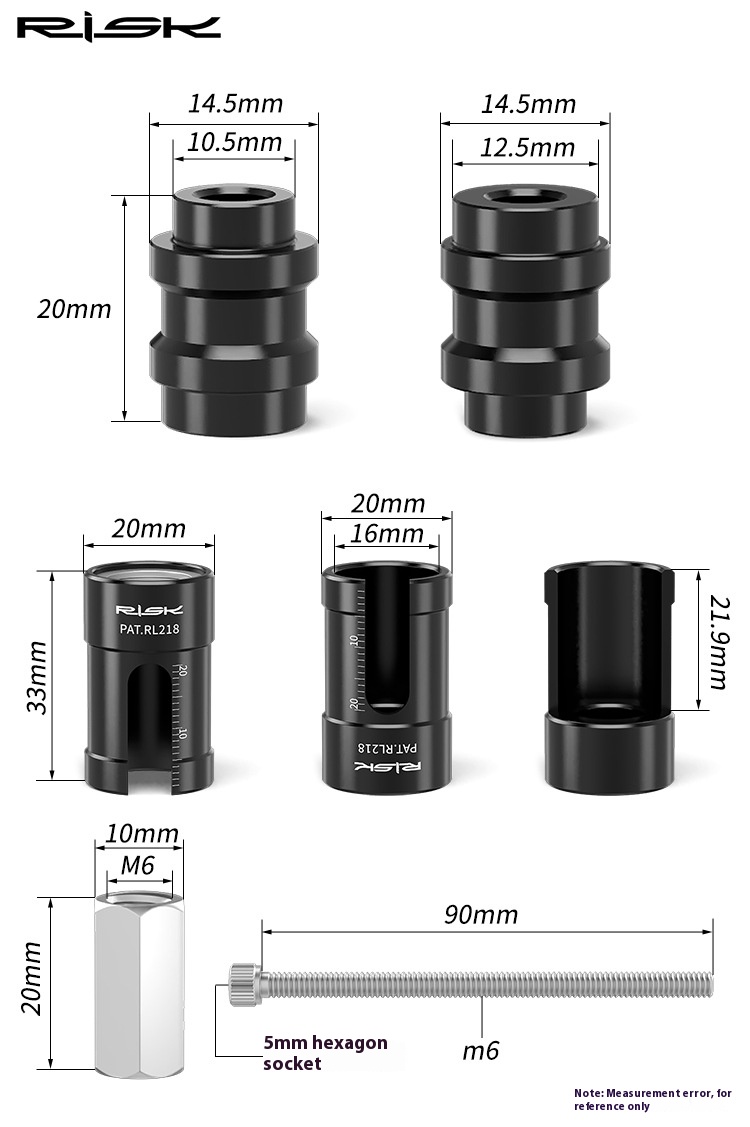

| Threaded Rod | M6 |
| Threaded Rod Length | Approx. 90mm |
| Tool Required | 5mm Hex Key |
| Main Sleeve Diameter | Approx. 20mm |
| Main Sleeve Height | Approx. 33mm |
| Press Block Size | Approx. 14.5mm outer diameter |
| Press Block Inner Sizes | Approx. 10.5mm / 12.5mm |
| Tool Weight | Approx. 46g |
| Package | RISK branded bag |
| Package Size | Approx. 16 × 10 × 2 cm |
| Package Weight | Approx. 50g |
Manual measurement may have slight deviation.
Each set includes:
