XCADEY XPOWER-S GEN2 110BCD 4-bolt Power Meter Spider for SRAM GXP 3-bolt/AXS 8-bolt, for Easton, for ROTOR

Name: XCADEY XPOWER-S GEN2 110BCD 4-bolt Power Meter Spider for SRAM GXP 3-bolt/AXS 8-bolt, for Easton, for ROTOR
Brand: DJC Bikes - DJC Components
SKU: Power Meter GEN2 for SRAM 8-BOLT to 110BCD 4-BOLT
Price: 324 USD
Availability: InStock

$324.00 ~~$450.00~~

-28%

XCADEY XPOWER-S GEN2 spider power meter with a 110mm BCD 4-bolt chainring mount. Choose the crank interface for SRAM AXS 8-bolt, for SRAM GXP 3-bolt, for Easton, for ROTOR ALDHU 30mm or for ROTOR 3D.

Tracks power, cadence and left/right balance with ANT+ and Bluetooth connectivity. Supplied as a power meter spider; contact us for a separate chainring customized for SRAM AXS Flattop 12/13-speed chains.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

XCADEY XPOWER-S GEN2 110BCD 4-bolt Power Meter Spider for SRAM GXP 3-bolt/AXS 8-bolt, for Easton, for ROTOR

The XCADEY XPOWER-S GEN2 measures power at the crank spider and transmits riding data through ANT+ or Bluetooth. This listing offers five crank-interface versions, each with a 110BCD 4-bolt chainring mount. Select the version that matches your crank before ordering.

Five Crank Interface Options

Crank Interface	SKU Option
For SRAM AXS 8-bolt	for SRAM 8-BOLT 110BCD-4S
For SRAM GXP 3-bolt	for SRAM 3-BOLT 110BCD-4S
For Easton	for EASTON 110BCD-4S
For ROTOR ALDHU 30mm	for ROTOR aldhu 30mm 110BCD-4S
For ROTOR 3D	for ROTOR 3D 110BCD-4S

The five versions are separate products with different crank-side mounting interfaces. The 110BCD 4-bolt specification describes the chainring side; it does not make the crank interfaces interchangeable. In the model code 110BCD-4S, 4S identifies the chainring mounting pattern, not a four-speed drivetrain.

Crank and Chainring Compatibility

For SRAM AXS 8-bolt: select this version for a compatible 8-bolt road crank. The original listing names selected crank versions for SRAM Force AXS, RED AXS and RED 22, and for Quarq. Confirm the exact crank model and removable-spider mounting interface.
For SRAM GXP 3-bolt: select the separate 3-bolt interface version. It does not use the 8-bolt crank mount.
For Easton: select the dedicated interface option and confirm your crank model.
For ROTOR ALDHU 30mm: select the ALDHU 30mm option. This is separate from the version for ROTOR 3D.
For ROTOR 3D: select the dedicated 3D option and confirm the exact crank version.

Chainring compatibility is for the matching 110BCD 4-bolt pattern. The supplied listing names chainrings for Shimano 105 R7000, R8000, R9100, R7100, R8100, R9200, 5800, 6800 and 9000. Confirm the bolt pattern, chainring seating and clearance for the specific chainring before installation.

An 8-bolt interface alone does not establish compatibility with every crank, offset or chainline. Compatibility with a specific crank for SRAM T-Type requires confirmation before ordering.

GEN2 Design and Riding Data

Spider-based measurement provides power, cadence and left/right balance data.
ANT+ and Bluetooth connectivity support pairing with compatible cycling devices.
The GEN2 charging-area design has a slimmer profile intended to improve frame clearance.
The rechargeable battery and XCADEY App support everyday training use.

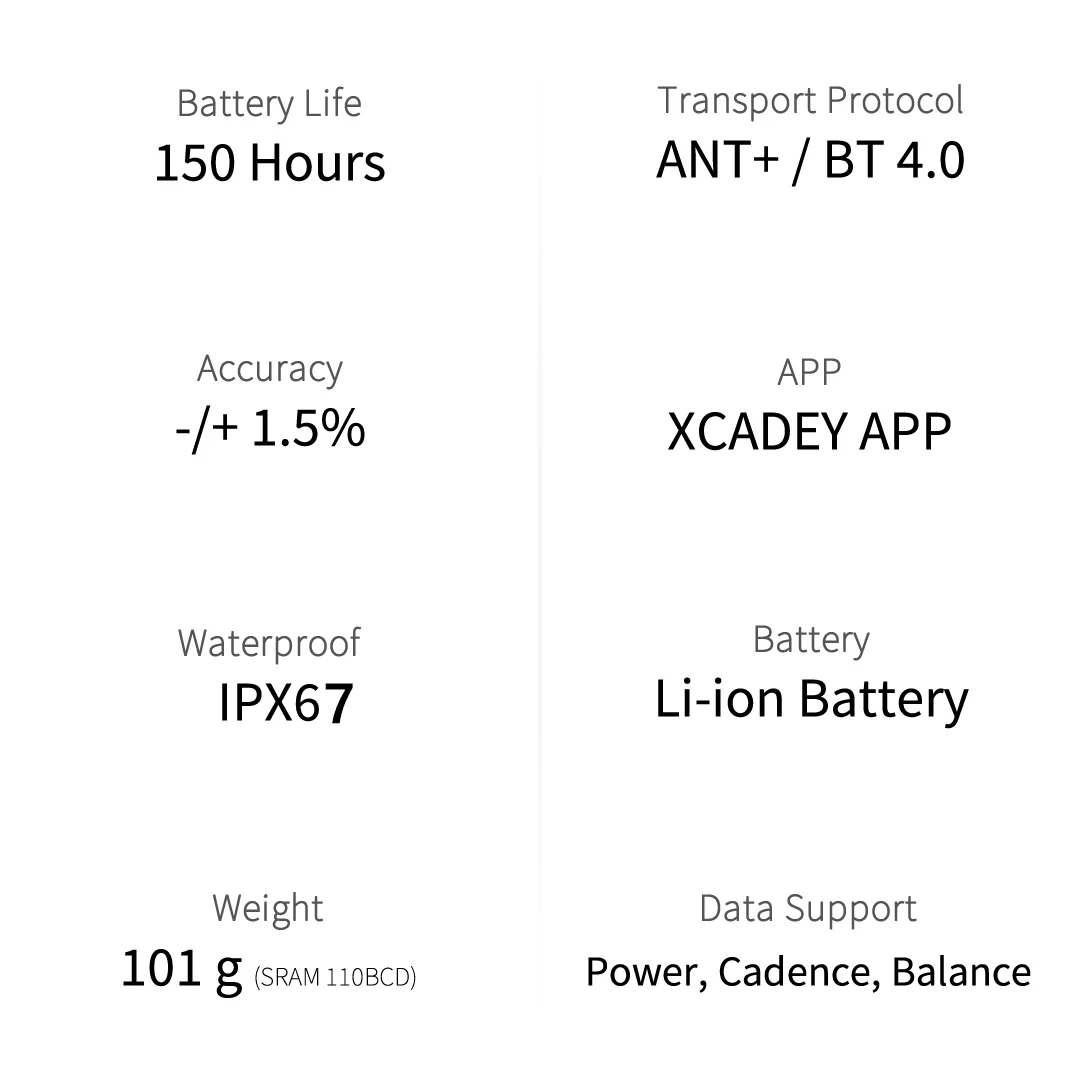

Specifications

Item	Specification
Product	XCADEY XPOWER-S GEN2 power meter spider
Chainring mounting	Bolt Circle Diameter (BCD): 110mm; 4-bolt pattern (110BCD-4S)
Measurement	Spider-based power measurement
Data	Power, cadence and left/right balance
Wireless connection	ANT+ and Bluetooth 4.0

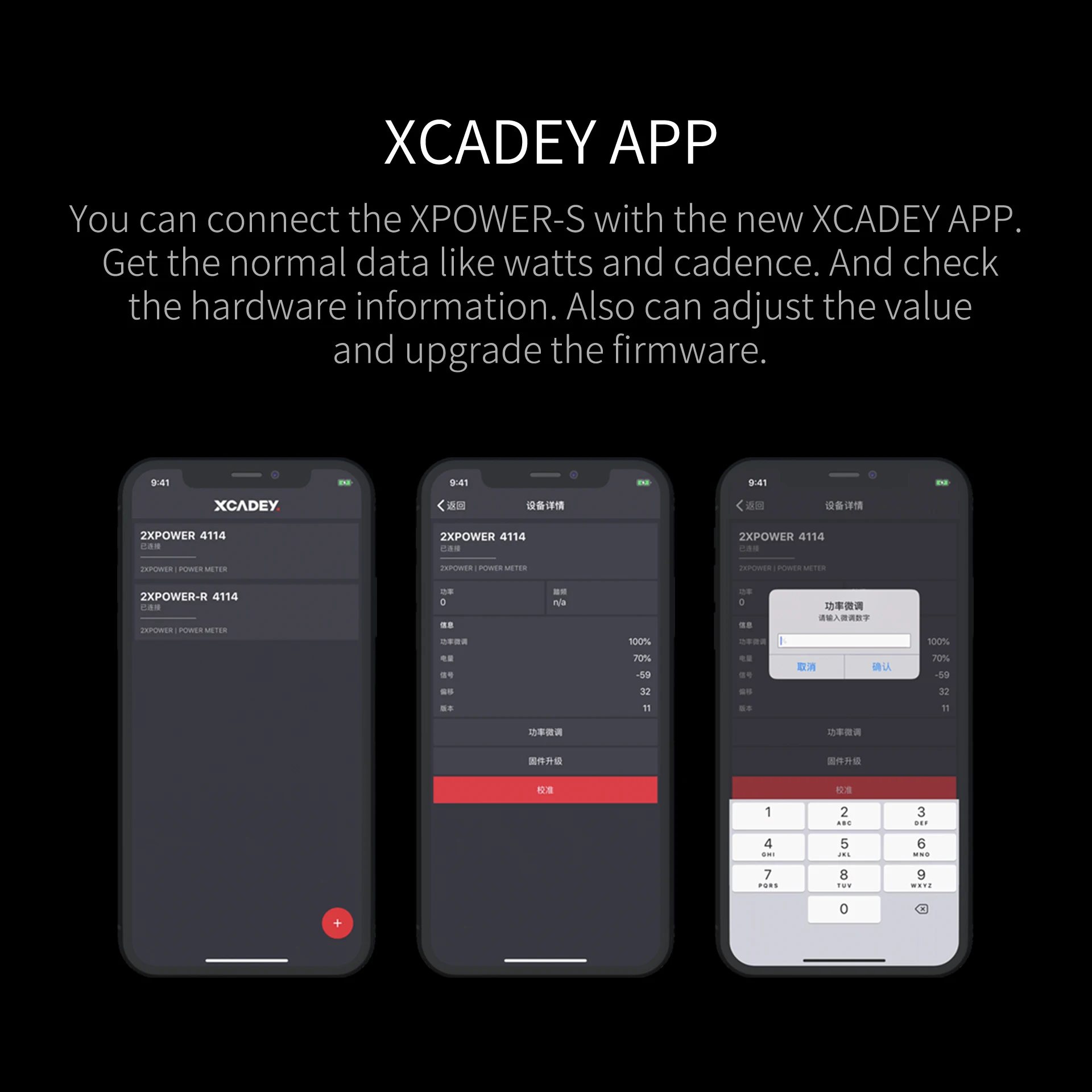

App	XCADEY App
Power range	0–2500W

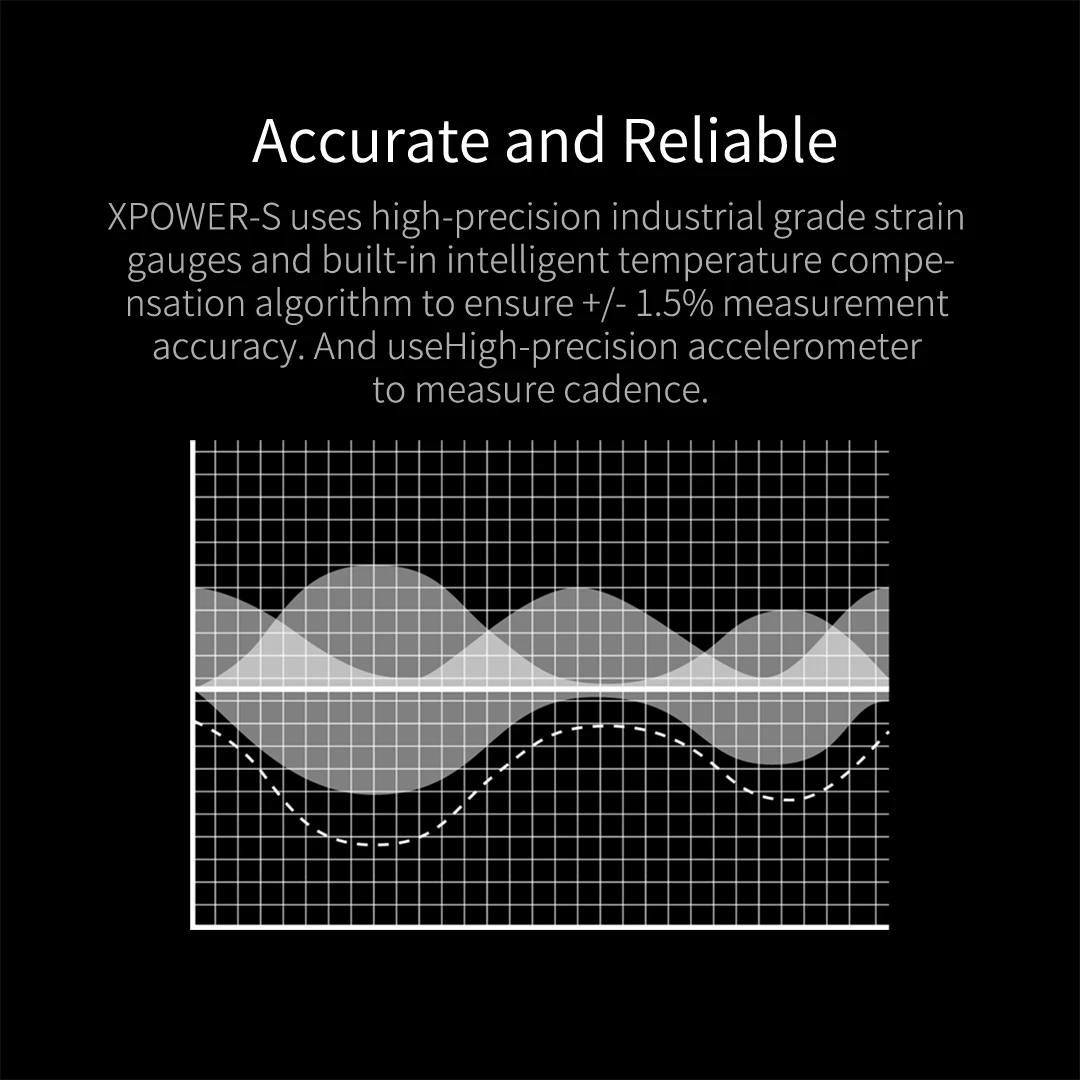

Listed accuracy	±1.5%
Listed cadence range	30–180rpm
Battery	Rechargeable lithium-ion battery
Listed battery life	150 hours
Reference weight	102g; confirm weight for the selected interface
Water resistance	IP67
Operating temperature	−10 to 50°C
Store-listed limited warranty	16 months

The listed accuracy, battery life, cadence range and reference weight are the specifications supplied for this store listing. Hardware revisions and interface versions can differ; contact us to confirm these details for the selected option.

Package Includes

1 × XCADEY XPOWER-S GEN2 power meter spider in the selected crank-interface version. Cranks and chainrings are not listed as included.

Optional Chainring Customization

Chainrings with a customized tooth profile for SRAM AXS Flattop 12/13-speed chains are available by inquiry. Contact us with your crank model, selected spider, chain type and required tooth count before ordering. This is a separate chainring service; the spider itself does not determine chain compatibility.

Product Details

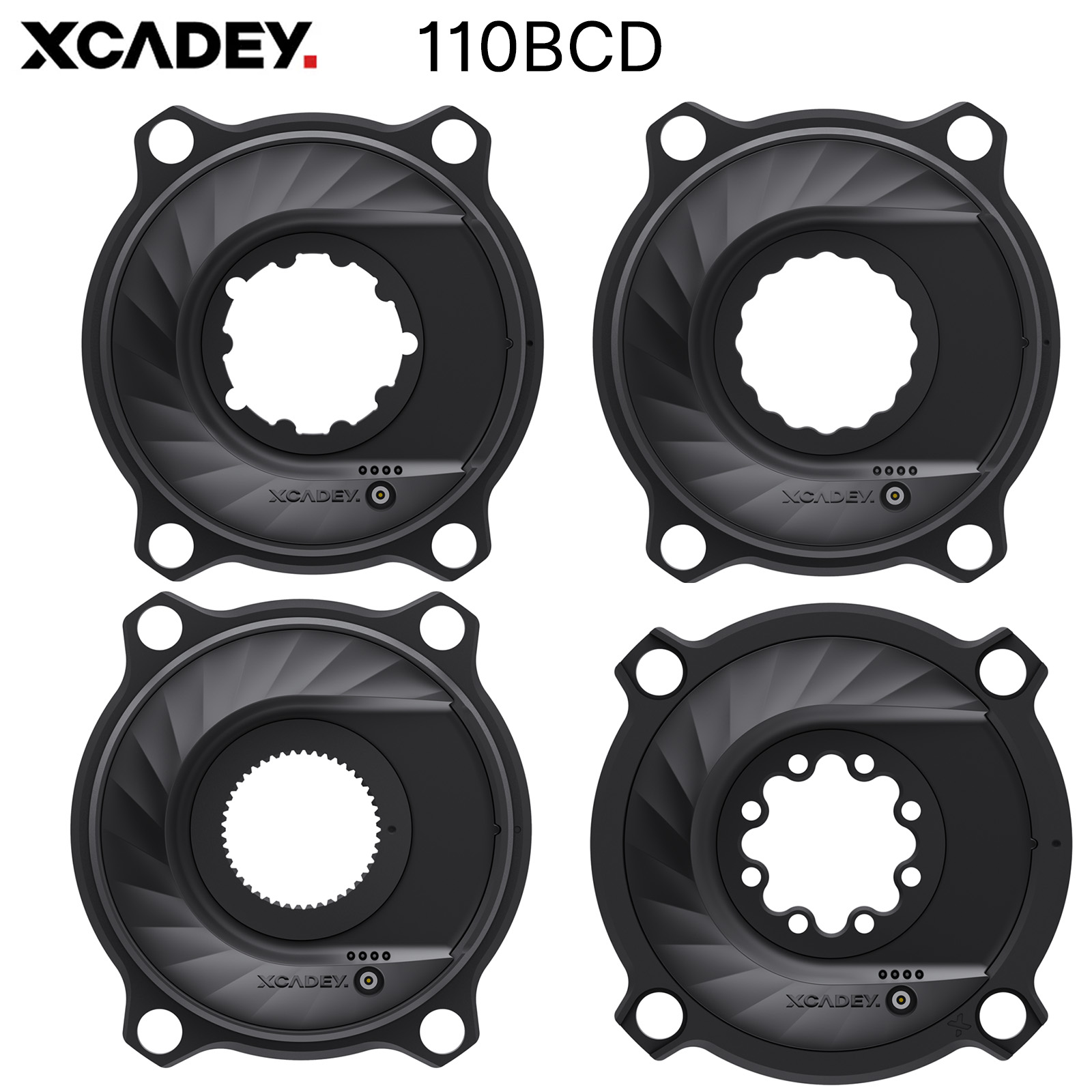

XCADEY XPOWER-S GEN2 110BCD 4-bolt power meter spider

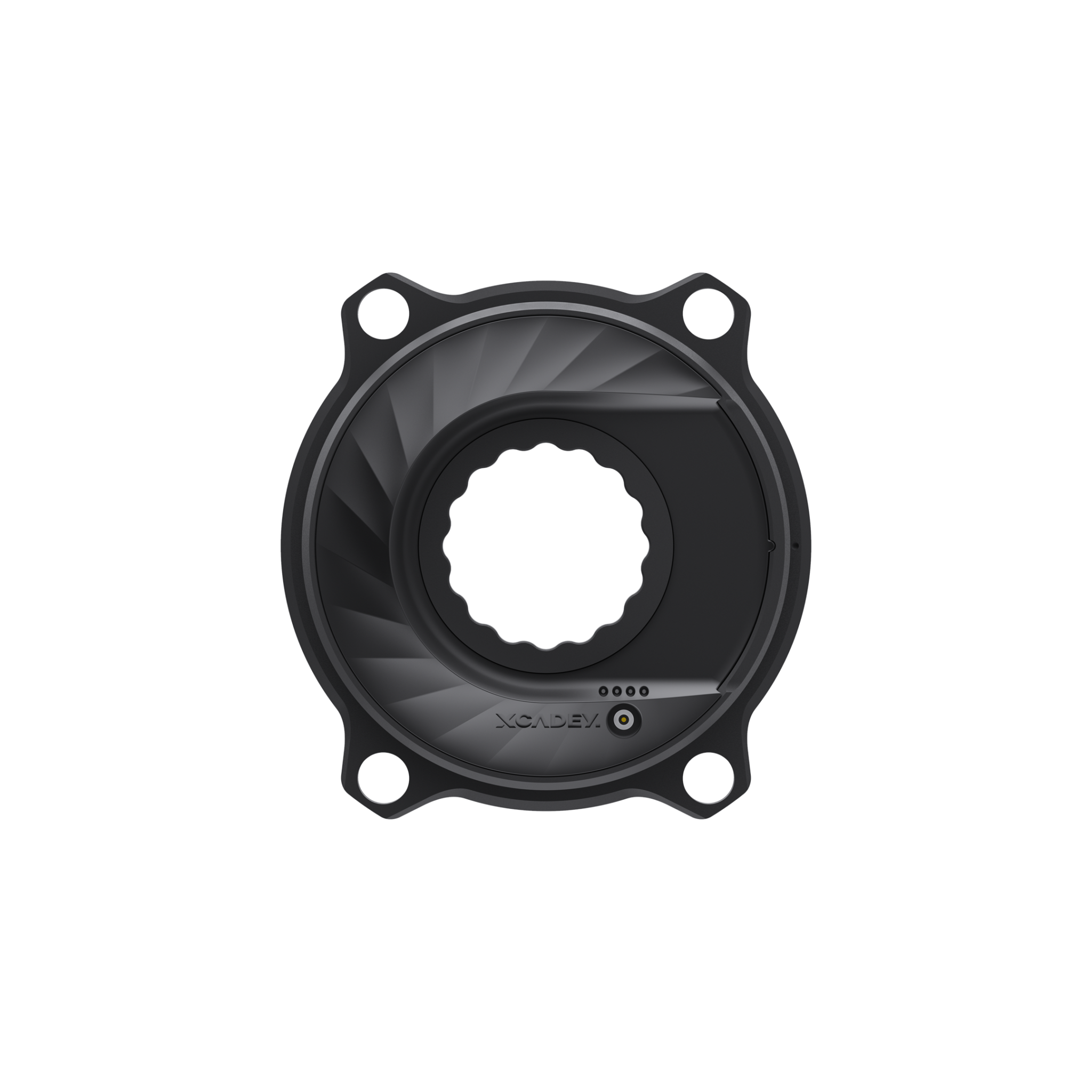

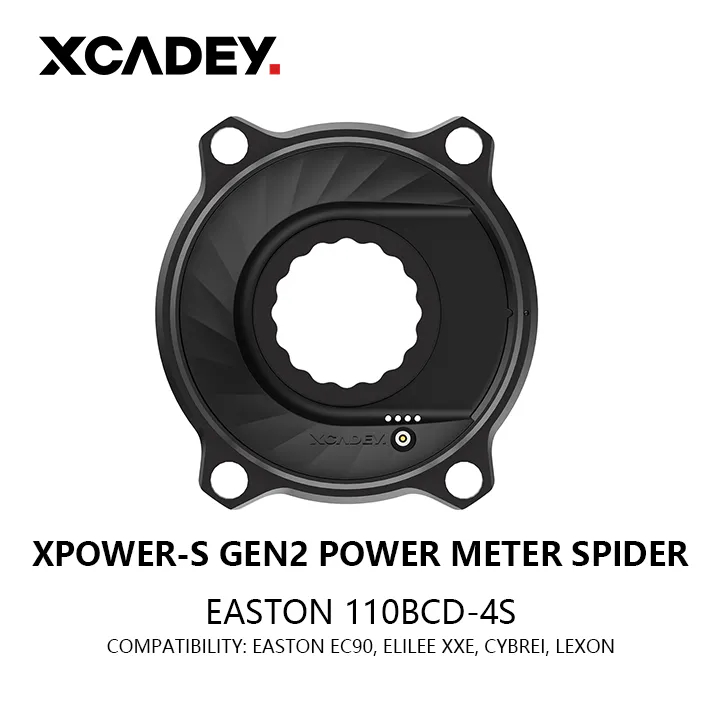

XCADEY XPOWER-S GEN2 interface option for Easton

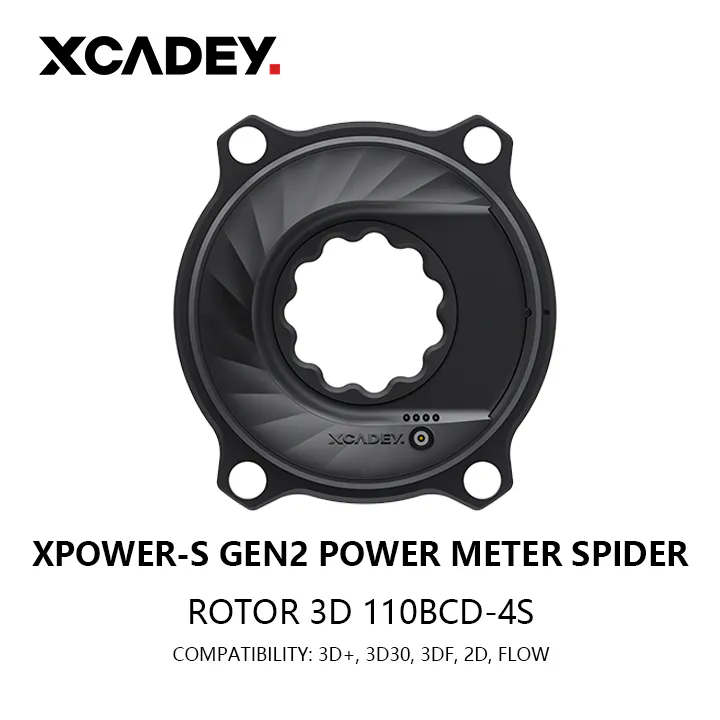

XCADEY XPOWER-S GEN2 interface option for ROTOR 3D

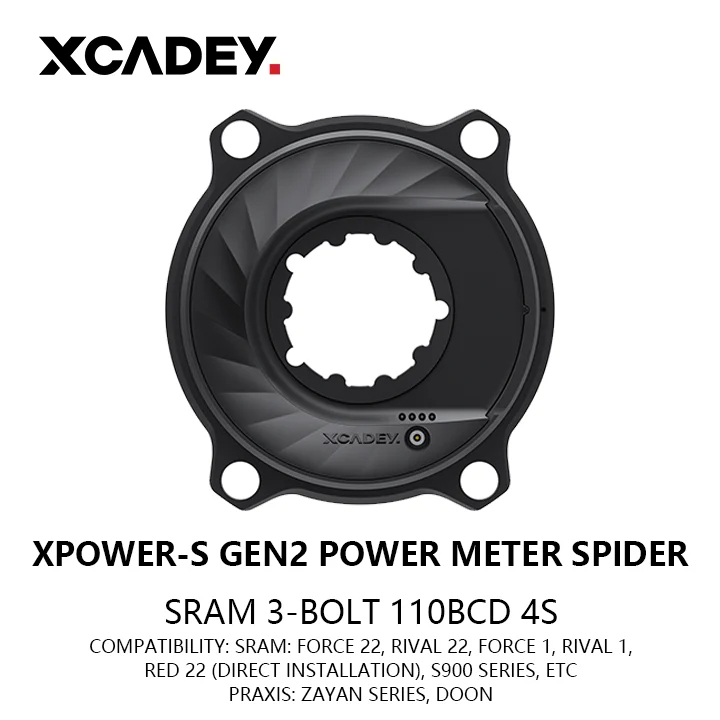

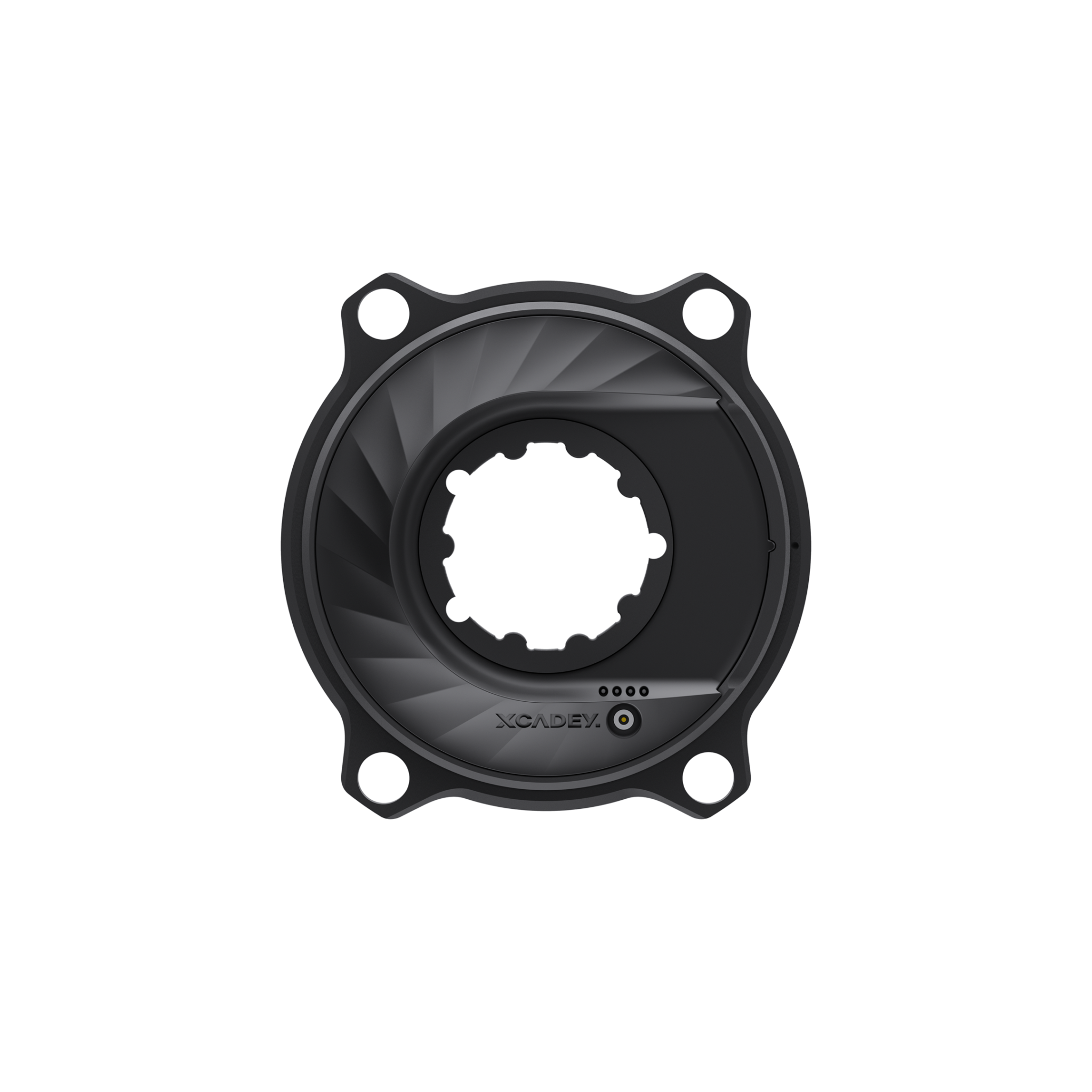

XCADEY XPOWER-S GEN2 interface option for SRAM GXP 3-bolt

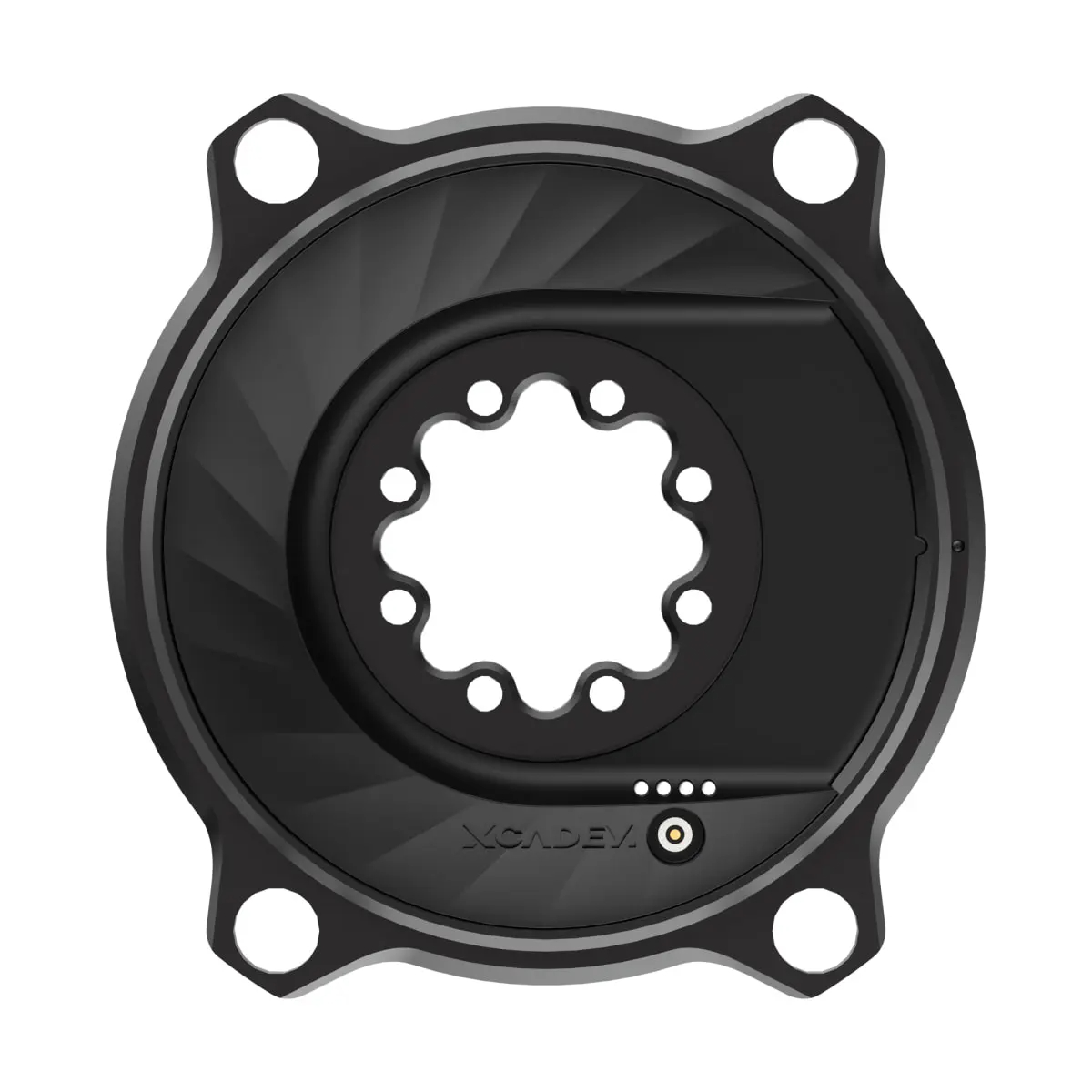

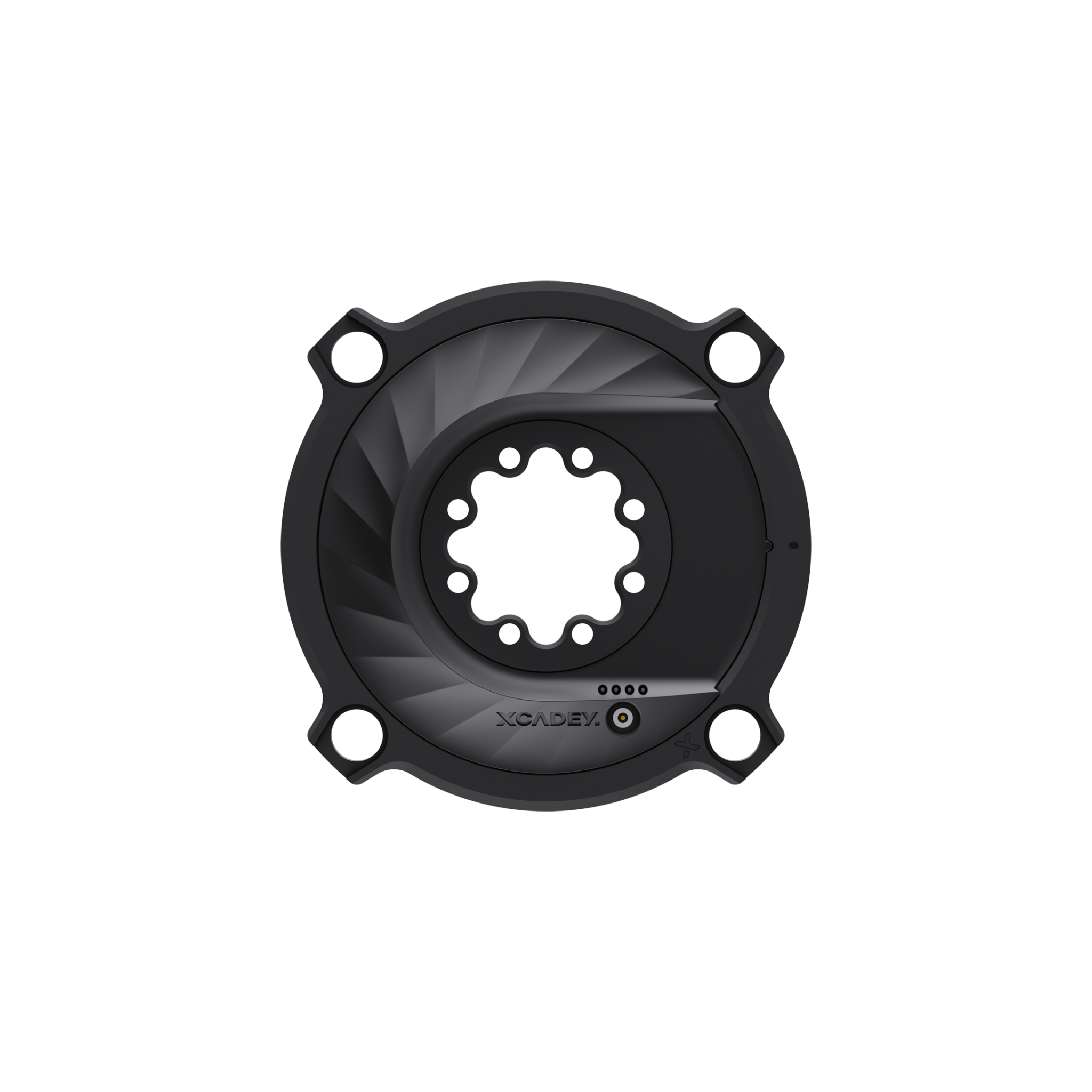

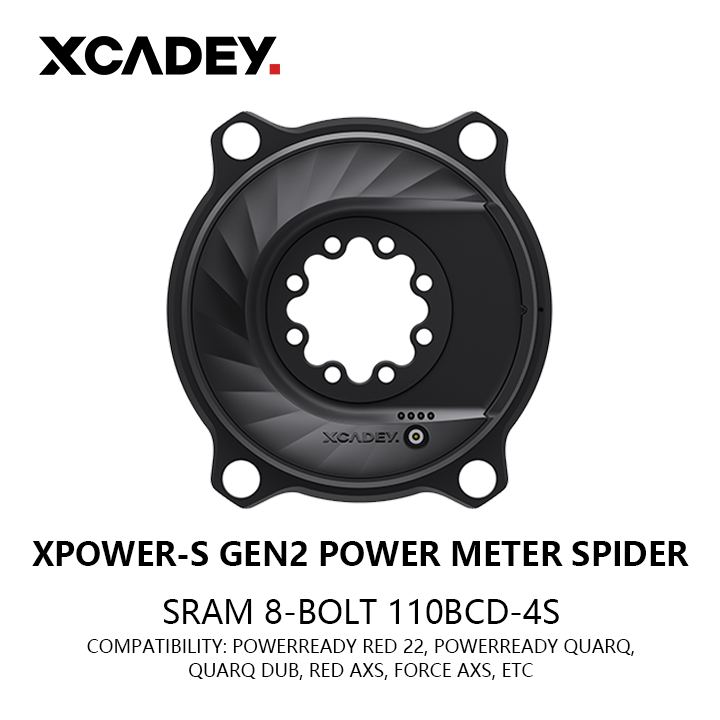

XCADEY XPOWER-S GEN2 interface option for SRAM AXS 8-bolt

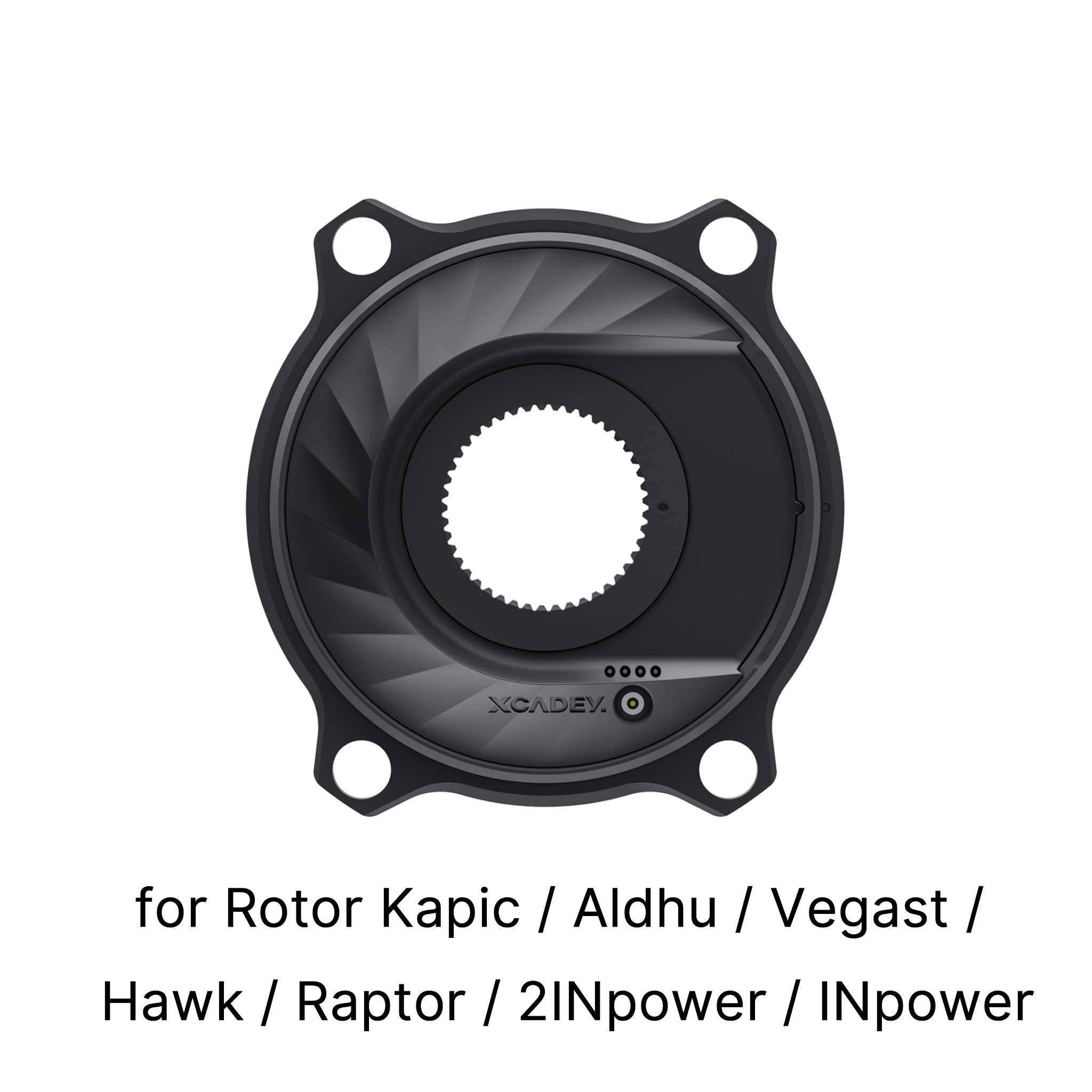

XCADEY XPOWER-S GEN2 interface option for ROTOR ALDHU 30mm
