WHEELTOP EDS GeX Wireless Electronic Shifter/Derailleur Gravel Bikes 3-12 13 14s speed aluminum Carbon (Gravel Bike)

WHEELTOP EDS GeX Wireless Electronic Shifter/Derailleur (Gravel Bike)

• Wide Compatibility – Supports 3–14-speed drivetrains on most gravel bikes.
• Wireless Electronic Shifting – Faster, simpler gear changes with a cleaner setup.

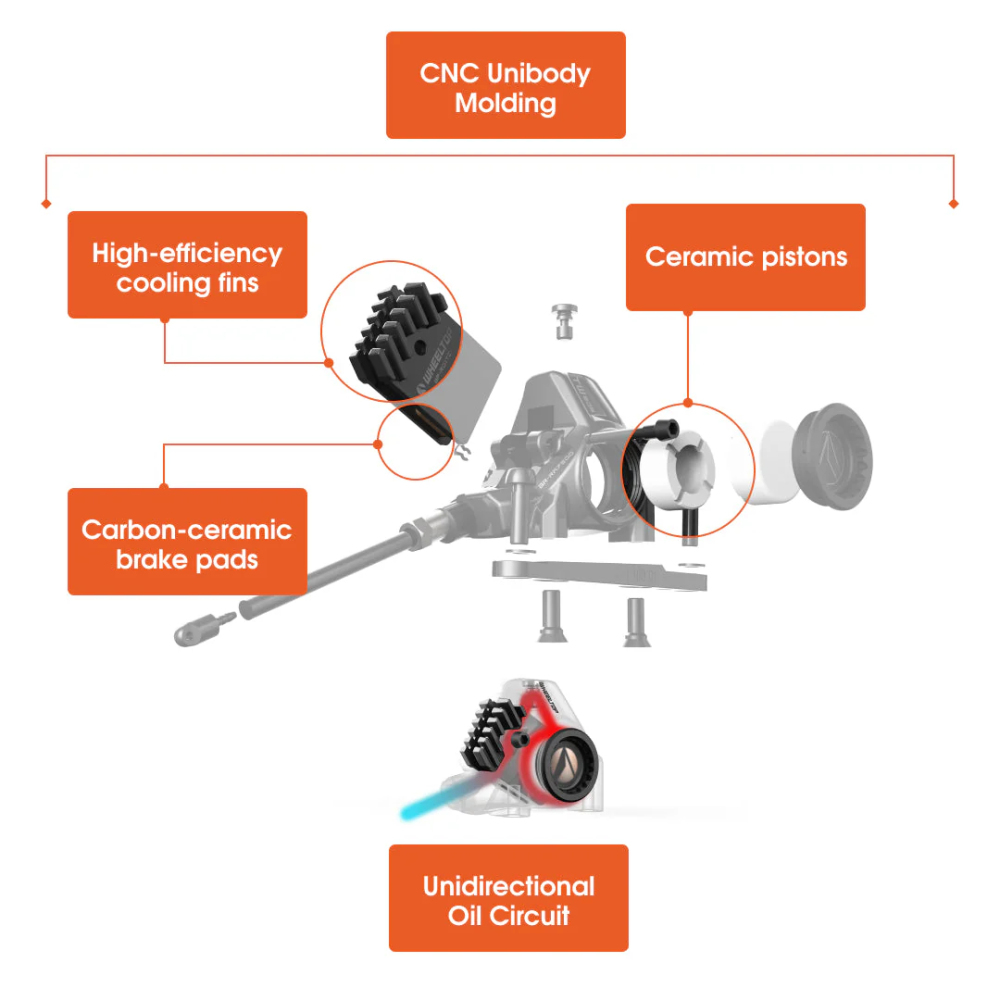

• RA7800 Caliper – CNC unibody design, 21mm dual ceramic pistons, and a unidirectional oil circuit.

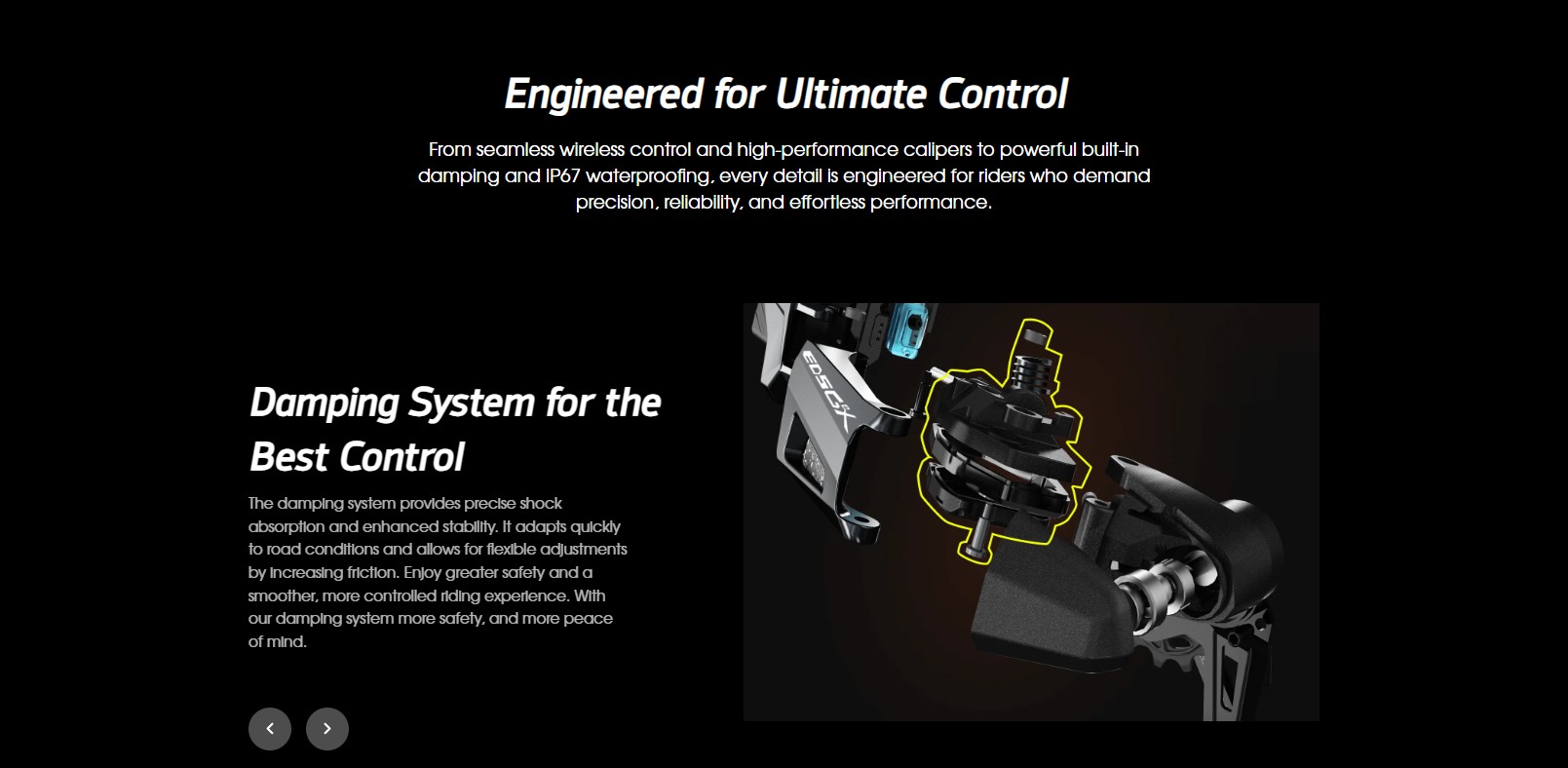

• Damping Adjustment – Smooths shifts, reduces chain impact, and extends system life.
• Battery Capacity – Delivers up to 20,000 shifts per charge and withstands up to 800 recharge cycles.

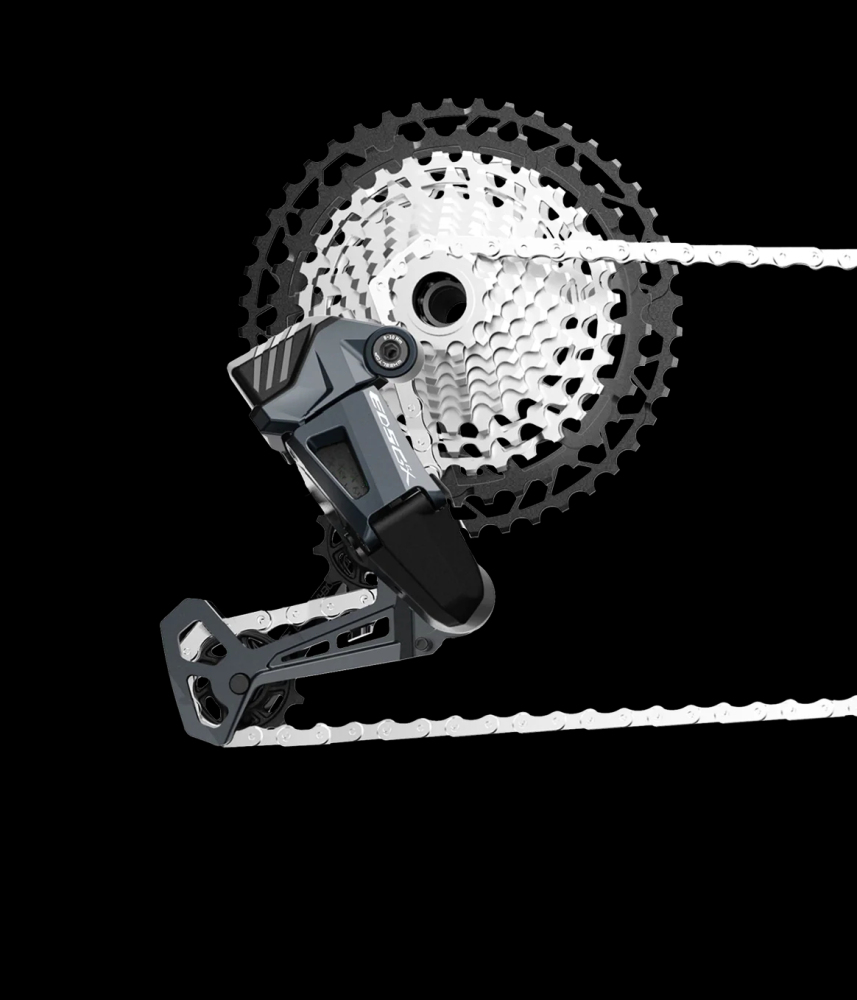

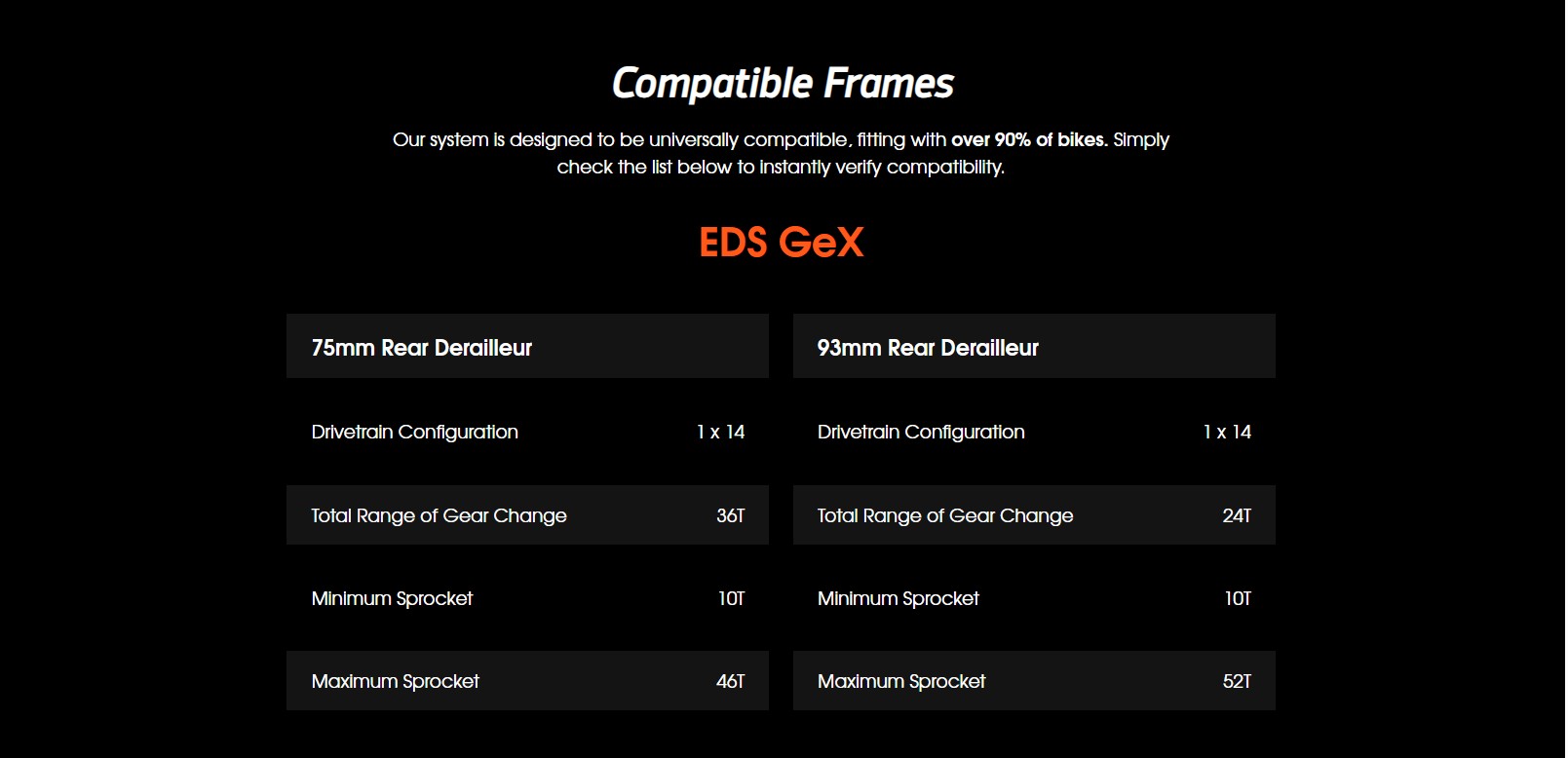

EDS GeX

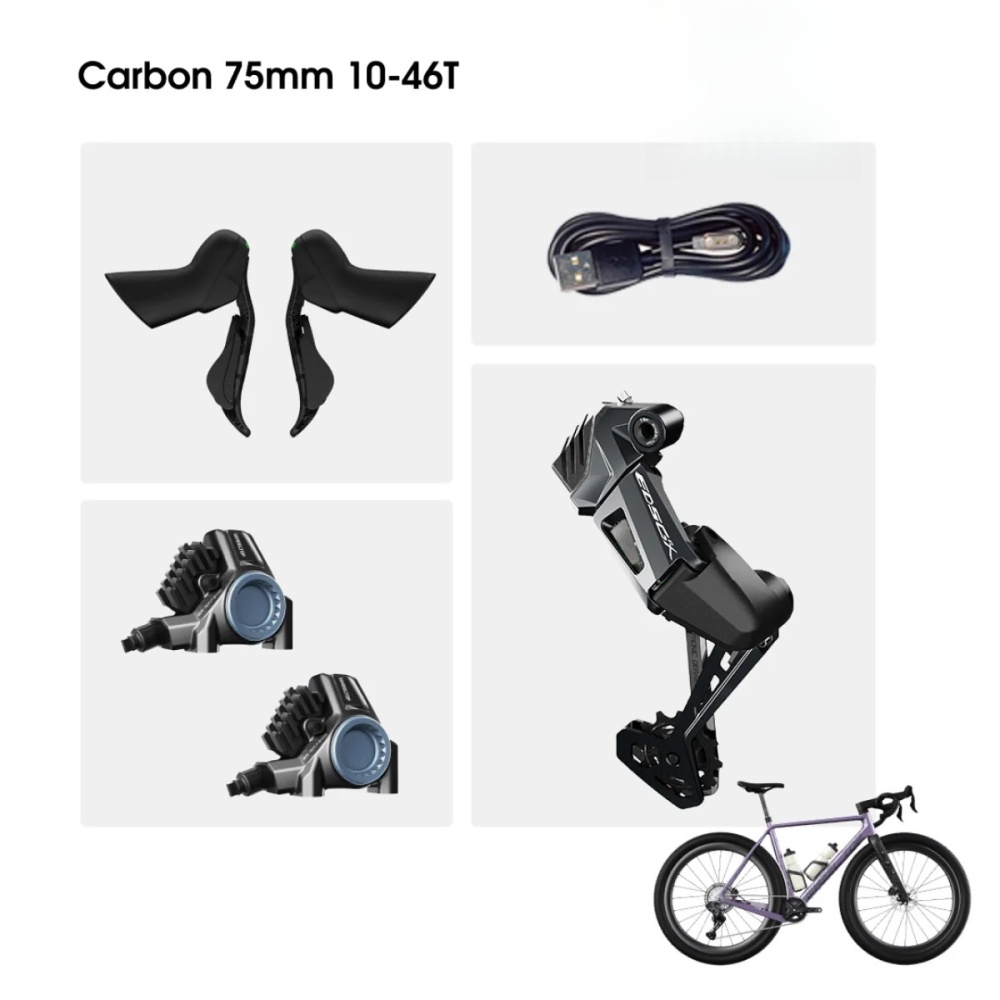

75mm Rear Derailleur

• Drivetrain Configuration: 1 x 14
• Total Range of Gear Change; 36T
• Minimum Sprocket: 10T
• Maximum Sprocket: 46T

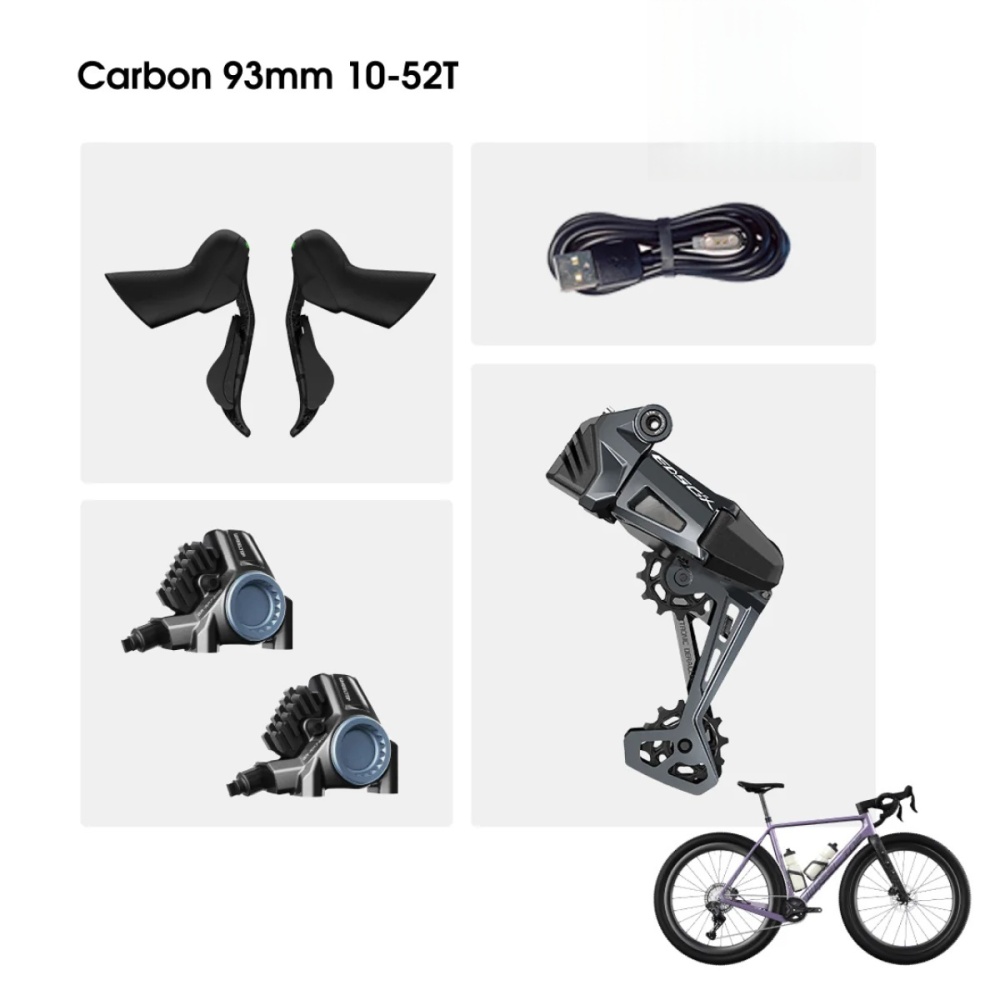

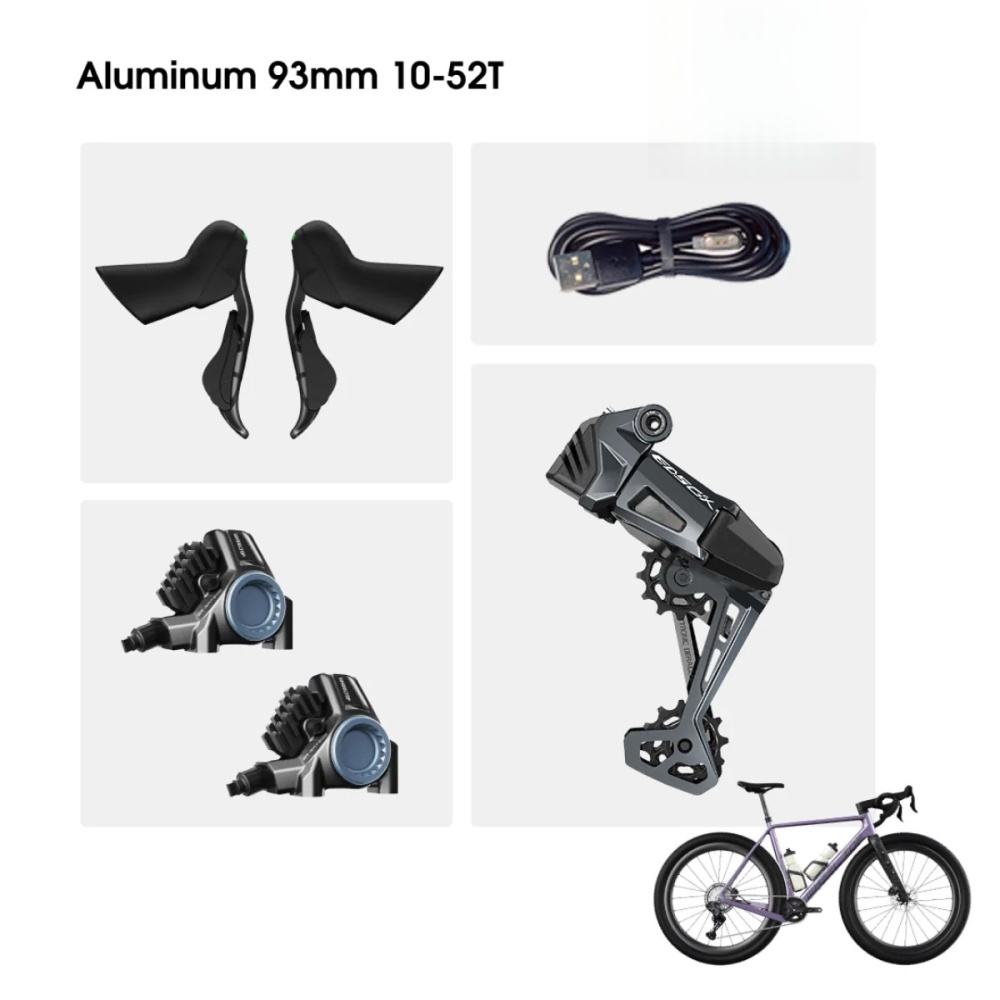

93mm Rear Derailleur

• Drivetrain Configuration: 1 x 14
• Total Range of Gear Change: 24T
• Minimum Sprocket: 10T
• Maximum Sprocket: 52T

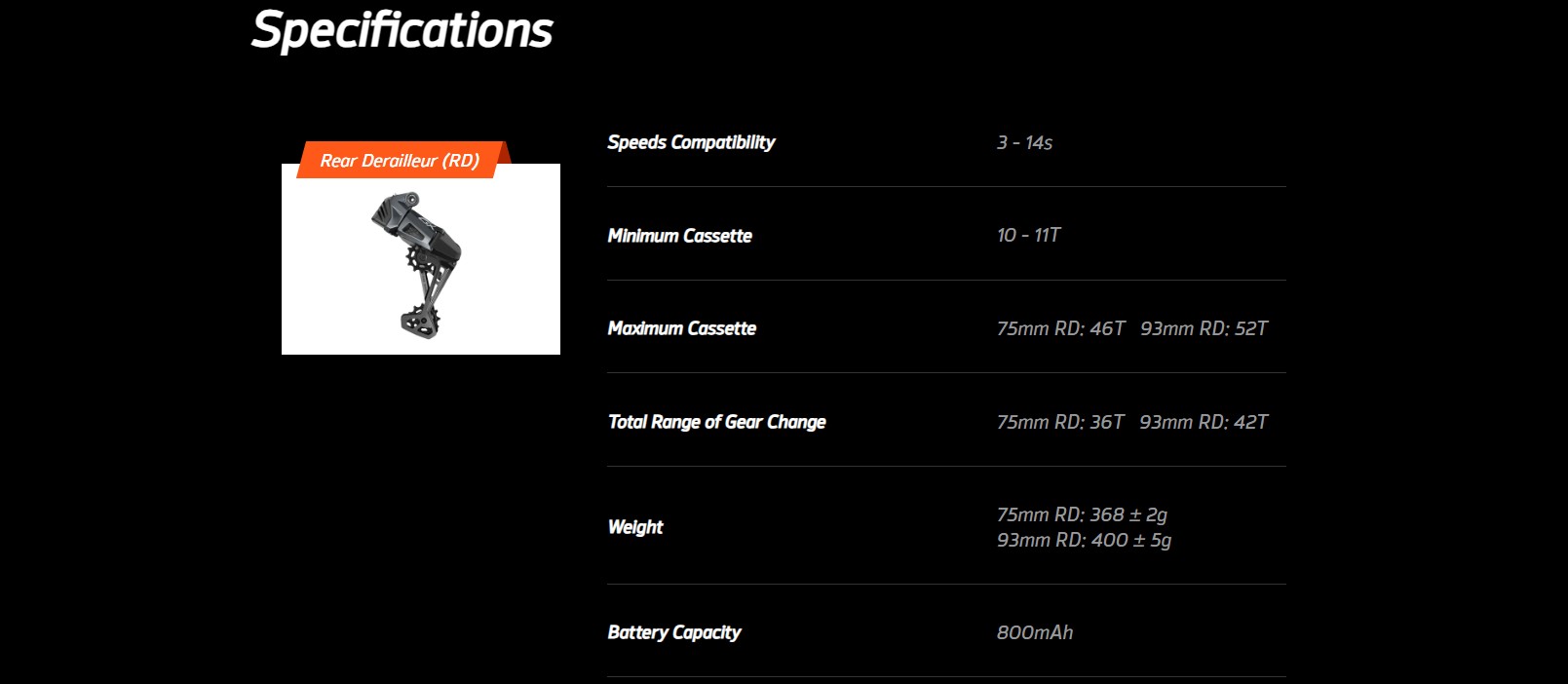

Specifications

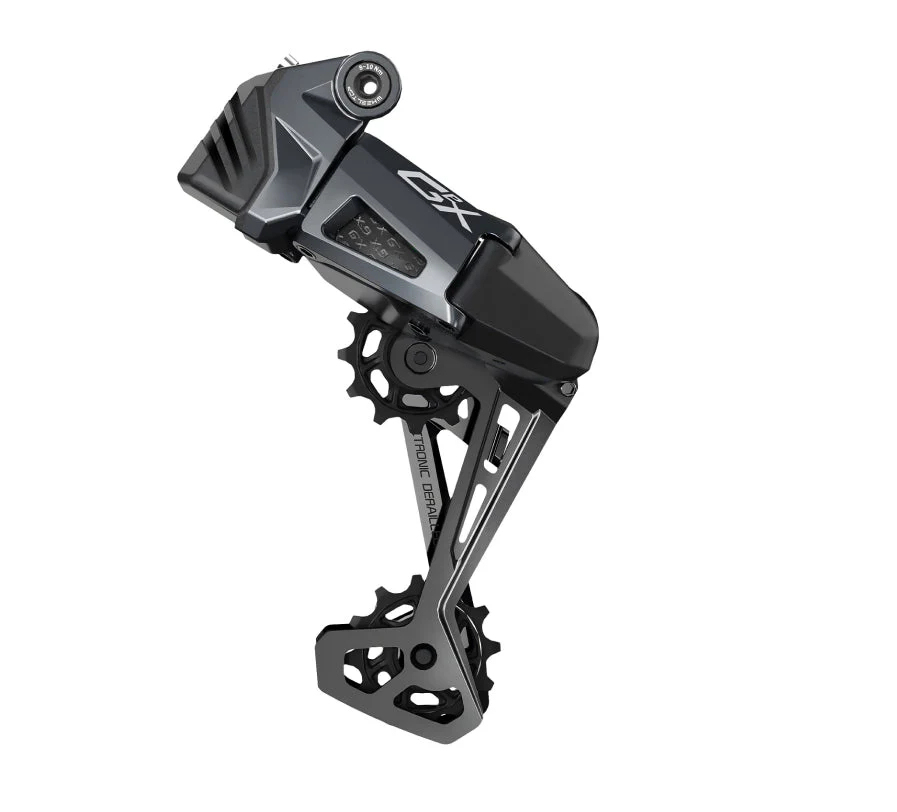

Rear Derailleur (RD)

• Speeds Compatibility: 3 - 14s
• Minimum Cassette: 10 - 11T
• Maximum Cassette:  75mm RD: 46T  93mm RD: 52T
• Total Range of Gear Change: 75mm RD: 36T  93mm RD: 42T
• Weight: 75mm RD: 368 ± 2g  93mm RD: 400 ± 5g
• Battery Capacity: 800mAh
• Mount Type: Normal RD Hanger, Available with UDH
• Waterproof and Dustproof Rating: IP67

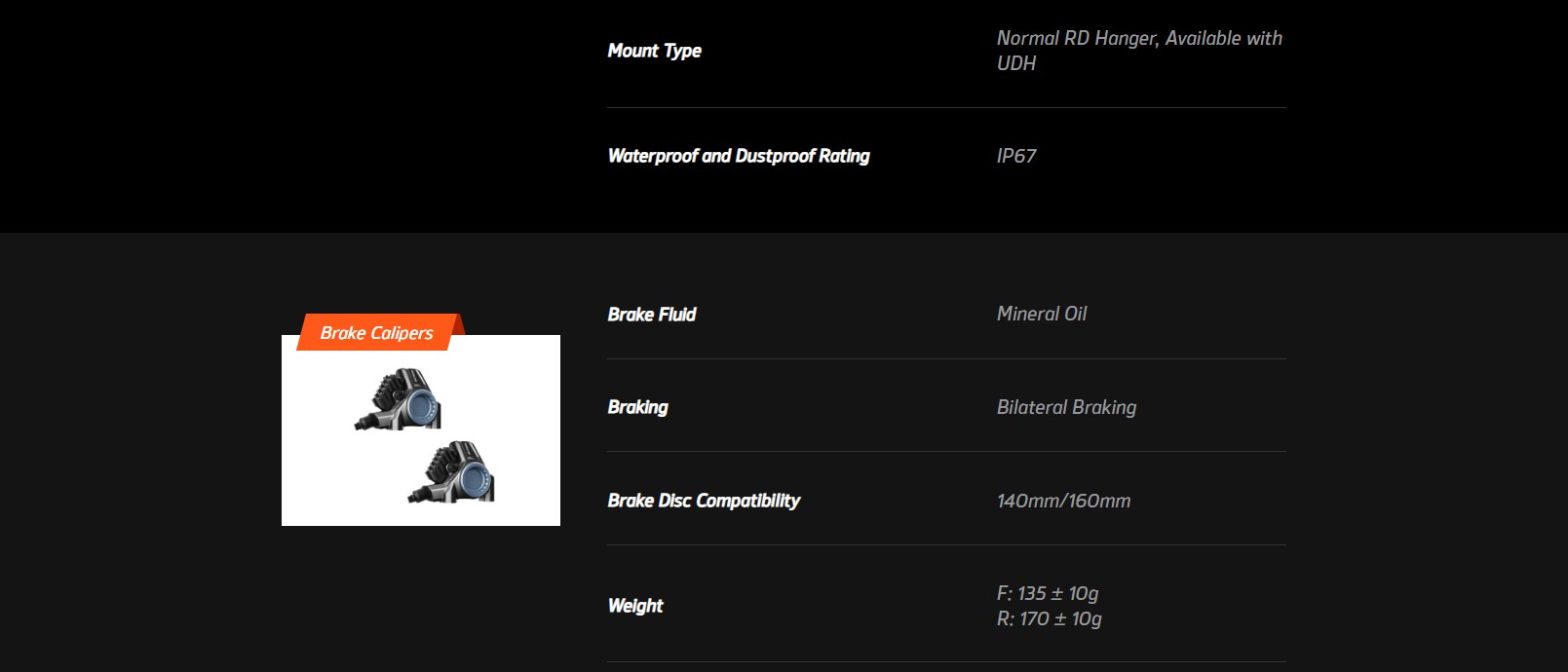

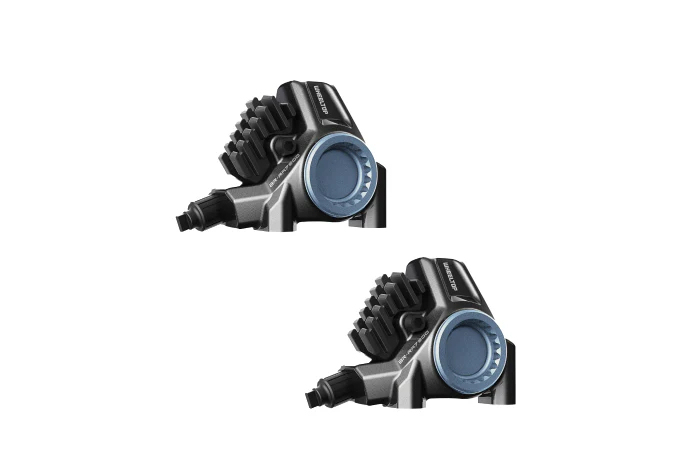

Brake Calipers

• Brake Fluid: Mineral Oil
• Braking: Bilateral Braking
• Brake Disc Compatibility: 140mm/160mm
• Weight: F: 135 ± 10g R: 170 ± 10g

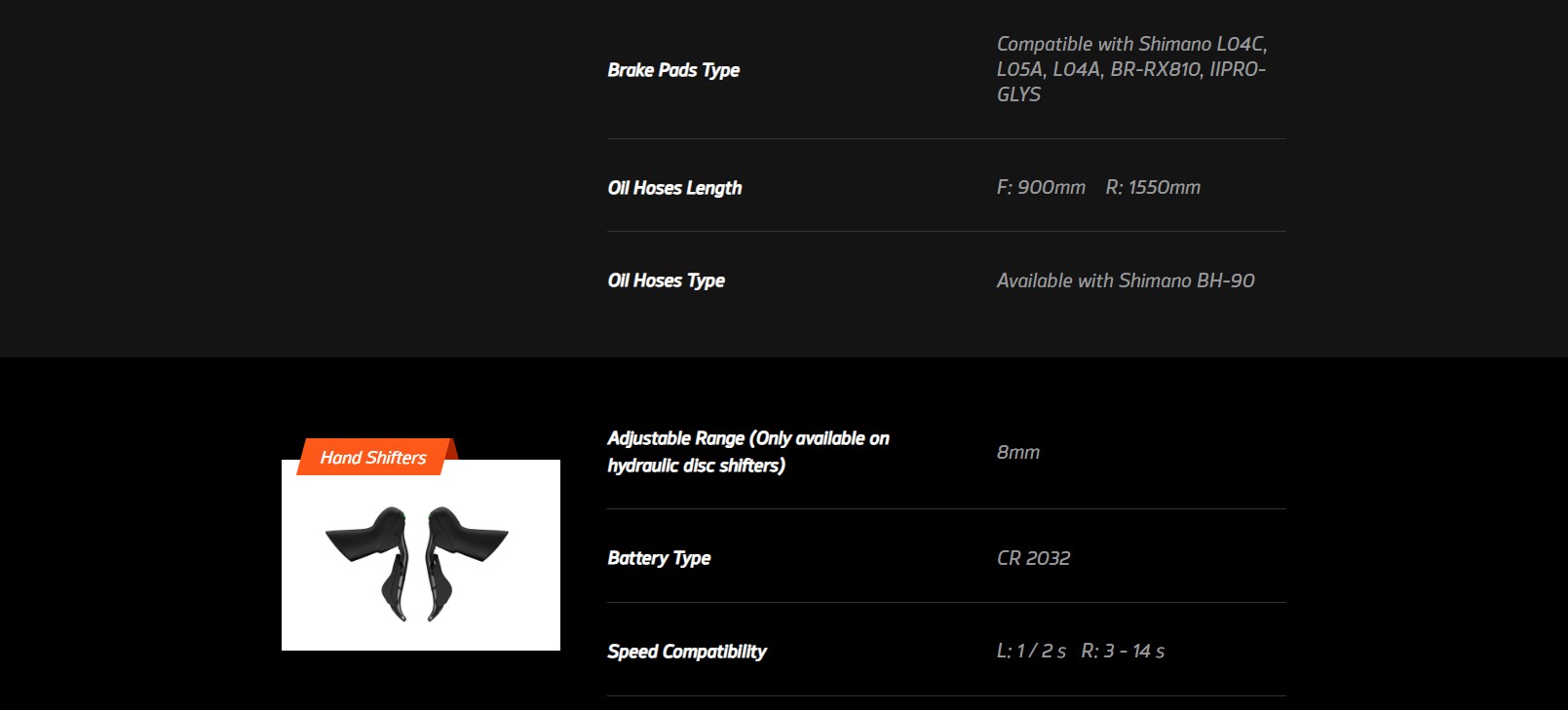

• Brake Pads Type: Compatible with Shimano L04C, L05A, L04A, BR-RX810, IIPRO-GLYS
• Oil Hoses Length: F: 900mm    R: 1550mm
• Oil Hoses Type: Available with Shimano BH-90

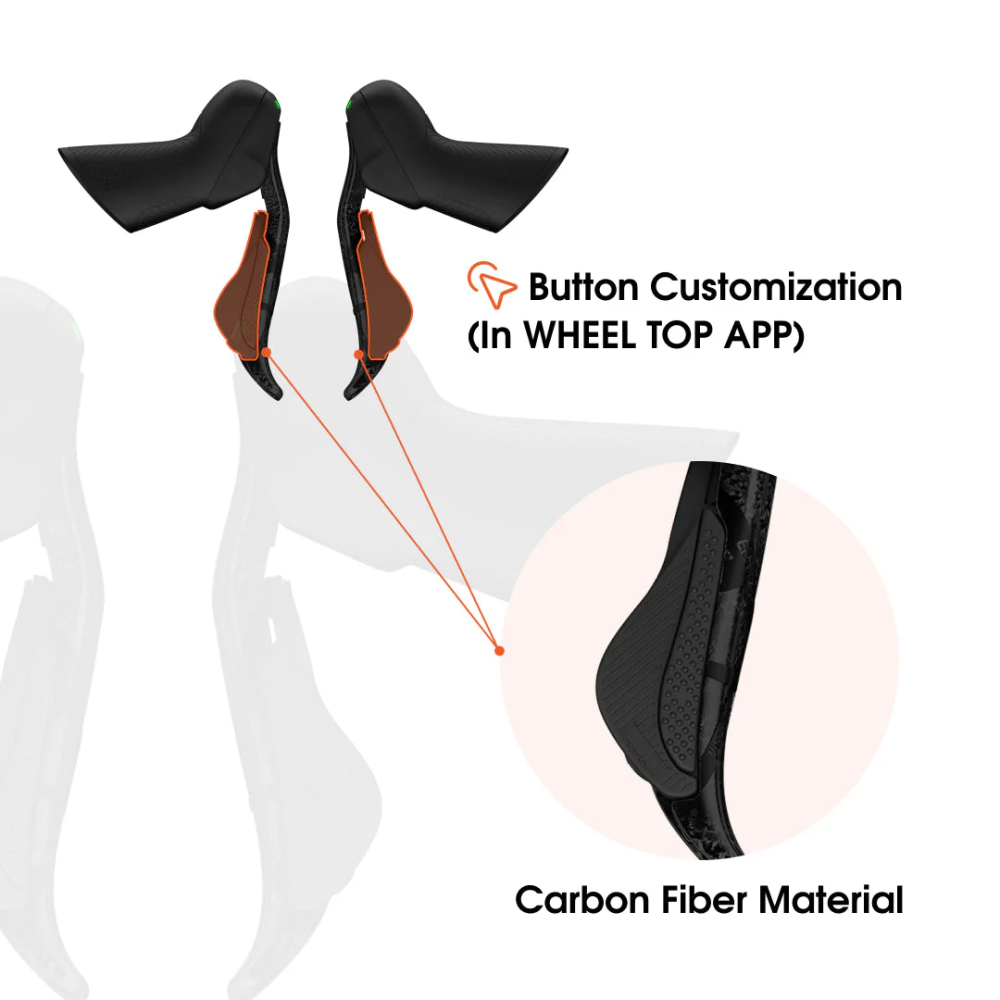

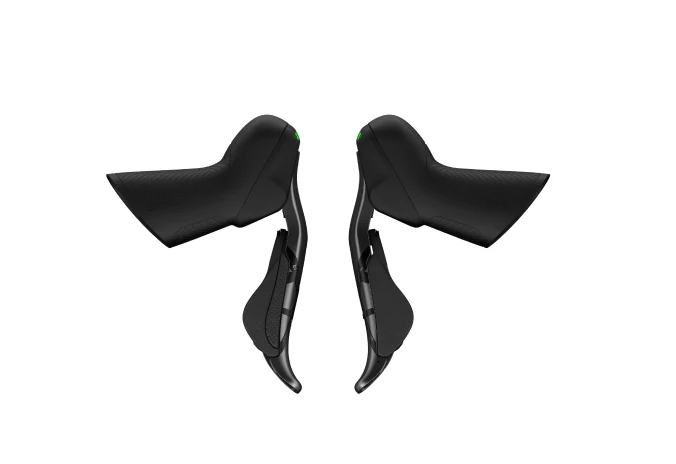

Hand Shifters

• Adjustable Range (Only available on hydraulic disc shifters): 8mm
• Battery Type: CR 2032
• Speed Compatibility:  L: 1 / 2 s   R: 3 - 14 s

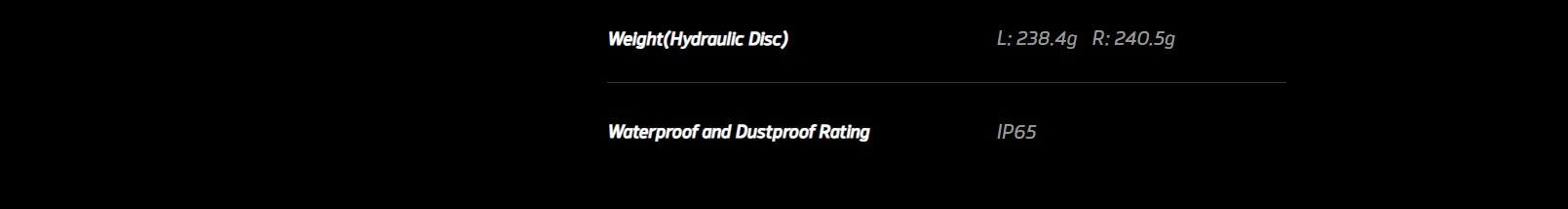

• Weight(Hydraulic Disc): L: 238.4g   R: 240.5g
• Waterproof and Dustproof Rating: IP65
