TOOPRE Spider Lockring Removal and Installation Tool, 45# High Carbon Steel Bicycle Tool for ROTOR, Cannondale and Specialized

The TOOPRE Spider Lockring Removal and Installation Tool is designed for removing and installing compatible spider lockrings used on selected bicycle crank systems. Based on the provided materials, this tool is offered in TL-S22, TL-S23, and TL-S24 versions and is suitable for ROTOR, Cannondale, and Specialized applications as shown in the product images.

Made from 45# high carbon steel, the tool features quenching and heat treatment for improved hardness, along with electroplating treatment to support rust resistance. The body is produced with CNC finishing for a precise fit between the tool teeth and the lockring profile, while the rounded lead-angle edge treatment helps keep the surface smooth and more comfortable to handle. It is designed to be used together with a 36mm open-end wrench, making it a practical choice for bicycle maintenance and drivetrain service.

Key Selling Points

• Designed for spider lockring removal and installation
• Available in TL-S22 / TL-S23 / TL-S24
• Made from 45# high carbon steel
• Quenched and heat-treated for higher hardness
• CNC precision finishing for accurate tooth and lockring fit
• Electroplated surface treatment
• Rounded and smooth chamfered edges
• Works with a 36mm open-end wrench
• Suitable for ROTOR / Cannondale / Specialized systems shown in the product materials

Material & Construction

This tool is built from 45# high carbon steel, highlighted in the source materials for its strength and hardness. The product images also state quenching and hard heat treatment, which is used to improve hardness for maintenance applications involving repeated use.

The tool body is further finished with electroplating treatment, and the edge areas are processed with a lead-angle / chamfer treatment to create a more rounded and smooth surface.

Fit, Use & Processing Details

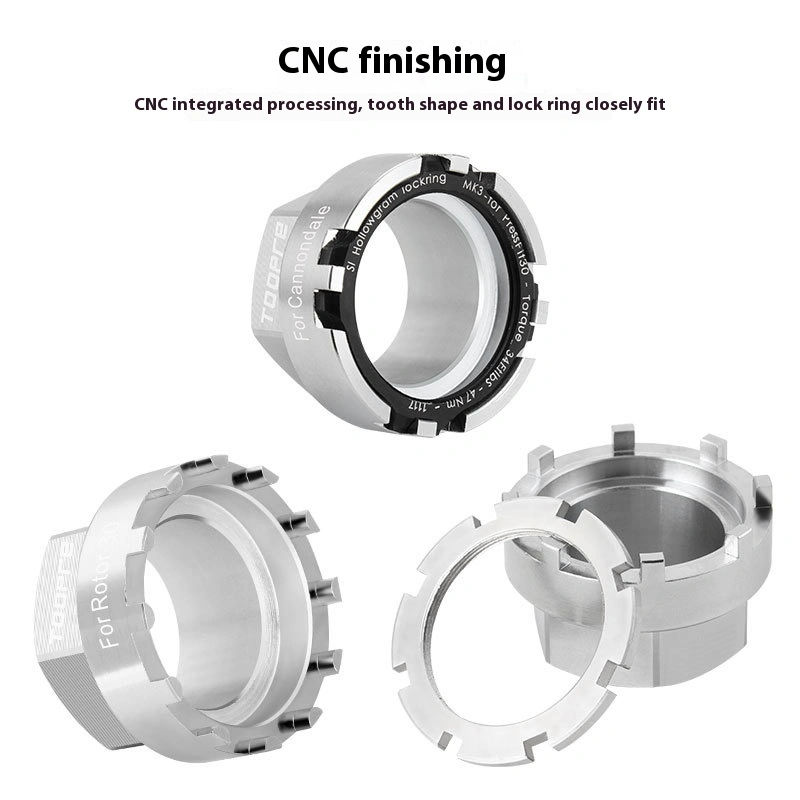

The product materials emphasize CNC integrated processing, with the tooth shape designed to fit closely with the corresponding lockring profile. This close fit helps improve installation and removal accuracy during use.

The images also specify that the tool should be matched with a 36mm open-end wrench.

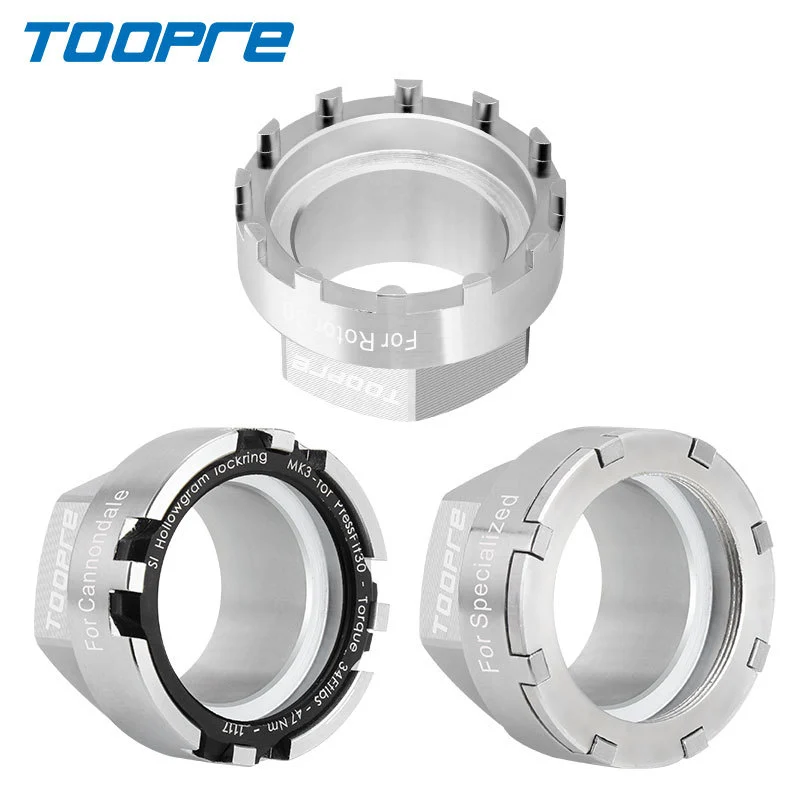

Based on the markings shown in the images:

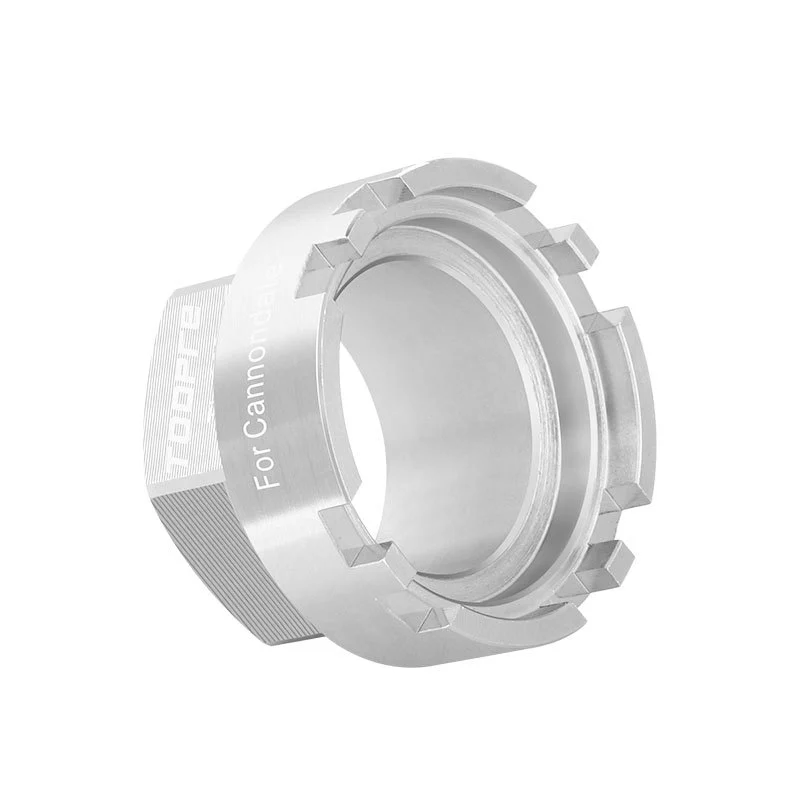

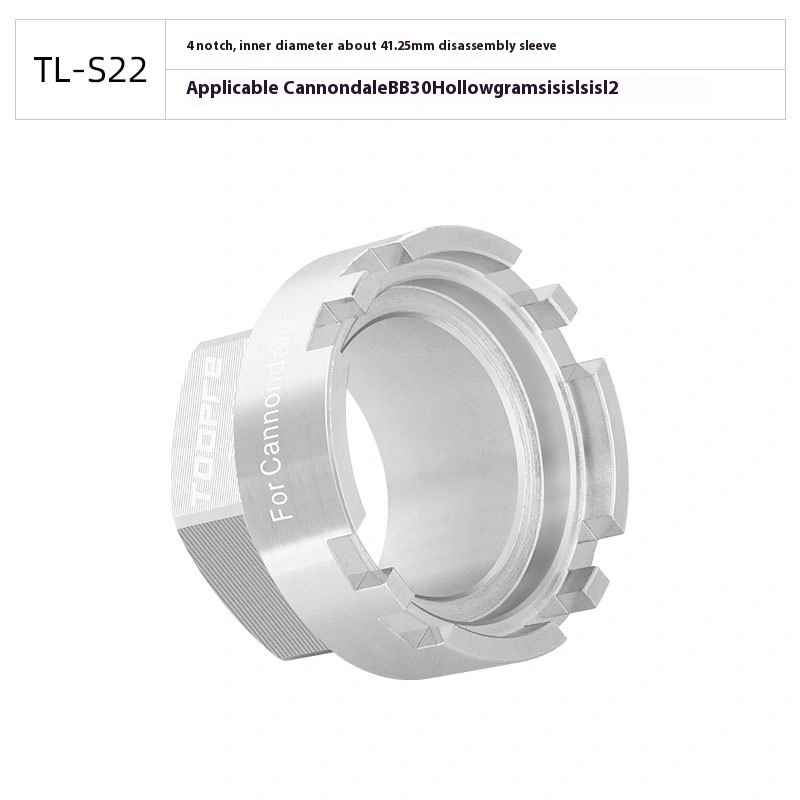

• TL-S22: for Cannondale

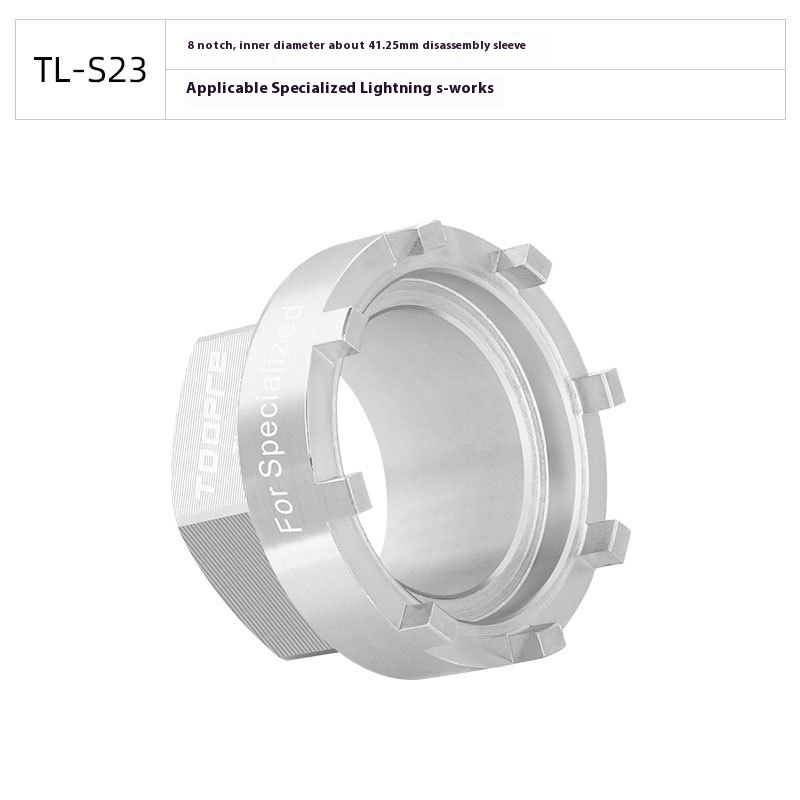

• TL-S23: for Specialized

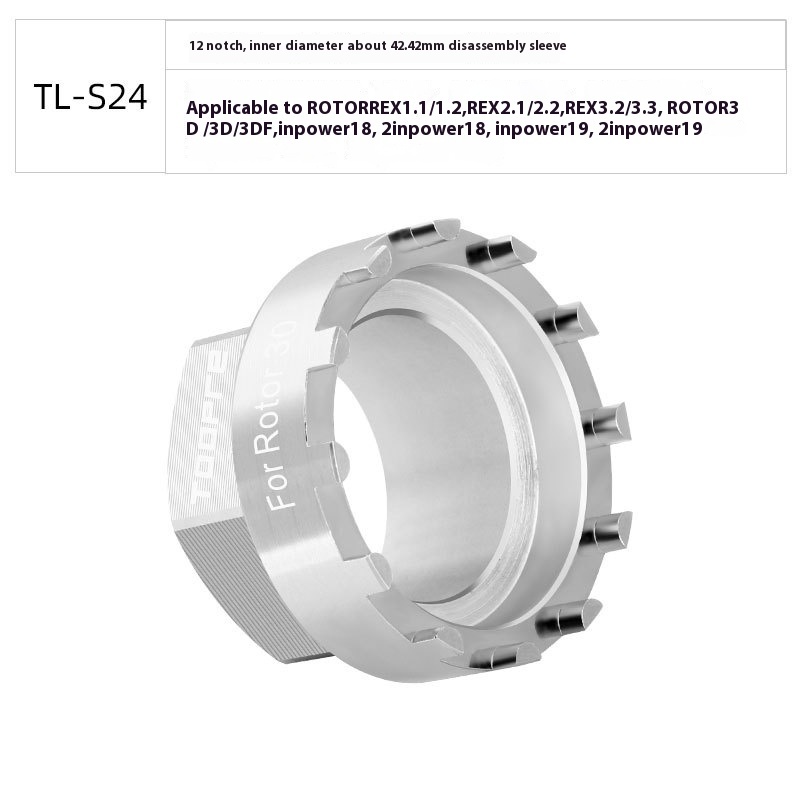

• TL-S24: for ROTOR / Rotor 30

Compatibility should be selected according to the corresponding model version and lockring type shown in the product images.

Specifications

Size, Weight & Packaging

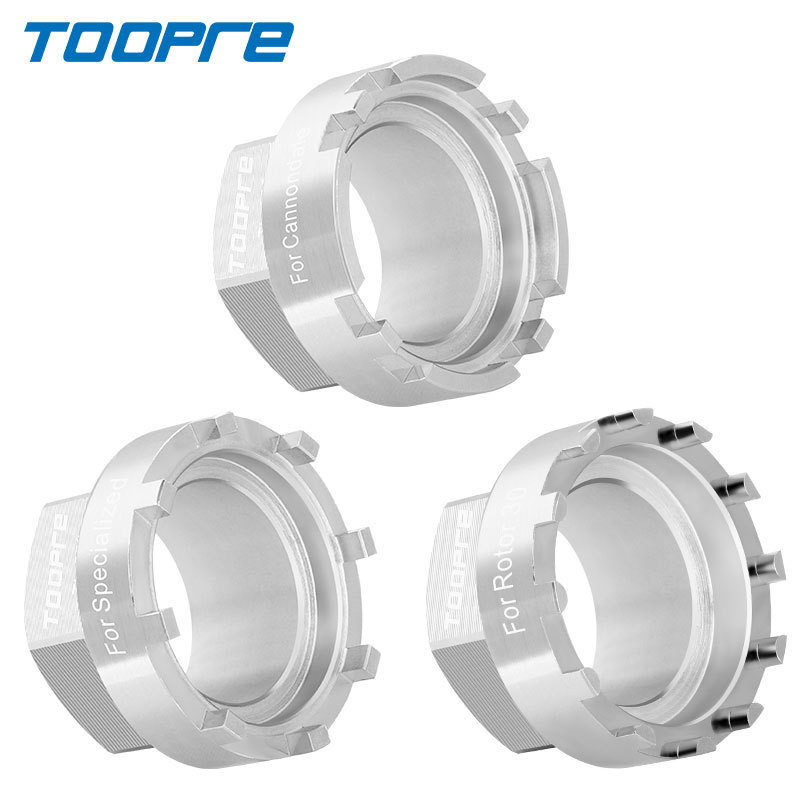

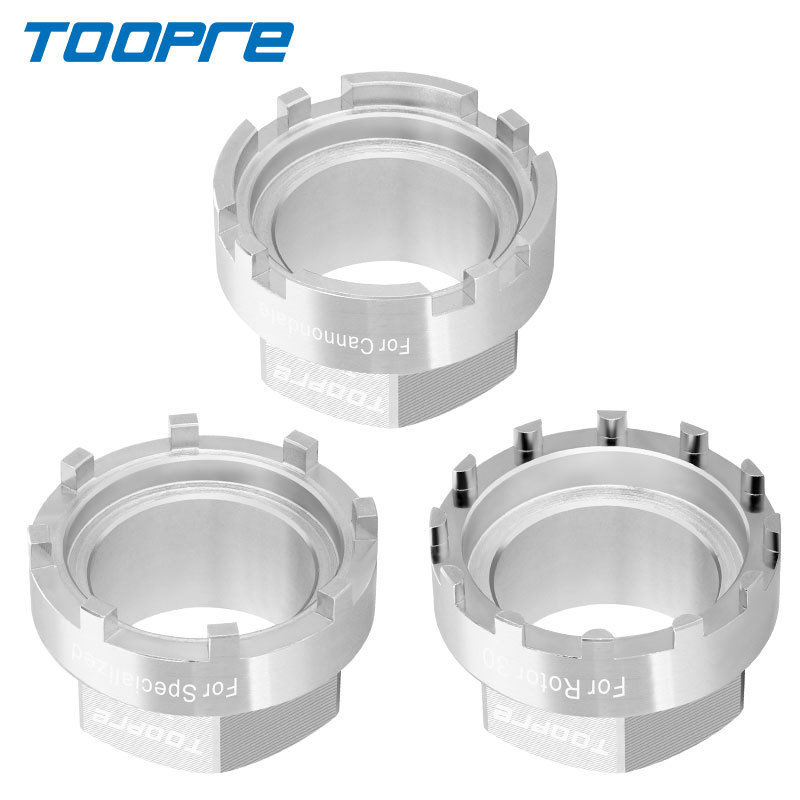

The product images show that the three tool versions share the same diameter and height. Reference dimensions shown in the materials include:

• Outer hex width: approx. 36mm
• Inner diameter: approx. 30.5mm
• Upper height: approx. 14.5mm
• Lower height: approx. 15mm
• Base outer diameter: approx. 47mm

Reference weights shown in the images:

• TL-S22: approx. 121.8g
• TL-S23: approx. 116.5g
• TL-S24: approx. 113.7g

Package information shown in the images:

• PP box + brand self-sealing bag packaging
• Package size: approx. 100 x 165 x 32mm

What’s Included

• 1 x TOOPRE Spider Lockring Removal and Installation Tool
  (Model selected from TL-S22 / TL-S23 / TL-S24)
