TOOPRE Bike Seatpost Shim Adapter Sleever - CNC Machined Aluminum Alloy Bicycle Seat Tube Reducer Component

Name: TOOPRE Bike Seatpost Shim Adapter Sleever - CNC Machined Aluminum Alloy Bicycle Seat Tube Reducer Component
Brand: DJC Bikes - DJC Components
Price: 9.08 USD
Availability: InStock
Rating: 5 (4 reviews)

$9.08 ~~$12.60~~

-28%

TOOPRE Bike Seatpost Shim Adapter Sleever - CNC Machined Aluminum Alloy Bicycle Seat Tube Reducer Component.

Both dimensions must match exactly. Do not force an incorrectly sized shim or seatpost into the frame.

Seatpost Diameter Conversion: Reduces a compatible frame seat tube to accept a smaller-diameter seatpost.

Options: 22.2 to 25.4; 25.4 to 27.2; 25.4 to 28.6; 27.2 to 28.6; 27.2 to 30.4; 27.2 to 30.8; 27.2 to 31.6; 27.2 to 33.9; 31.6 to 33.9; 33.9 to 34.9.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Special Sizes:

22.2 to 25.4

25.4 to 27.2

25.4 to 28.6

27.2 to 28.6

27.2 to 30.4

27.2 to 30.8

27.2 to 31.6

27.2 to 33.9

31.6 to 33.9

33.9 to 34.9

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

TOOPRE Bike Seatpost Shim Adapter Sleever - CNC Machined Aluminum Alloy Bicycle Seat Tube Reducer Component

The TOOPRE Bicycle Seatpost Shim Adapter is a precision conversion sleeve for installing a smaller-diameter seatpost into a compatible larger-diameter bicycle frame seat tube. Select the correct size according to the outside diameter of the seatpost and the inside diameter of the frame seat tube.

Technical Specifications

Item	Specification
Product Type	Seatpost Shim
Key Feature	Seatpost Diameter Conversion: Reduces a compatible frame seat tube to accept a smaller-diameter seatpost. CNC-Machined Aluminum Alloy: Lightweight aluminum alloy construction with precision-turned dimensions.
Compatibility	Seatpost Diameter Conversion: Reduces a compatible frame seat tube to accept a smaller-diameter seatpost.; Inner Diameter: Check the size marking on your seatpost, or measure its outer diameter with a caliper. Frame Seat Tube Diameter = Shim

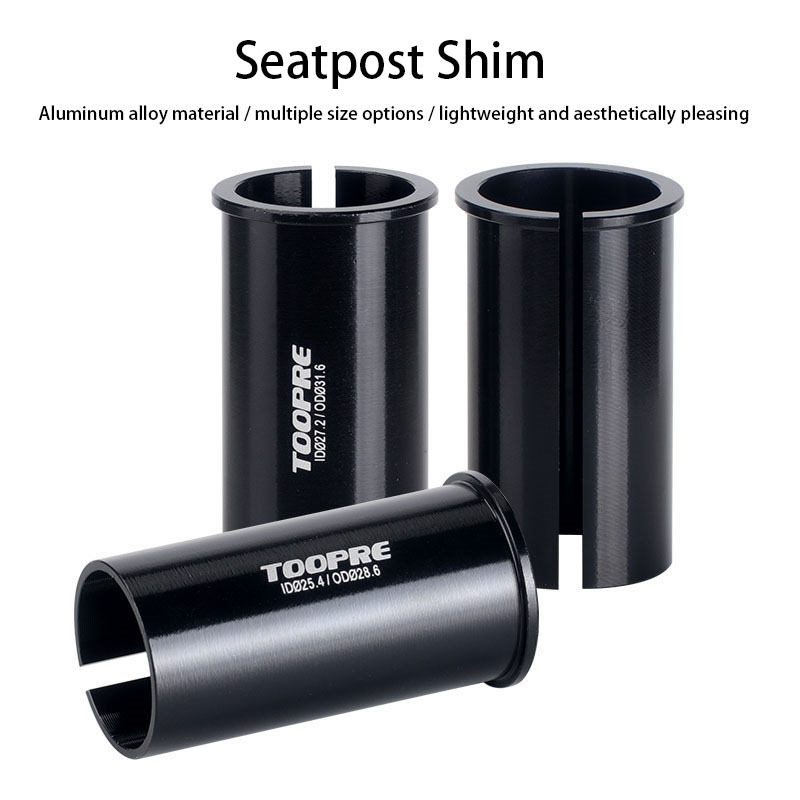

Each shim is made from CNC-machined aluminum alloy and features a slotted design with a top retaining lip. It is available in multiple conversion sizes for compatible mountain bikes, road bikes, folding bikes and commuter bicycles.

Key Features

Seatpost Diameter Conversion: Reduces a compatible frame seat tube to accept a smaller-diameter seatpost.

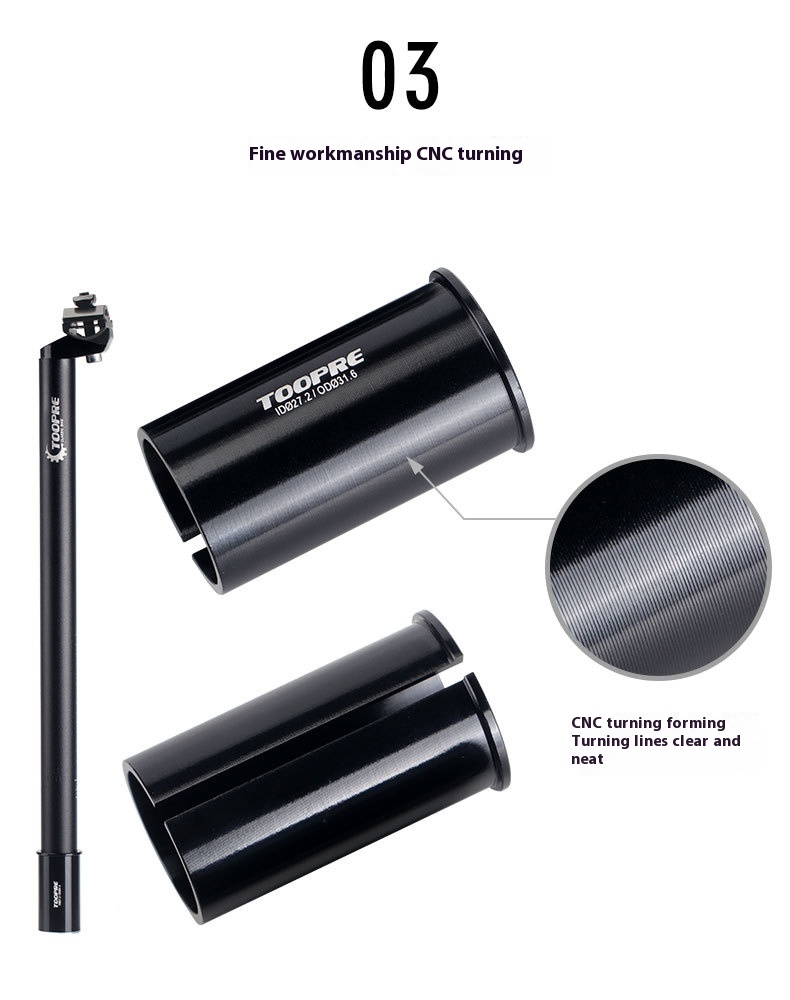

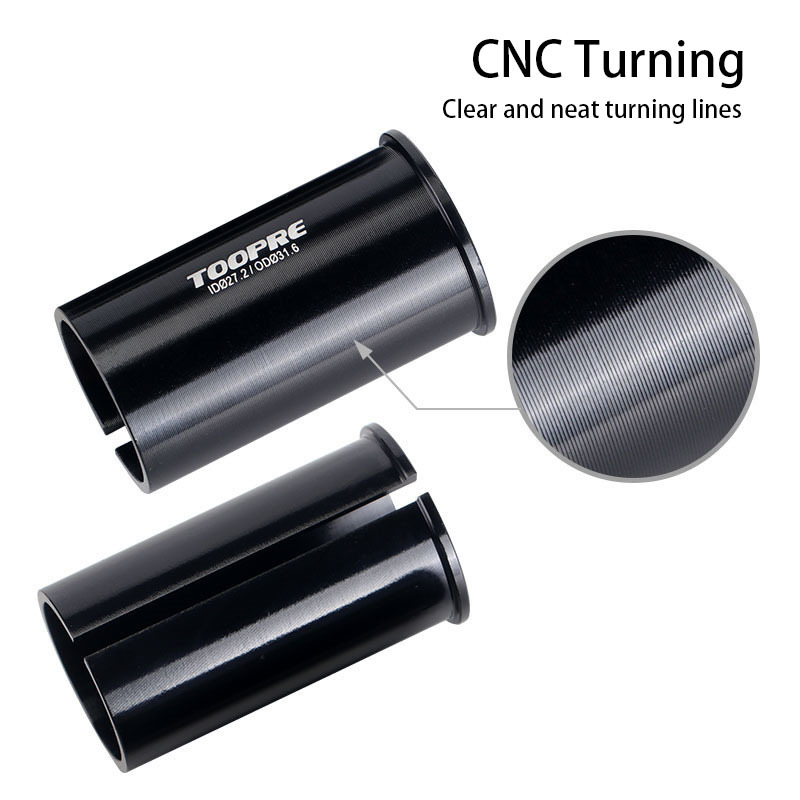

CNC-Machined Aluminum Alloy: Lightweight aluminum alloy construction with precision-turned dimensions.
Slotted Sleeve Design: The longitudinal slot allows the shim to compress with the frame's seatpost clamp.
Retaining Lip: The upper lip helps position the shim at the top of the seat tube.

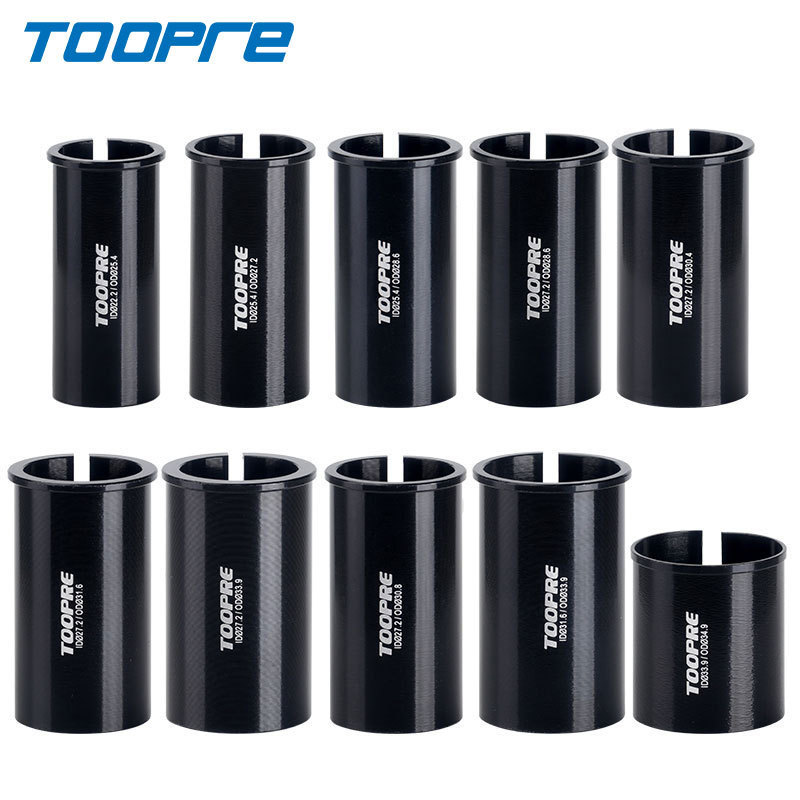

Multiple Size Options: Available in common seatpost-to-frame conversion sizes from 22.2mm to 34.9mm outer diameter.

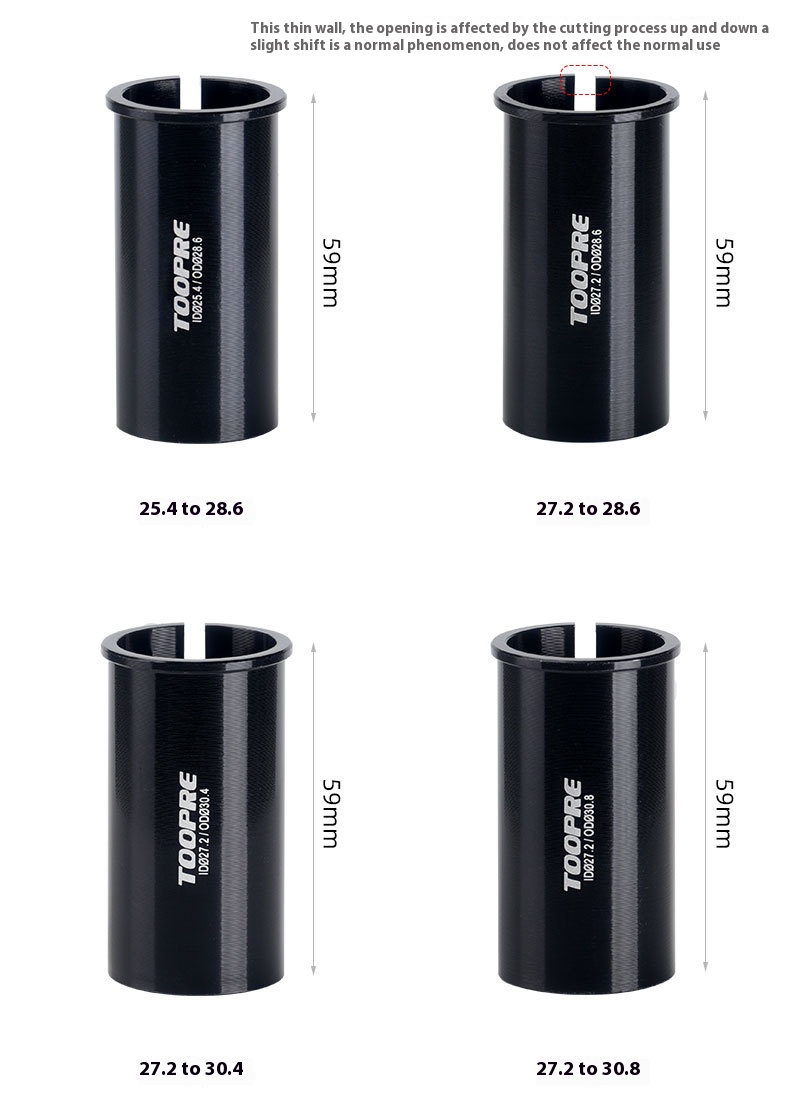

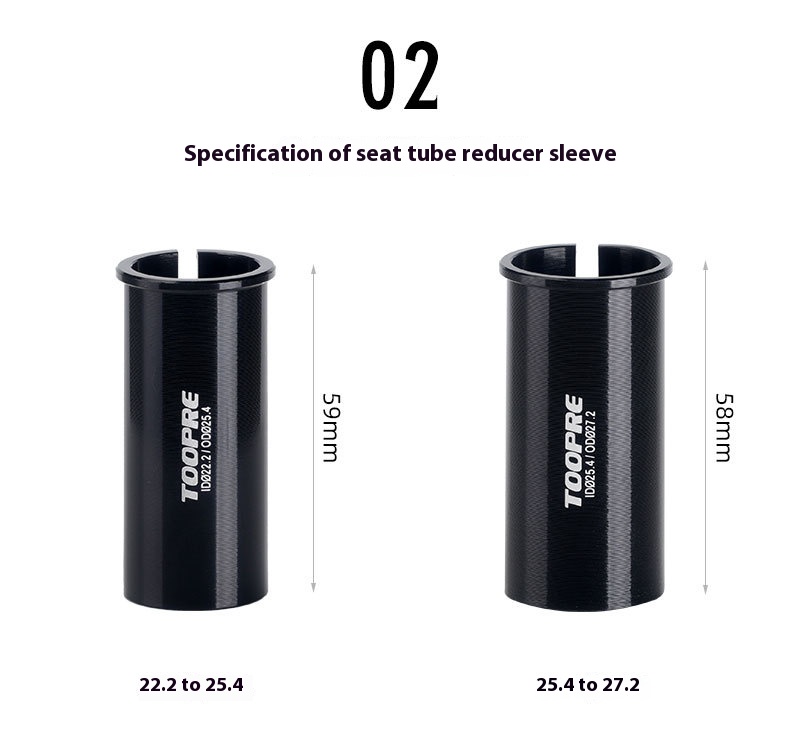

Size Chart

Shim Size	Inner Diameter (Seatpost)	Outer Diameter (Frame Seat Tube)	Height

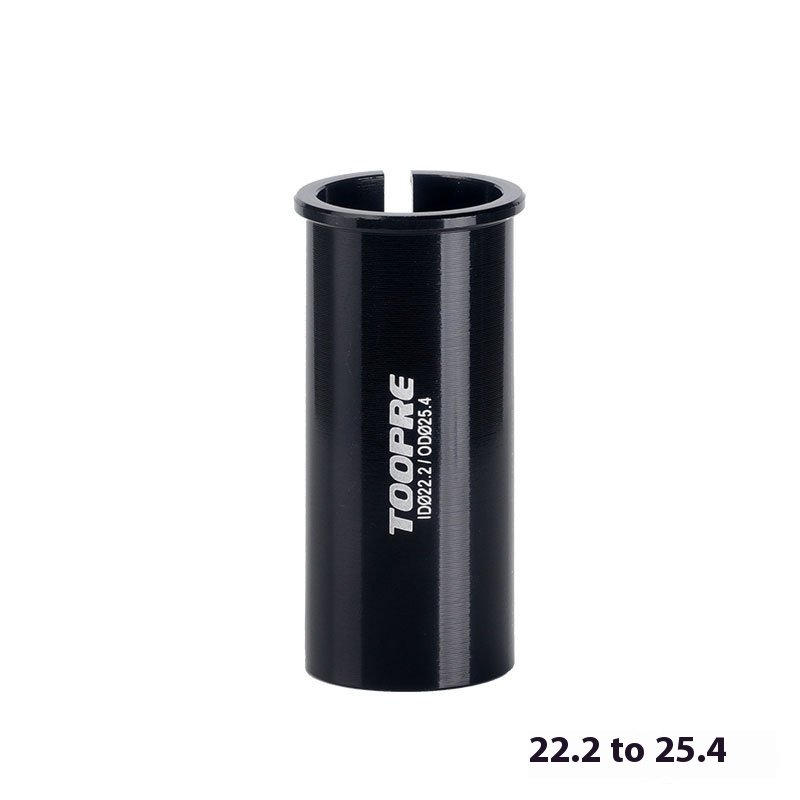

22.2mm to 25.4mm	22.2mm	25.4mm	59mm

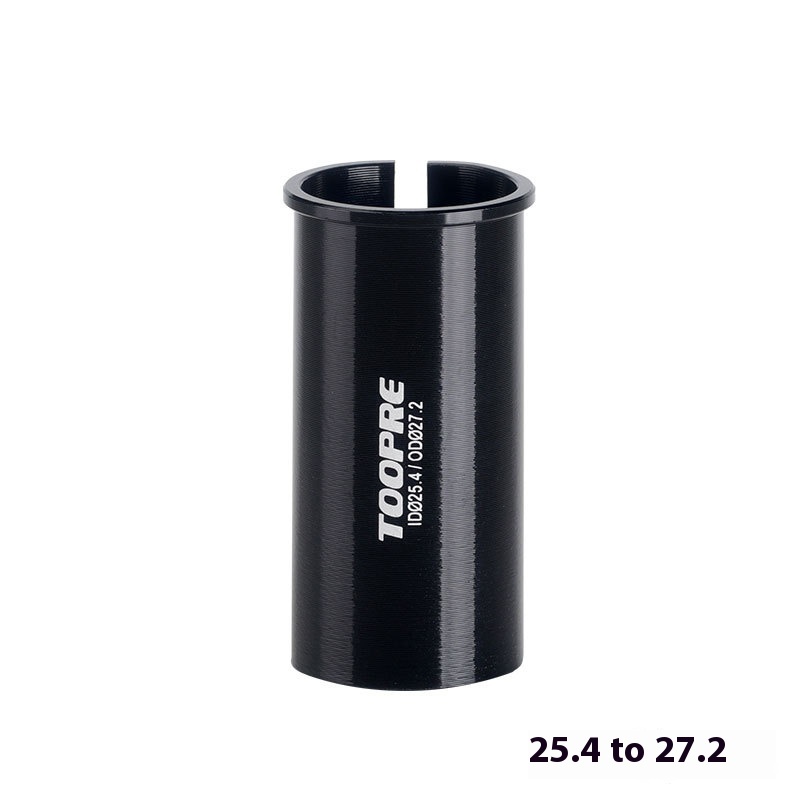

25.4mm to 27.2mm	25.4mm	27.2mm	58mm

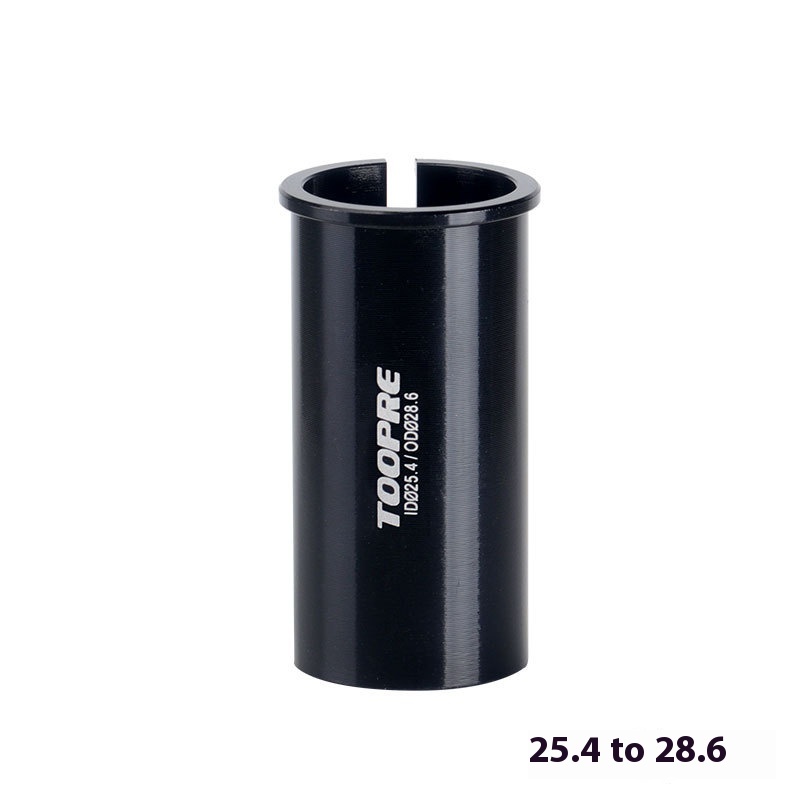

25.4mm to 28.6mm	25.4mm	28.6mm	59mm

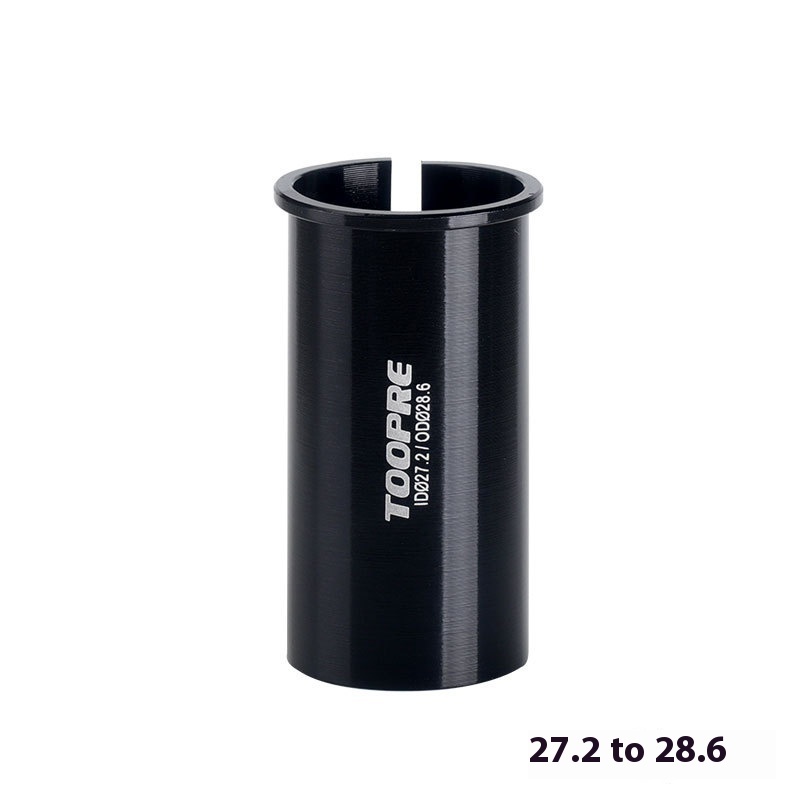

27.2mm to 28.6mm	27.2mm	28.6mm	59mm

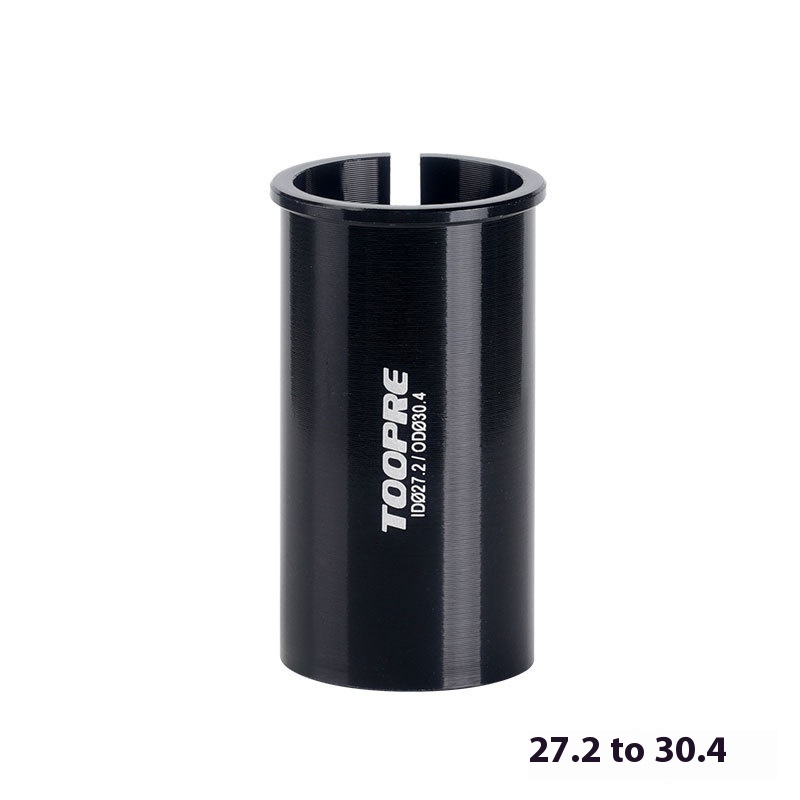

27.2mm to 30.4mm	27.2mm	30.4mm	59mm

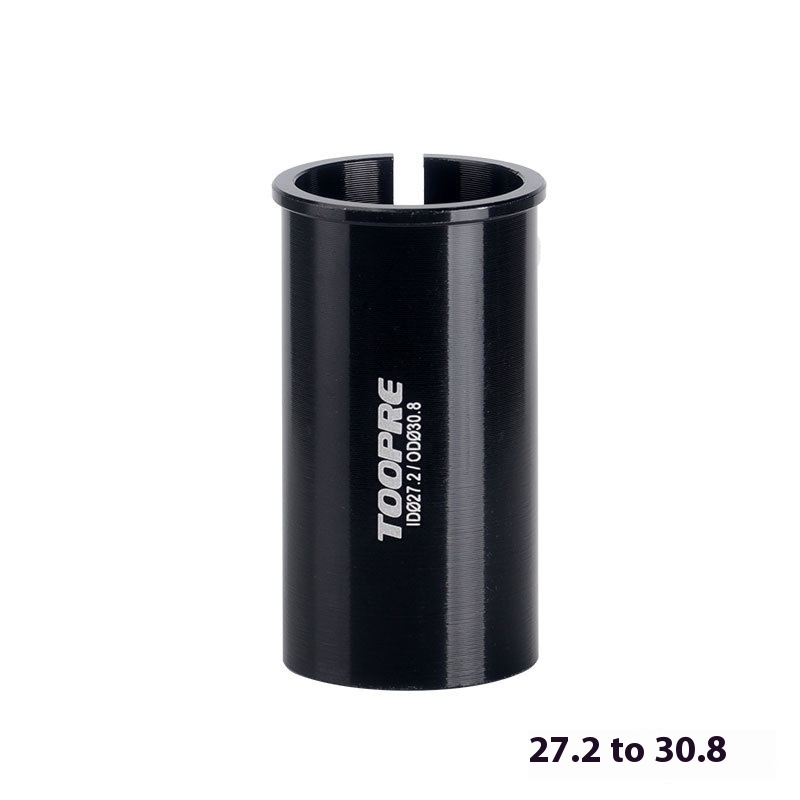

27.2mm to 30.8mm	27.2mm	30.8mm	59mm

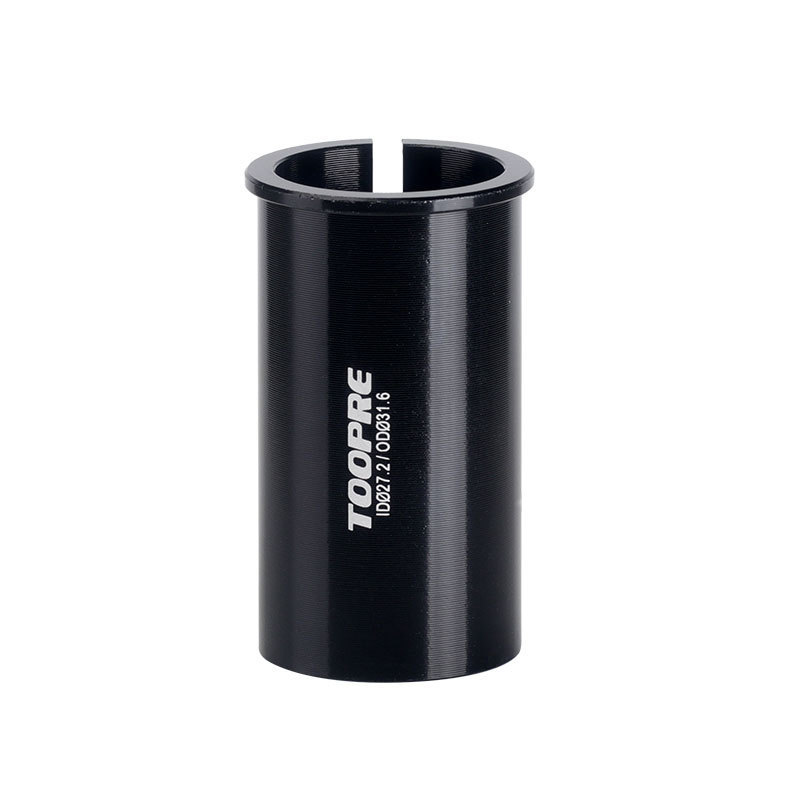

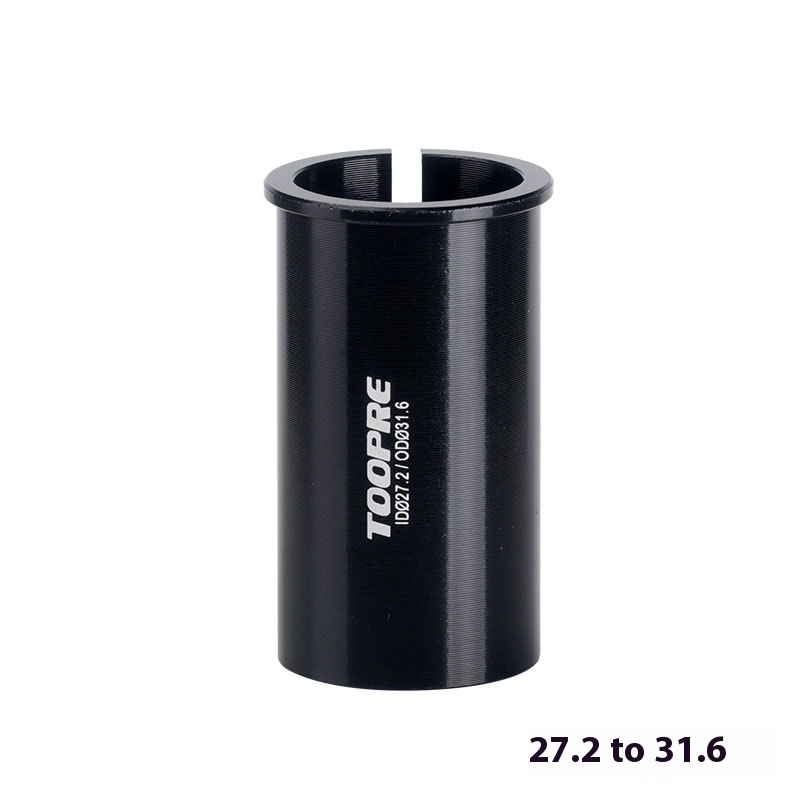

27.2mm to 31.6mm	27.2mm	31.6mm	59mm

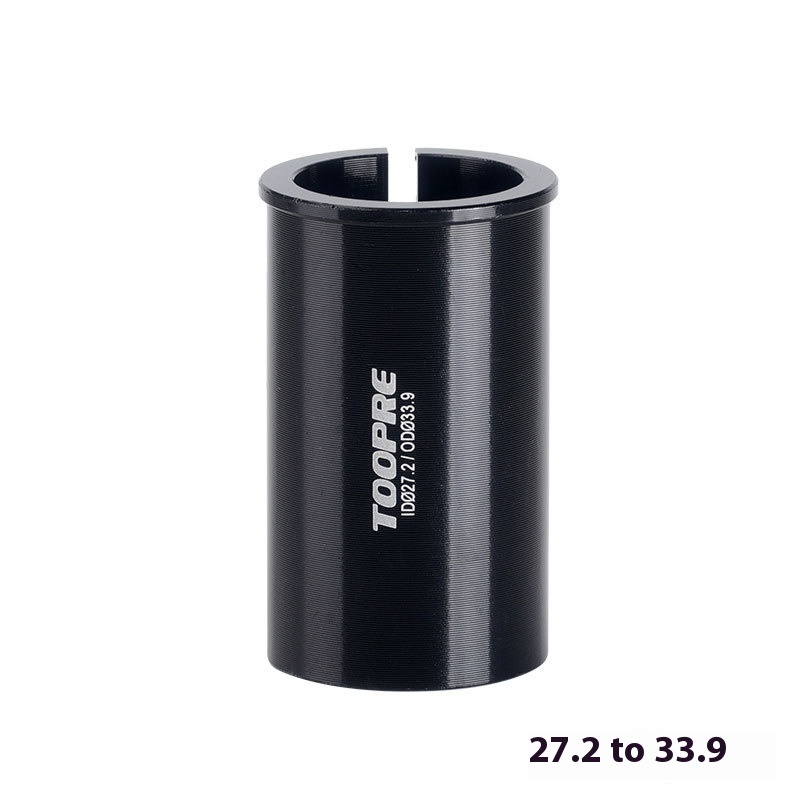

27.2mm to 33.9mm	27.2mm	33.9mm	59mm

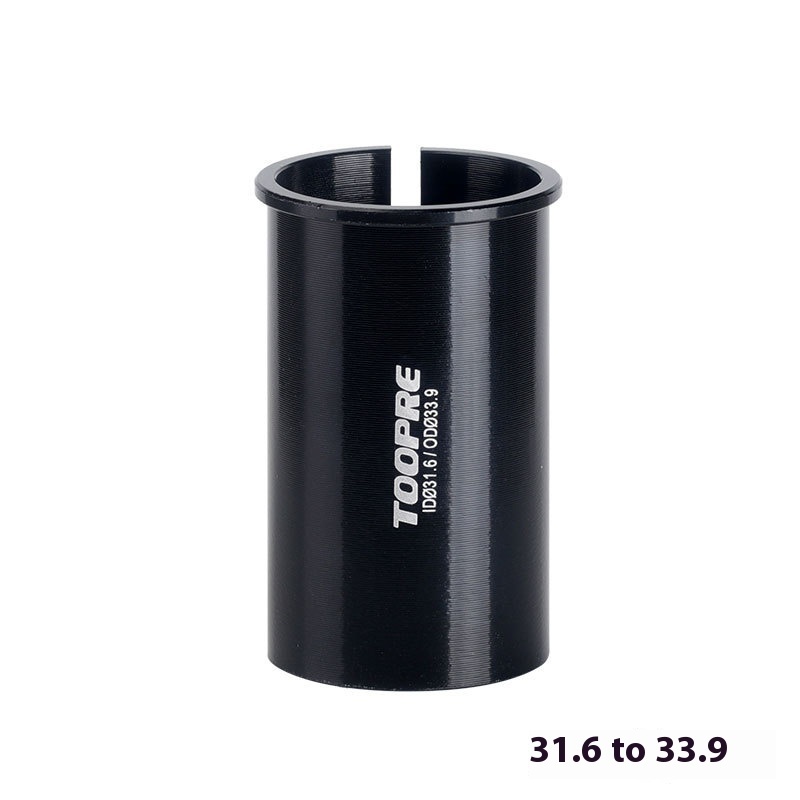

31.6mm to 33.9mm	31.6mm	33.9mm	59mm

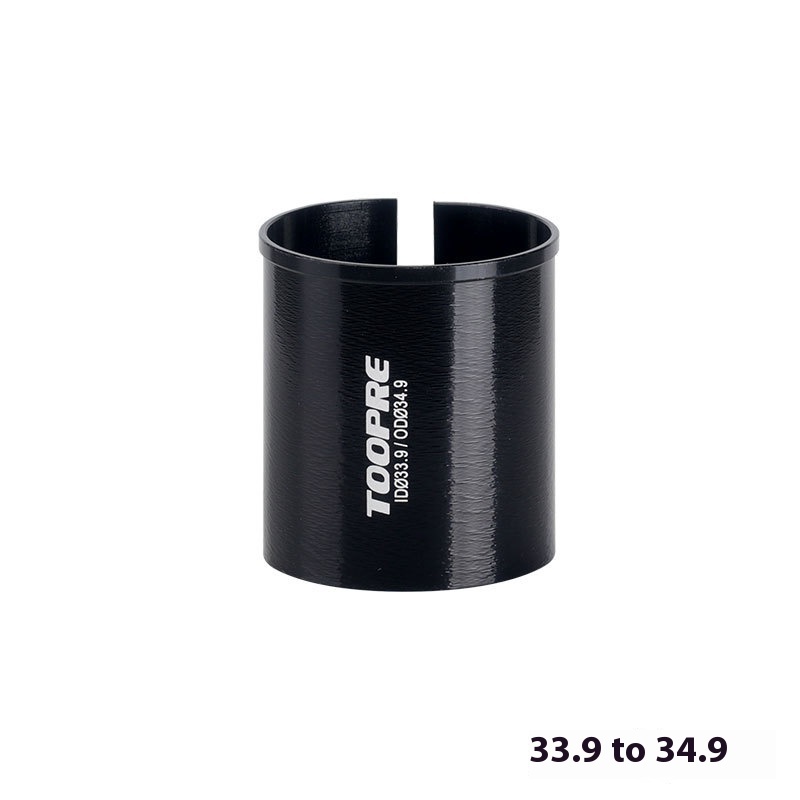

33.9mm to 34.9mm	33.9mm	34.9mm	40mm

How to read the size: In a size marked 27.2mm to 31.6mm, the 27.2mm inner diameter fits a 27.2mm seatpost, while the 31.6mm outer diameter fits a compatible 31.6mm frame seat tube.

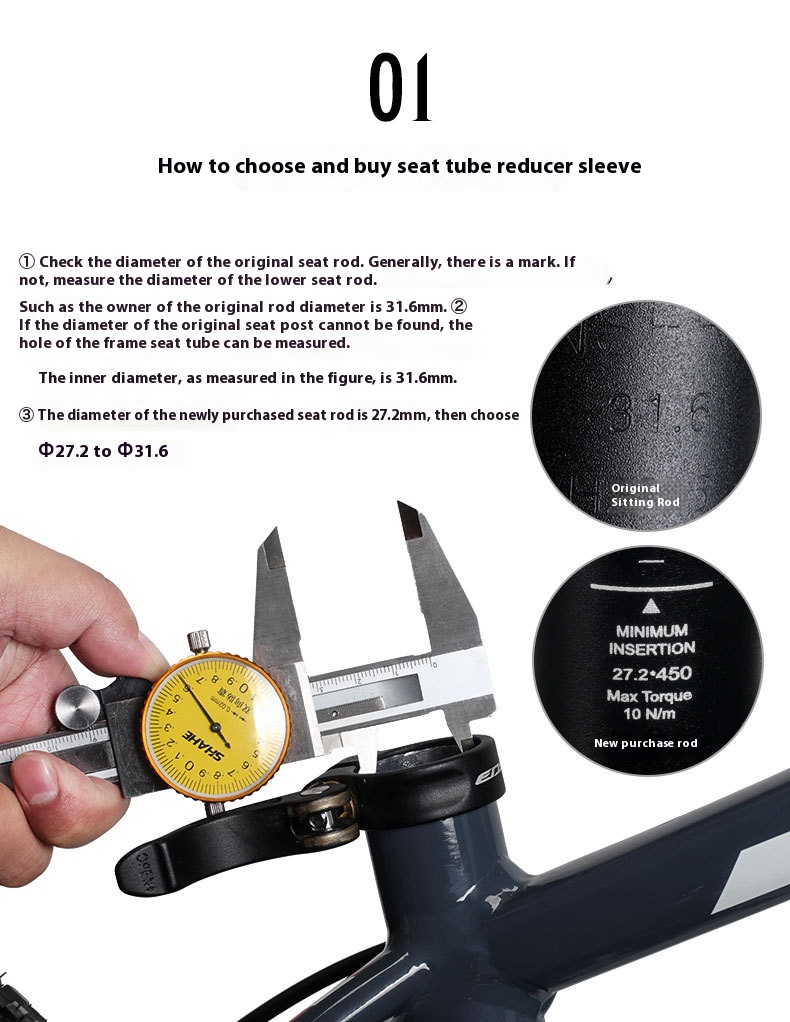

How to Choose the Correct Size

Seatpost Diameter = Shim Inner Diameter: Check the size marking on your seatpost, or measure its outer diameter with a caliper.
Frame Seat Tube Diameter = Shim Outer Diameter: Check the bicycle frame specification or carefully measure the frame seat tube internal diameter.
Both dimensions must match exactly. Do not force an incorrectly sized shim or seatpost into the frame.

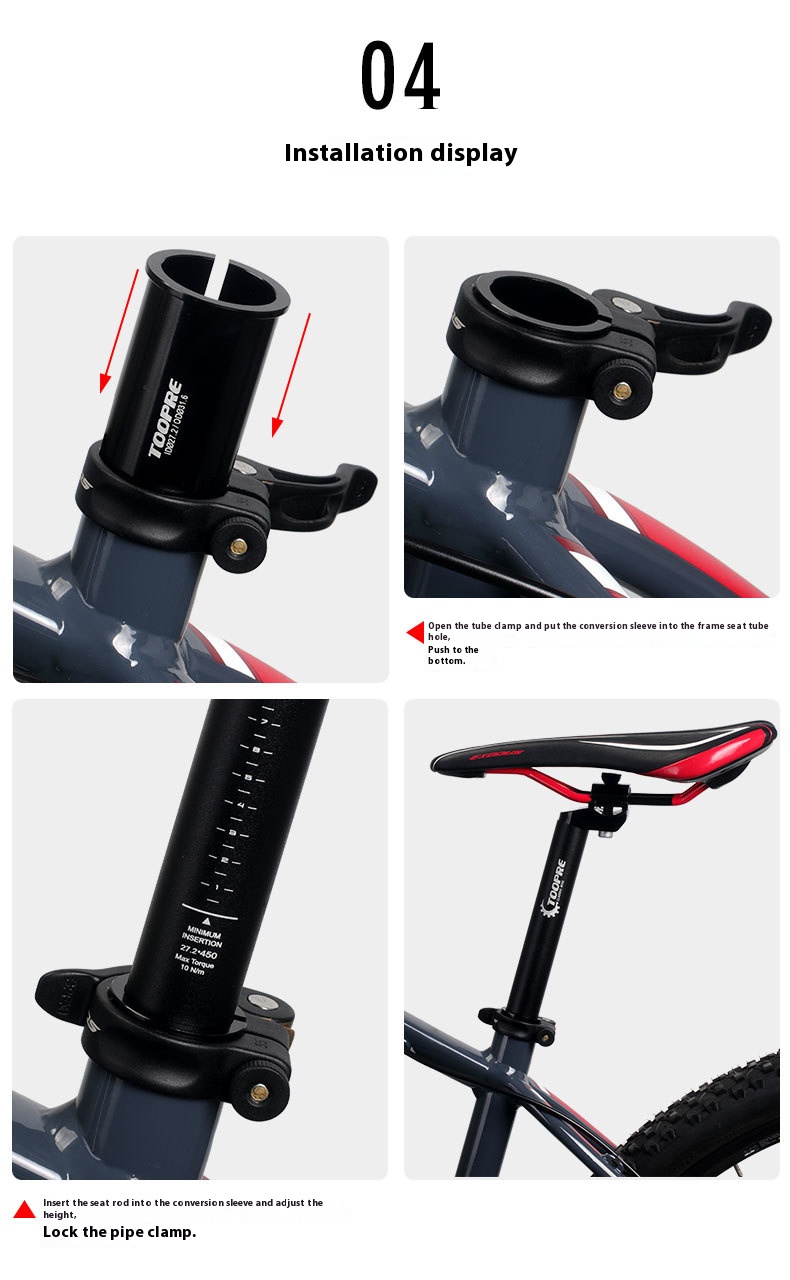

Installation Instructions

Open or loosen the bicycle's seatpost clamp completely.
Clean the inside of the frame seat tube, then insert the correct shim straight into the seat tube until the retaining lip sits flush at the top.
Insert the compatible seatpost through the shim and set the desired saddle height, observing the seatpost's minimum insertion mark.
Tighten the seatpost clamp to the bicycle manufacturer’s specified torque. Recheck clamp tightness and saddle position before riding.

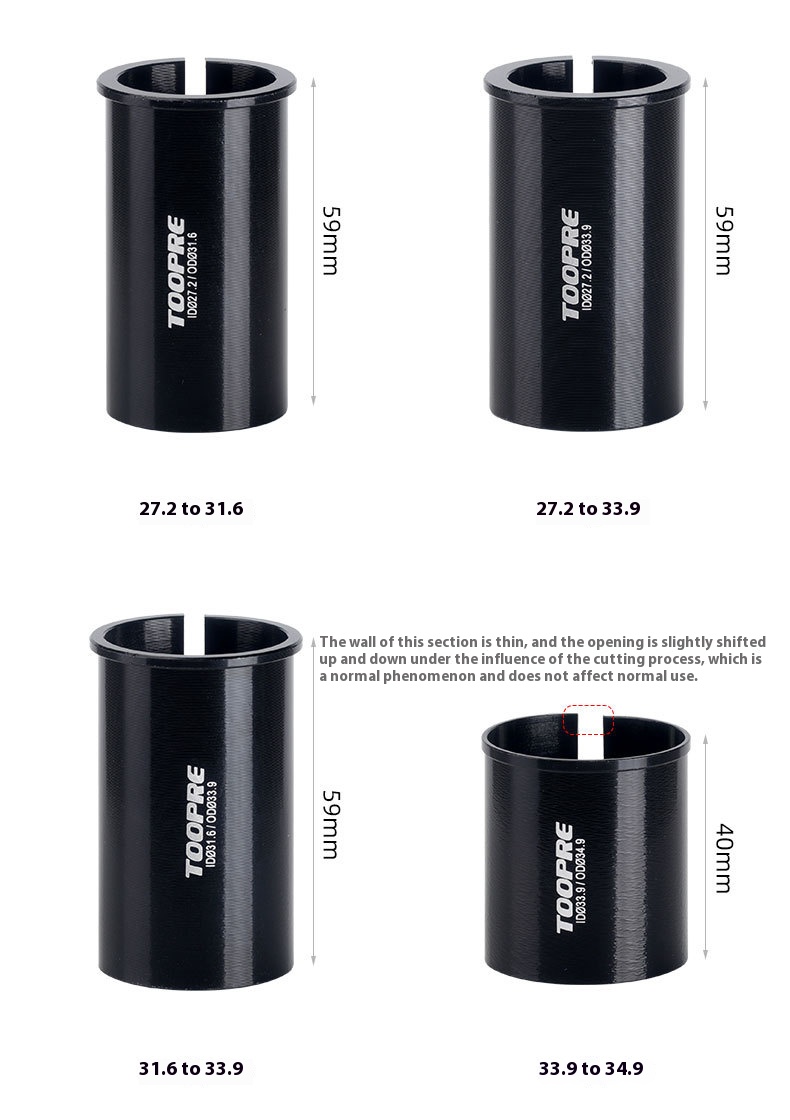

Installation Notice: A slight variation in the opening of the longitudinal slot may be present on ultra-thin shim wall configurations. This is a normal result of the slotted construction. Always use appropriate assembly compound and torque guidance for your frame and seatpost materials; carbon components may require carbon assembly paste and a torque wrench.

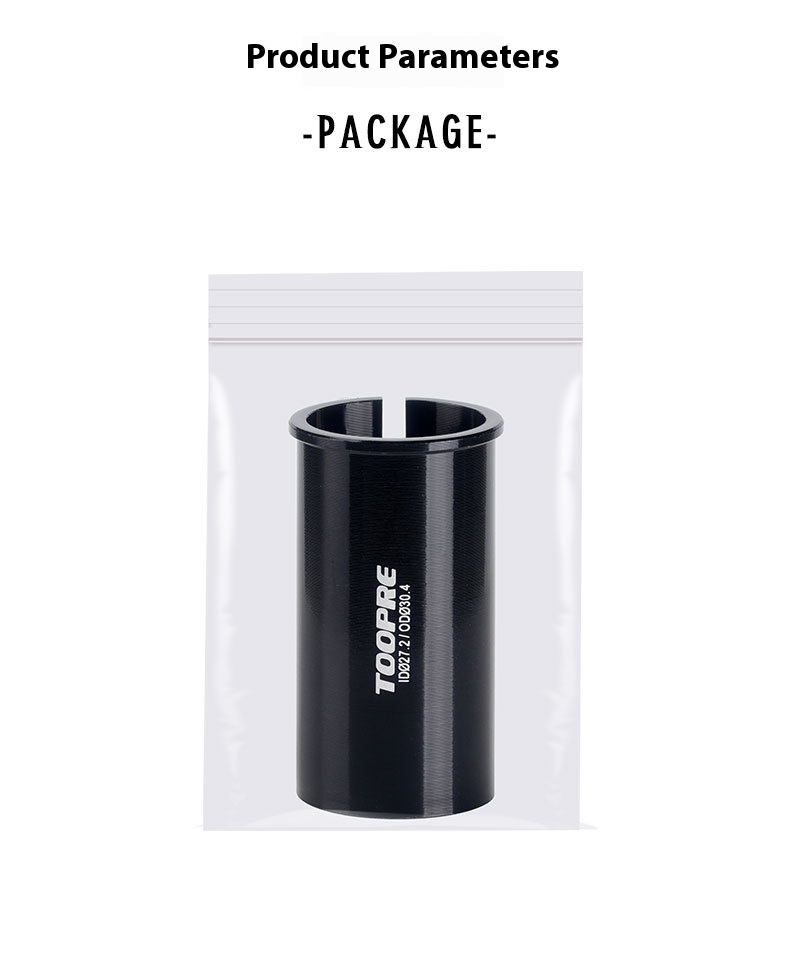

Package Includes

1 × TOOPRE CNC Aluminum Alloy Seatpost Conversion Shim
1 × TOOPRE Protective Zipper Polybag

TOOPRE Bike Seatpost Shim Adapter Sleever - CNC Machined Aluminum Alloy Bicycle Seat Tube Reducer Component
