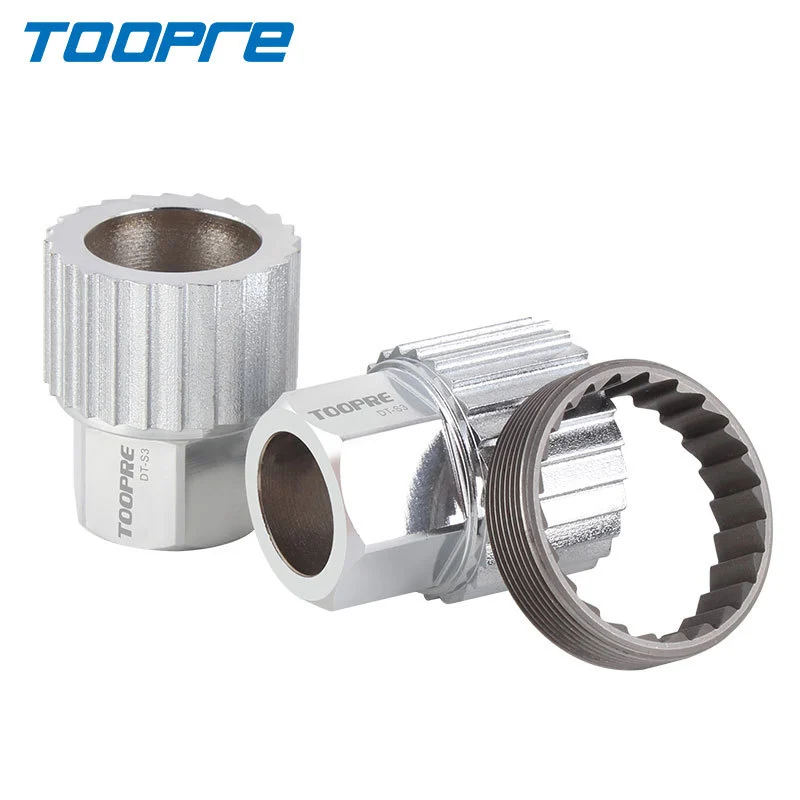

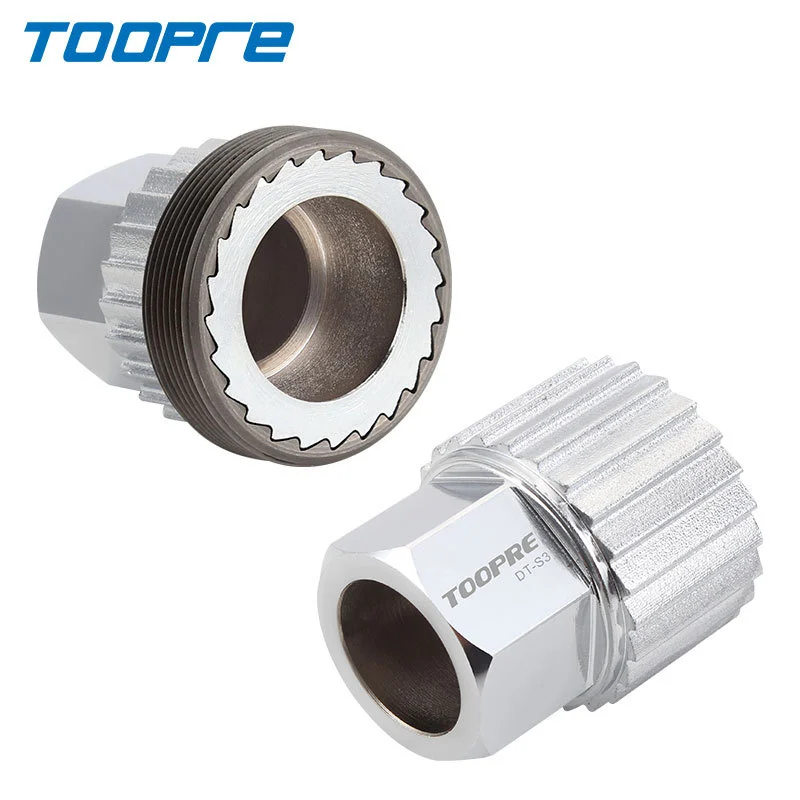

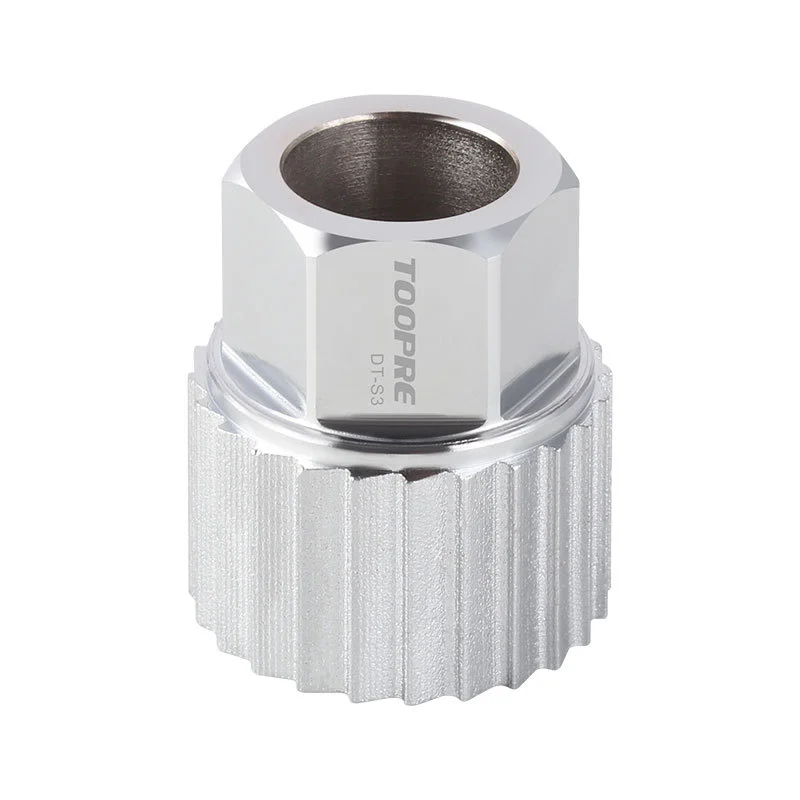

TOOPRE 24T 3-Pawl Ratchet Ring Removal Tool for DT Swiss 370 Hubs, 1800/1900 Wheelsets & Ratchet LN Conversion

The TOOPRE 24T 3-Pawl Ratchet Ring Removal Tool is designed for removing and installing the 24T three-pawl ratchet screw ring on compatible DT Swiss-style hubs. It is suitable for DT 370 hubs, DT 1800/1900 wheelsets, and pawl-type hub conversion to Ratchet LN systems.

Made from high-strength chrome molybdenum steel, this tool offers excellent hardness, durability, and precision. The extended tooth profile provides a secure fit with the ratchet ring, helping reduce slipping and improving working efficiency during hub maintenance or Ratchet LN upgrade conversion.

It can be used with a 22mm open-end wrench or adjustable wrench, making installation and removal simple and convenient for bike mechanics and home users.

Key Features

• Designed for 24T 3-Pawl Ratchet Rings
  Compatible with 24T three-pawl ratchet screw rings used on compatible DT-style hubs.

• For DT 370 Hubs & 1800/1900 Wheelsets

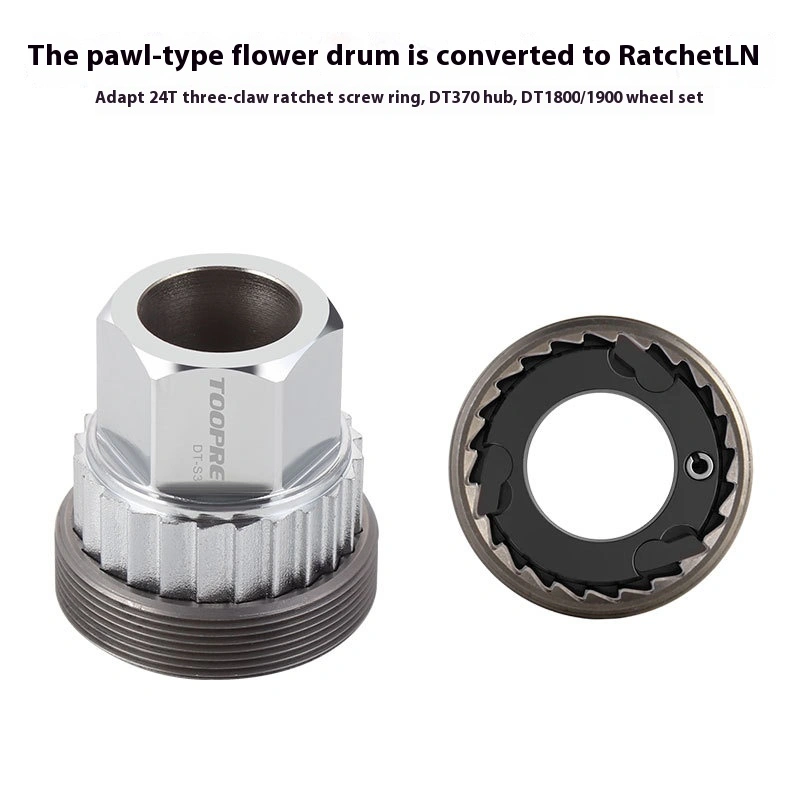

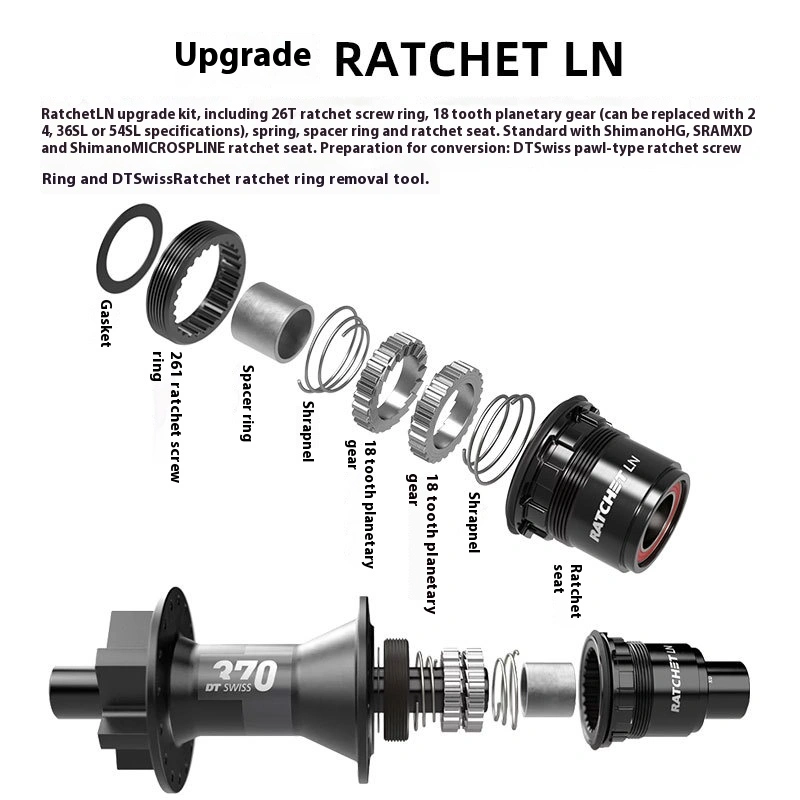

  Suitable for DT 370 hubs and DT 1800/1900 wheelsets, especially for pawl-type hub to Ratchet LN conversion.

• High-Strength Chrome Molybdenum Steel
  Made from durable Cr-Mo steel with high hardness and wear resistance.

• Precise Tooth Engagement
  Accurate tooth profile helps ensure close contact with the ratchet ring for stable operation.

• Extended Tooth Body Design
  Provides better grip and reduces the risk of slipping during removal or installation.

• Easy to Use
  Operates with a 22mm open-end wrench or adjustable wrench.

Specifications

• Brand: TOOPRE
• Product Name: DT 3-Pawl Ratchet Ring Removal Tool
• Material: Chrome Molybdenum Steel
• Net Weight: Approx. 78g
• Size: Approx. 36mm height
• Wrench Interface: 22mm
• Application: 24T 3-pawl ratchet screw ring removal and installation
• Compatibility: DT 370 hubs, DT 1800/1900 wheelsets, pawl hub to Ratchet LN conversion

Package Includes

• 1 × TOOPRE 24T 3-Pawl Ratchet Ring Removal Tool

Note

Please confirm your hub model and ratchet ring type before purchase. This tool is designed for 24T three-pawl ratchet screw rings and may not be compatible with other ratchet systems or specifications.
