STONE Direct Mount Chainring for SRAM GXP 3-bolt, 6mm Offset

Name: STONE Direct Mount Chainring for SRAM GXP 3-bolt, 6mm Offset
Brand: DJC Bikes - DJC Components
Price: 51.84 USD
Availability: InStock

$51.84 ~~$72.00~~

-28%

STONE Direct Mount Chainring for SRAM GXP 3-bolt, 6mm Offset.

Option examples: black aero | 26T; black aero | 28T; black aero | 30T. Match the complete option combination to your setup.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Style:

black aero

black hollow

silver aero

silver hollow
Size:

26T

28T

30T

32T

34T

36T

38T

40T

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

STONE Direct Mount Chainring for SRAM GXP 3-bolt, 6mm Offset

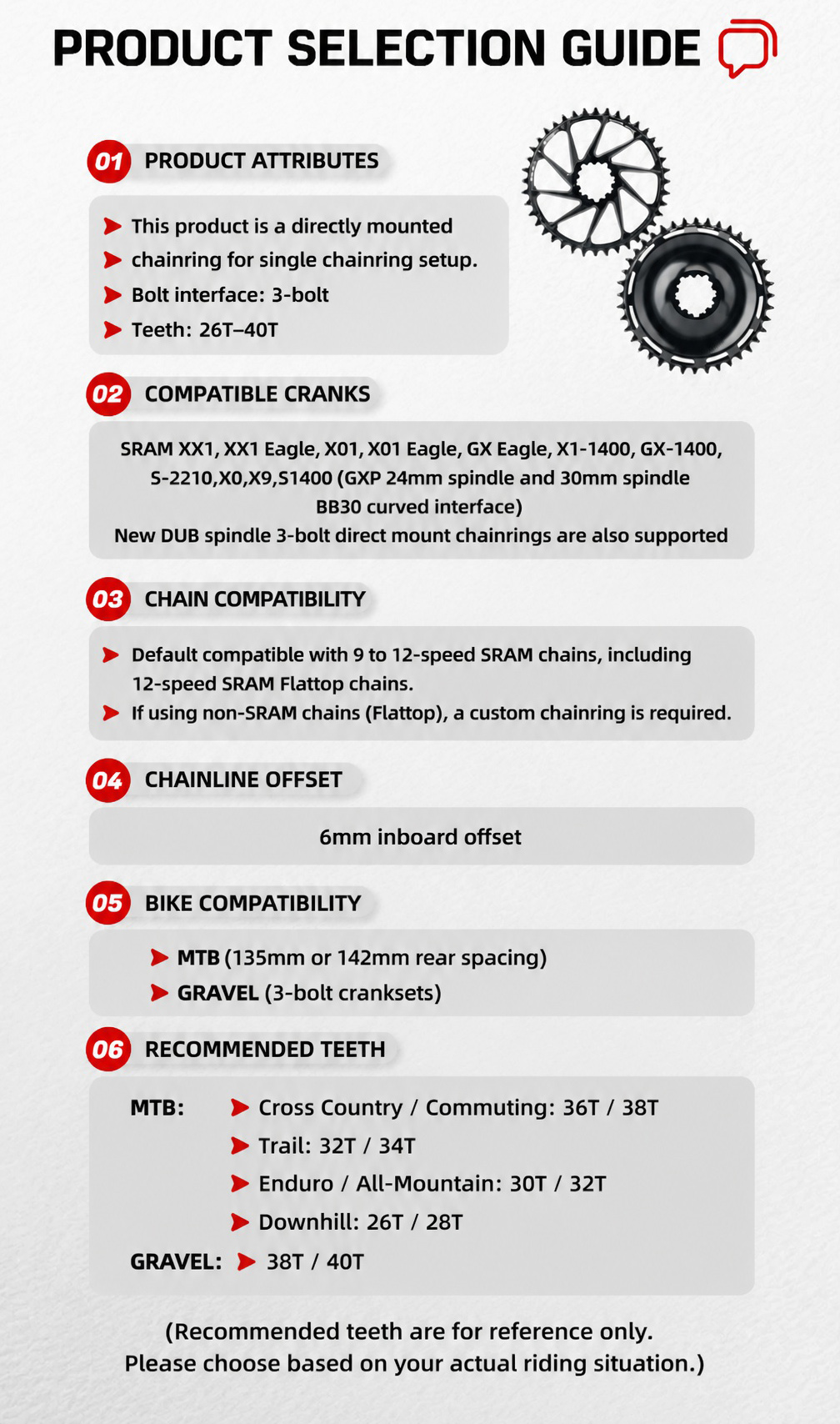

Compatibility and Selection

Direct-mount interface: for SRAM GXP 3-bolt crank mounting.

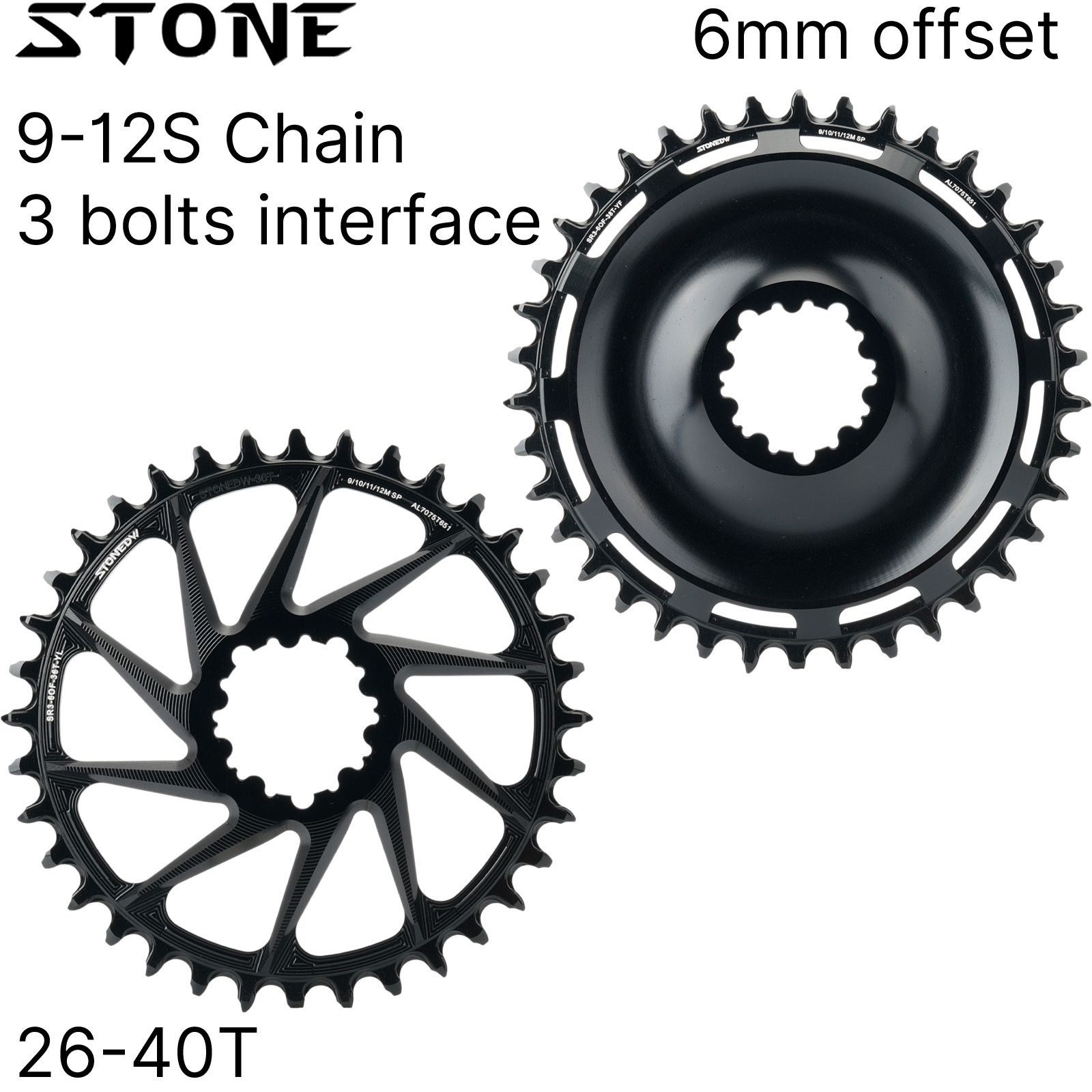

The STONE SR3-6OF Narrow-Wide chainring has a Direct Mount interface compatible with SRAM GXP 3-bolt cranks for compatible 1x mountain bike and gravel setups. It combines CNC-machined 7075-T651 aluminum with a 6mm inboard offset and an anodized finish. Choose a hollow/cutout YL or closed/solid YF design in black or silver.

Key Features

Direct mounting for SRAM GXP 3-bolt cranks, with a single installation orientation.

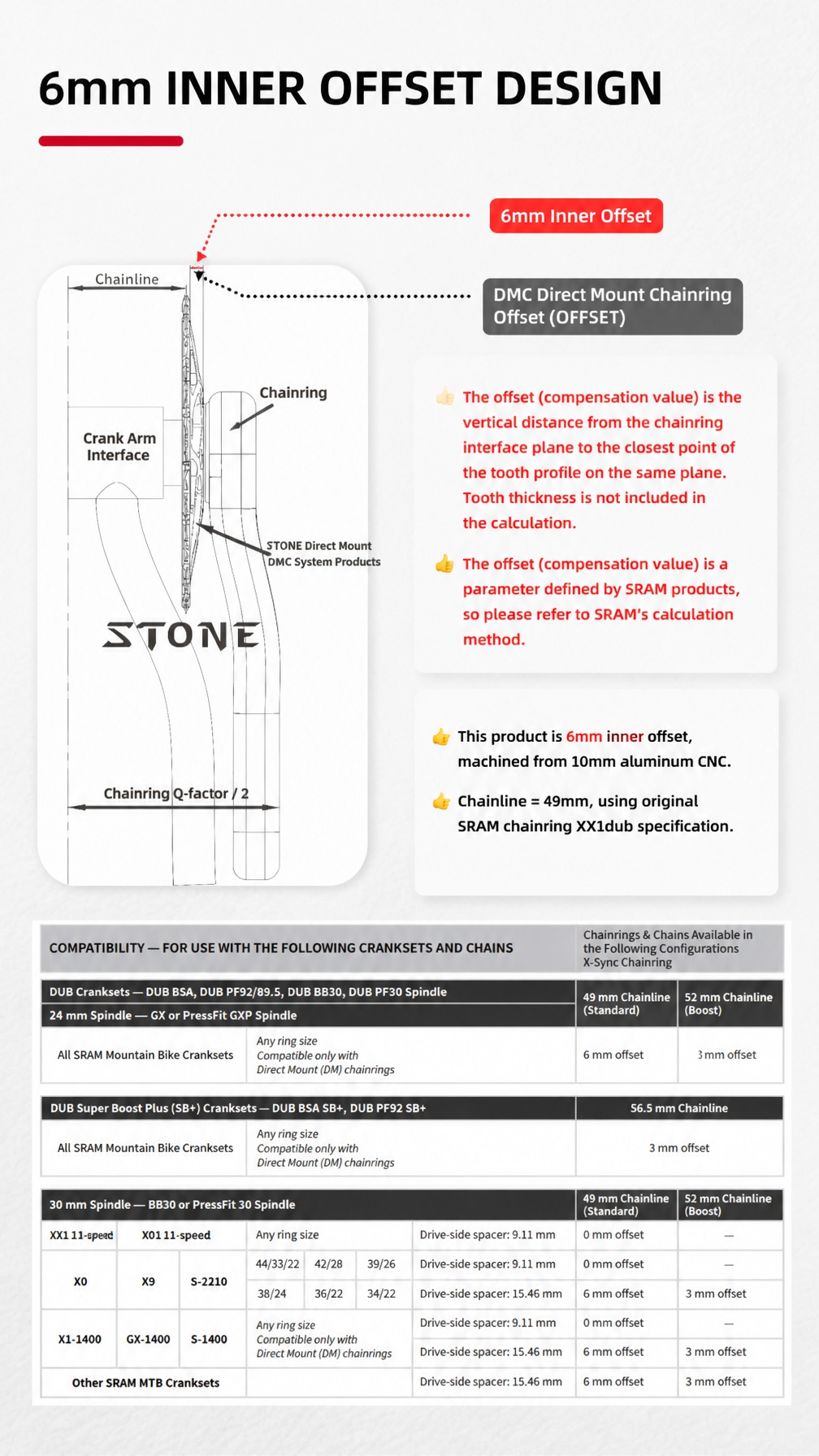

6mm inboard offset; listed chainline of 49mm on the intended crank setup.

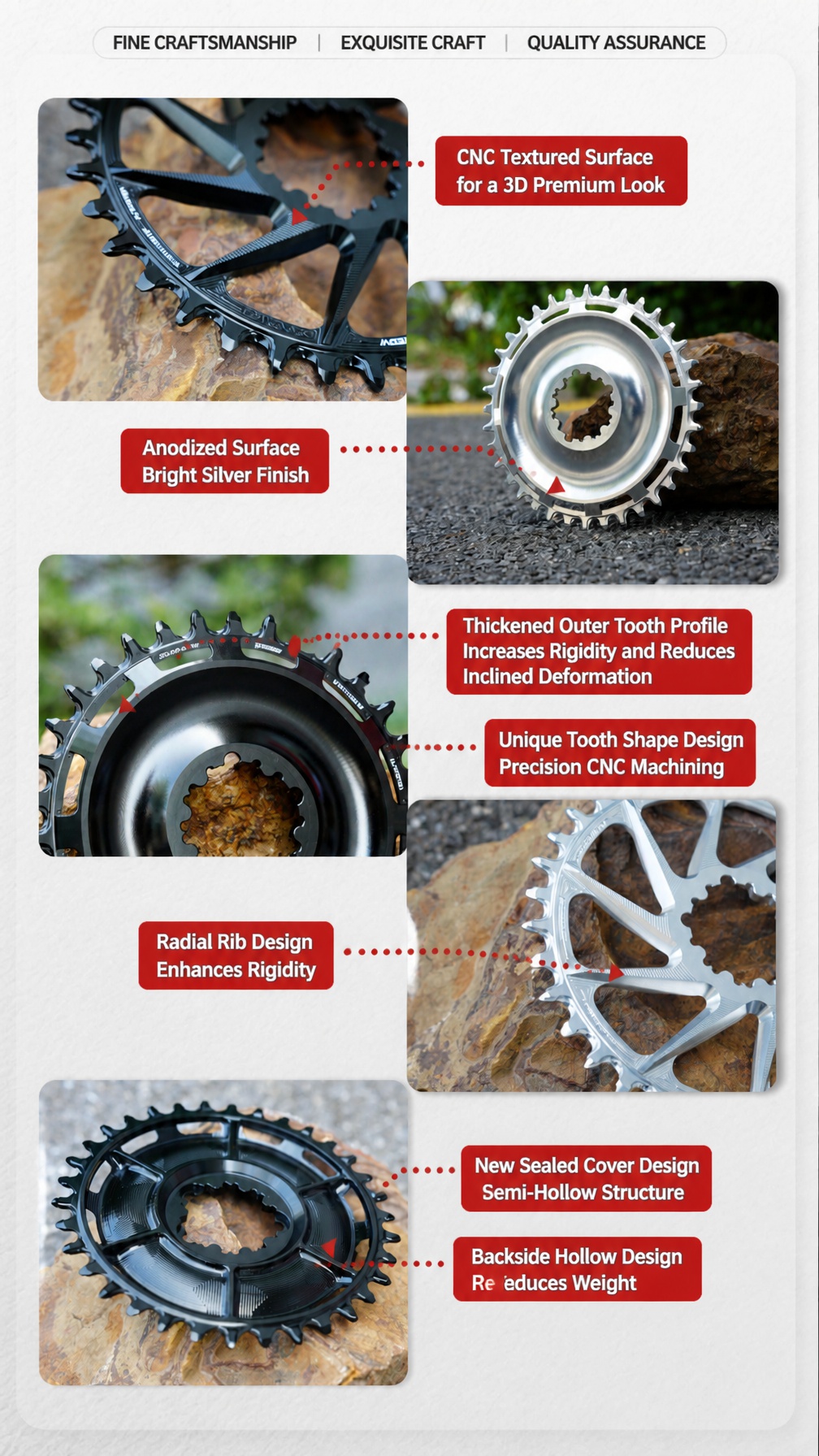

Narrow-Wide teeth and a reinforced outer edge for chain retention and lateral rigidity.

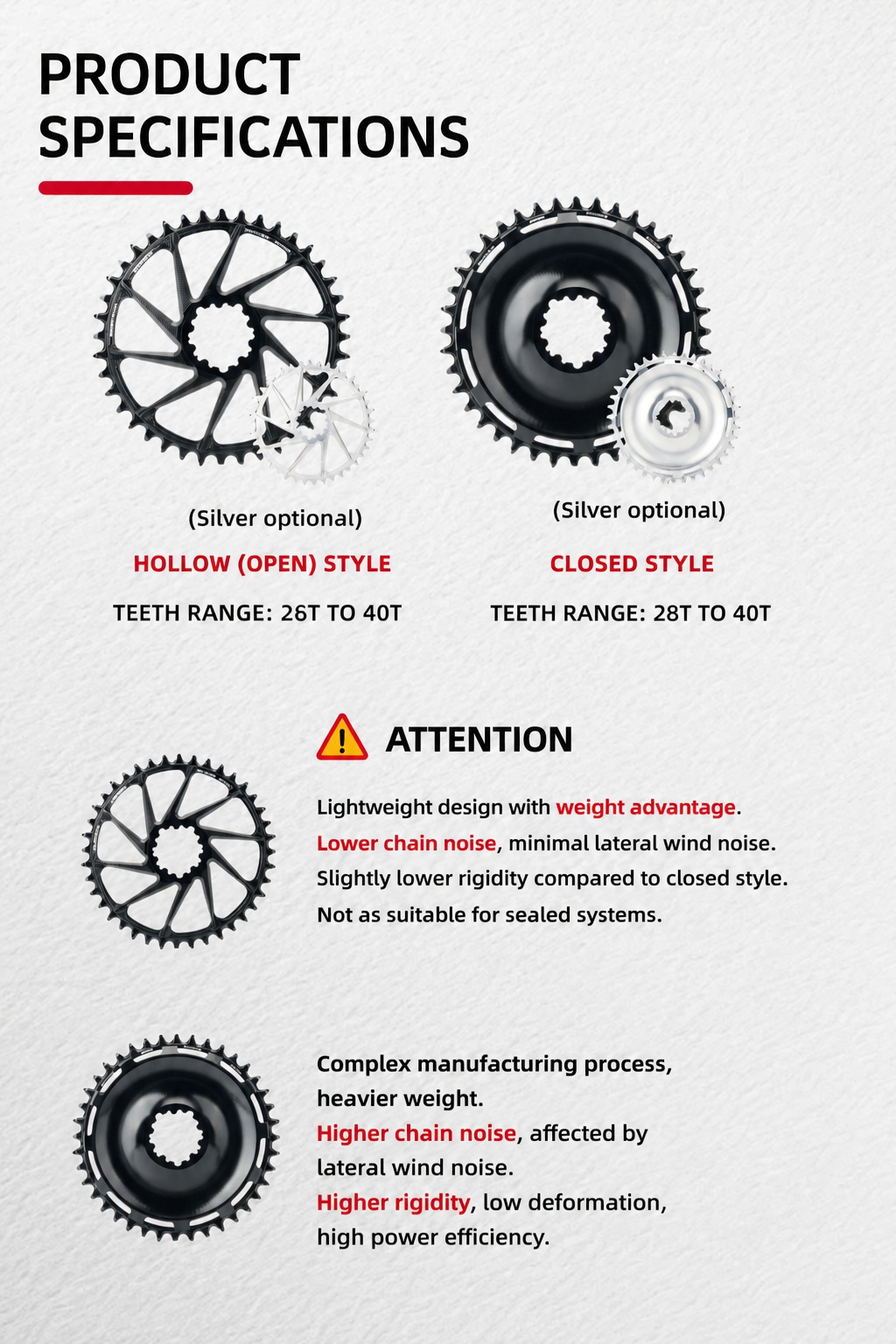

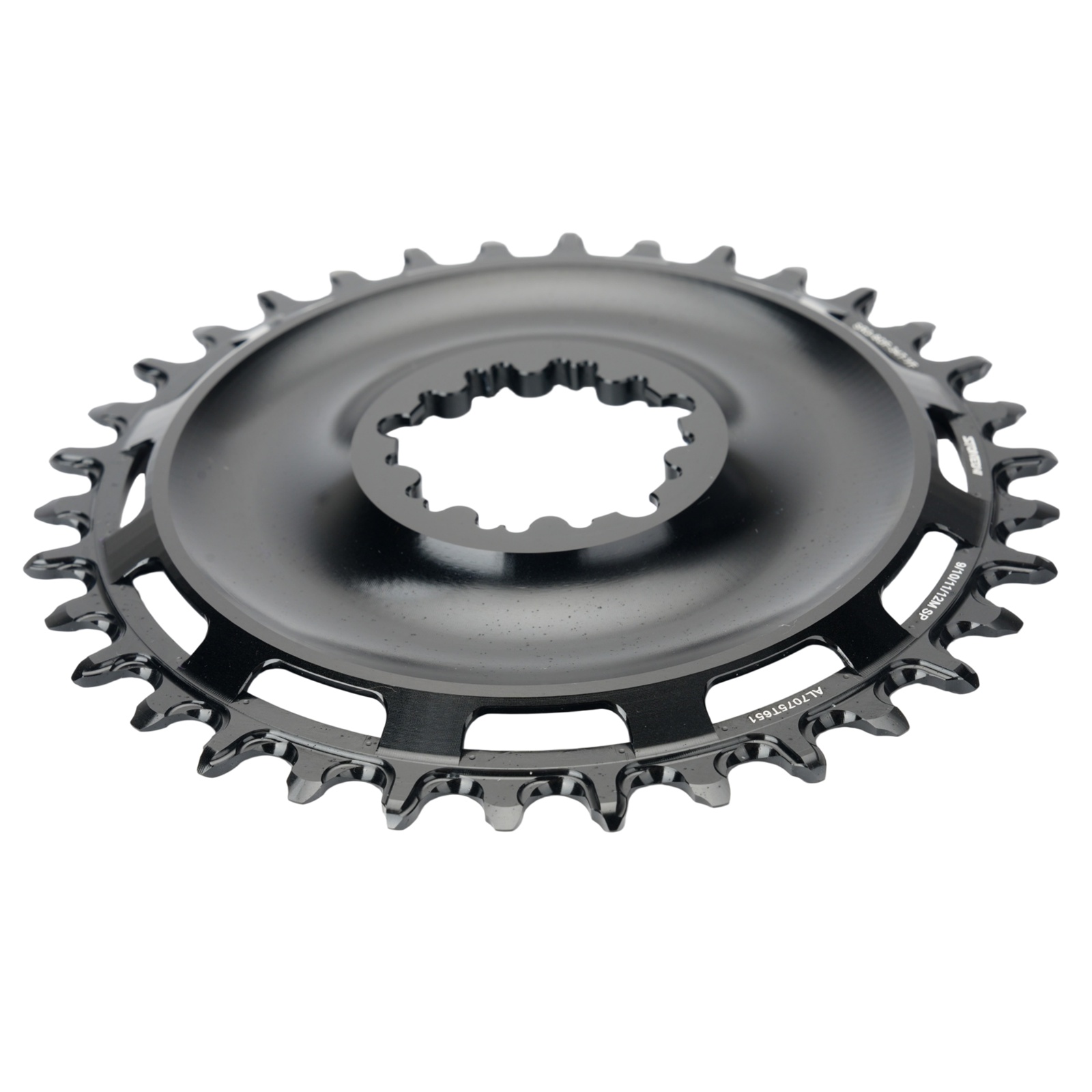

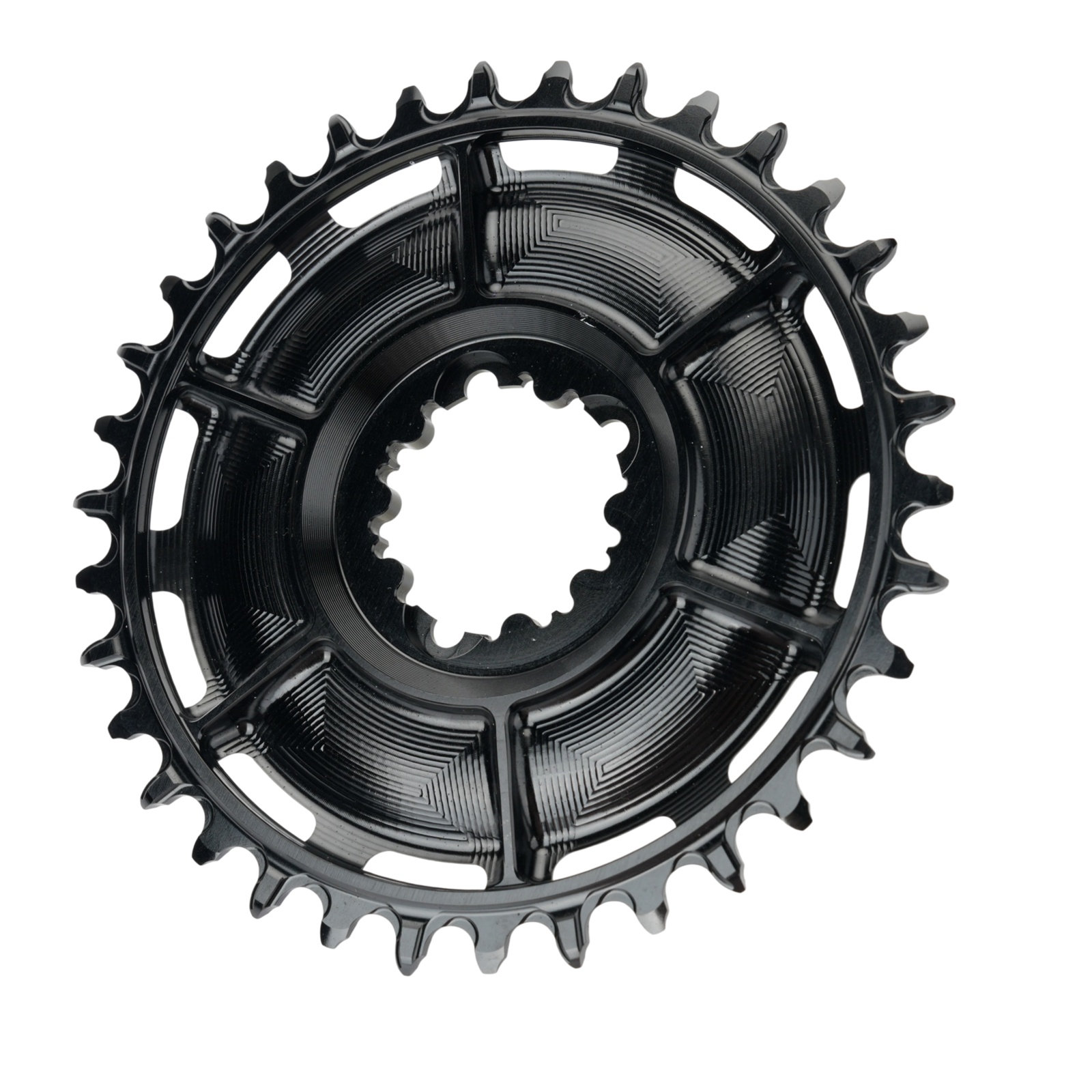

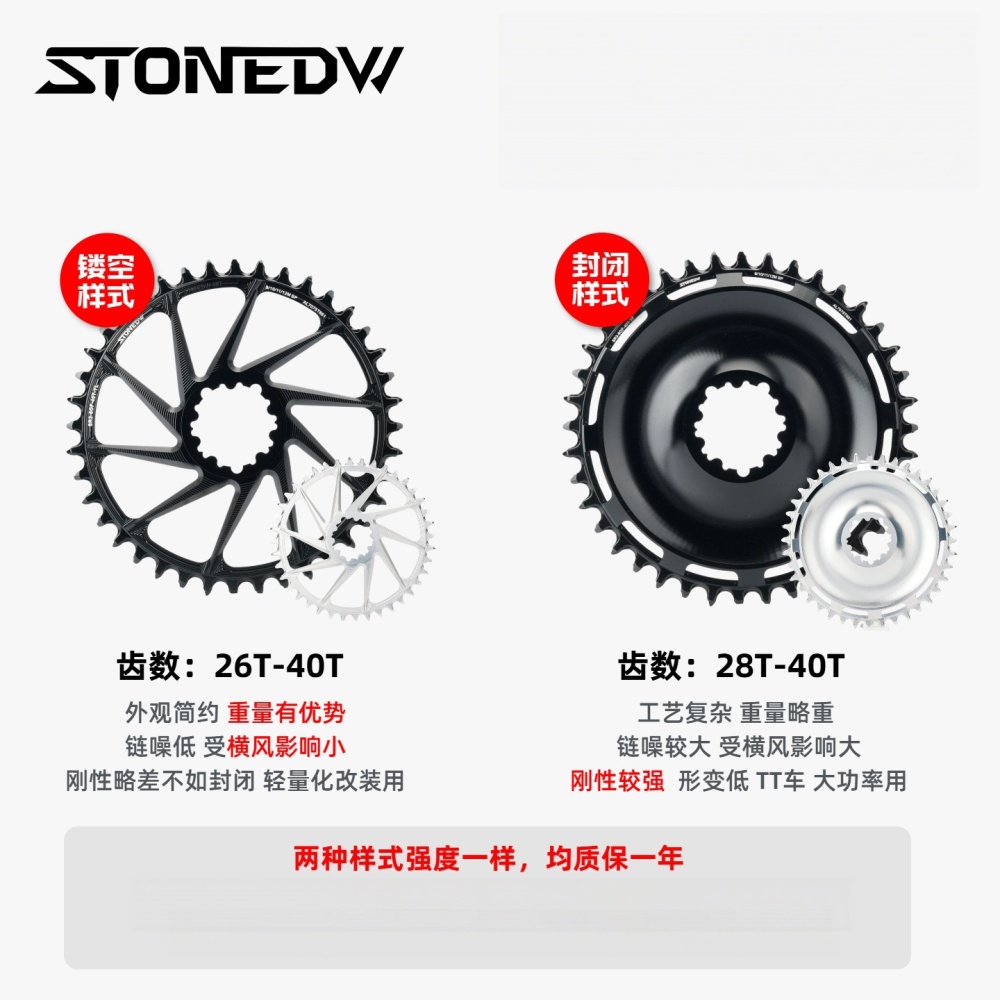

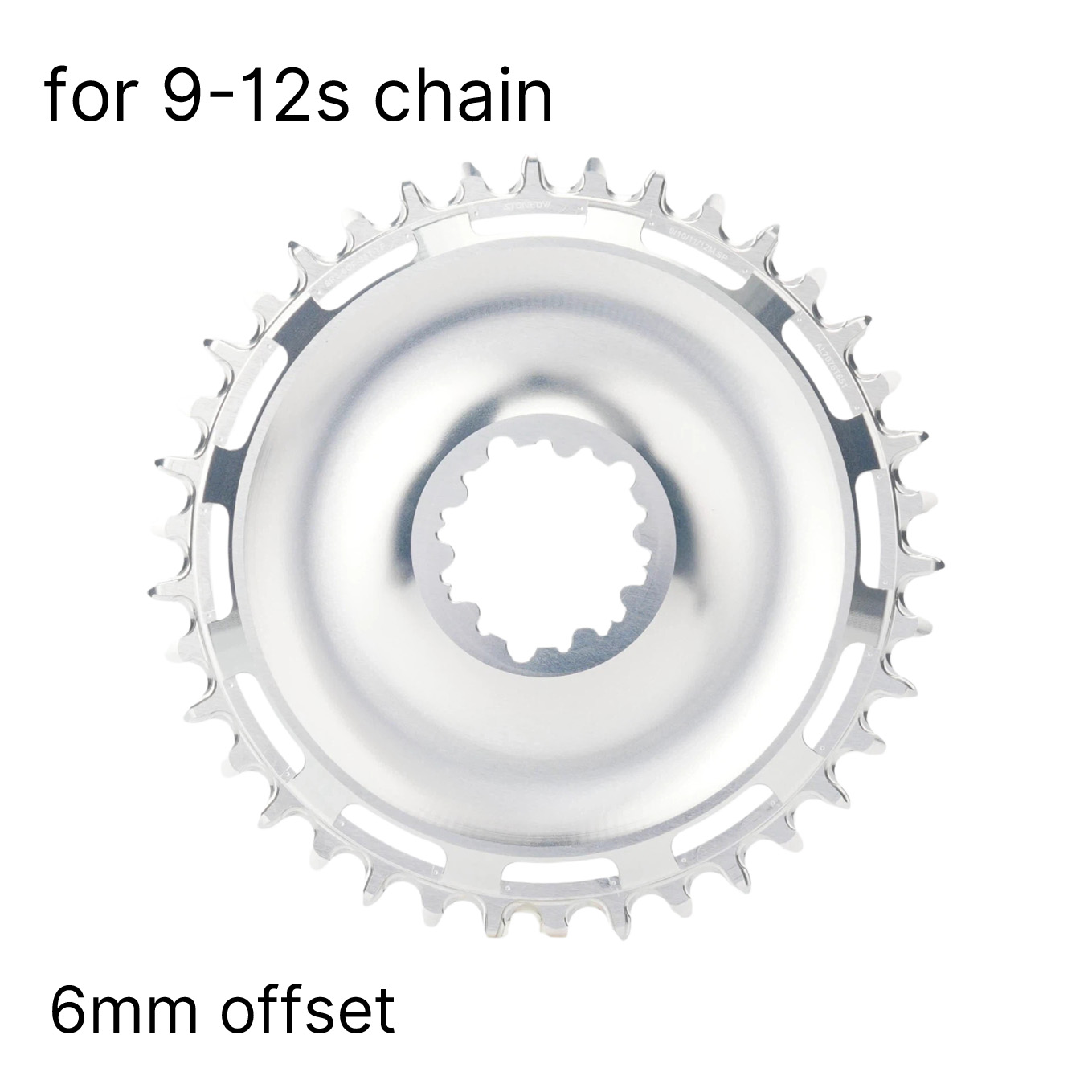

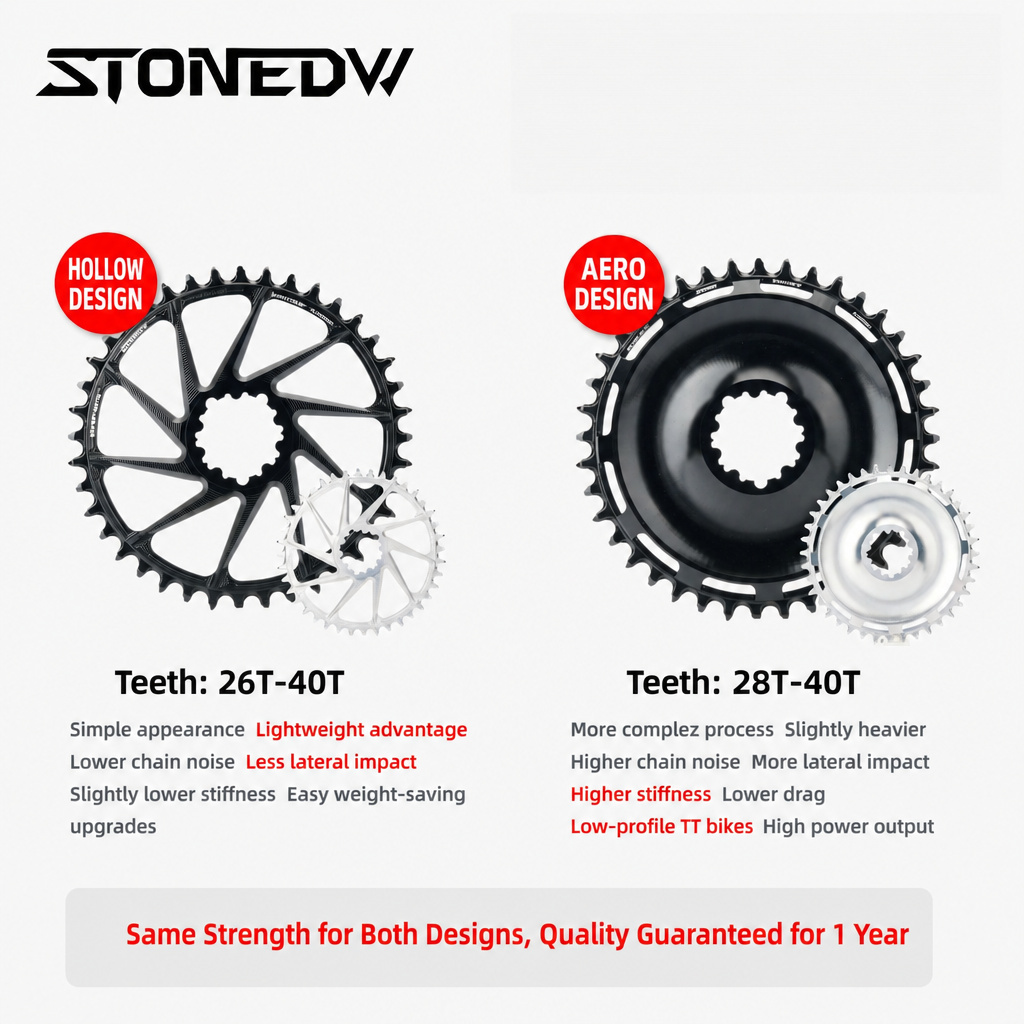

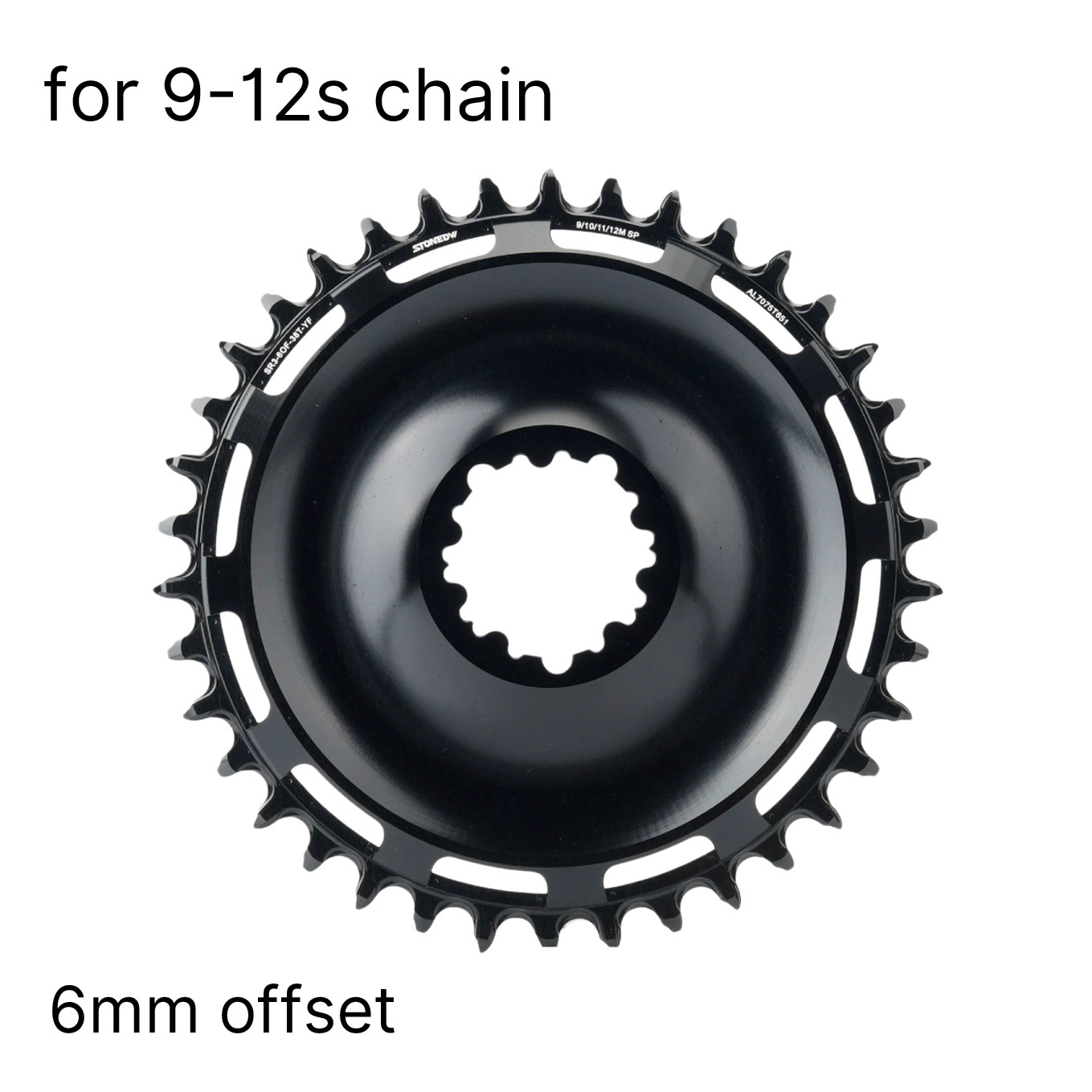

Hollow YL and solid YF styles.

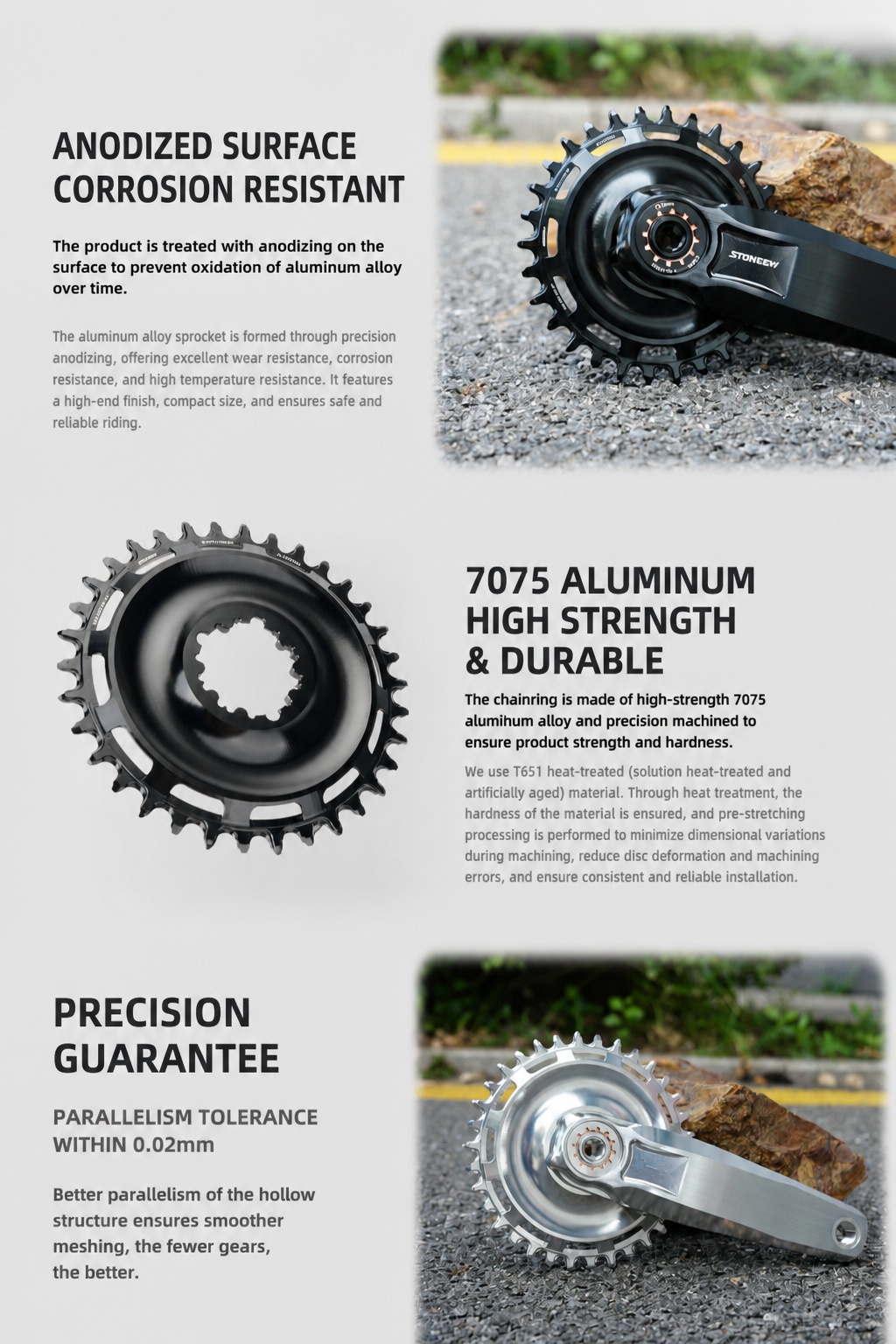

CNC-machined, anodized 7075-T651 aluminum.

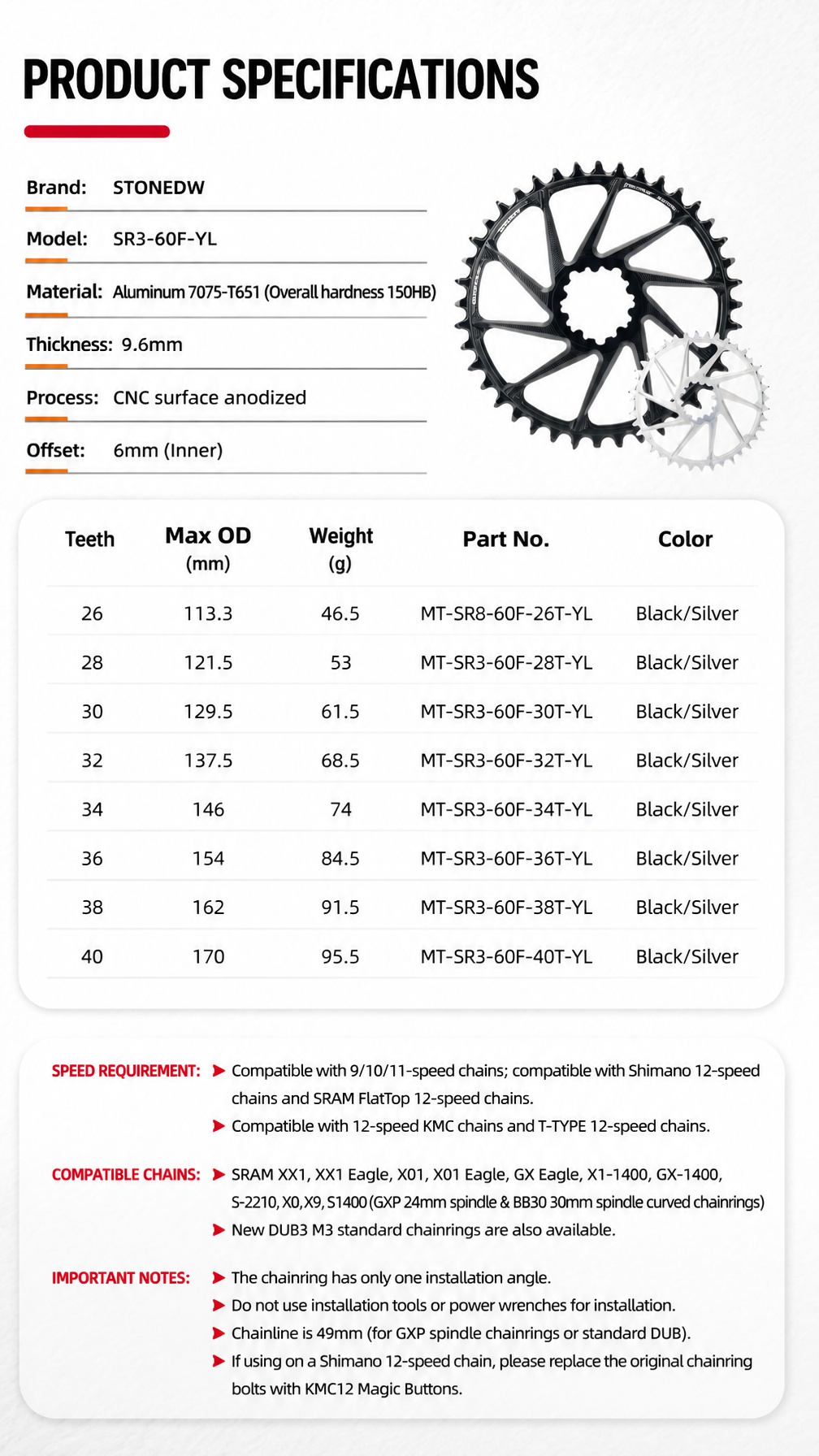

Technical Specifications

Item	Specification
Brand	STONE / STONEDW
Model Family	SR3-6OF; YL hollow / YF solid
Mounting Interface	Compatible with SRAM GXP 3-bolt Direct Mount cranks
Configuration	1x setup
Offset	6mm inboard
Listed Chainline	49mm; dependent on crank configuration
Material / Hardness	7075-T651 aluminum / 150HB
Thickness	9.6mm
Interface Parallelism	Within 0.02mm
Finish / Colors	Anodized / Black and Silver
Chain Compatibility	Standard profile: compatible with Shimano 9/10/11/12-speed chains; compatible with SRAM 9/10/11-speed and non-Flattop 12/13-speed chains
Custom Chain Compatibility	A custom tooth profile is required for SRAM AXS Flattop 12/13-speed and T-Type chains
Key Feature	Narrow-Wide chainring for SRAM GXP 3-bolt cranks, with 6mm inboard offset

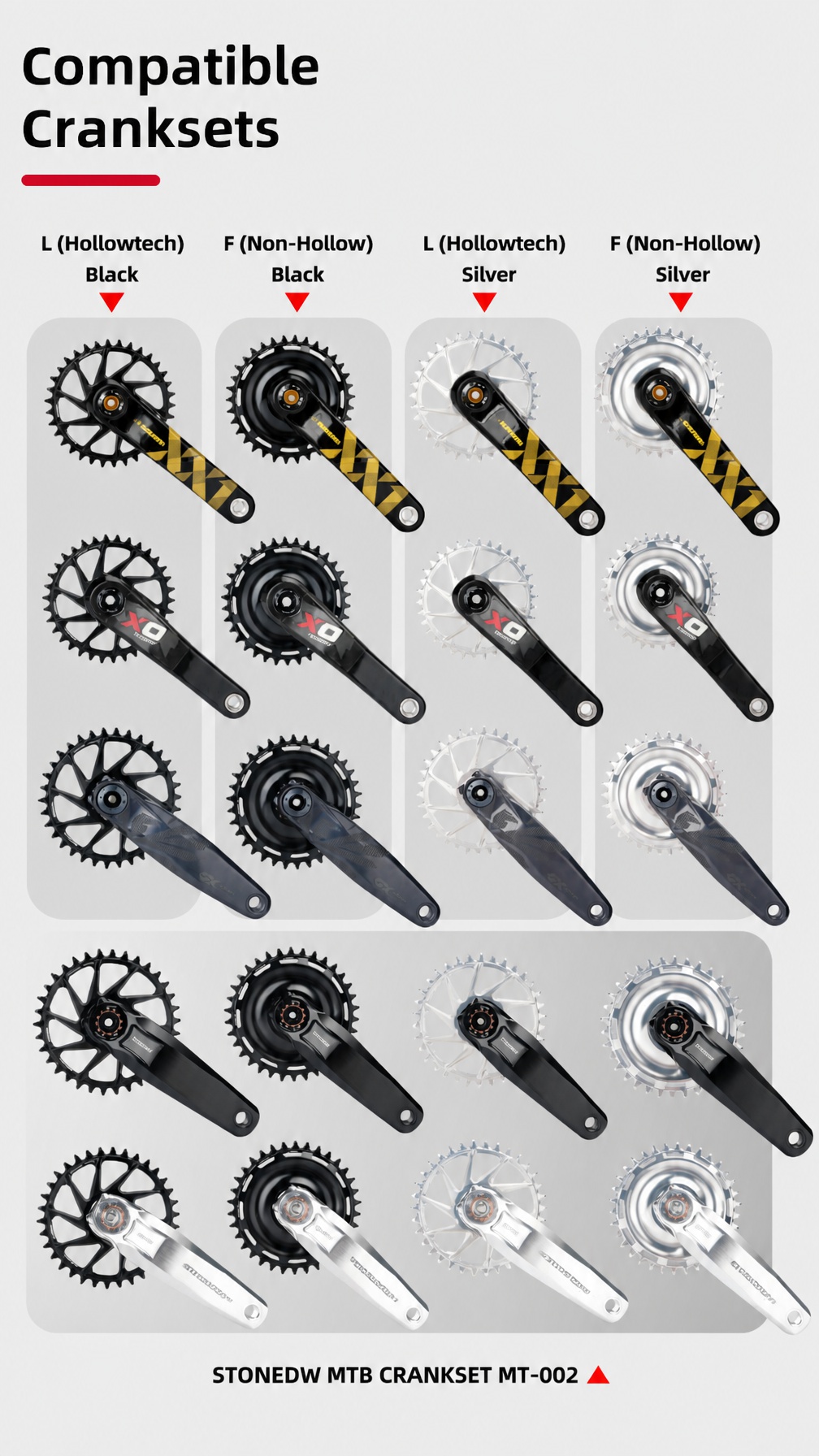

Crank and Chain Compatibility

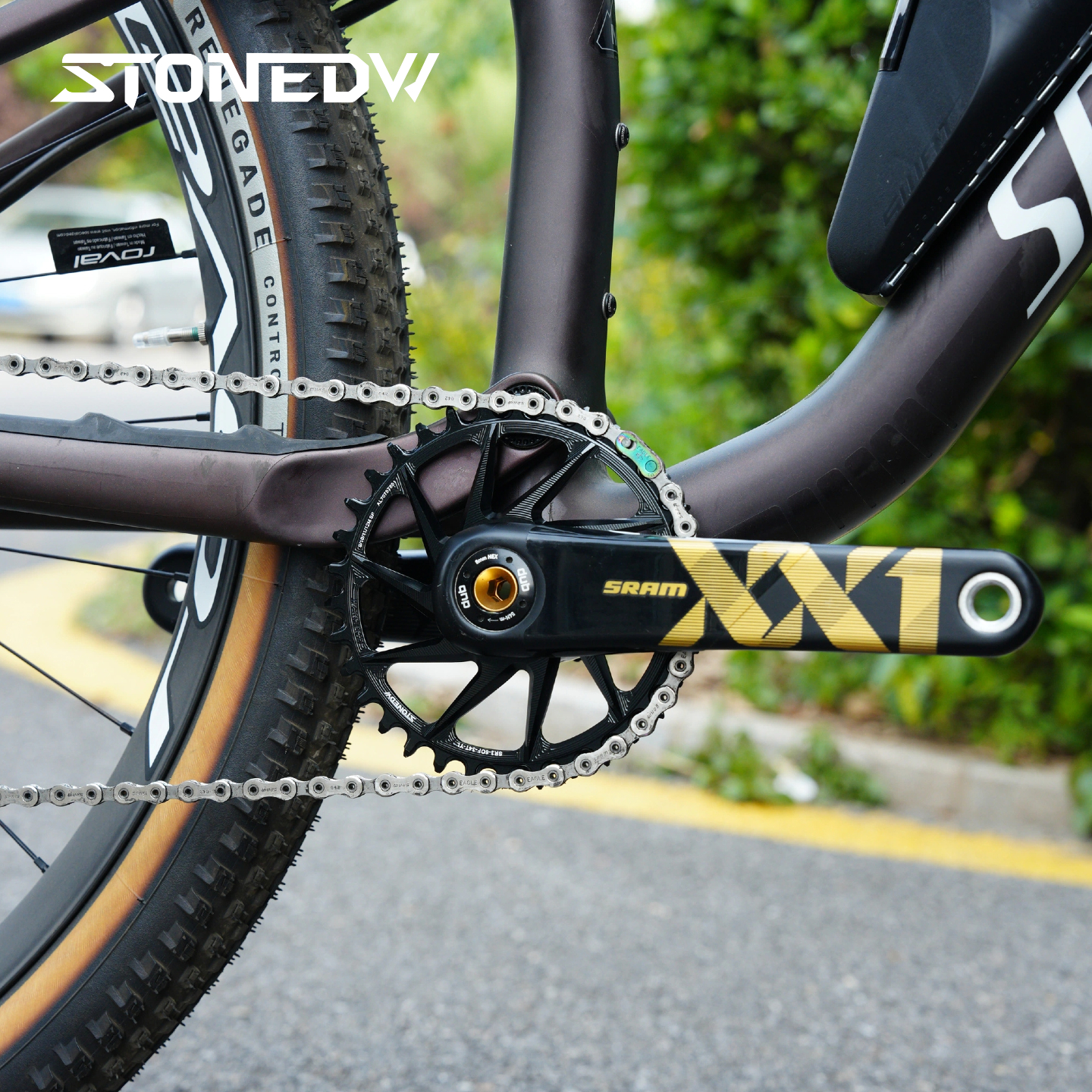

Compatible with SRAM 3-bolt versions of XX1, XX1 Eagle, X01, X01 Eagle, GX Eagle, X1-1400, GX-1400, S-2210, X0, X9 and S1400 cranksets, including applicable GXP, BB30 and DUB models. Confirm the crank interface, chainline and frame clearance. The listed MTB application uses 135mm or 142mm rear spacing; gravel use requires a matching 3-bolt crank.

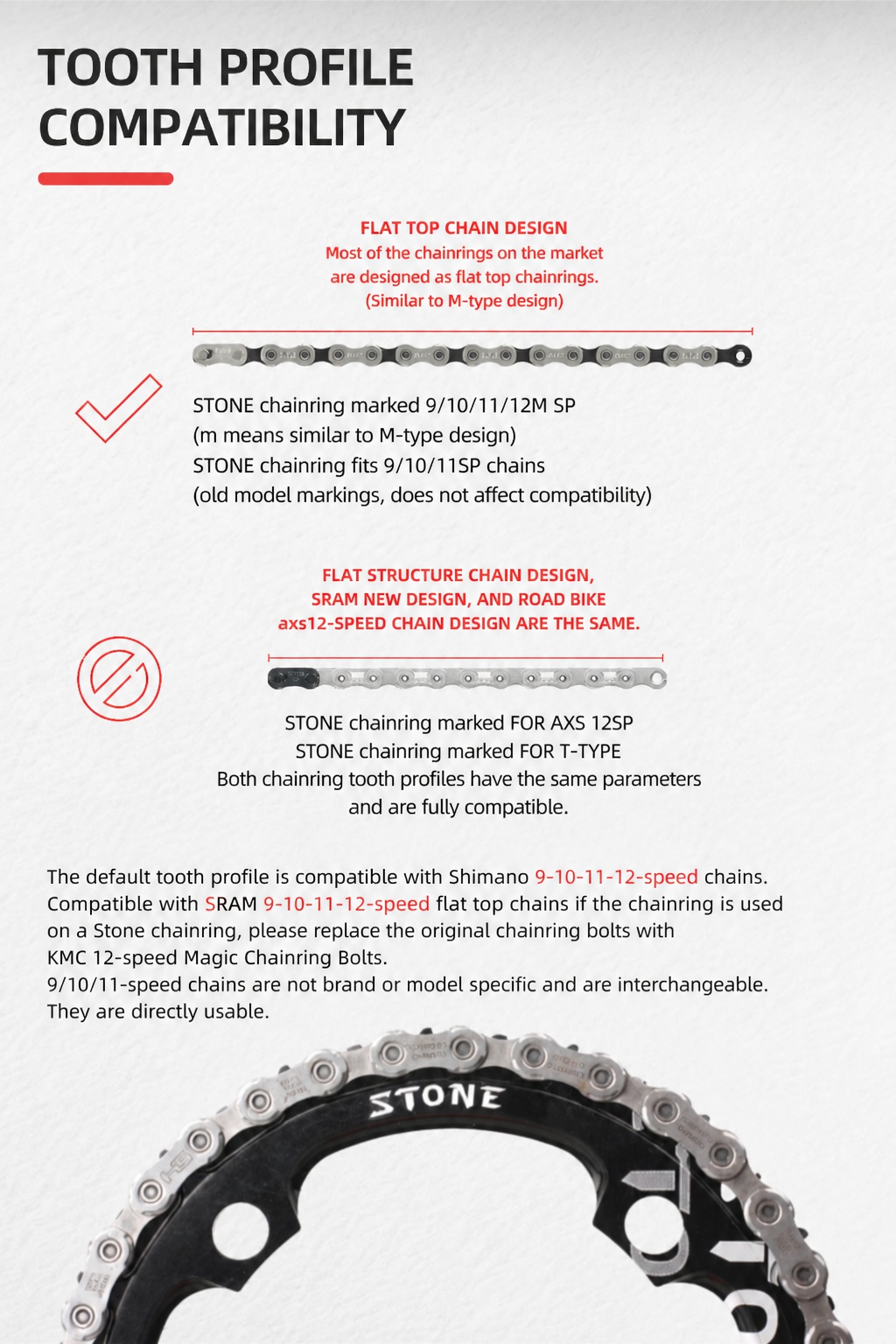

The standard tooth profile is compatible with Shimano 9/10/11/12-speed chains. It is also compatible with SRAM 9/10/11-speed and non-Flattop 12/13-speed chains. Request the custom tooth profile for SRAM AXS Flattop 12/13-speed or T-Type chains. Do not assume that the standard options include this customization.

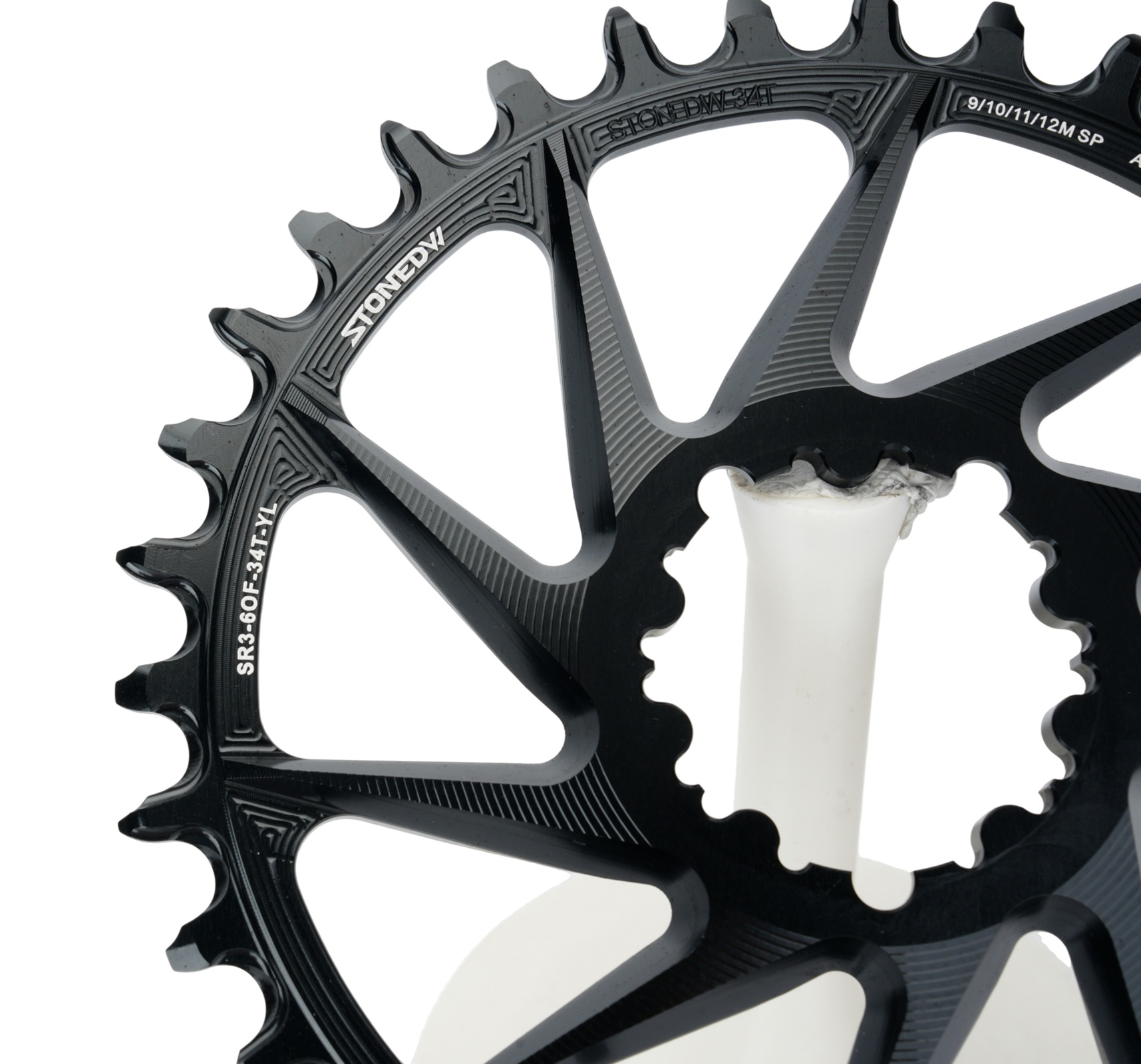

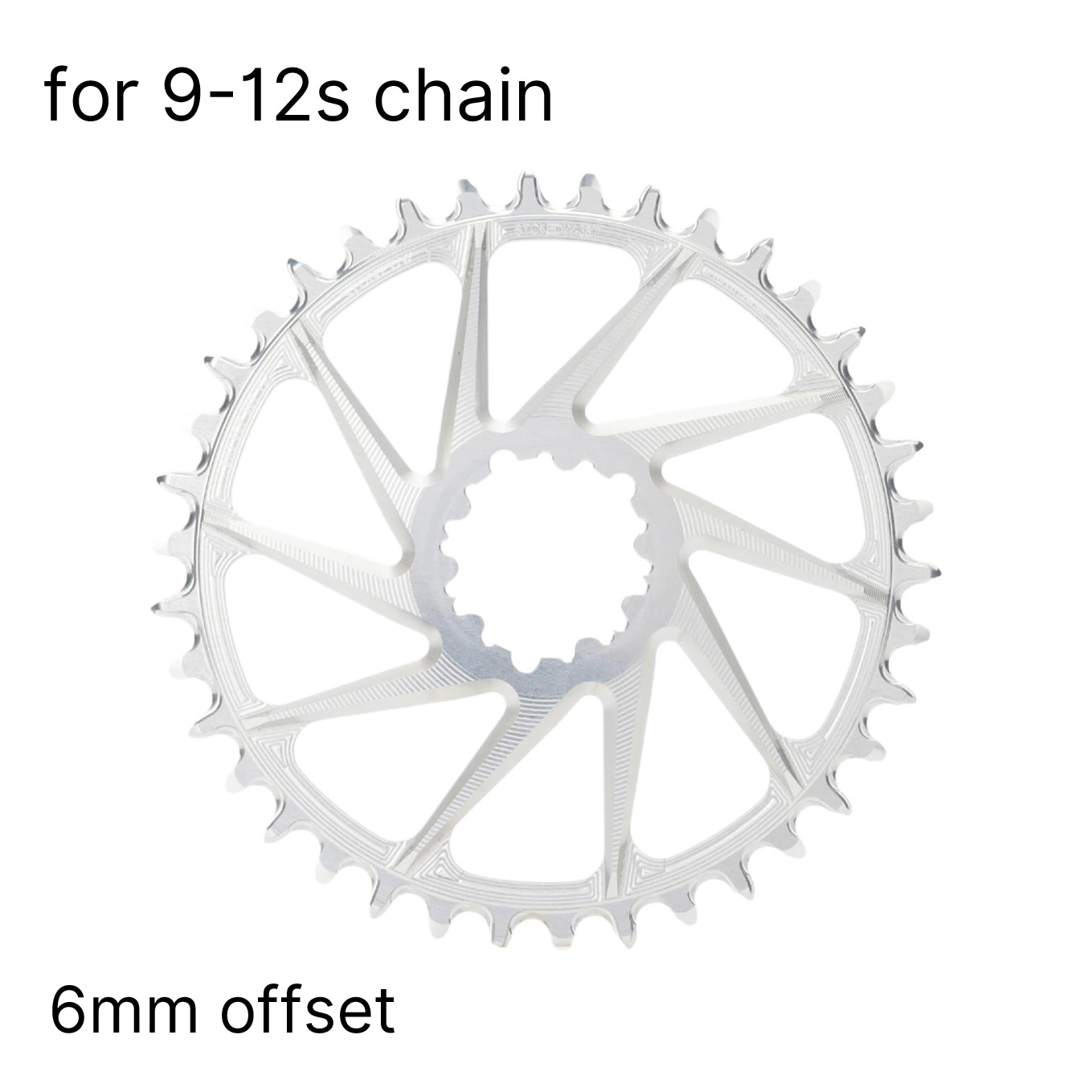

Hollow YL Dimensions and Weight

Teeth	Max OD (mm)	Weight (g)	Part No.	Color
26T	113.3	46.5	MT-SR3-6OF-26T-YL	Black/Silver
28T	121.5	53.0	MT-SR3-6OF-28T-YL	Black/Silver
30T	129.5	61.5	MT-SR3-6OF-30T-YL	Black/Silver
32T	137.5	68.5	MT-SR3-6OF-32T-YL	Black/Silver
34T	146.0	74.0	MT-SR3-6OF-34T-YL	Black/Silver
36T	154.0	84.5	MT-SR3-6OF-36T-YL	Black/Silver
38T	162.0	91.5	MT-SR3-6OF-38T-YL	Black/Silver
40T	170.0	95.5	MT-SR3-6OF-40T-YL	Black/Silver

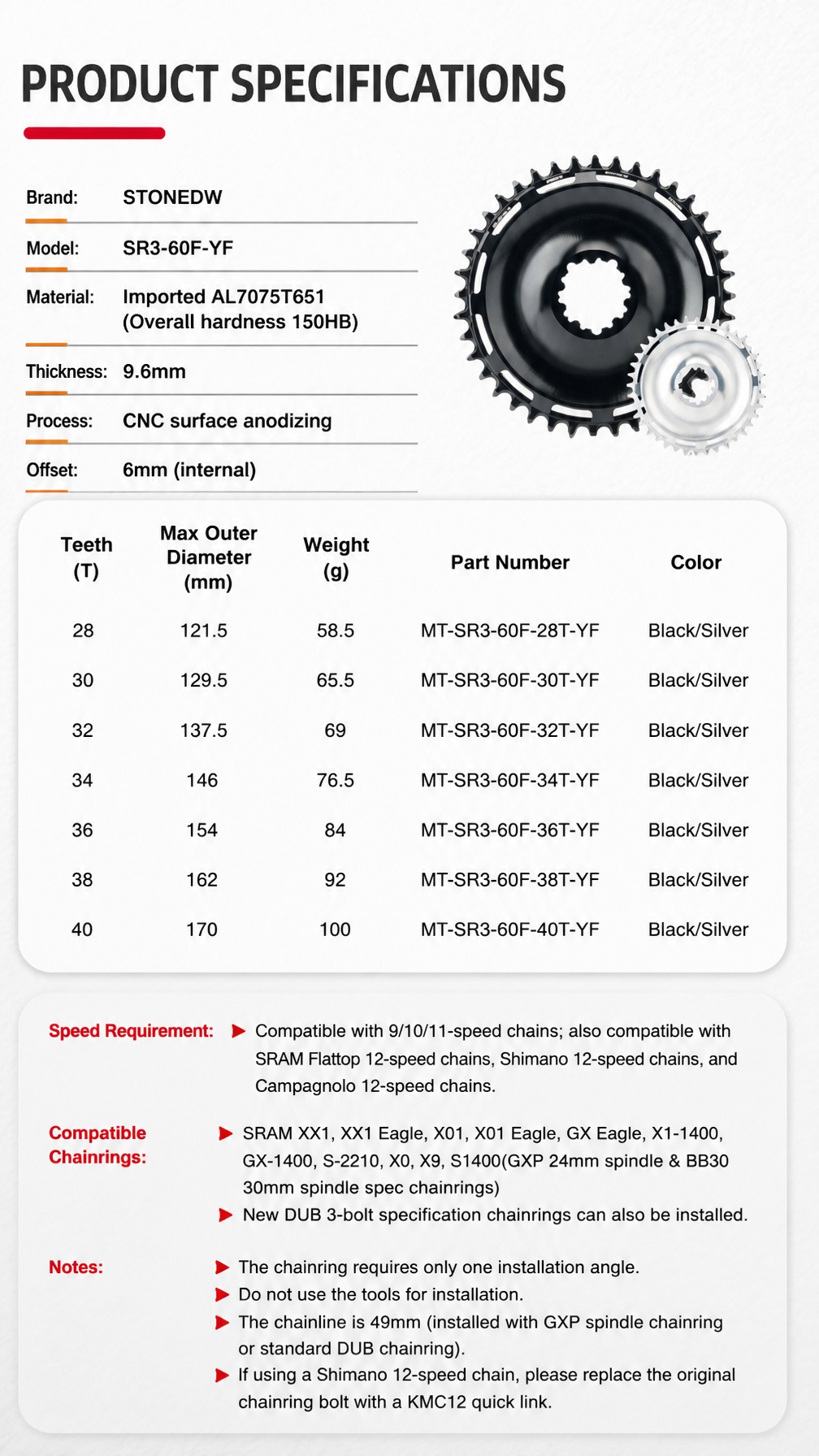

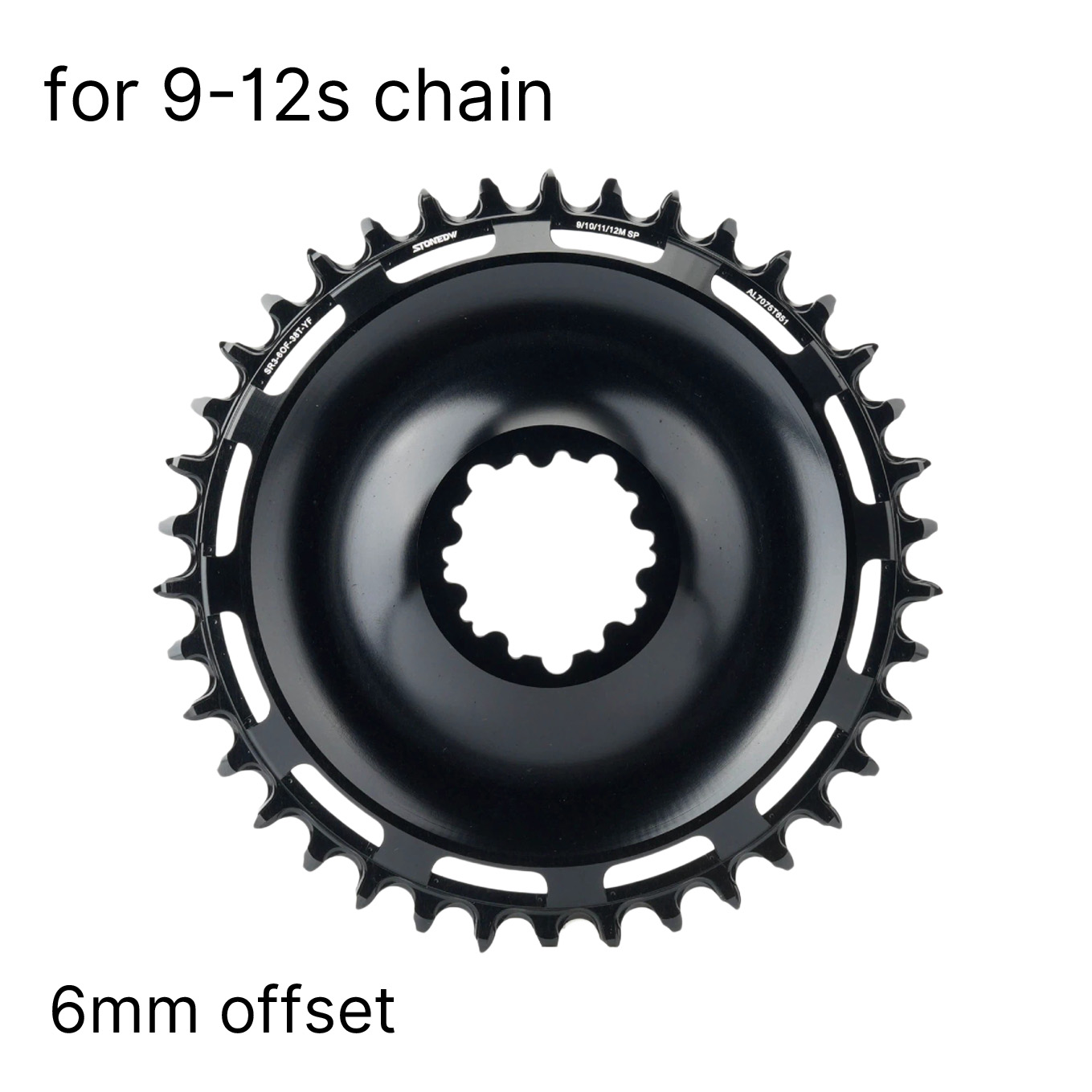

Solid YF Dimensions and Weight

Teeth	Max OD (mm)	Weight (g)	Part No.	Color
28T	121.5	58.5	MT-SR3-6OF-28T-YF	Black/Silver
30T	129.5	65.5	MT-SR3-6OF-30T-YF	Black/Silver
32T	137.5	69.0	MT-SR3-6OF-32T-YF	Black/Silver
34T	146.0	76.5	MT-SR3-6OF-34T-YF	Black/Silver
36T	154.0	84.0	MT-SR3-6OF-36T-YF	Black/Silver
38T	162.0	92.0	MT-SR3-6OF-38T-YF	Black/Silver
40T	170.0	100.0	MT-SR3-6OF-40T-YF	Black/Silver

The selector includes a 26T aero option; its weight and diameter are not specified in the solid-style chart.

Installation and Package

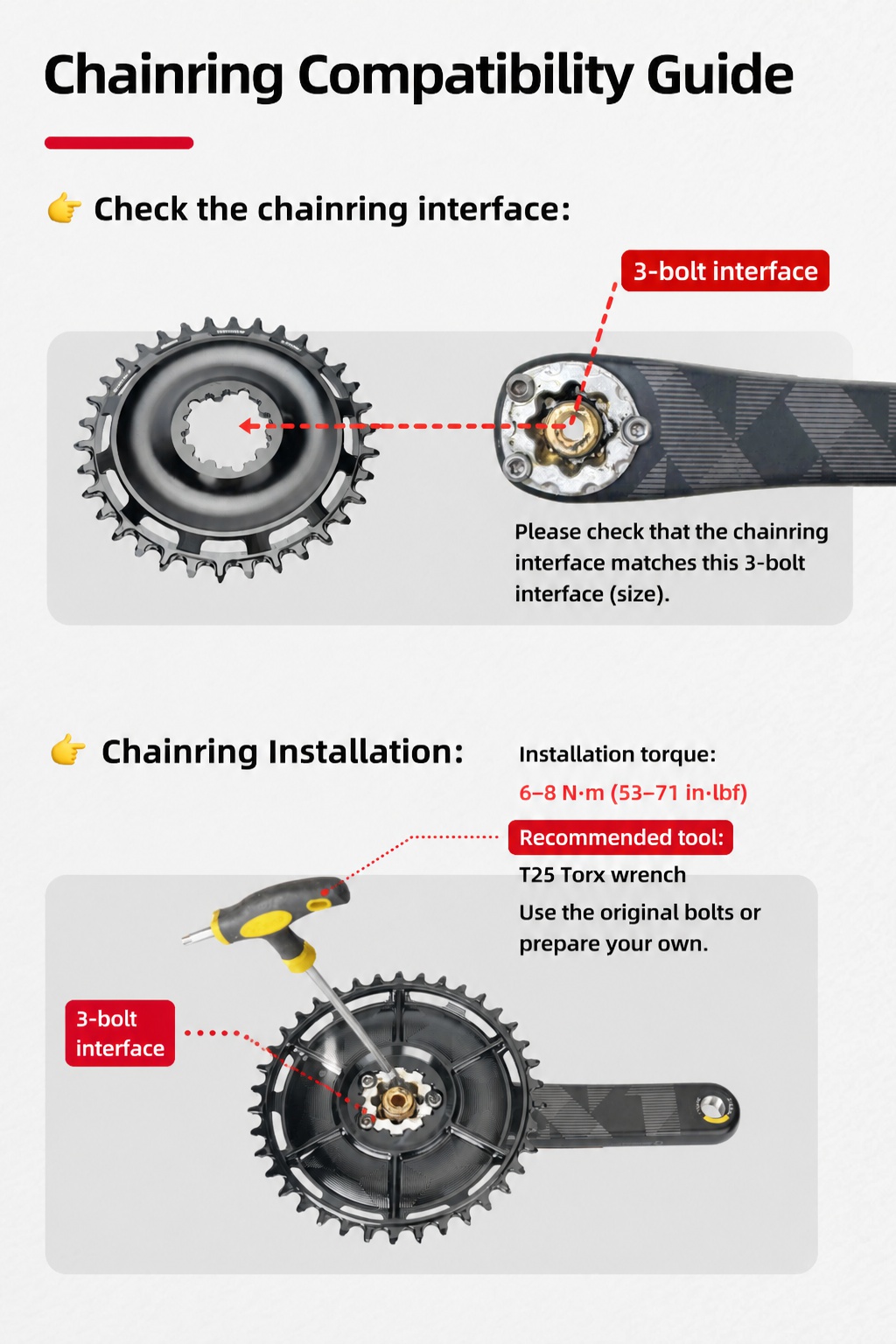

Use a T25 Torx tool. The listed installation torque is 6–8 N·m. Check the crank manufacturer's installation requirements. Supplied as the selected chainring; mounting bolts are not included.

Product Images and Video

STONE Direct Mount Chainring for SRAM GXP 3-bolt, 6mm Offset

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.

Option 1	Option 2
black aero	26T
black aero	28T
black aero	30T
black aero	32T
black aero	34T
black aero	36T
black aero	38T
black aero	40T
black hollow	26T
black hollow	28T
black hollow	30T
black hollow	32T
black hollow	34T
black hollow	36T
black hollow	38T
black hollow	40T
silver aero	26T
silver aero	28T
silver aero	30T
silver aero	32T
silver aero	34T
silver aero	36T
silver aero	38T
silver aero	40T
silver hollow	26T
silver hollow	28T
silver hollow	30T
silver hollow	32T
silver hollow	34T
silver hollow	36T
silver hollow	38T
silver hollow	40T
