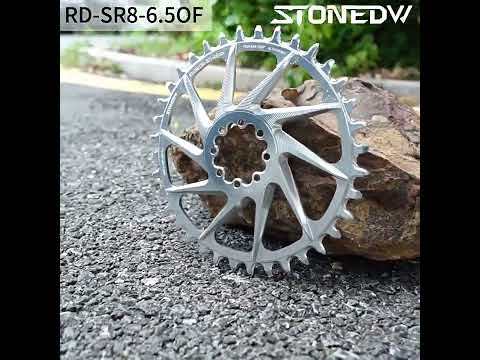

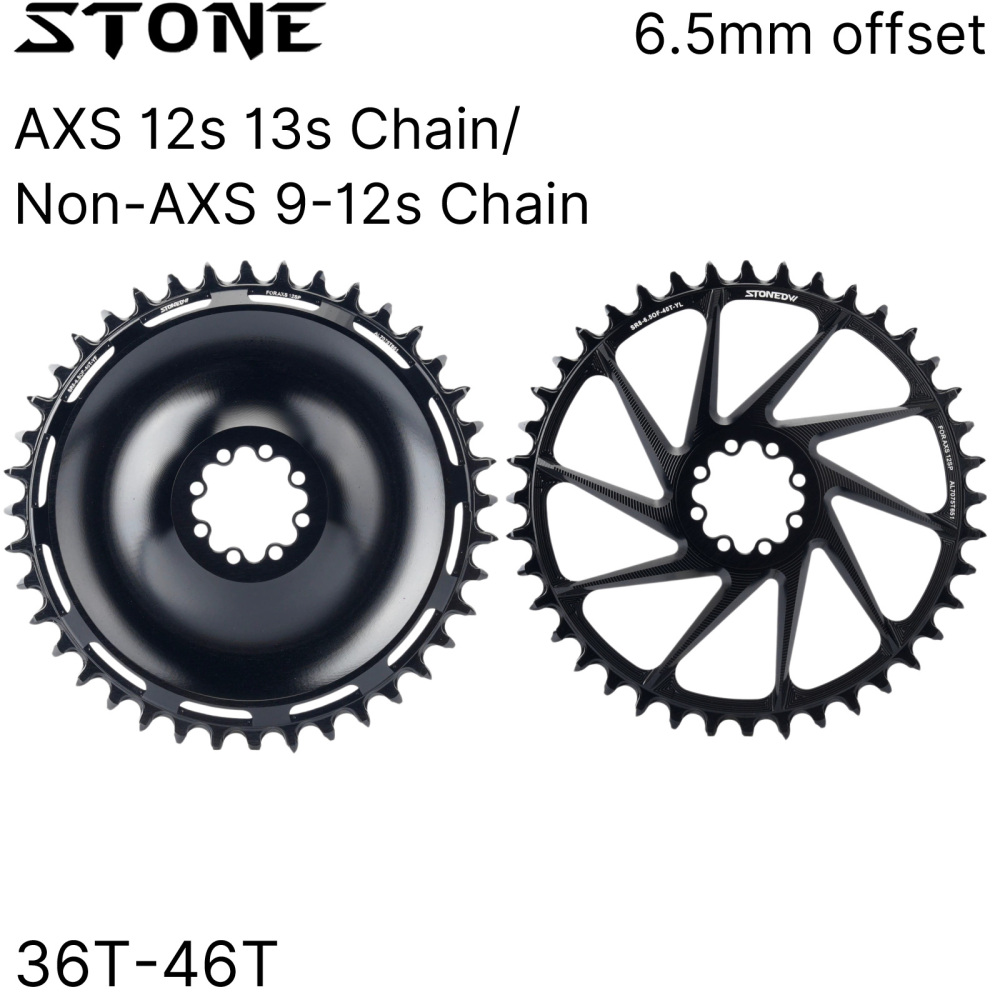

STONEDW Direct Mount Single Chainring | AL7075 CNC | For SRAM DUB WIDE Road/Gravel

Powerful Riding Starts with a Perfect Chainring Engineered from imported AL7075-T651 aluminum with 150HB hardness, this direct-mount narrow-wide single chainring is specifically designed with a 6.5mm offset for SRAM DUB WIDE Road/Gravel cranksets, delivering stiff, precise, and lightweight power transfer.

⚠️ IMPORTANT: Crank Spindle Compatibility

This chainring's 6.5mm offset is designed specifically for SRAM DUB WIDE spindle cranksets (Road/Gravel Wide version), NOT the standard DUB spindle.

🔍 Before purchasing, please confirm your crankset is the DUB WIDE version. DUB WIDE cranksets are typically used with wider tire clearance road/gravel frames. Installing on a standard DUB crank may result in incorrect chainline/Q-factor.

🔧 Key Features

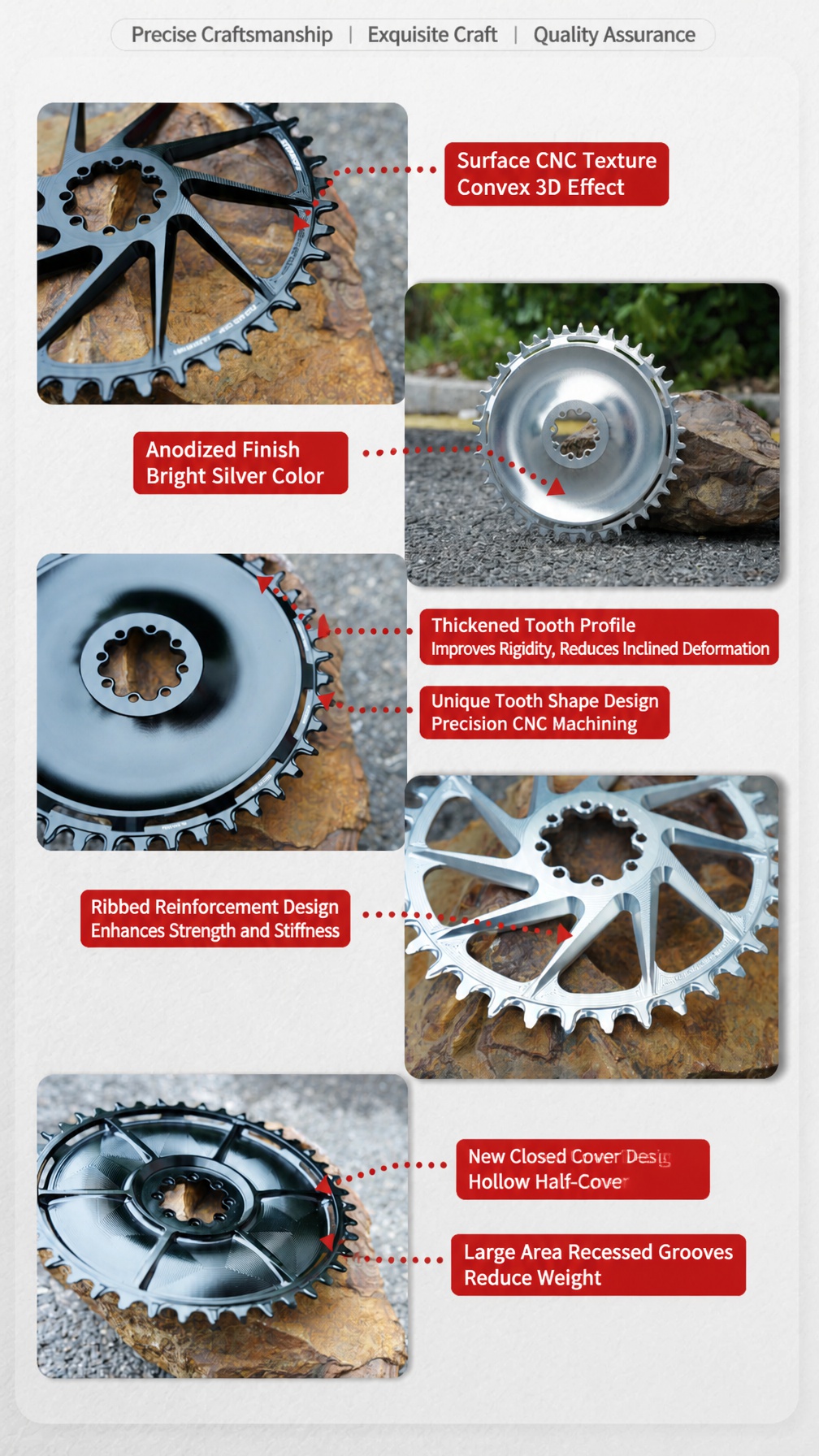

• Premium Material: Imported AL7075-T651 aluminum, heat-treated & pre-stretched for superior rigidity and minimal deformation
• Surface Treatment: CNC machined + Anodized finish — corrosion resistant, wear resistant, insulated, and fade-proof

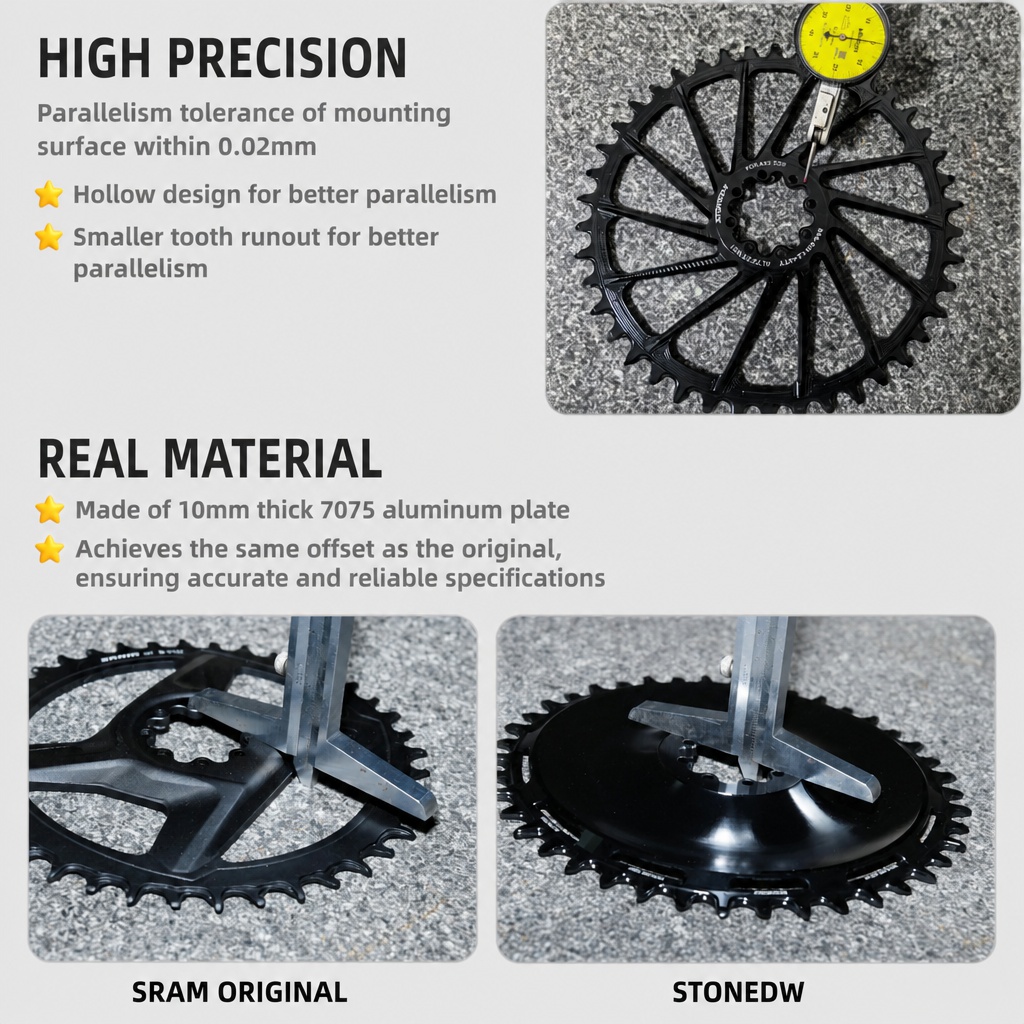

• High Precision: Interface parallelism guaranteed within 0.02mm — same-level accuracy as OEM SRAM chainrings

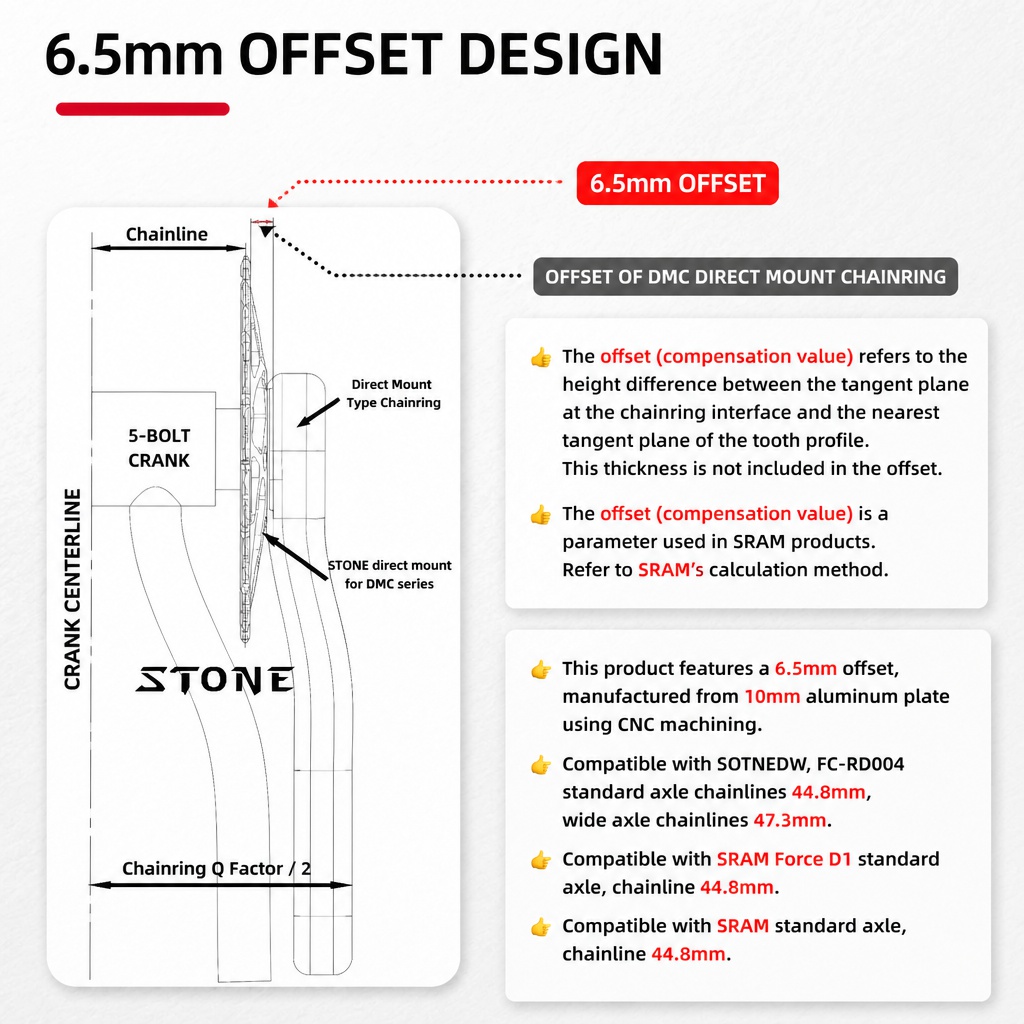

• DUB WIDE Offset Design: 6.5mm inward offset, matched to SRAM DUB WIDE

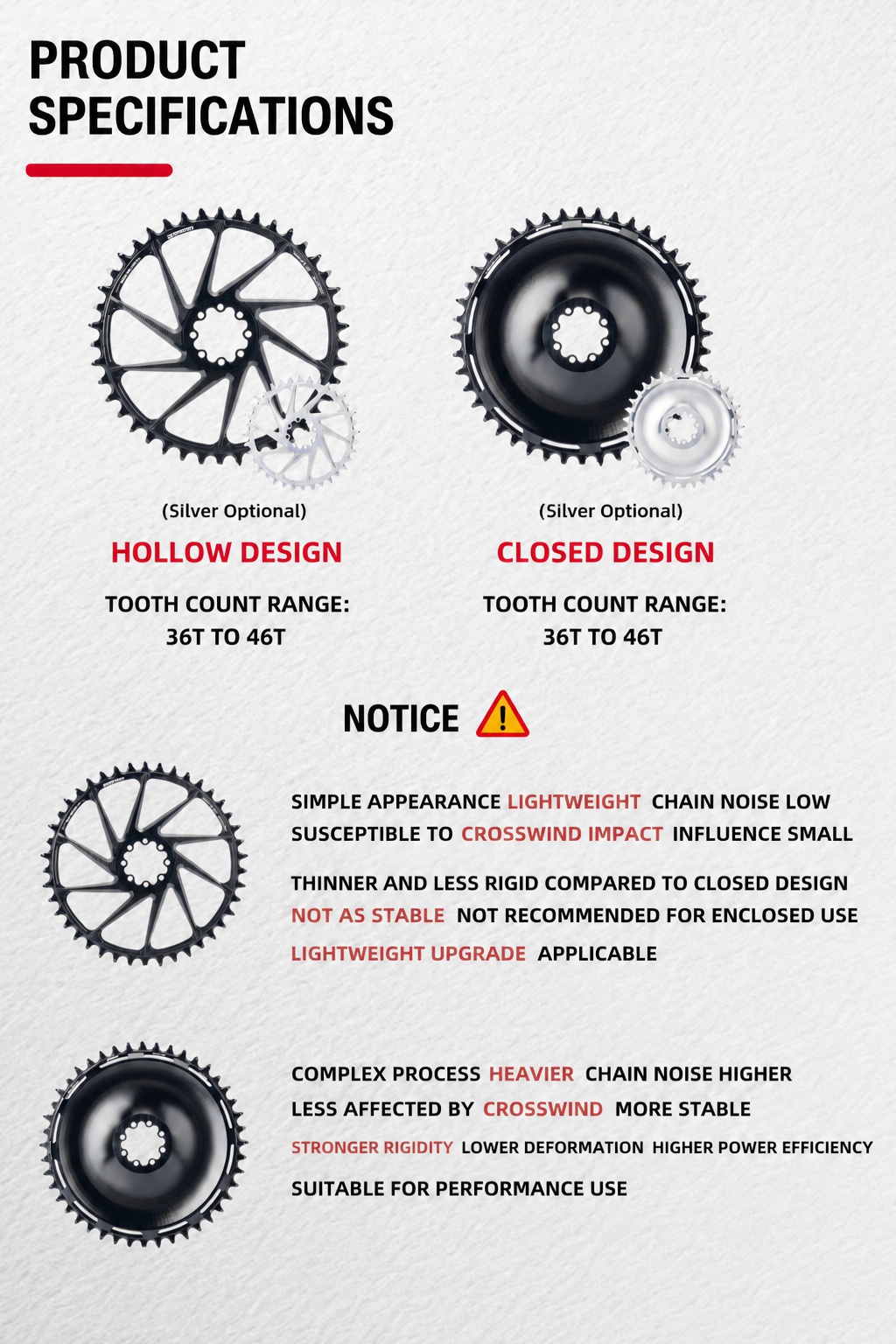

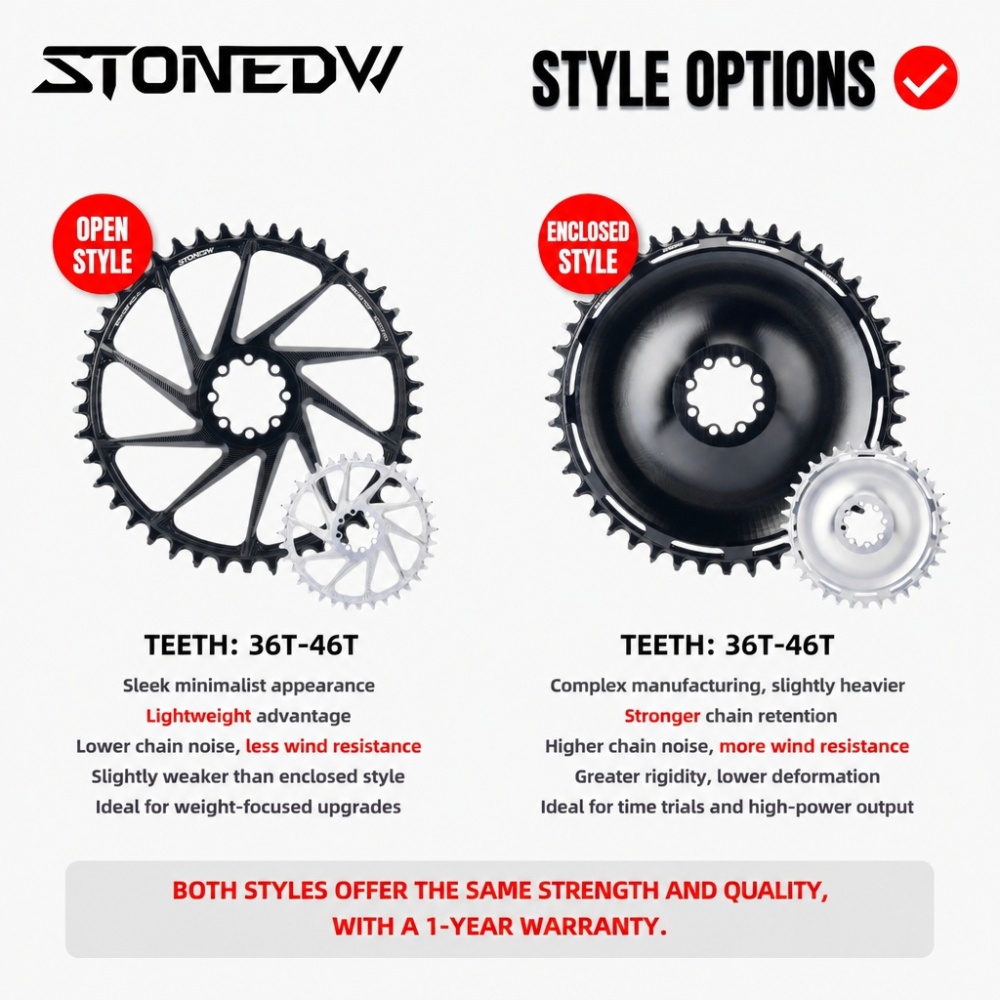

• Two Style Options:

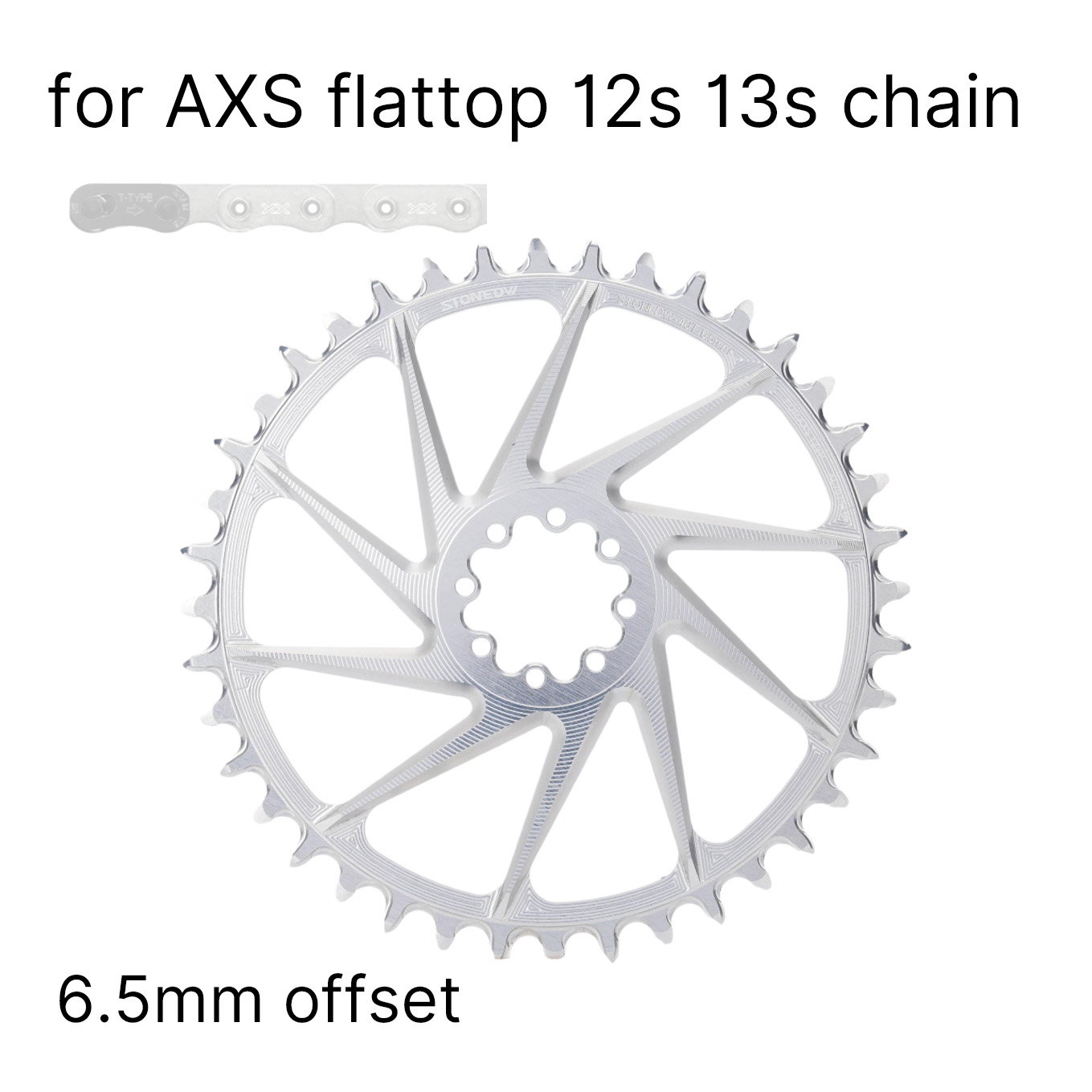

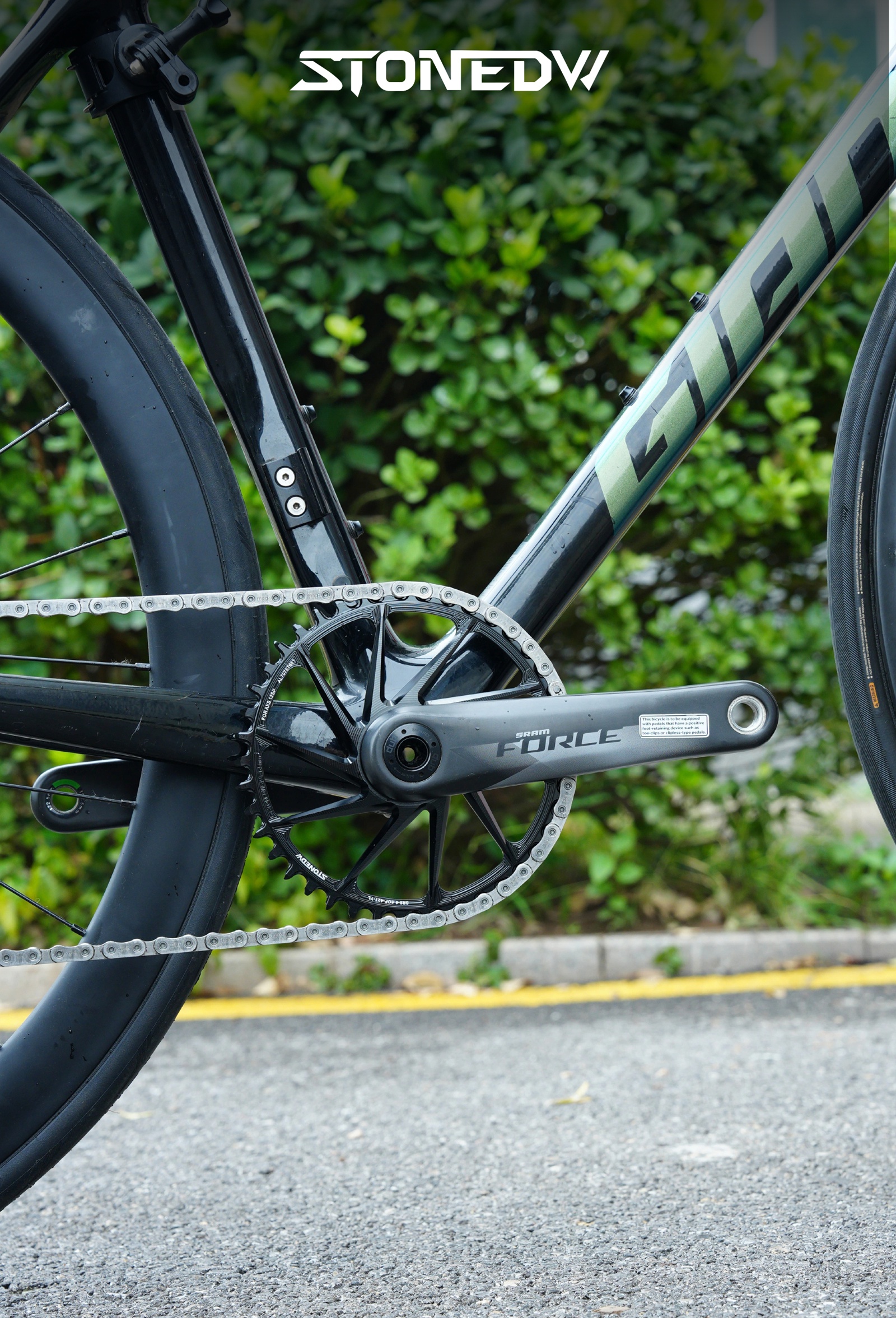

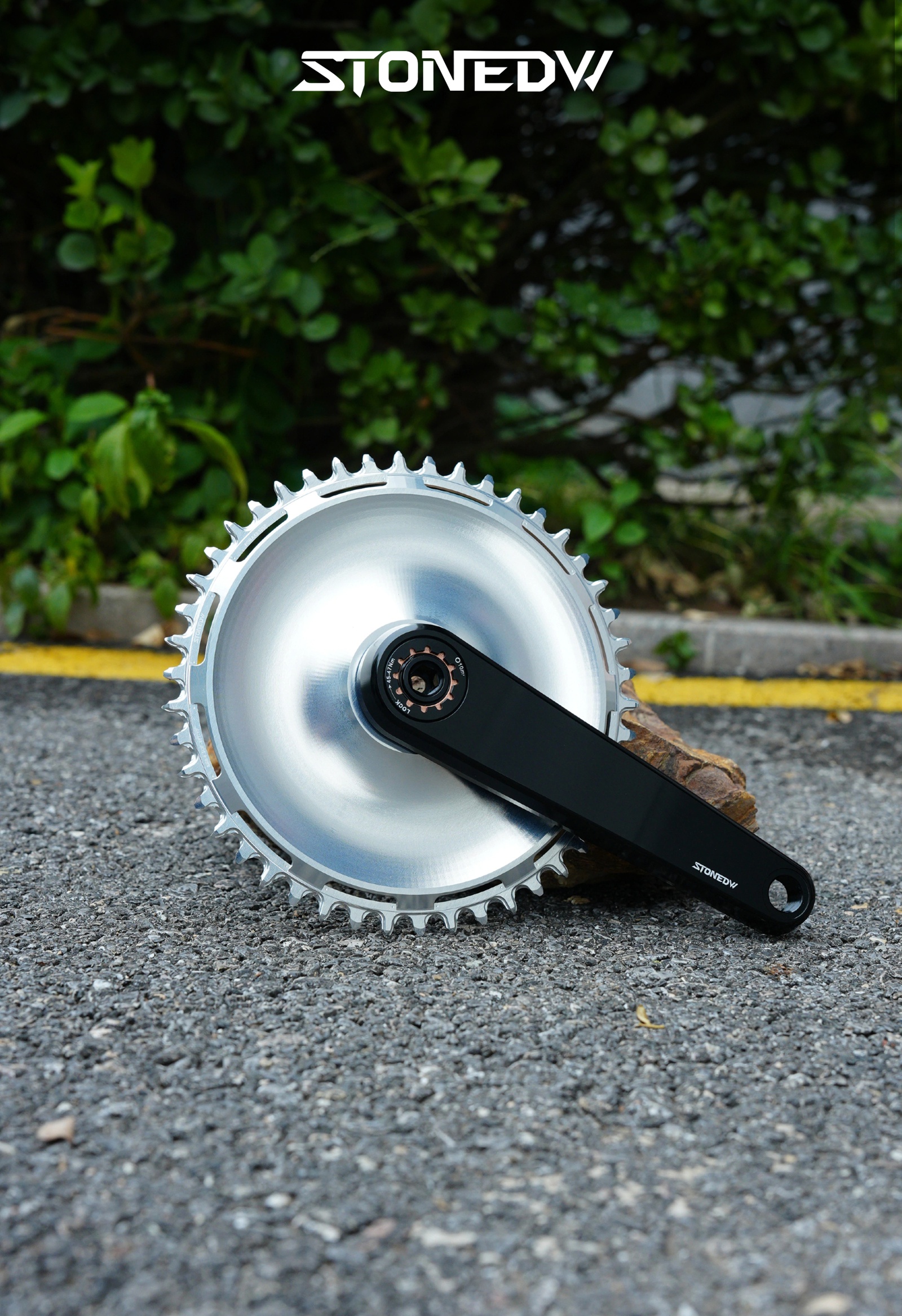

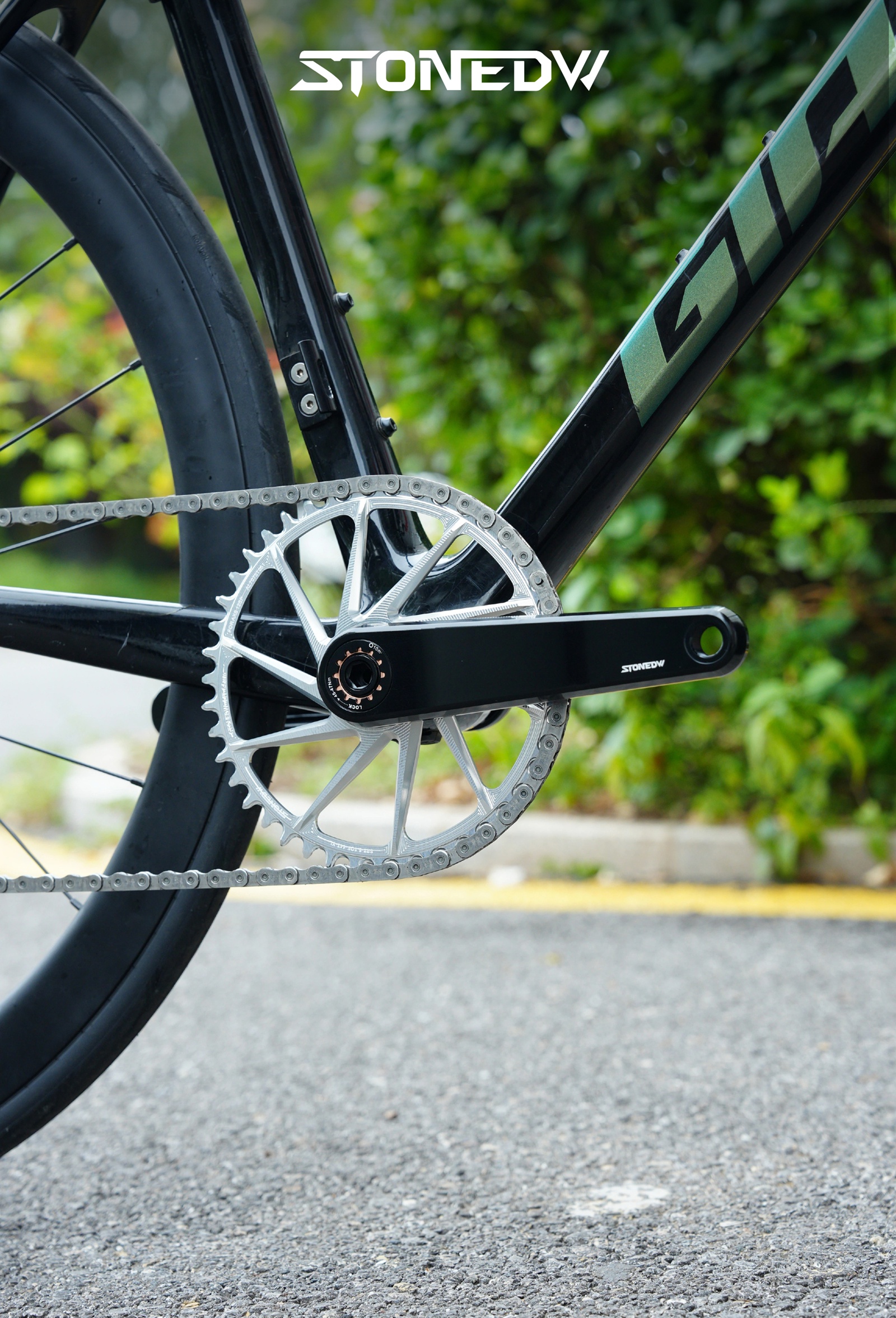

  • Cutout (Hollow) Style — Lighter weight, lower chain noise, less crosswind interference, ideal for lightweight builds

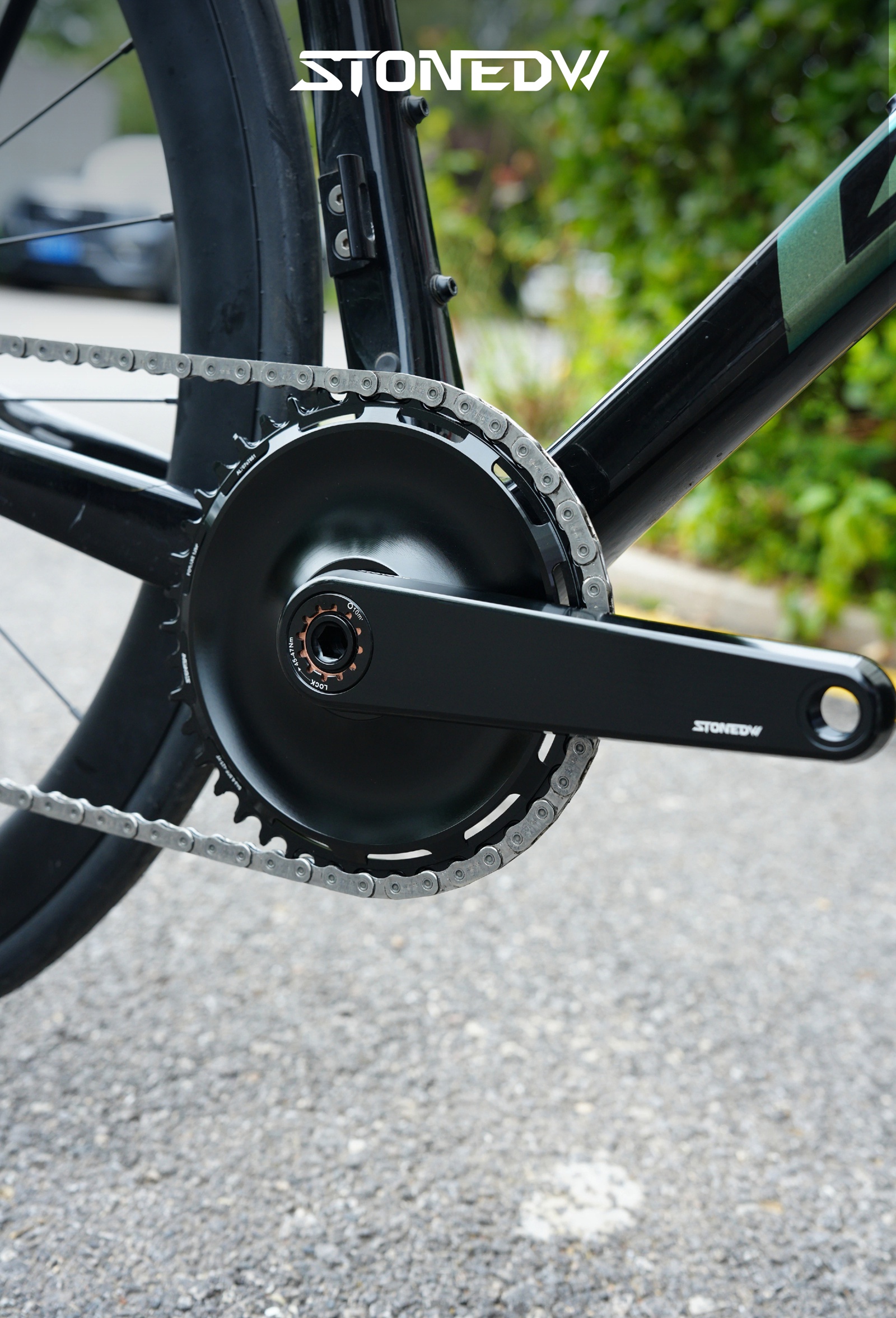

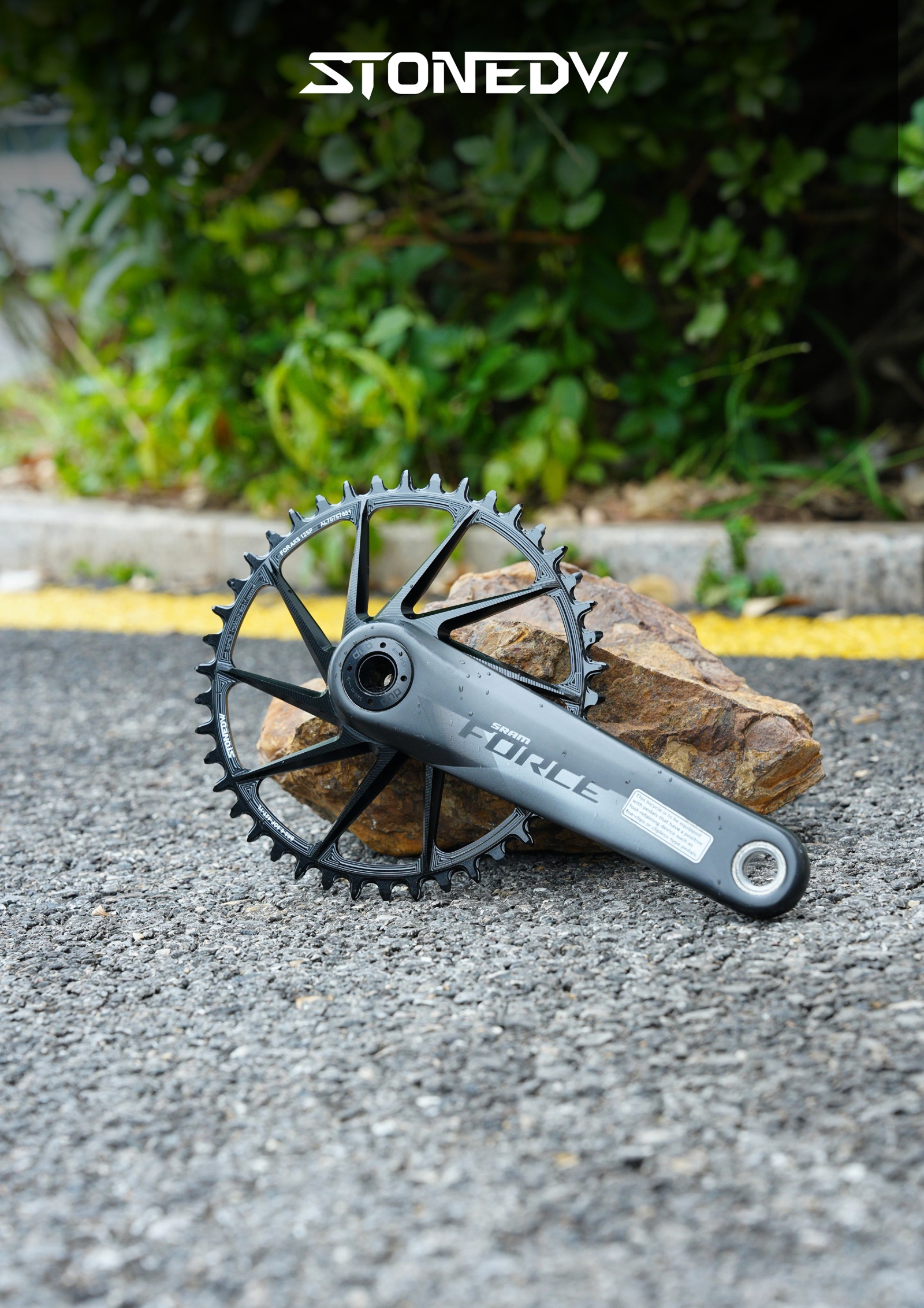

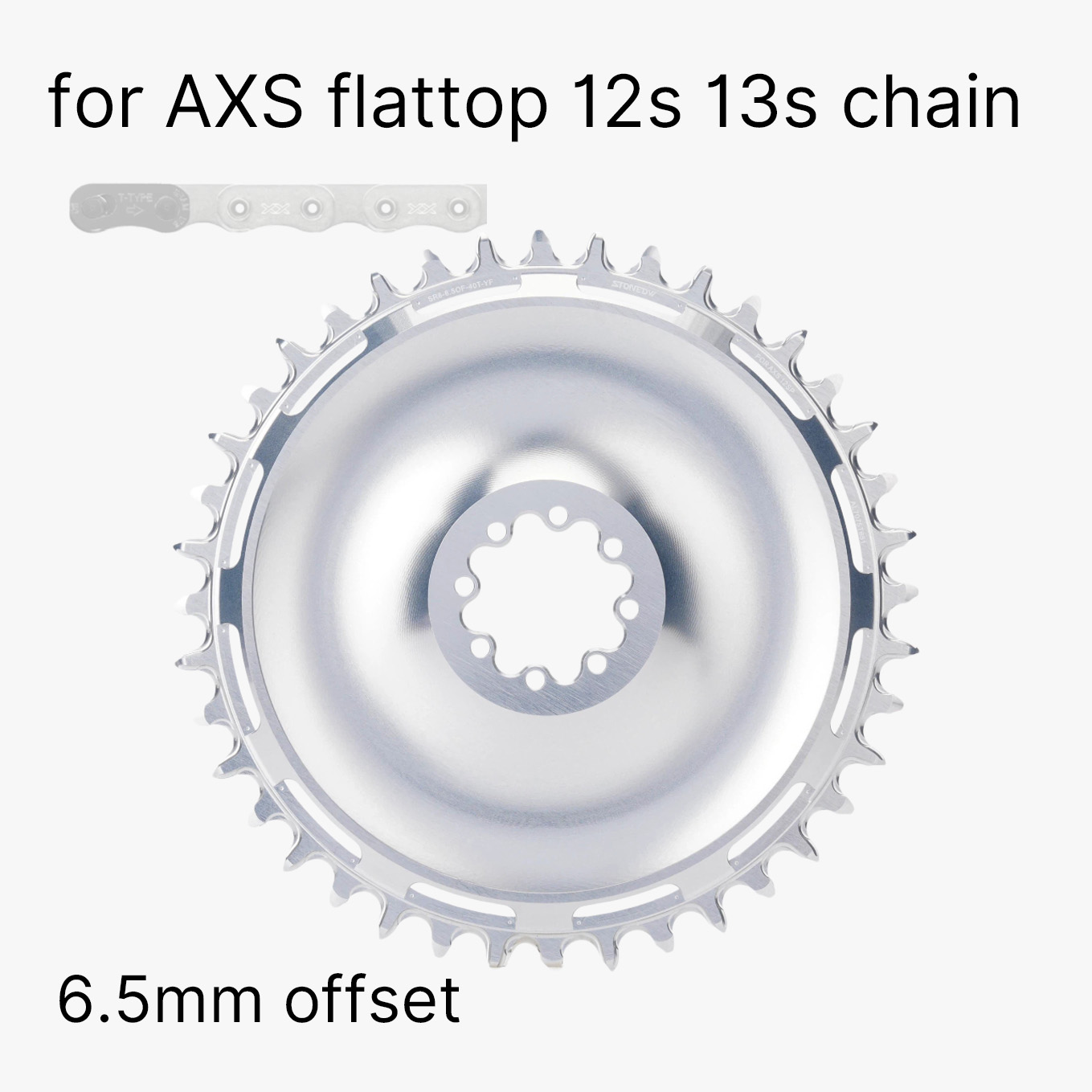

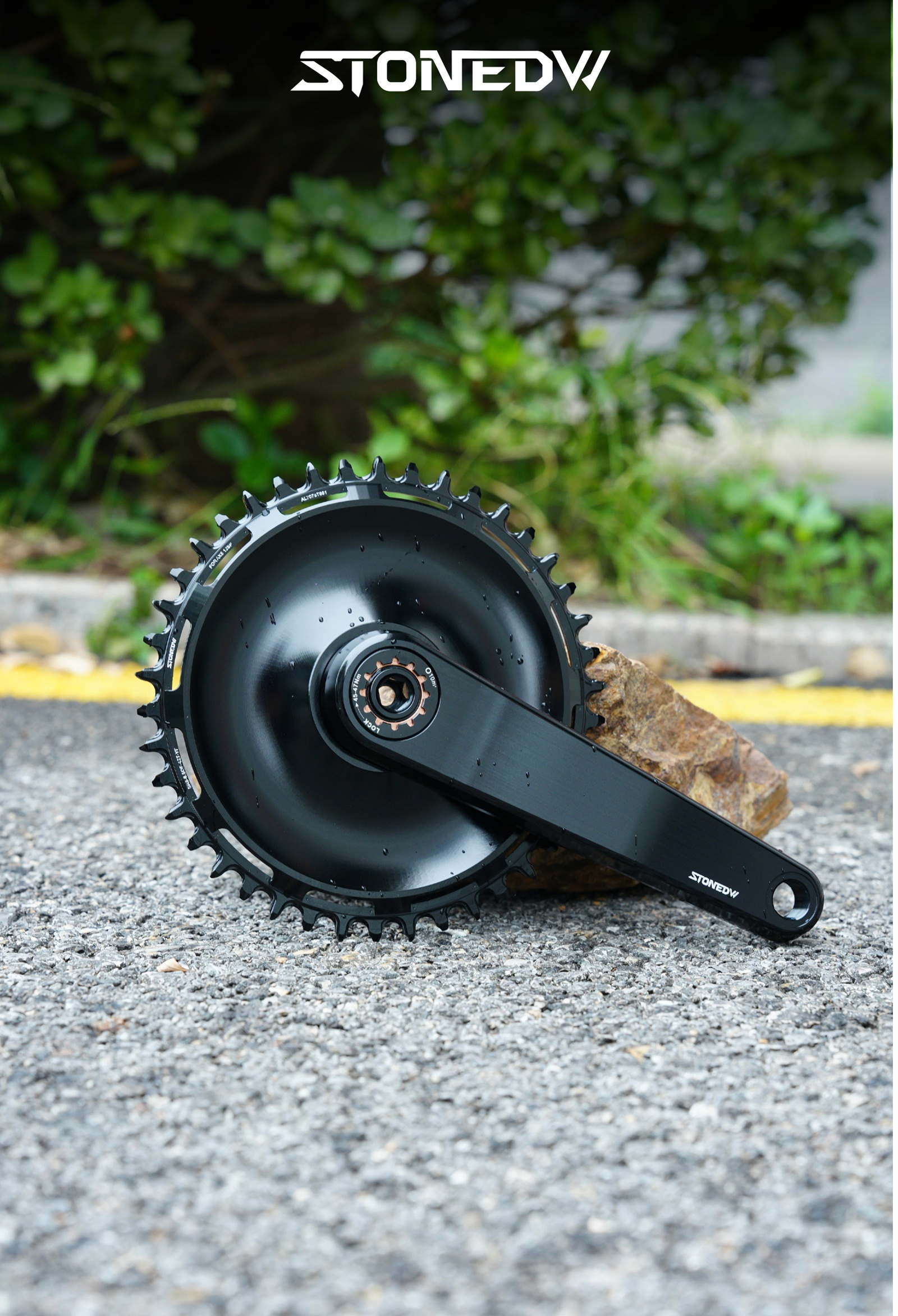

  • Closed (Aero) Style — Higher stiffness, lower flex, ideal for high-power sprint riders
• Two Color Options: Anodized Black / Silver

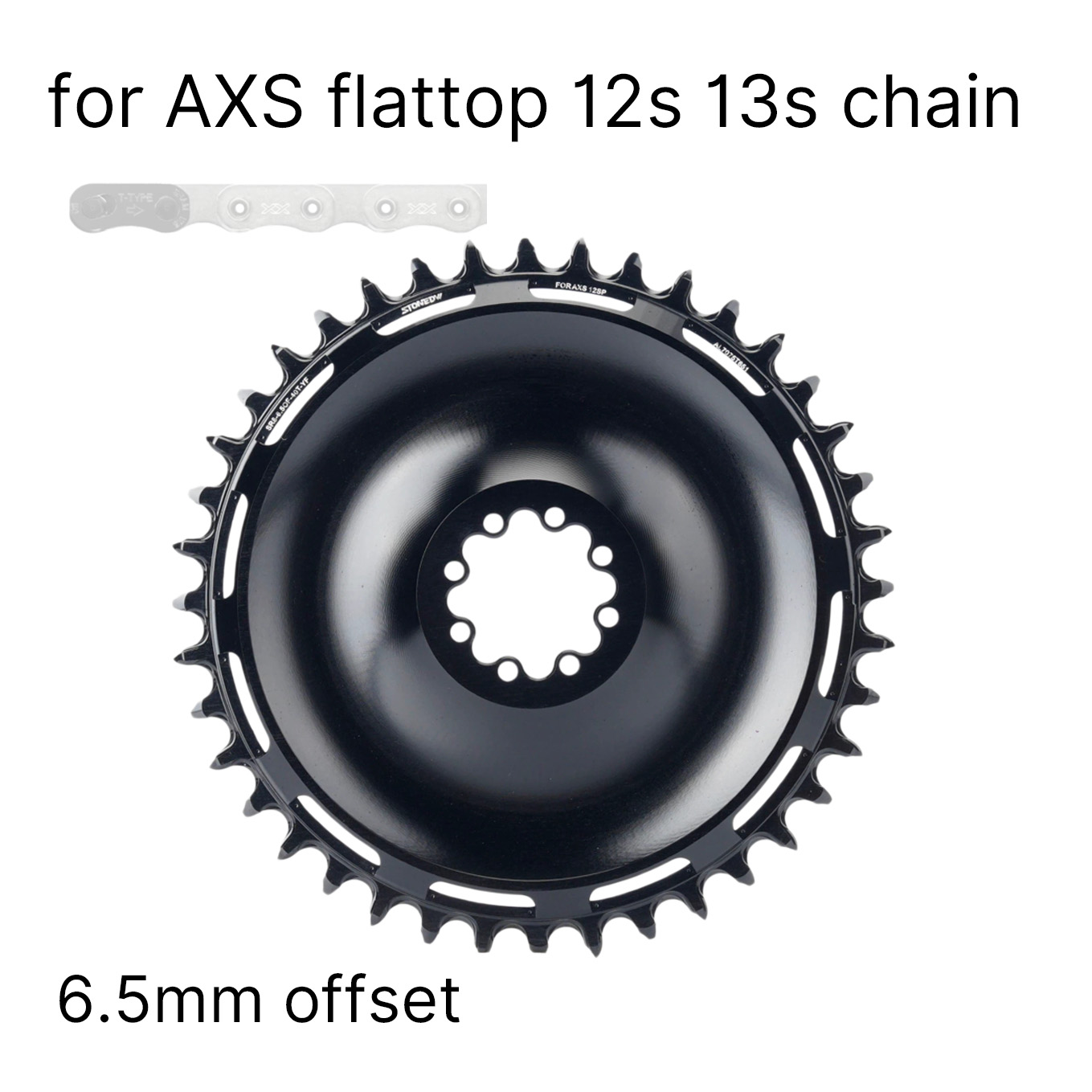

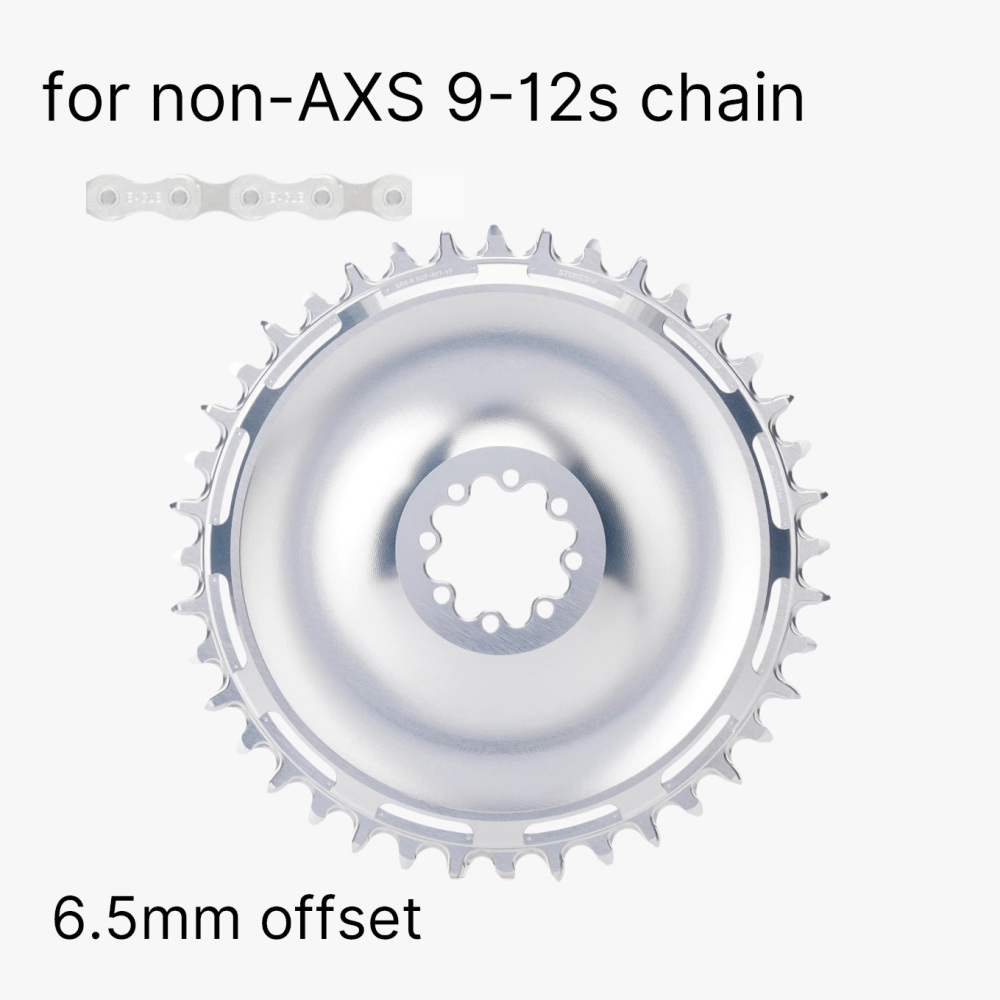

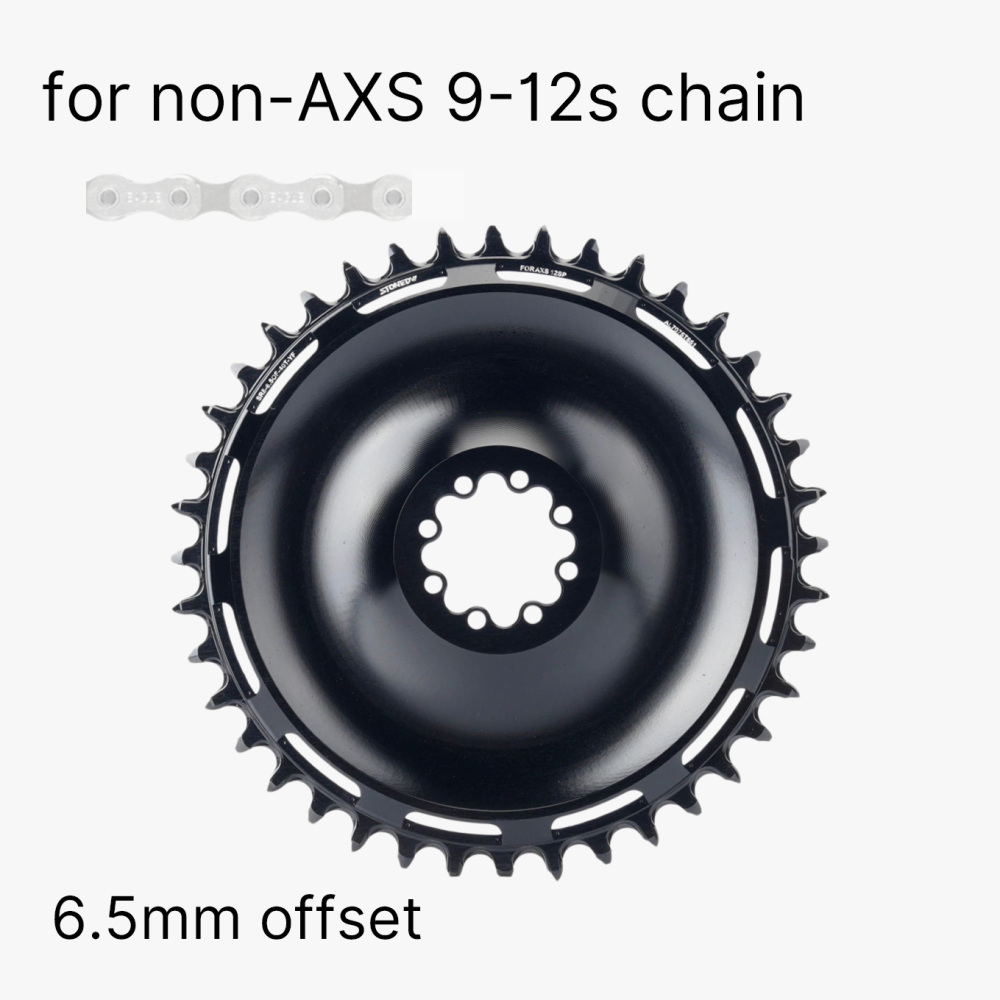

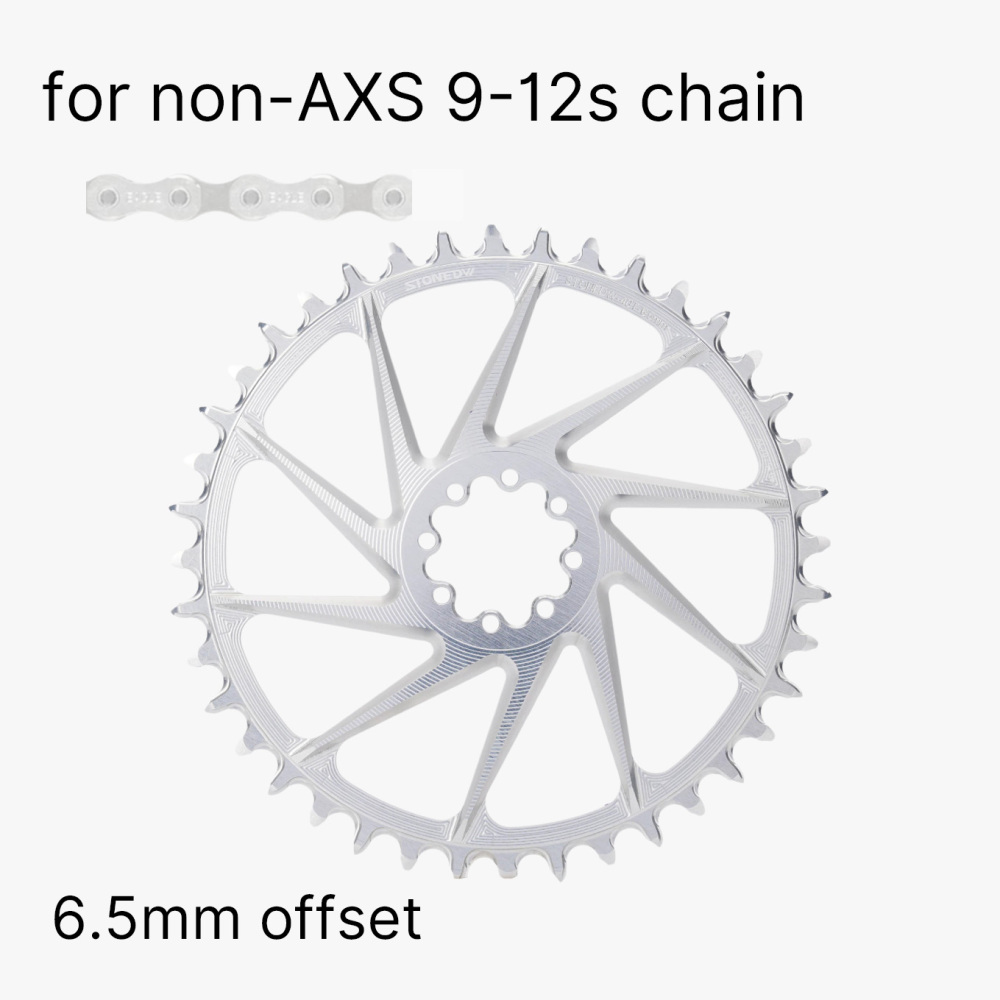

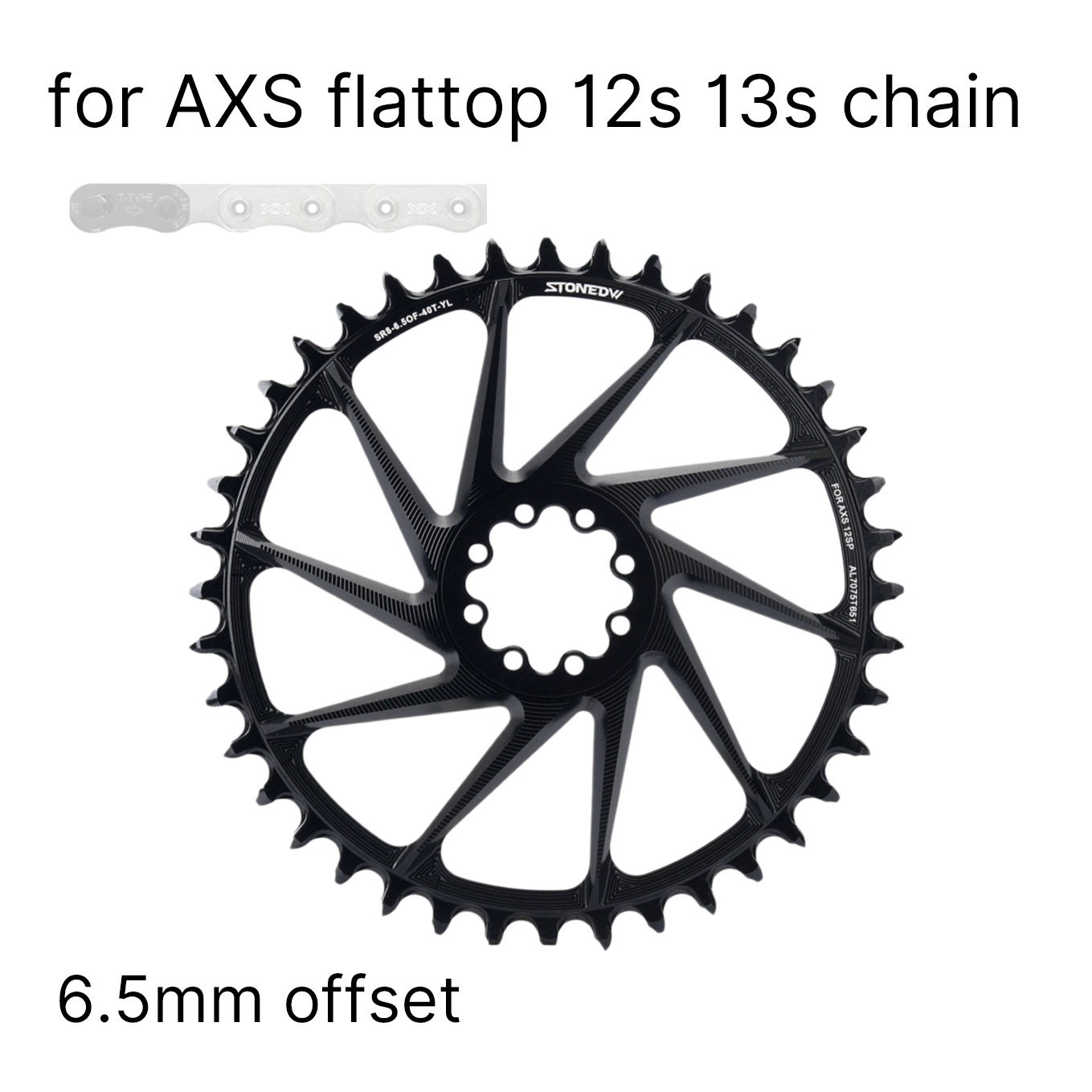

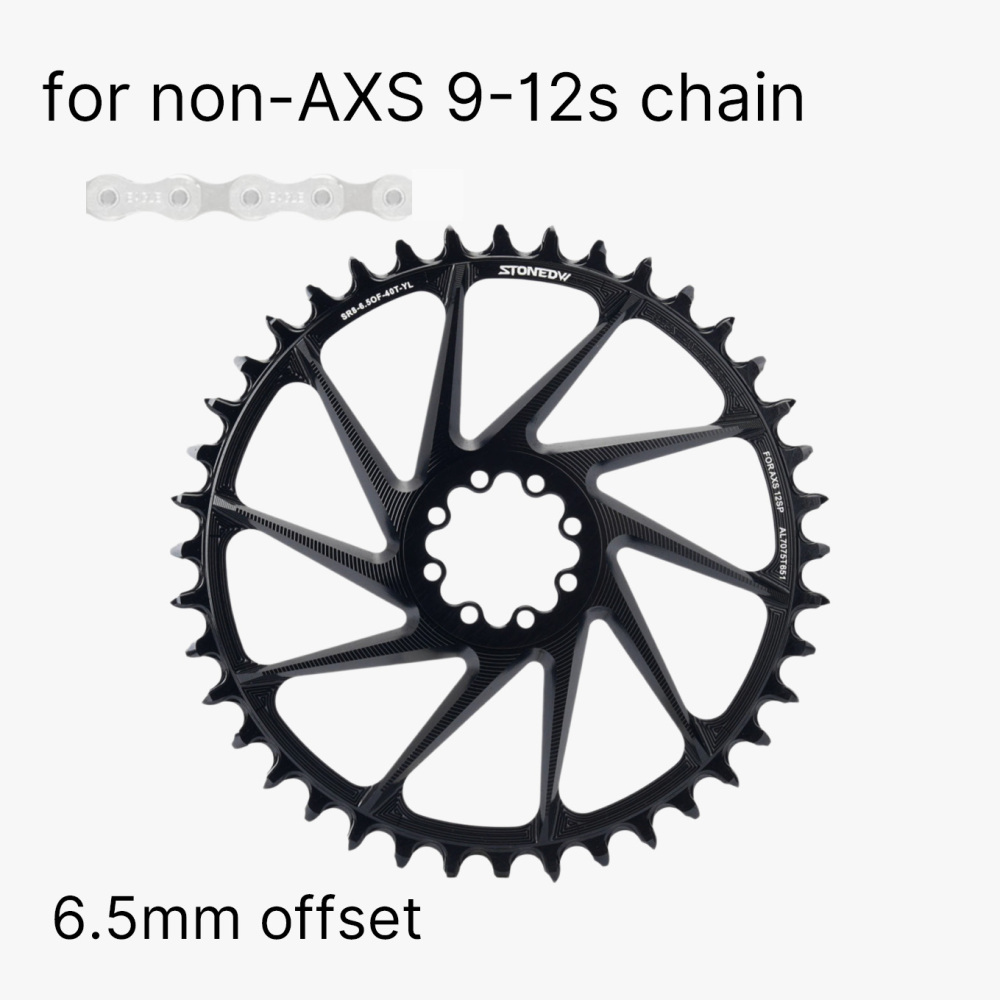

⚙️ IMPORTANT: Two Tooth Profile Types — Please Choose Correctly!

This chainring is available in TWO different tooth profile designs. Please select the correct version based on YOUR chain type:

⚠️ Note: If using the Standard Profile chainring with a Shimano 12-speed chain, please replace the OEM quick-link with a KMC YBN 12-speed quick-link for full compatibility. 9/10/11-speed chains work directly regardless of brand.

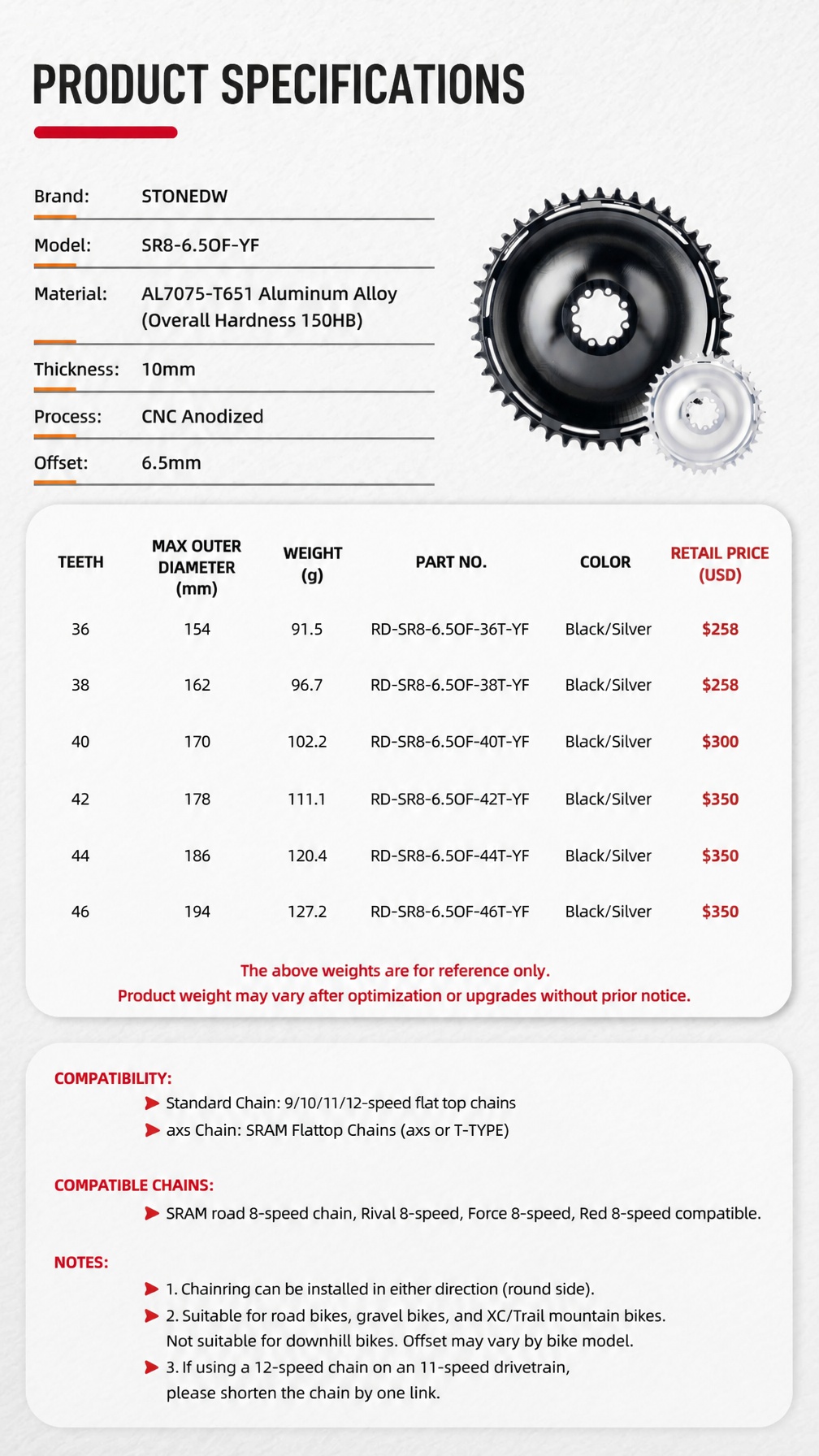

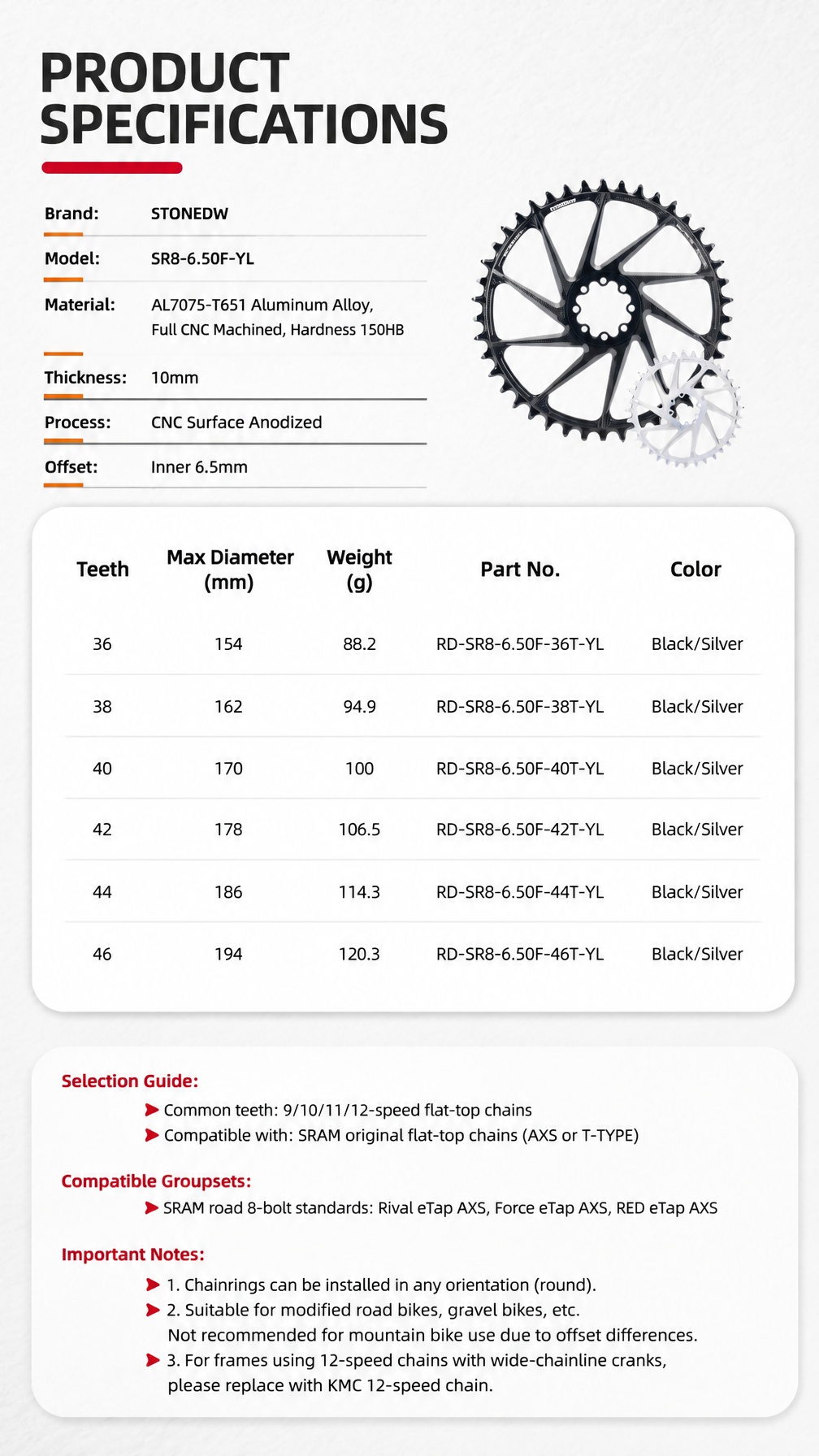

📐 Specifications

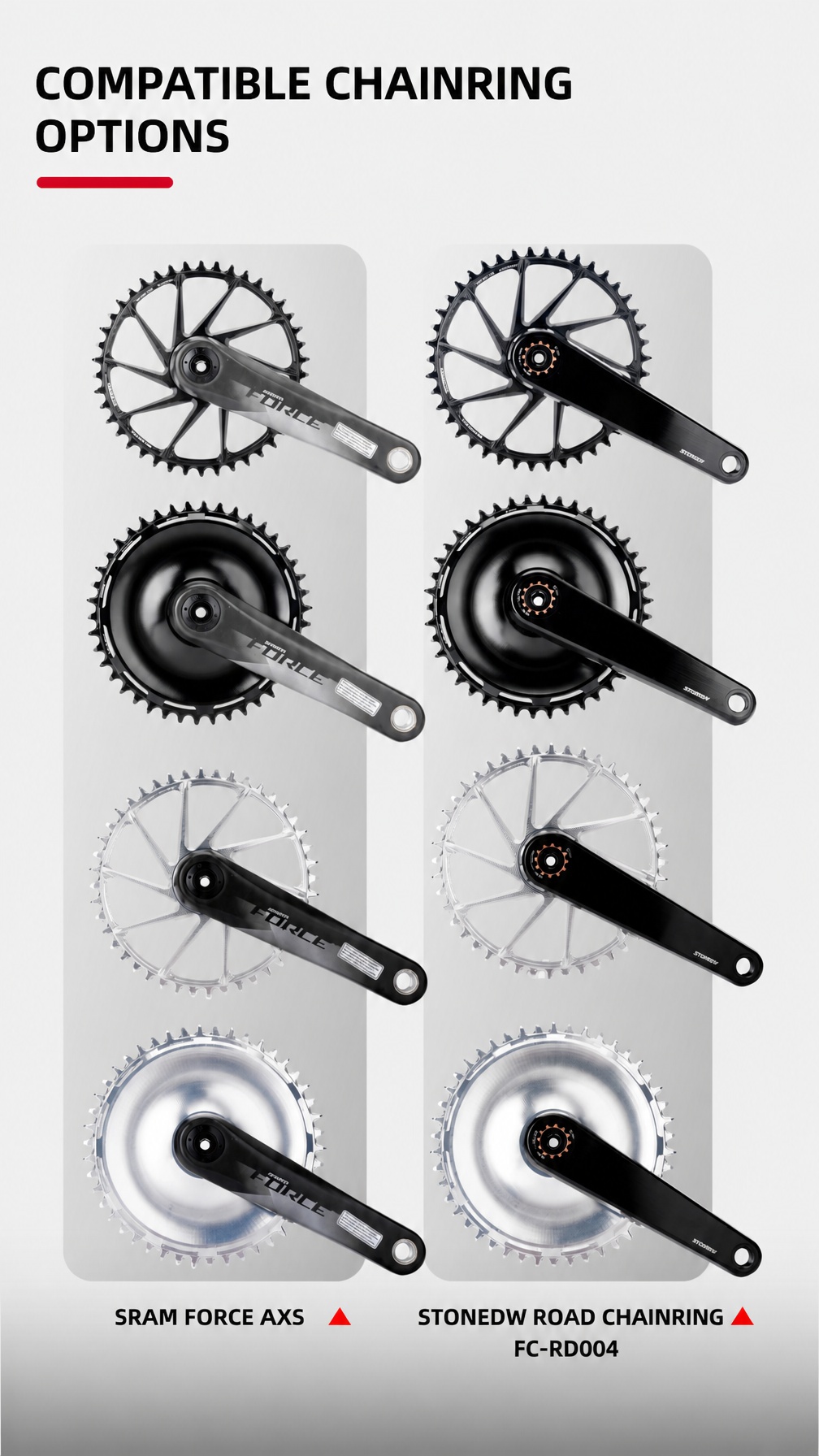

🚴 Crank Compatibility

Compatible with SRAM 8-bolt Road/Gravel DUB WIDE cranksets, including:

• SRAM Rival AXS (DUB WIDE, 8-bolt)

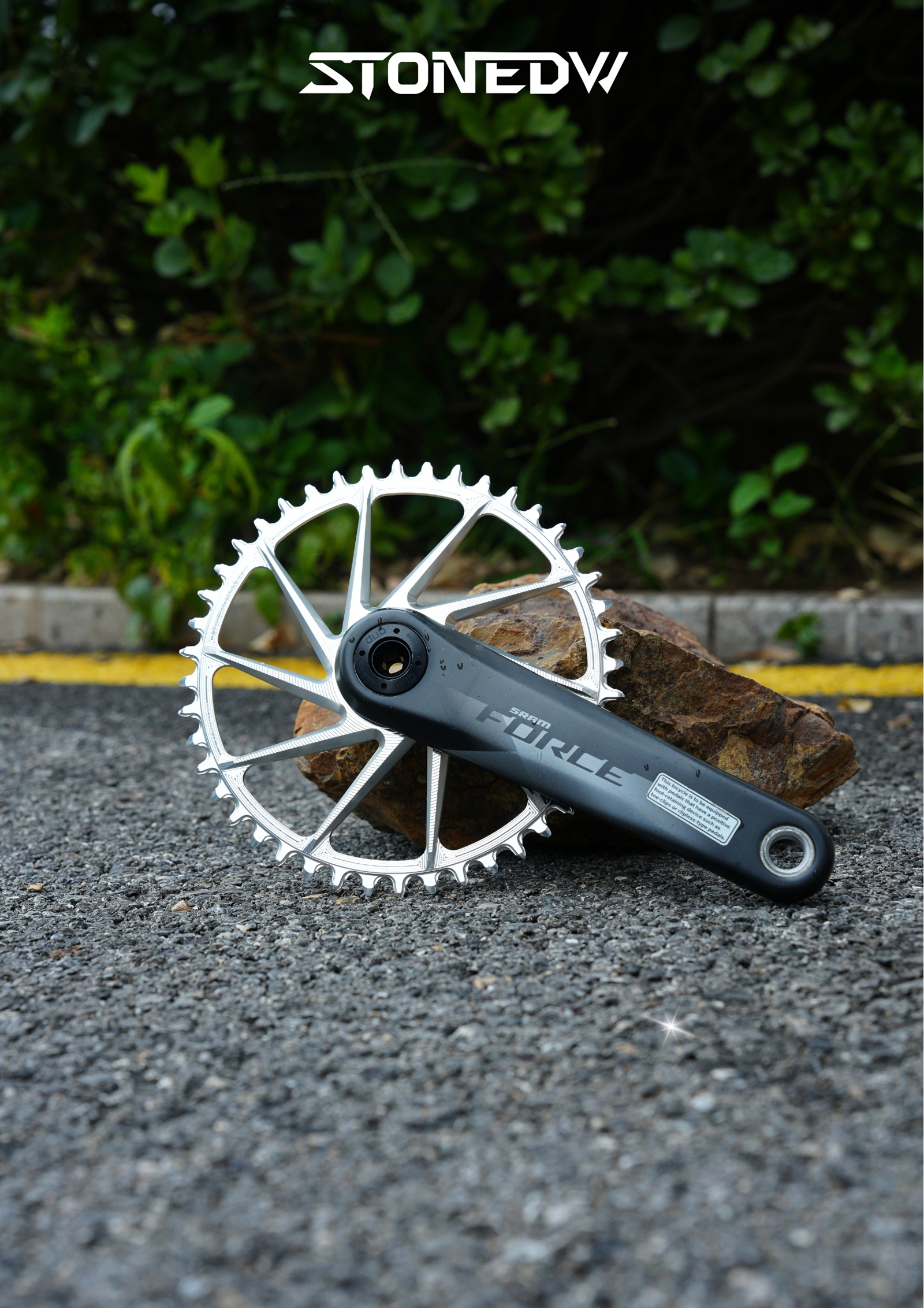

• SRAM Force AXS (DUB WIDE, 8-bolt)
• SRAM RED AXS (DUB WIDE, 8-bolt)
• STONEDW FC-RD004 (Wide spindle version)

❗ Please verify your crank spindle is the WIDE version before ordering. Standard DUB spindle cranks may require a different offset chainring.

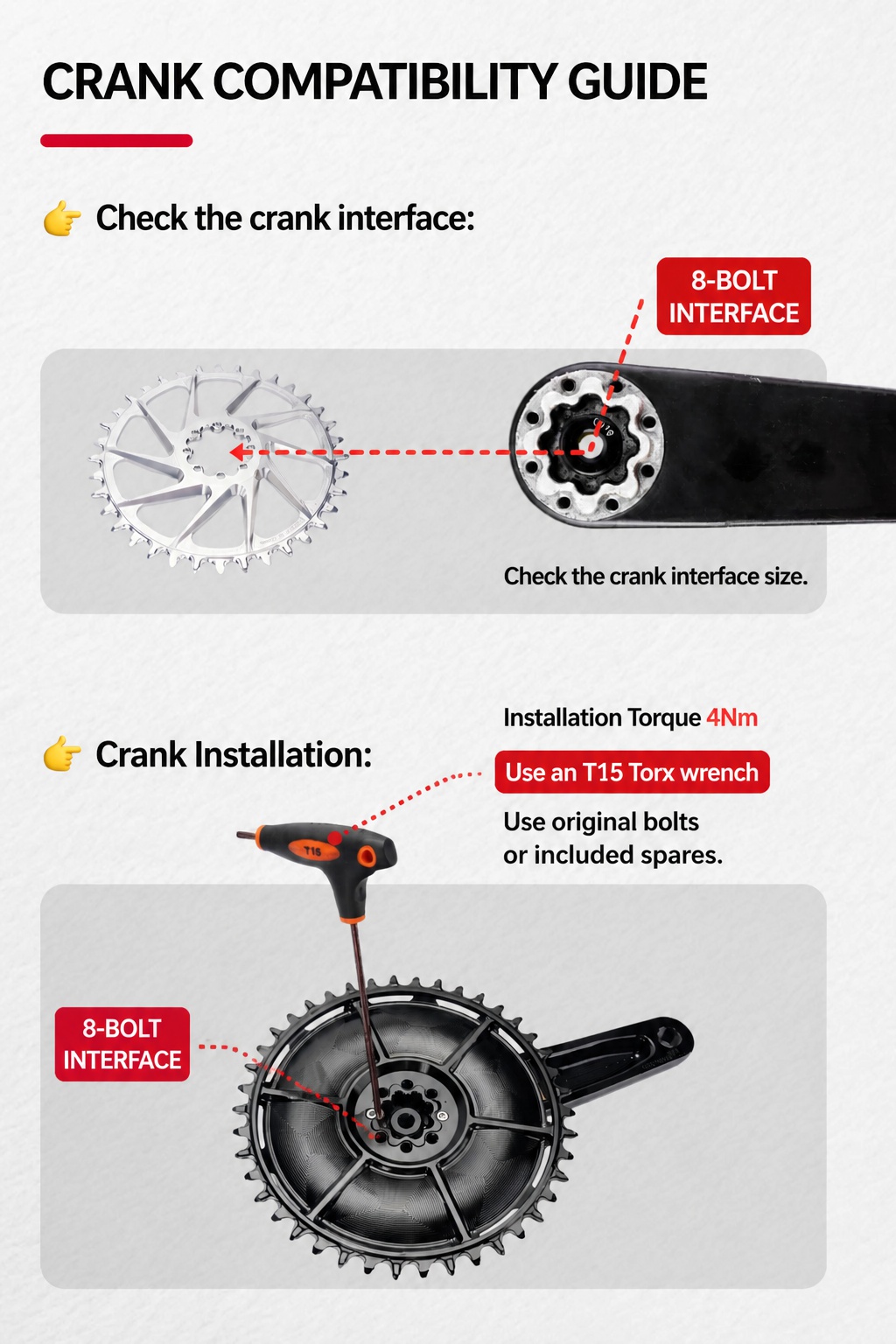

🛠 Installation

• Torque Spec: 4Nm
• Tool Required: T15 Torx wrench
• Use OEM bolts or self-prepared bolts matching 8-bolt interface

🎯 Recommended Tooth Count by Riding Style

Road Bike:

• Climbing: 36T / 38T / 40T
• All-around: 42T / 44T / 46T

Gravel Bike:

• Pure off-road: 36T / 38T
• All-around: 40T / 42T / 44T
• Speed-focused: 44T / 46T

(Recommendations are for reference only — please choose based on your actual riding conditions)

⚠️ Notes Before Purchase

1. This chainring can be installed in any rotational direction (round profile, no timing marks needed)
2. Designed for SRAM DUB WIDE Road/Gravel cranksets ONLY — please confirm your crank spindle type before ordering
3. Suitable for road bike & gravel bike conversions — NOT compatible with mountain bike (MTB) cranksets due to different offset requirements
4. MUST CONFIRM your chain type before ordering — Standard Profile for Shimano/KMC chains, AXS/Flat-Top Profile for SRAM AXS/T-Type chains
5. Weight may vary slightly due to ongoing product optimization — actual weight based on latest batch
