STONE 144BCD Hollow/Aero 1x Spider for SRAM GXP 3-bolt AXS T-Type 8-bolt, for ROTOR, for Easton, 7mm inward Offset

Name: STONE 144BCD Hollow/Aero 1x Spider for SRAM GXP 3-bolt AXS T-Type 8-bolt, for ROTOR, for Easton, 7mm inward Offset
Brand: DJC Bikes - DJC Components
Price: 57.6 USD
Availability: InStock

$57.60 ~~$80.00~~

-28%

STONE 144mm BCD Hollow/Aero 1x Spider for SRAM GXP 3-bolt AXS T-Type 8-bolt, for ROTOR, for Easton, 7mm inward Offset.

Interface / profile options: for ROTOR to 144BCD aero; for ROTOR to 144BCD hollow.

Version for Easton or for Race Face-style interfaces: listed models include EC90, EC90SL, XXE and GP3, with fitment dependent on the matching road-crank interface.

Compatibility: Match the selected version to the crank interface and required chainline.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

for EC90 to 144bcd aero

for EC90 to 144bcd hollow

for ROTOR to 144bcd aero

for ROTOR to 144bcd hollow

for 3 pins to 144bcd aero

for 3 pins to 144bcd hollow

for 8 pins to 144bcd aero

for 8 pins to 144bcd hollow

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

STONE 144BCD Hollow/Aero 1x Spider for SRAM GXP 3-bolt AXS T-Type 8-bolt, for ROTOR, for Easton, 7mm inward Offset

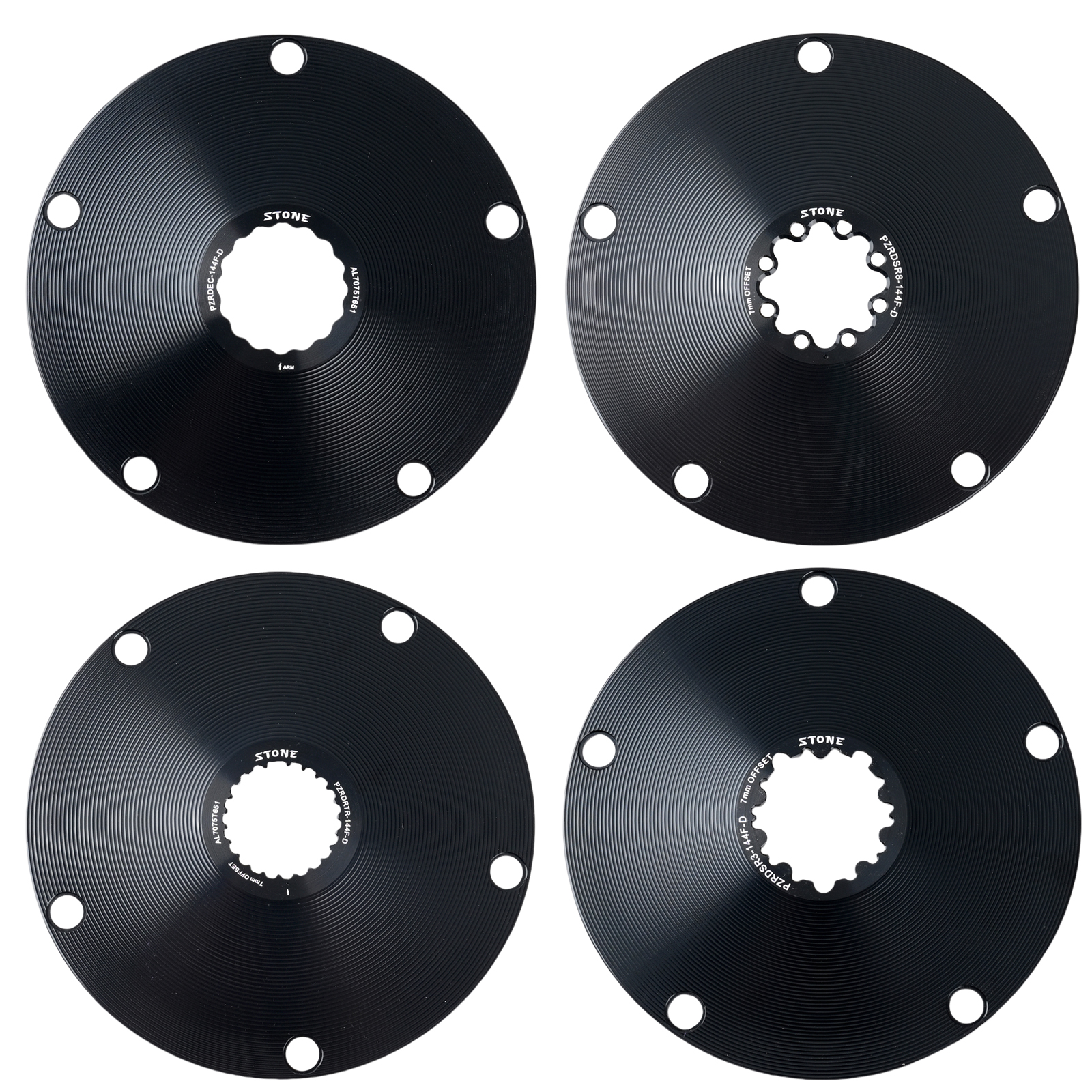

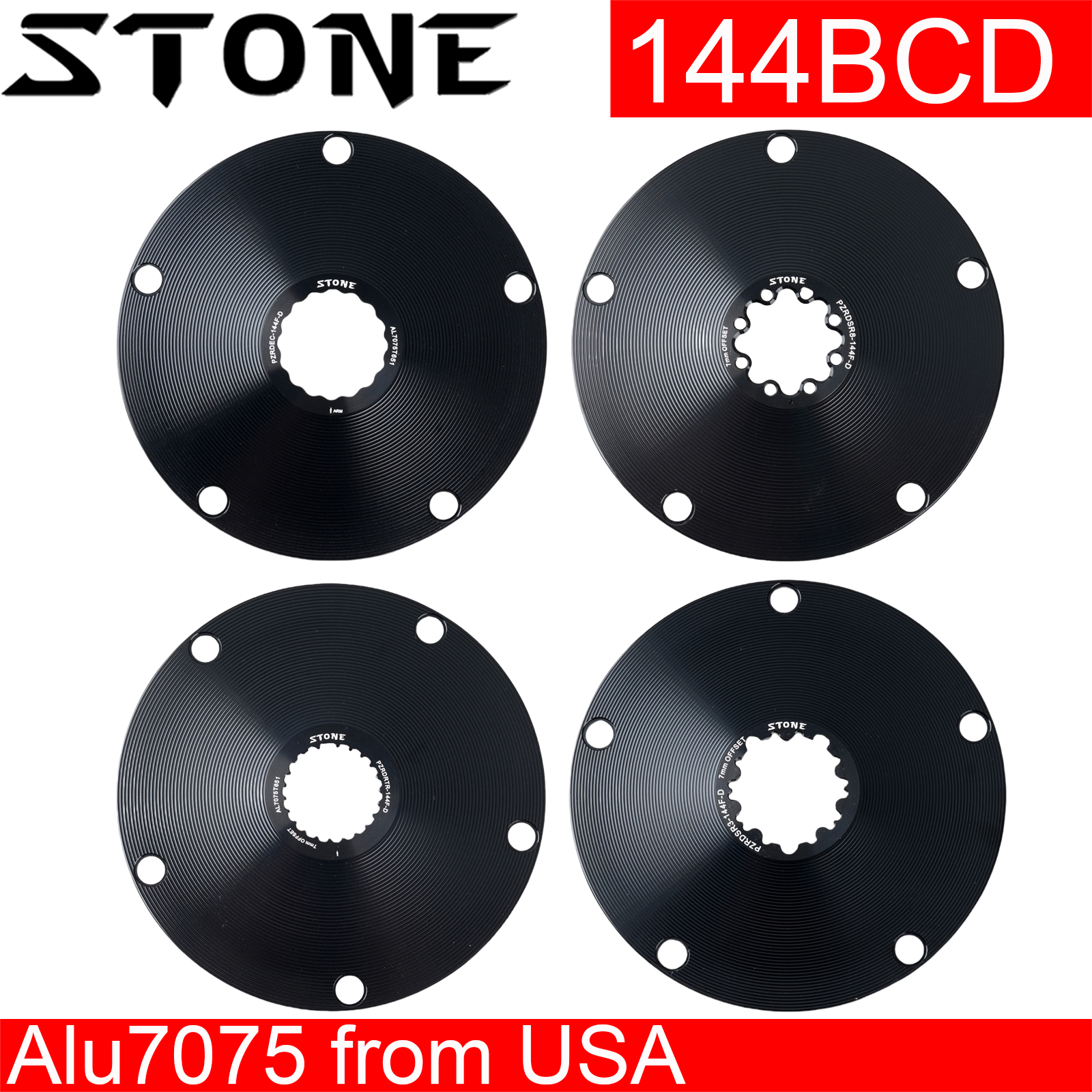

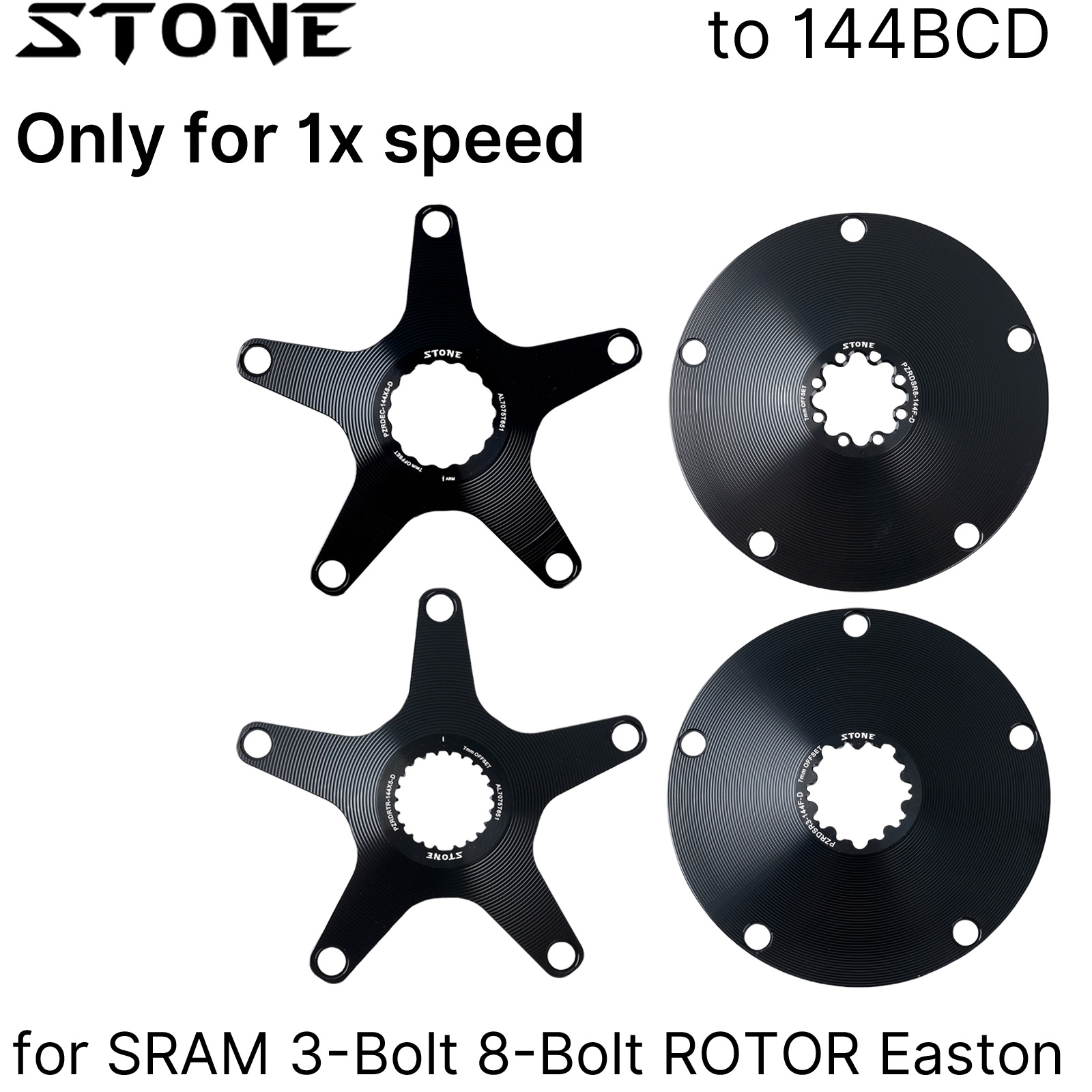

The STONE 144BCD spider connects a compatible crank interface to a matching single chainring. Designed for 1x setups only, it has a 7mm inward offset and is CNC-machined from 7075 aluminum. Choose the required crank-interface version and either the hollow or aero style. This is a spider, not a chainring.

Key Features

144BCD chainring interface for a 1x setup.
Separate mounting options for SRAM 3-bolt and 8-bolt cranks, for ROTOR, and for Easton or for Race Face-style interfaces.
7mm inward offset and 8mm thickness.
CNC-machined 7075 aluminum construction.

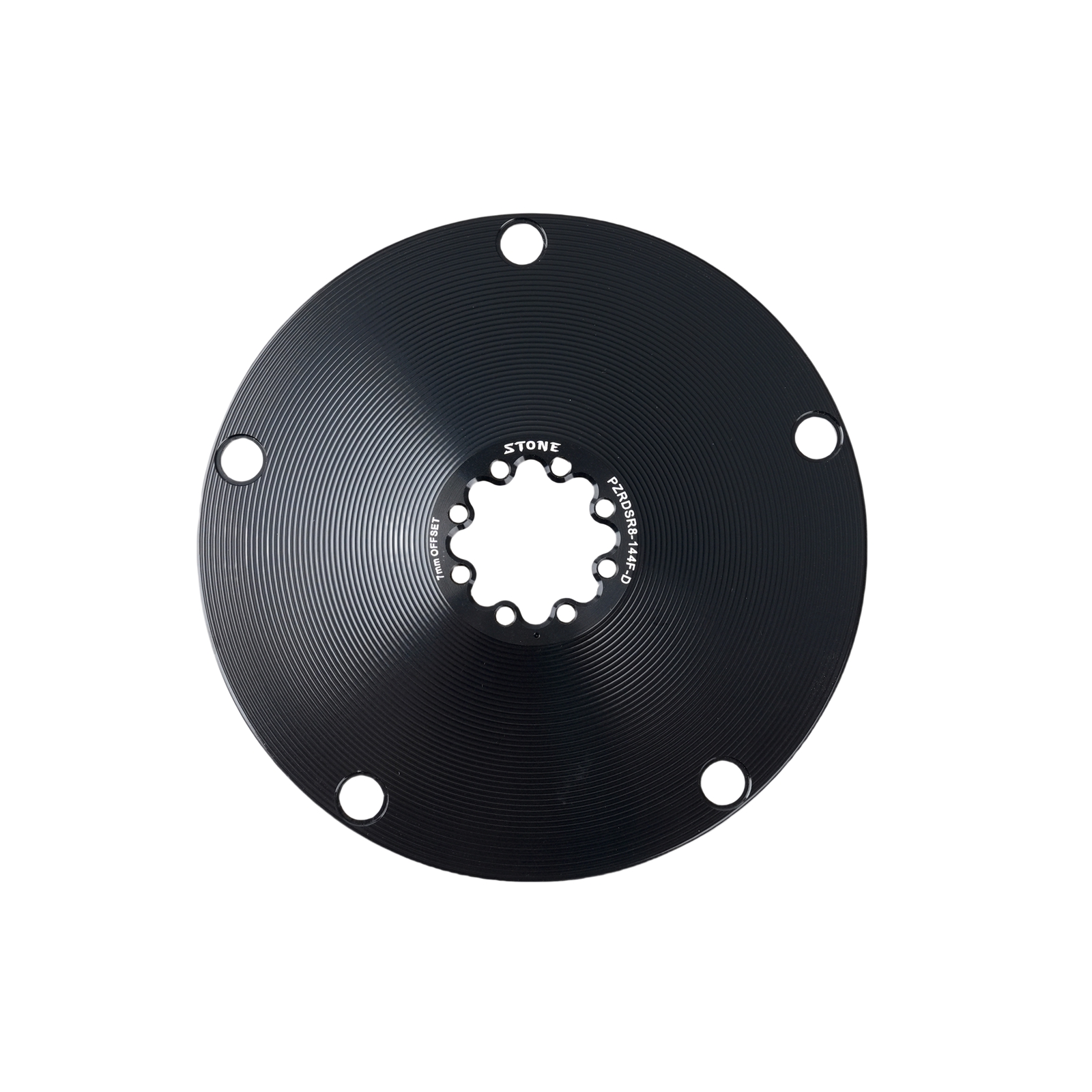

Hollow style listed at 70g; aero style listed at 110g.

Technical Specifications

Item	Specification
Brand	STONE
Product Type	Chainring spider / adapter
Bolt Circle Diameter (BCD)	144mm
Configuration	1x only; not compatible with 2x
Offset	7mm inward
Thickness	8mm
Material / Process	7075 aluminum / CNC-machined
Hollow Weight	70g
Aero Weight	110g
Crank Interfaces	Options for SRAM GXP 3-bolt or AXS/T-Type 8-bolt; for ROTOR; for Easton or for Race Face-style cranks
Compatibility	Match the selected version to the crank interface and required chainline
Key Feature	144BCD conversion for a single-chainring setup

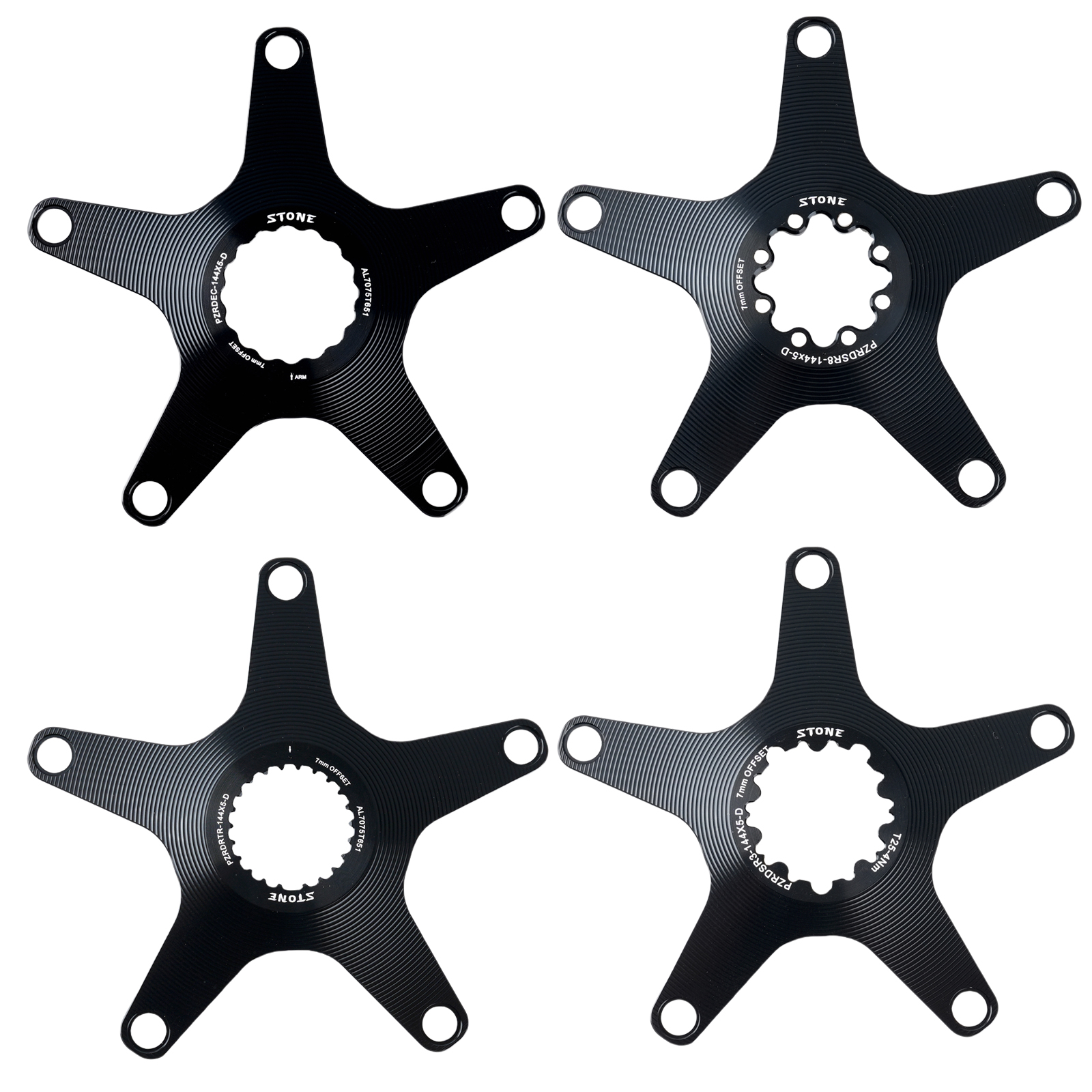

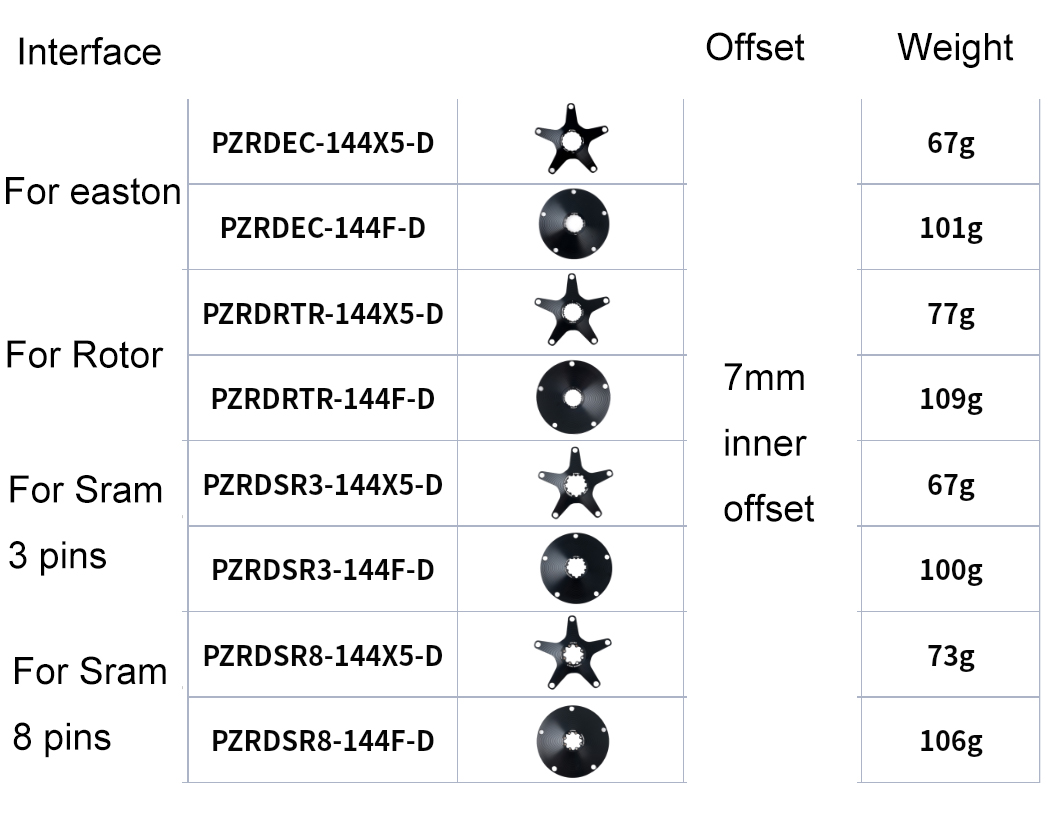

Available Interface and Style Options

Crank Interface	Style and Listed Weight
For Easton EC90	Aero, 110g
For Easton EC90	Hollow, 70g
For ROTOR	Aero, 110g
For ROTOR	Hollow, 70g
For SRAM GXP 3-bolt	Aero, 110g
For SRAM GXP 3-bolt	Hollow, 70g
For SRAM AXS/T-Type 8-bolt	Aero, 110g
For SRAM AXS/T-Type 8-bolt	Hollow, 70g

Crank Compatibility by Interface

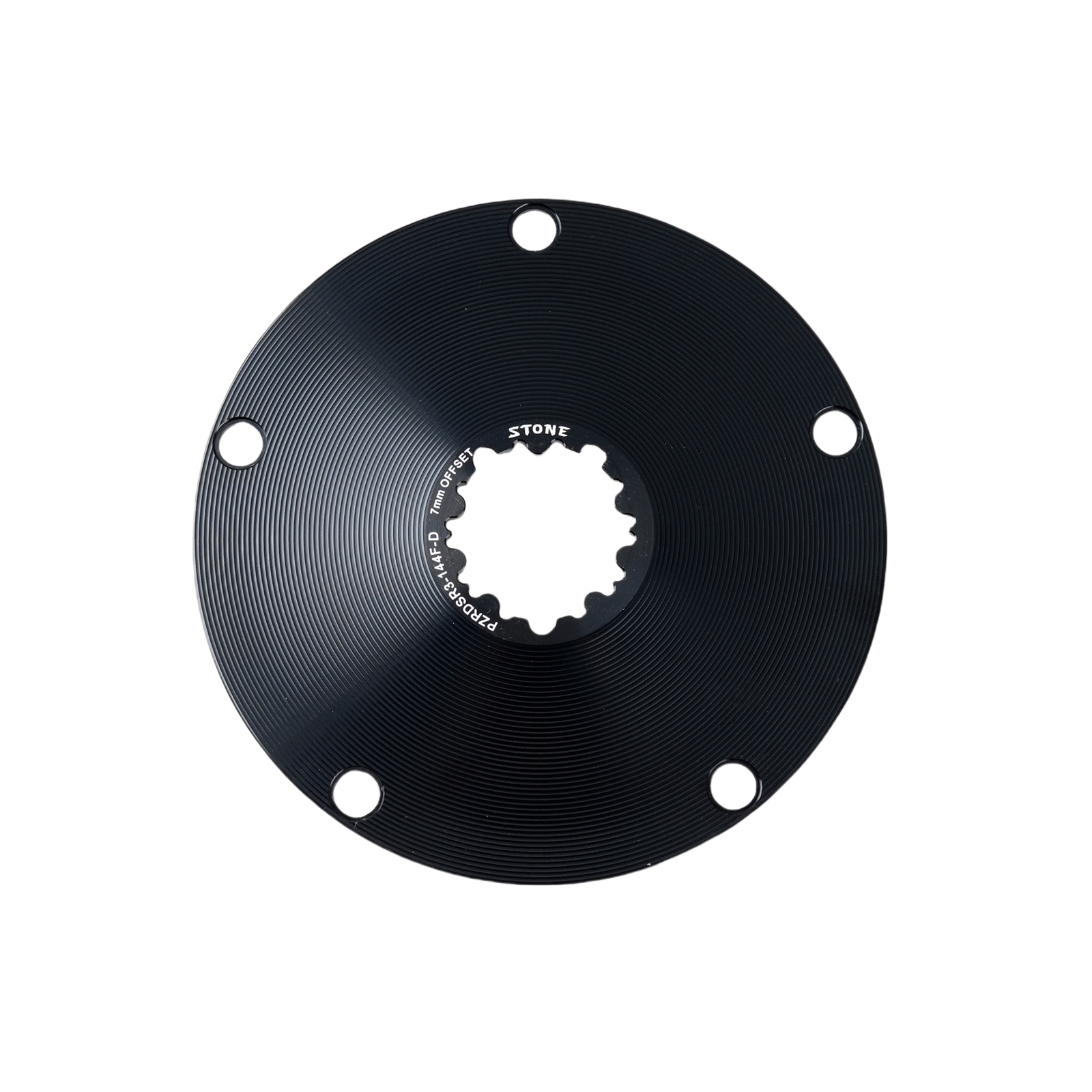

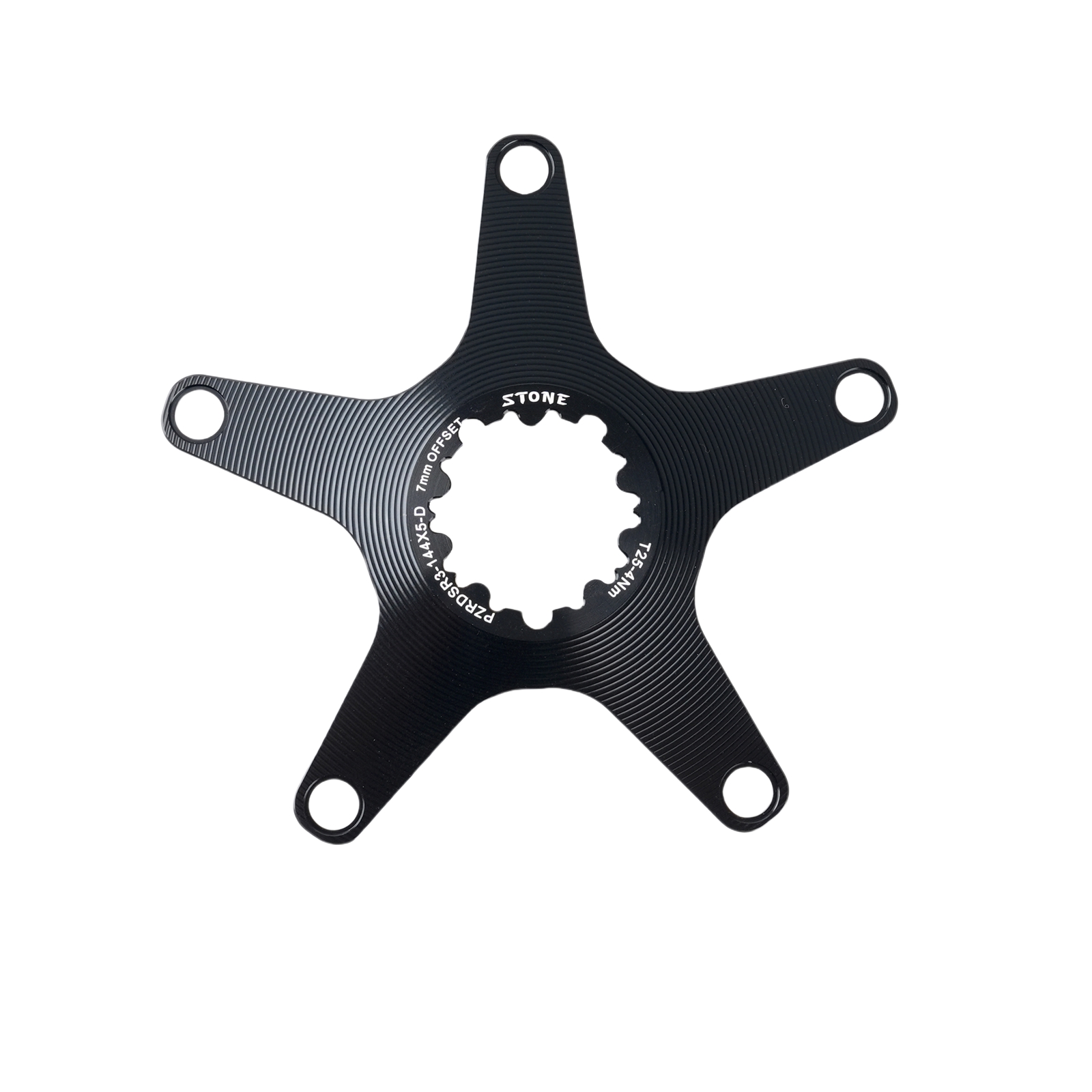

3-bolt version: for SRAM GXP-style 3-bolt mounting. Listed road fitments include compatible BB30/PF30-spindle versions of Force 11-Speed, Force 22, Rival 11, Rival 22 and XPLR. Verify the actual crank mounting pattern.

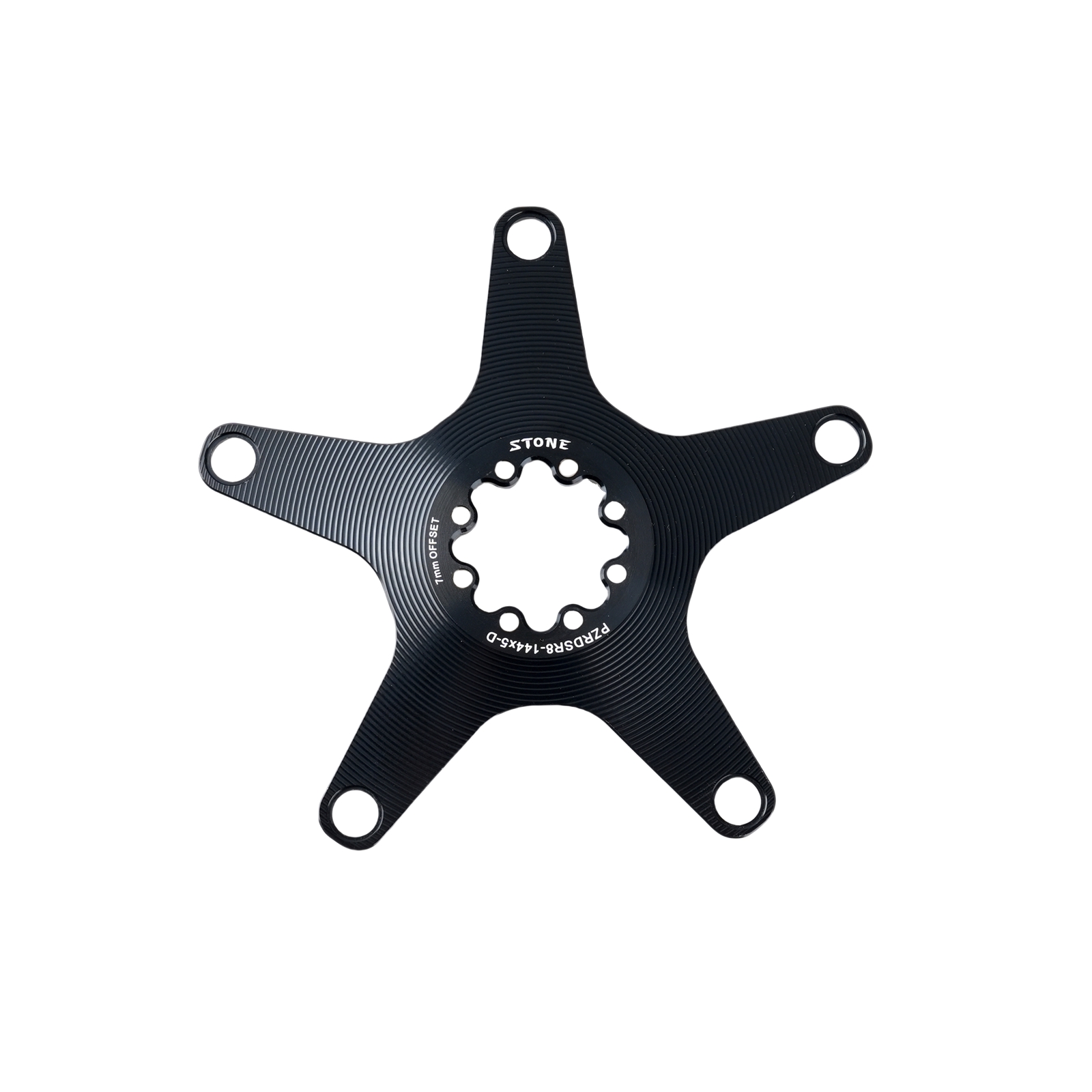

8-bolt version: for SRAM AXS/T-Type-style 8-bolt mounting. Listed road applications include Force AXS 12-Speed, RED AXS 12-Speed and Rival AXS, and compatible road power meter cranksets compatible with Quarq. The shared interface name alone does not confirm every crank and chainline combination.

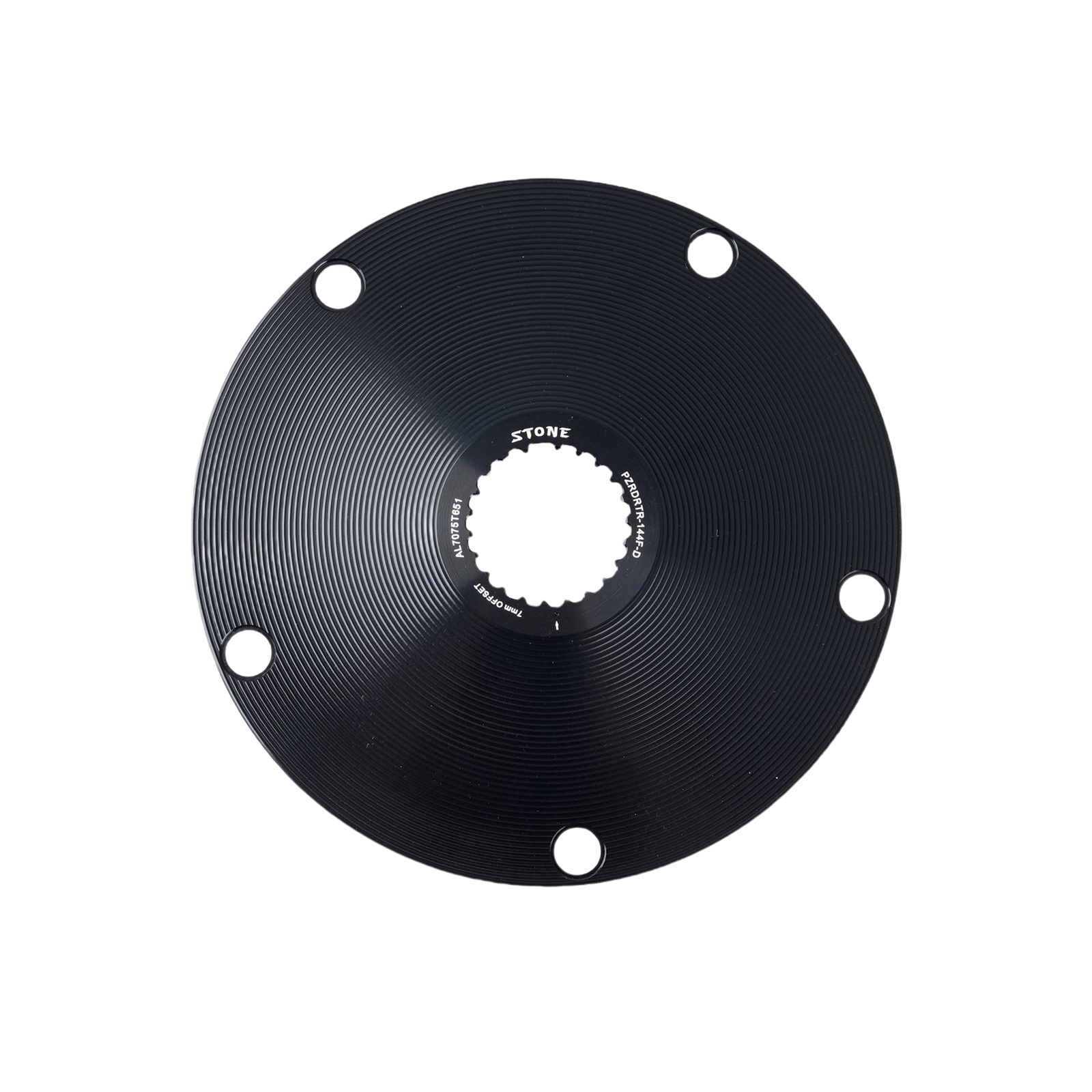

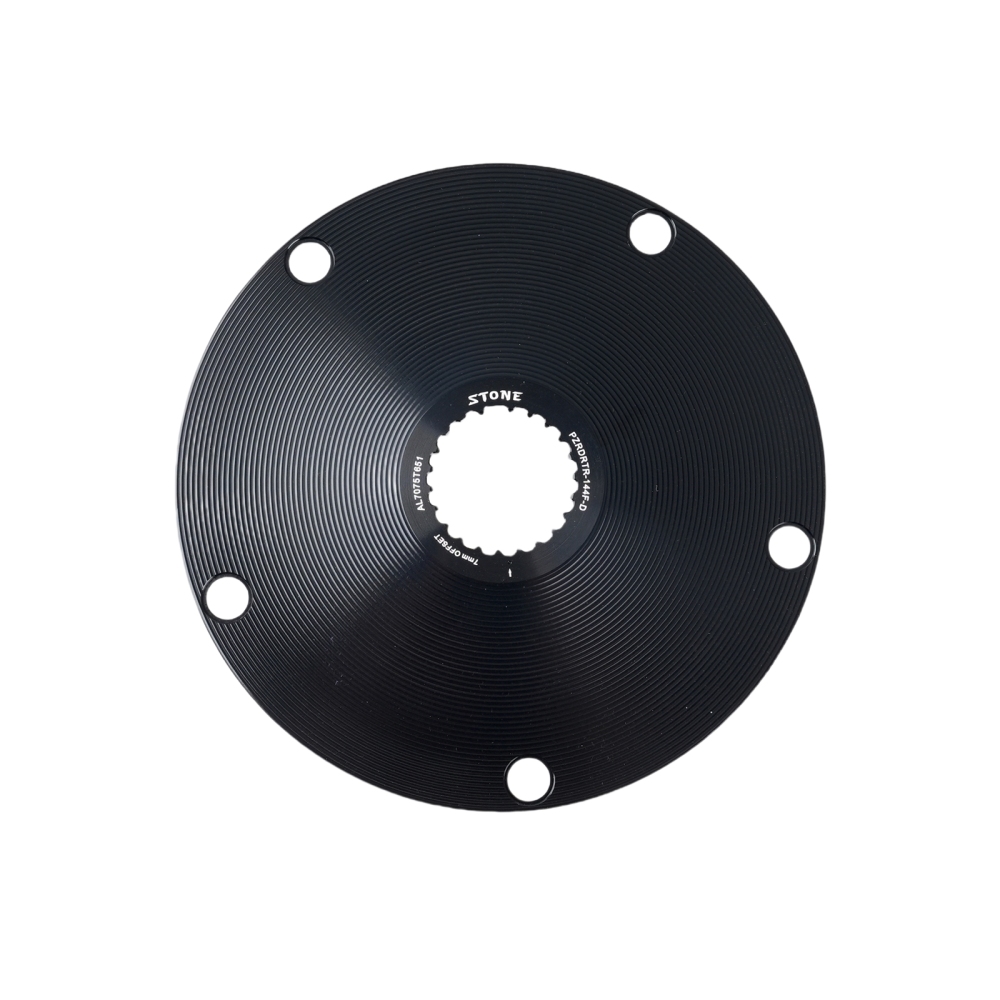

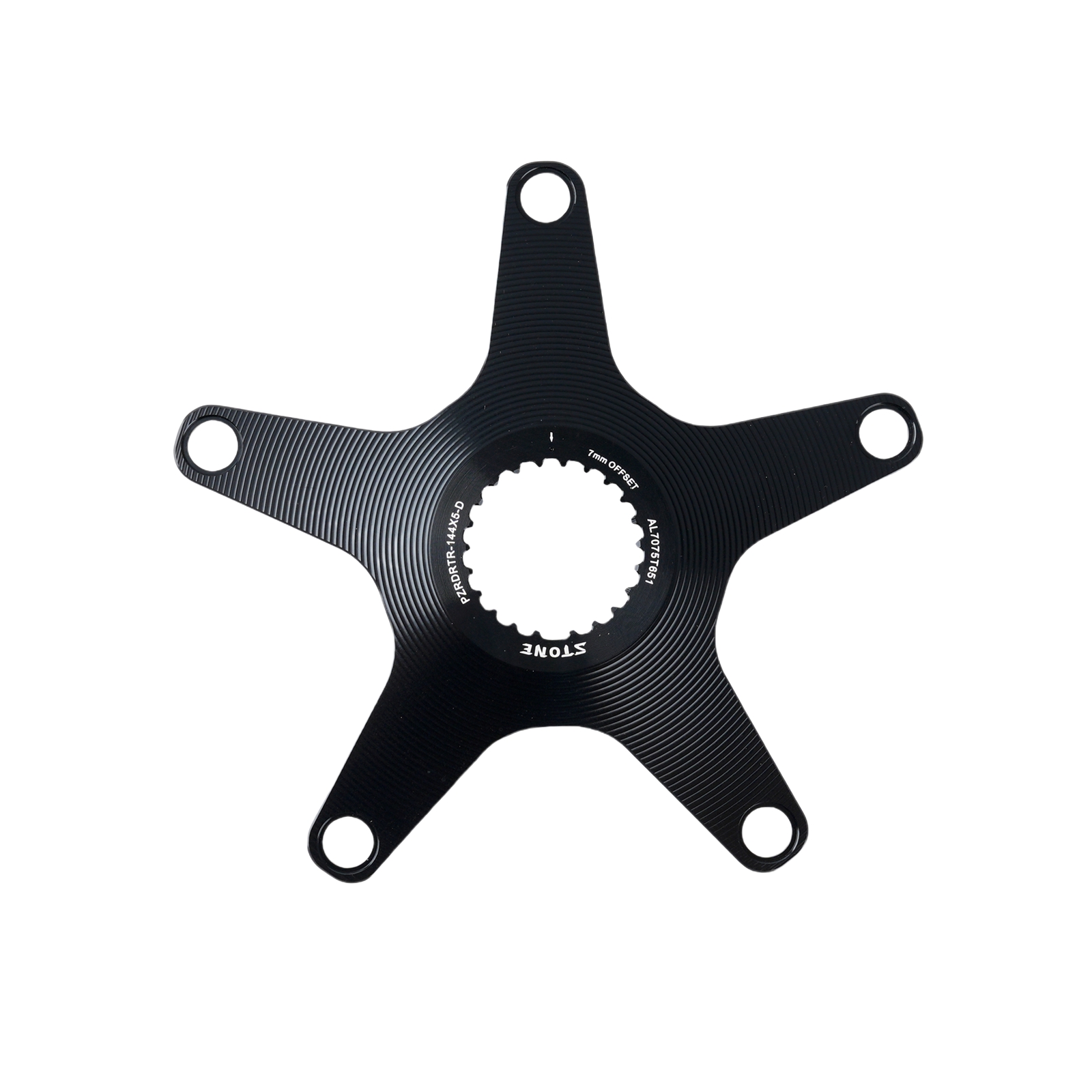

Version for ROTOR: listed models include KAPIC, Hawk, Raptor, inPower and the newer 2INpower version. Aldhu and Vegast are also named in the product information; check the exact interface and offset before selection.

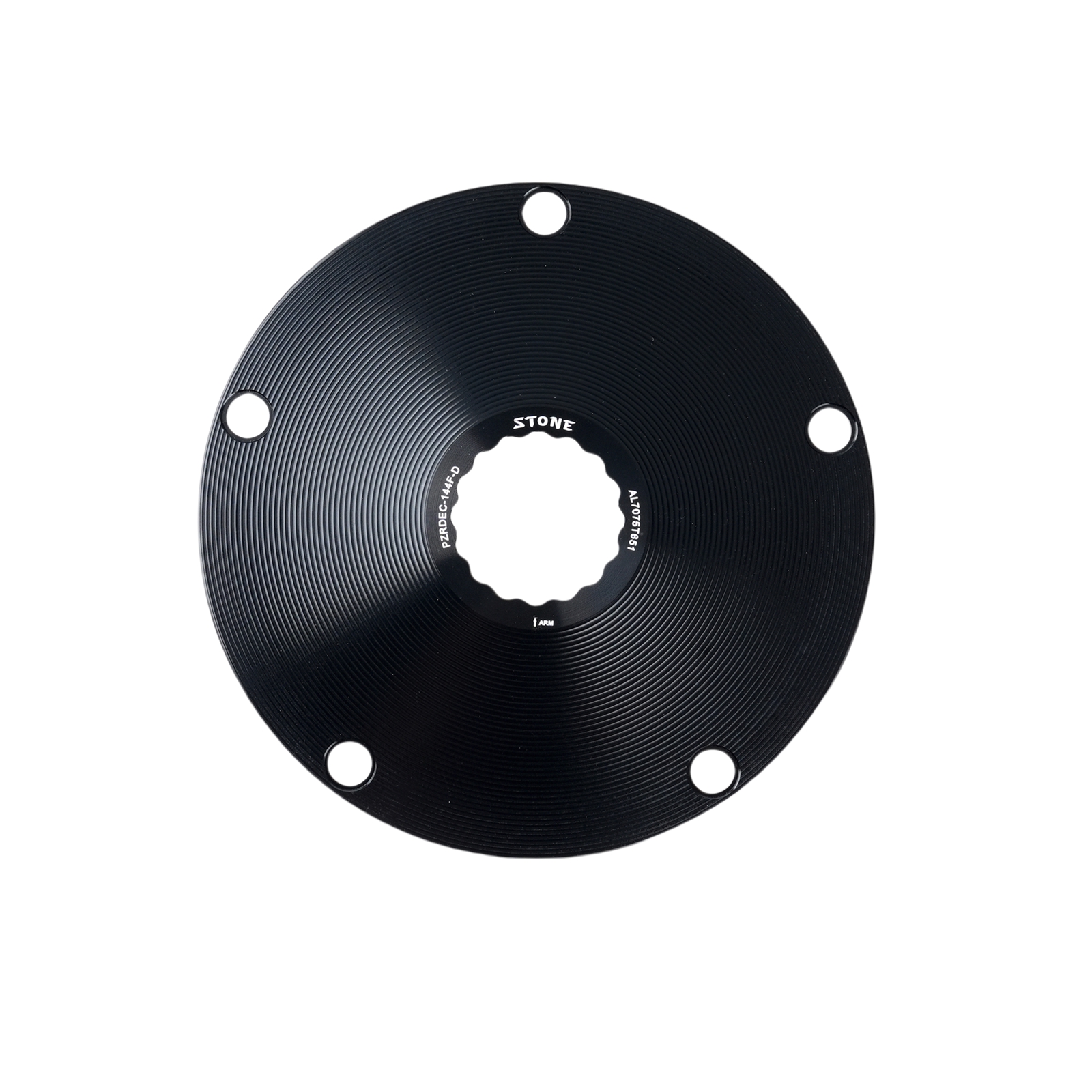

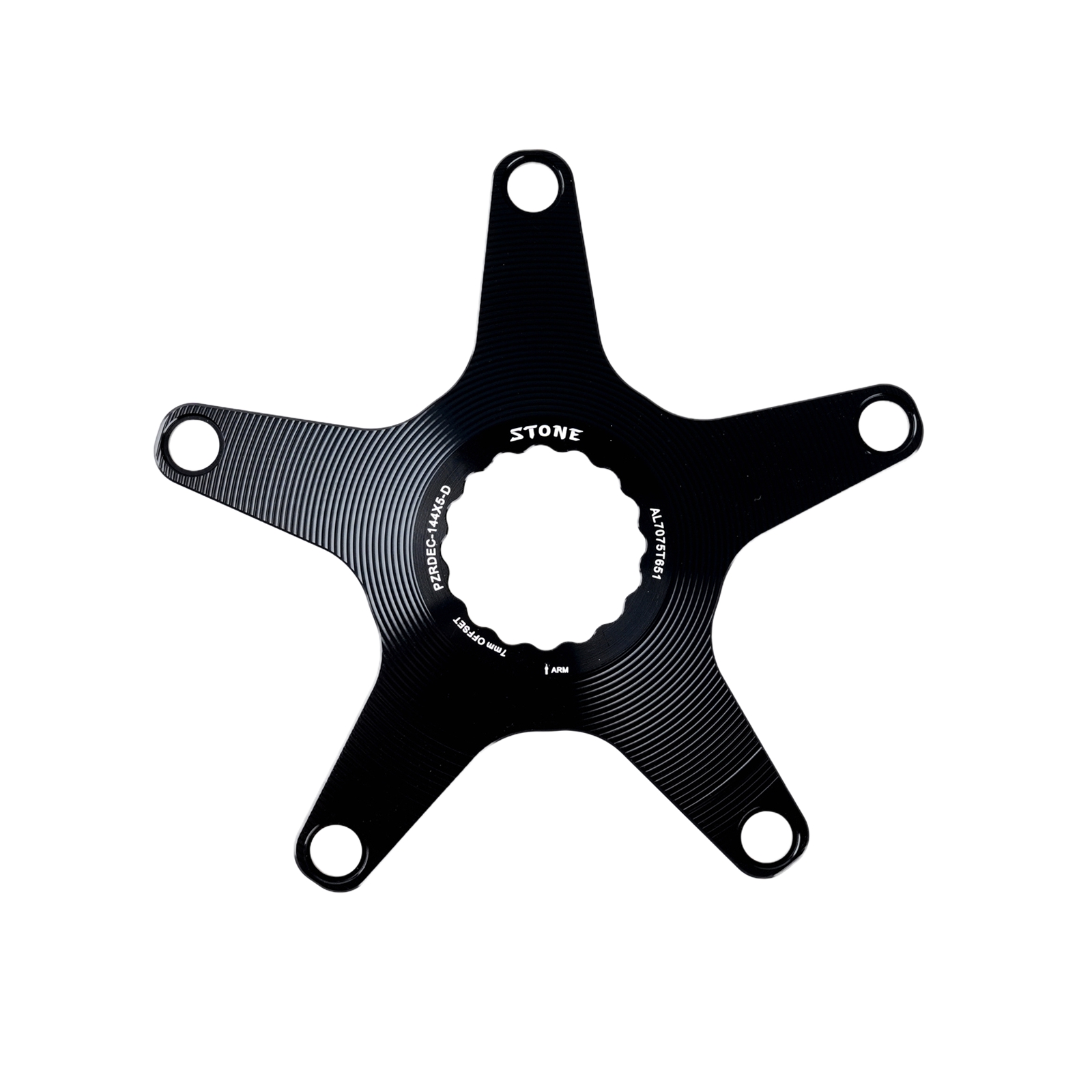

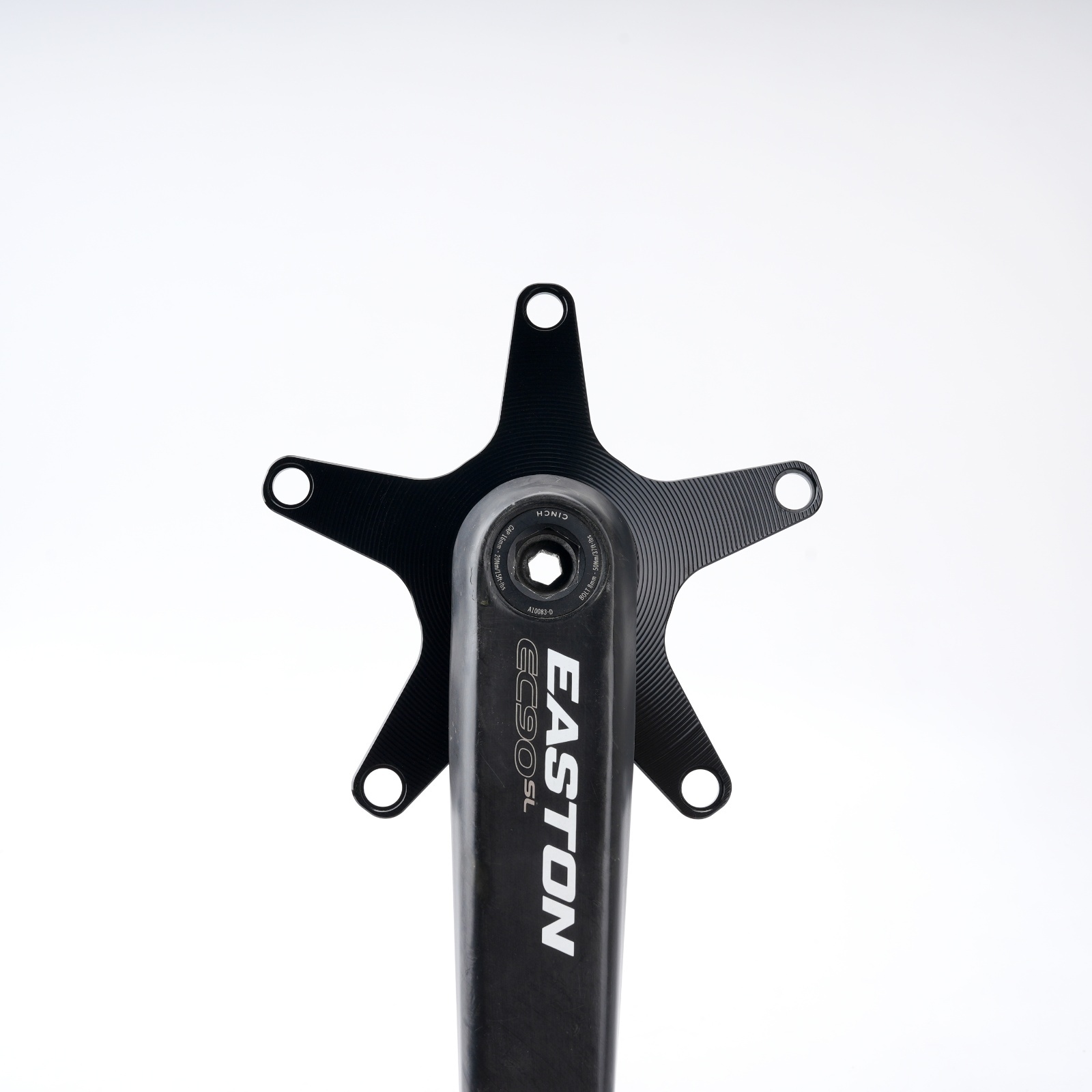

Version for Easton or for Race Face-style interfaces: listed models include EC90, EC90SL, XXE and GP3, with fitment dependent on the matching road-crank interface.

Installation and Chain Compatibility

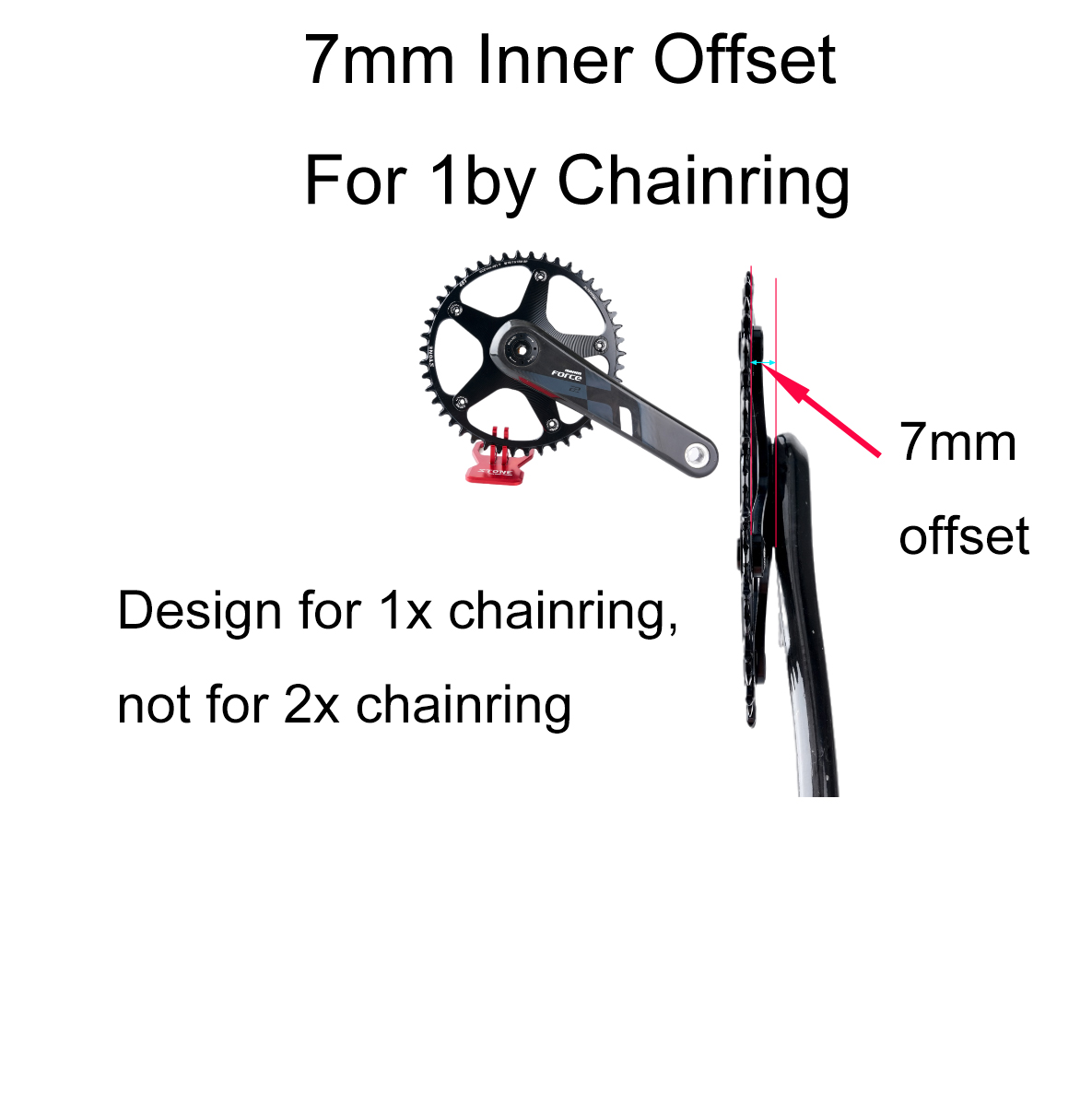

Check the crank interface, chainring mounting pattern, frame clearance and required chainline before ordering. The 7mm spider offset is not a complete chainline measurement. Use only a matching single chainring; this spider does not support double chainrings.

For SRAM AXS Flattop 12/13-speed or T-Type chains, fit a chainring with the appropriate tooth profile. The spider itself does not determine chain compatibility.

Package Includes

One STONE 144BCD chainring spider in the selected interface and style.

Product Images

STONE 144BCD Hollow/Aero 1x Spider for SRAM GXP 3-bolt AXS T-Type 8-bolt, for ROTOR, for Easton, 7mm inward Offset

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.

Option 1
for EC90 to 144BCD aero
for EC90 to 144BCD hollow
for ROTOR to 144BCD aero
for ROTOR to 144BCD hollow
for 3 pins to 144BCD aero
for 3 pins to 144BCD hollow
for 8 pins to 144BCD aero
for 8 pins to 144BCD hollow
