RISK RT146 Titanium Brake Caliper Piston Repair Kit for Shimano R7170 R8170 R9270, RA160, RL256, RL247 Drive

RISK RT146 Titanium Brake Caliper Piston Repair Kit for Shimano R7170 R8170 R9270, RA160, RL256, RL247 Drive

The RISK RT146 / RA160 / RL256 / RL317 / RL247 Disc Brake Caliper Service Series is designed for road bike hydraulic disc brake caliper maintenance, piston replacement, seal replacement, piston resetting, and caliper side cover removal.

Technical Specifications

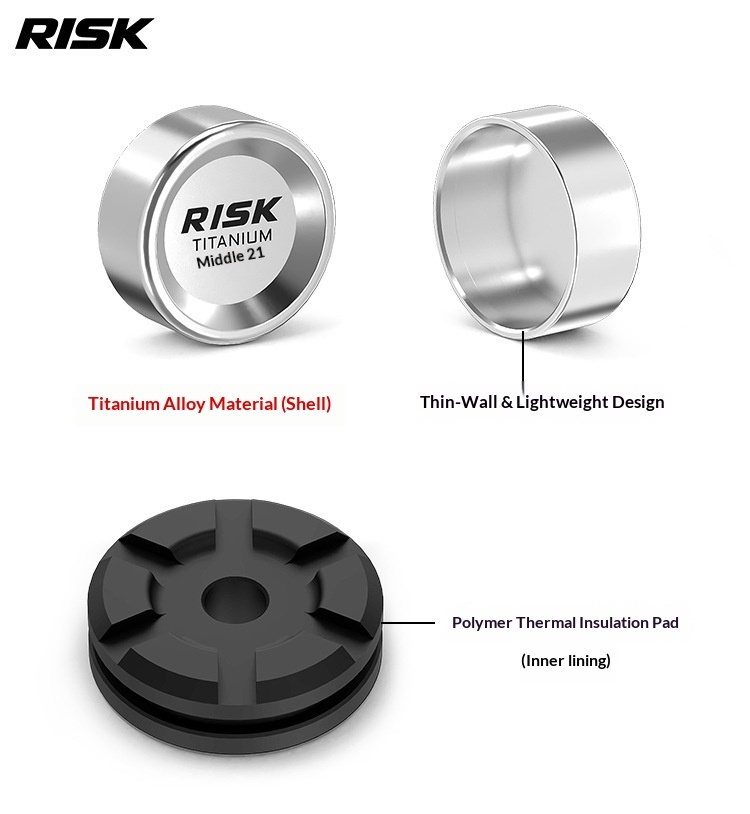

The RT146 titanium caliper piston features a lightweight titanium alloy outer shell with a polymer heat-insulation inner pad. The inner pad uses a ventilation groove design to help improve heat dissipation and reduce heat transfer during braking. It is suitable for compatible road hydraulic disc brake calipers including for Shimano R7170, R8170, and R9270 series calipers.

The product range also includes RA160 piston sealing O-rings, RL256 hydraulic brake piston reset tools, RL317 caliper side cover removal tool with auxiliary block, and RL247 3/8" ratchet wrench. These items can be purchased individually, making the series suitable for professional bike shops, home mechanics, and riders who perform brake caliper servicing and repair.

Key Features

• Titanium Alloy Caliper Piston

  • Lightweight titanium alloy outer shell
  • Thin-wall design for reduced weight
  • Suitable as replacement or repair part

• Polymer Heat-Insulation Inner Pad

  • Helps reduce heat transfer inside the brake caliper
  • Designed for stable braking performance

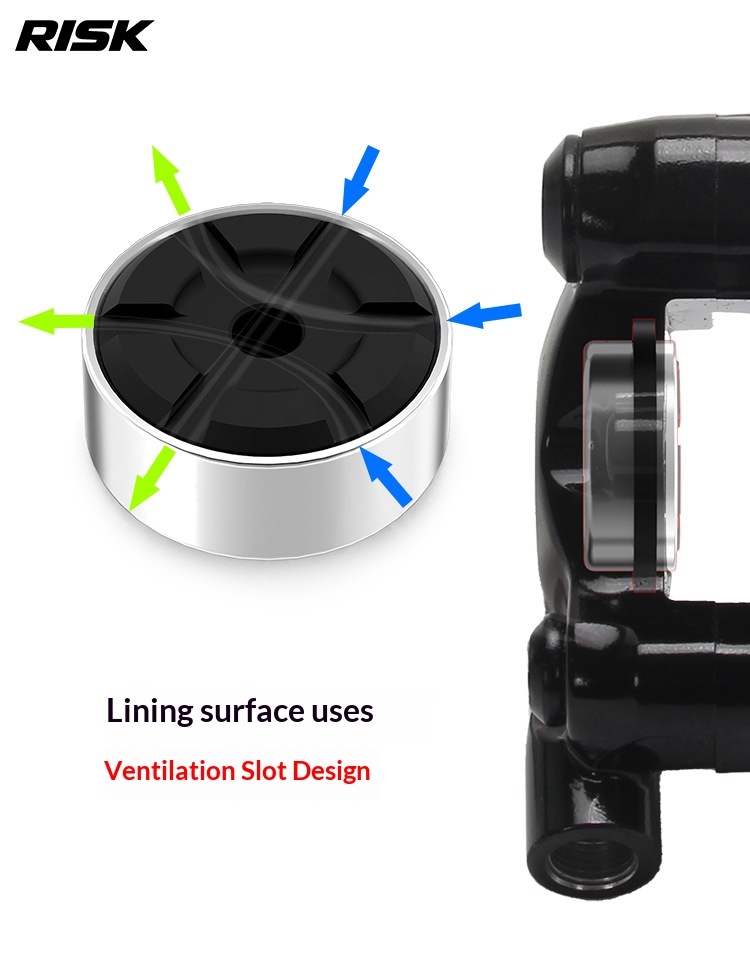

• Ventilation Groove Design

  • Inner pad surface features airflow grooves
  • Helps improve heat dissipation during braking

• Compatible with Popular Road Disc Brake Calipers

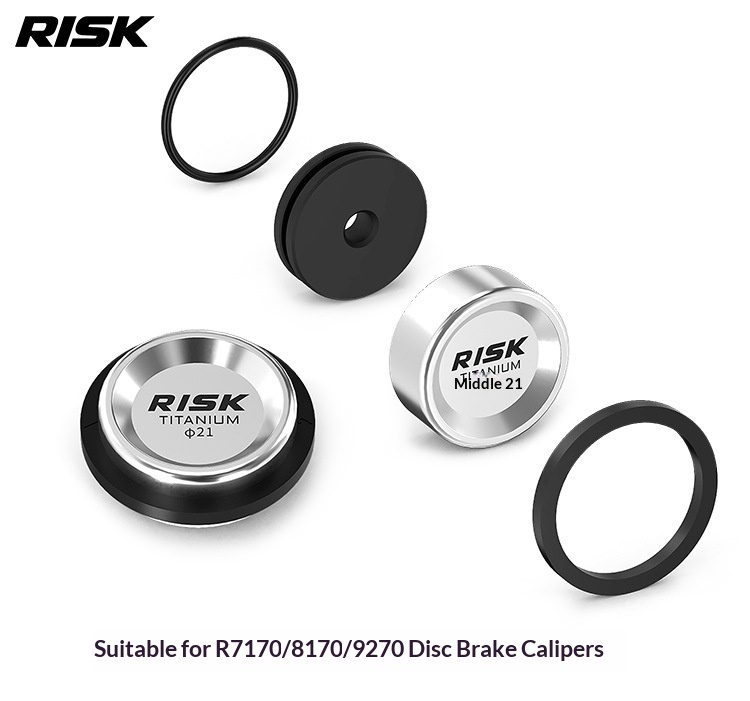

  • Suitable for R7170 / R8170 / R9270 hydraulic disc brake calipers

• Replacement Sealing O-Rings Available

  • RA160 includes 2 piston sealing O-rings per pack

• Piston Reset Tool Available

  • RL256 helps safely push hydraulic disc brake pistons back into position

• Caliper Side Cover Tool Available

  • RL317 includes side cover removal tool and auxiliary block
  • Designed for R9270 calipers

• Ratchet Wrench Option

  • RL247 3/8" ratchet wrench can be used with compatible bicycle repair tools

Compatibility

Suitable for the following road hydraulic disc brake calipers:

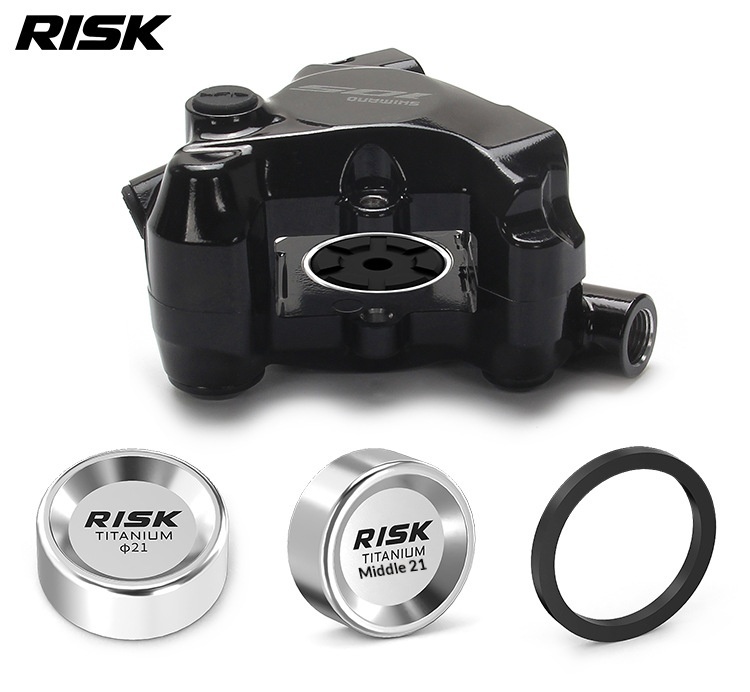

• for Shimano 105 R7170
• for Shimano Ultegra R8170

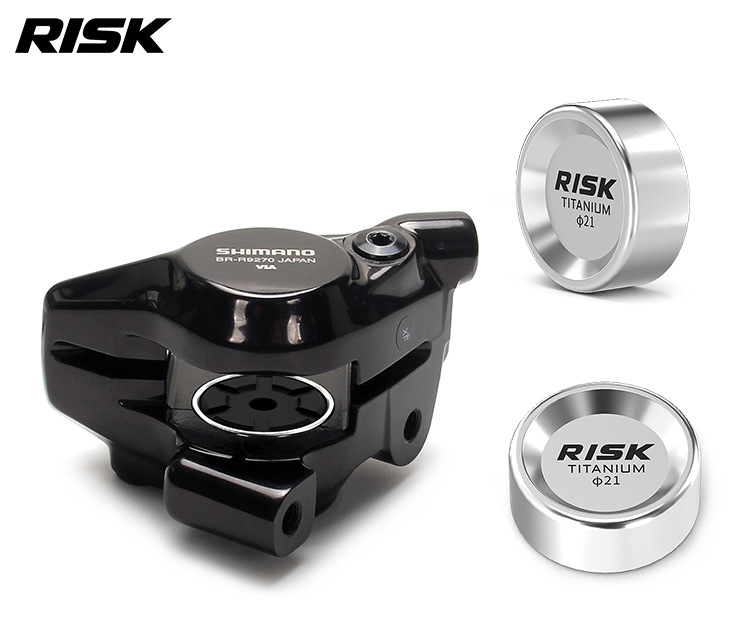

• for Shimano Dura-Ace R9270

Please compare the original caliper piston, seal, and tool interface specifications before purchase. Do not force installation if the size or structure is not compatible.

Product Specifications

Product Options / Variants

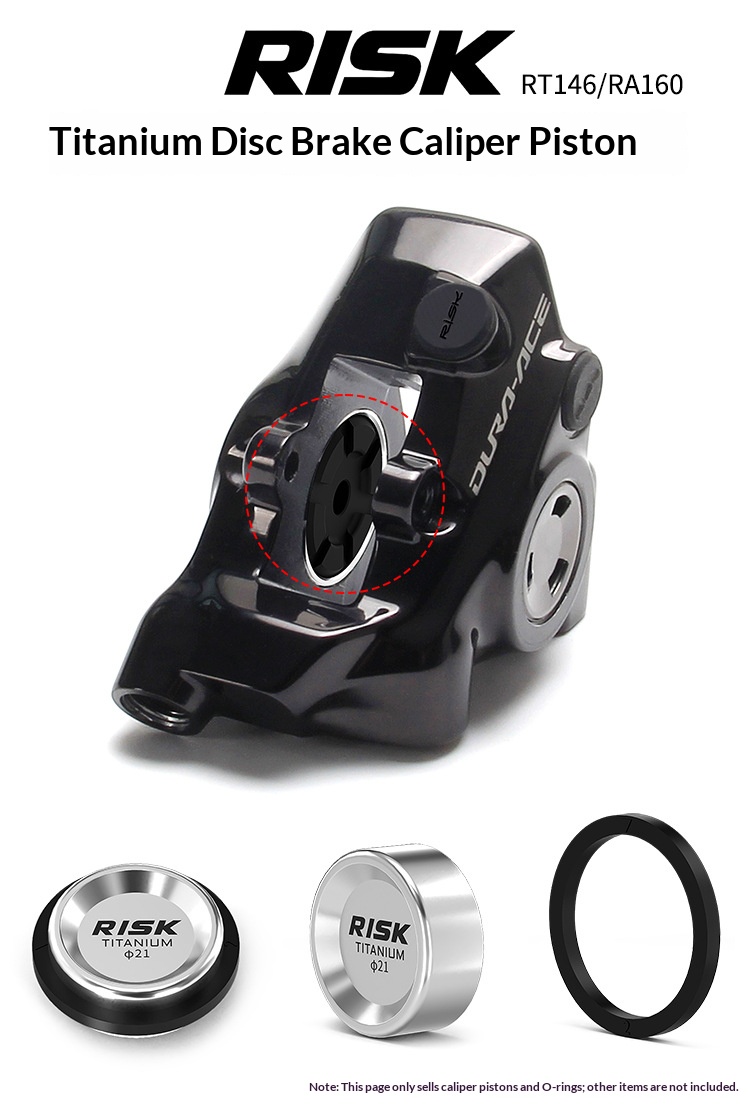

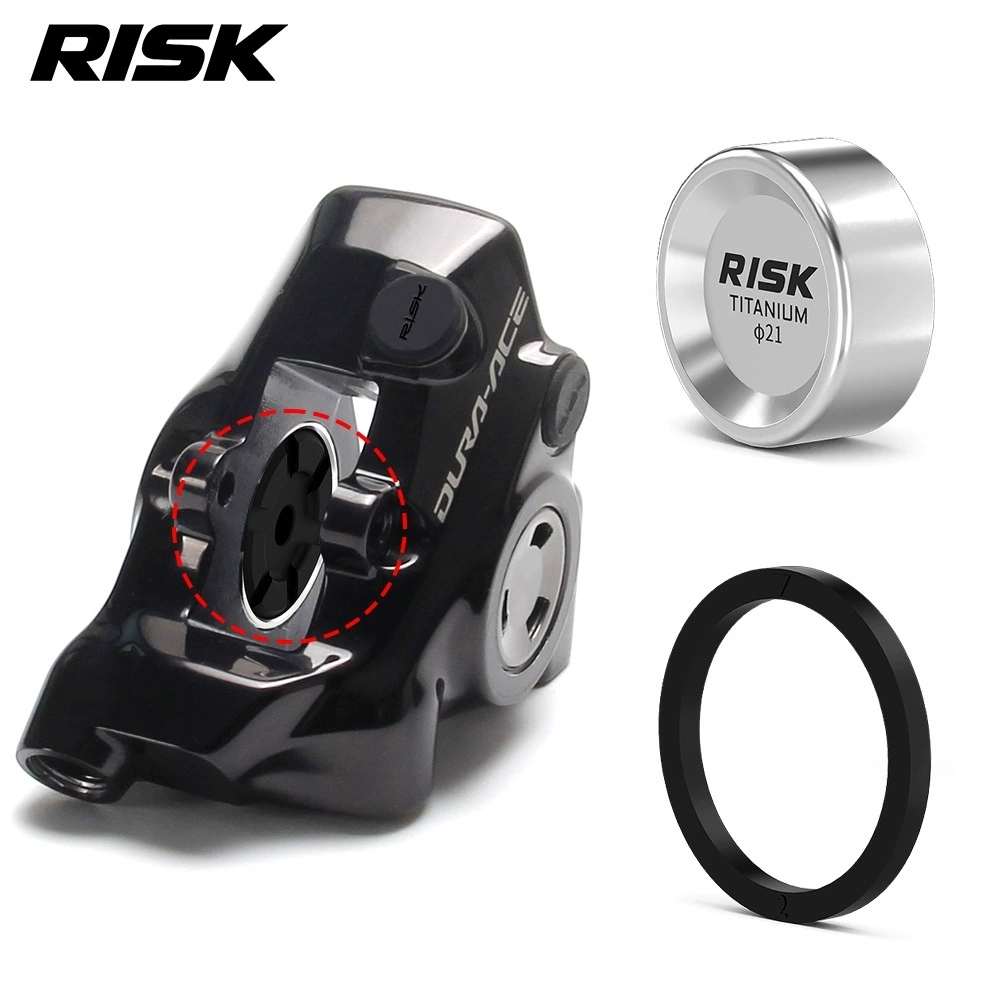

RT146 — Titanium Disc Brake Caliper Piston

Model: RT146

Material: Titanium alloy outer shell + polymer heat-insulation inner pad

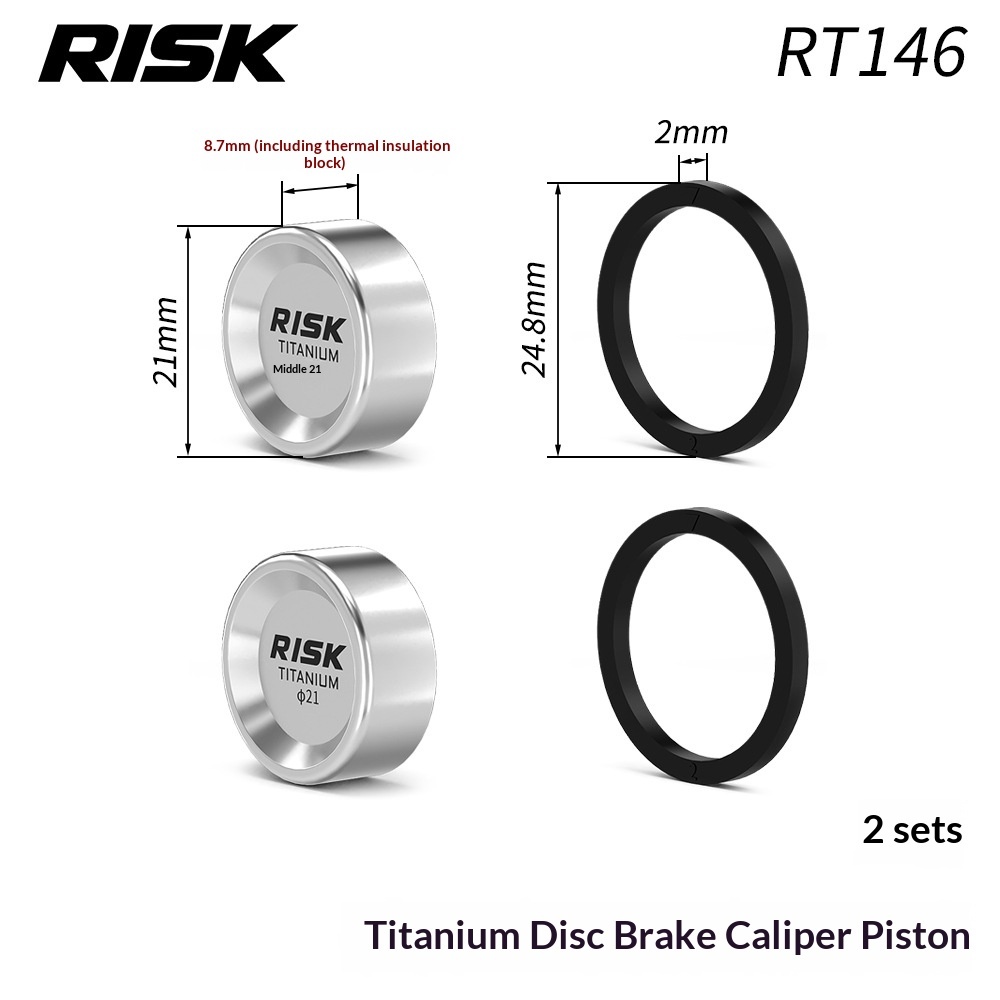

Piston diameter: approx. 21mm

Thickness: approx. 8.7mm including heat pad

Quantity: 2 sets

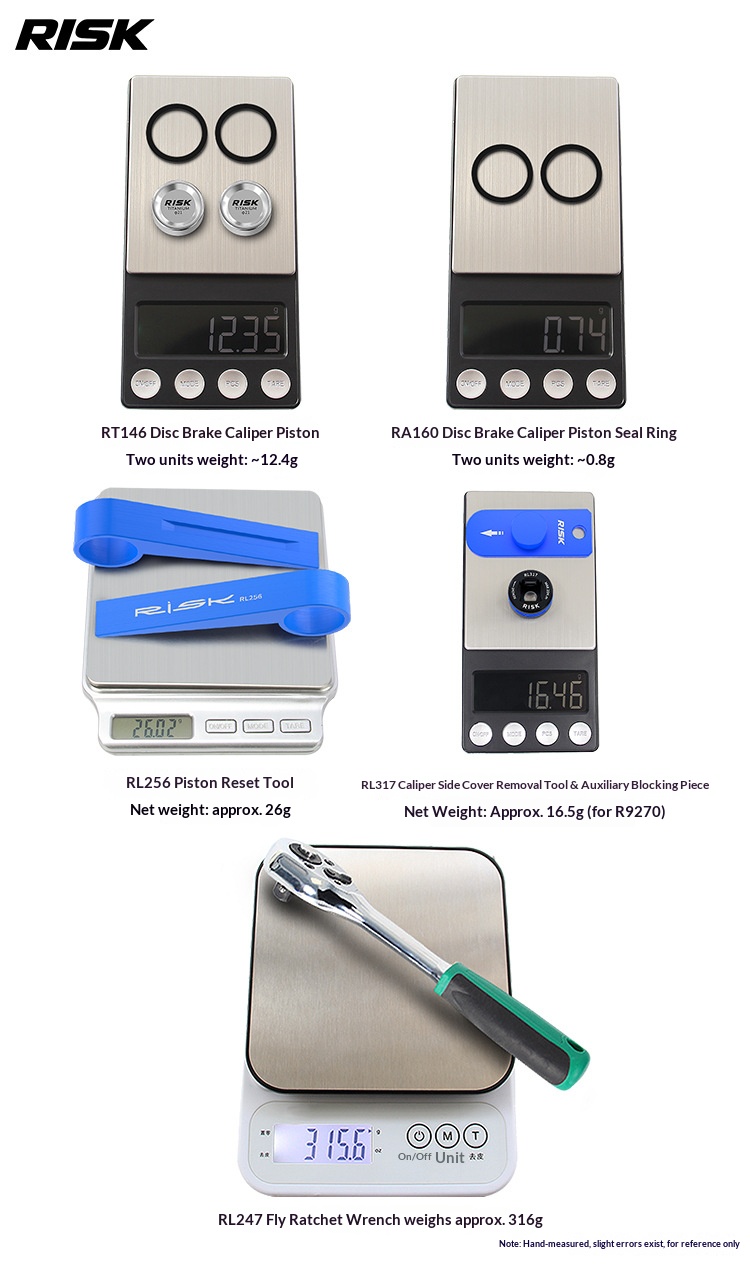

Net weight: approx. 12.4g

Package weight: approx. 17g

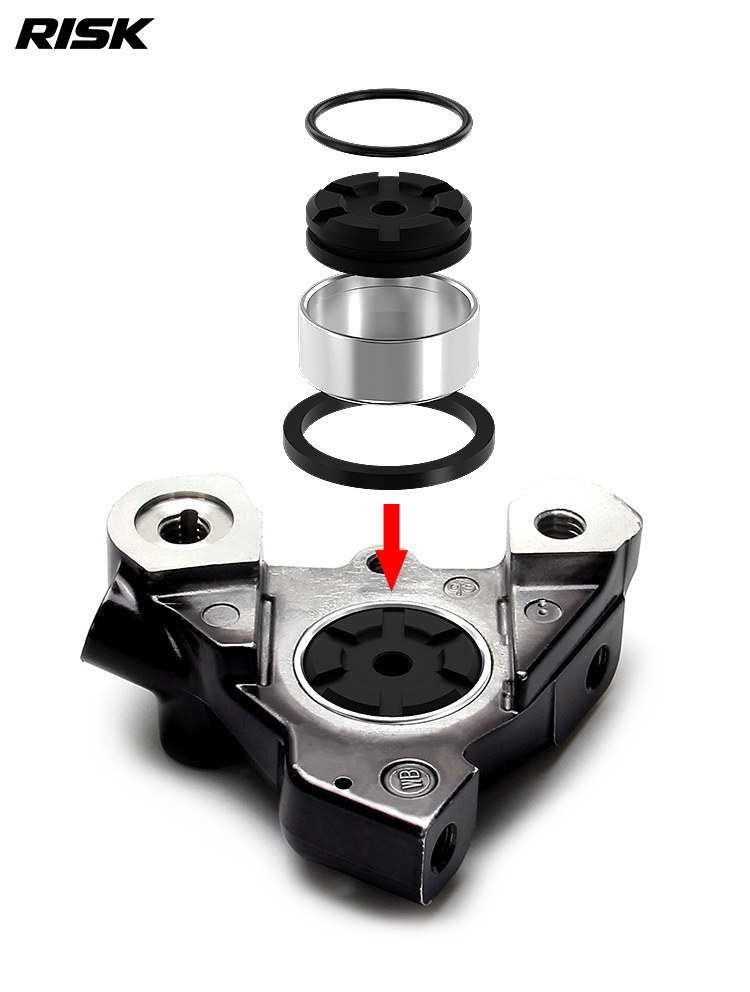

The RT146 is a lightweight titanium caliper piston designed for compatible road hydraulic disc brake calipers. It features a thin-wall titanium body and a polymer inner heat-insulation pad for improved heat management.

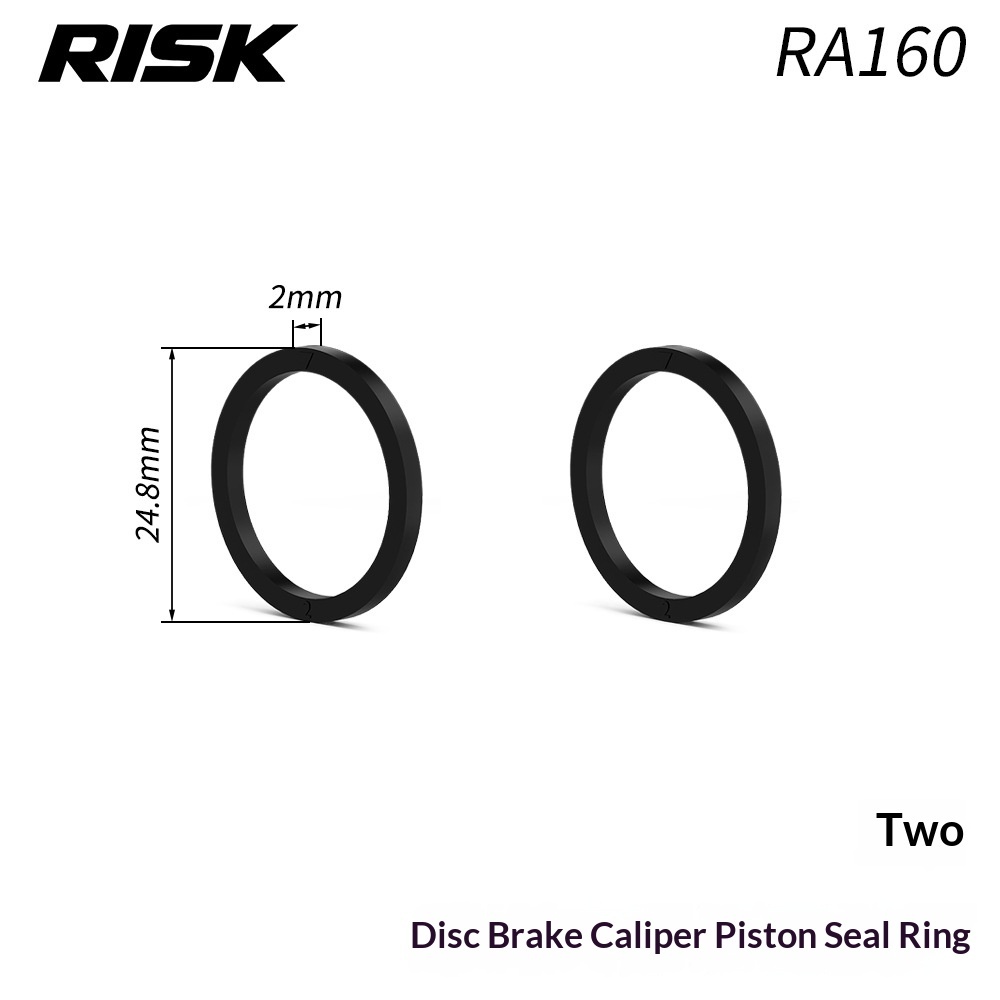

RA160 — Disc Brake Caliper Piston O-Rings

Model: RA160

Material: Rubber

Outer diameter: approx. 24.8mm

Thickness: approx. 2mm

Quantity: 2 pcs / pack

Net weight: approx. 0.8g

Package weight: approx. 3g

Replacement sealing O-rings for compatible disc brake caliper pistons. Recommended for caliper servicing or piston replacement.

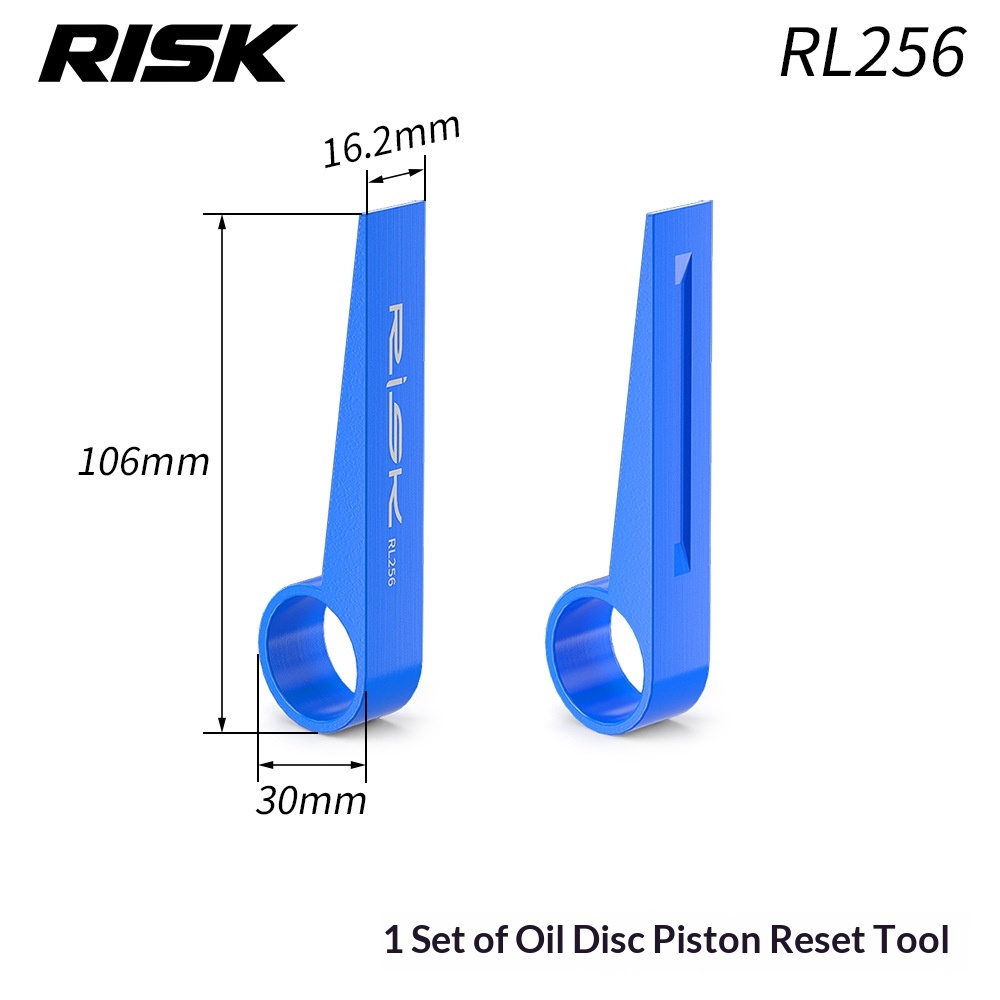

RL256 — Hydraulic Disc Brake Piston Reset Tool

Model: RL256

Material: Tool-grade material

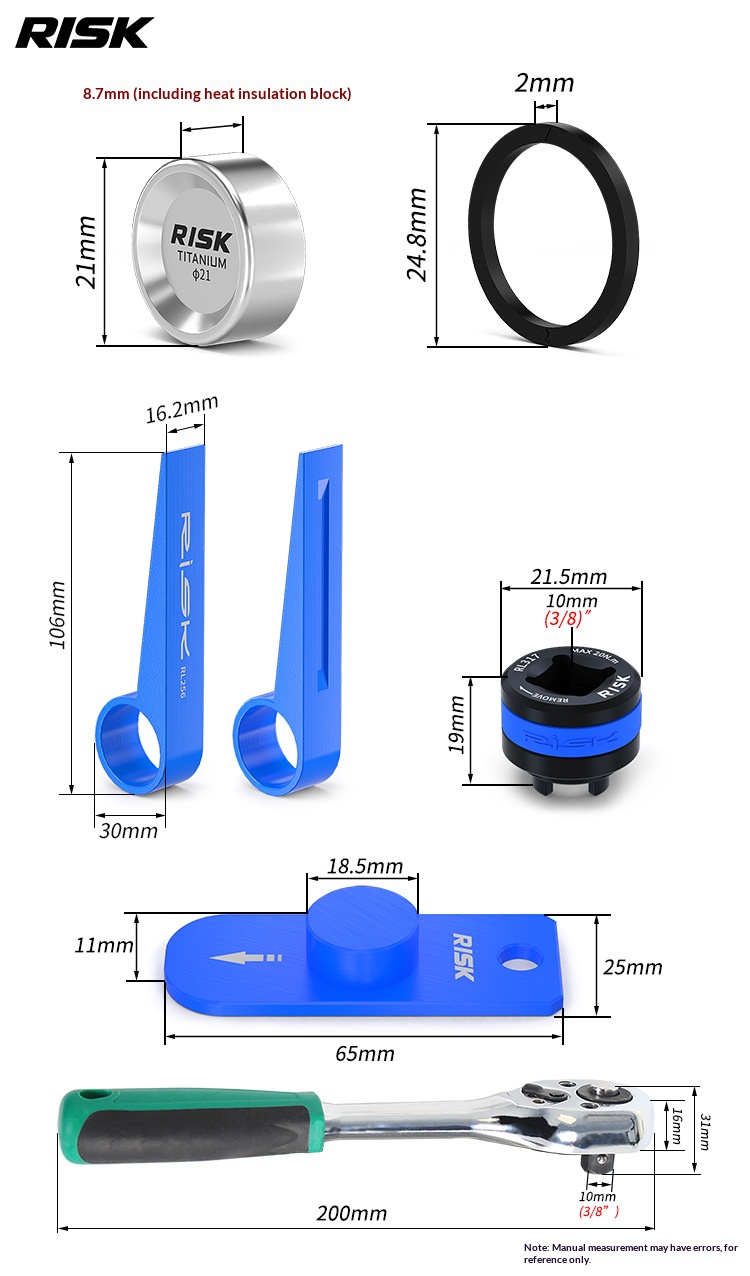

Size: approx. 106 × 30 × 16.2mm

Quantity: 1 set

Net weight: approx. 26g

Package weight: approx. 30g

Designed to help reset hydraulic disc brake pistons safely and evenly without damaging the caliper body or piston surface.

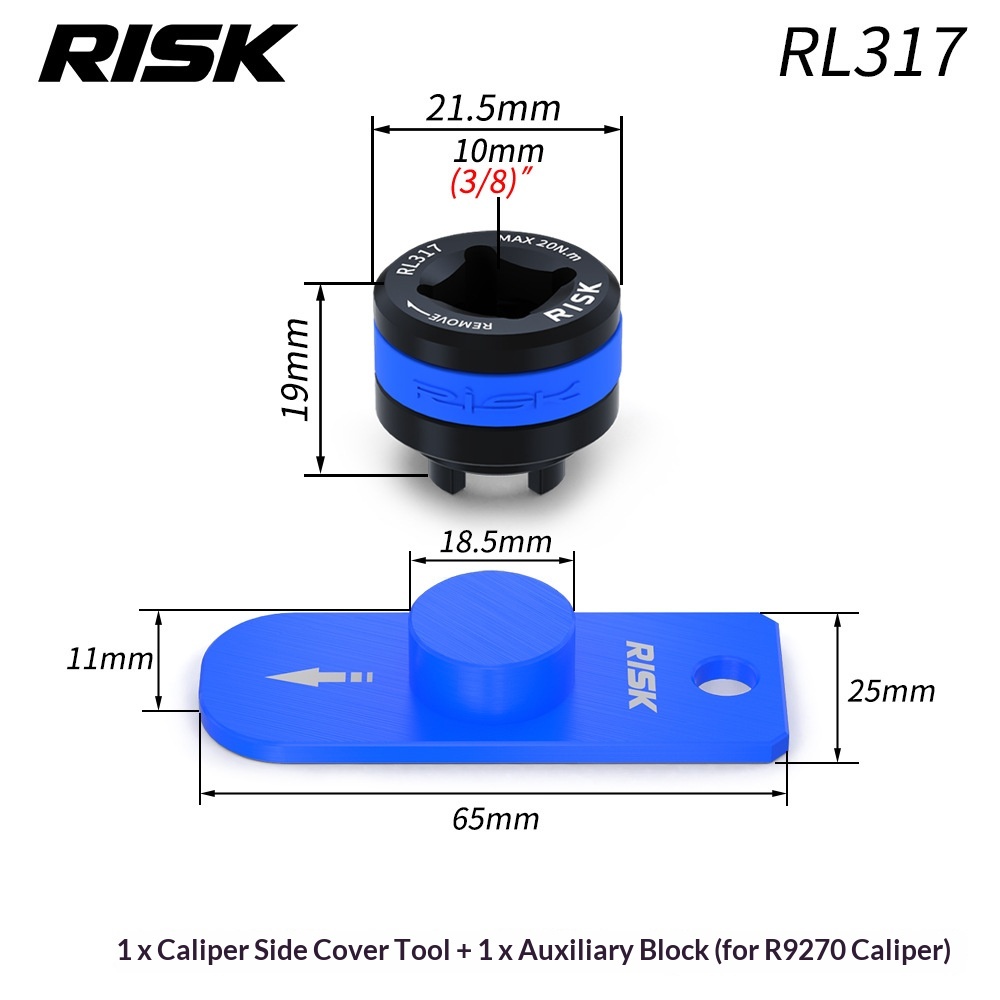

RL317 — Caliper Side Cover Removal Tool

Model: RL317

Interface: 10mm / 3/8" drive

Maximum torque marking: 20 N·m

Tool size: approx. 21.5mm diameter × 19mm height

Auxiliary block size: approx. 65 × 25mm

Quantity: 1 tool + 1 auxiliary block

Net weight: approx. 16.5g

Package weight: approx. 20g

Designed for removing and installing the caliper side cover. The auxiliary block helps support the caliper during operation. Suitable for R9270 calipers.

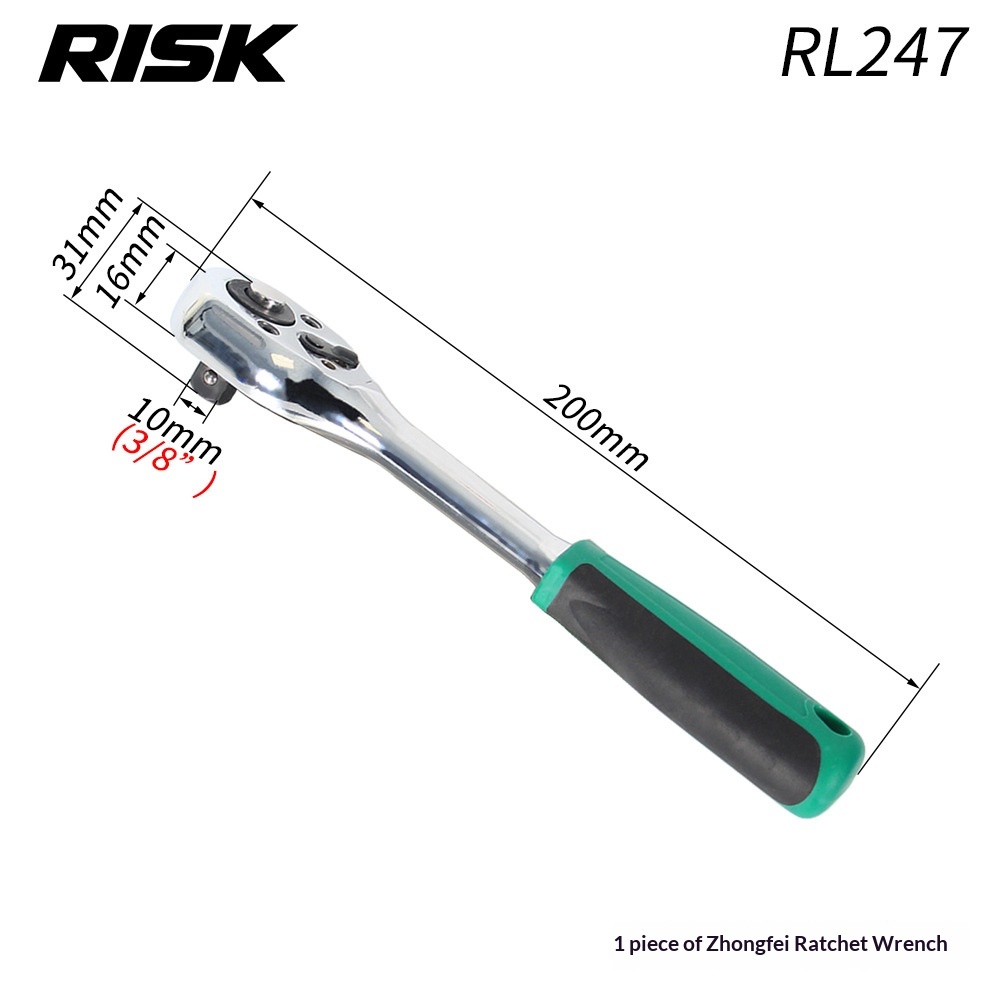

RL247 — 3/8" Ratchet Wrench

Model: RL247

Drive size: 10mm / 3/8"

Length: approx. 200mm

Net weight: approx. 316g

Package weight: approx. 330g

A 3/8" ratchet wrench suitable for use with compatible bicycle repair sockets and service tools.

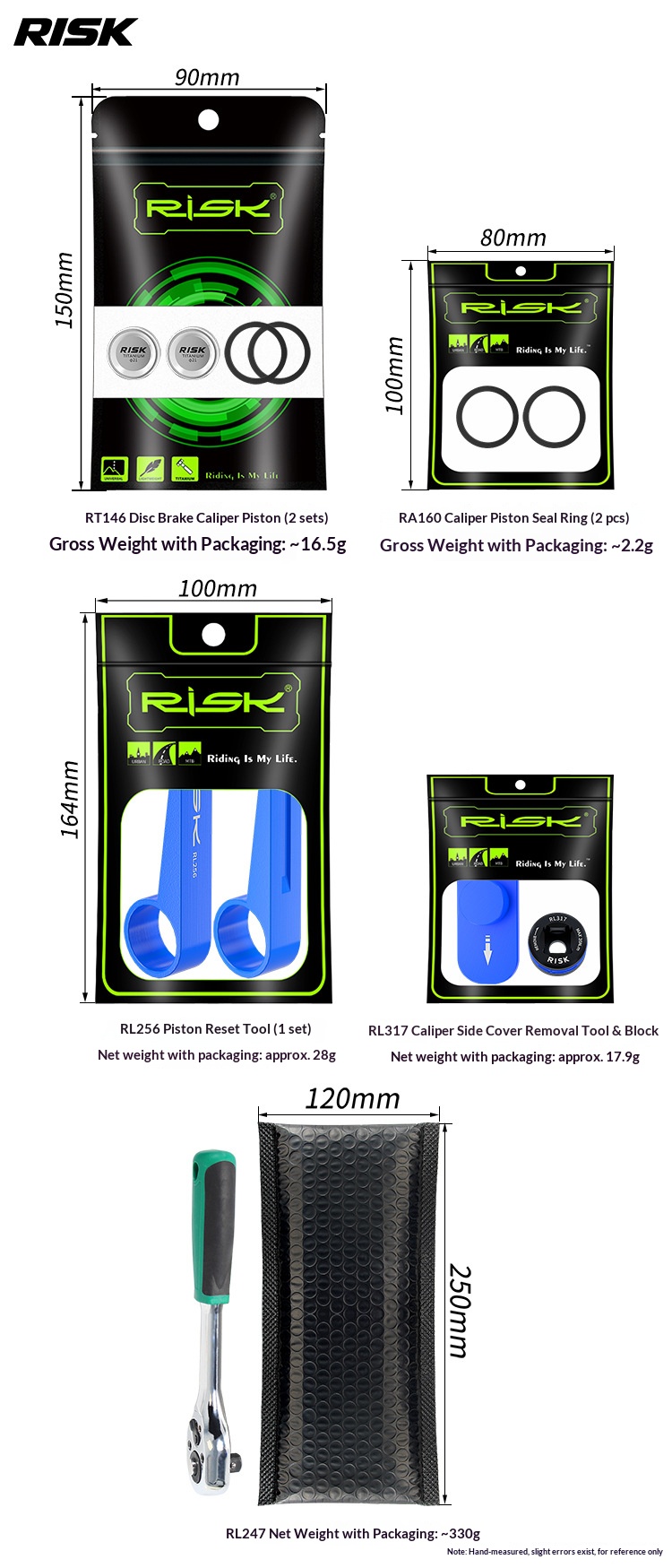

Package Includes

Depending on the selected option:

• RT146: 2 sets × titanium disc brake caliper pistons
• RA160: 2 pcs × piston sealing O-rings
• RL256: 1 set × hydraulic disc brake piston reset tools
• RL317: 1 × caliper side cover removal tool + 1 × auxiliary block
• RL247: 1 × 3/8" ratchet wrench

Note: Product images may show brake calipers or other tools for demonstration only. The package includes only the selected product option.

Important Notes

• Please confirm the caliper model and original part dimensions before purchase.
• Do not force installation if the product does not match your caliper specifications.
• Recommended installation should be performed by a professional mechanic.
• Follow the recommended torque value when installing titanium alloy parts.
• Minor measurement differences may occur due to manual measurement.
• Product data is based on RISK laboratory measurements.
