RISK RT062/RT063 Titanium Brake Lever Oil Reservoir Cover Screws for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc

Name: RISK RT062/RT063 Titanium Brake Lever Oil Reservoir Cover Screws for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc
Brand: DJC Bikes - DJC Components
Price: 10.88 USD
Availability: InStock

$10.88 ~~$15.10~~

-28%

RISK RT062/RT063 Titanium Brake Lever Oil Reservoir Cover Screws for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc.

This product includes screws only. Brake levers are not included.

Type options: Integrated Oil Reservoir - RT062 / Split Oil Reservoir - RT063. Thread Size: M5 x 5mm.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

RISK RT062/RT063 Titanium Brake Lever Oil Reservoir Cover Screws for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc

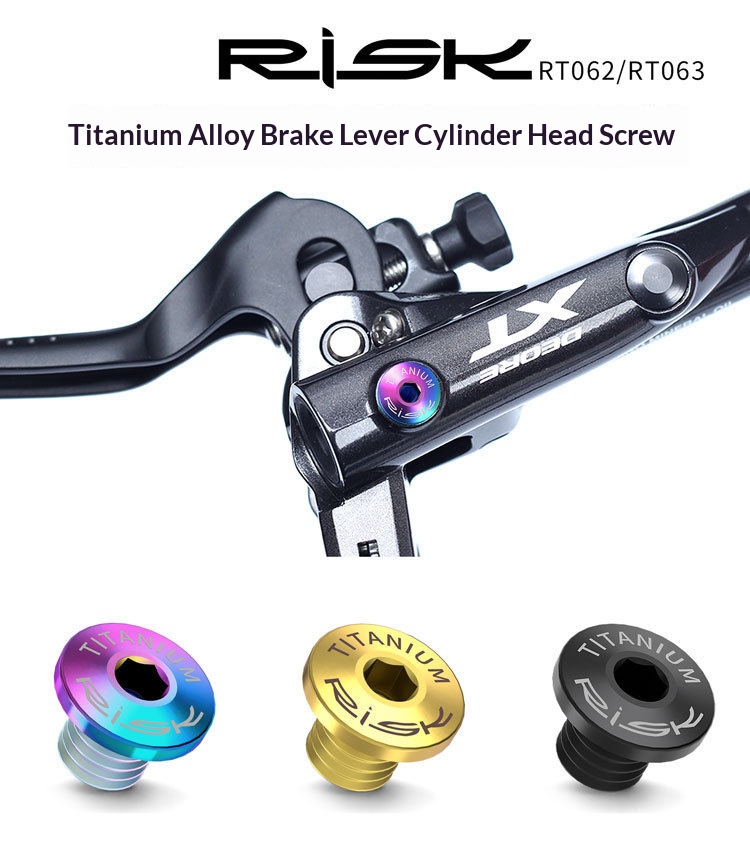

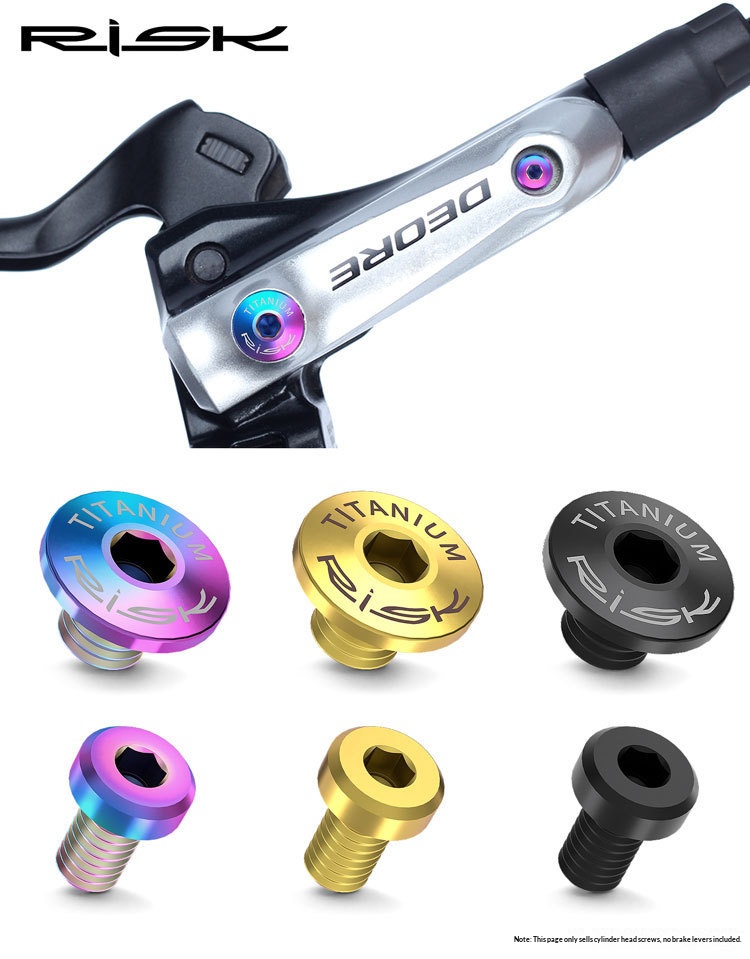

Upgrade your hydraulic disc brake levers with the RISK RT062/RT063 Titanium Oil Reservoir Cover Screws. Made from lightweight titanium alloy, these screws are designed to replace the original brake lever oil cylinder cover screws, offering excellent strength, corrosion resistance, and a premium custom look.

Available for both integrated oil reservoir brake levers and split oil reservoir brake levers, this product is suitable for many for Shimano hydraulic brake models, including XT, XTR, DEORE, M615, M675, M785, M7000, M8000, M9000, and M9020 series.

The screws are available in multiple colors, making them ideal for bike customization, weight reduction, and maintenance replacement.

Key Features

Brand: RISK
Model: RT062 / RT063
Material: Titanium alloy
Application: Hydraulic disc brake lever oil reservoir cover screws
Lightweight and durable
Corrosion-resistant titanium construction
Available for integrated and split oil reservoir brake levers
Easy installation with hex wrench
Suitable for MTB, road bike, e-bike, and bicycle hydraulic brake upgrades

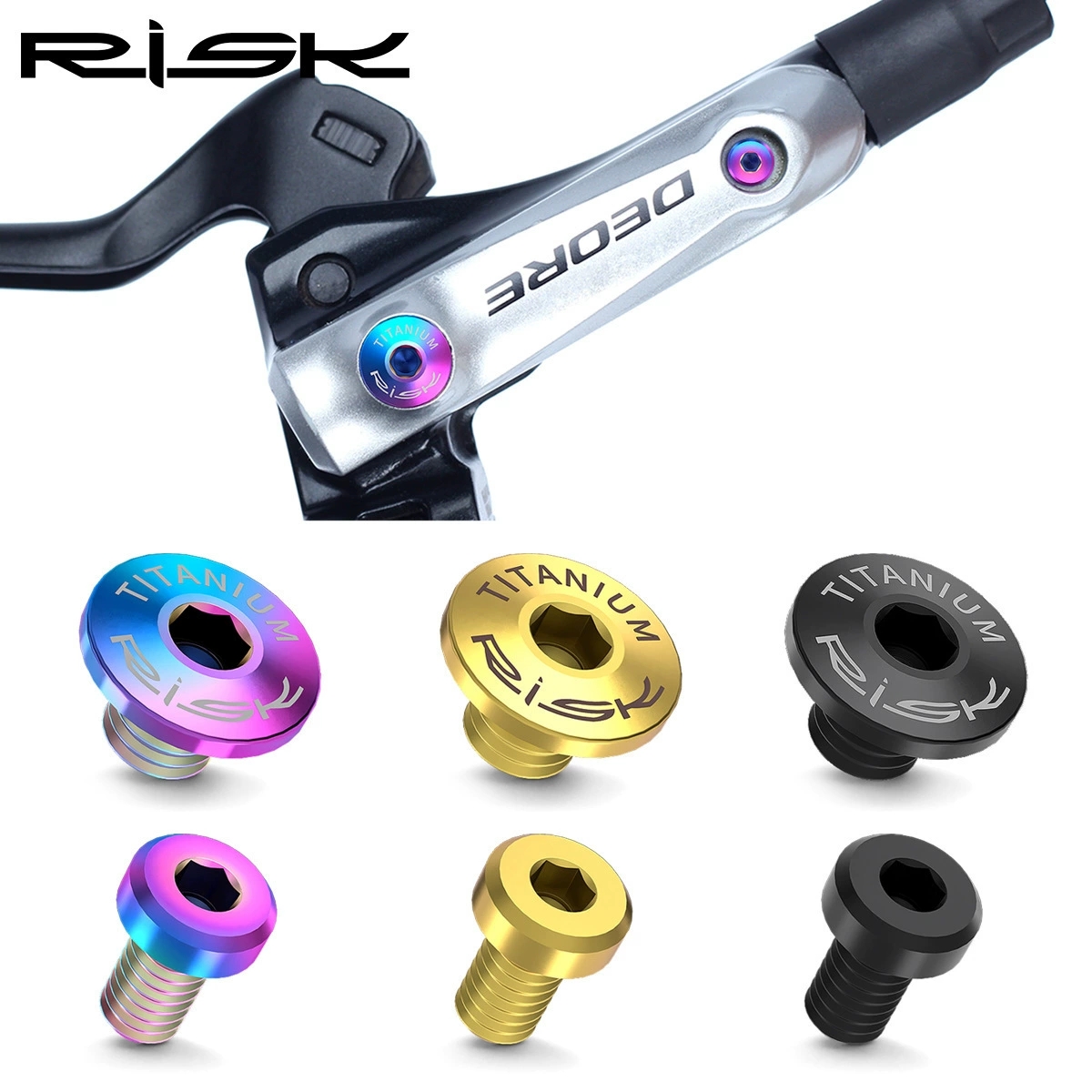

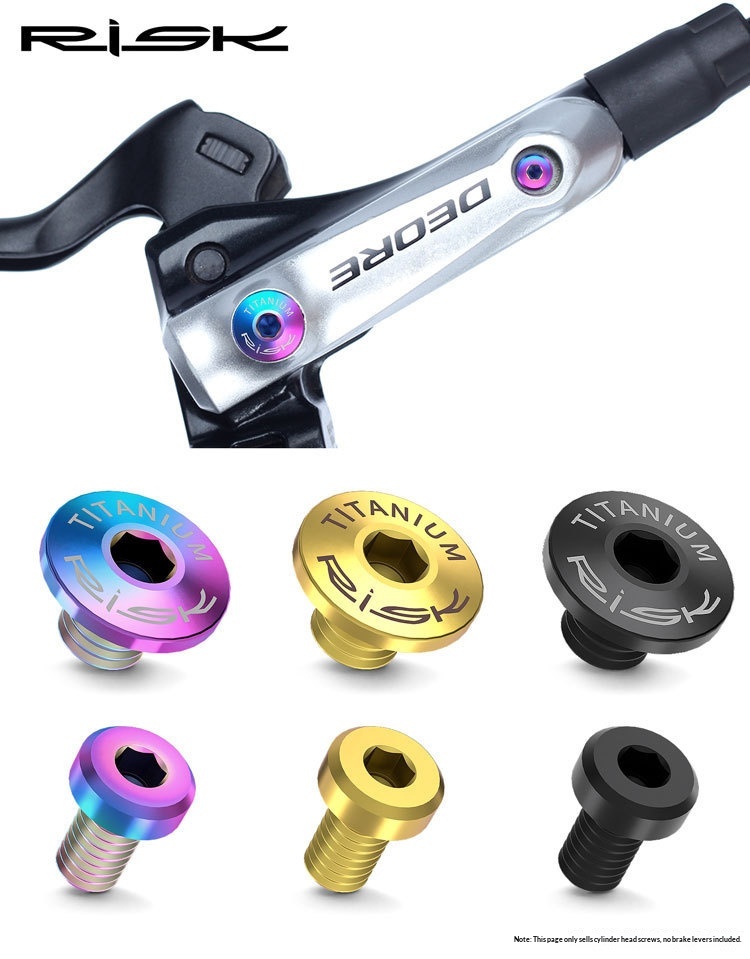

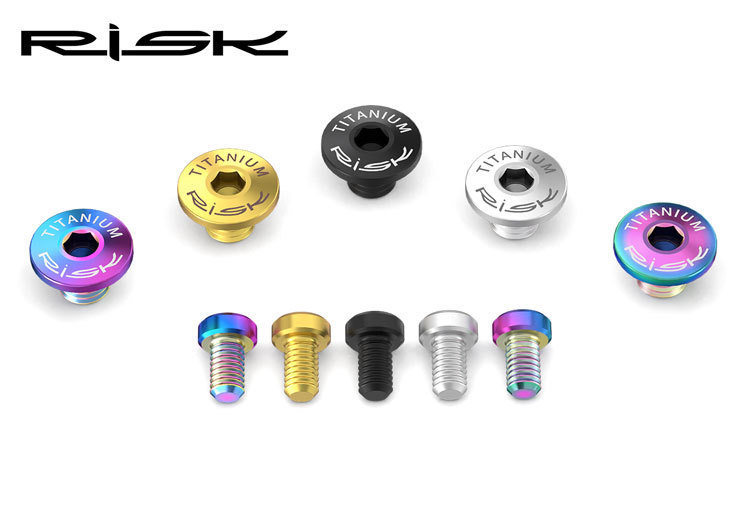

Multiple color options: Rainbow, Gold, Black, Titanium

Product Specifications

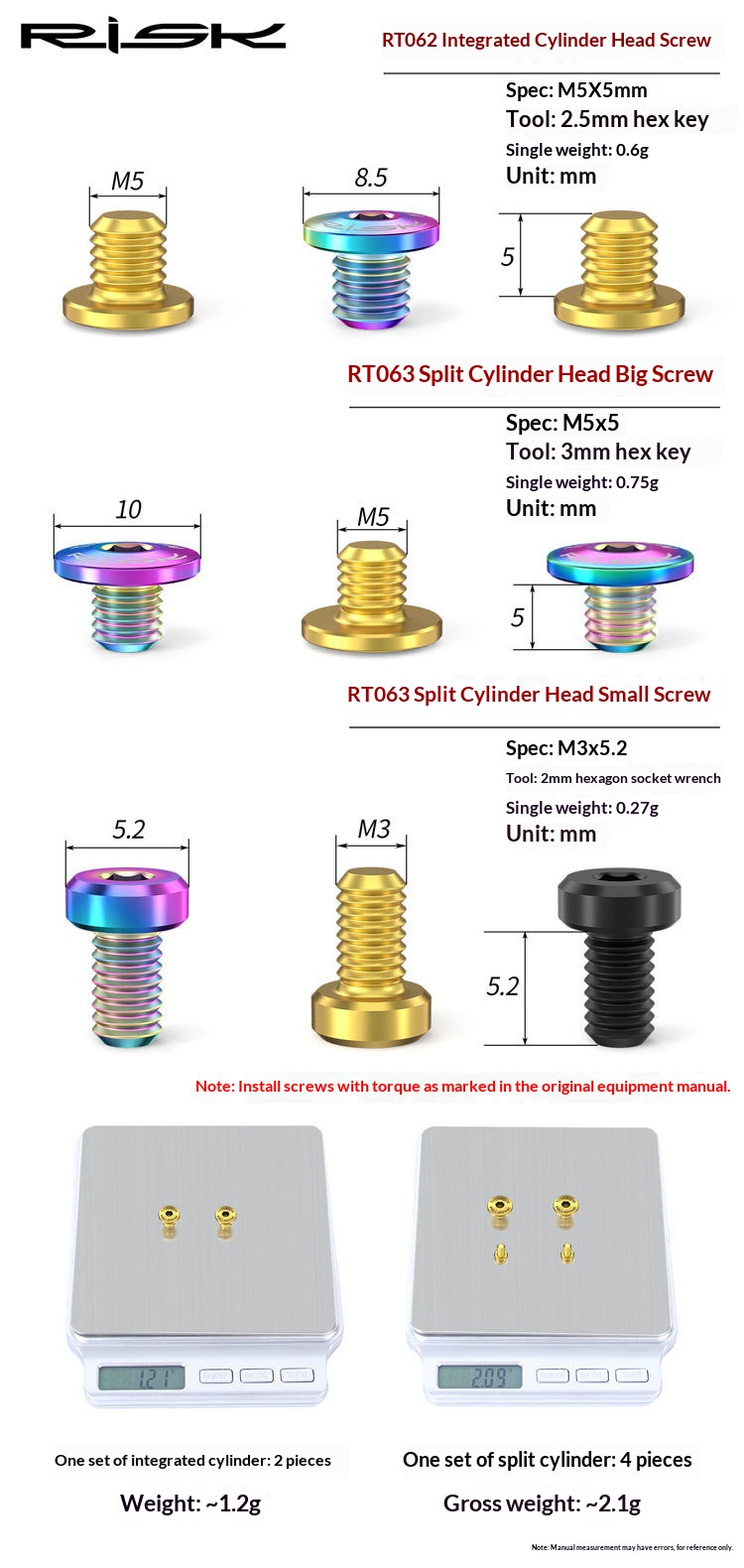

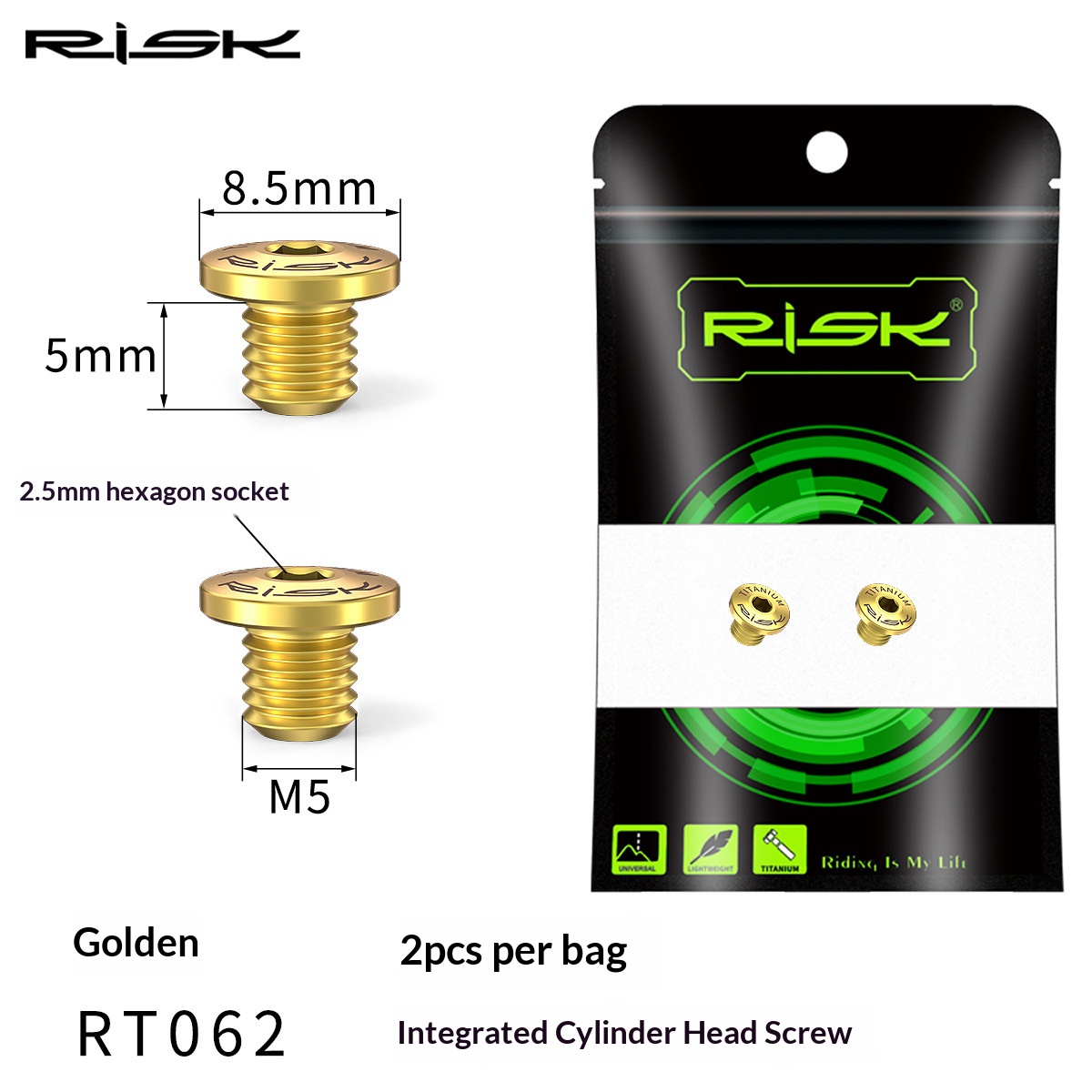

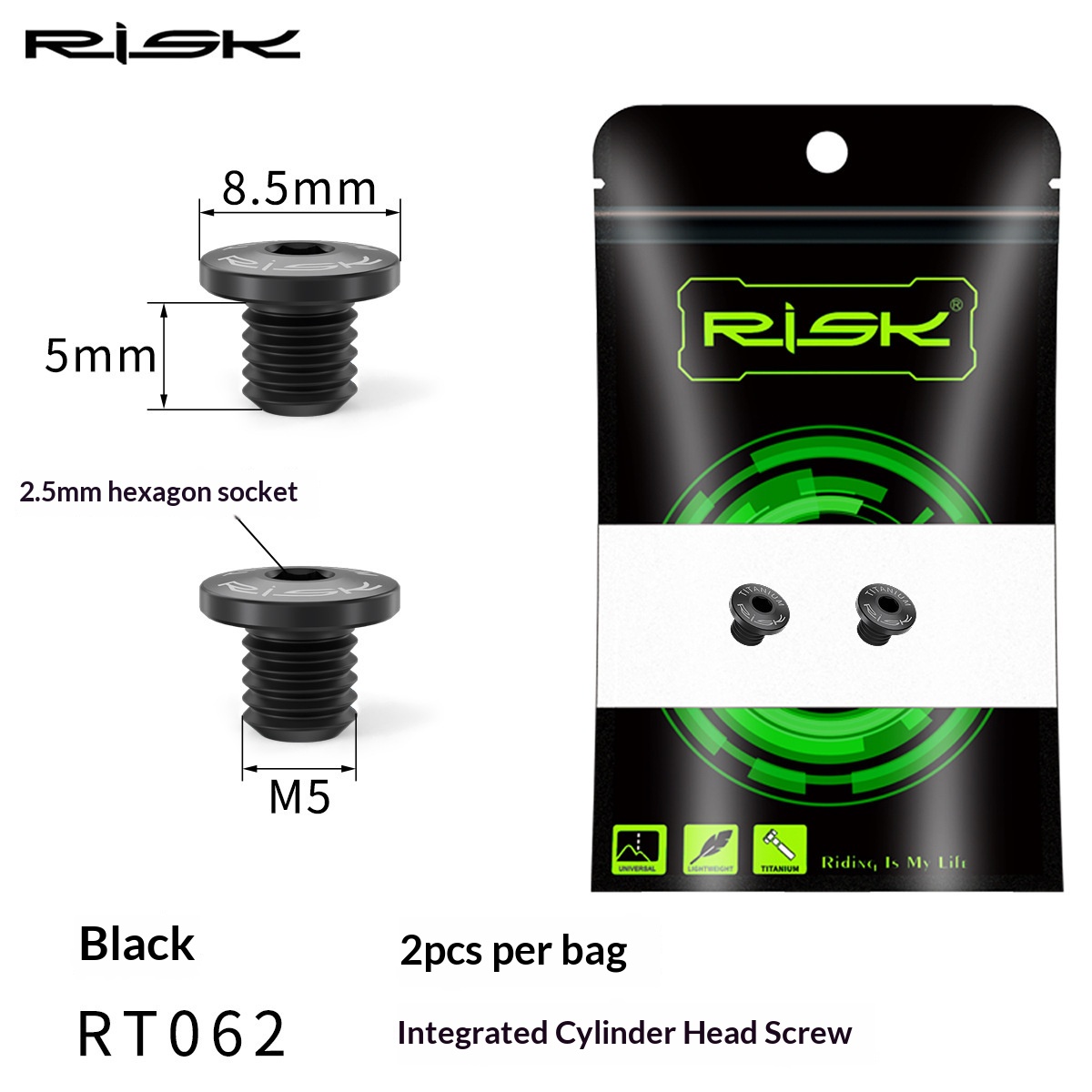

RT062 Integrated Oil Reservoir Cover Screw

Item	Specification
Model	RT062
Type	Integrated oil reservoir cover screw
Thread Size	M5 x 5mm
Head Diameter	8.5mm
Screw Height	5mm
Tool Required	2.5mm Allen key
Quantity	2 pcs / pack
Single Weight	Approx. 0.6g
Weight per Bike Set	Approx. 1.2g
Package Weight	Approx. 5.3g
Key Feature	Model: RT062 / RT063 Material: Titanium alloy
Compatibility	for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc

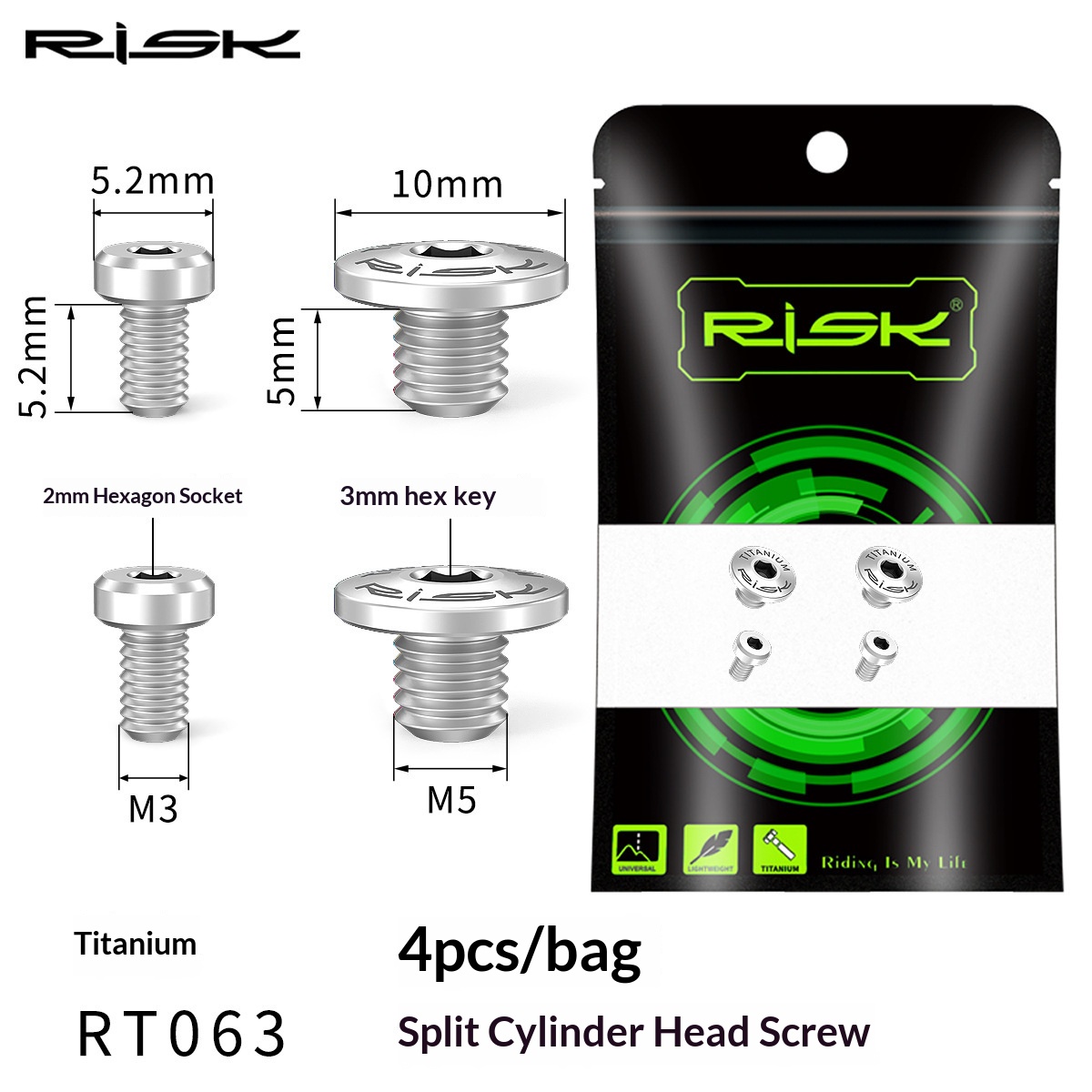

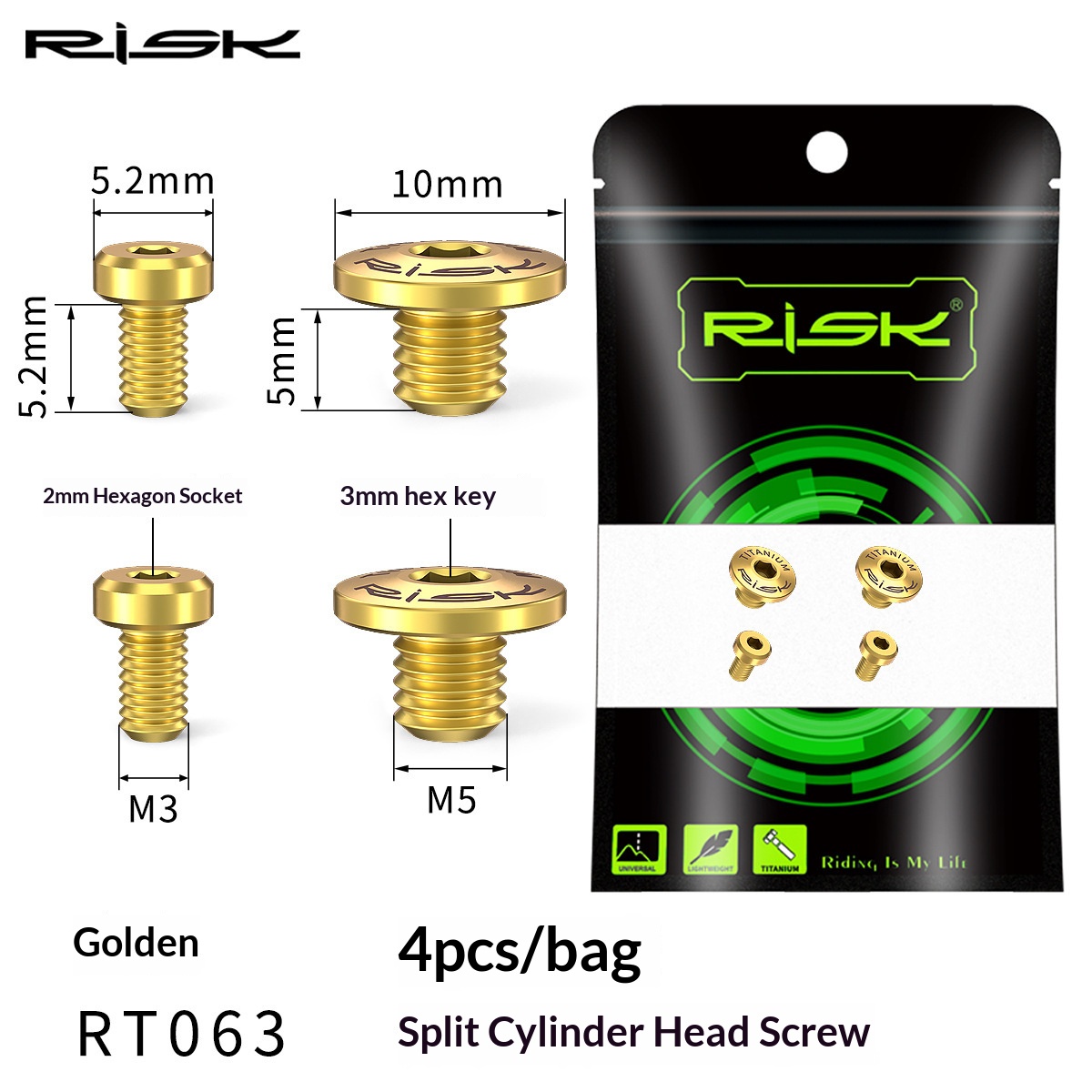

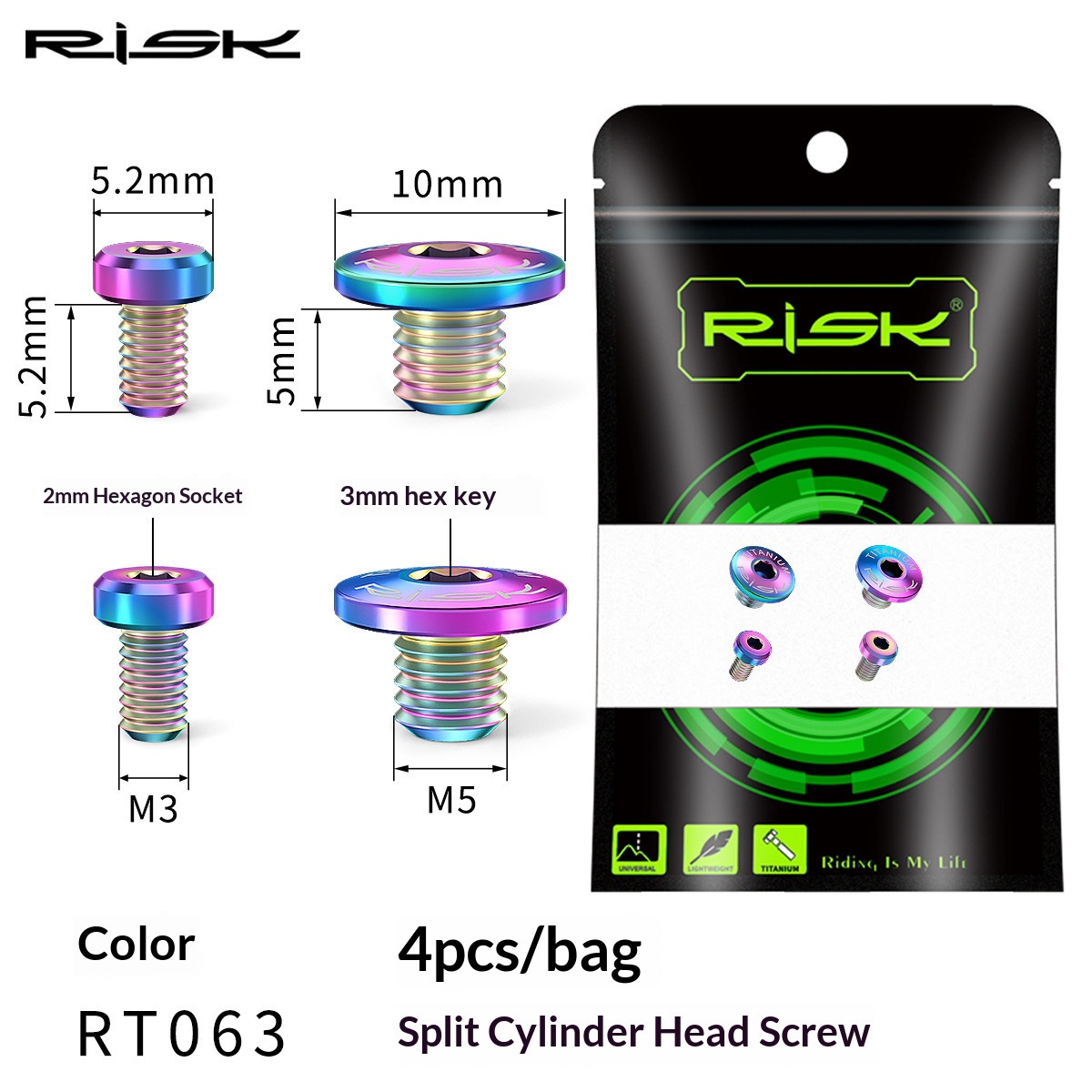

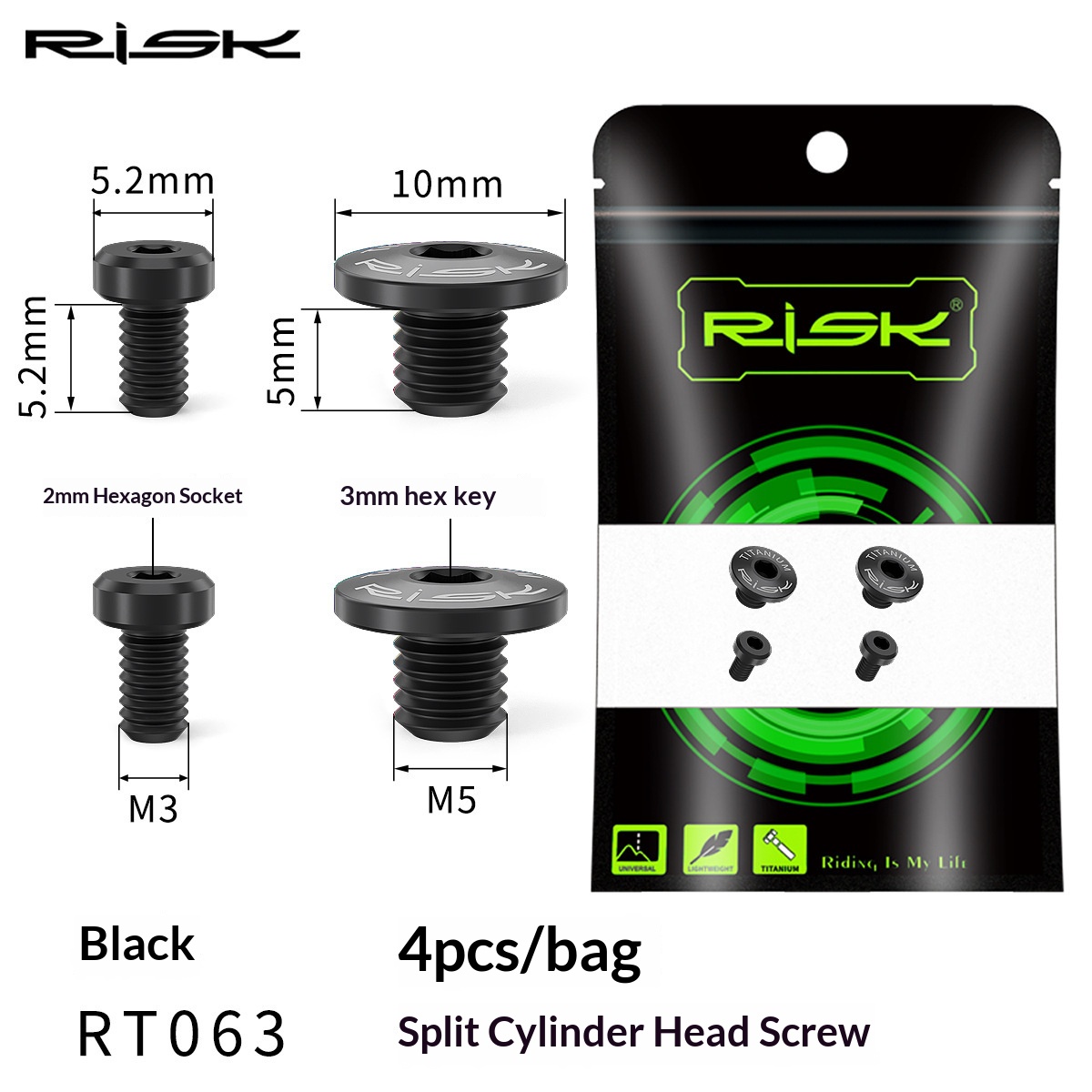

RT063 Split Oil Reservoir Cover Screws

Item	Specification
Model	RT063
Type	Split oil reservoir cover screws
Large Screw Size	M5 x 5mm
Large Screw Head Diameter	10mm
Large Screw Tool	3mm Allen key
Large Screw Weight	Approx. 0.75g
Small Screw Size	M3 x 5.2mm
Small Screw Head Diameter	5.2mm
Small Screw Tool	2mm Allen key
Small Screw Weight	Approx. 0.27g
Quantity	4 pcs / pack
Weight per Bike Set	Approx. 2.1g
Package Weight	Approx. 6.2g

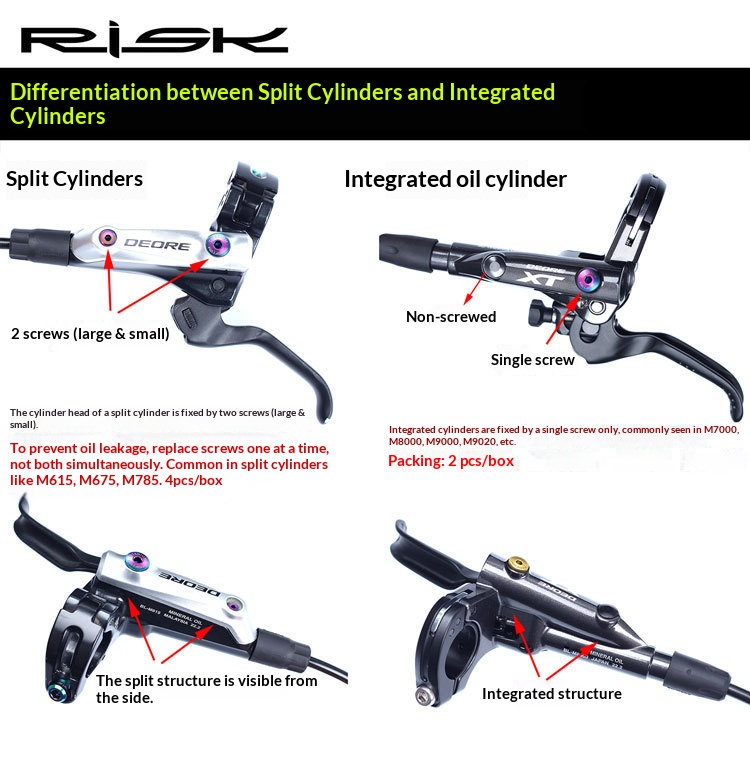

Compatibility Reference

RT062 Integrated Oil Reservoir Type

Suitable for brake levers with one single screw on the oil reservoir cover.

Commonly used on:

for Shimano XT M8000
for Shimano XTR M9000
for Shimano XTR M9020
for Shimano SLX M7000
Other similar integrated oil reservoir hydraulic brake levers

RT063 Split Oil Reservoir Type

Suitable for brake levers with two cover screws: one large screw and one small screw.

Commonly used on:

for Shimano DEORE M615
for Shimano SLX M675
for Shimano XT M785
Other similar split oil reservoir hydraulic brake levers

Important Installation Notes

Please check your brake lever structure before ordering.
RT062 is for integrated oil reservoir brake levers with one cover screw.
RT063 is for split oil reservoir brake levers with two cover screws.
For split oil reservoir brakes, replace the screws one by one to avoid oil leakage.
Do not remove both reservoir cover screws at the same time.
Install according to the torque specified in the original brake manufacturer’s manual.
This product includes screws only. Brake levers are not included.

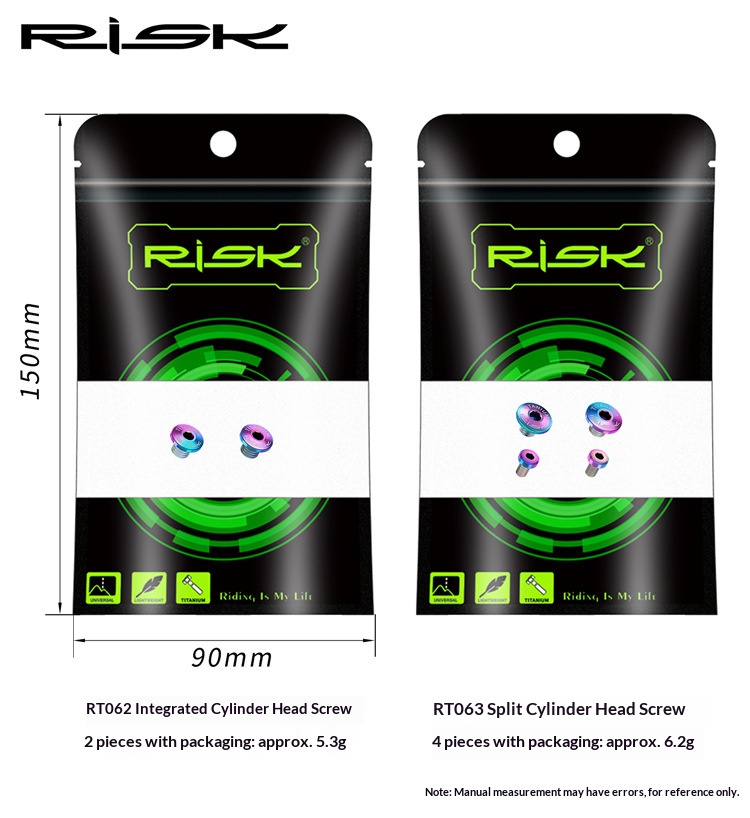

Package Includes

RT062

2 x Titanium oil reservoir cover screws

RT063

2 x M5 large titanium screws
2 x M3 small titanium screws

Suitable SKU Options

RT062 Integrated Oil Reservoir Cover Screws

SKU	Option Name	Color	Quantity
RT062-RB	Integrated Oil Reservoir Screws - Rainbow	Rainbow / Oil Slick	2 pcs
RT062-GD	Integrated Oil Reservoir Screws - Gold	Gold	2 pcs
RT062-BK	Integrated Oil Reservoir Screws - Black	Black	2 pcs
RT062-TI	Integrated Oil Reservoir Screws - Titanium	Titanium / Silver	2 pcs

RT063 Split Oil Reservoir Cover Screws

SKU	Option Name	Color	Quantity
RT063-RB	Split Oil Reservoir Screws - Rainbow	Rainbow / Oil Slick	4 pcs
RT063-GD	Split Oil Reservoir Screws - Gold	Gold	4 pcs
RT063-BK	Split Oil Reservoir Screws - Black	Black	4 pcs
RT063-TI	Split Oil Reservoir Screws - Titanium	Titanium / Silver	4 pcs

RISK RT062/RT063 Titanium Brake Lever Oil Reservoir Cover Screws for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.

Option 1	Option 2
Integrated Oil Reservoir - RT062	Black
Integrated Oil Reservoir - RT062	Titanium
Integrated Oil Reservoir - RT062	Gold
Integrated Oil Reservoir - RT062	Oil slick
Split Oil Reservoir - RT063	Black
Split Oil Reservoir - RT063	Titanium
Split Oil Reservoir - RT063	Gold
Split Oil Reservoir - RT063	Oil slick
