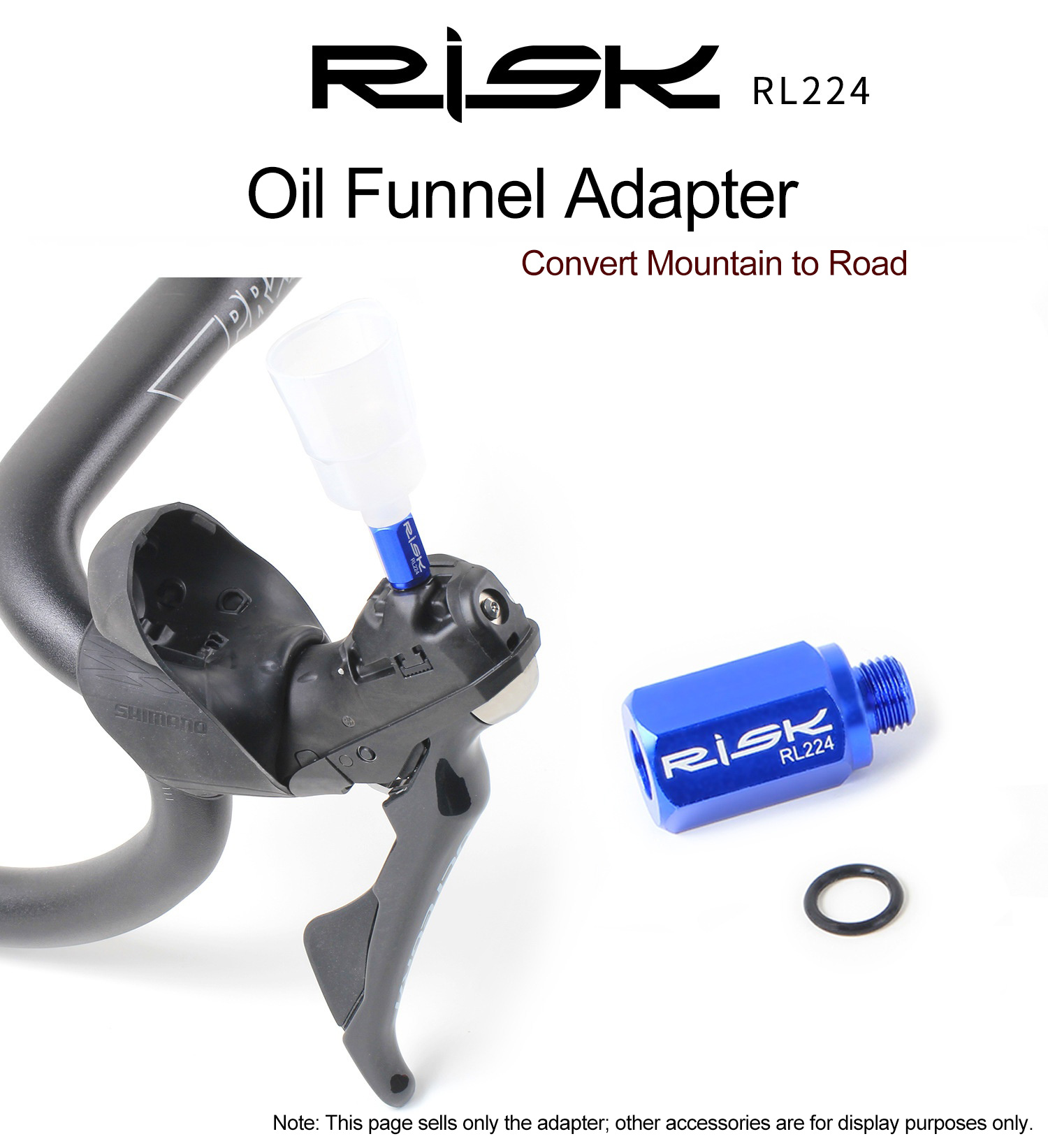

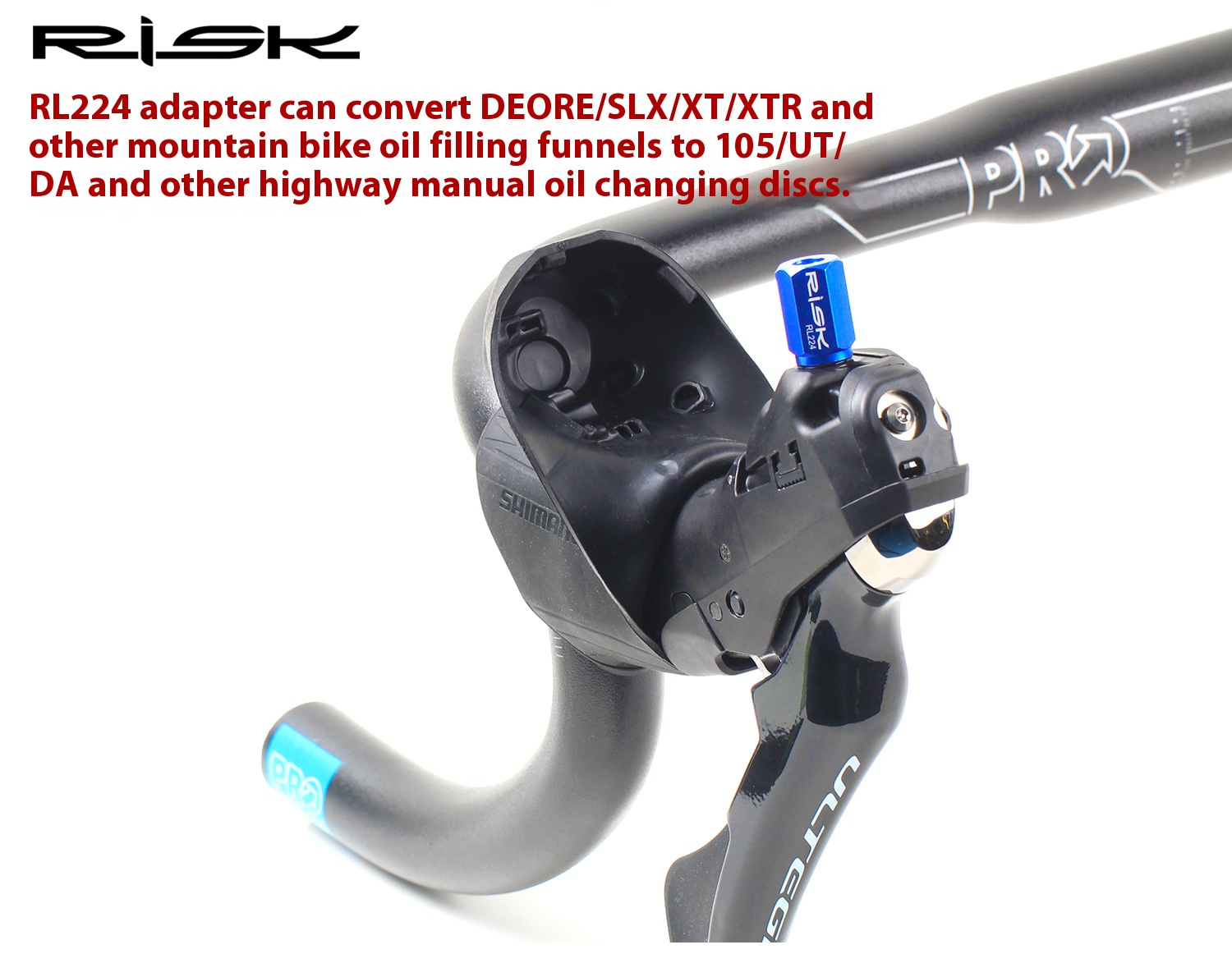

The RISK RL224 / RL309 Hydraulic Brake Bleed Funnel Adapter is designed to convert compatible MTB brake bleed funnels for use with Shimano road hydraulic shifters.

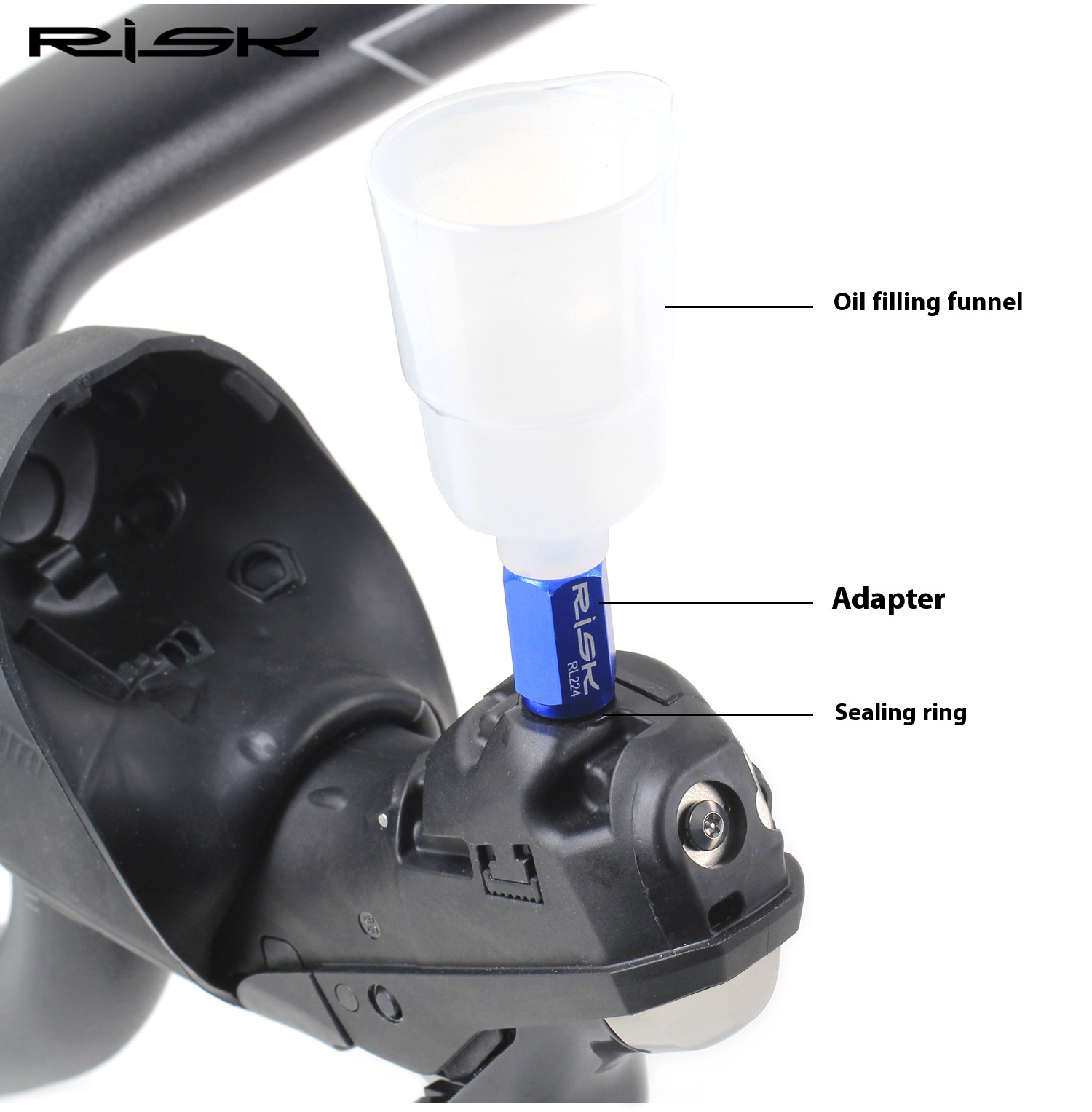

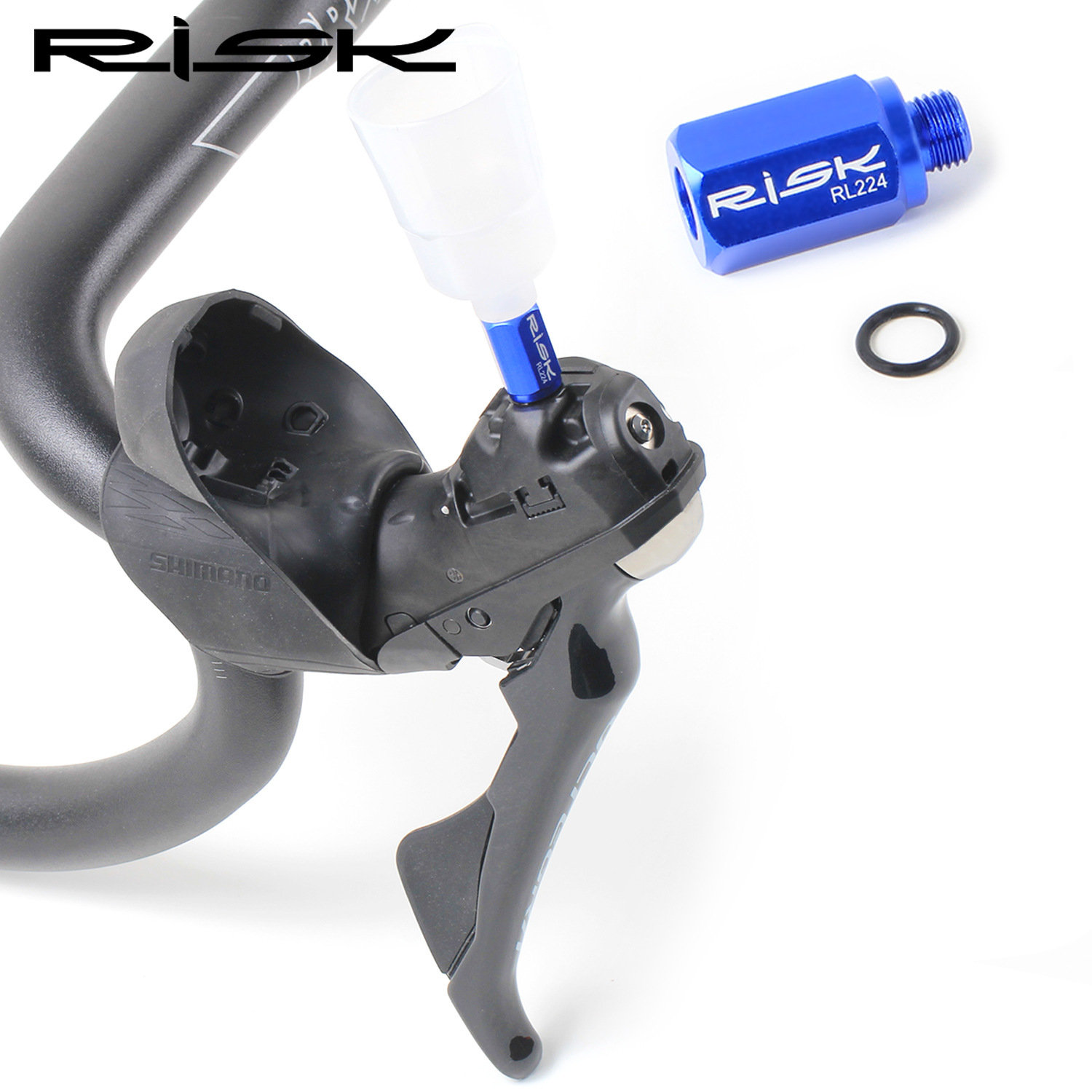

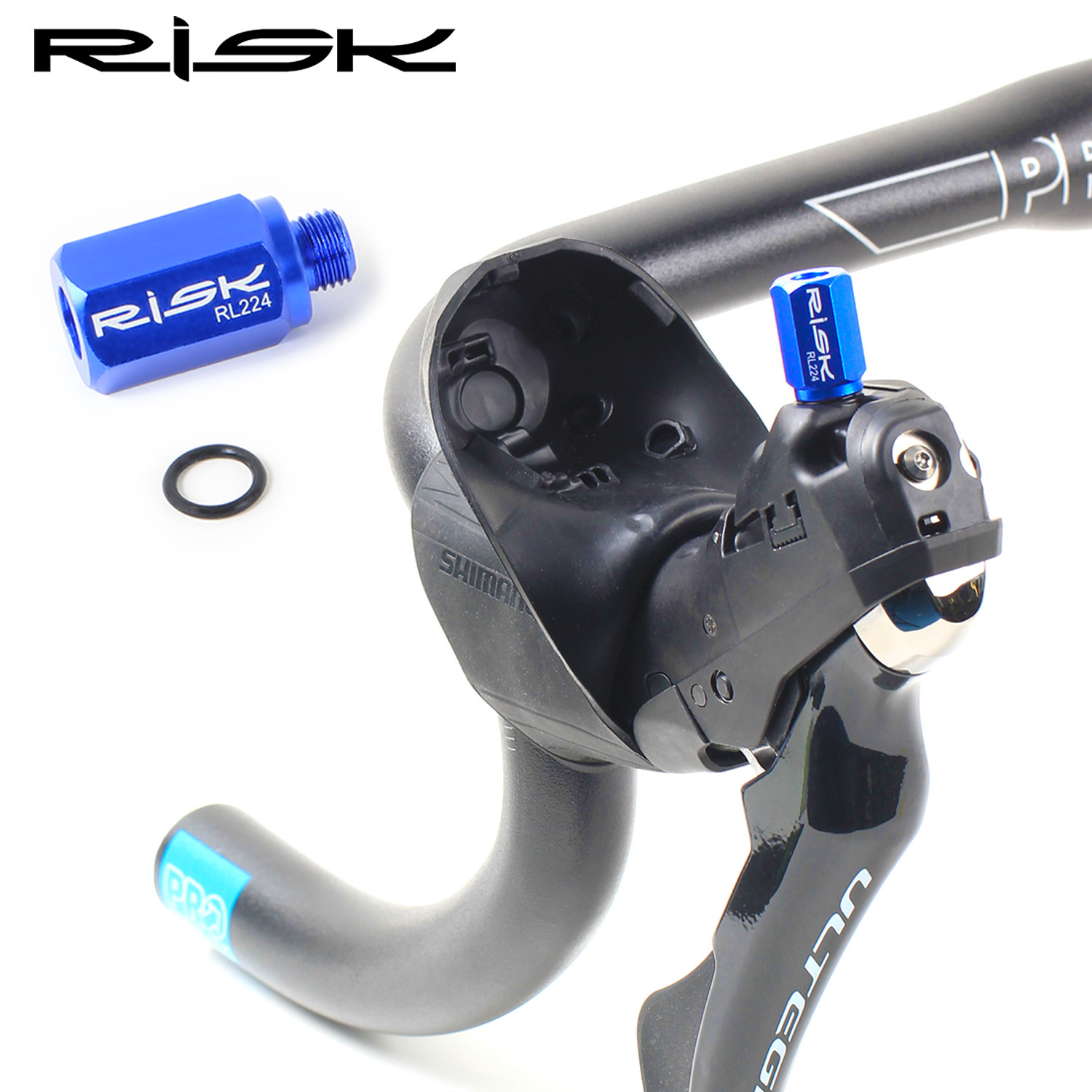

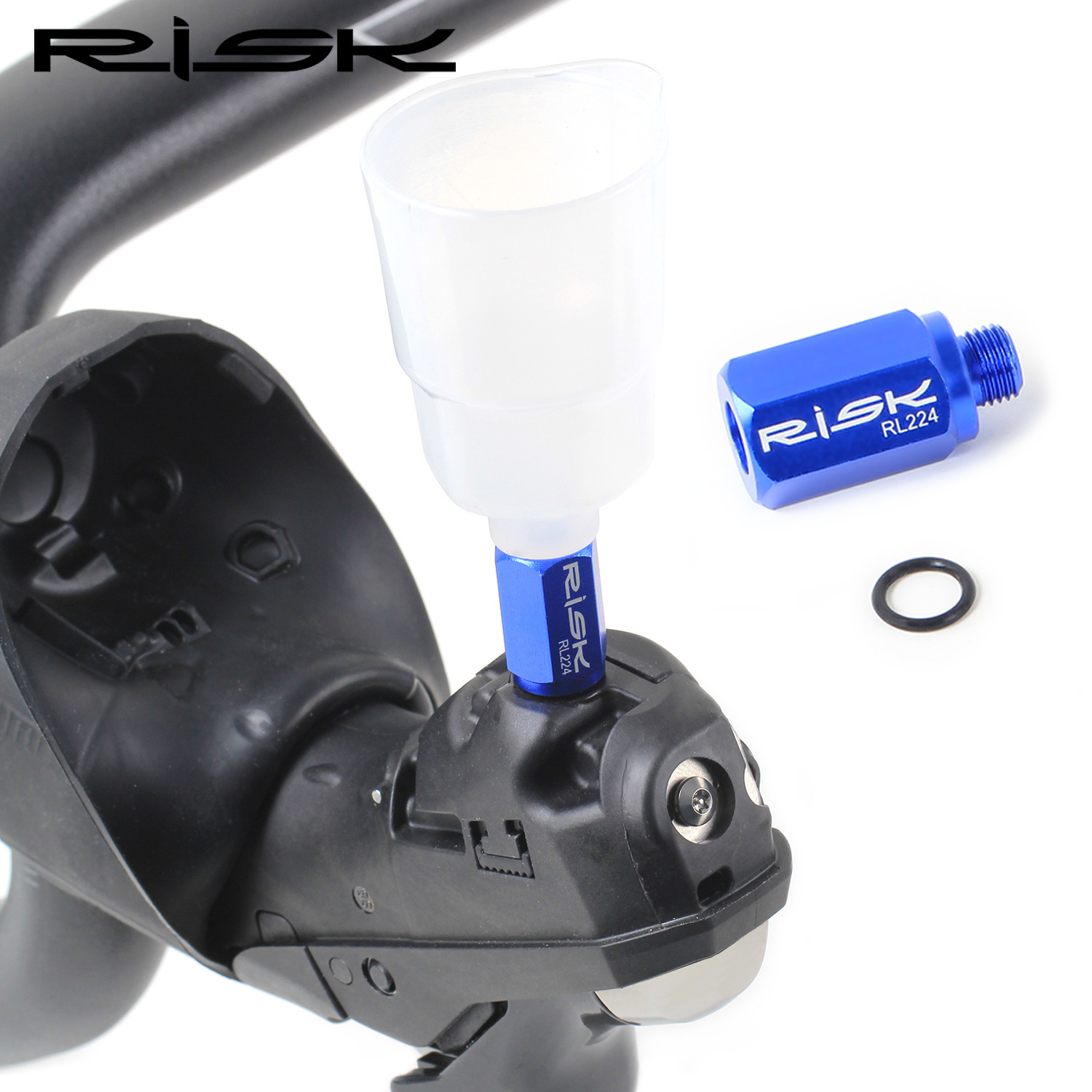

This adapter allows riders and mechanics to use a mountain bike-style oil bleed funnel on compatible road hydraulic brake levers, making brake bleeding and oil replacement more convenient.

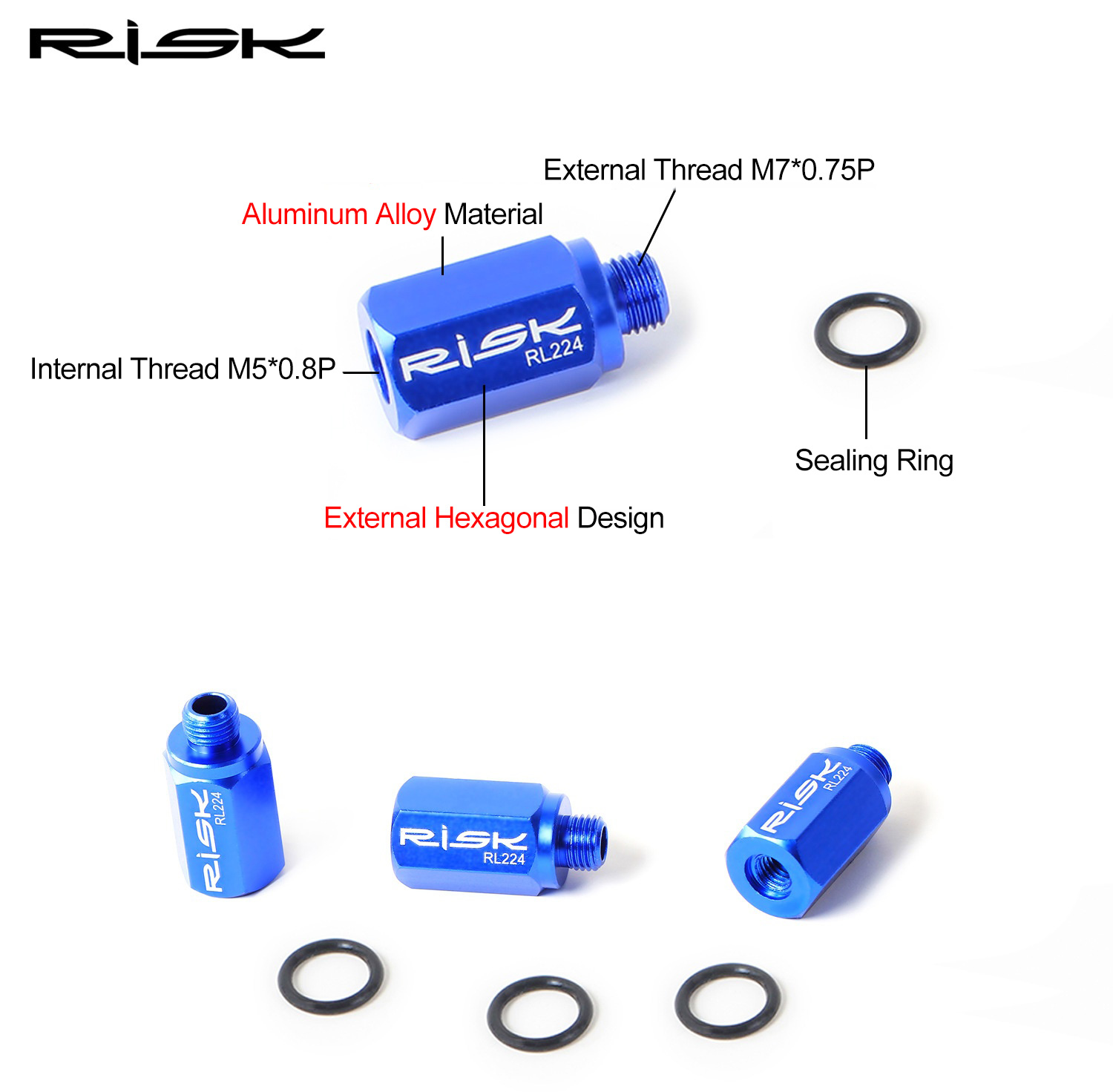

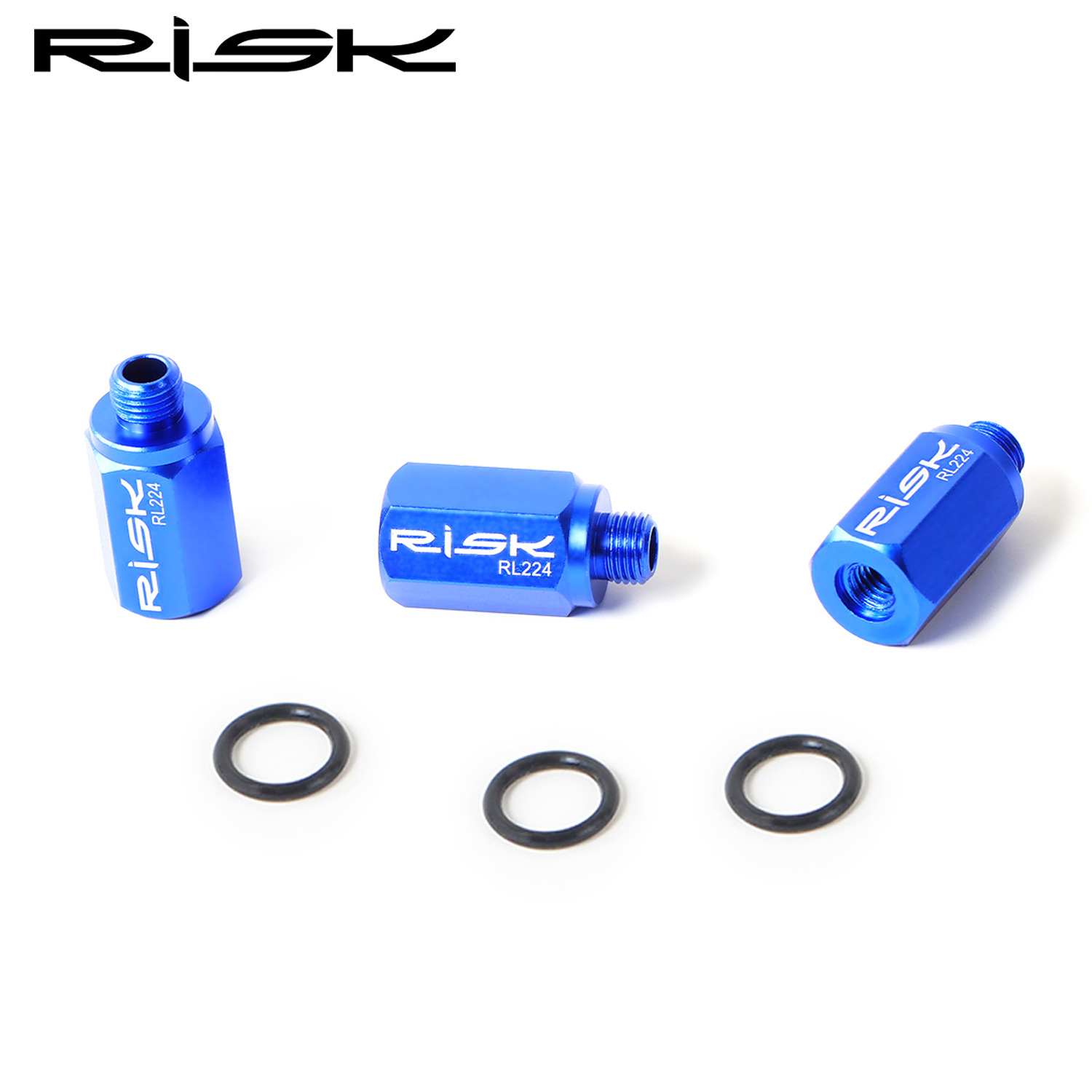

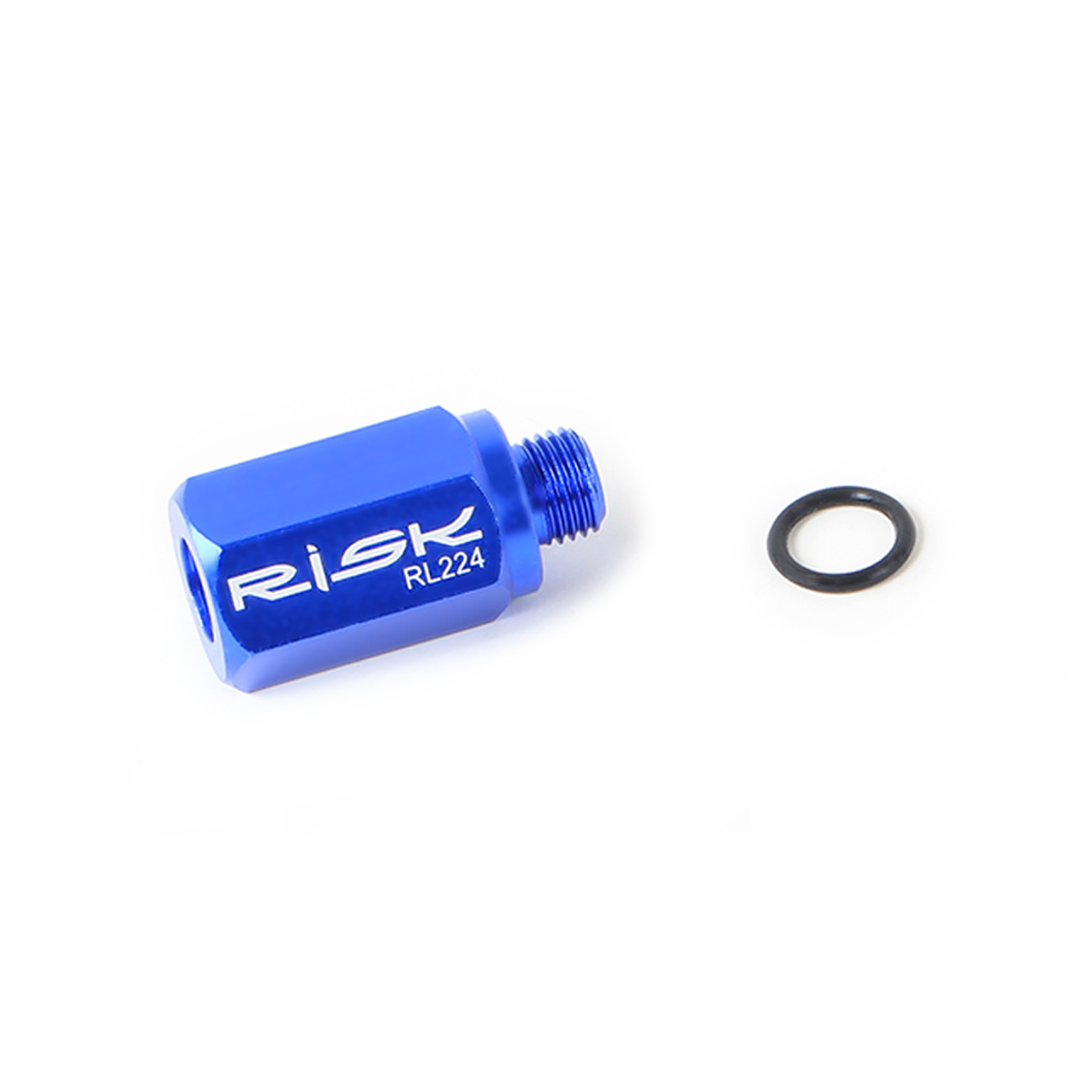

Made from lightweight aluminum alloy with anodized blue finish, the adapter features an M7×P0.75 external thread and M5×P0.8 internal thread. Each set includes 1 adapter and 1 O-ring.
The RL224 is the old version, while the RL309 is the upgraded version with wider compatibility for newer road hydraulic shifters.
Road Shifter Bleed Adapter
Converts MTB bleed funnel use for compatible road hydraulic shifters.
Aluminum Alloy Body
Lightweight, durable, and resistant to regular workshop use.
Threaded Connection Design

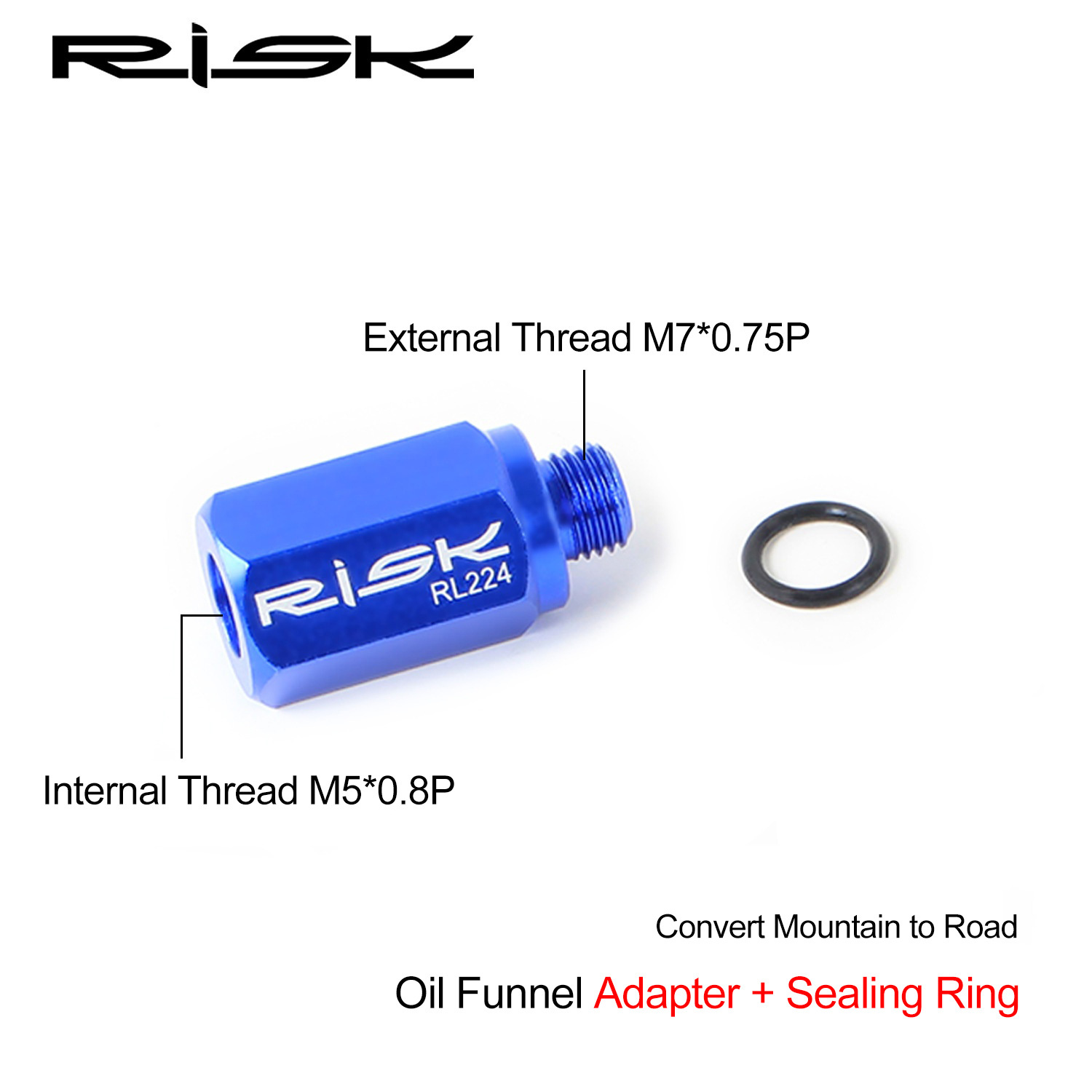

External thread: M7×P0.75
Internal thread: M5×P0.8
Compact and Lightweight
Small tool, easy to store in a brake bleed kit or workshop toolbox.
Includes O-Ring
Comes with a sealing O-ring for better sealing during brake bleeding.
Two Versions Available
Useful for Home and Shop Maintenance
Suitable for bike mechanics, repair shops, and experienced home users.
| Model | Version | Compatible Shifter Models |
|---|---|---|
| RL224 | Old Version | R7020 / R7120 / R8020 / R9120 |

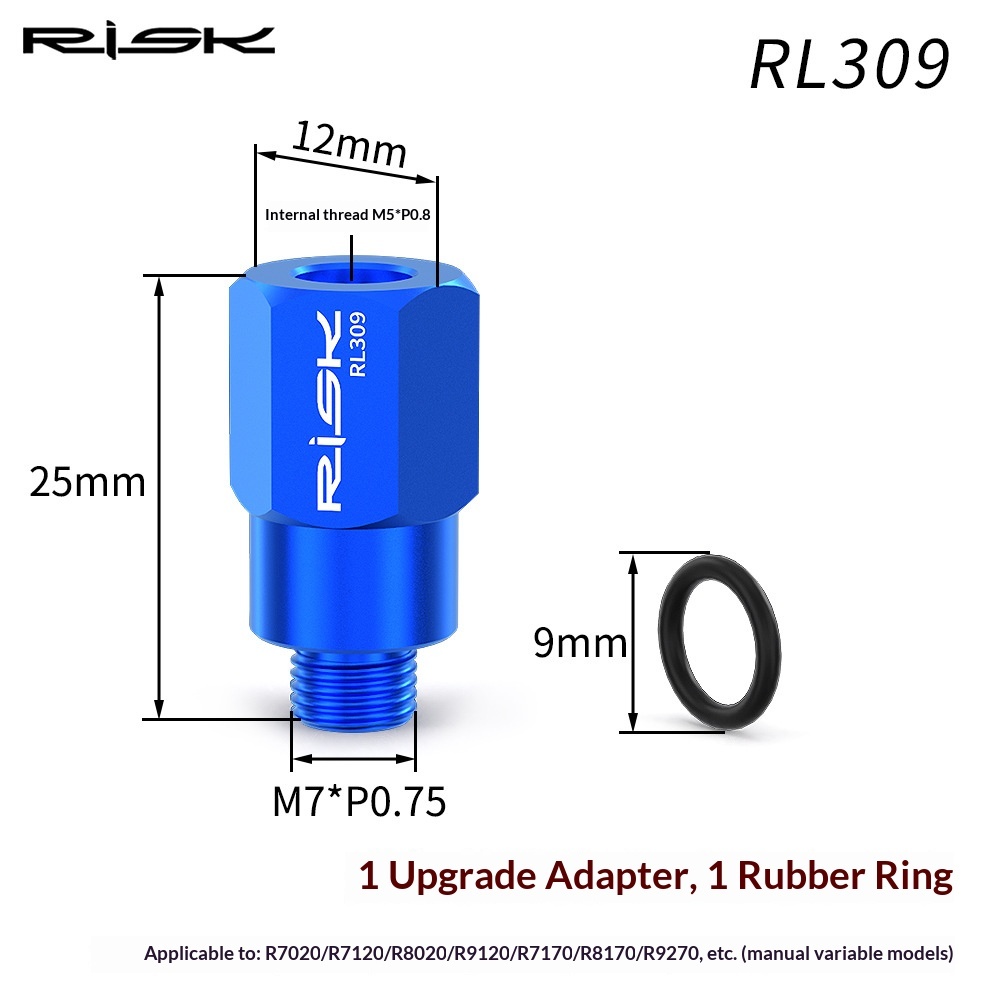

| RL309 | Upgraded Version | R7020 / R7120 / R8020 / R9120 / R7170 / R8170 / R9270 and similar models |
RL309 is recommended if you need compatibility with newer Shimano road hydraulic shifters.
| Item | Specification |
|---|---|
| Brand | RISK |
| Model | RL224 / RL309 |
| Product Name | Hydraulic Brake Bleed Funnel Adapter |
| Material | Aluminum Alloy |
| Color | Blue |
| Application | Road hydraulic shifter brake bleeding |

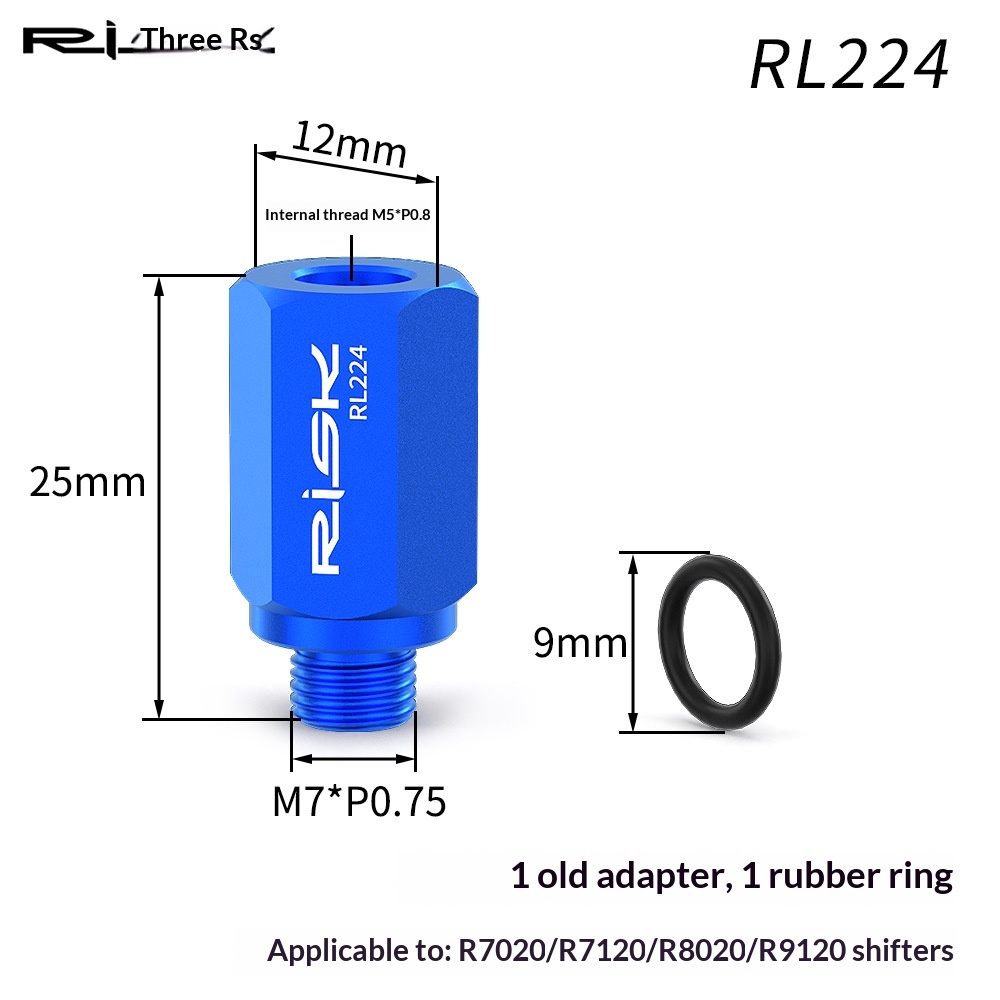

| External Thread | M7 × P0.75 |
| Internal Thread | M5 × P0.8 |
| Outer Width | Approx. 12mm |
| Total Height | Approx. 25mm |
| O-Ring Size | Approx. 9mm |

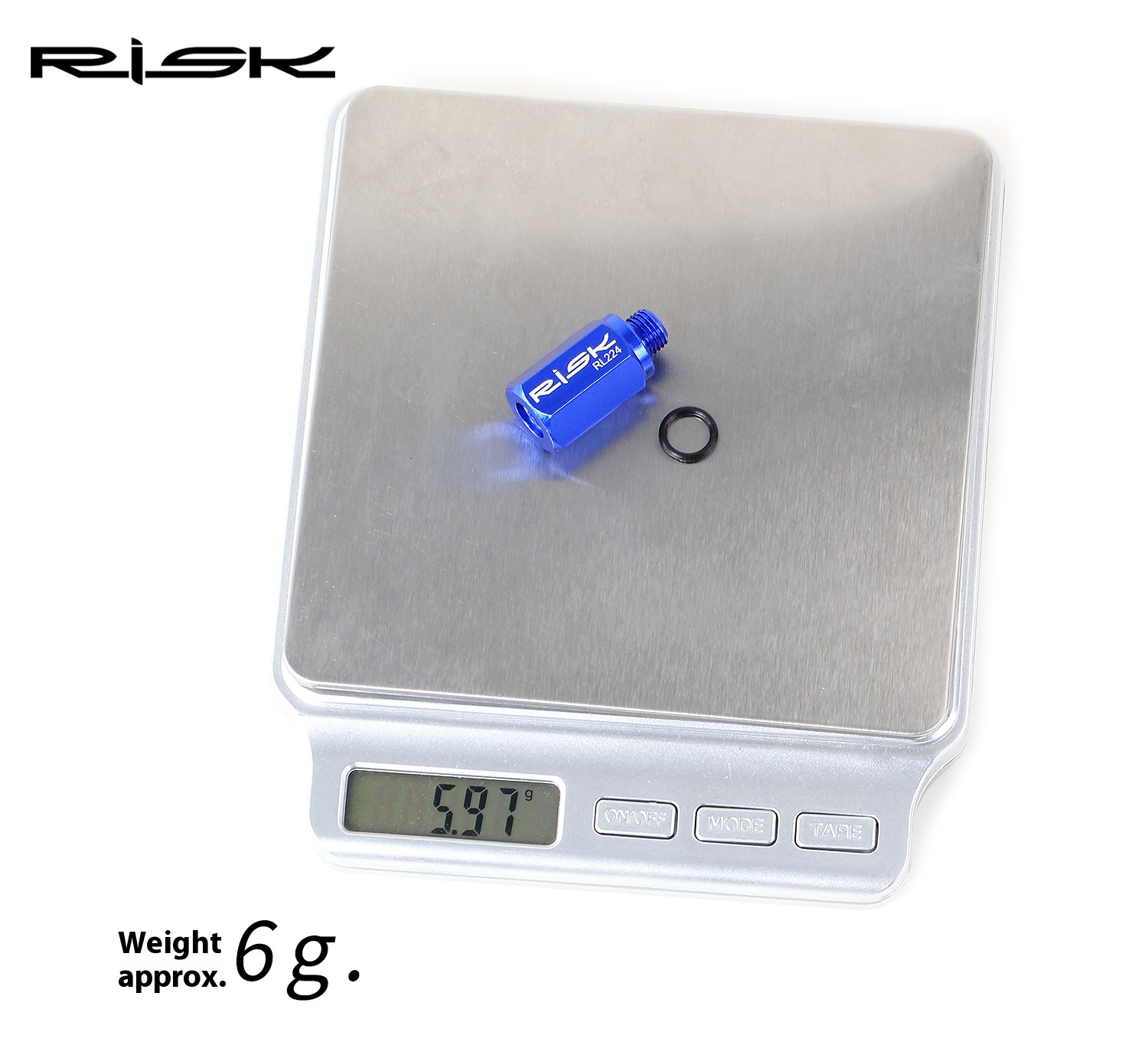

| RL224 Net Weight | Approx. 6g |
| RL309 Net Weight | Approx. 5.7g |
| RL224 Gross Weight | Approx. 7.4g |
| RL309 Gross Weight | Approx. 7.1g |
| Packaging | RISK branded bag |
| Package Size | Approx. 10 × 8 × 2cm |
| Package Includes | 1 × Adapter + 1 × O-Ring |
