RISK RL345 44mm 16-Notch Centerlock Lockring Tool for BB52 RS500 GXP with RL346/RL327 Options, 44mm OD / 16-Notch Lockrings

Name: RISK RL345 44mm 16-Notch Centerlock Lockring Tool for BB52 RS500 GXP with RL346/RL327 Options, 44mm OD / 16-Notch Lockrings
Brand: DJC Bikes - DJC Components
Price: 10.37 USD
Availability: InStock

$10.37 ~~$14.40~~

-28%

RISK RL345 44mm 16-Notch Centerlock Lockring Tool for BB52 RS500 GXP with RL346/RL327 Options, 44mm OD / 16-Notch Lockrings.

Compatibility: 44mm OD / 16-Notch Lockrings.

Compatible Systems: BB52 / RS500 / GXP / Skypivot® lockrings.

Options: Lockring Removal Tool 44-16T; Protective Pads 2 pcs; Quick-Release Anti-Slip Device.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

RISK RL345 44mm 16-Notch Centerlock Lockring Tool for BB52 RS500 GXP with RL346/RL327 Options, 44mm OD / 16-Notch Lockrings

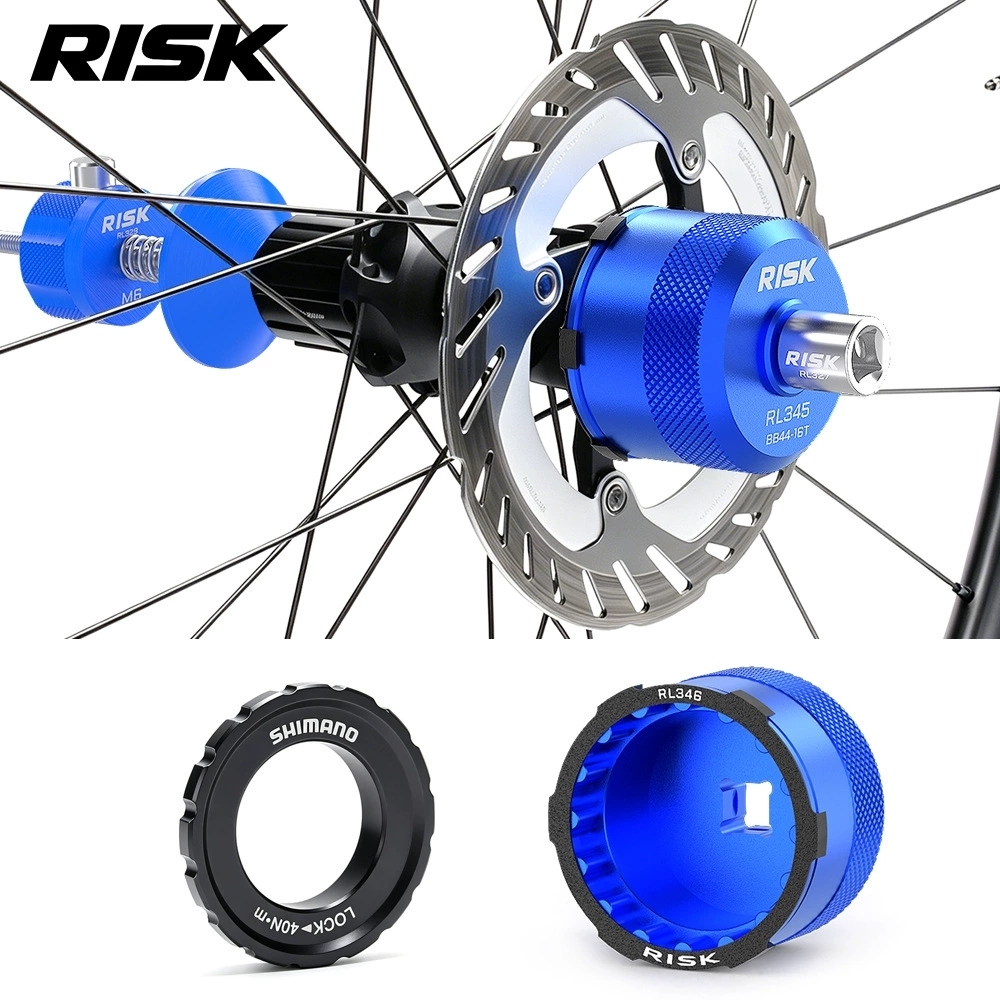

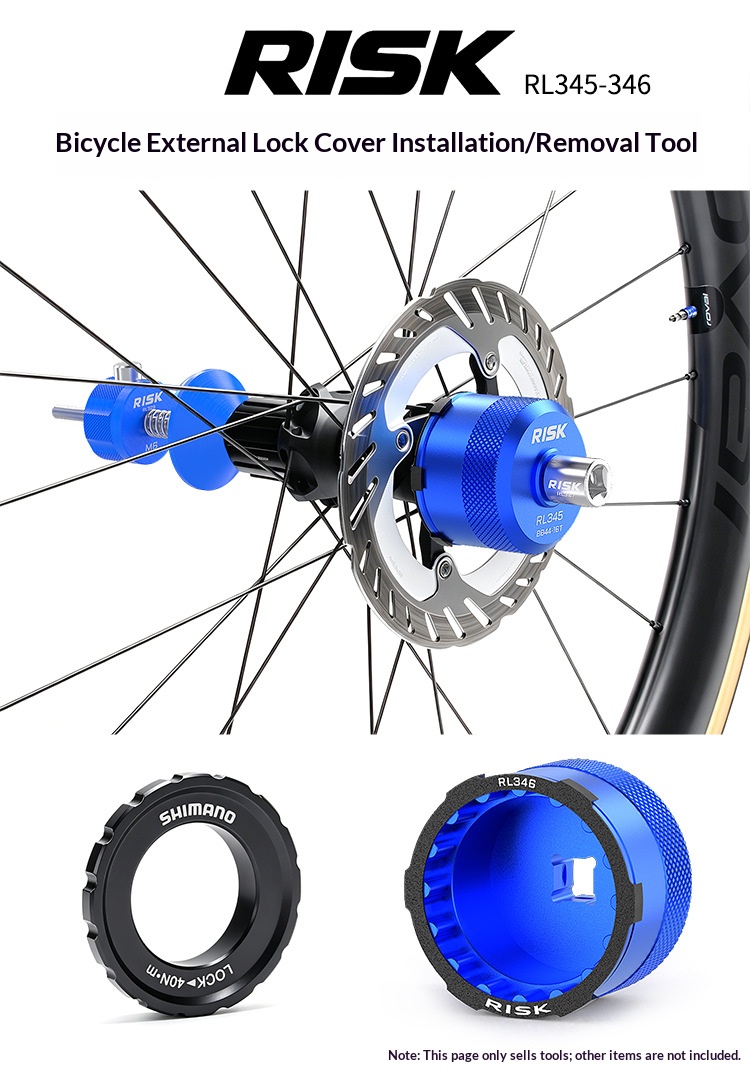

The RISK RL345 socket removes and installs compatible external lockrings with a 44mm, 16-notch interface. Applications include selected Centerlock for rotor lockrings, bottom bracket cups and Skypivot power meter lockrings. RL346 replacement protective pads and the RL327 quick-release anti-slip device are available as separate product options.

Key Features

44mm 16-notch engagement for matching external lockrings.

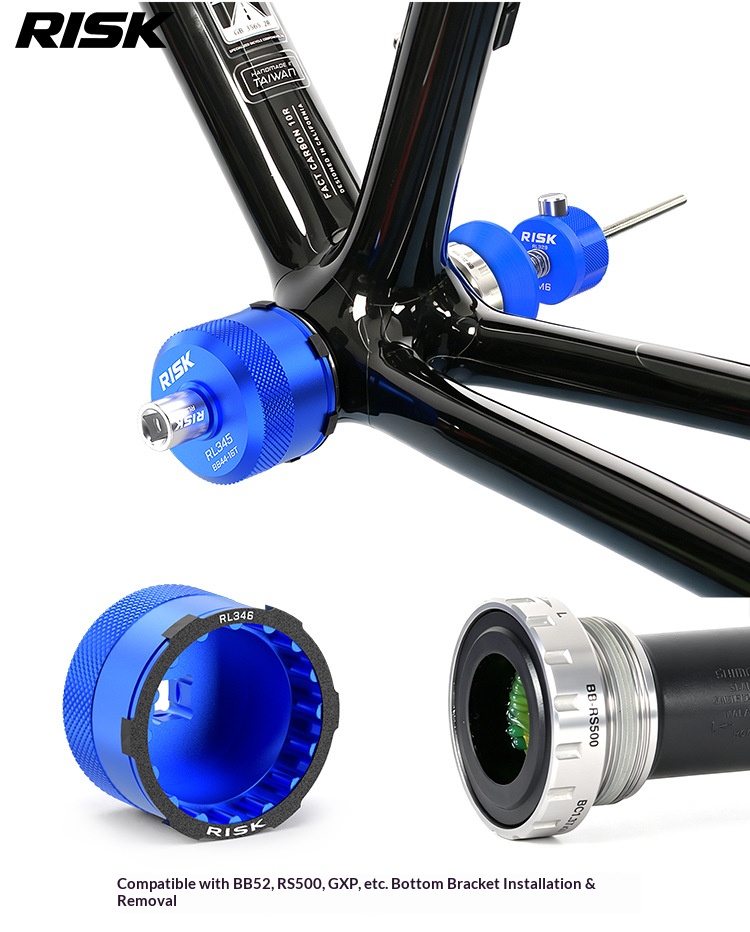

Supports for Shimano BB52, RS500 and for SRAM GXP bottom bracket cups with the matching interface.

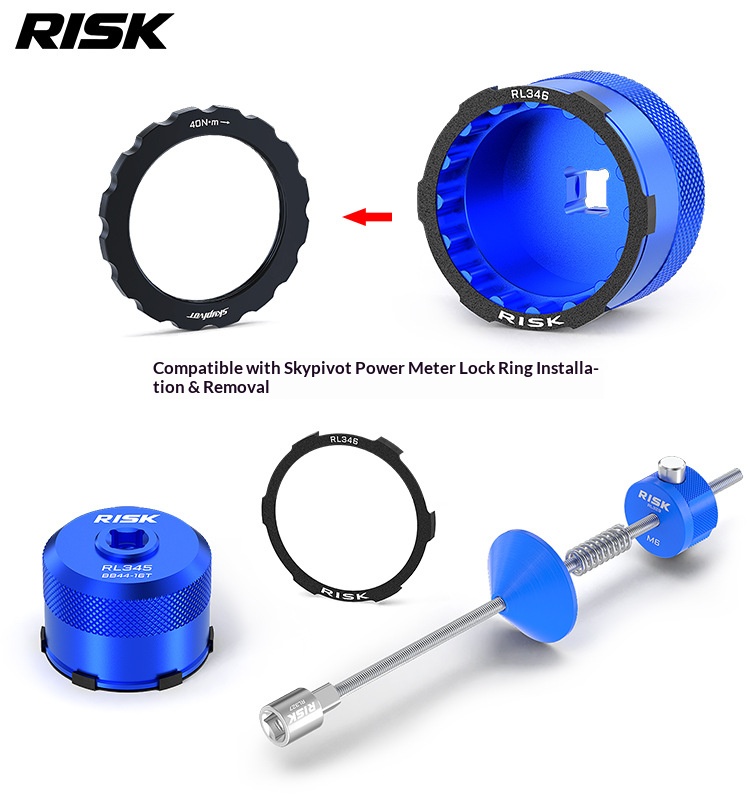

Compatible with selected Skypivot power meter lockrings.

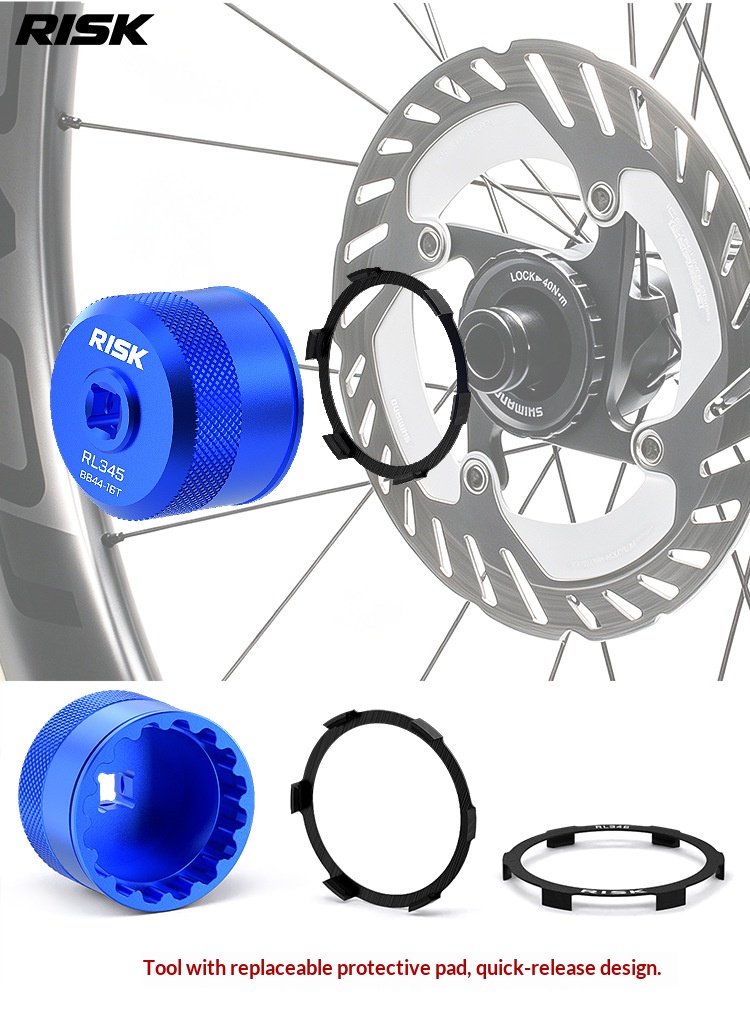

Metal tool body with replaceable protective pads.

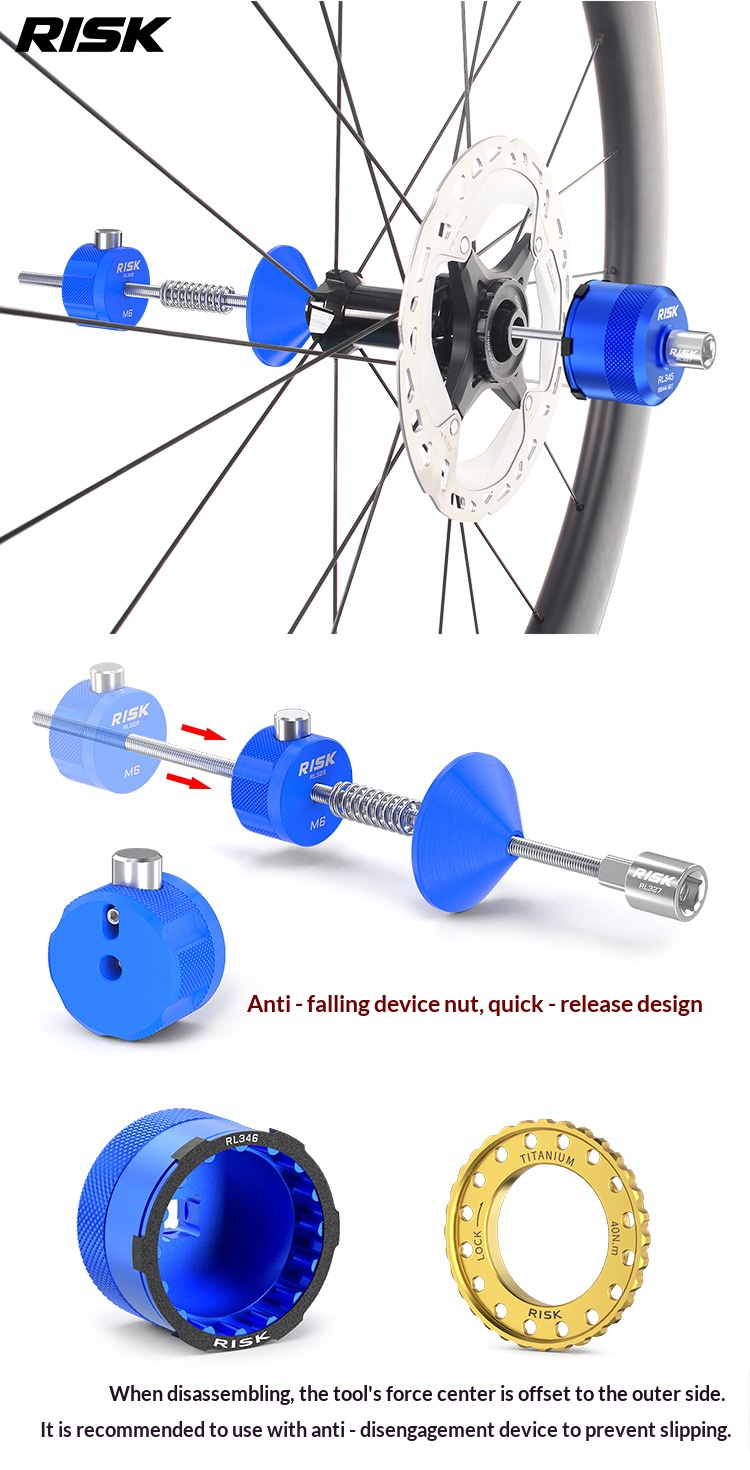

Optional RL327 device helps hold the tool aligned during use.

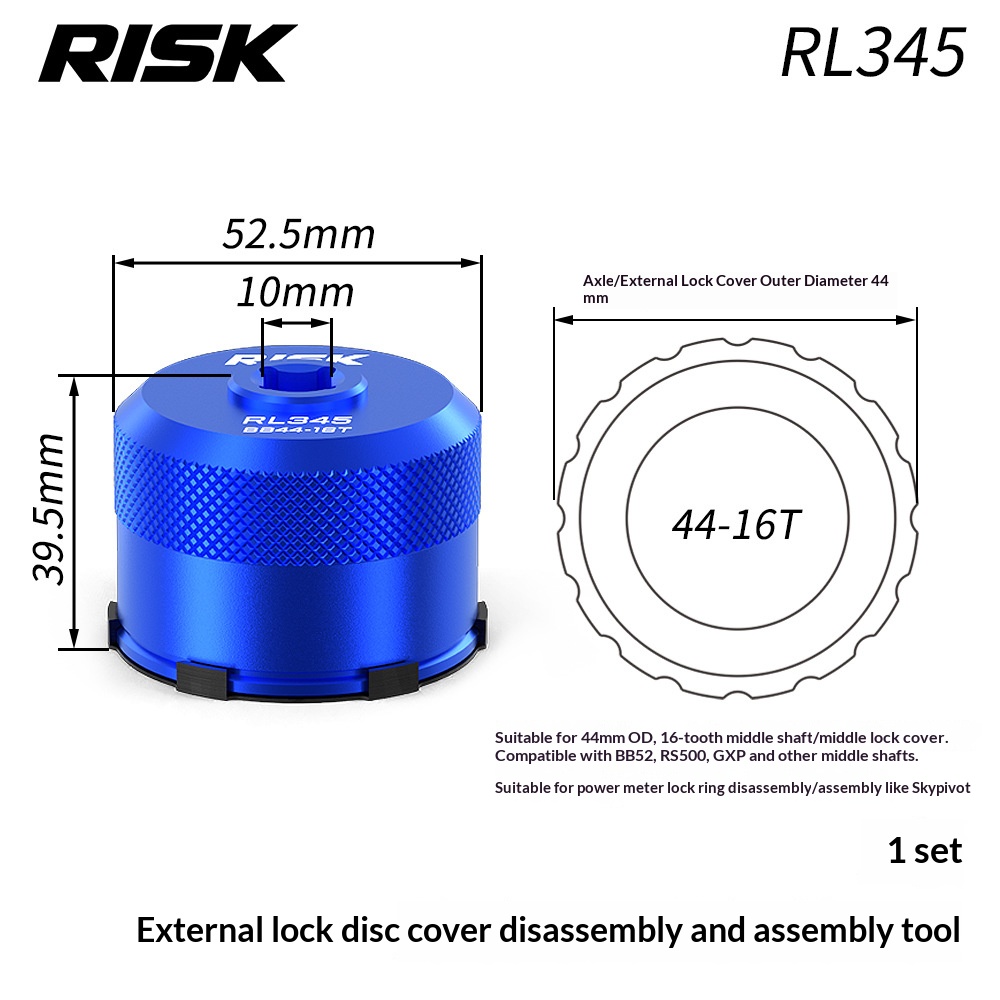

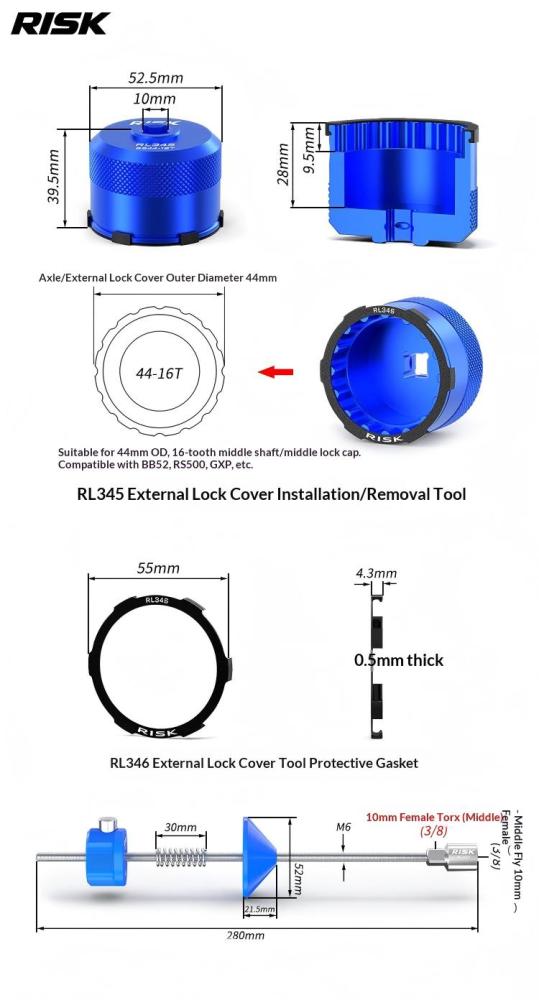

RL345 Tool Specifications

Item	Specification
Model	RL345
Product Type	External Lockring / Centerlock Lockring Removal Tool
Material	Metal + Plastic / Protective Pad
Compatibility	44mm OD / 16-Notch Lockrings
Lockring Standard	44-16T
Outer Diameter	Approx. 52.5mm
Height	Approx. 39.5mm
Drive Interface	10mm
Internal Working Diameter	Approx. 44mm
Compatible Systems	BB52 / RS500 / GXP / Skypivot lockrings

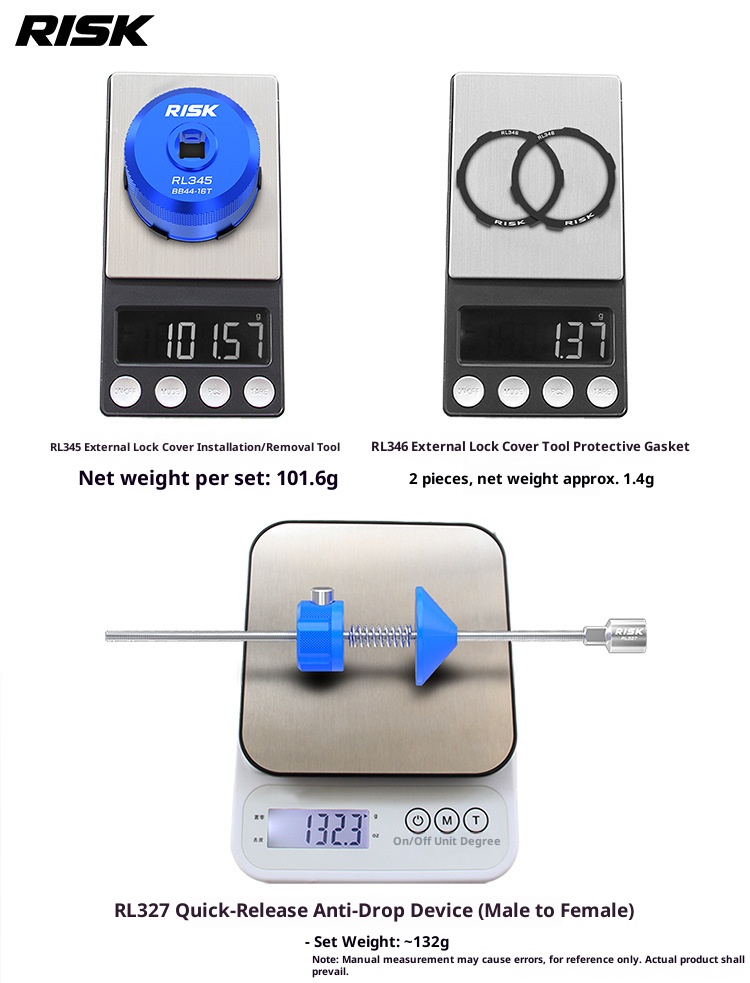

Net Weight	Approx. 101.6g

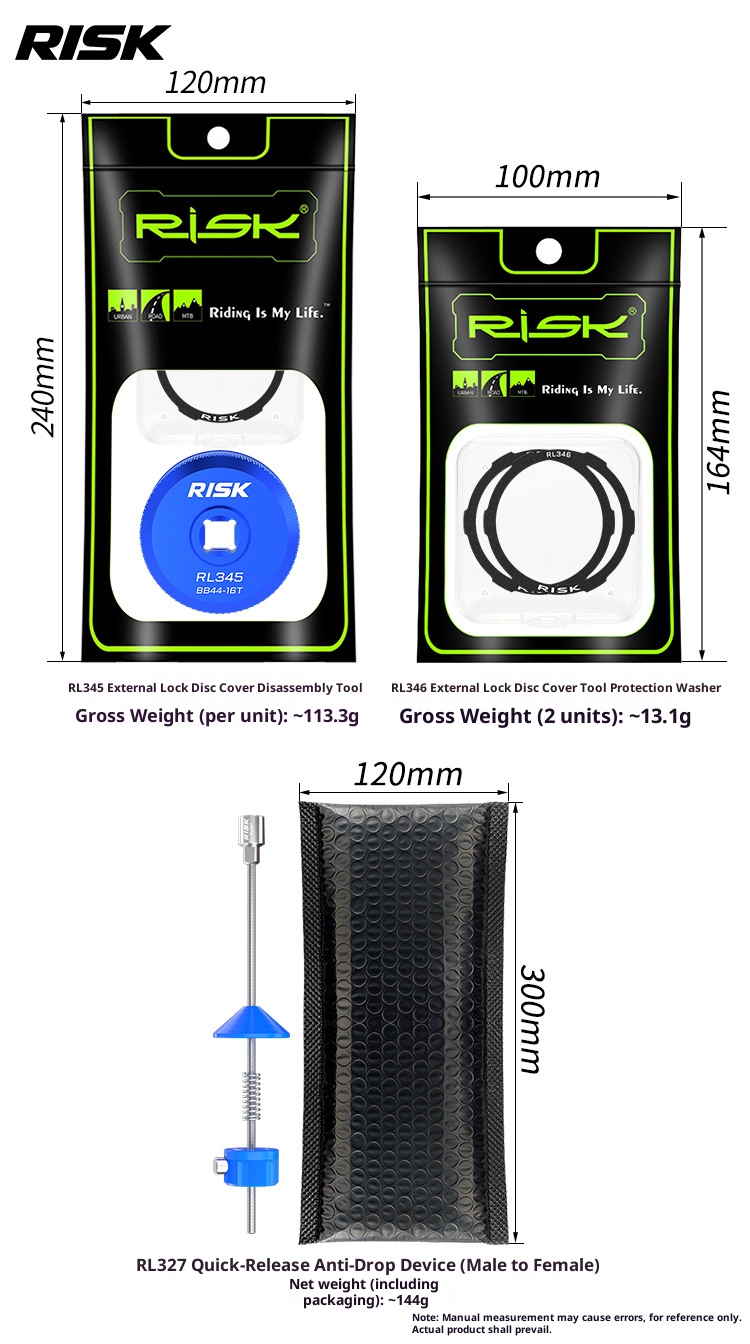

Package Size	Approx. 24 × 12 × 4 cm
Package Weight	Approx. 114g
Quantity	1 Set
Key Feature	44mm 16-notch lockring engagement with replaceable protective pads

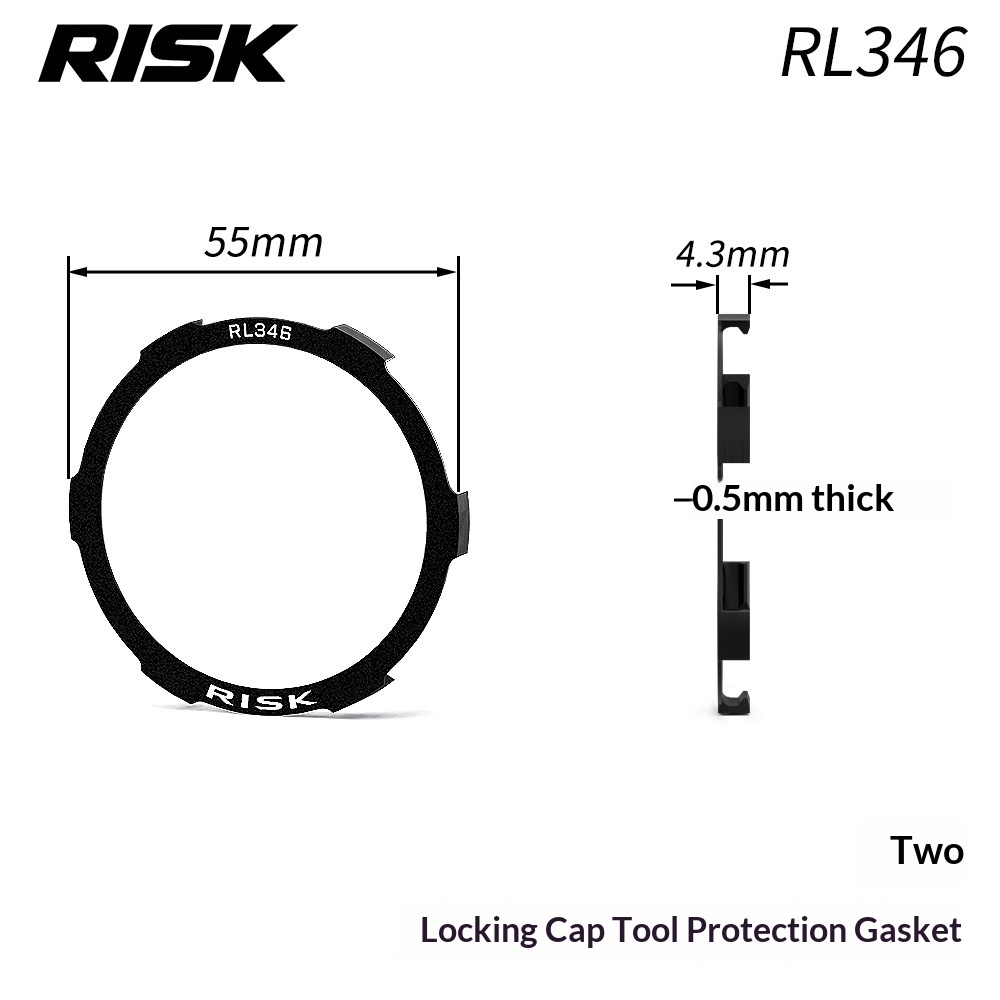

RL346 Protective Pad Specifications

Item	Specification
Model	RL346
Product Type	Protective Pad for RL345 Tool

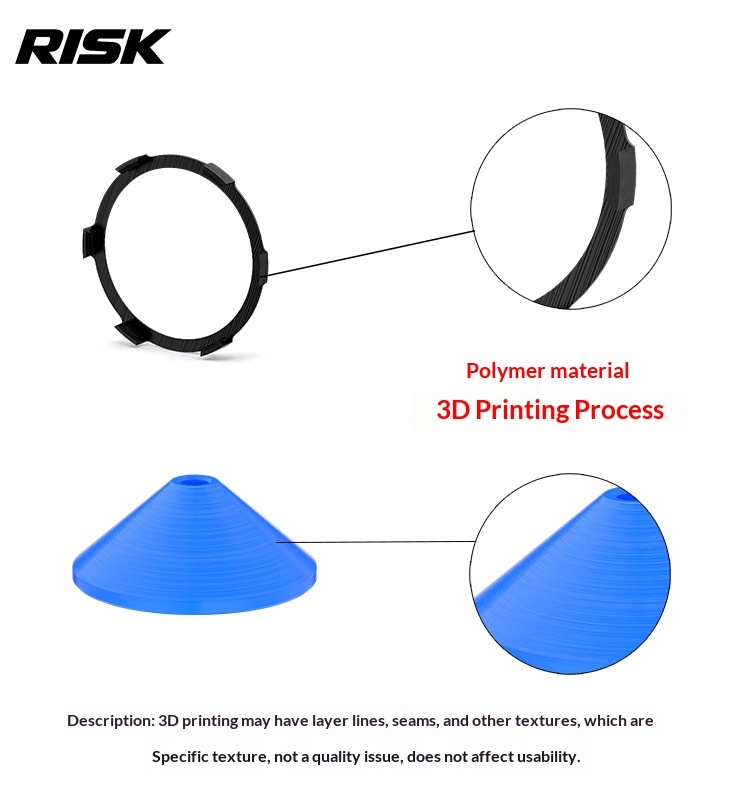

Material	High-Polymer / Plastic
Outer Diameter	Approx. 55mm
Thickness	Approx. 0.5mm
Side Width	Approx. 4.3mm
Net Weight	Approx. 1.4g / 2 pcs
Package Size	Approx. 17 × 10 × 1 cm
Package Weight	Approx. 14g
Quantity	2 pcs / bag

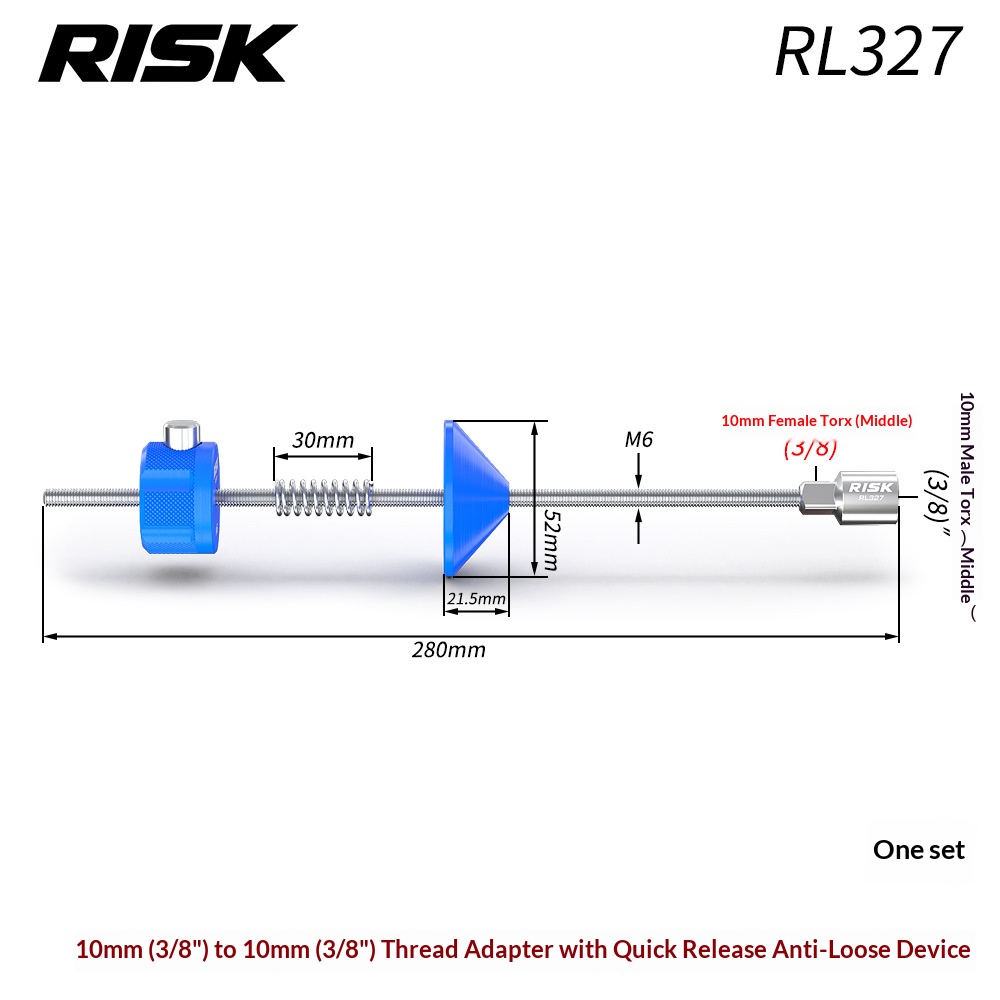

RL327 Anti-Slip Device Specifications

Item	Specification
Model	RL327
Product Type	Quick-Release Anti-Slip Device
Material	Metal + Plastic
Function	Helps prevent lockring tool from slipping off
Drive Adapter	10mm / 3/8" male to 10mm / 3/8" female
Rod Thread	M6
Total Length	Approx. 280mm
Spring Length	Approx. 30mm
Cone Diameter	Approx. 52mm
Cone Length	Approx. 21.5mm
Net Weight	Approx. 132g
Package Size	Approx. 30 × 12 × 6 cm
Package Weight	Approx. 144g
Quantity	1 Set

Key Specification

Item	Specification
Key Feature	44mm 16-notch lockring engagement with replaceable protective pads
Compatibility	Matching external Centerlock, BB52, RS500, GXP and selected Skypivot power meter lockrings

Compatibility

Match the lockring's external diameter and 16-notch pattern before use. RL345 fits compatible external Centerlock lockrings, for Shimano BB52 and RS500 cups, for SRAM GXP cups and selected Skypivot power meter lockrings with the specified 44-16T interface. The product is a service tool, not a bottom bracket, for rotor or power meter.

Package Includes

RL345 option: one 44-16T removal tool set. A replaceable protective pad is installed or supplied according to the package.
RL346 option: two protective pads per bag.
RL327 option: one quick-release anti-slip device set.

Only the selected option is supplied. Wheels, rotors, frames, bottom brackets, lockrings and power meters shown for demonstration are not included.

Product Images and Video

RISK RL345 44mm 16-Notch Centerlock Lockring Tool for BB52 RS500 GXP with RL346/RL327 Options, 44mm OD / 16-Notch Lockrings

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.

Option 1
Lockring Removal Tool 44-16T
Protective Pads 2 pcs
Quick-Release Anti-Slip Device
