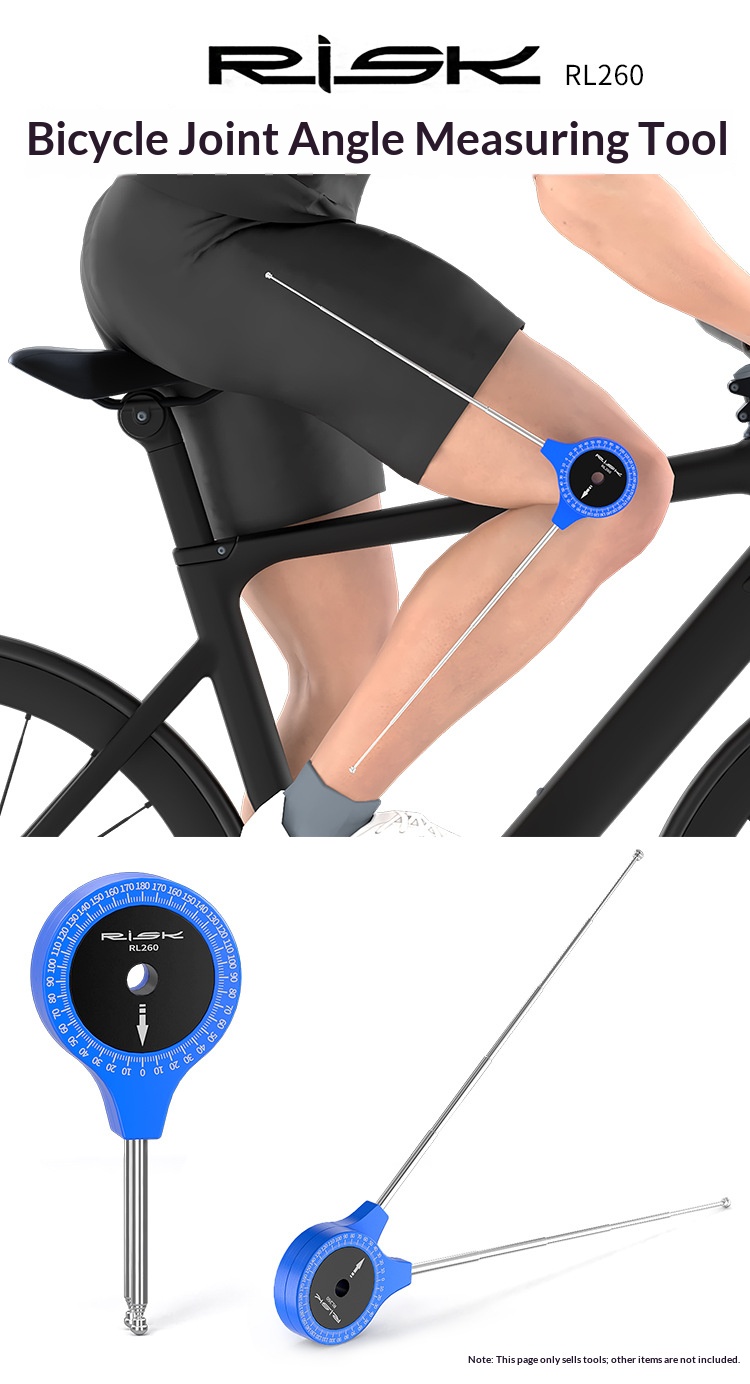

The RISK RL260 Joint Angle Measuring Tool is designed for bicycle fitting and riding posture adjustment. It helps riders, mechanics, and bike fitters measure joint angles such as the knee angle, elbow angle, hip angle, and arm position during bike setup.

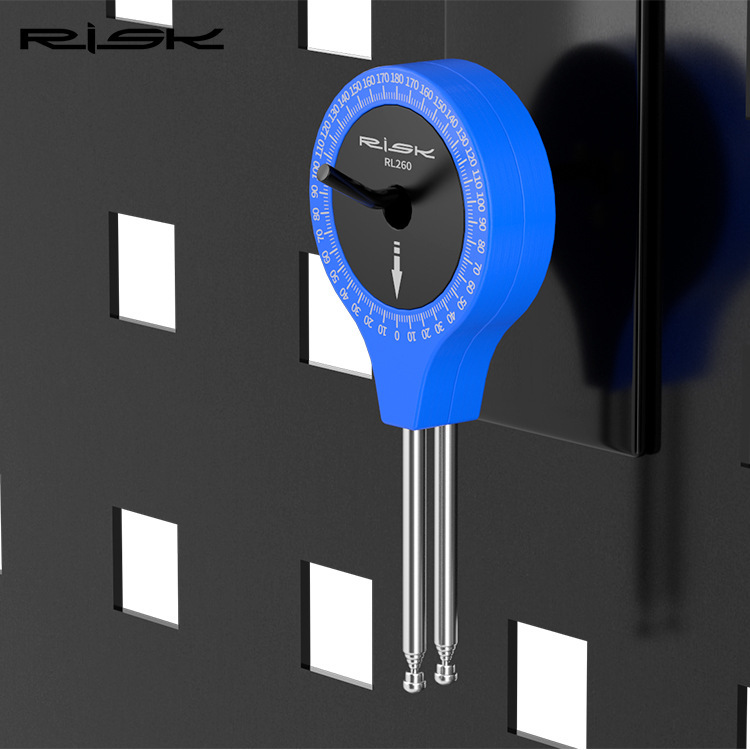

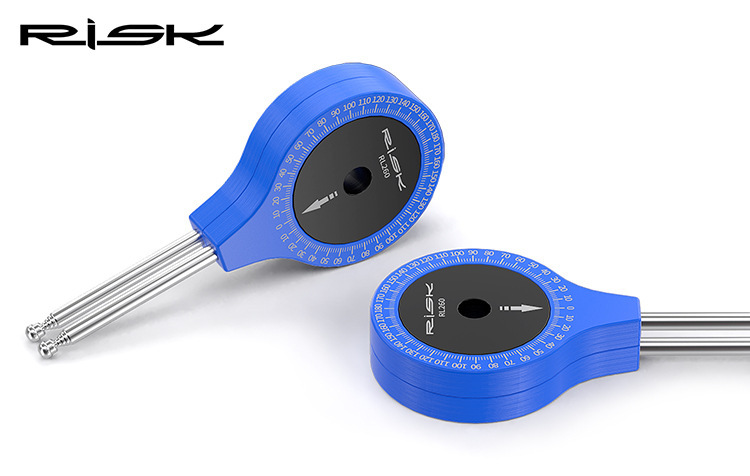

This compact protractor-style tool features a clear angle scale and telescopic measuring rods that extend to approximately 360mm, allowing flexible positioning during measurement. It is especially useful for road bike fitting, saddle height adjustment, cockpit setup, and cycling posture analysis.
Made from lightweight polymer plastic using 3D printing technology, the RL260 is easy to carry, simple to use, and suitable for both professional bike shops and home riders.
Note: This page only sells the measuring tool. Bike, rider, and other display items shown in images are not included.
Designed for Bike Fitting
Helps measure body joint angles during cycling posture adjustment.

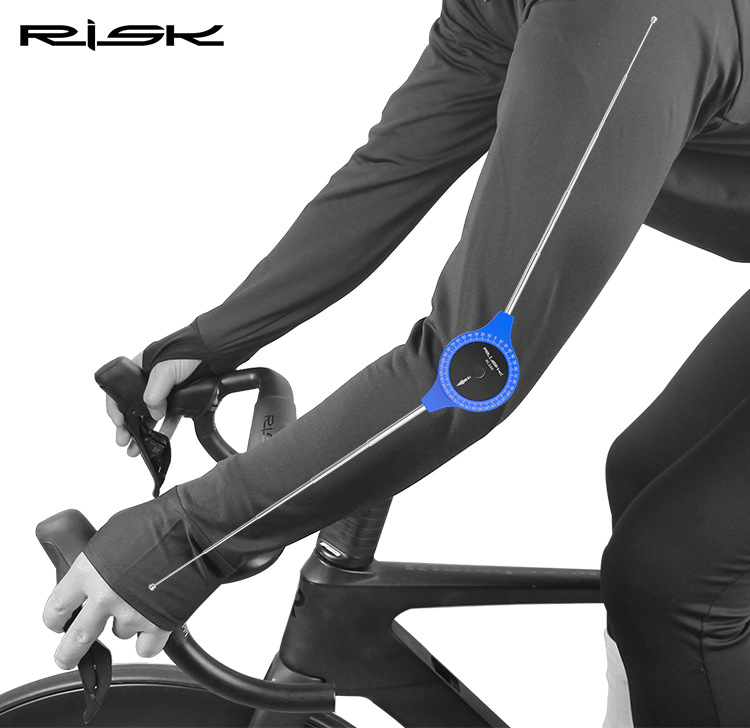

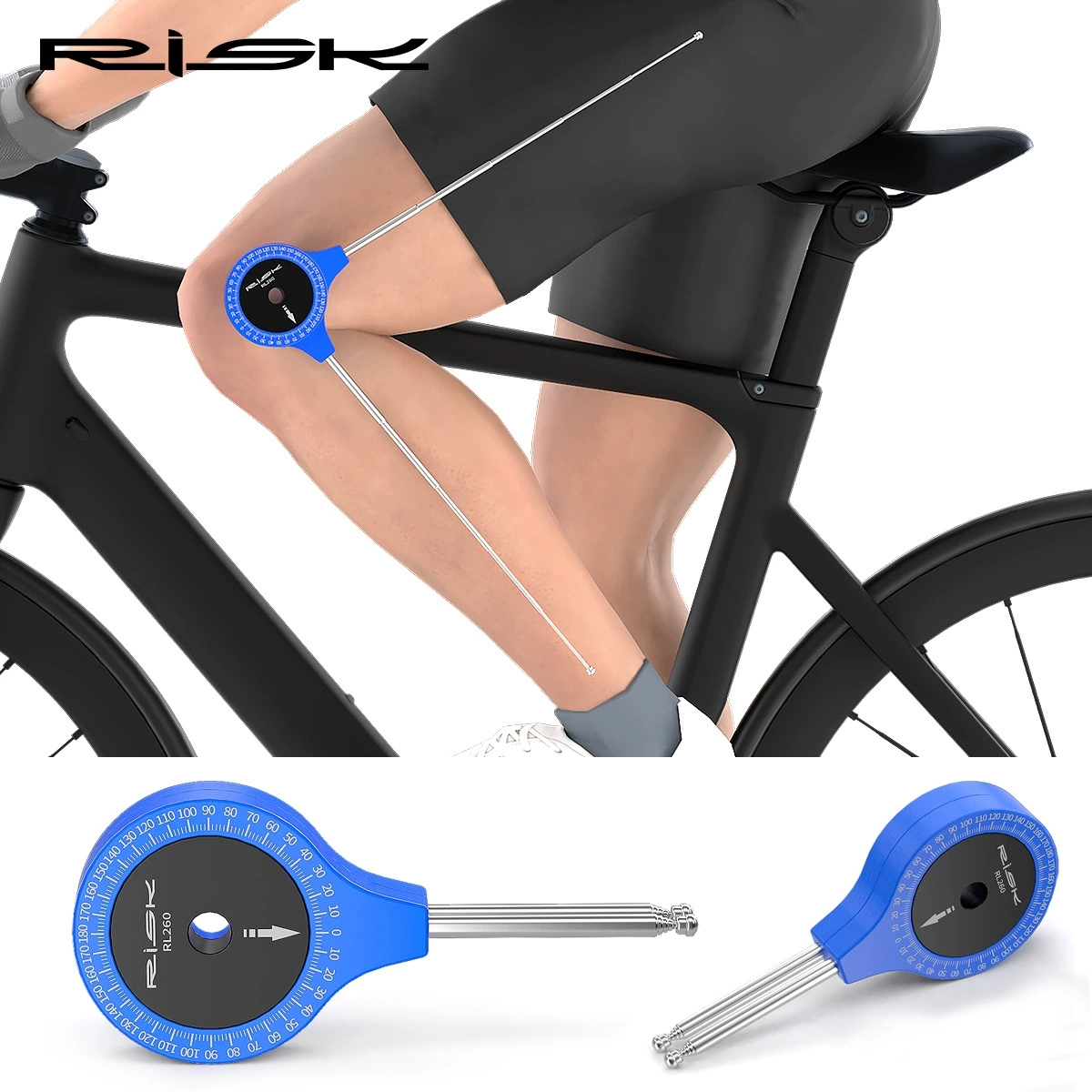

Suitable for Knee, Elbow, Hip, and Arm Angles
Useful for checking rider position and optimizing bike fit.
Clear Angle Scale

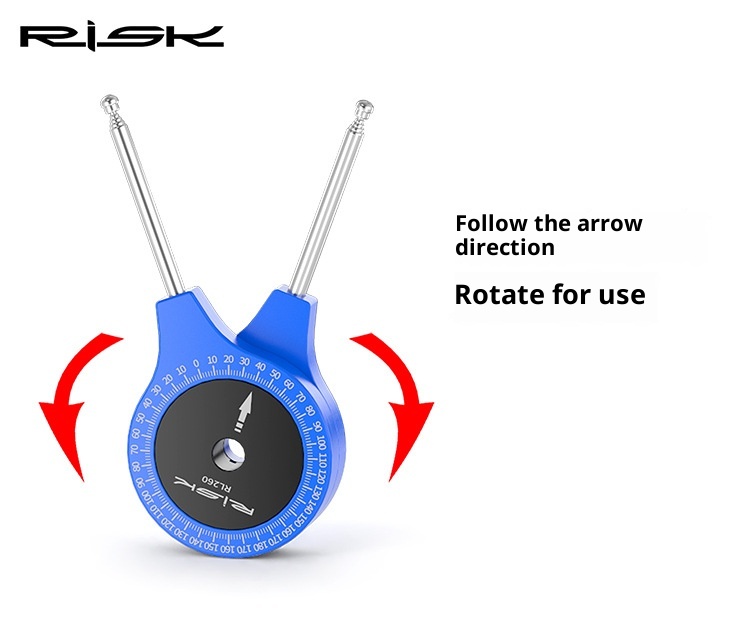

Protractor-style scale allows quick visual reading of joint angles.

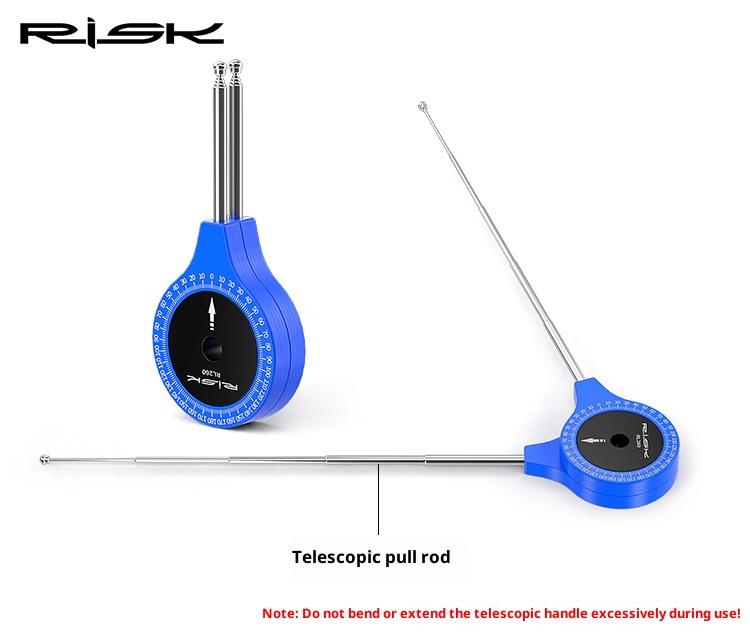

Telescopic Measuring Rods
Extendable rods help align with the body segments being measured.
Approx. 360mm Extended Length
Compact when stored and longer when extended for measurement.
Lightweight Polymer Body
Easy to carry, store, and use in workshops or at home.

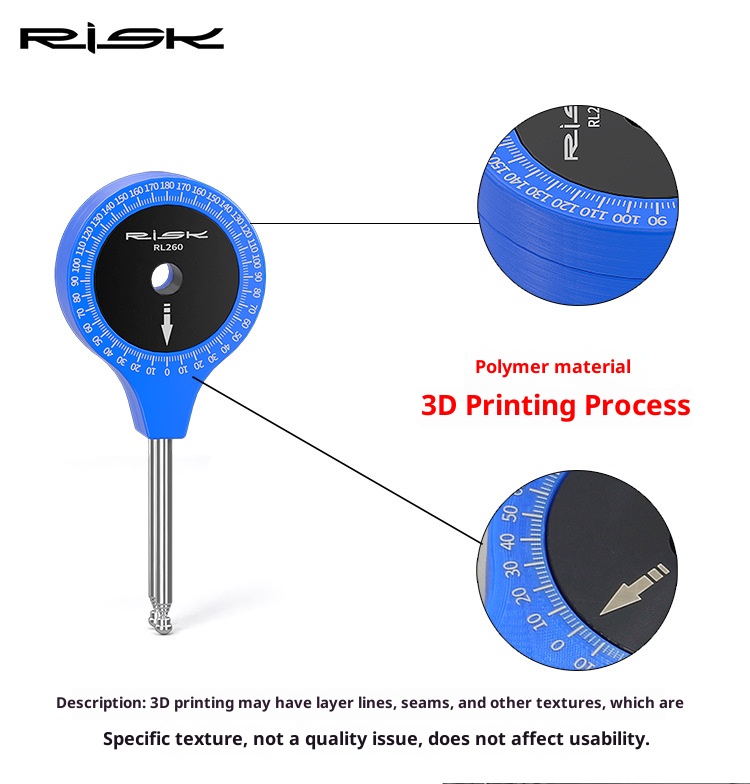

3D Printed Construction
Produced by 3D printing. Layer lines and surface texture are normal process marks and do not affect use.
Ideal for Road Bike Fitting
Suitable for cyclists, mechanics, fitting studios, and bike shops.
| Item | Details |
|---|---|
| Brand | RISK |
| Model | RL260 / RL260-1 |
| Product Name | Bicycle Joint Angle Measuring Tool |
| Product Type | Bike Fitting Angle Gauge / Protractor Tool |
| Material | Polymer Plastic |
| Manufacturing Process | 3D Printing |

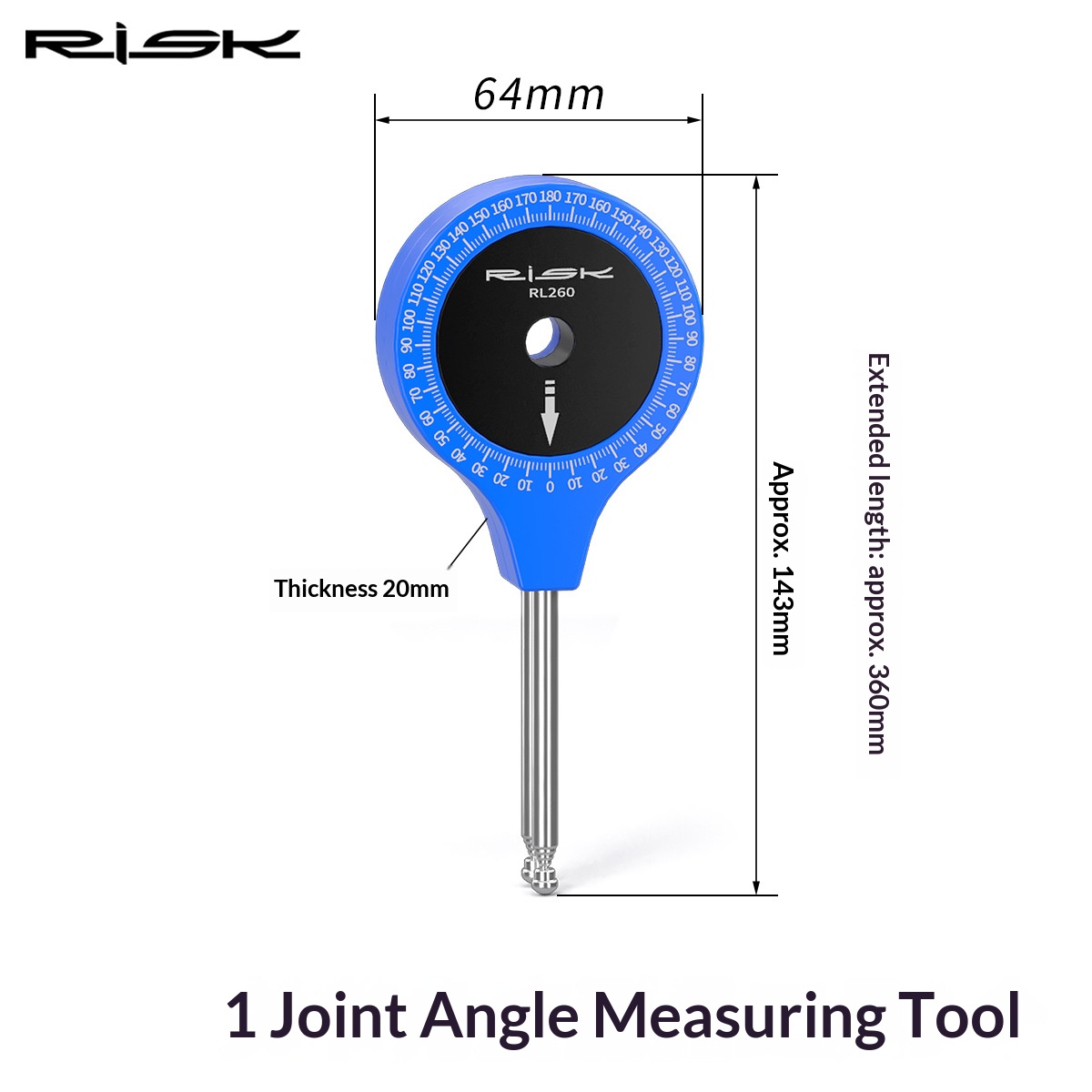

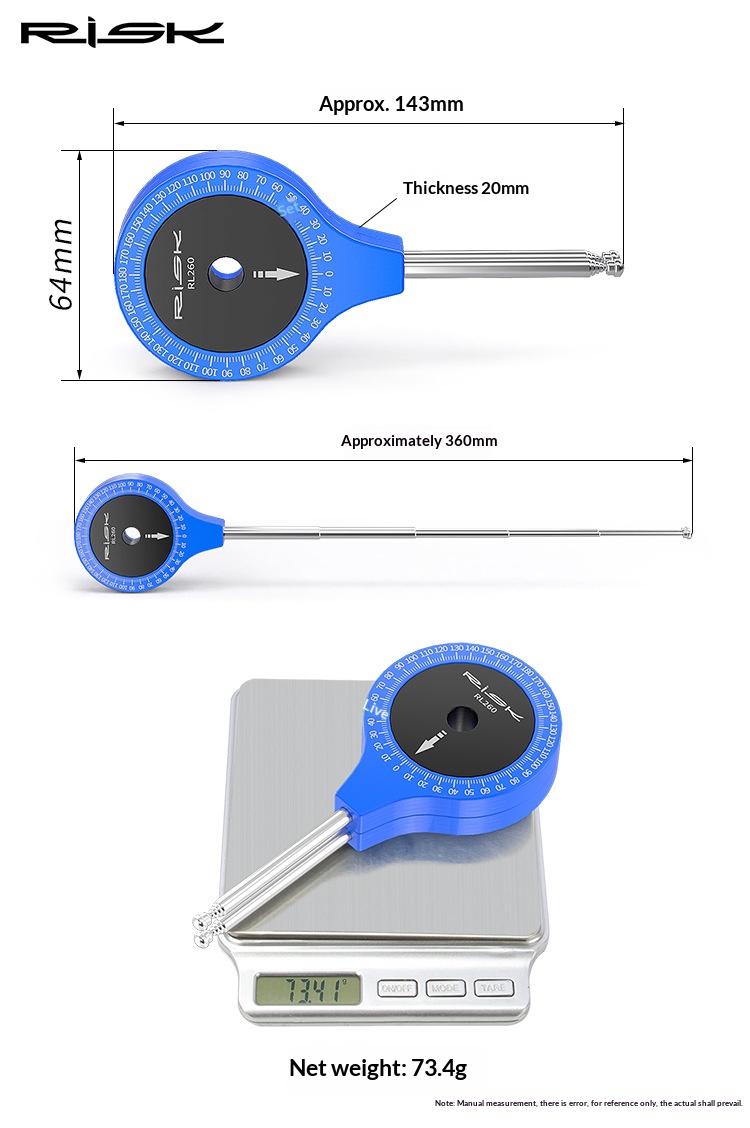

| Tool Body Size | Approx. 143 × 64 × 20mm |
| Extended Length | Approx. 360mm |
| Product Net Weight | Approx. 73.4g / set |
| Package Size | Approx. 240 × 120 × 20mm |
| Gross Weight | Approx. 77.4g / brand bag |
| Quantity | 1 pc / set / bag |
| Color | Blue / Black |
| Application | Bike fitting, cycling posture, joint angle measurement |
| Package | RISK Brand Bag |
Bicycle, rider model, and other accessories shown in images are not included.
