MEROCA BSA 68/73mm Threaded Bottom Bracket for Shimano, IXF and for Prowheel 24/24mm Cranksets, Aluminum Cups

Name: MEROCA BSA 68/73mm Threaded Bottom Bracket for Shimano, IXF and for Prowheel 24/24mm Cranksets, Aluminum Cups
Brand: DJC Bikes - DJC Components
SKU: meroca-BSA
Price: 12.96 USD
Availability: InStock

$12.96 ~~$18.00~~

-28%

MEROCA BSA 68/73mm Threaded Bottom Bracket for Shimano, IXF and for Prowheel 24/24mm Cranksets, Aluminum Cups.

not compatible with SRAM GXP 24/22mm spindles, for SRAM DUB spindles, 30mm spindles or press-fit frames, including BB30, PF30, BB86 and BB92. A threaded frame using another thread standard is not compatible.

Crankset Compatibility: compatible with Shimano, IXF and for Prowheel 24/24mm cranksets.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

MEROCA BSA 68/73mm Threaded Bottom Bracket for Shimano, IXF and for Prowheel 24/24mm Cranksets, Aluminum Cups

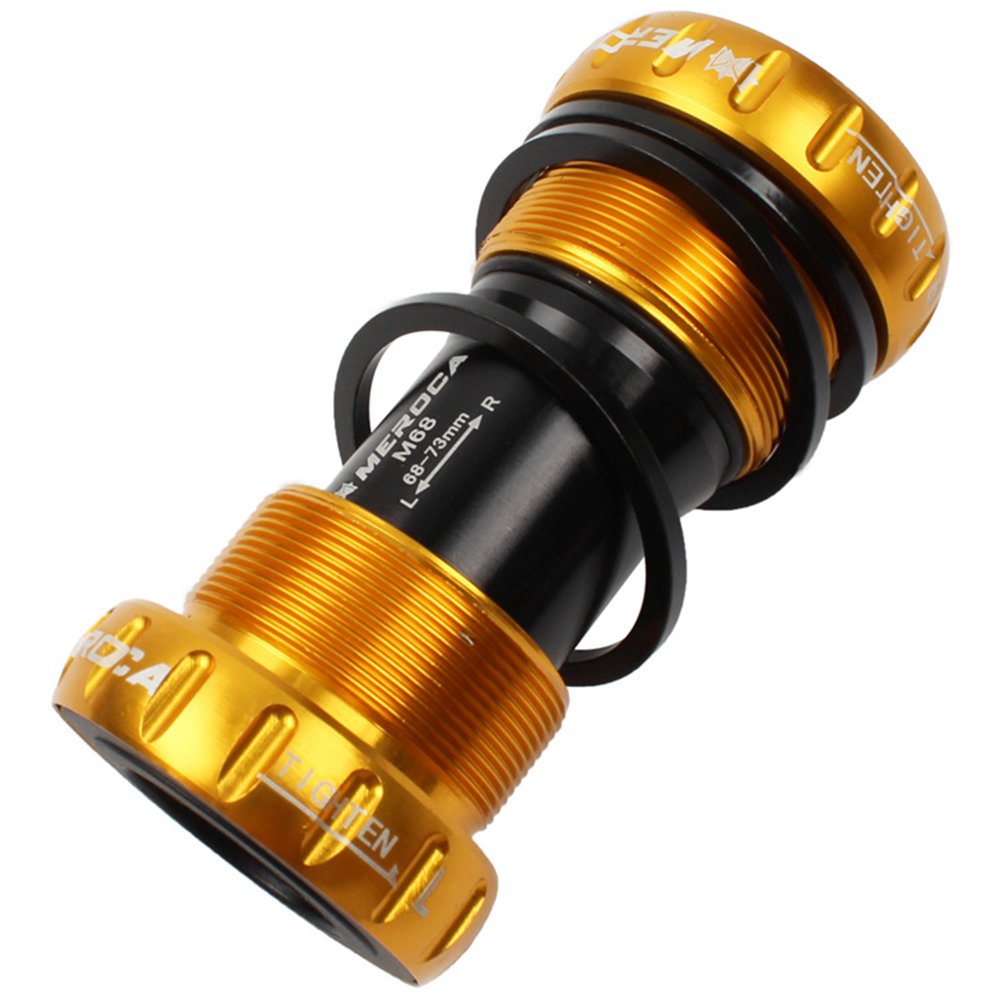

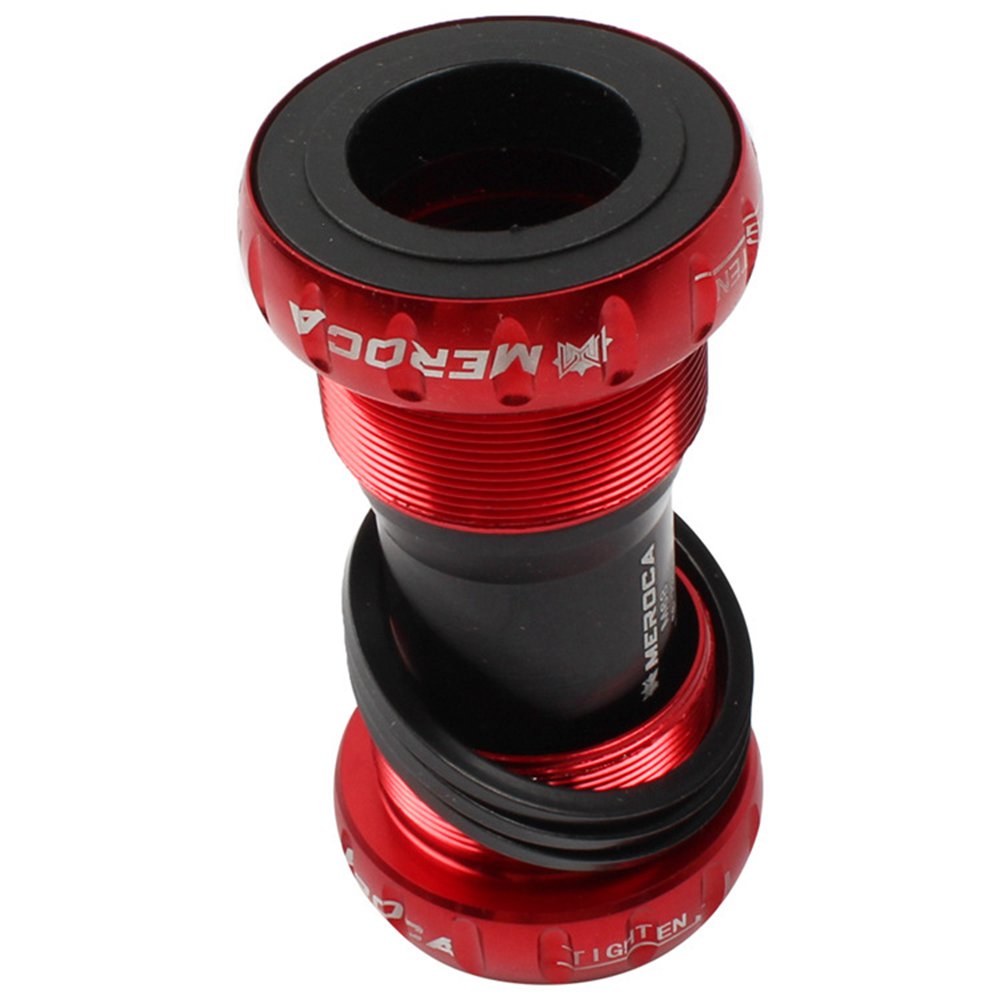

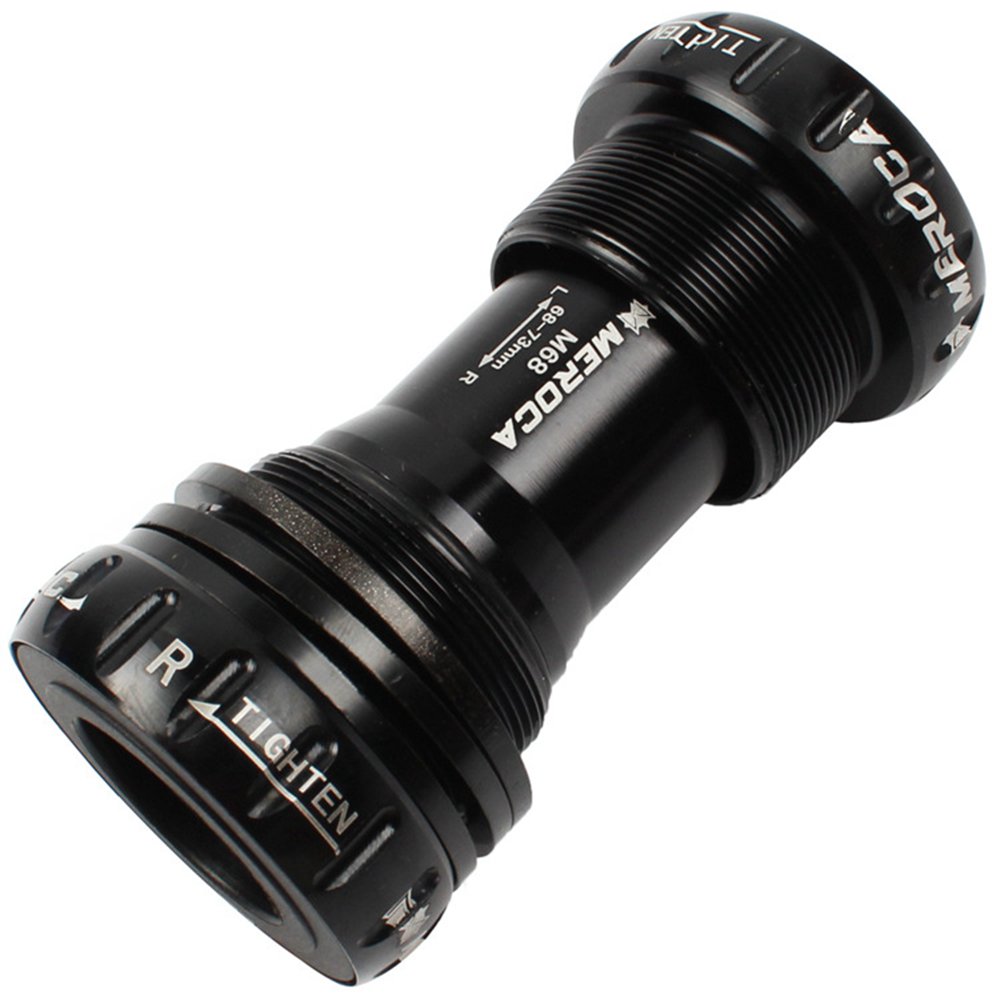

The MEROCA BSA threaded bottom bracket fits 68mm and 73mm English-threaded frame shells with compatible 24/24mm crank spindles. Sealed steel bearings, a 6061 aluminum body and an aluminum center sleeve provide a supported bearing assembly for mountain bike and road applications. Three spacer thicknesses are included for the required installation setup.

Key Features

BSA English threaded mounting for 68mm or 73mm frame shells.
24mm bearing interfaces on both sides compatible with Shimano, IXF and for Prowheel cranksets.
Sealed steel bearings help limit dust and moisture entry.
6061 aluminum body with an aluminum center sleeve.
Includes one each of 1mm, 2mm and 3mm spacers.

Technical Specifications

Item	Specification
Brand	MEROCA
Product Type	Threaded bottom bracket
Frame Standard	BSA / English threaded
Shell Width	68mm / 73mm
Spindle Diameter	24mm drive side / 24mm non-drive side
Crankset Compatibility	compatible with Shimano, IXF and for Prowheel 24/24mm cranksets
Bearing Type	Sealed steel bearings
Body Material	6061 aluminum alloy
Center Sleeve	Aluminum
Listed Outside Diameter	41mm (+0.05 / −0); component outside diameter, not the frame thread specification
Weight	Approximately 120g

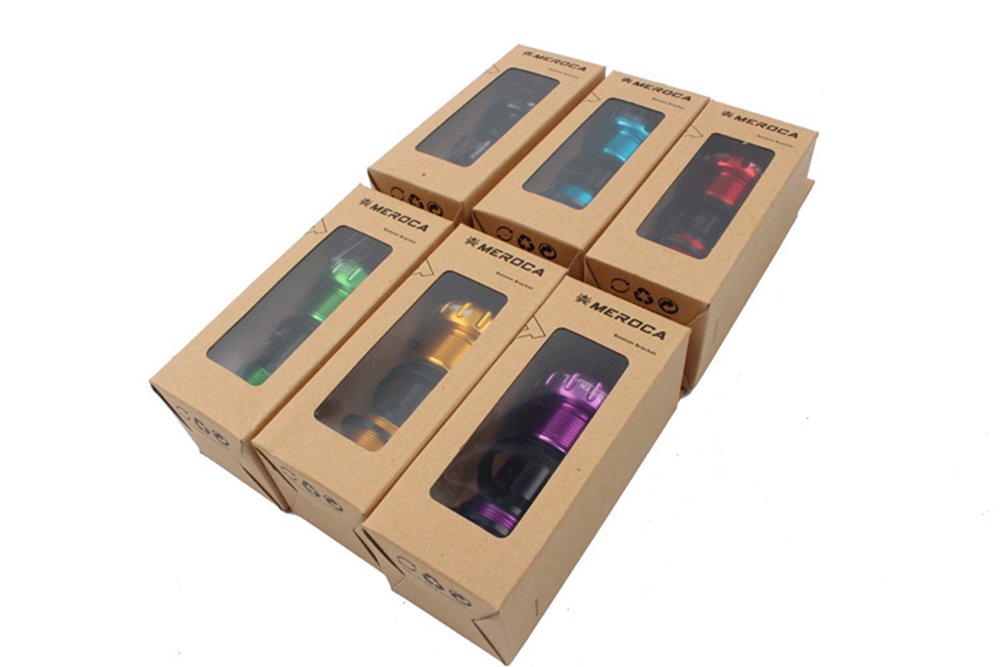

Color Options	Black, Red, Blue, Green, Purple, Gold
Included Spacers	1mm, 2mm and 3mm
Application	Compatible MTB and road bike frames and cranksets
Key Feature	BSA 68/73mm fitment with 24/24mm spindle interfaces and sealed steel bearings
Compatibility	Crankset Compatibility: Compatible for Shimano, IXF and for Prowheel 24/24mm cranksets

Compatibility

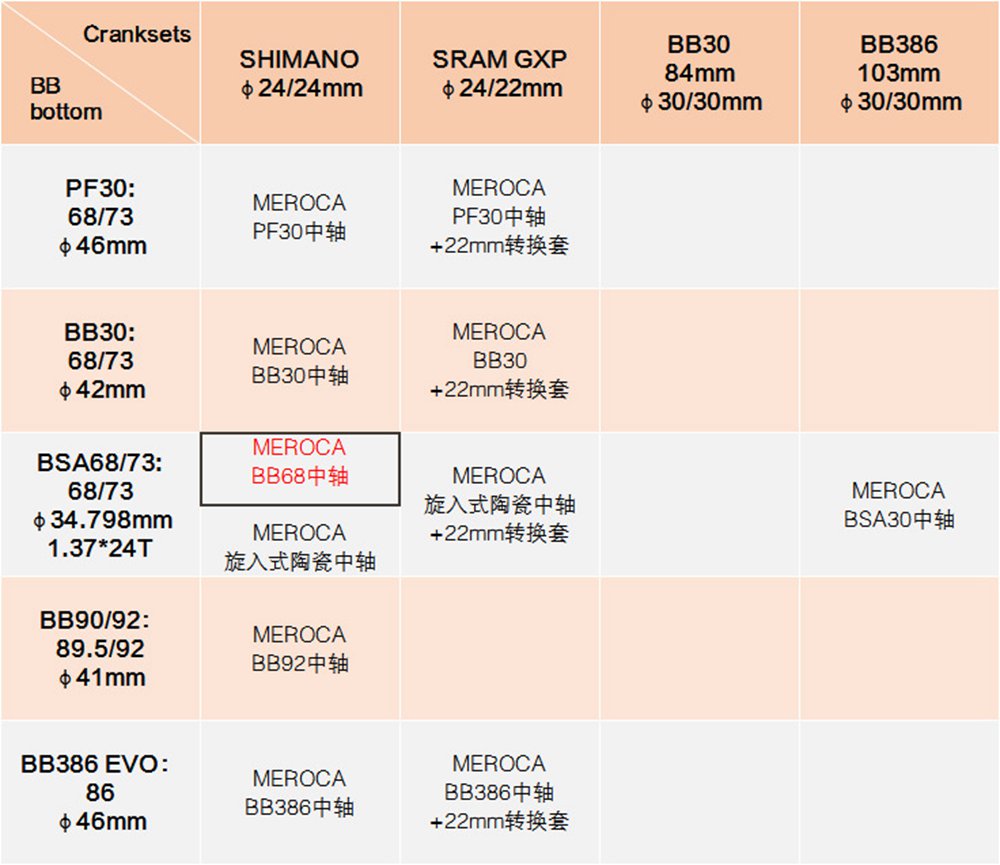

Requires a BSA English-threaded frame shell and a compatible crank spindle measuring 24mm at both bearing interfaces. for Shimano, IXF and for Prowheel compatibility applies to their matching 24/24mm cranksets. Check spindle length, shell width and spacer requirements for the exact crank model.

Not compatible with SRAM GXP 24/22mm spindles, for SRAM DUB spindles, 30mm spindles or press-fit frames, including BB30, PF30, BB86 and BB92. A threaded frame using another thread standard is not compatible.

Installation Notes

Select the spacer arrangement required by the frame and crankset. The included 1mm, 2mm and 3mm spacers provide adjustment options; do not assume that all three must be installed. Follow the crankset installation requirements and confirm free rotation and correct bearing preload after assembly.

Package Includes

One MEROCA BSA 68/73mm bottom bracket.
One 1mm spacer.
One 2mm spacer.
One 3mm spacer.

Product Images

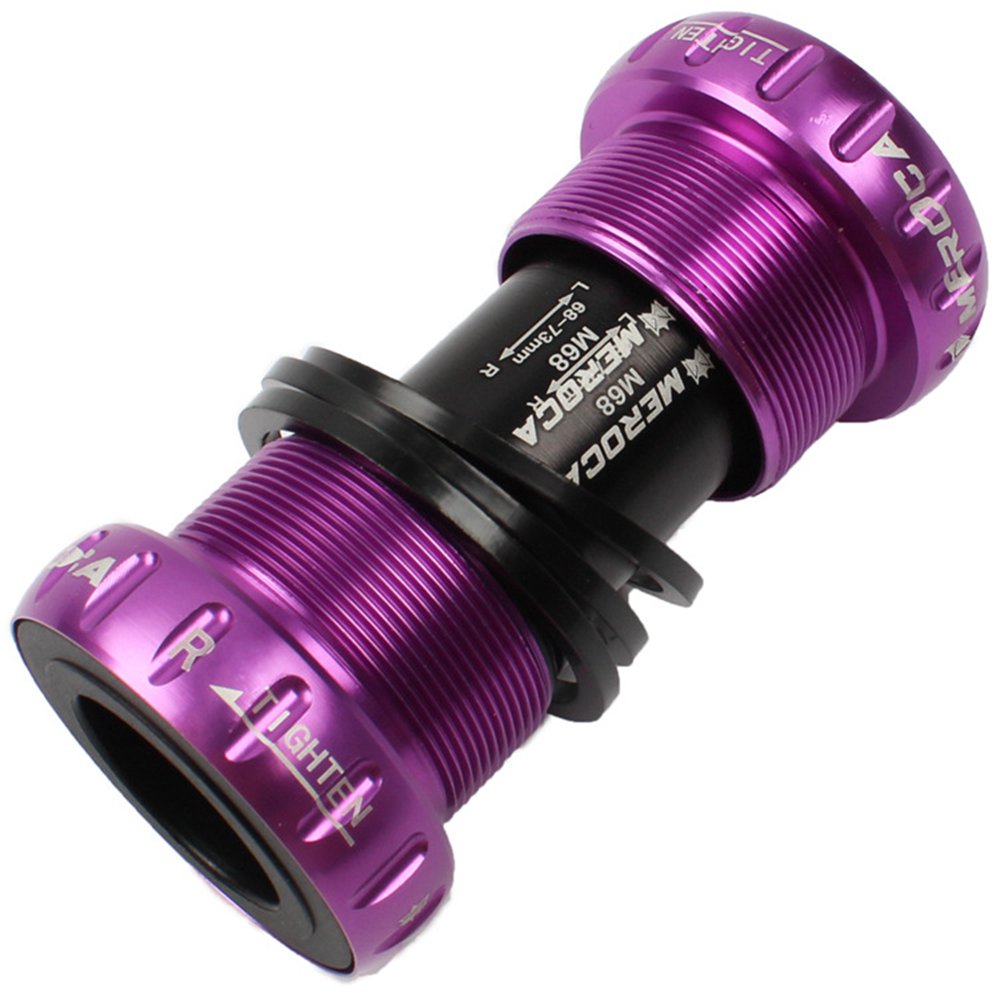

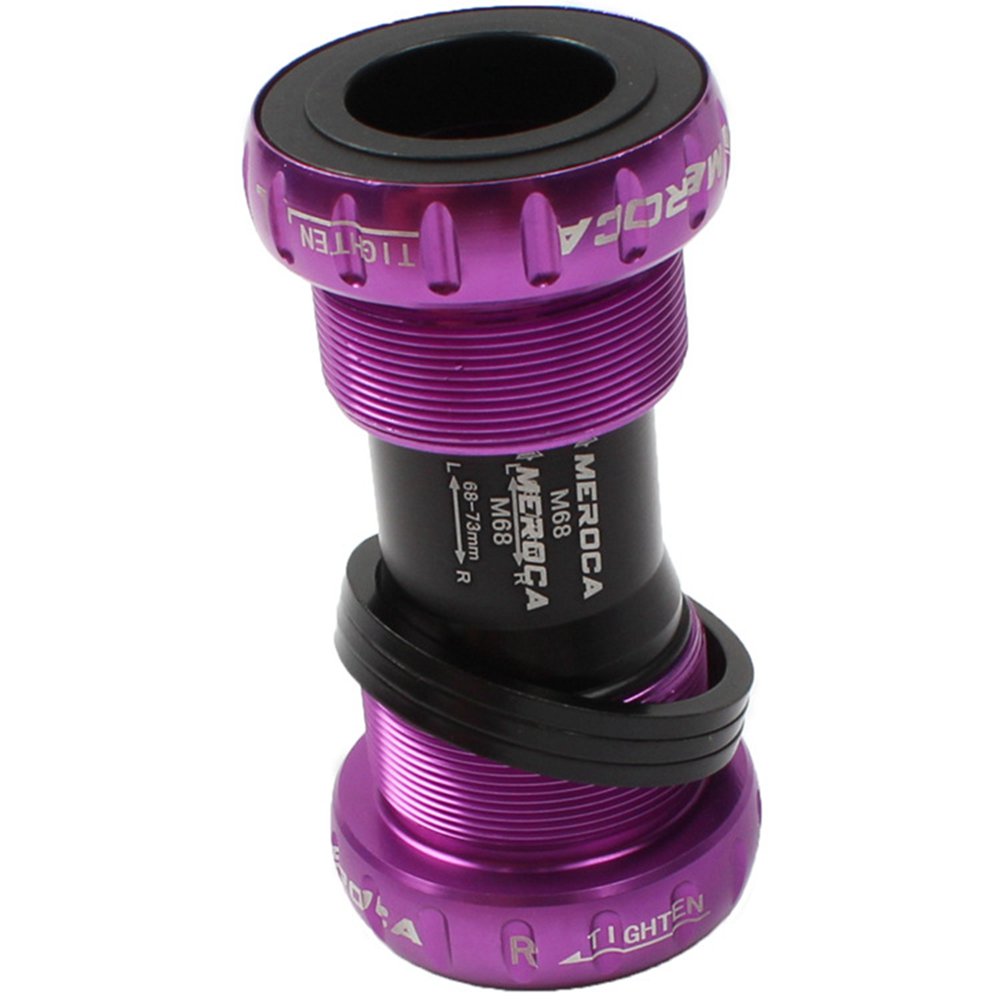

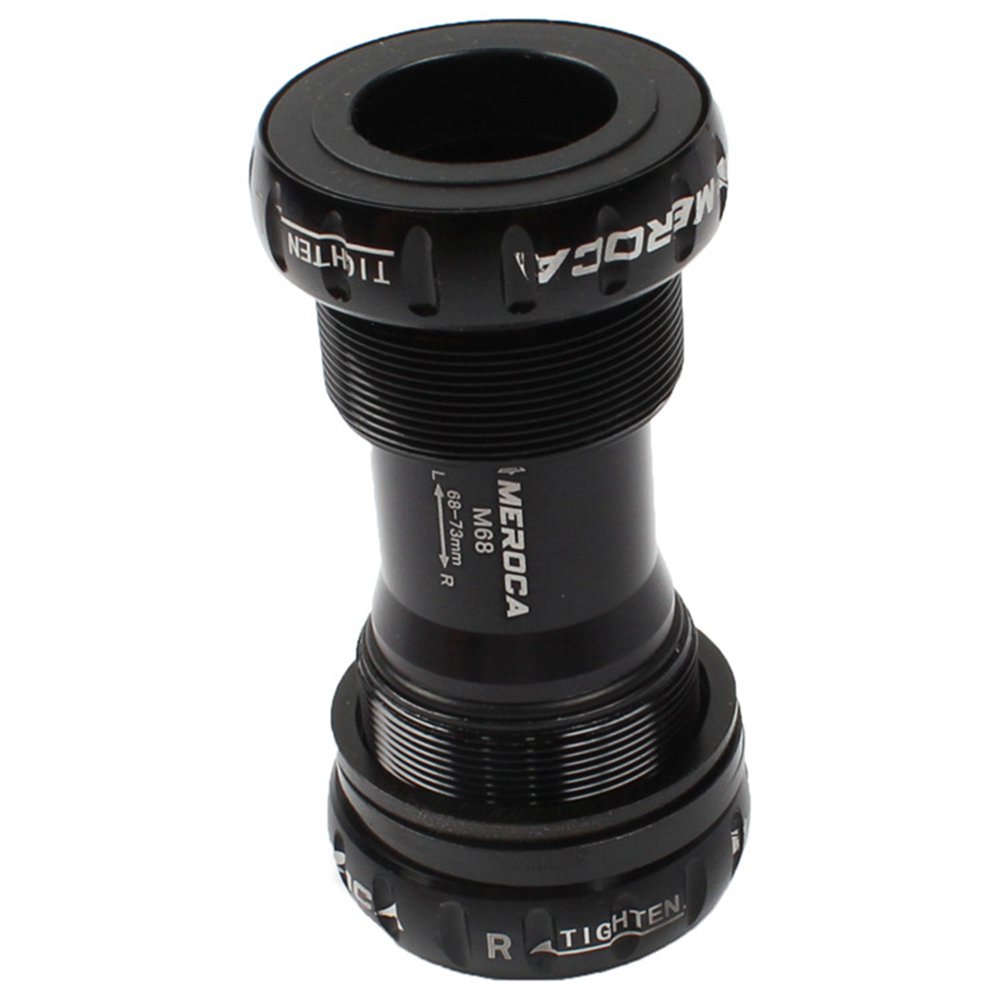

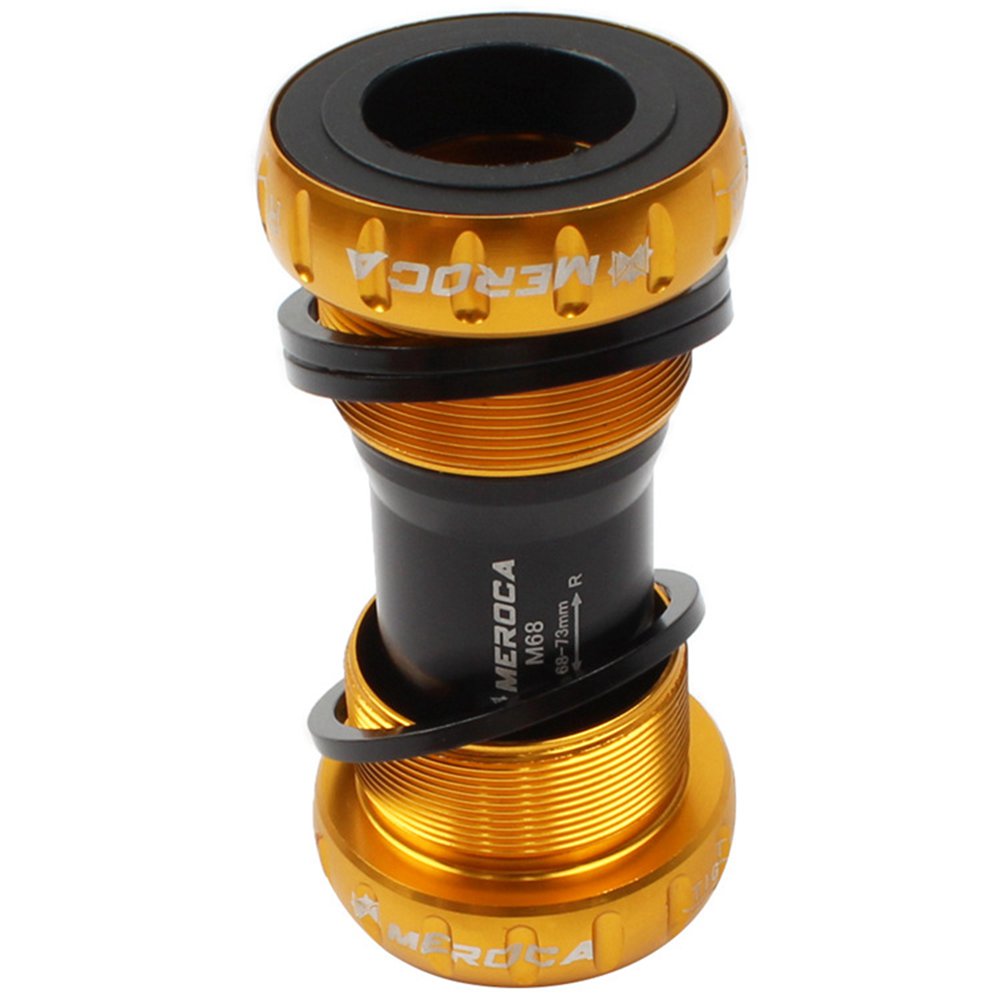

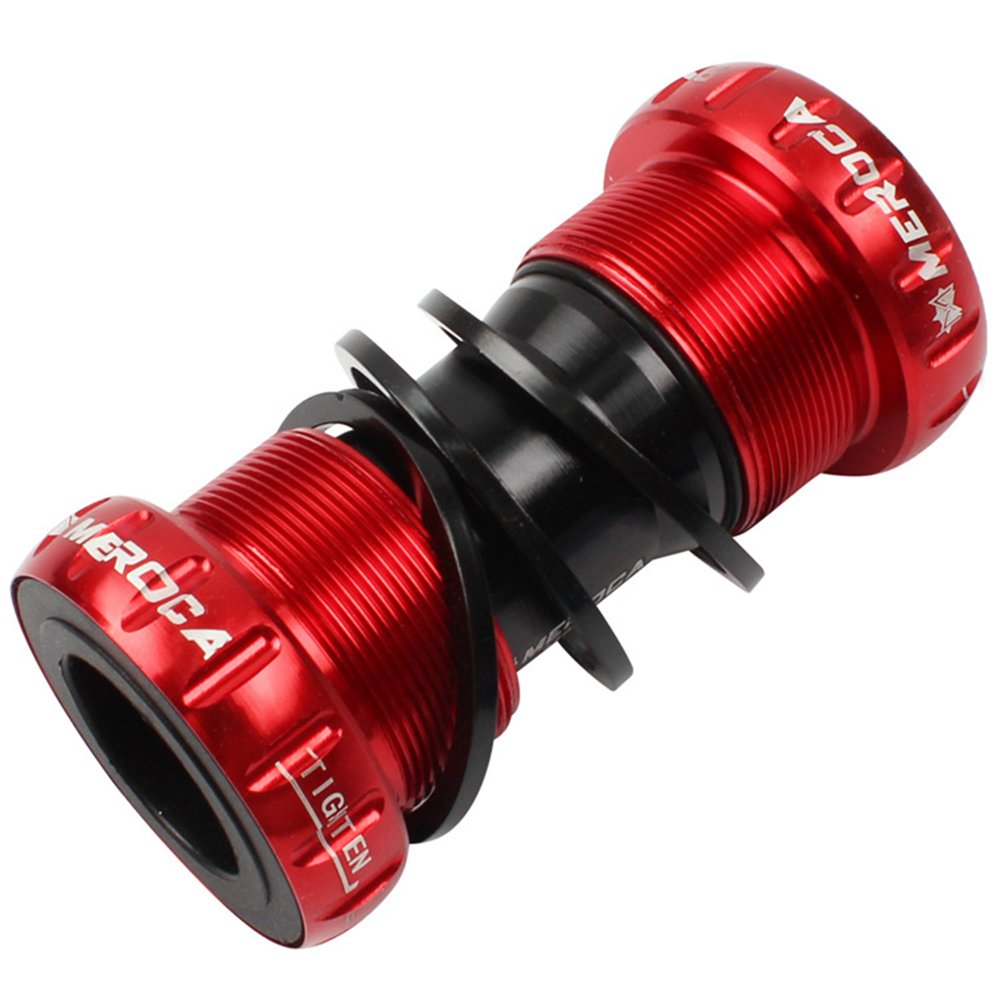

MEROCA BSA 68/73mm Threaded Bottom Bracket for Shimano, IXF and for Prowheel 24/24mm Cranksets, Aluminum Cups

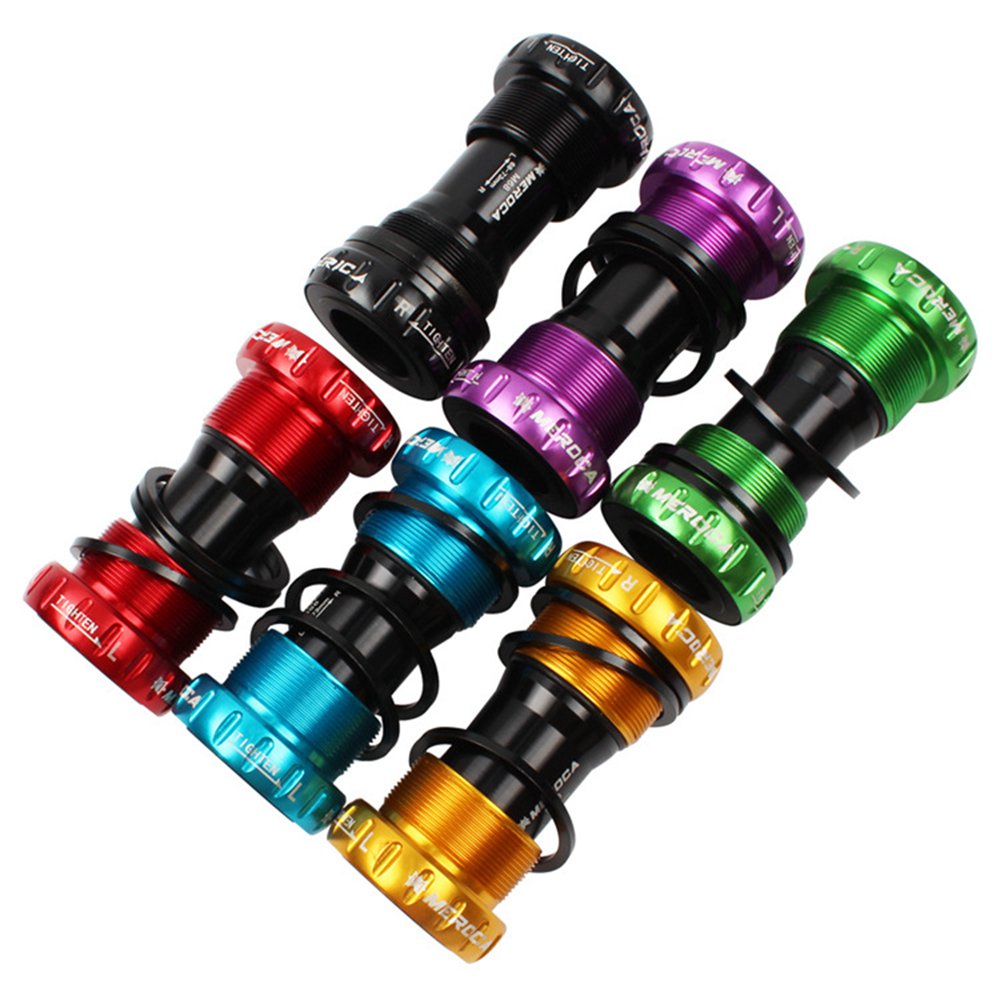

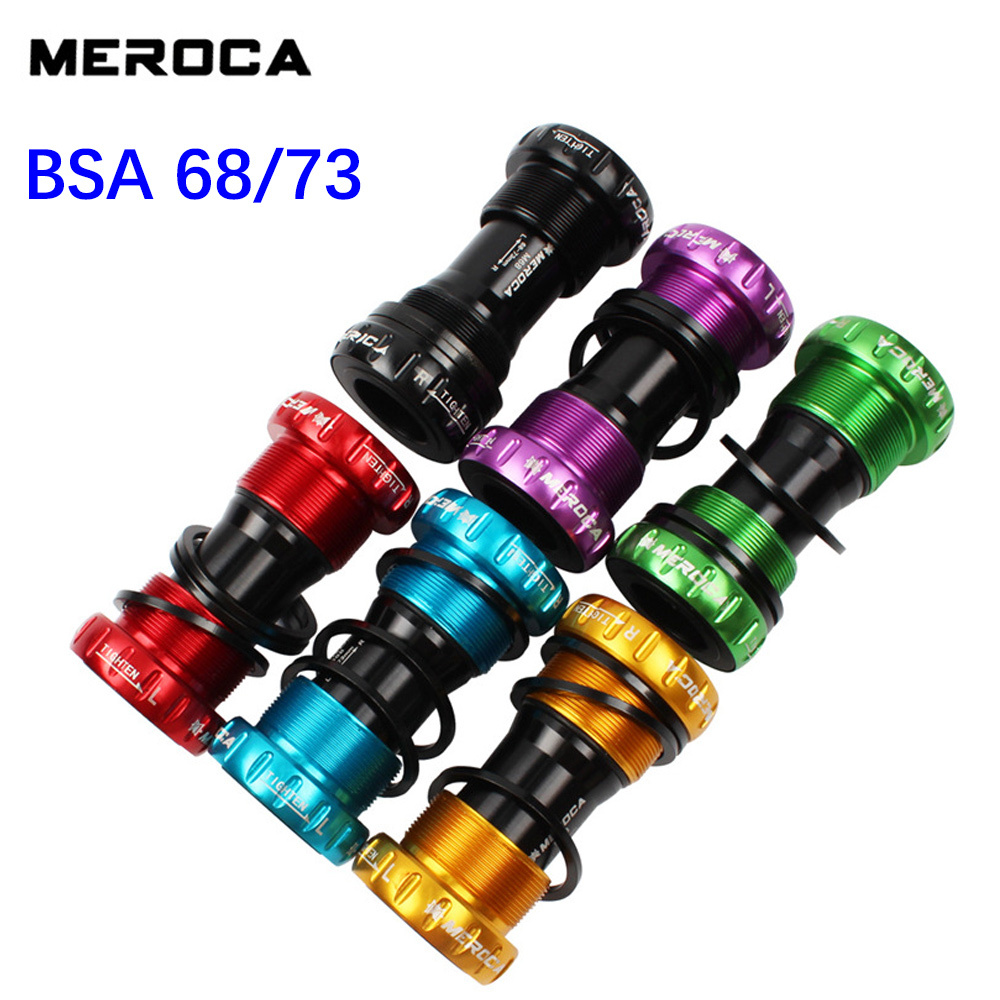

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.

Option 1
black 24mm-24mm
red 24mm-24mm
blue 24mm-24mm
green 24mm-24mm
purple 24mm-24mm
golden 24mm-24mm
