Magene TEO P515 Carbon Crankset Power Meter

The Magene TEO P515 Power Meter Set is a premium lightweight road bike crankset designed for competitive cycling, performance training and racing.

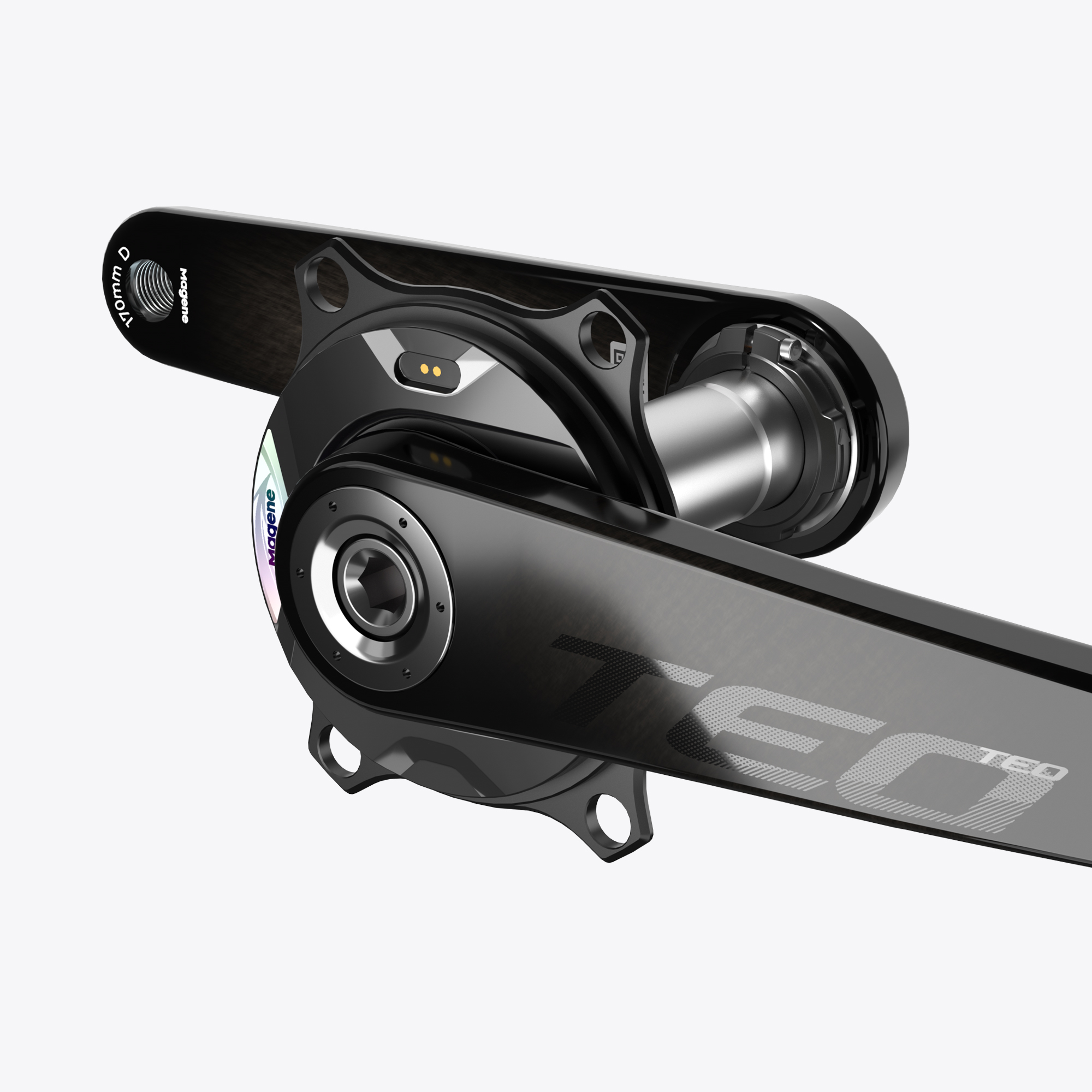

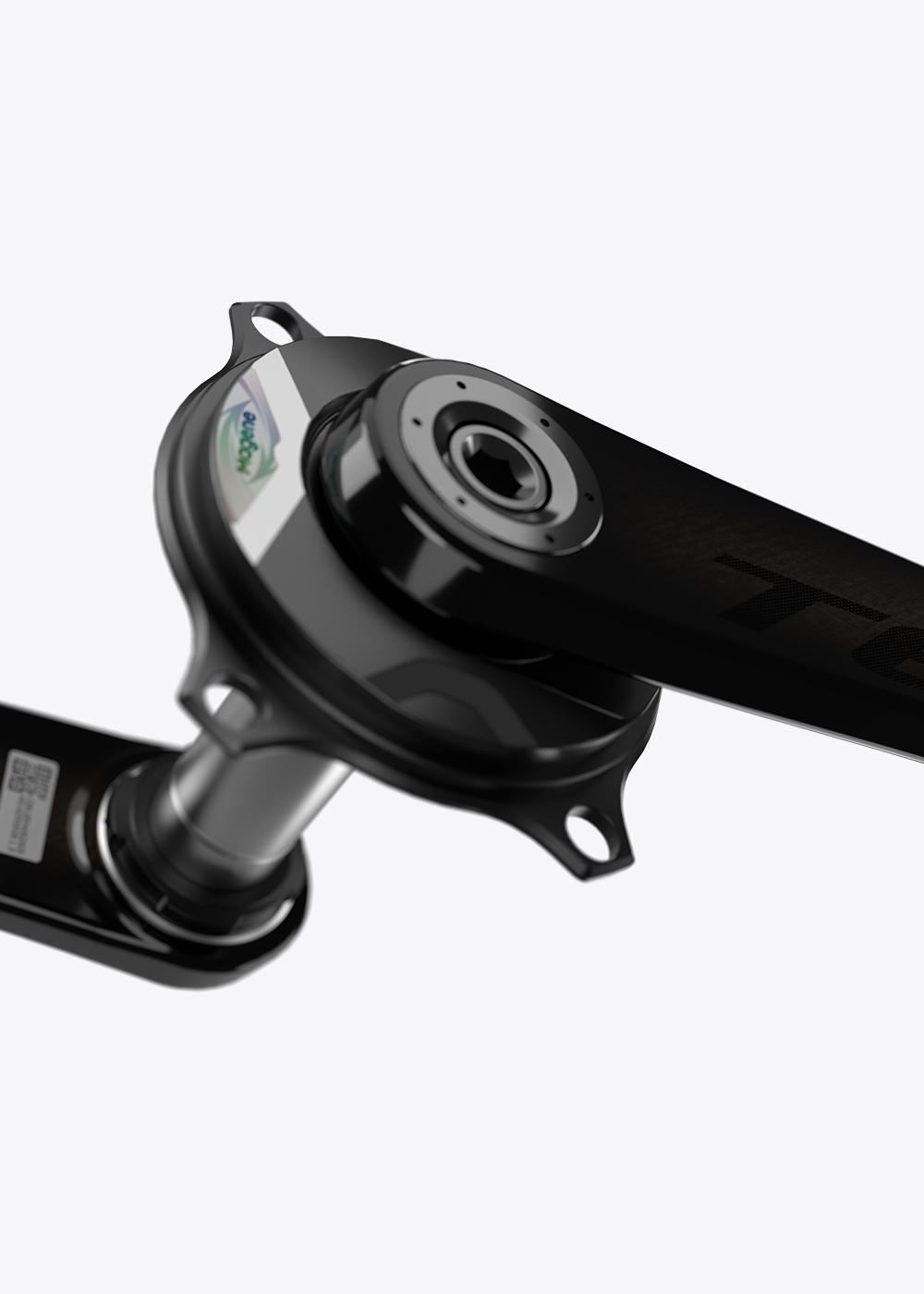

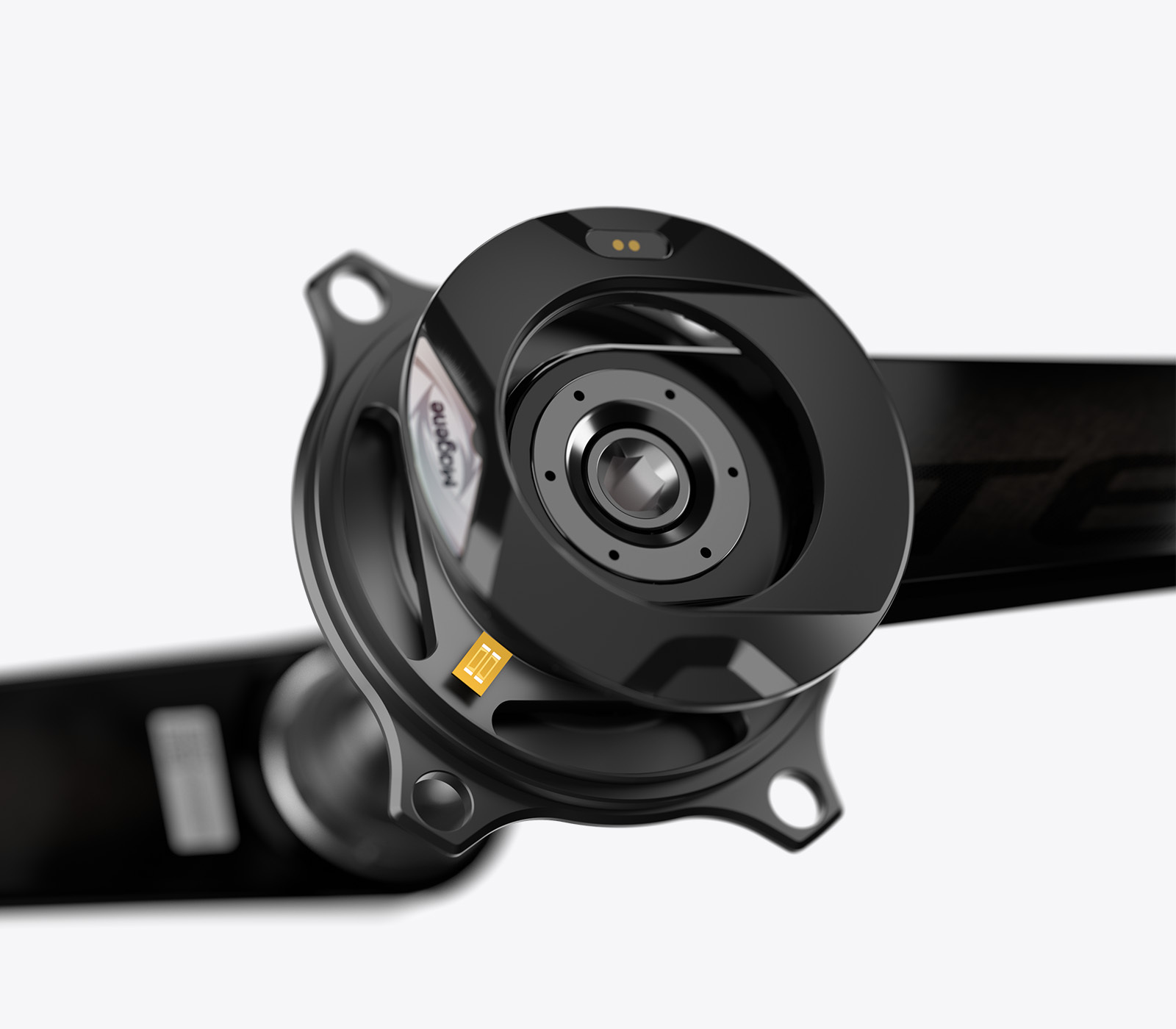

Combining HI-MOD carbon fiber crank arms with a 7075 aluminum spider-based power meter, the TEO P515 delivers excellent stiffness, low weight and reliable power measurement.

With ±1% power accuracy, ANT+ and Bluetooth wireless connectivity, and up to 380 hours of battery life, this crankset provides essential performance data for riders looking to improve their cycling efficiency.

Key Features

• HI-MOD Carbon Crank Arms: Lightweight carbon fiber construction with excellent stiffness and power transfer.

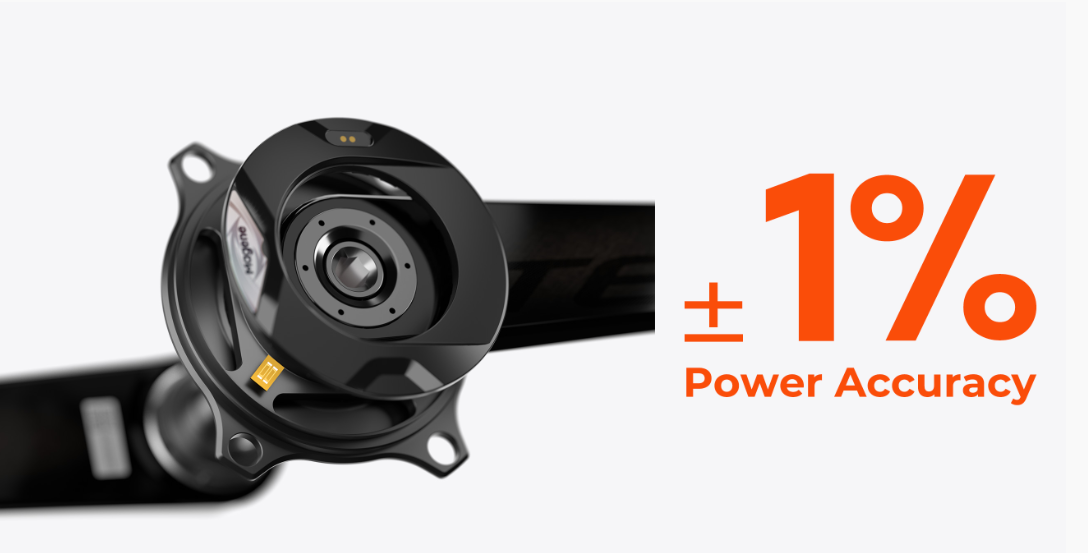

• ±1% Power Accuracy: High-precision power measurement with intelligent temperature compensation.

• 425g Lightweight Design: Approximately 425g for the 170mm crankset with power meter, excluding chainrings.

• 110BCD 4-Bolt Interface: Compatible with suitable 110BCD 4-arm road bike chainrings.

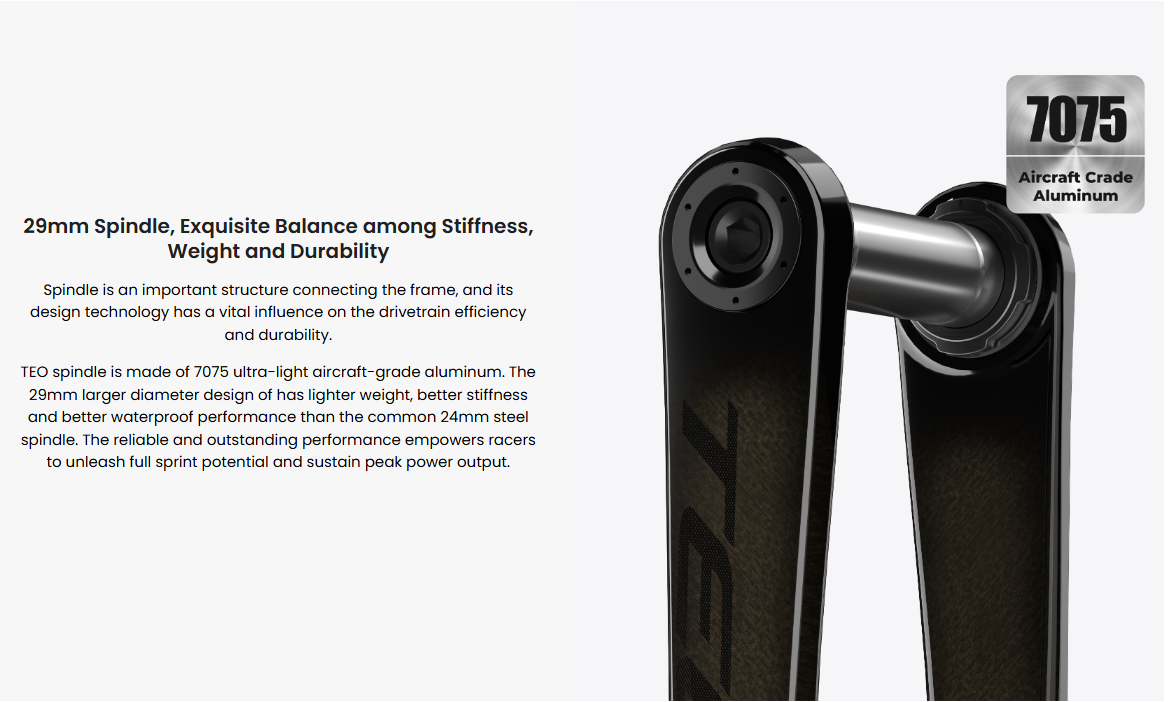

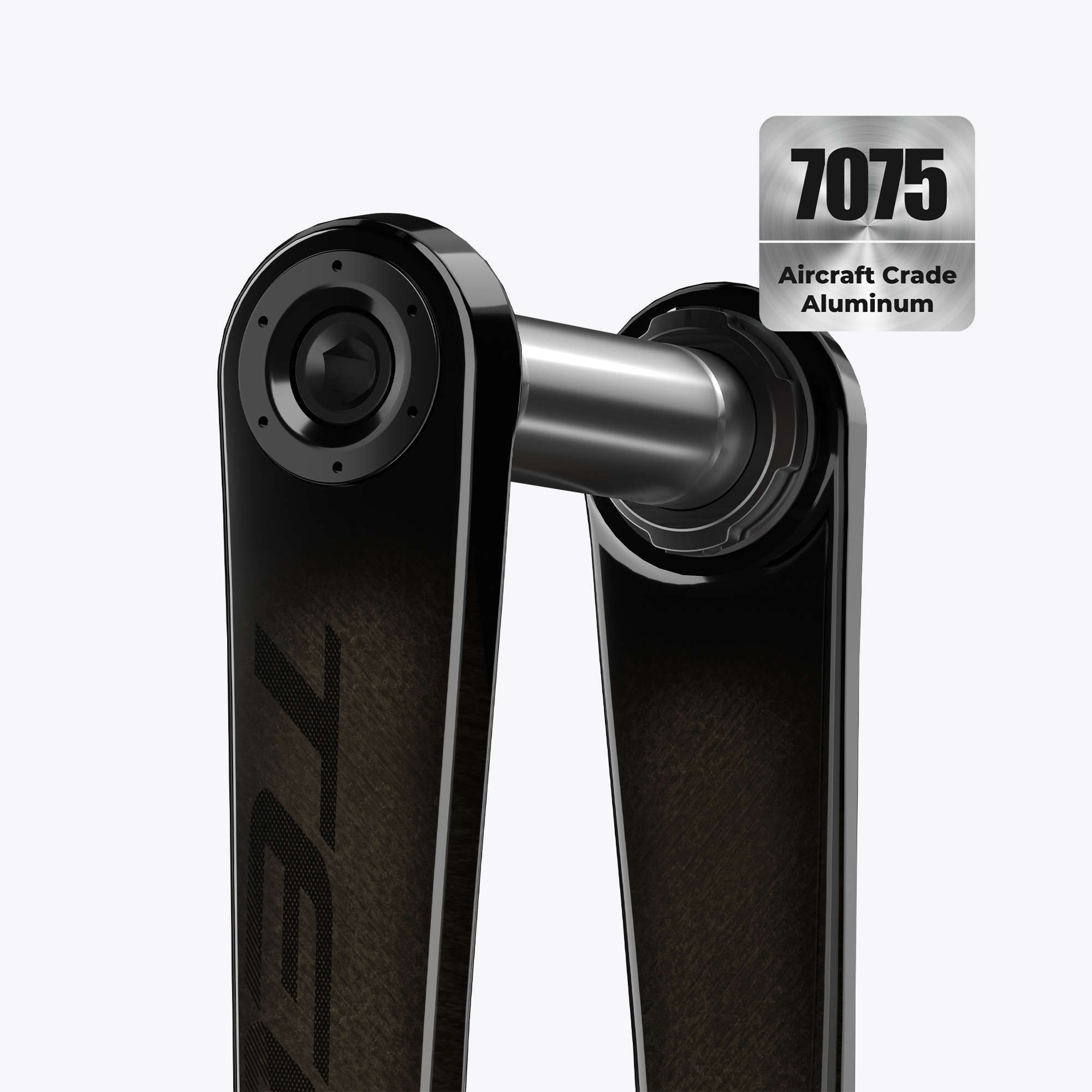

• 29mm Aluminum Spindle: Large-diameter 7075 aluminum spindle designed for strength and low weight.

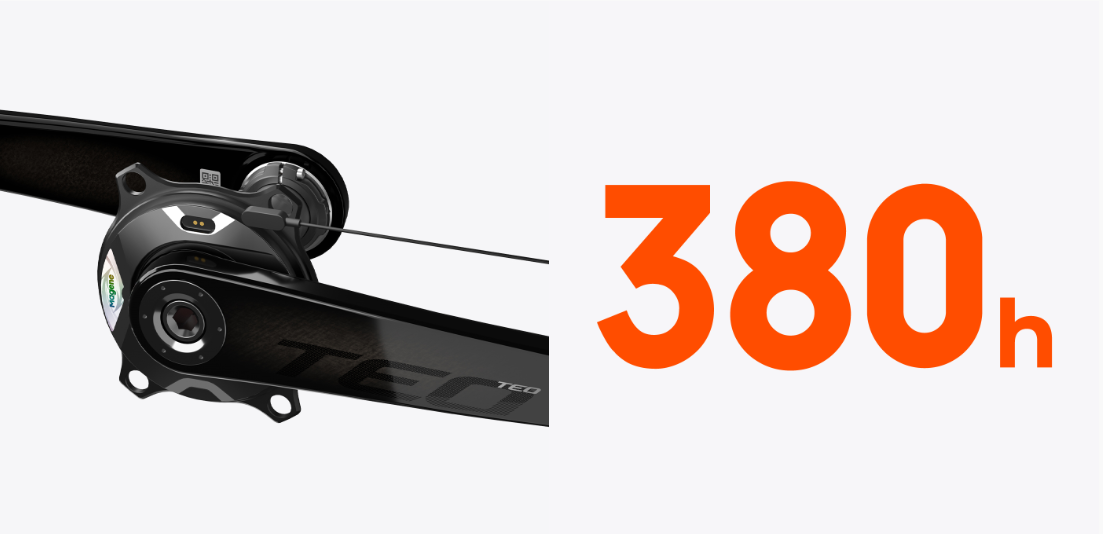

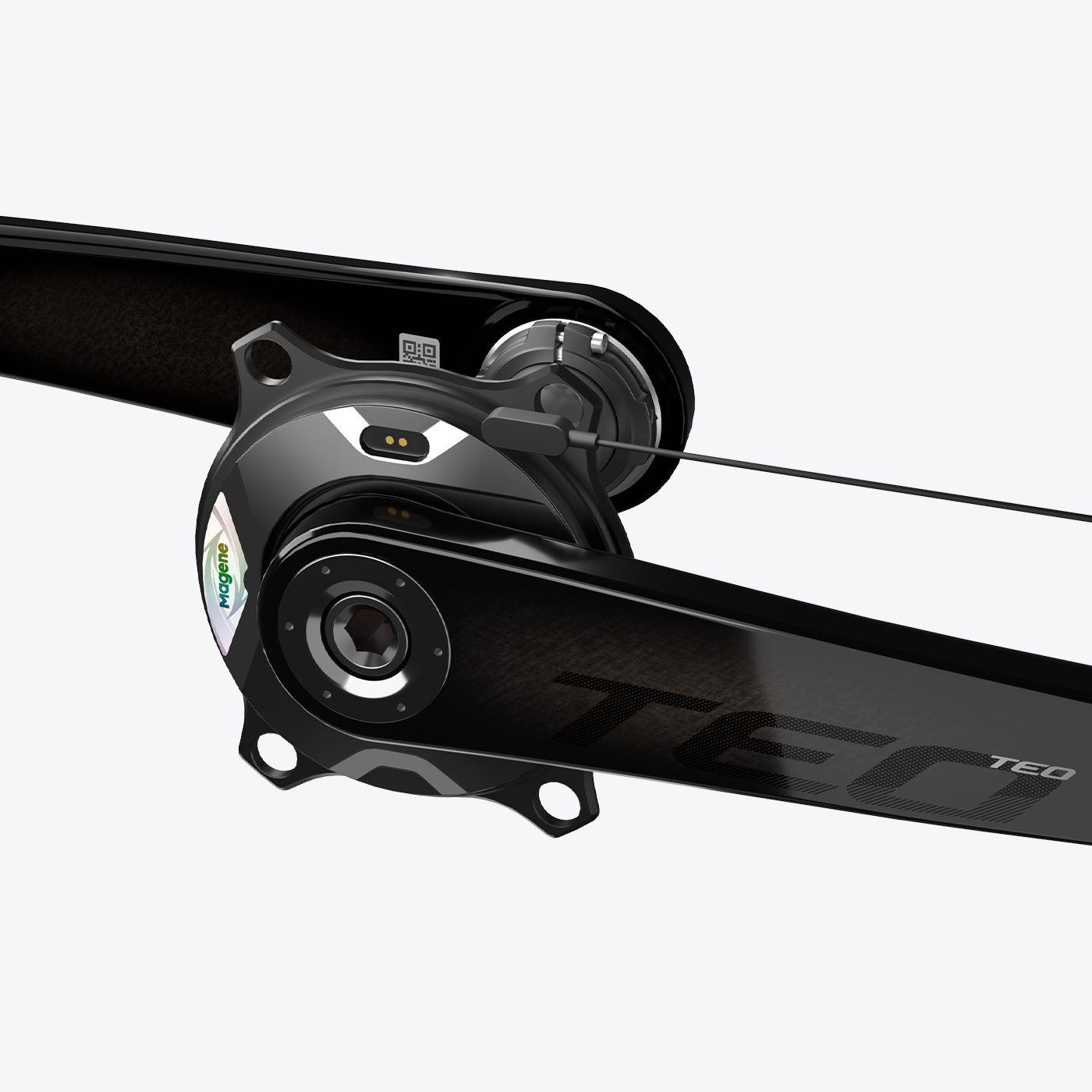

• 380-Hour Battery Life: Rechargeable battery with convenient magnetic charging.

• ANT+ and Bluetooth: Wireless connectivity with compatible cycling computers and training devices.

• Advanced Cycling Metrics: Measures power, cadence, estimated left/right power balance and pedaling smoothness.

• IPX7 Waterproof Rating: Designed for reliable performance in wet riding conditions.

• Multiple Crank Lengths: Available in 160mm, 165mm, 170mm, 172.5mm and 175mm.

Technical Specifications

Compatibility

Chainring Compatibility

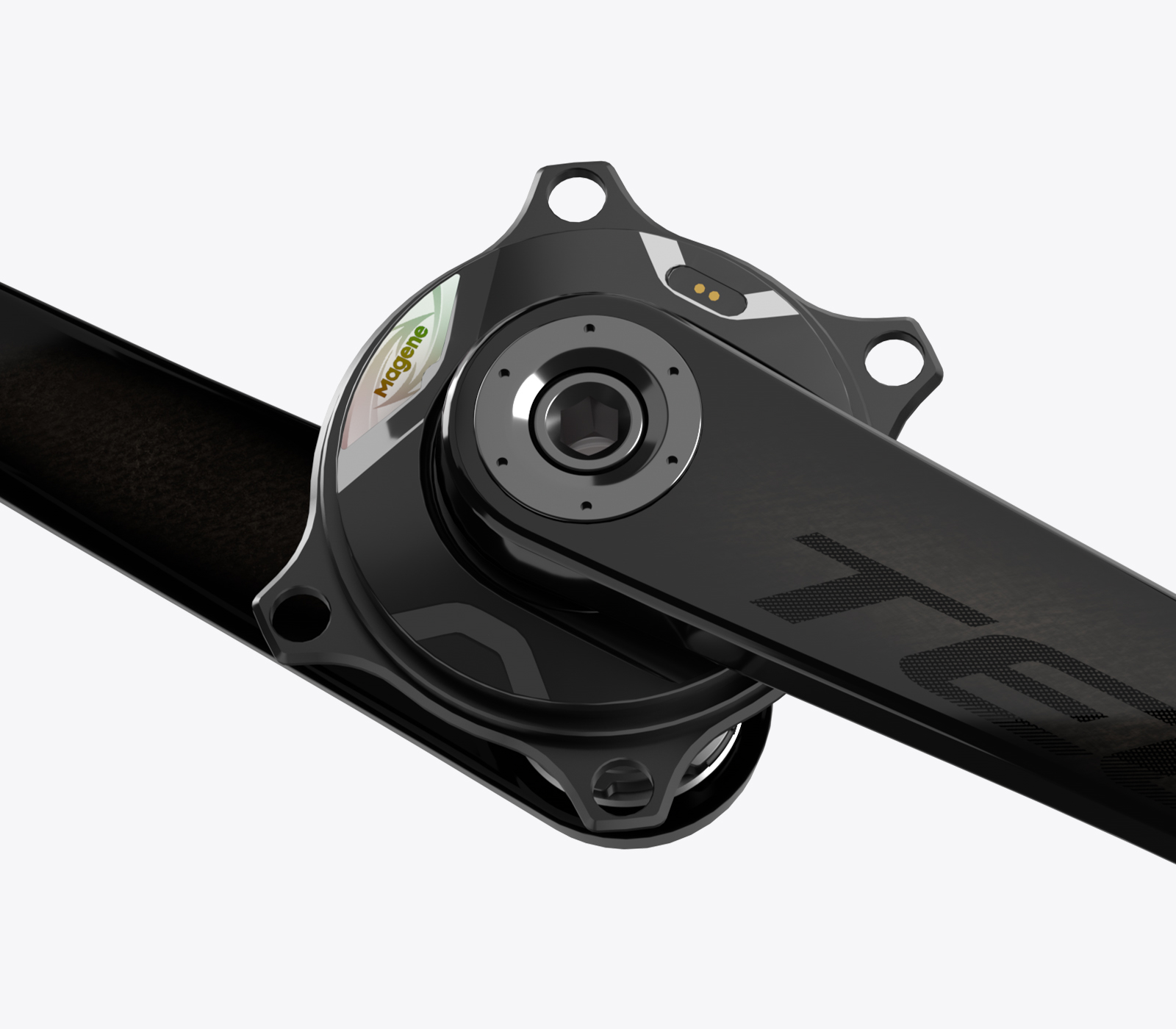

The TEO P515 features a 110BCD 4-bolt spider interface, designed for compatible road bike chainrings.

It supports Magene QED split chainrings and other suitable chainrings with matching mounting specifications.

Check chainring mounting geometry and clearance before installation. Not all 110BCD 4-bolt chainrings are interchangeable.

Bottom Bracket Compatibility

The crankset uses a 29mm spindle and requires a compatible bottom bracket.

It supports suitable bottom bracket configurations for road frames, including T47 and BB386, subject to installation dimensions.

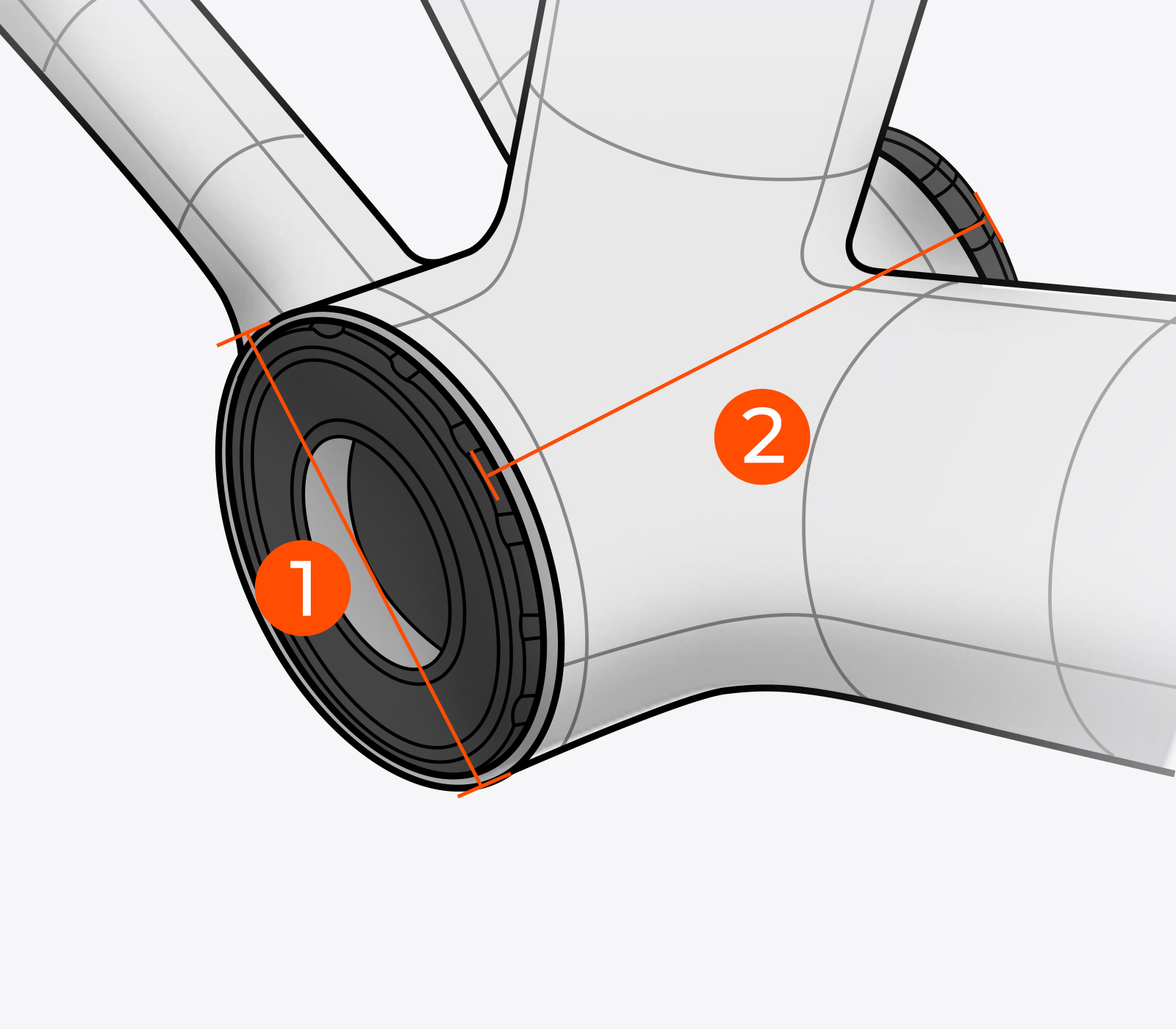

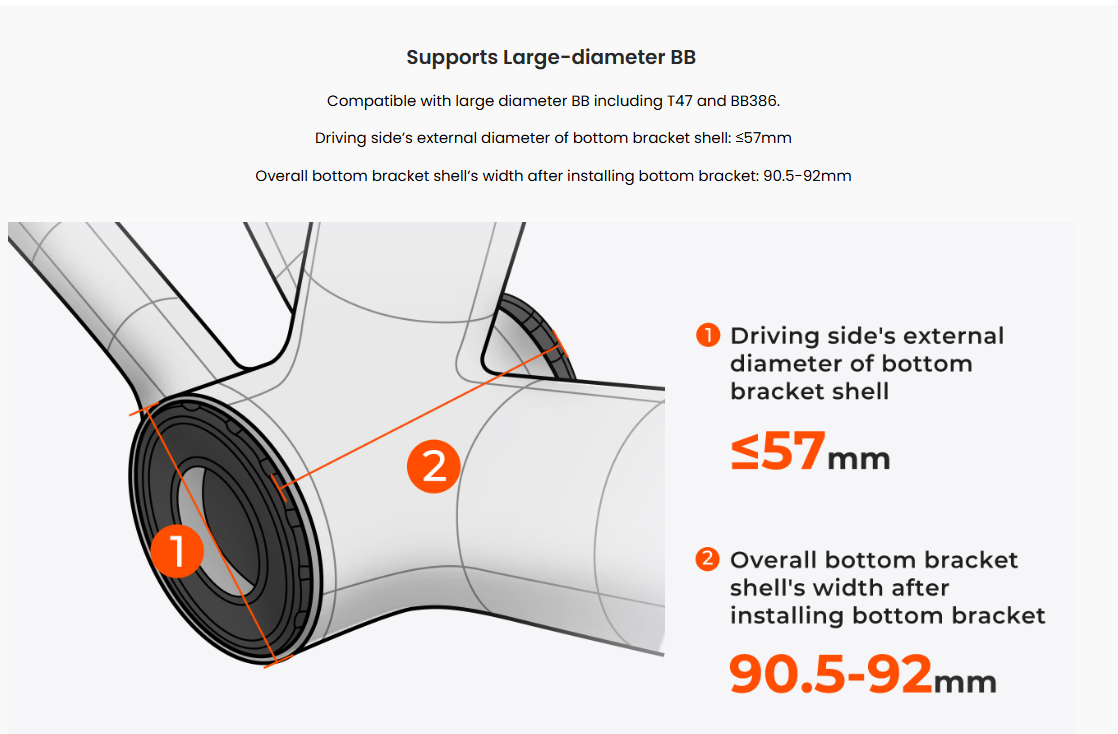

Installation Requirements:

• Spindle diameter: 29mm

• Maximum drive-side external bottom bracket diameter: 57mm

• Installed bottom bracket overall width: 90.5–92mm

A compatible bottom bracket may need to be purchased separately.

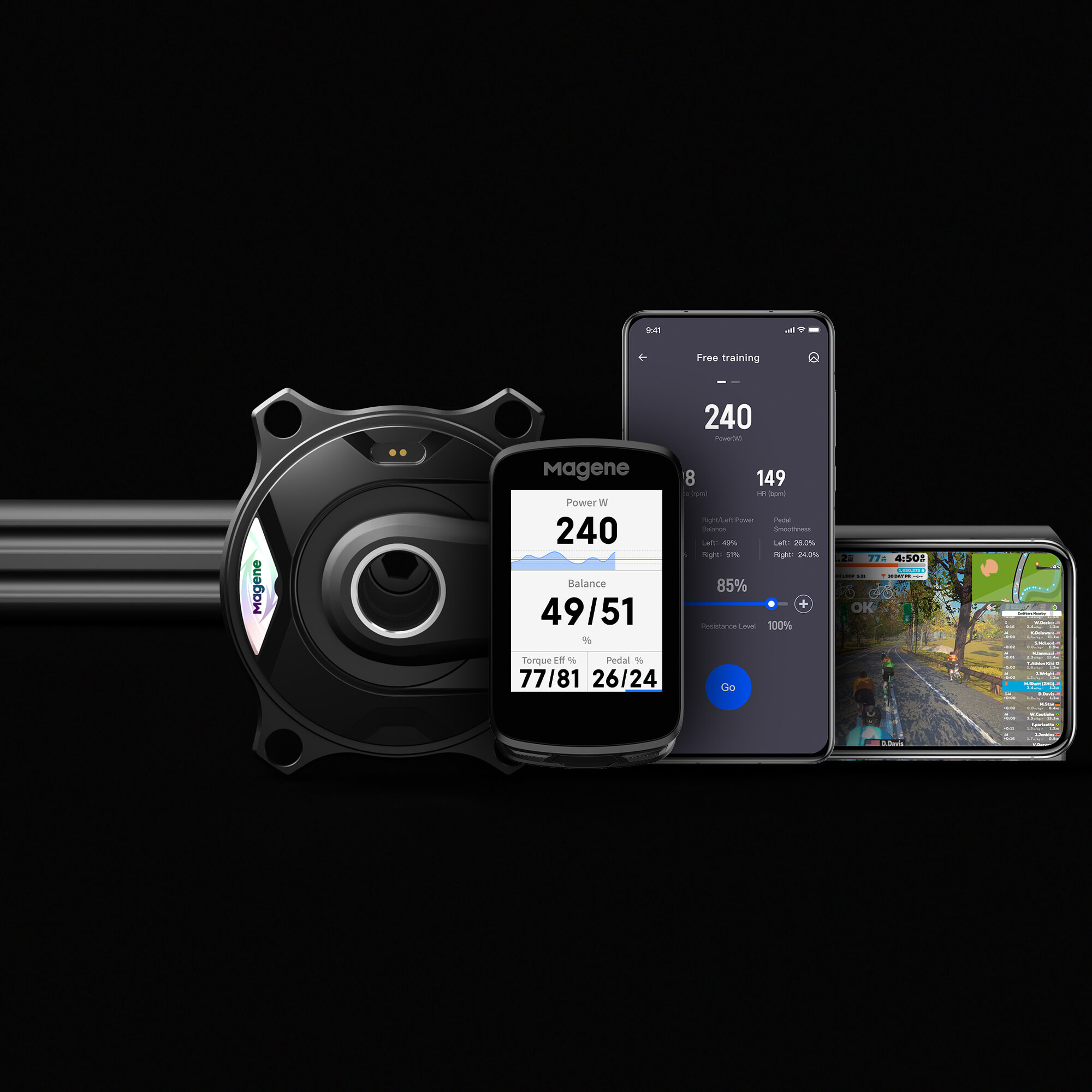

Wireless Device Compatibility

Supports ANT+ and Bluetooth connections with compatible cycling computers and training devices, including products from:

• Garmin

• Magene

• Bryton

Compatible training platforms include Zwift, TrainerRoad and other supported cycling applications.

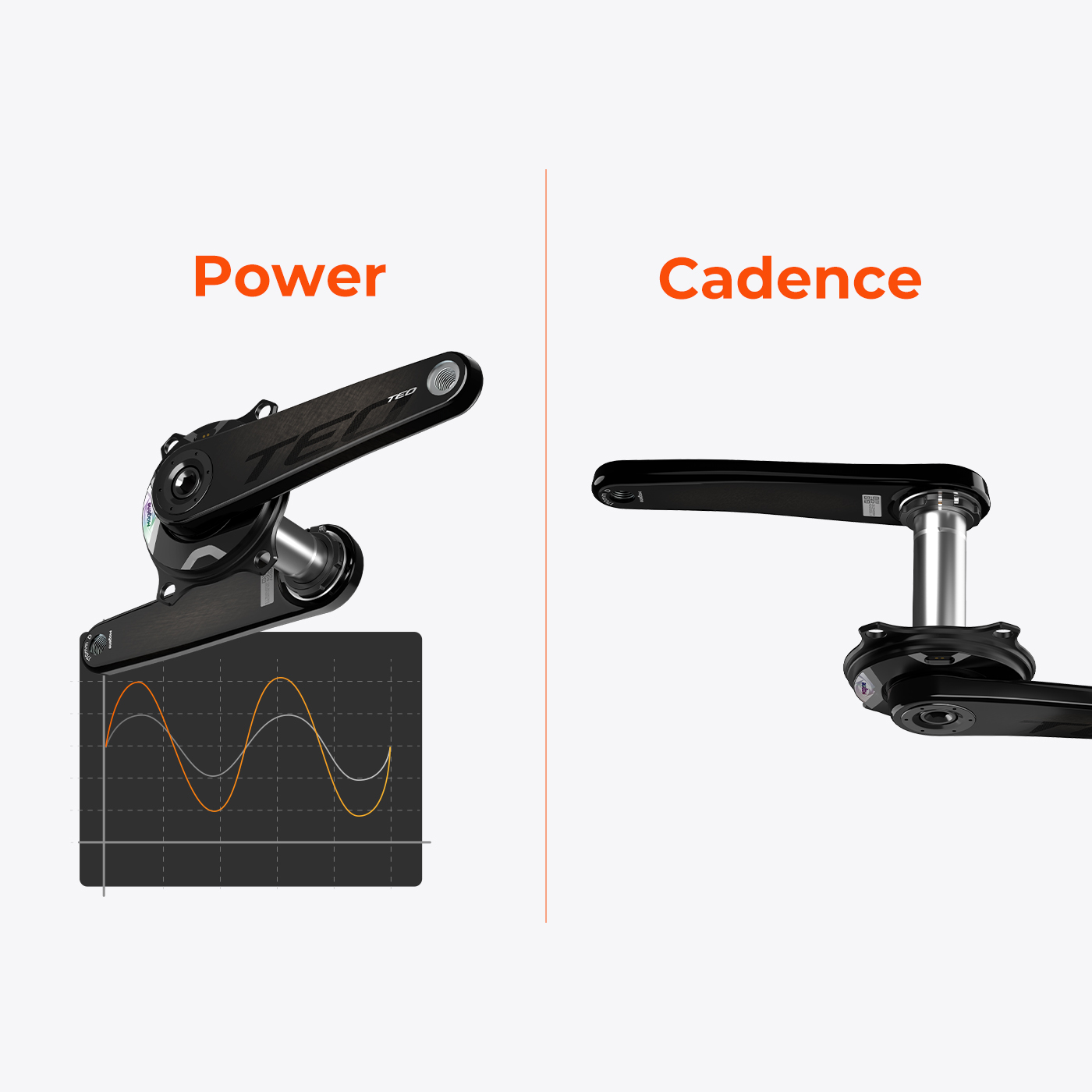

Power Measurement Functions

Power: Measures cycling power output with ±1% accuracy for structured training and performance analysis.

Cadence: Provides real-time pedaling cadence data.

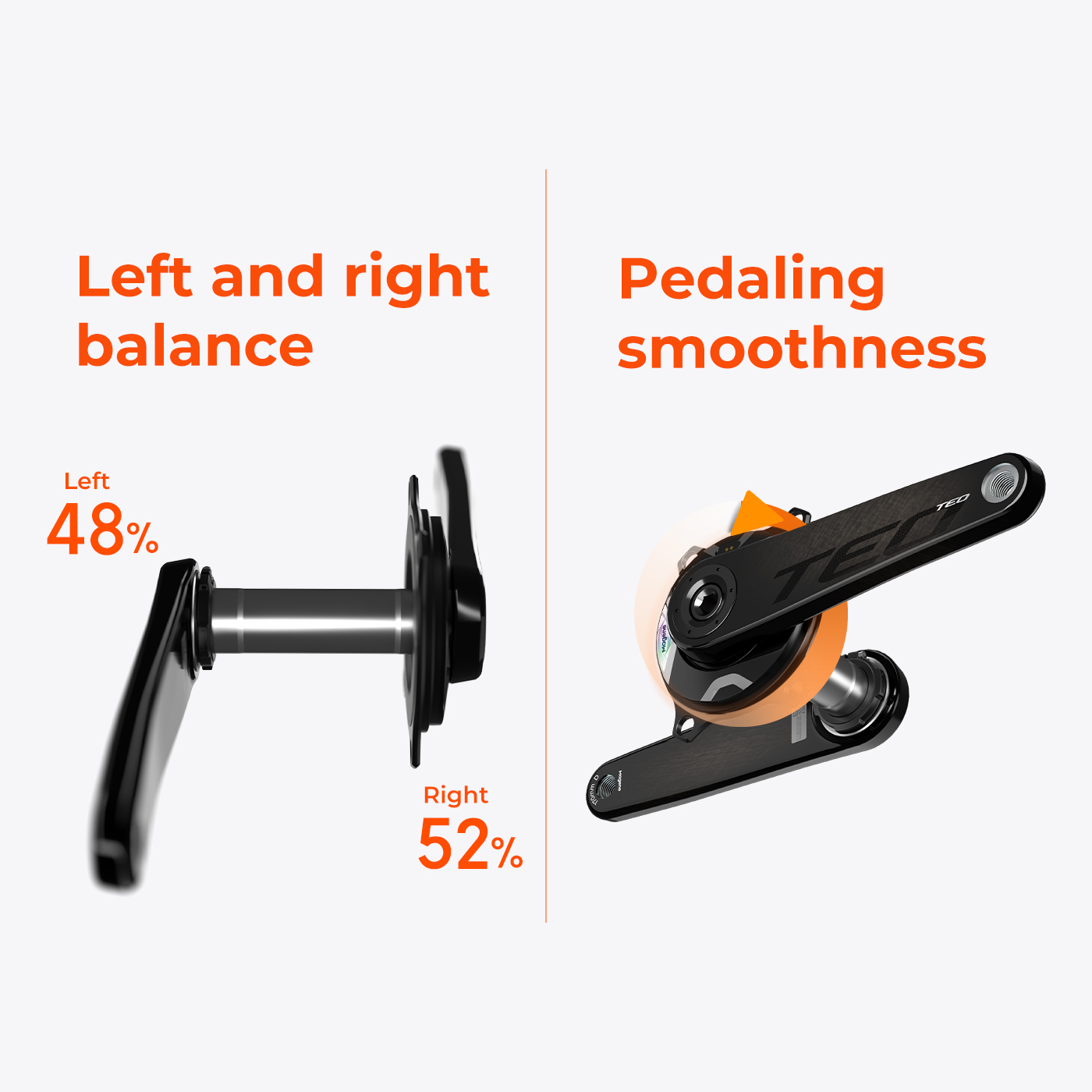

Left/Right Balance: Estimates the power contribution of each leg using spider-based measurement algorithms.

Pedaling Smoothness: Analyzes power distribution throughout the pedaling cycle.

Package Contents

Without Chainrings:

• 1 × P515 Spider-Based Power Meter

• 2 × TEO Carbon Crank Arms

• 1 × Magnetic Charging Cable

• 1 × Conversion Kit Lock Ring

• 5 × Washers

• 3 × Stickers

• 1 × Quick Start Guide

With Chainrings:

Includes all the components above, plus:

• 1 × Large Chainring

• 1 × Small Chainring

• 1 × Set of Chainring Bolts

Important Notes:

1. Please confirm your crank length, chainring configuration and bottom bracket compatibility before ordering.

2. Chainrings are included only with the corresponding chainring package option.

3. A compatible 29mm bottom bracket is required and is not listed among the supplied accessories.

4. For accurate power measurement, follow Magene's calibration instructions after installation.
