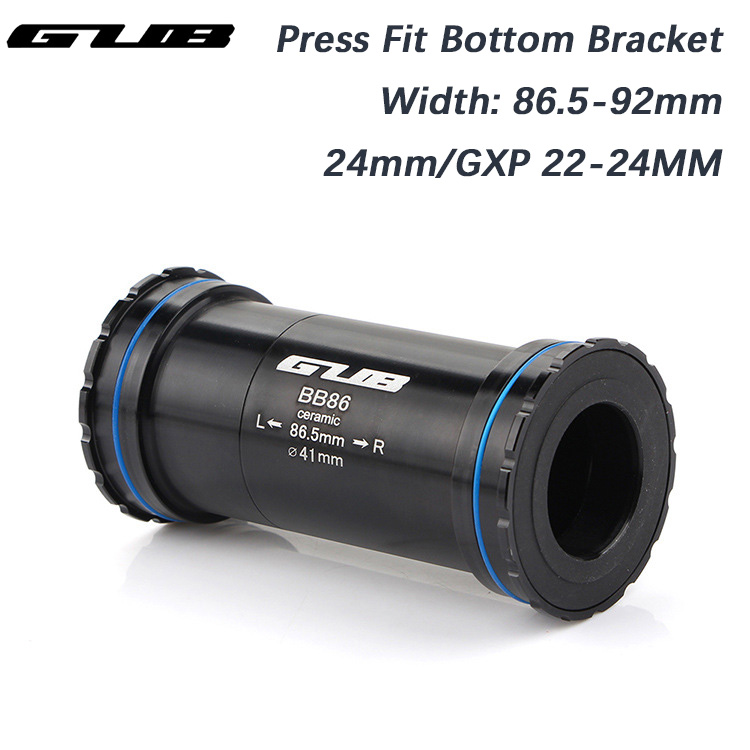

GUB BB86/24 22mm Ceramic Bearings Bicycle Press Fit Bottom Brackets Thread lock for SRAM GXP 22-24mm MTB Road Bike Parts

GUB BB86/24 22mm Ceramic Bearings Bicycle Press Fit Bottom Brackets Thread lock for SRAM GXP 22-24mm MTB Road Bike Parts

GUB BB86/24 22mm Ceramic Bearings Bicycle Press Fit Bottom Brackets Thread lock for SRAM GXP 22-24mm MTB Road Bike Parts 24mm Crankset Chainset

Technical Specifications

Press-Fit style and Interlock design, fit for SRAM(use adapter transform 24mm to 22mm), For Shimano( for FSA)

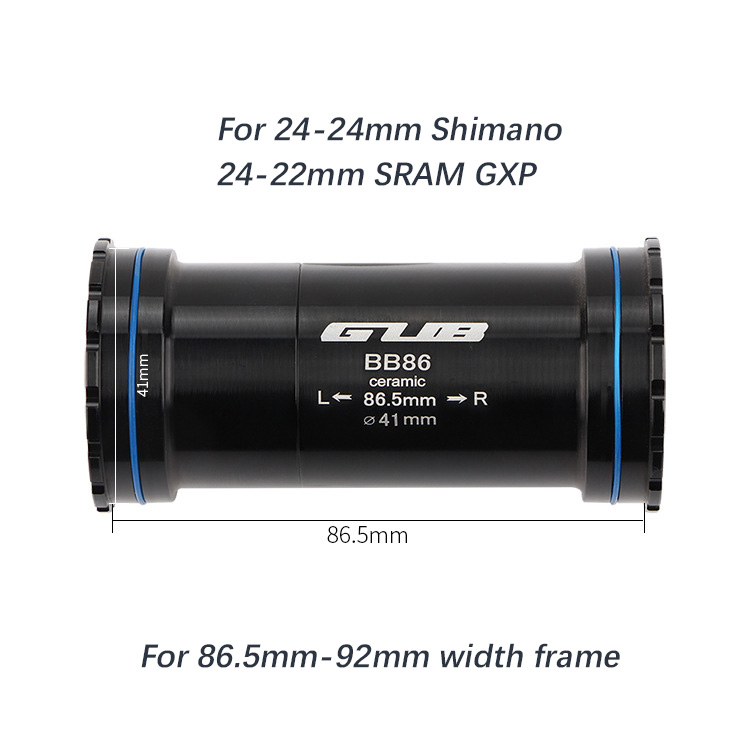

BB length fit for 86.5mm-92mm length frame used.

Outer diameter: 41mm

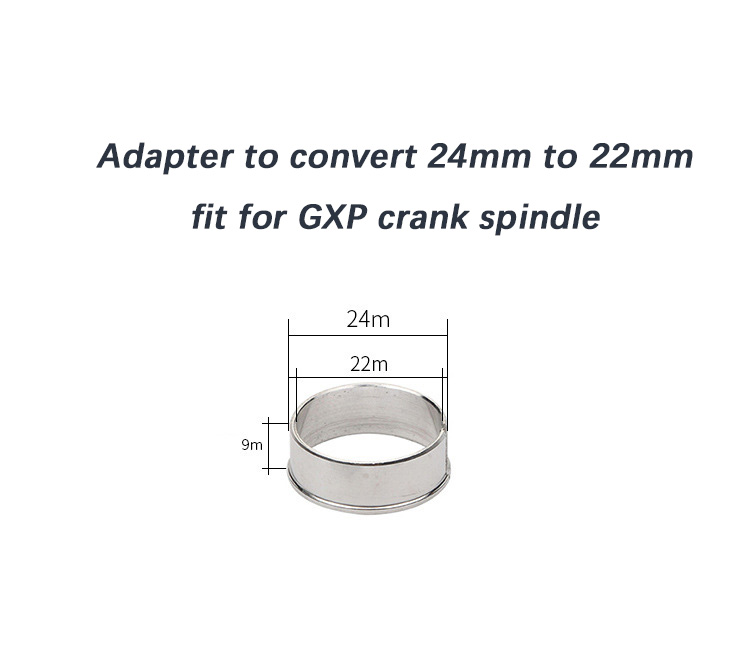

Inner diameter: 24mm (use conversion sleeve transform 24mm to 22mm)

Specifications

• Product Name: GUB BB8624 Thread-Together Press-Fit Ceramic Bottom Bracket

• Frame Compatibility: BB86 / BB92

• Frame Shell Inner Diameter: 41mm

• Bottom Bracket Width: 86.5mm – 92mm

• Crank Compatibility:

  • for Shimano 24mm

  • for SRAM GXP (24mm / 22mm)

• Bearing Type: Ceramic Bearings

• Material:

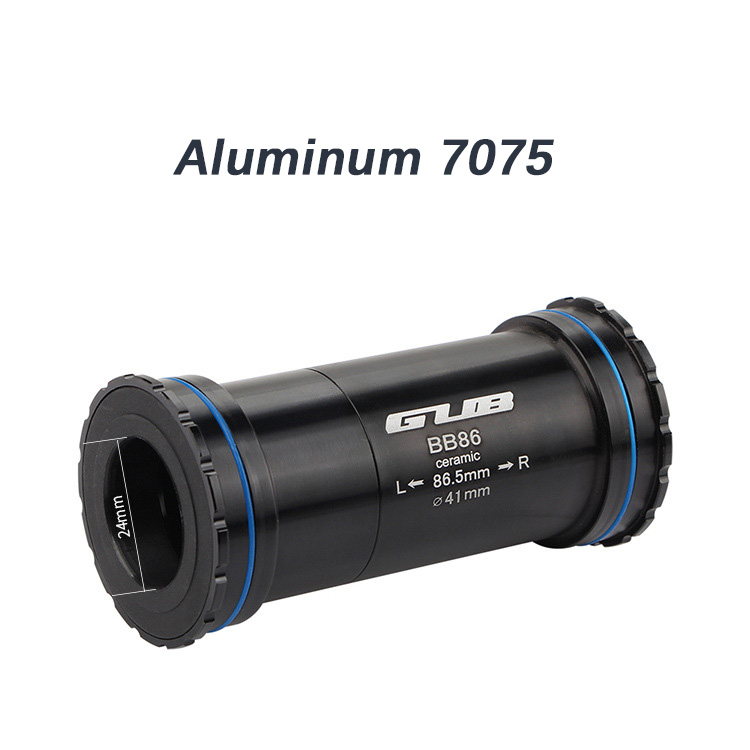

  • AL7075 aluminum alloy body

  • High-quality NBR sealing rings

  • PE dust covers

• Manufacturing Process: CNC machined, T6 heat-treated

• Weight: about 106g

Features

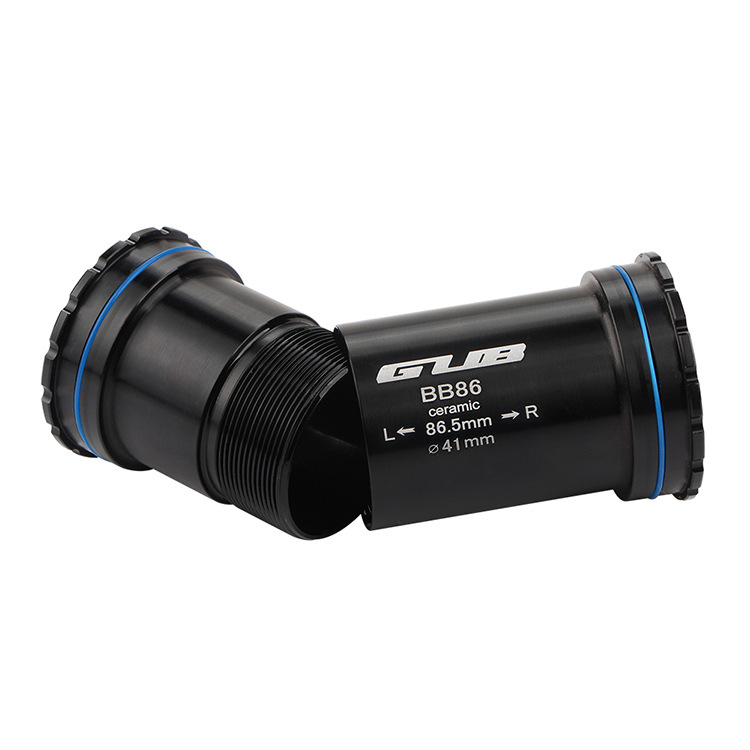

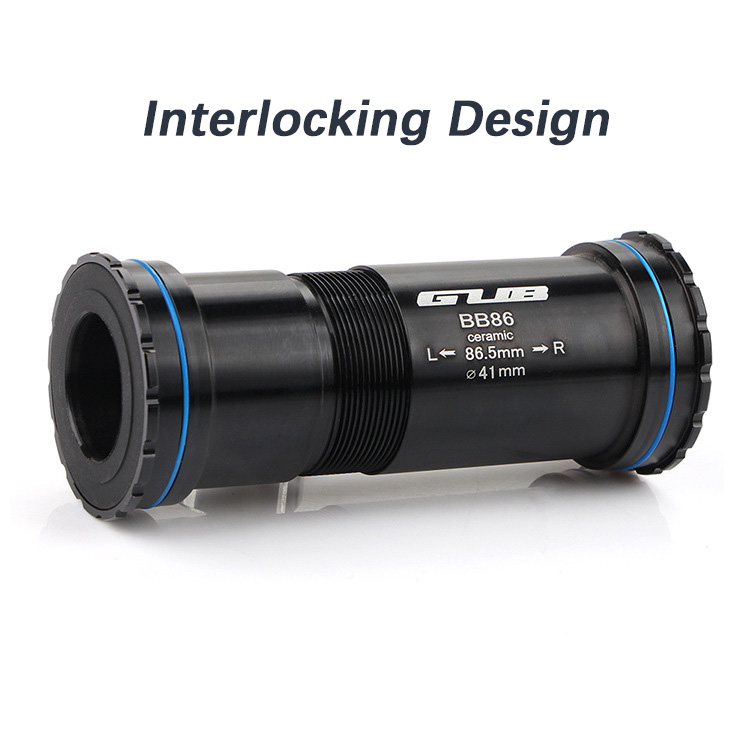

Special threaded interlocking bottom bracket to reduce noise and for easy installation and maintenance.

Double O ring keeps water or dust out of the frame and works as the buffer between the frame and BB.

Aluminum alloy construction for long service time.

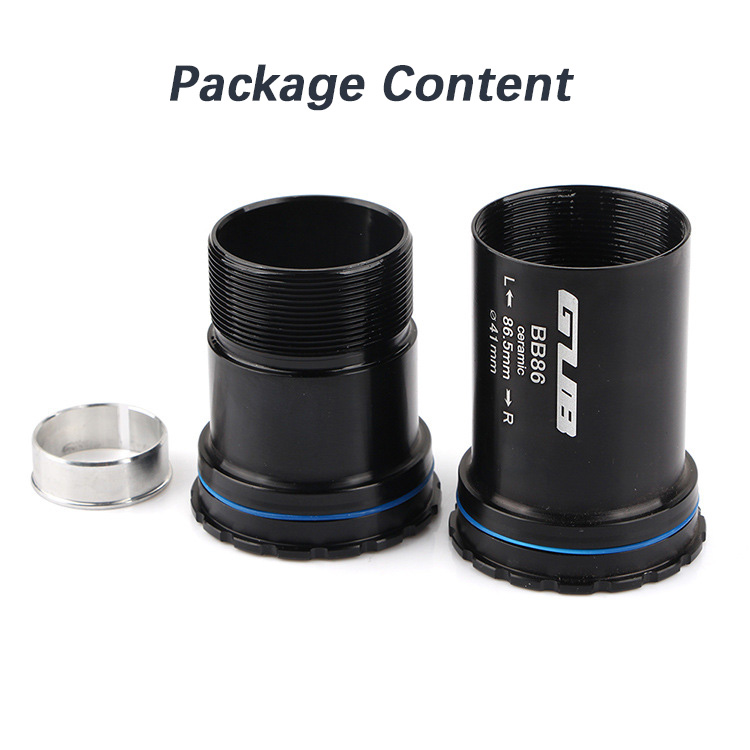

Package content:

1 set of Bottom Bracket

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.
