Gineyea BSA 68/73mm Bottom Bracket Ceramic or Steel for Shimano 24mm GXP for FSA 19mm DUB 30mm, 68mm / 73mm Shell Width

Name: Gineyea BSA 68/73mm Bottom Bracket Ceramic or Steel for Shimano 24mm GXP for FSA 19mm DUB 30mm, 68mm / 73mm Shell Width
Brand: DJC Bikes - DJC Components
SKU: 2255799952
Price: 20.16 USD
Availability: InStock

$20.16 ~~$28.00~~

-28%

Gineyea BSA 68/73mm Bottom Bracket Ceramic or Steel for Shimano 24mm GXP for FSA 19mm DUB 30mm, 68mm / 73mm Shell Width.

For BSA threaded frames only. Not for BB86, BB91, BB92, BB30, PF30 or BB386 press-fit frames. The 30mm option describes the crank spindle diameter, not BB30 frame compatibility.

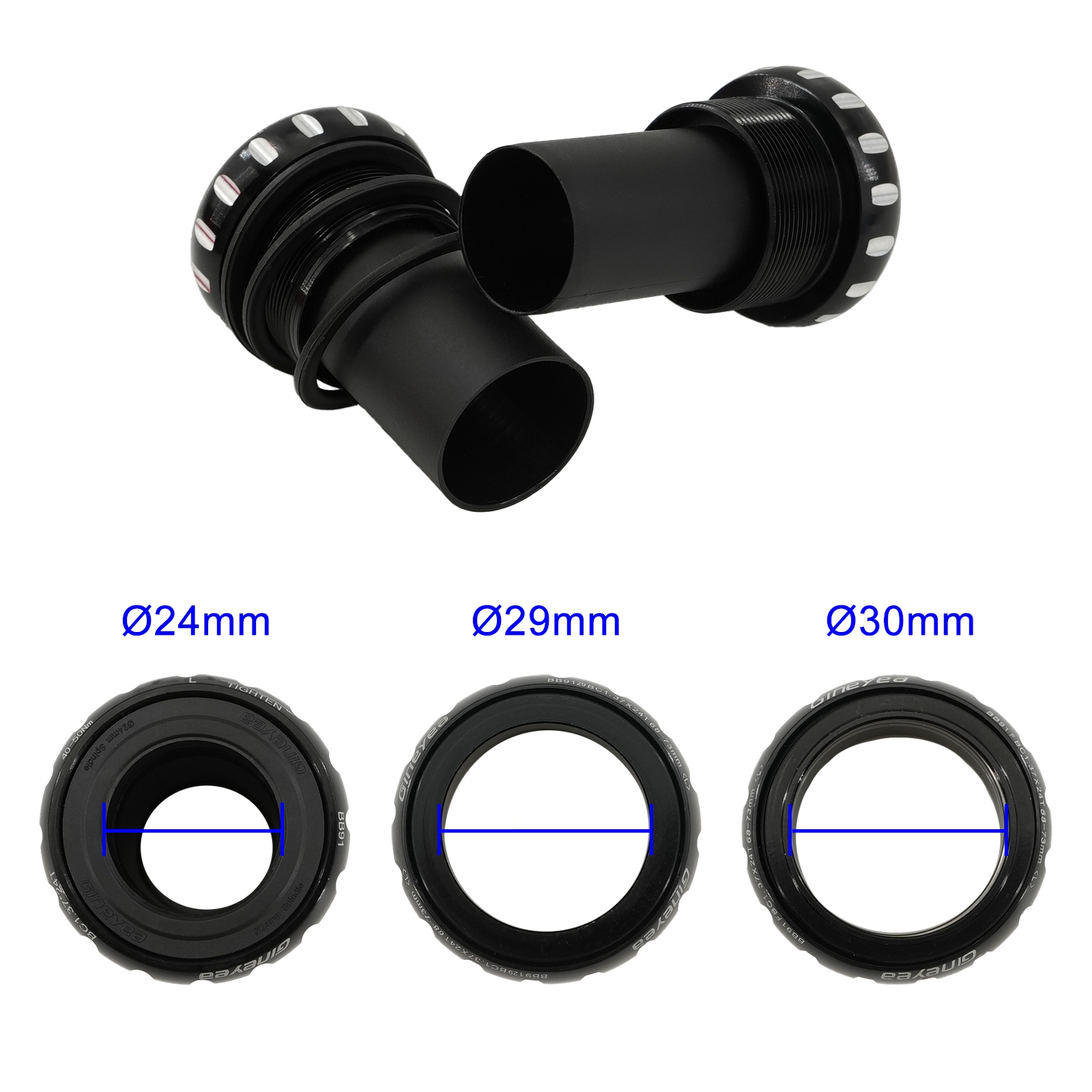

Spindle Compatibility: for Shimano Hollowtech II 24/24mm; for SRAM GXP 24/22mm; for FSA 19/19mm; DUB; 30mm, with the matching version.

Thread Specification: 1.37 in × 24 TPI.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

ceramic black 24-24

ceramic red 24-24

ceramic purple 24-24

ceramic black 22-24

ceramic black 19-19

ceramic black DUB29

steel black 24-24

steel black 22-24

steel black 19-19

steel black DUB29

steel black 30

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

Gineyea BSA 68/73mm Bottom Bracket Ceramic or Steel for Shimano 24mm GXP for FSA 19mm DUB 30mm, 68mm / 73mm Shell Width

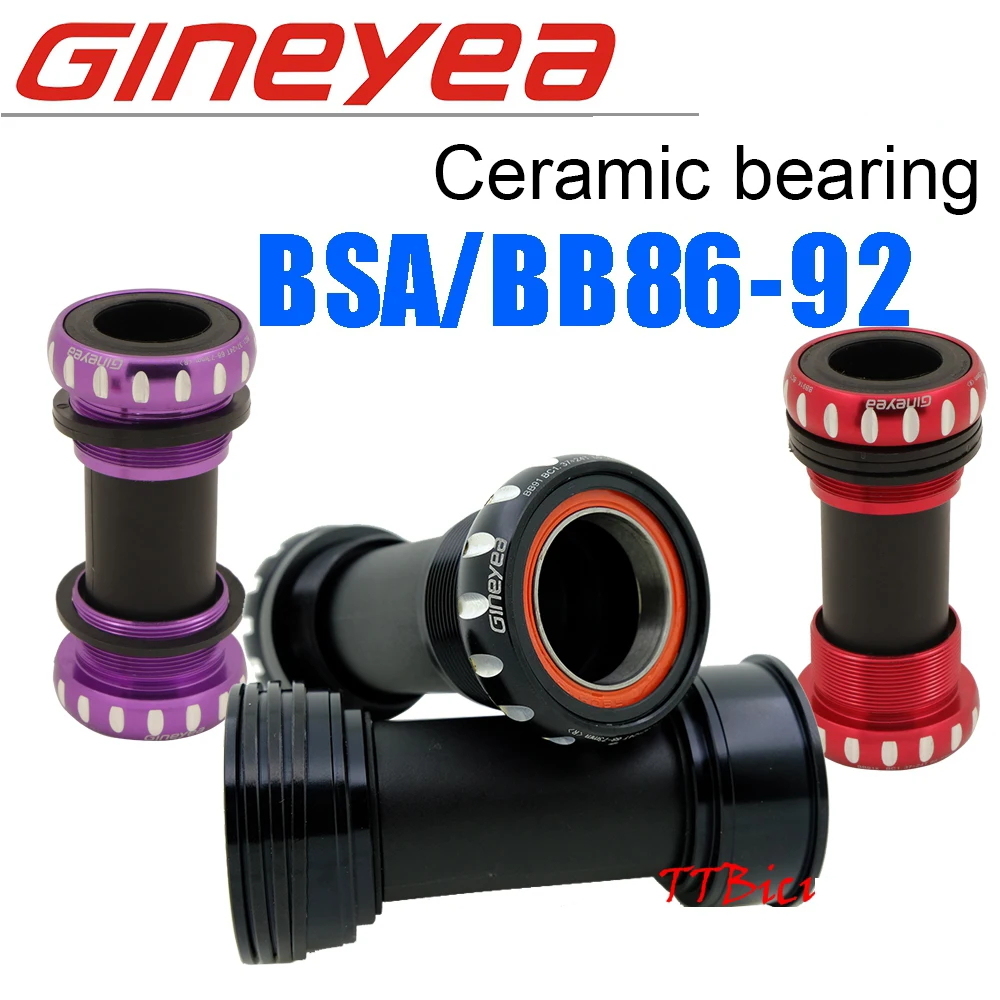

The Gineyea BSA bottom bracket range fits English-threaded 68mm and 73mm frame shells. Choose the bearing type and spindle interface for your crankset: ceramic versions use Si3N4 silicon nitride balls, while separate steel-ball versions are also available. Aluminum alloy cups and seals support use on compatible road, mountain, gravel and folding bikes.

Key Features

BSA threaded mounting for 68mm or 73mm frame shells.

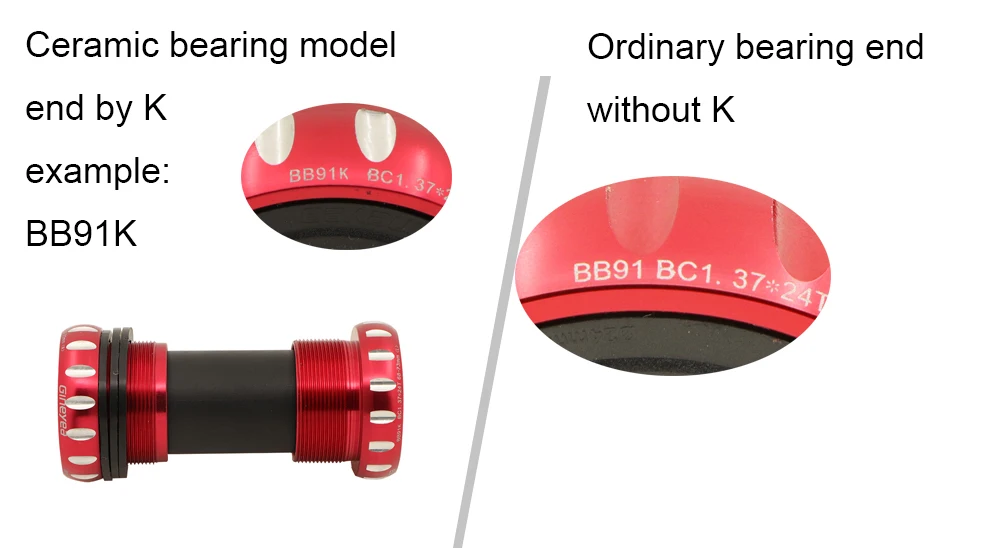

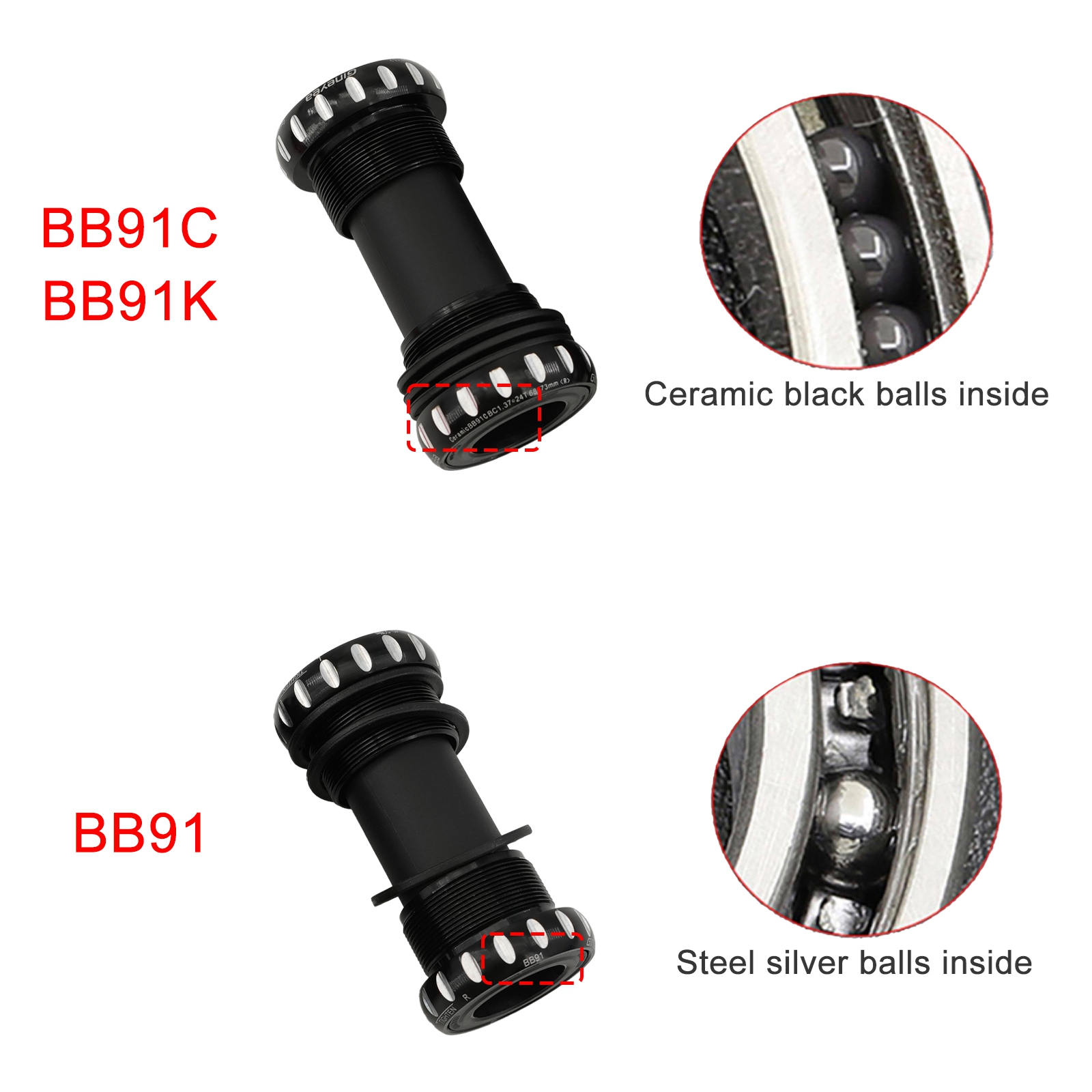

Separate ceramic and steel-ball bearing options.
Spindle-specific versions for Shimano, for SRAM GXP, for FSA, DUB and 30mm cranks.

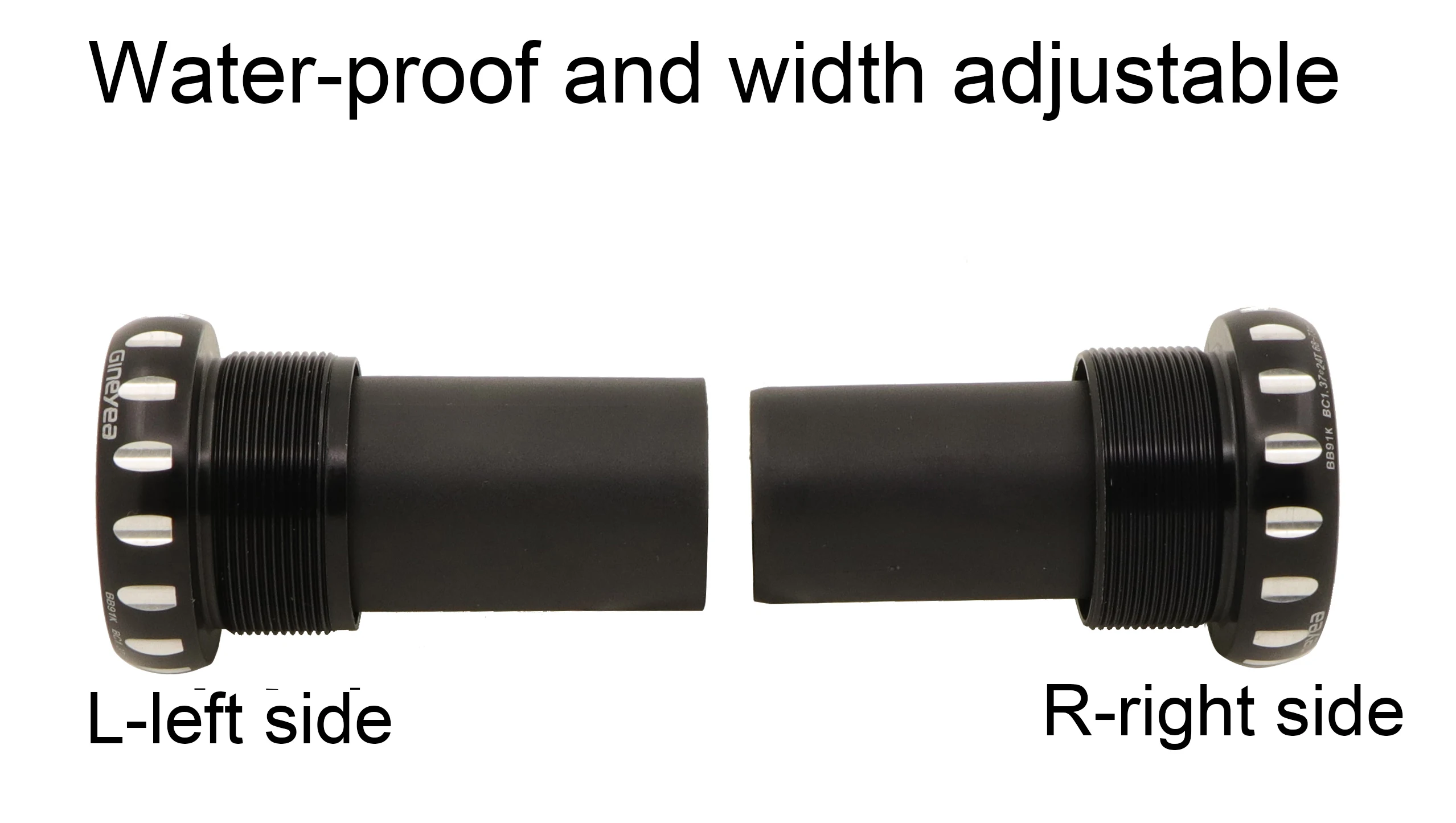

Aluminum alloy body with sealing to help resist dust and water entry.
Includes 1mm, 2mm and 3mm spacers.

Technical Specifications

Item	Specification
Brand	Gineyea
Product Type	Threaded bottom bracket
Frame Standard	BSA / English threaded
Shell Width	68mm / 73mm
Thread Specification	1.37 in × 24 TPI
Bearing Options	Si3N4 silicon nitride ceramic balls or steel balls, depending on selection
Body Material	Aluminum alloy
Spindle Compatibility	for Shimano Hollowtech II 24/24mm; for SRAM GXP 24/22mm; for FSA 19/19mm; DUB; 30mm, with the matching version
DUB Size Label	29mm commercial designation
Key Feature	Choice of bearing type and spindle interface for BSA frames
Compatibility	Spindle Compatibility: for Shimano Hollowtech II 24/24mm; for SRAM GXP 24/22mm; for FSA 19/19mm; DUB; 30mm, with the matching version

Available Versions

Bearing / Spindle Option	Color and Application

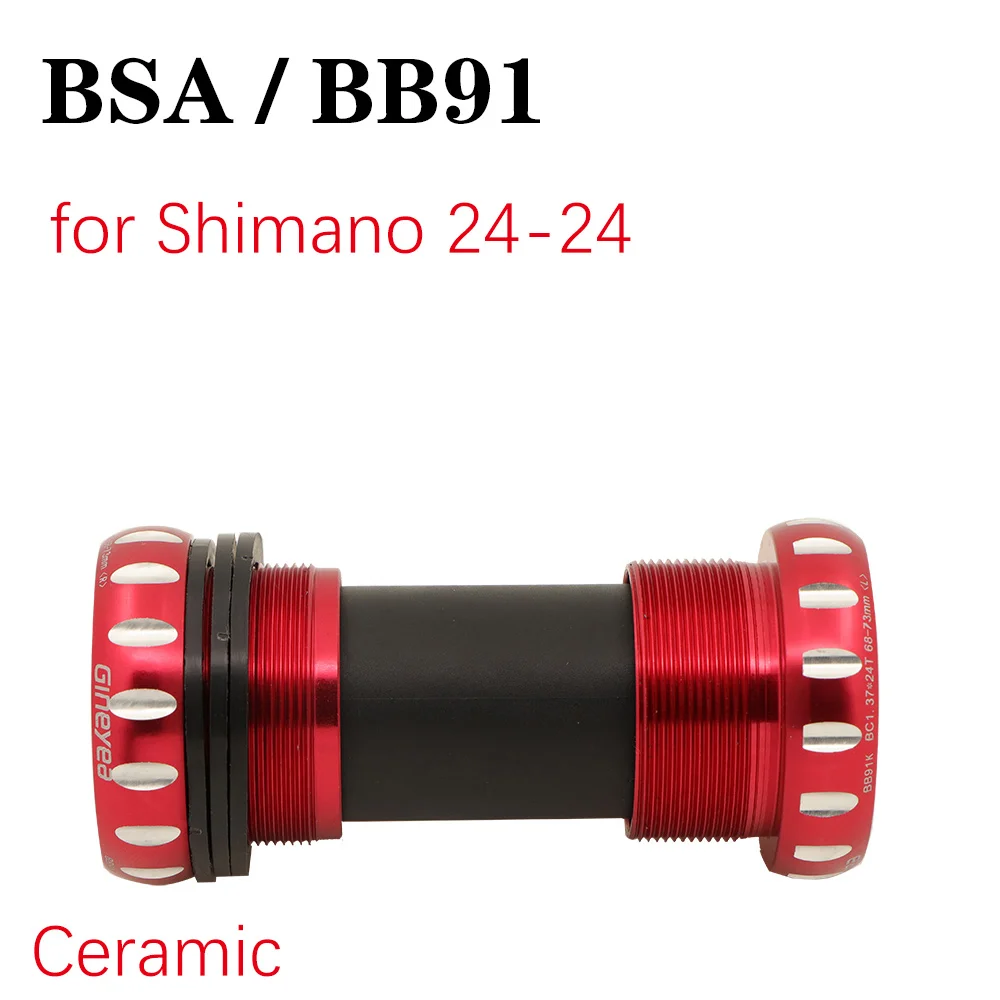

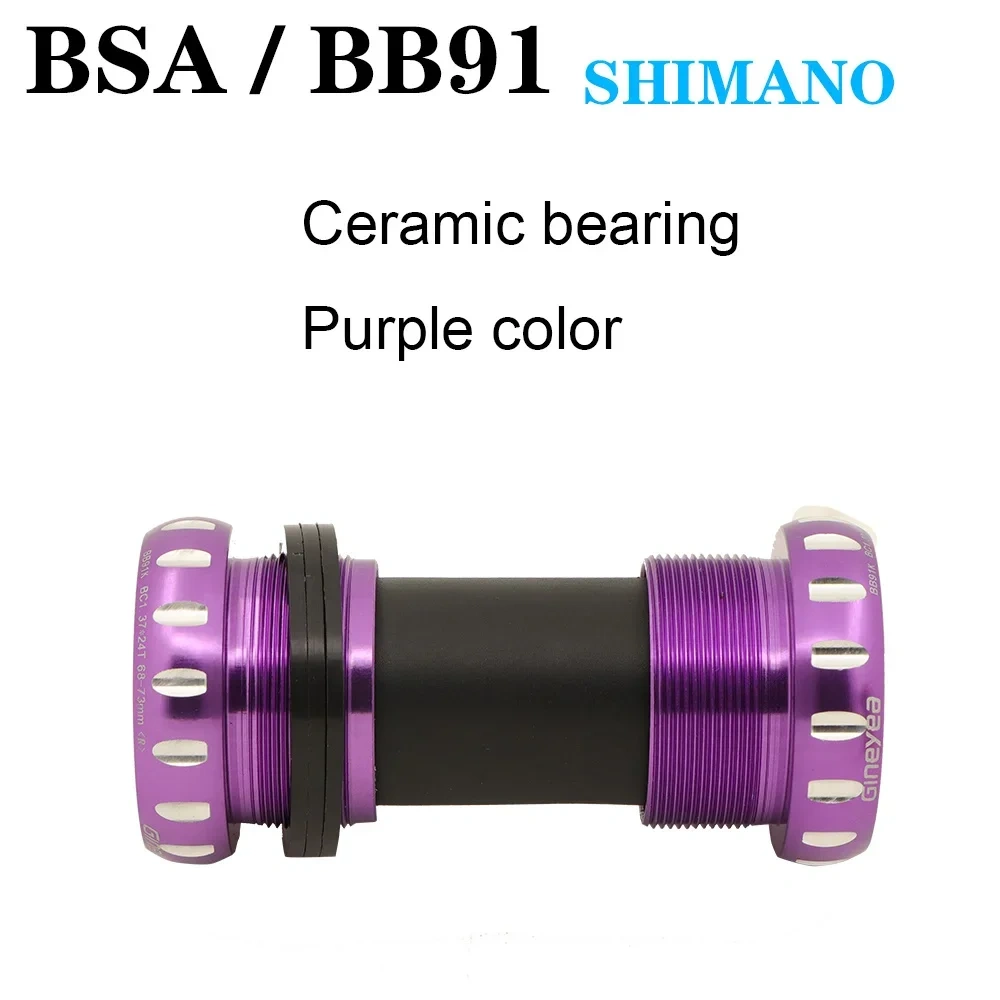

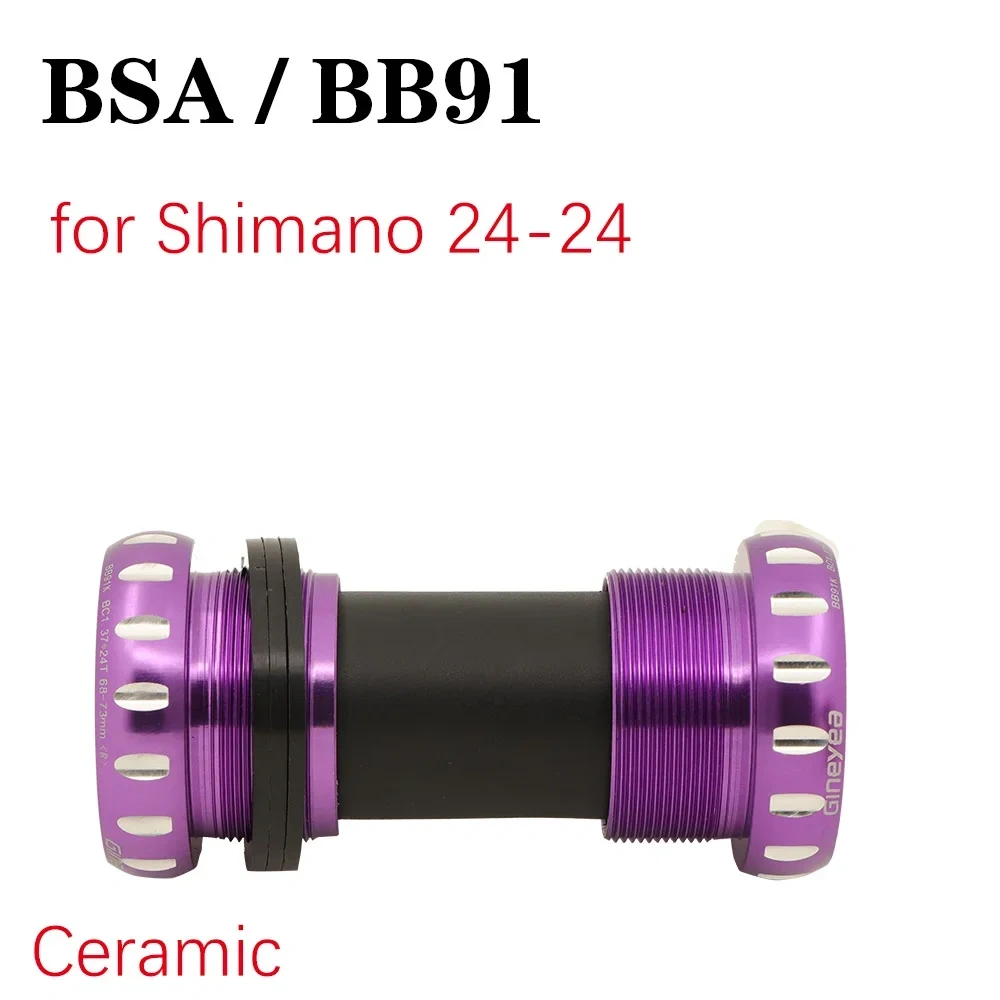

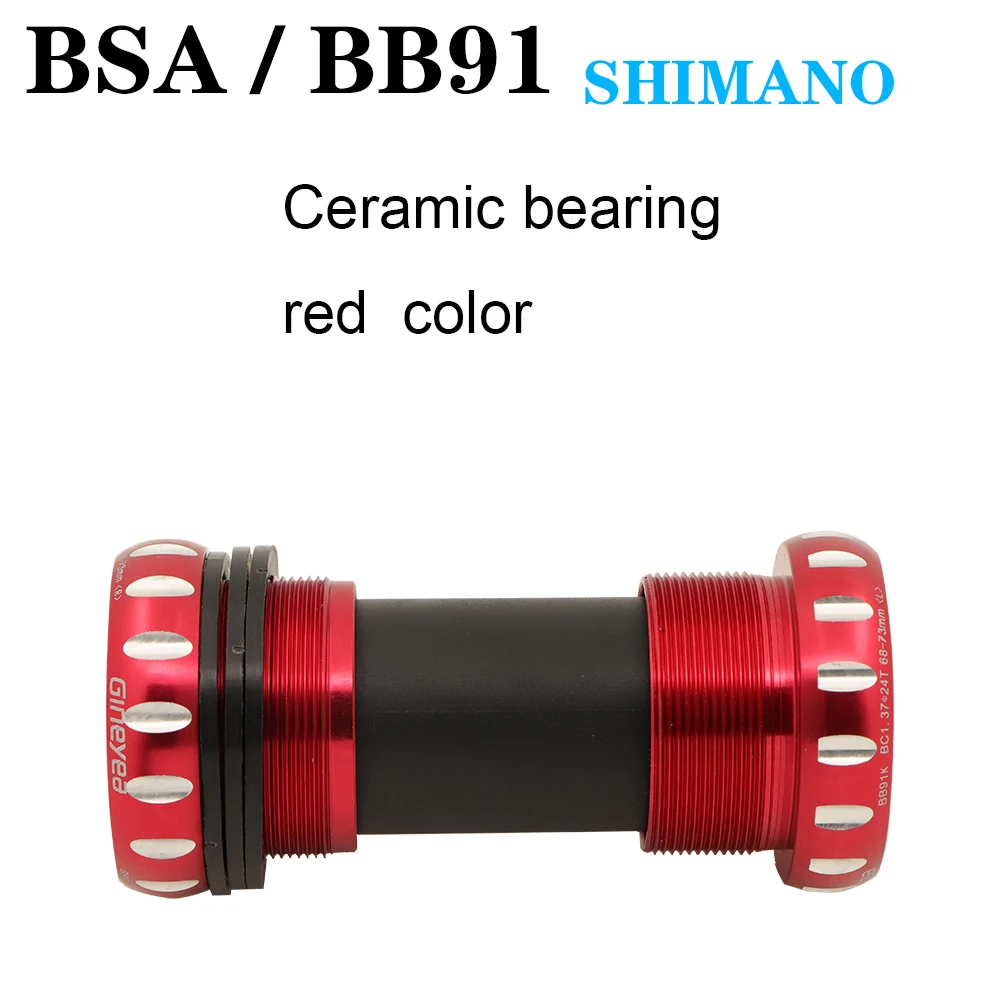

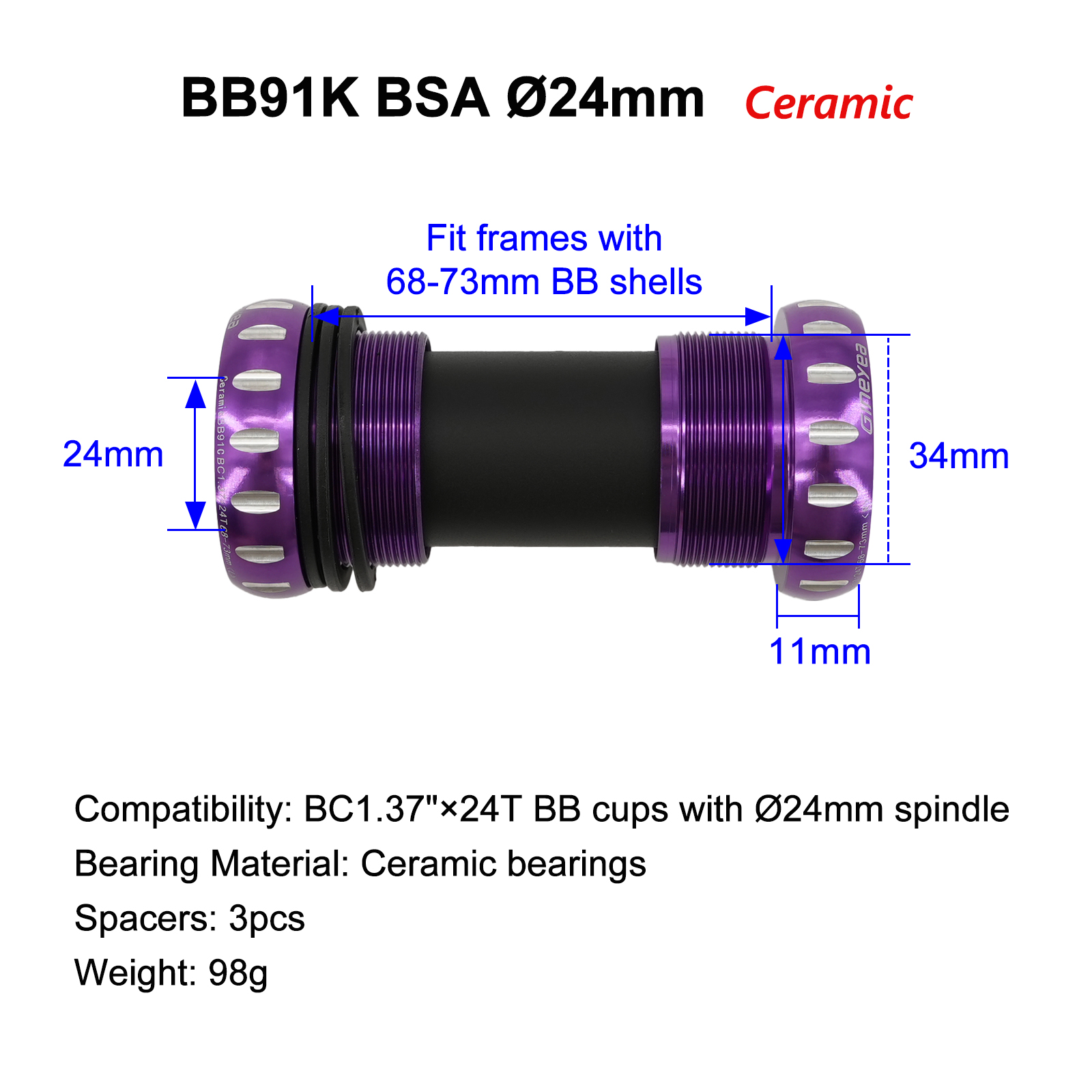

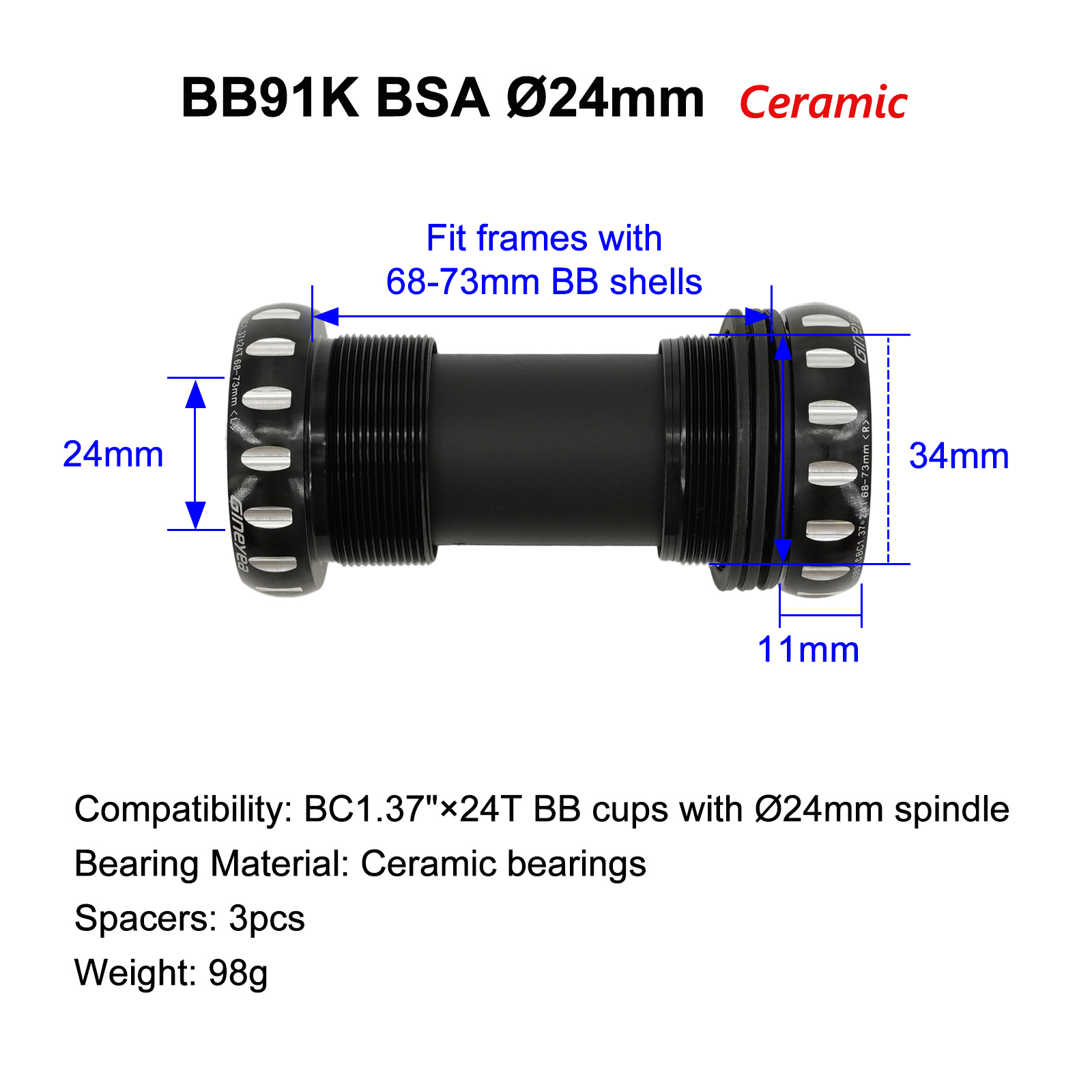

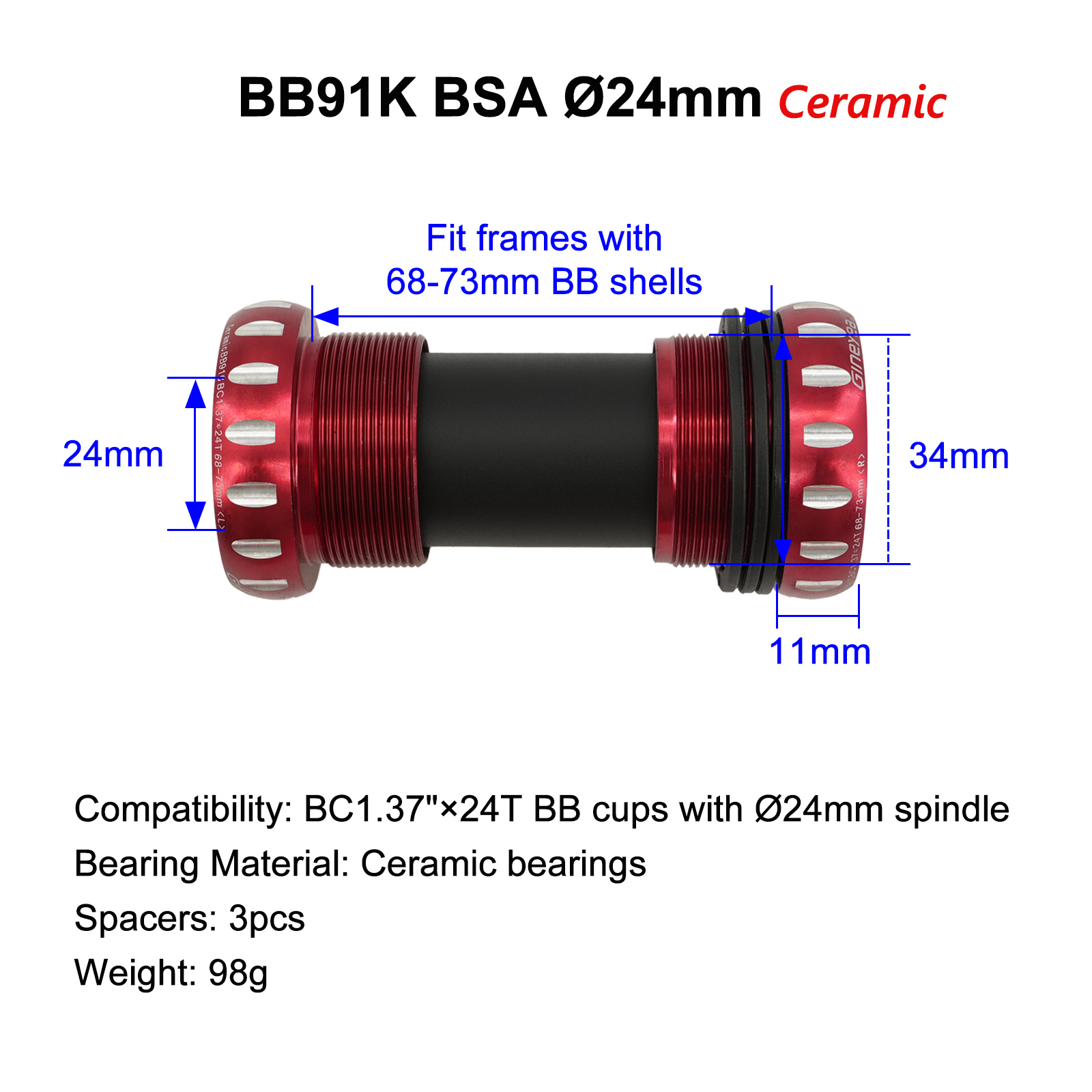

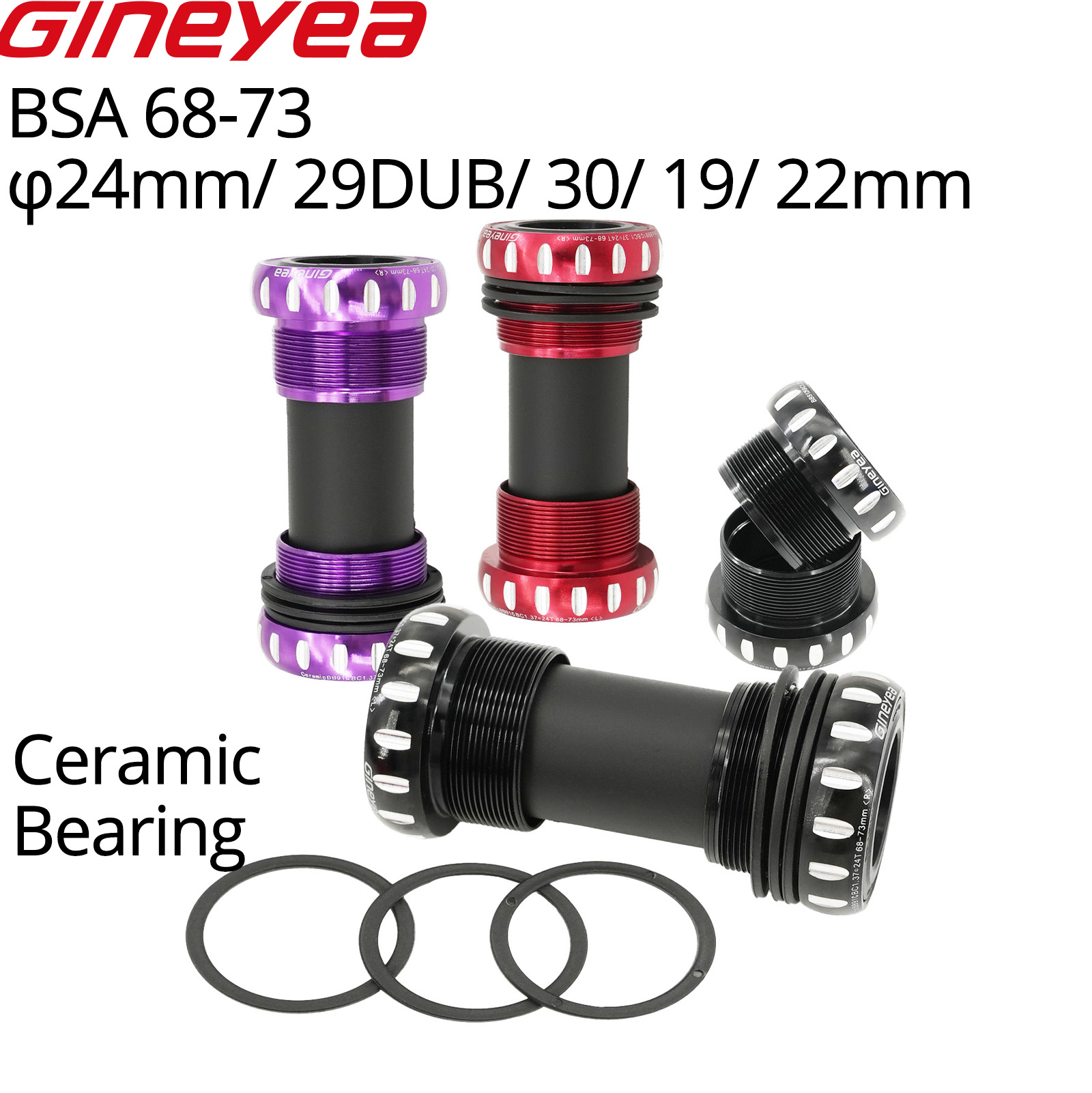

Ceramic 24/24mm	Black, Red or Purple; Matching Shimano Hollowtech II cranksets

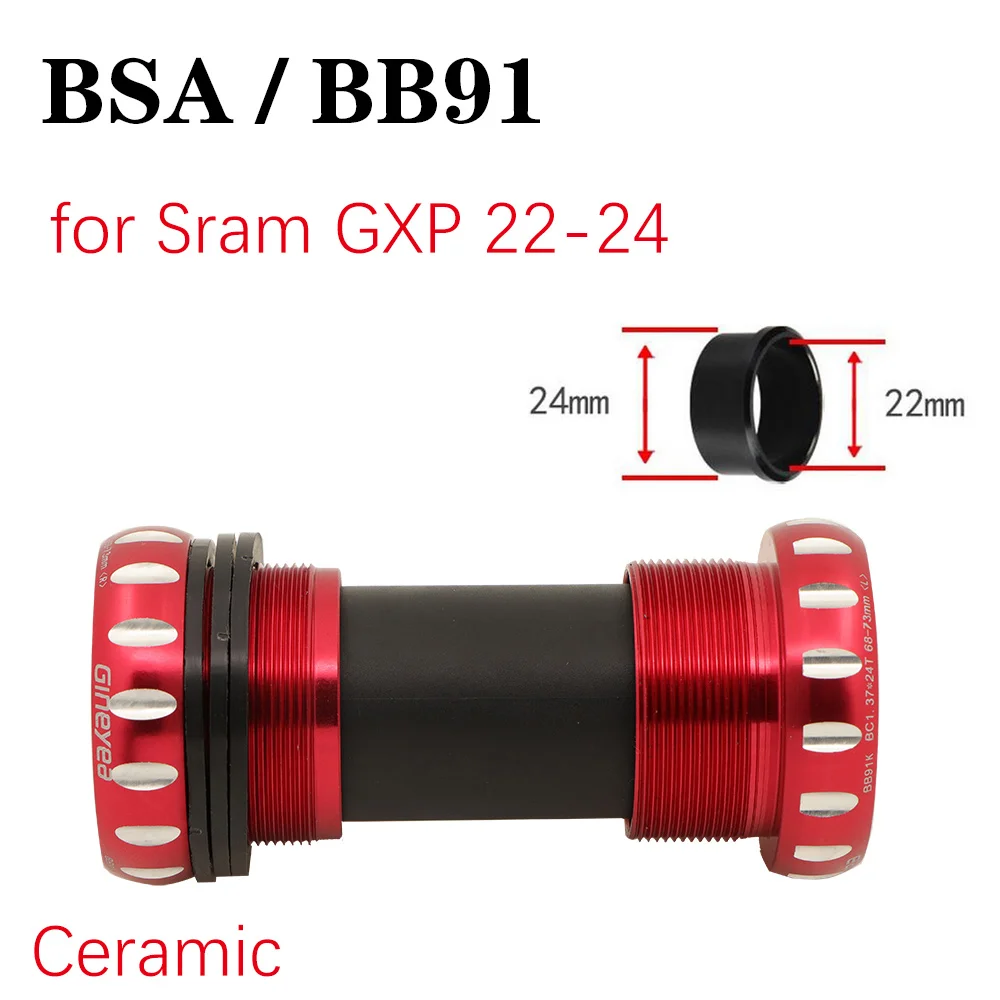

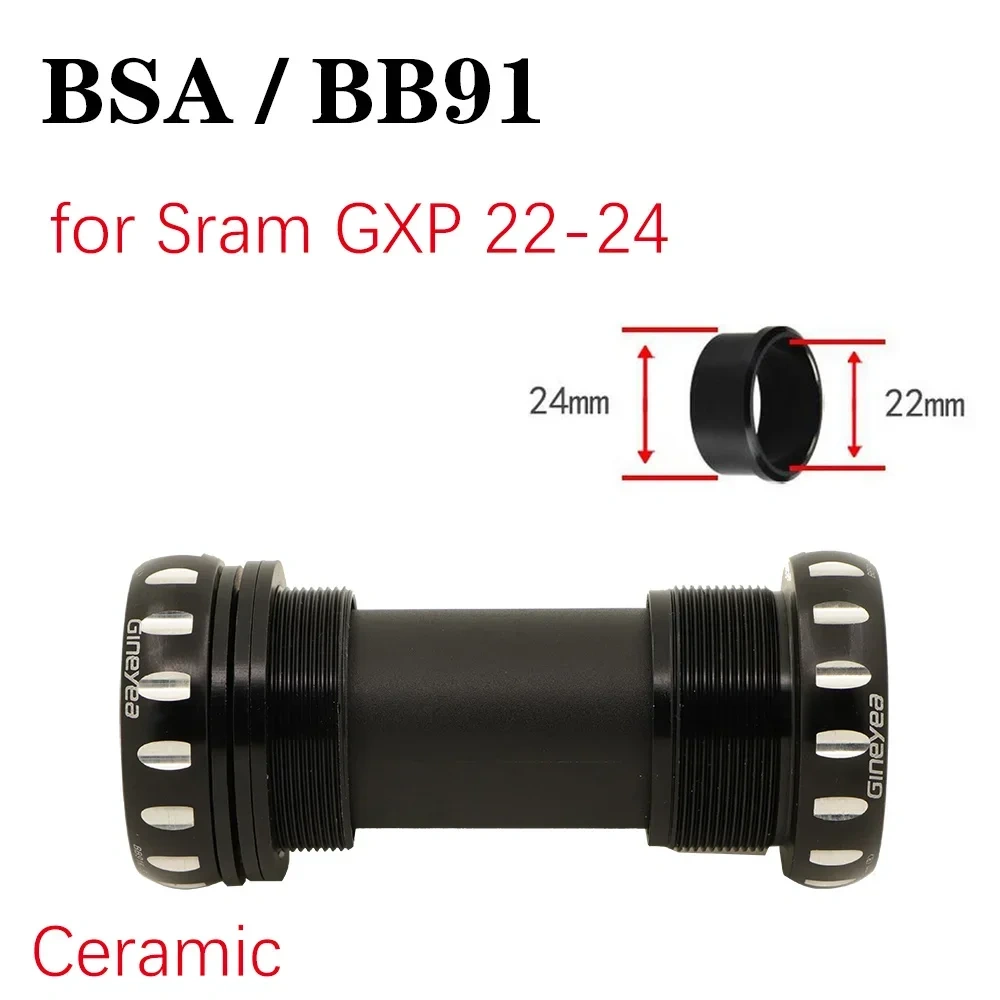

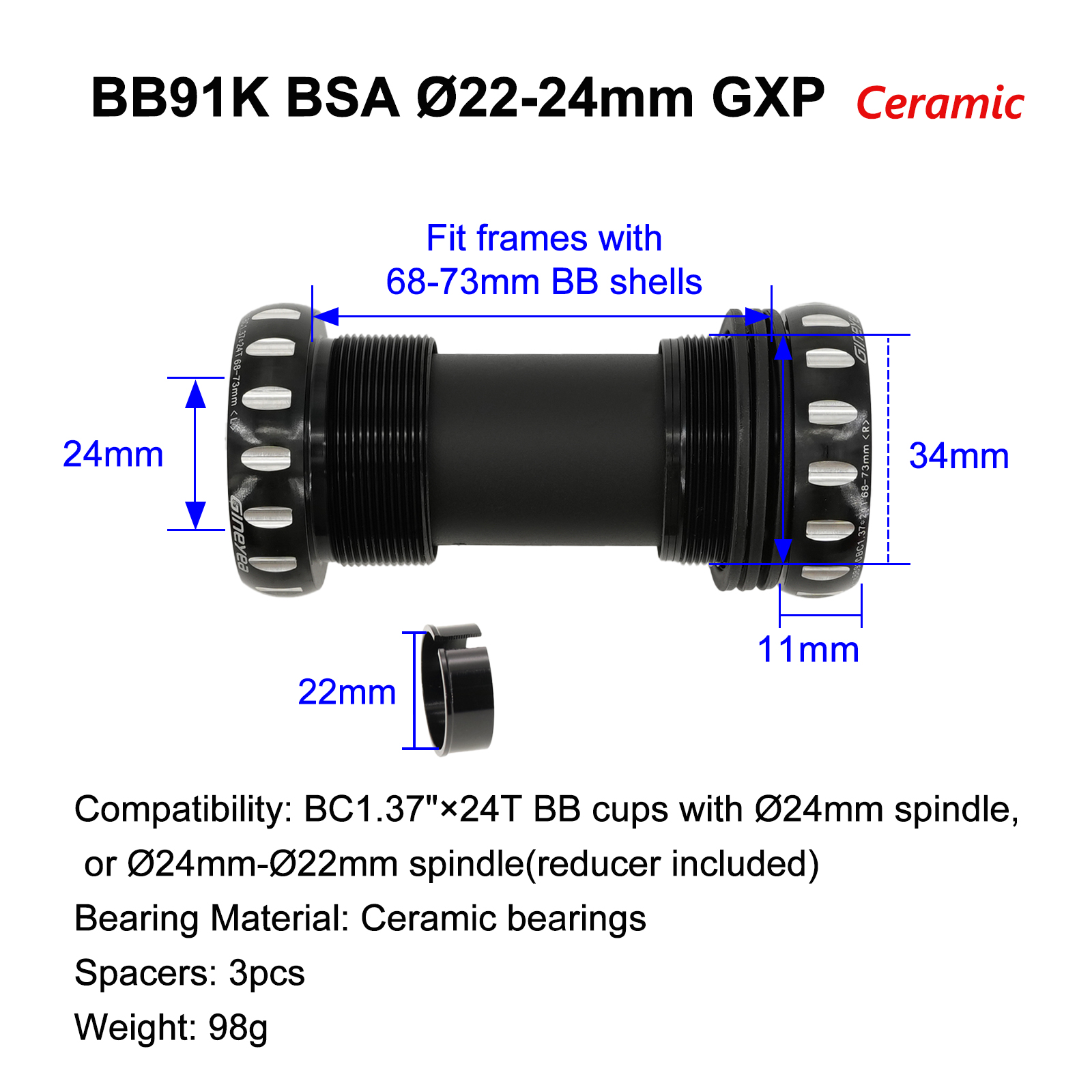

Ceramic 24/22mm	Black; for SRAM GXP

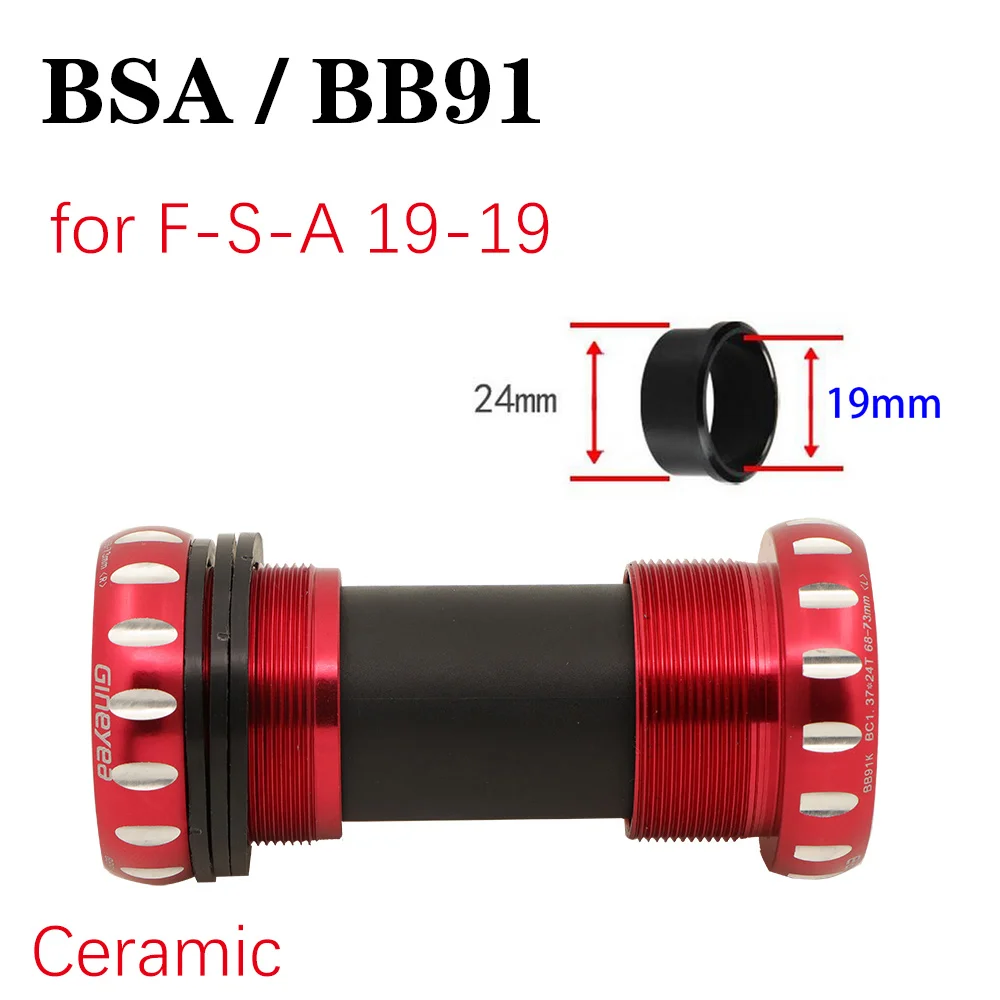

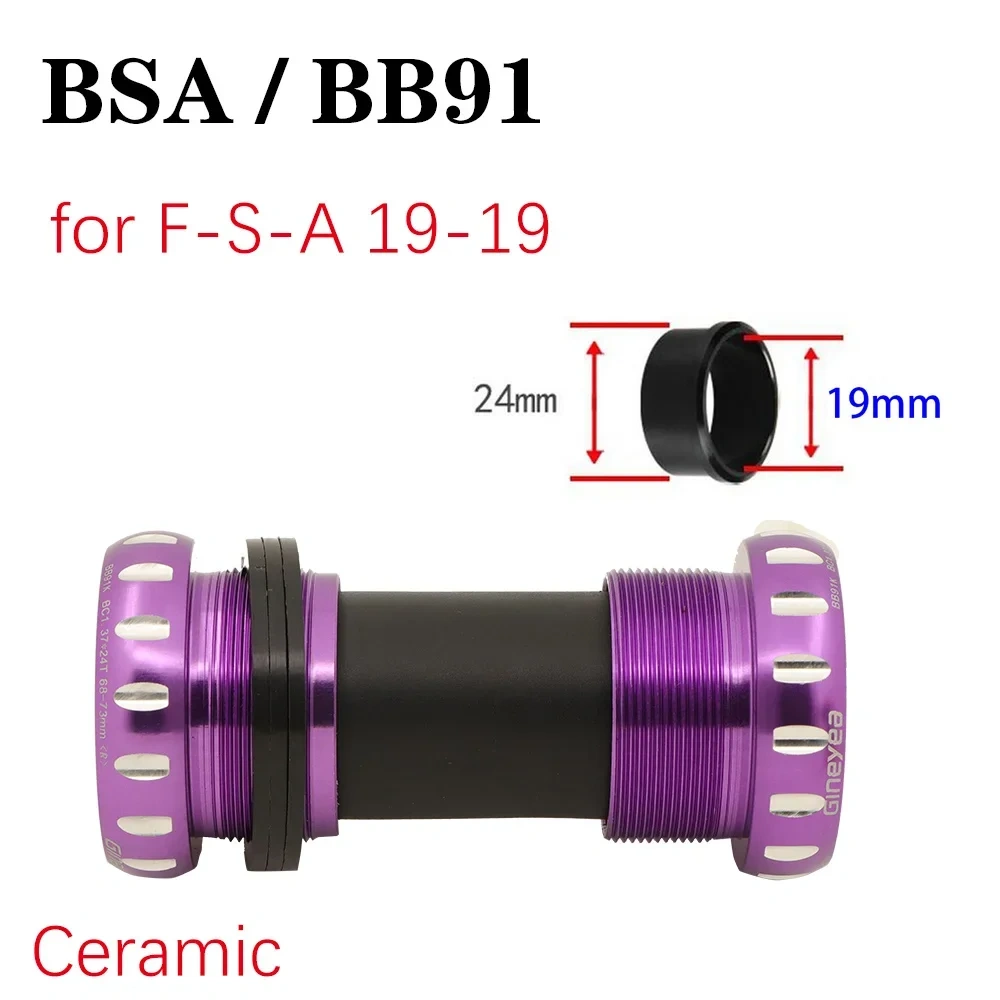

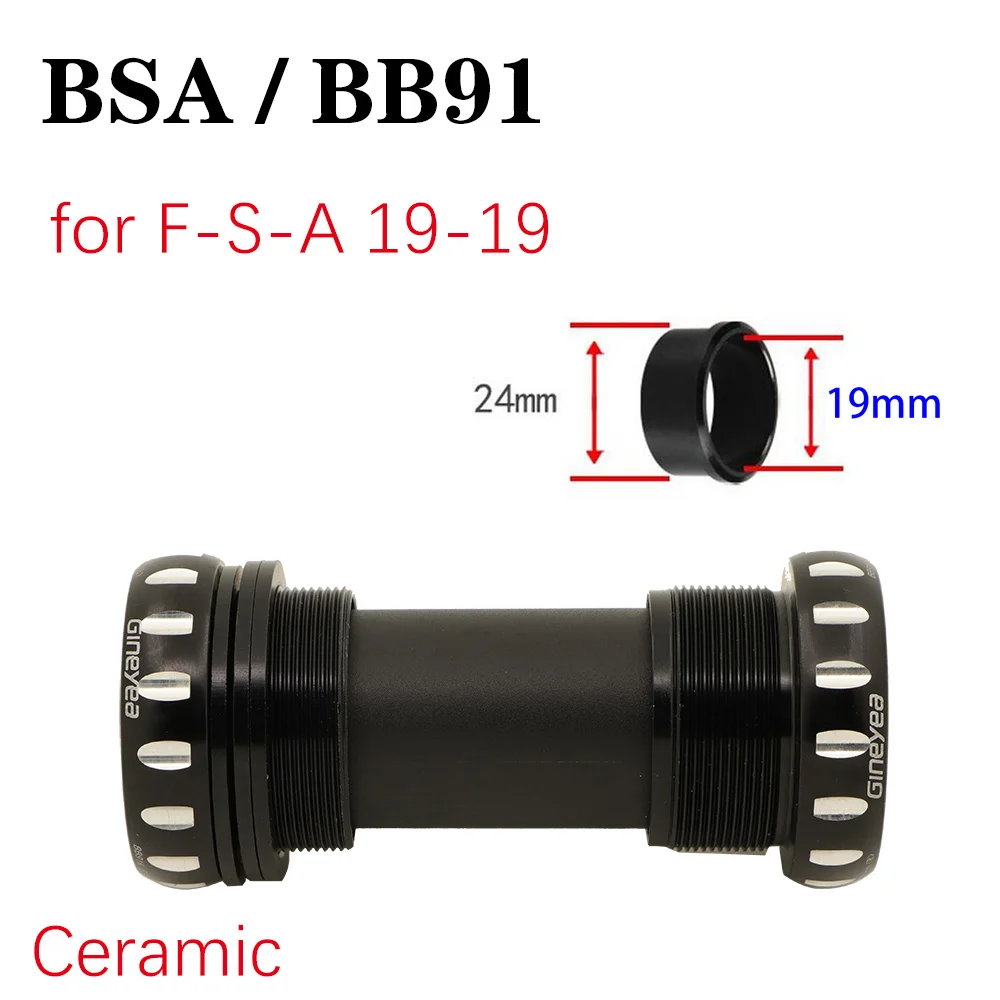

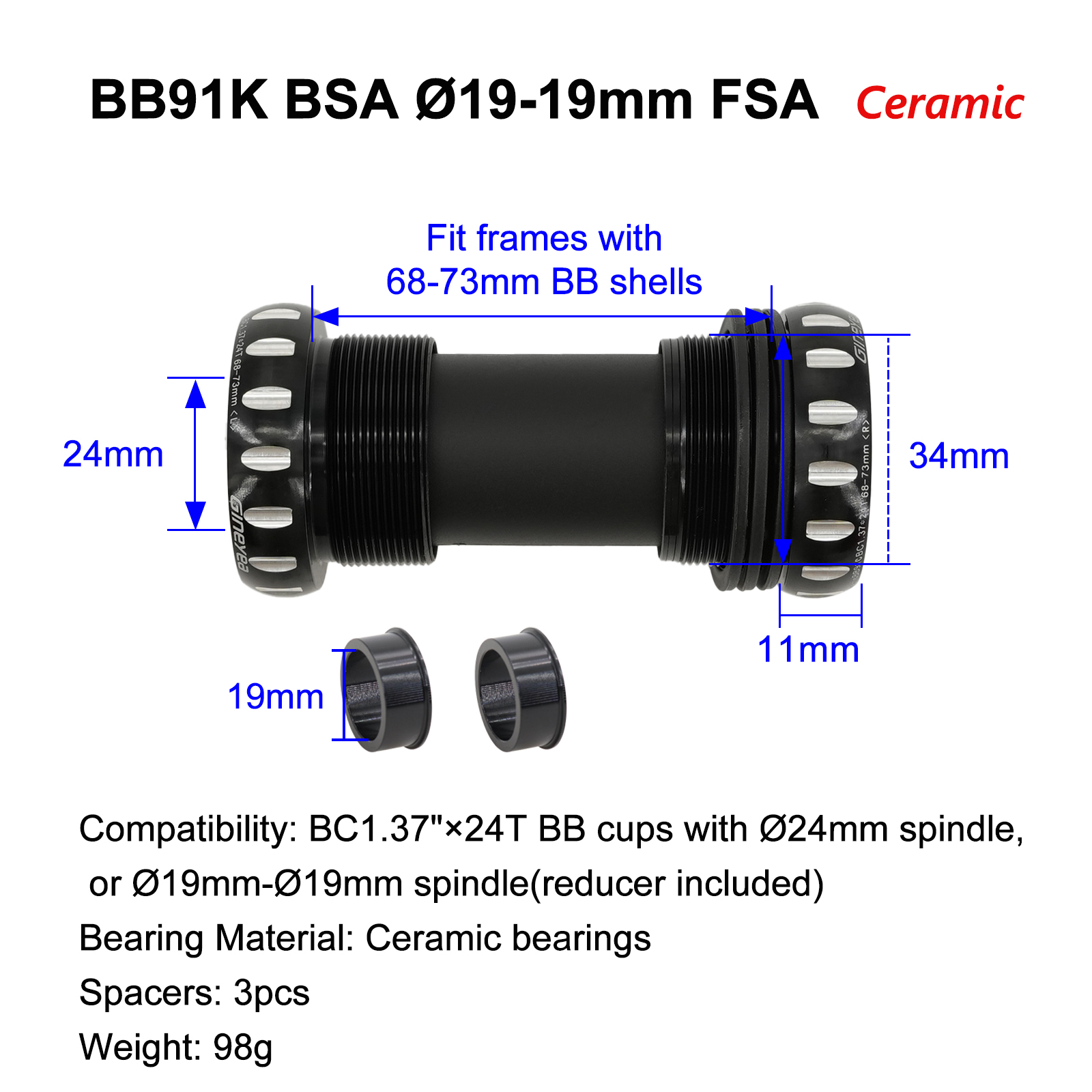

Ceramic 19/19mm	Black; Matching FSA cranksets

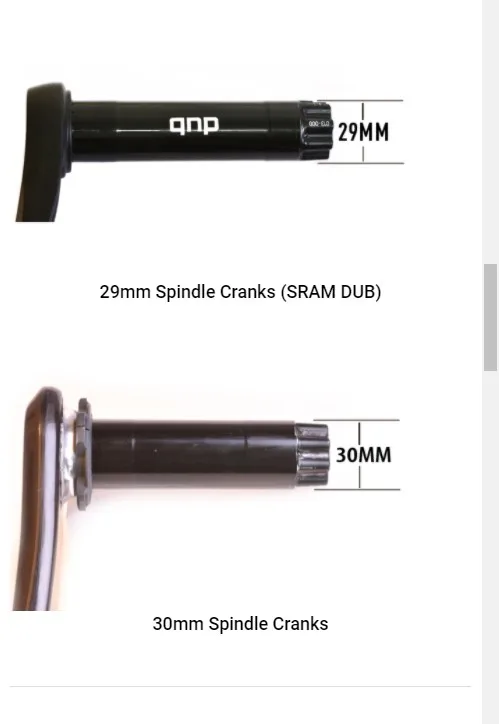

Ceramic DUB29	Black; Matching SRAM DUB cranksets

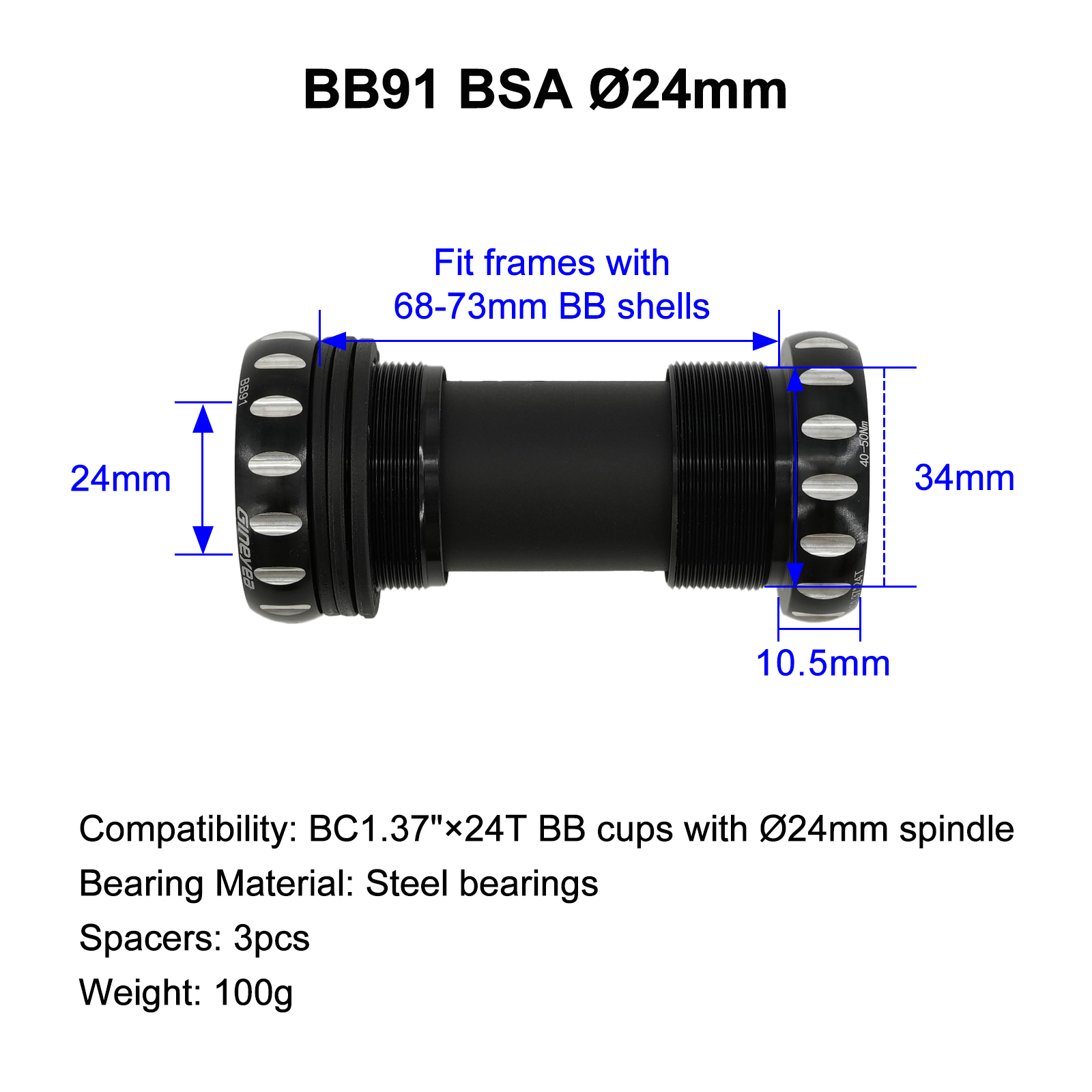

Steel 24/24mm	Black; Matching Shimano Hollowtech II cranksets

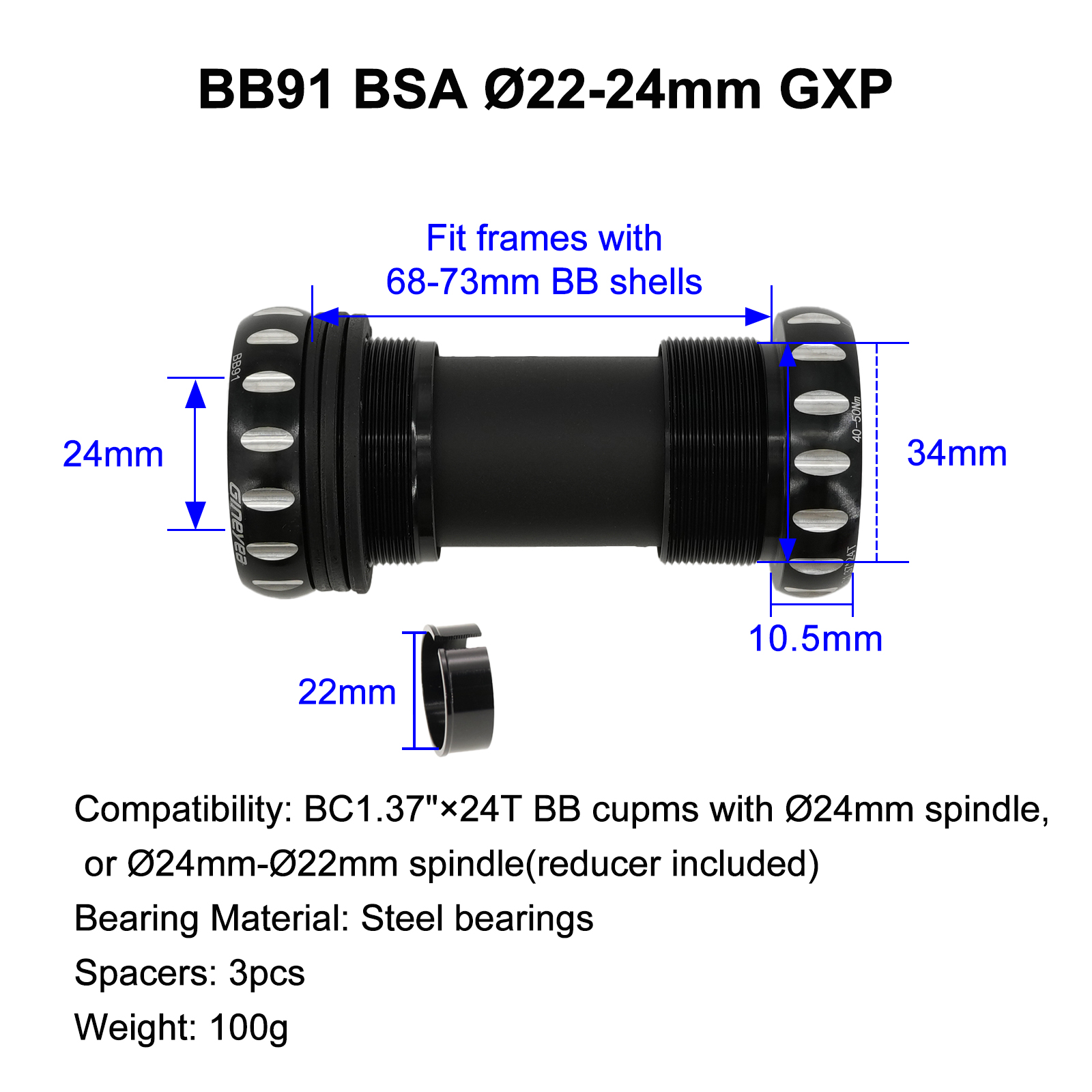

Steel 24/22mm	Black; for SRAM GXP

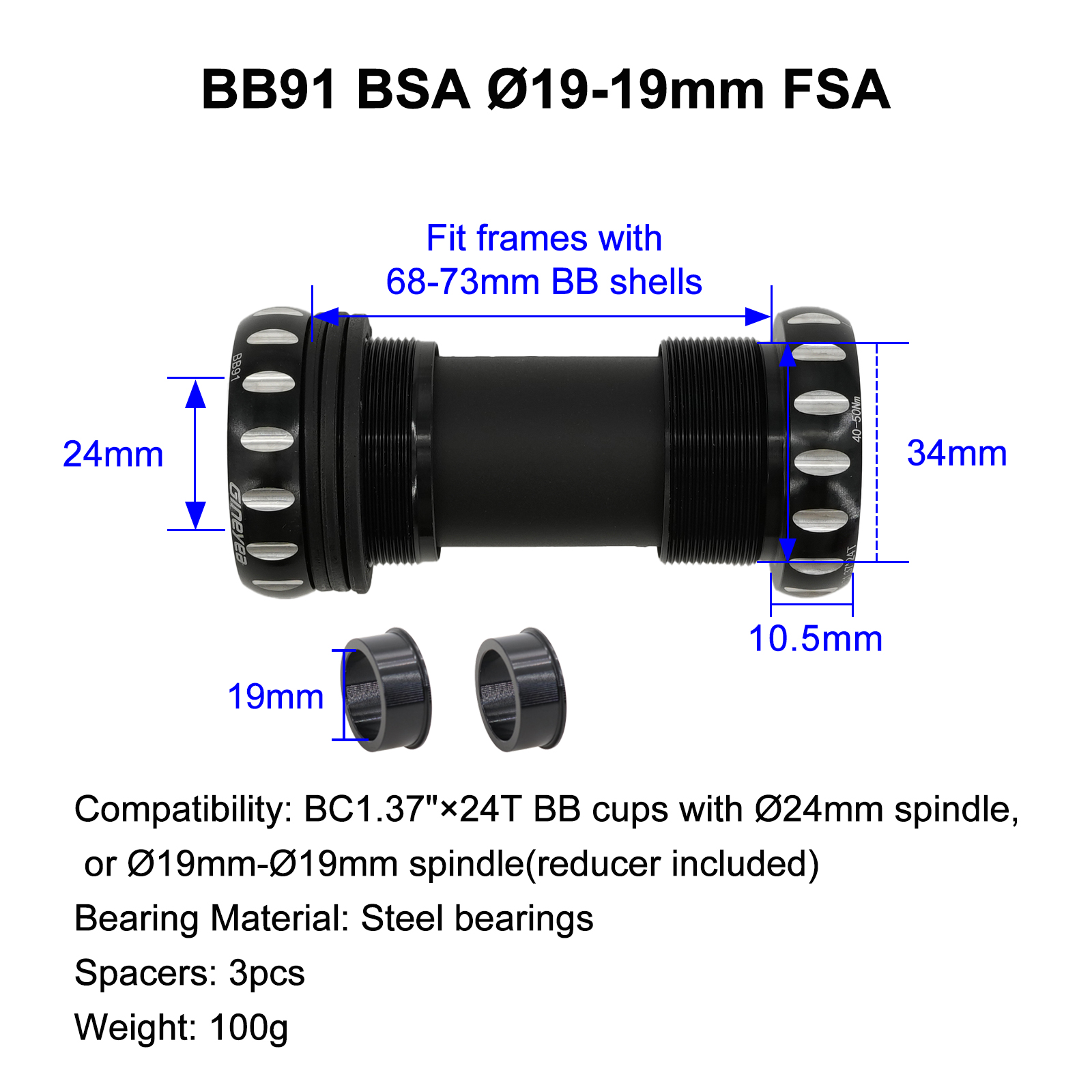

Steel 19/19mm	Black; Matching FSA cranksets

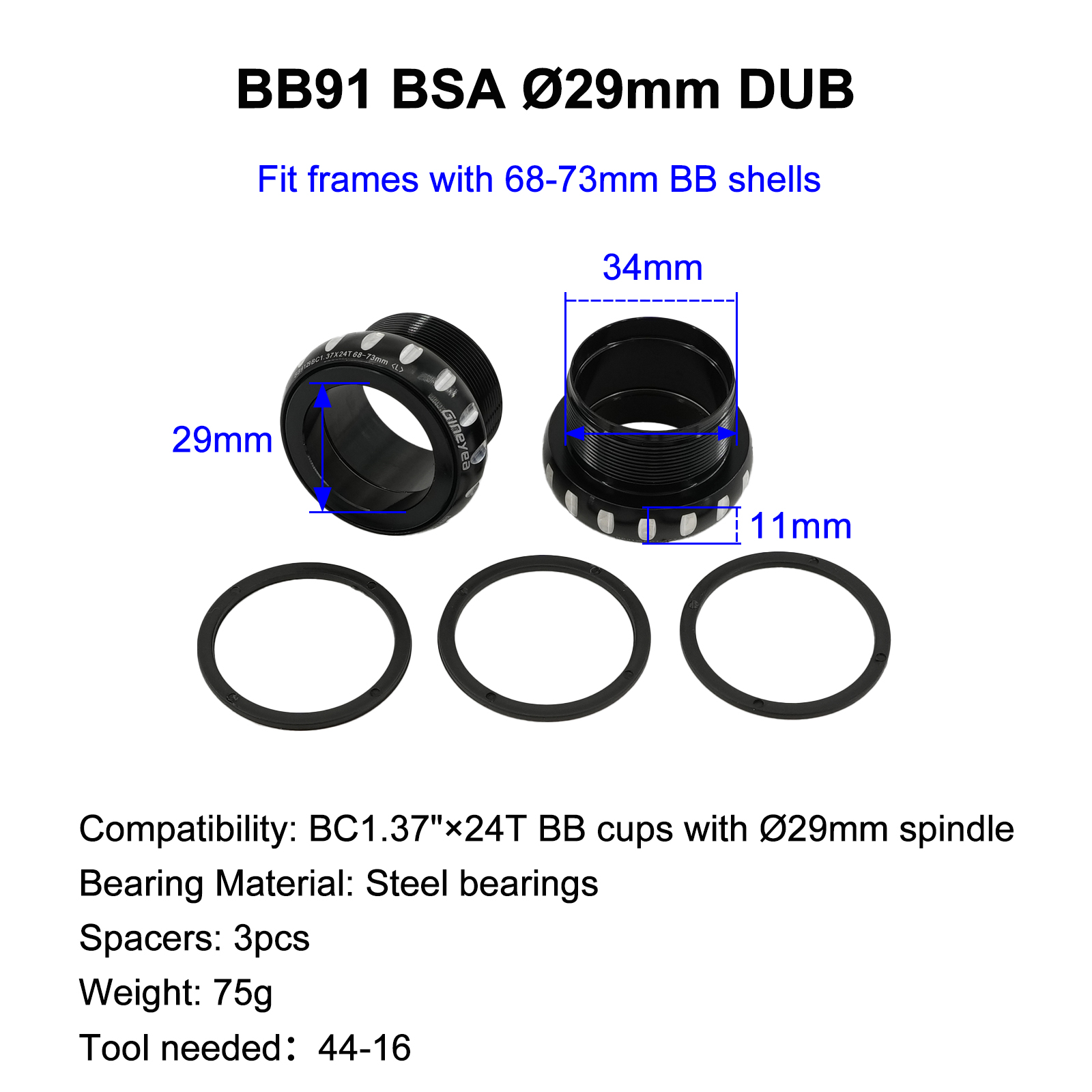

Steel DUB29	Black; Matching SRAM DUB cranksets

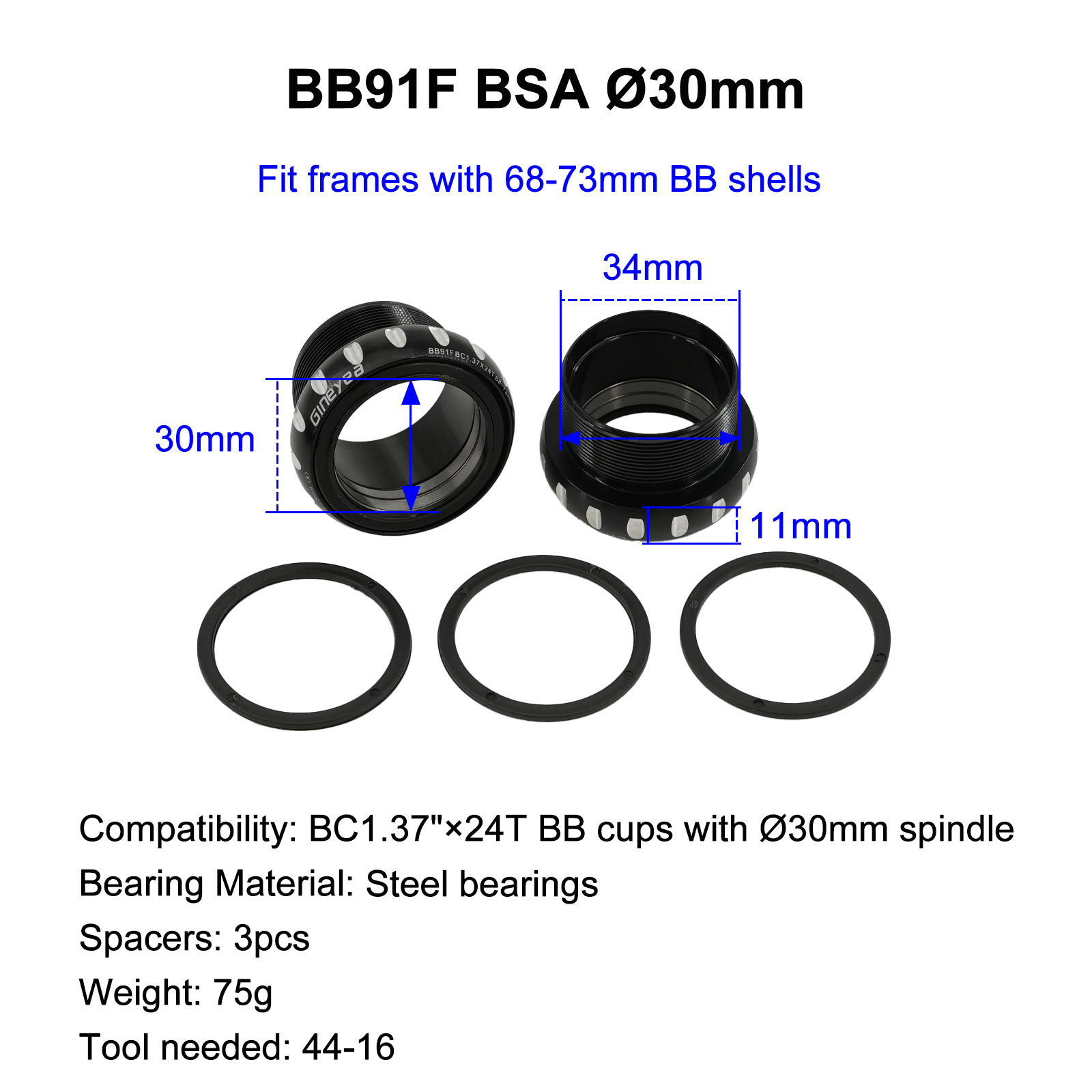

Steel 30mm	Black; matching 30mm spindle cranksets

Compatibility

Select the version that matches both the frame shell and crank spindle. The 24/24mm, 24/22mm, 19/19mm, DUB and 30mm options are different versions, not one universal bottom bracket. Verify spindle length and the required spacer arrangement for the exact crankset.

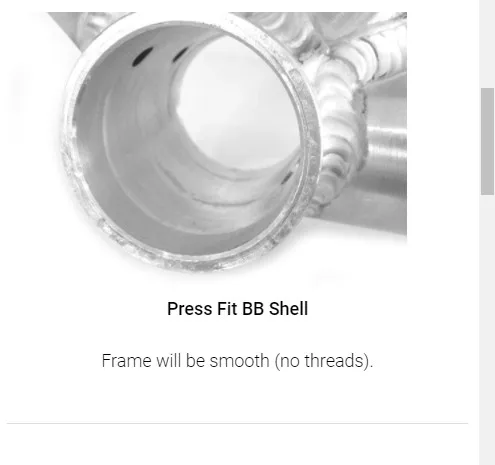

For BSA threaded frames only. Not for BB86, BB91, BB92, BB30, PF30 or BB386 press-fit frames. The 30mm option describes the crank spindle diameter, not BB30 frame compatibility.

Package Includes

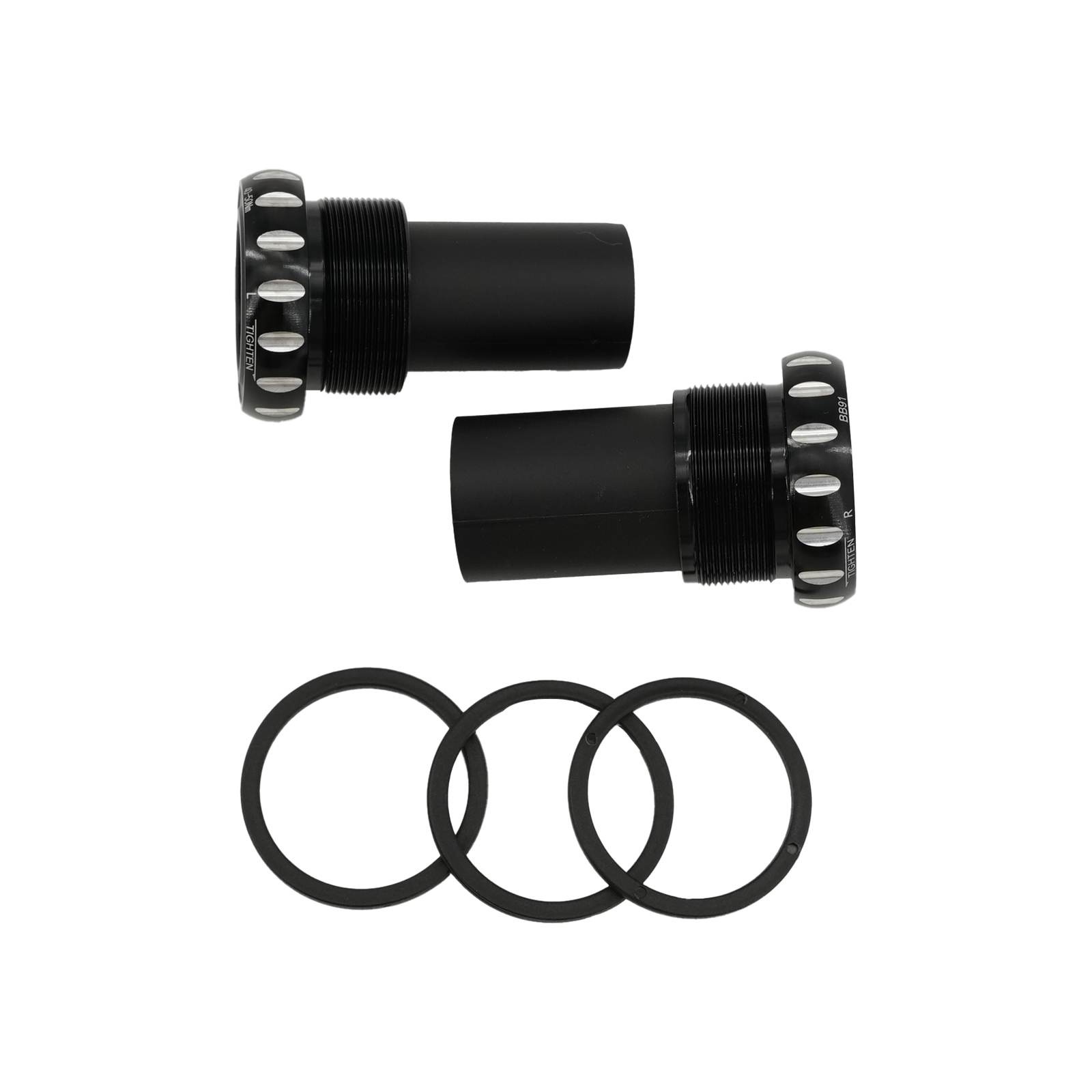

One Gineyea bottom bracket in the selected bearing and spindle version.
Three spacers: one each of 1mm, 2mm and 3mm.

Use the spacer configuration required by the frame and crankset; not every installation uses all supplied spacers.
