Technical Specifications

The 290 coil shocks pack in many features found on higher end shocks.Equipped with a preload adjustable coil spring, 290 also use a patented foam insert to keep the air and oil separate. Low cost does not mean low value.

ExaForm's 290 rear shocks are the perfect enhancement to any value- oriented or entry level off road or youth bicycle.

MODEL: Kindshock Exa Form 290

ADJUSTMENT: rebound damper cannot adjustable

WEIGHT: 300-800g

USE: XC / recreational / youth/MTB

SPRING TYPE: Coil

DAMPING: Hydraulic

MATERIAL: CNC alloy

FINISH: Anodized

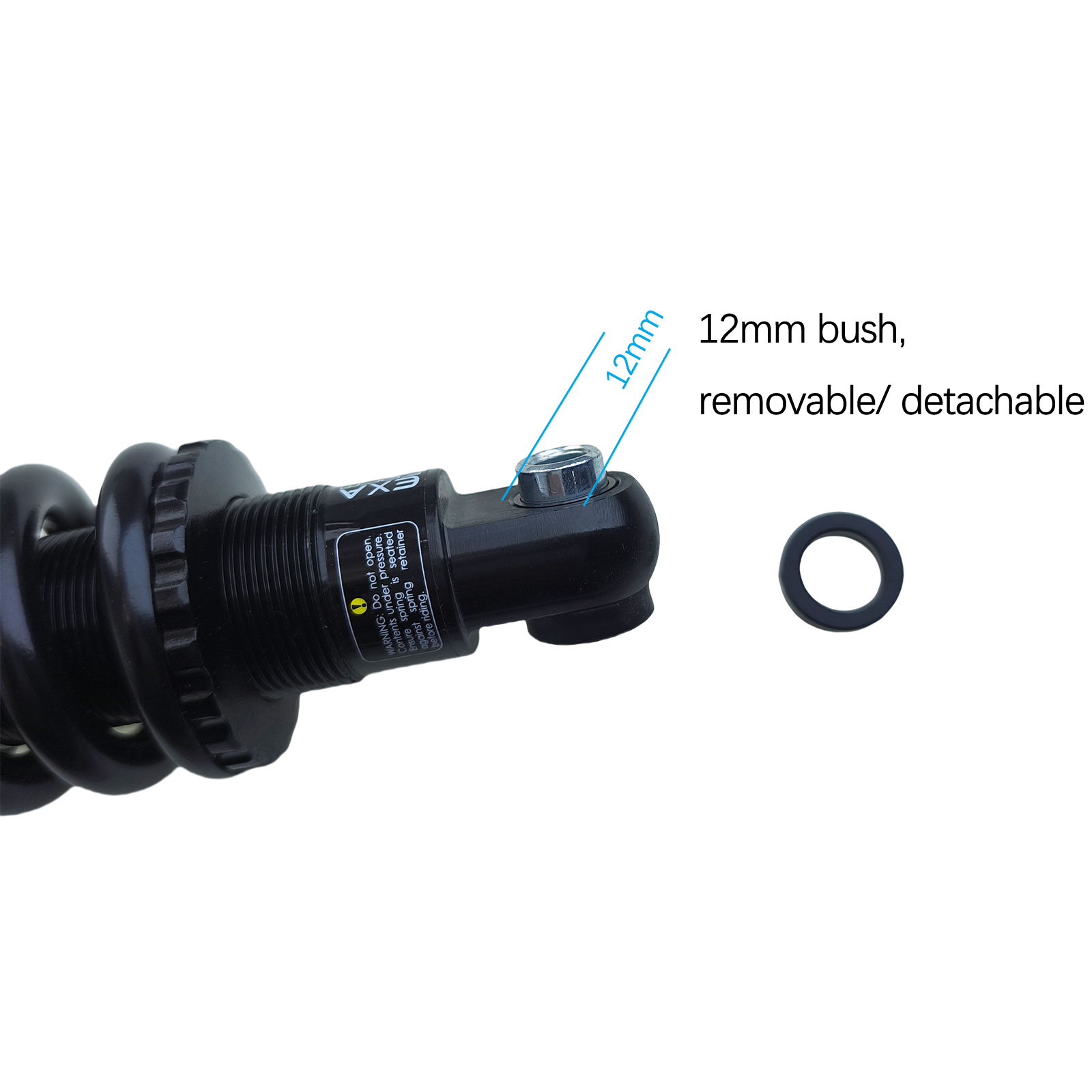

BUSHING: spherical bearing

COLOR: Black

Install angle: 70 degree

Max out diameter: 46mm

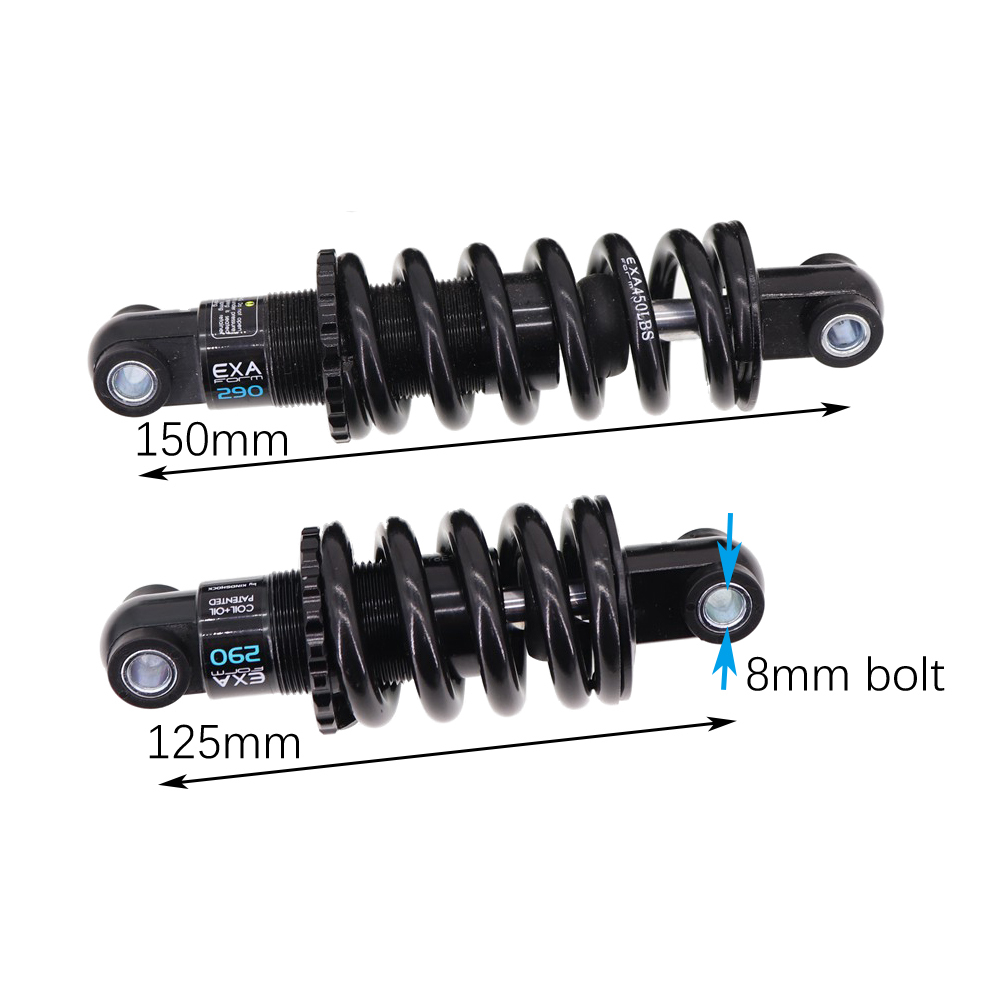

LENGTH / TRAVEL:(eye to eye, hole center to hole center)

125 / 18mm

150 / 30mm

Bolt diameter: 8mm

Body diamter 45.5mm

LBS means, such as the 1000lbs means 1000LBS force and let the spring compress 1 inch.

Recommended LBS:

Spring Pound Rates/ Rider weight:

Rider weight-KG, Suggestted Spring LBS

35kg, 400LBS to 650LBS

45kg, 450LBS to 750LBS

55kg, 600LBS to 850LBS

65kg, 650LBS to 950LBS

75kg, 800LBS to 1000LBS

85kg, 850LBS to 1150LBS

95kg, 1000LBS to 1250LBS

105kg, 1050LBS to 1500LBS

Size and LBS we offer:

125mm length-18mm travel,

150mm length-30mm travel,

100lbs-24x24

150lbs-24x24

200lbs-24x24

250lbs-24x24

300lbs-24x24

350lbs-24x24

450lbs-24x24

550lbs-24x24

650lbs-24x24

750lbs-24x24

850lbs-24x24

1000lbs-24x24

1250lbs-24x24

1500lbs-24x24

1800lbs-24x24

2000lbs-24x24

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.
