Elita One Carbon Seat post Setback 5mm/25mm MTB/Road Bike Seatpost 27.2/30.9/31.6mm Carbon Fiber Half Shell Master

Elita One Carbon Seat post Setback 5mm/25mm MTB/Road Bike Seatpost 27.2/30.9/31.6mm Carbon Fiber Half Shell Master

elitaone Master series Carbon Seat post Setback 5/25mm Carbon fiber half shell

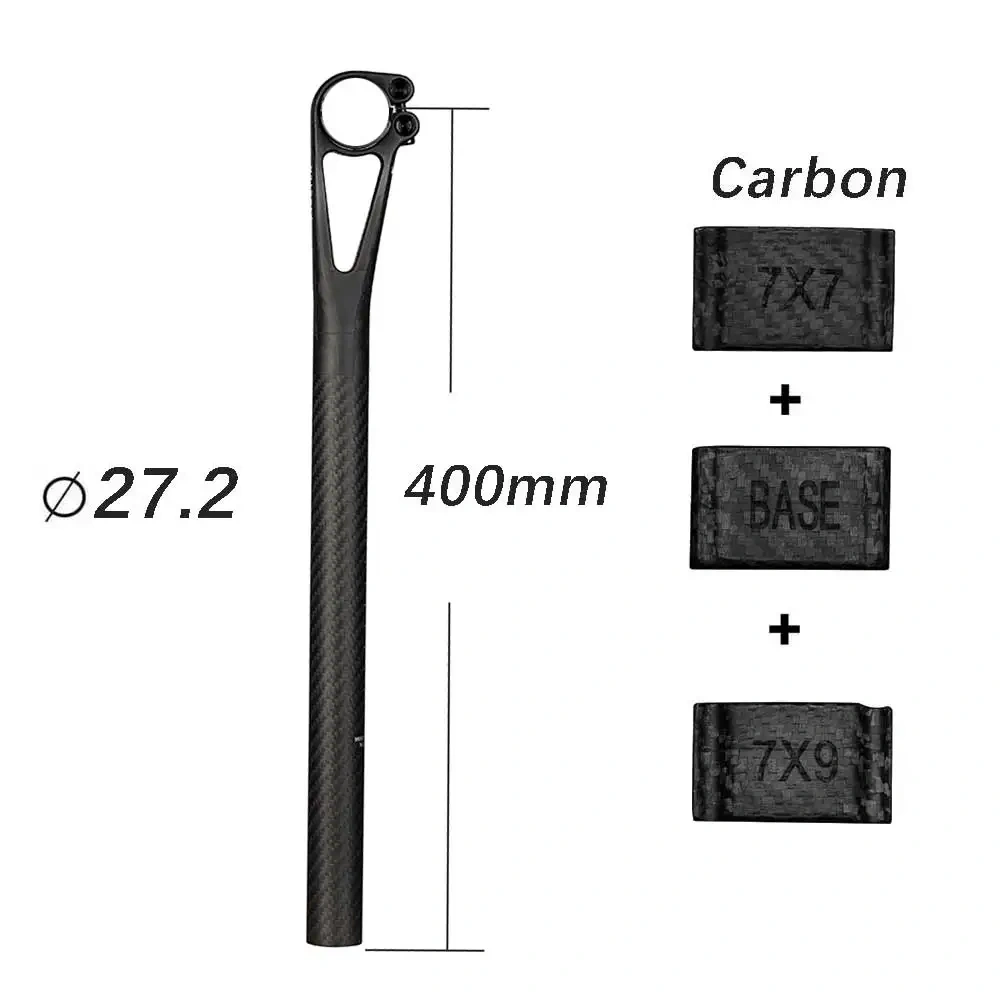

Carbon Half Shell Installation

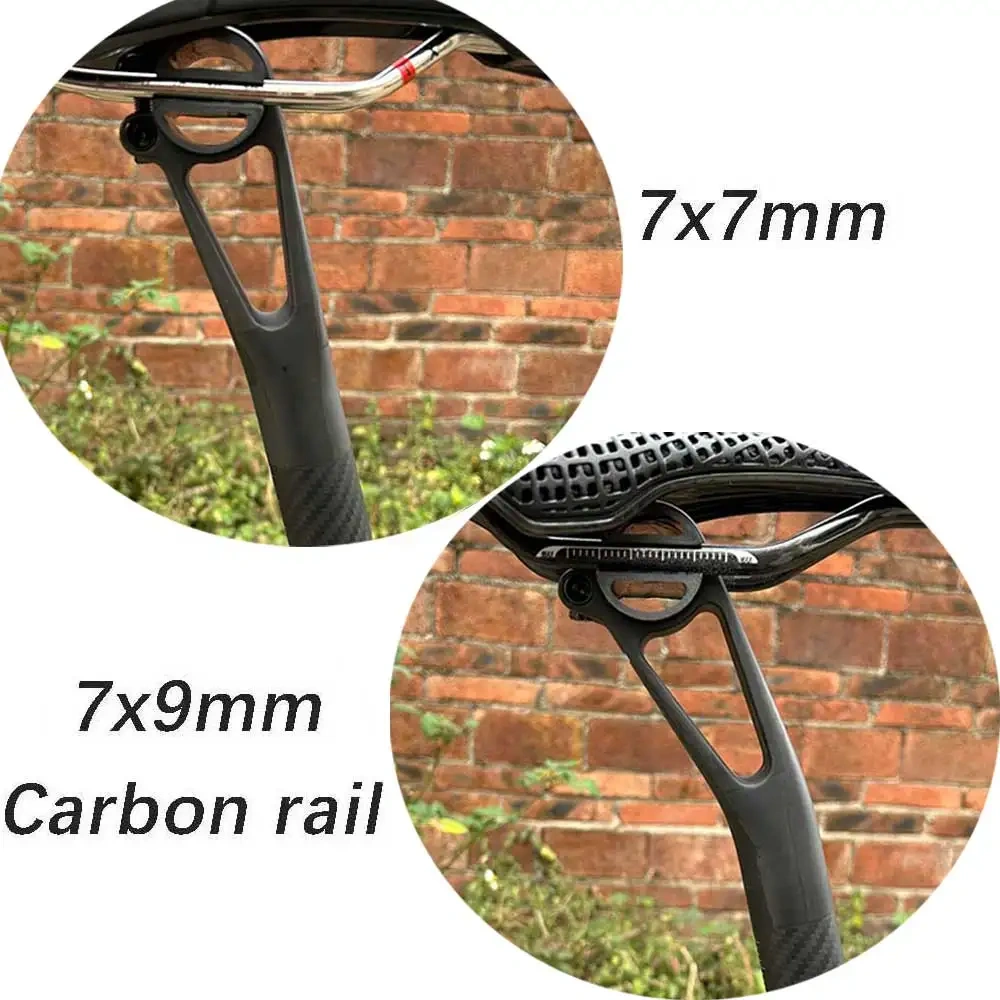

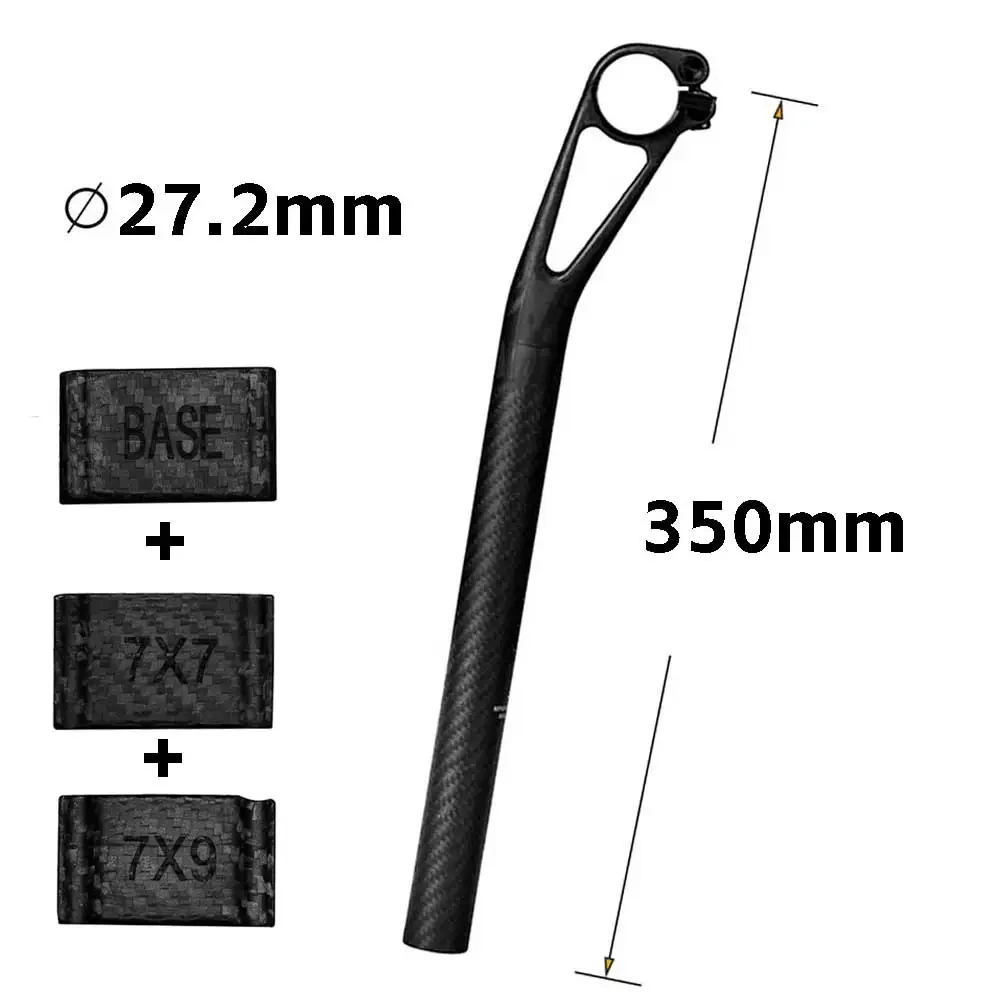

To install a 7mm round rail saddle: first install the Carbon Half Shell 7X7, then install the Carbon Half Shell BASE

To install a 7x9mm oval carbon rail saddle: first install the Carbon Half Shell 7X9, then install the Carbon Half Shell BASE

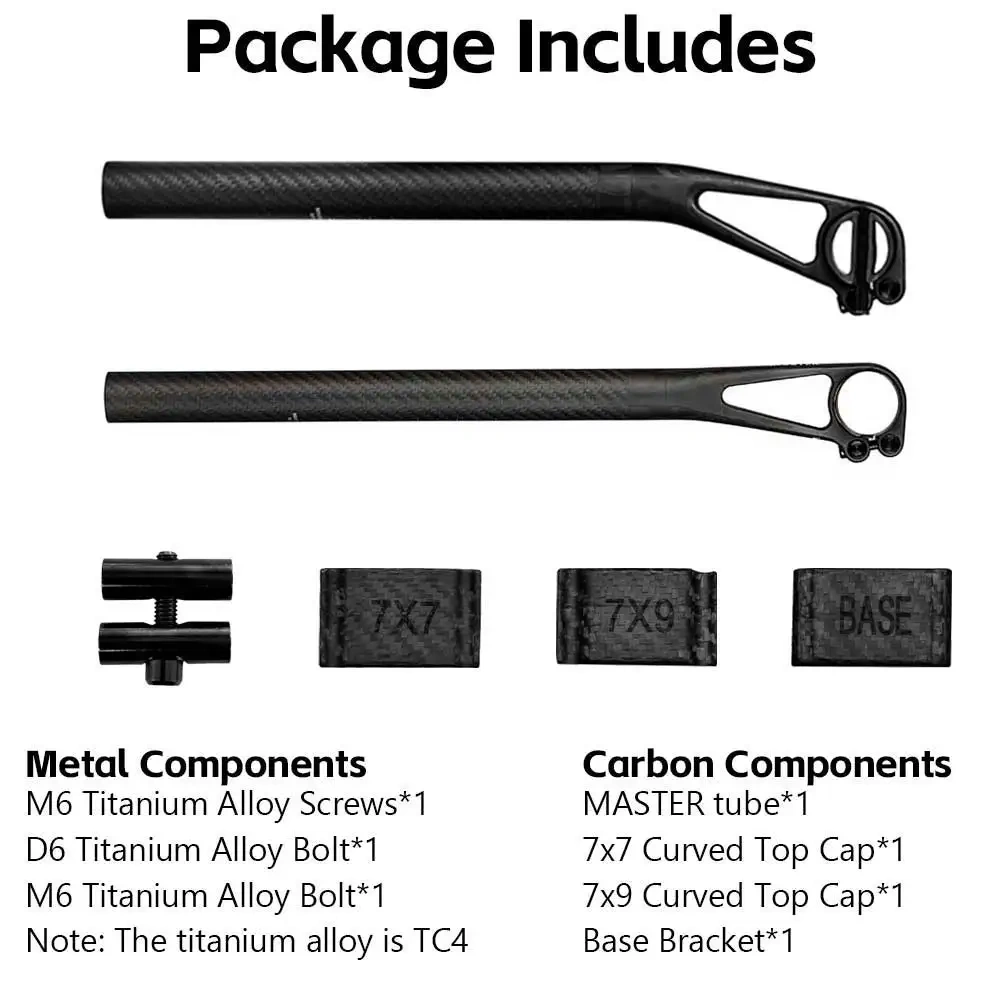

Clamp diameter： 7mm or 7x9mm oval(carbon

half-shells for both included)

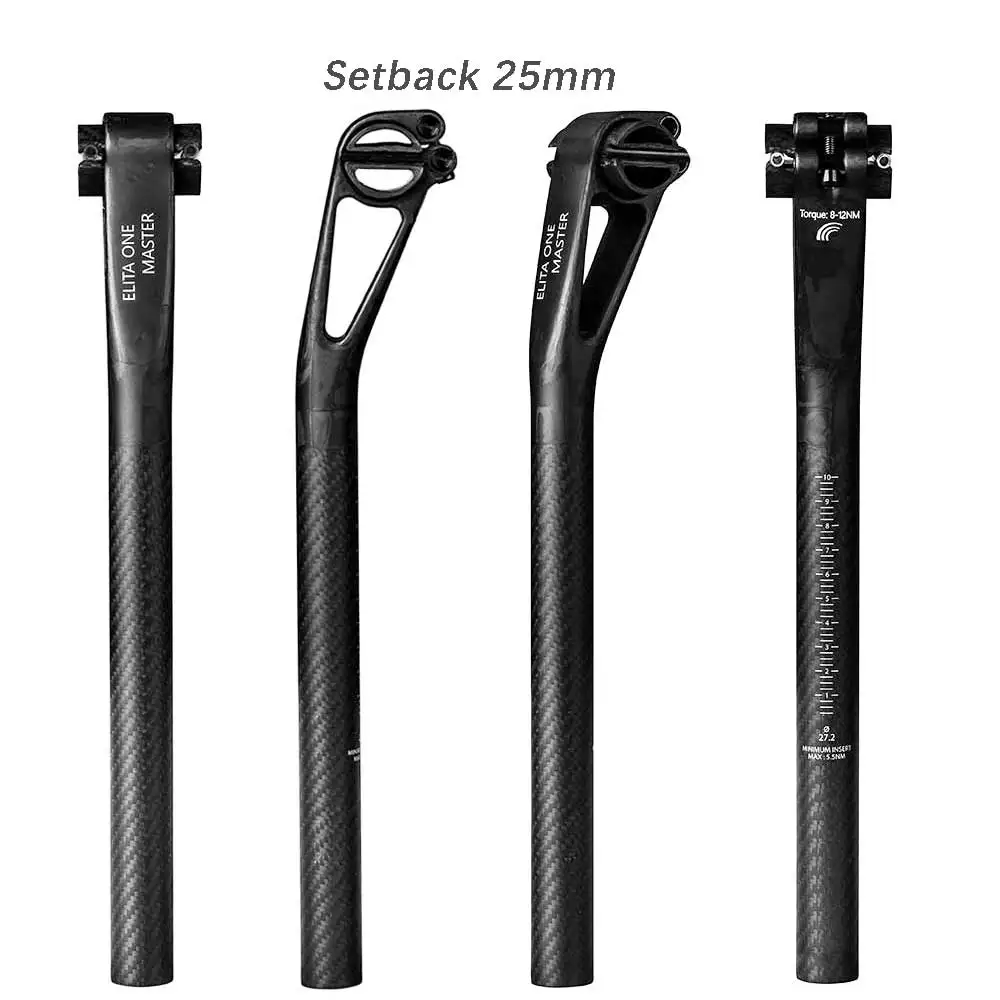

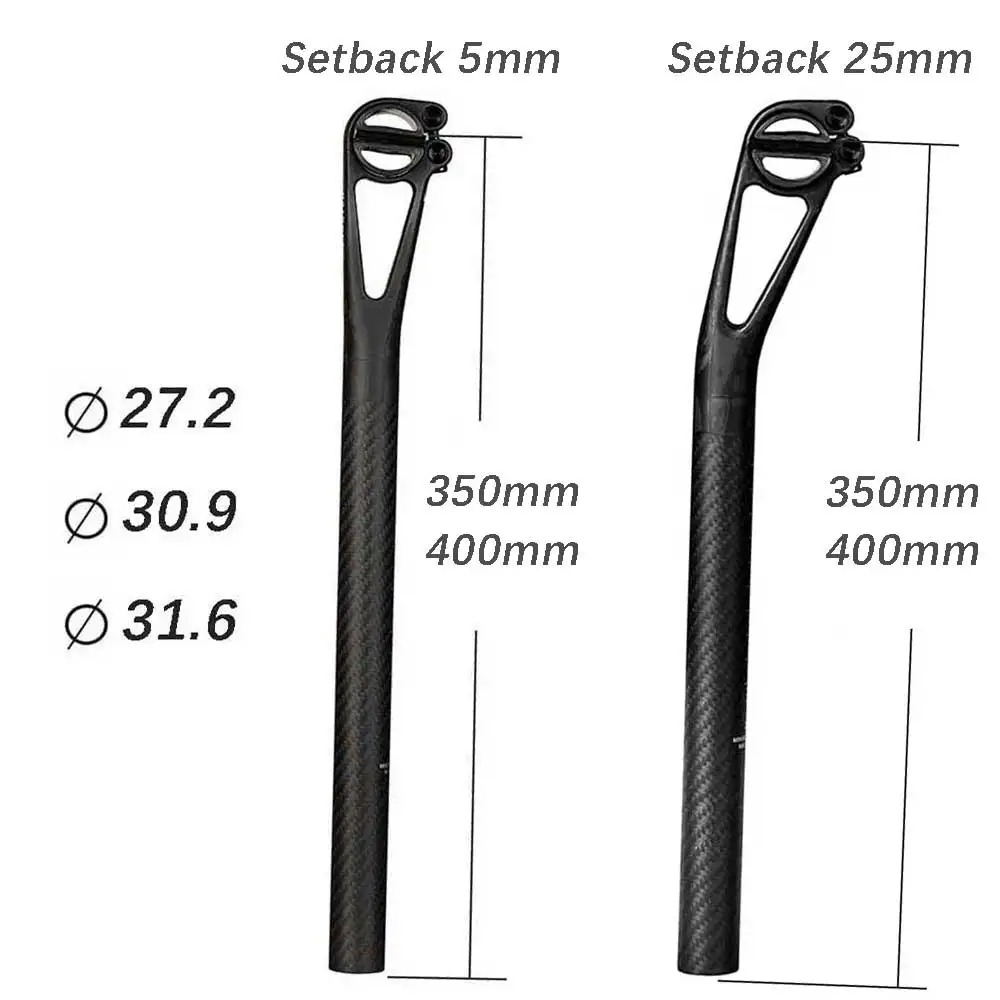

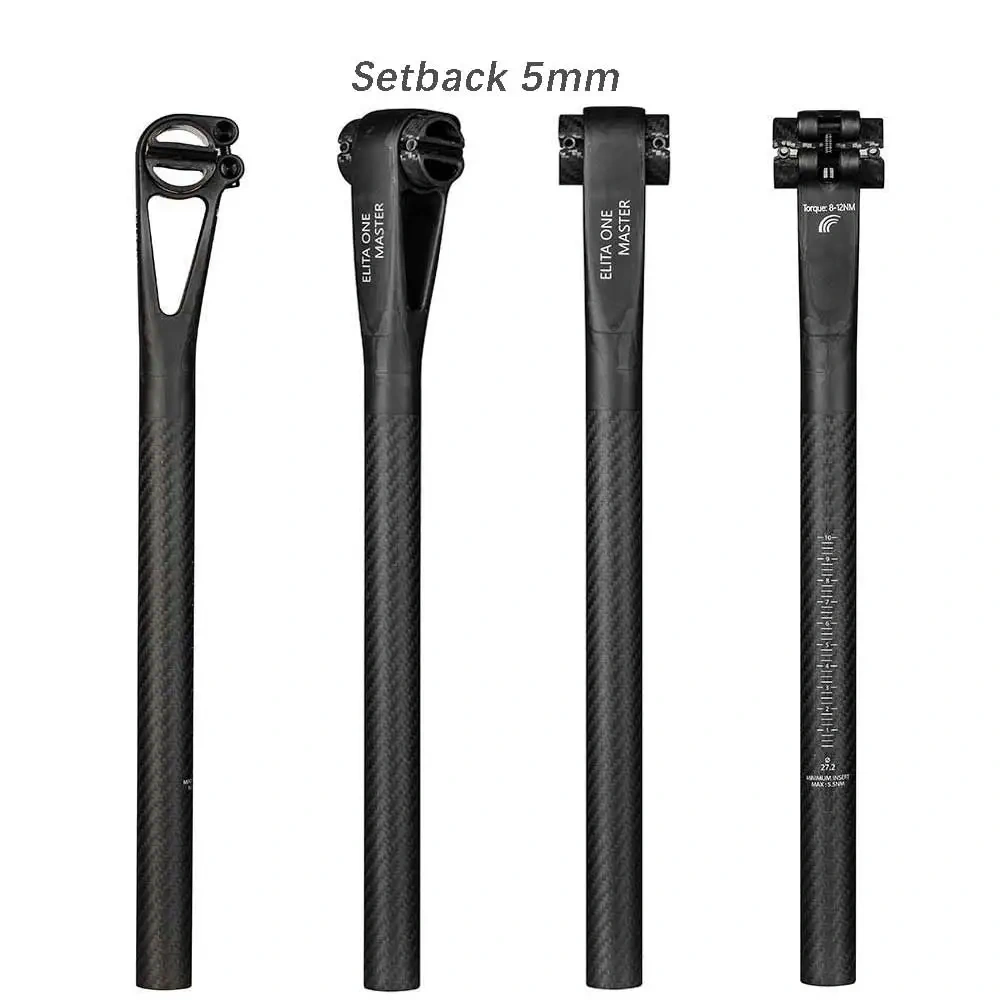

Setback：5/25mm

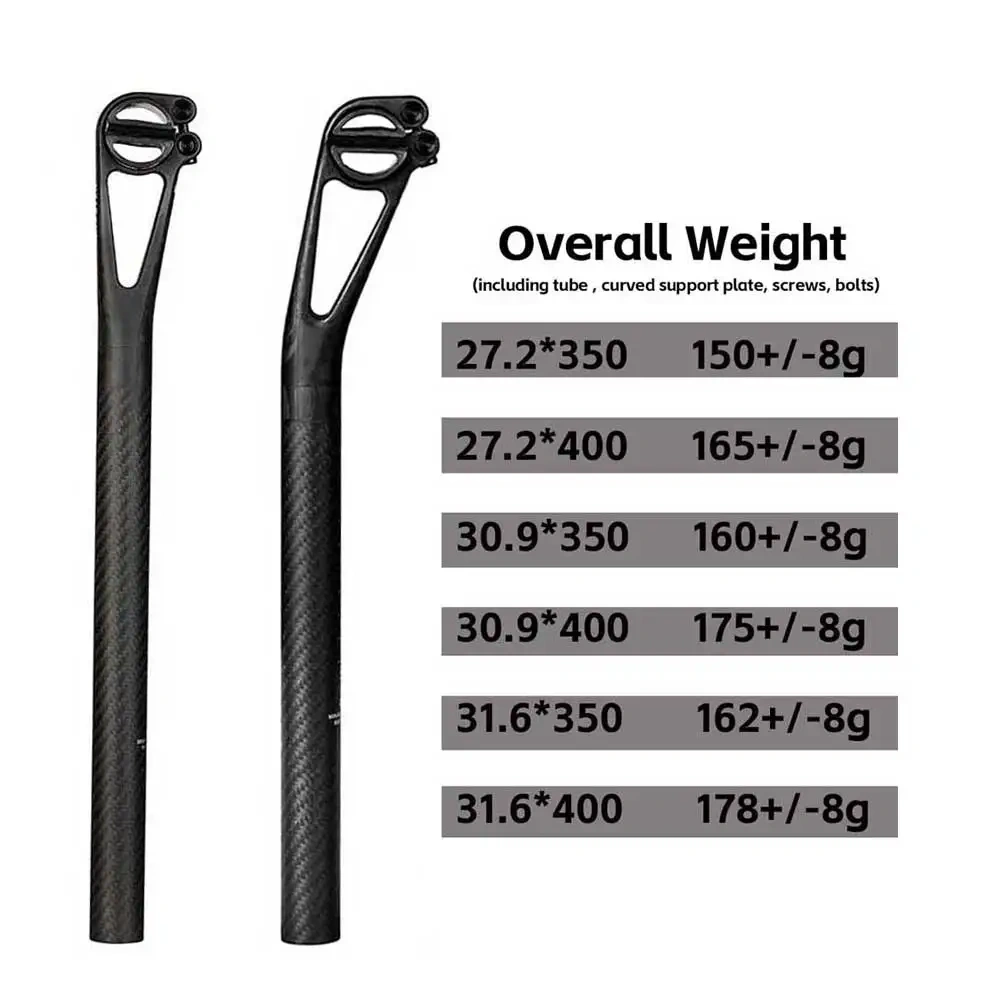

Lenghts：350mm or 400mm

Minimum Insert：100mm

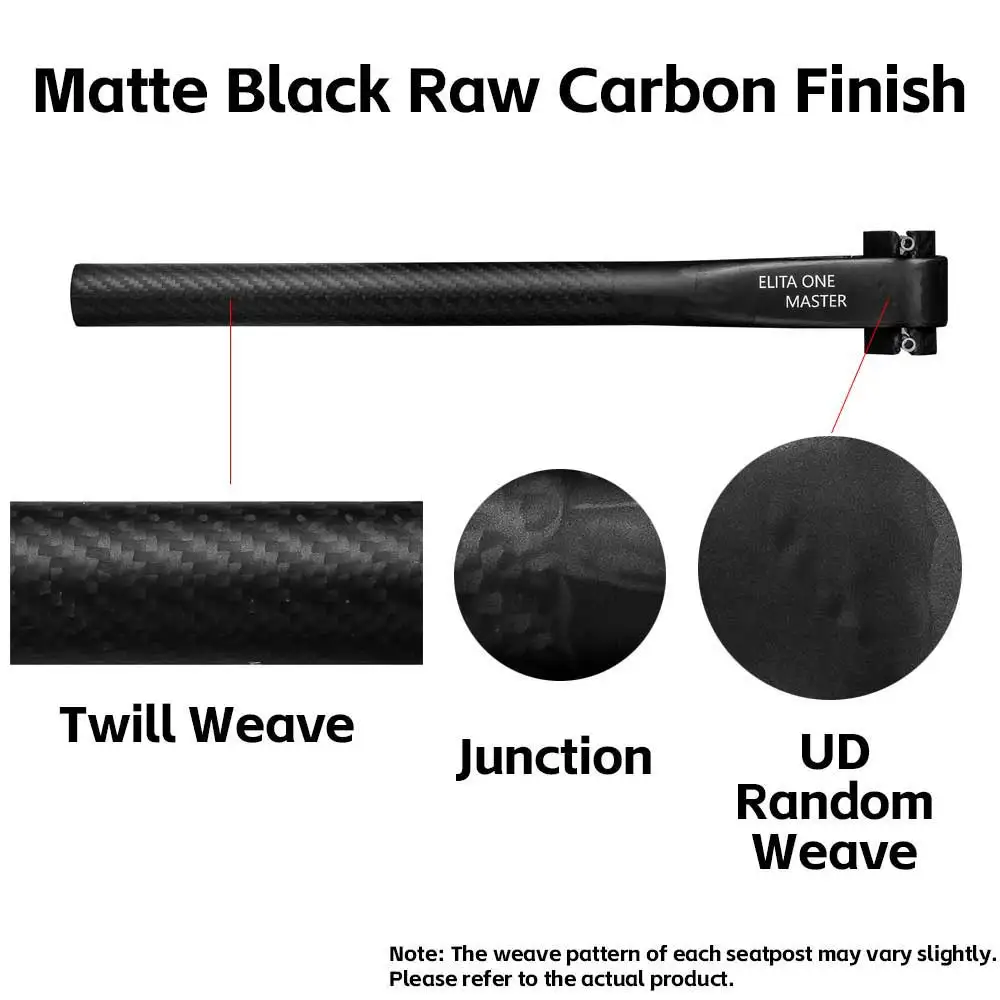

Material：Carbon

Finish: Matte

Screws: Titanium

Seatpost maximum locking torque：5.5nm

Saddle clamp tightening torque:8-12NM

Max. Permissible Weight:120 kg (265 lb)

Installation Instructions

1.Seat Tube Tightening Torque

For metal bicycle frames, tighten to 4Nm

For carbon fiber frames, tighten to 4.5Nm

Maximum locking torque: 5.5Nm

2. Saddle clamp tightening torque

Recommended tightening to 8-12Nm

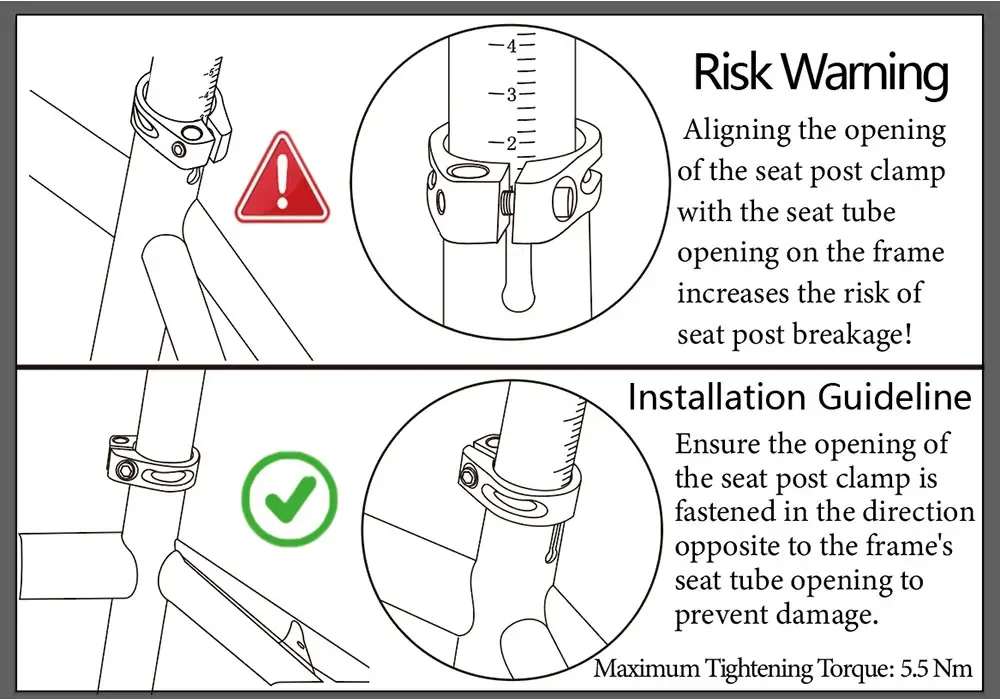

3.Installation Warnings

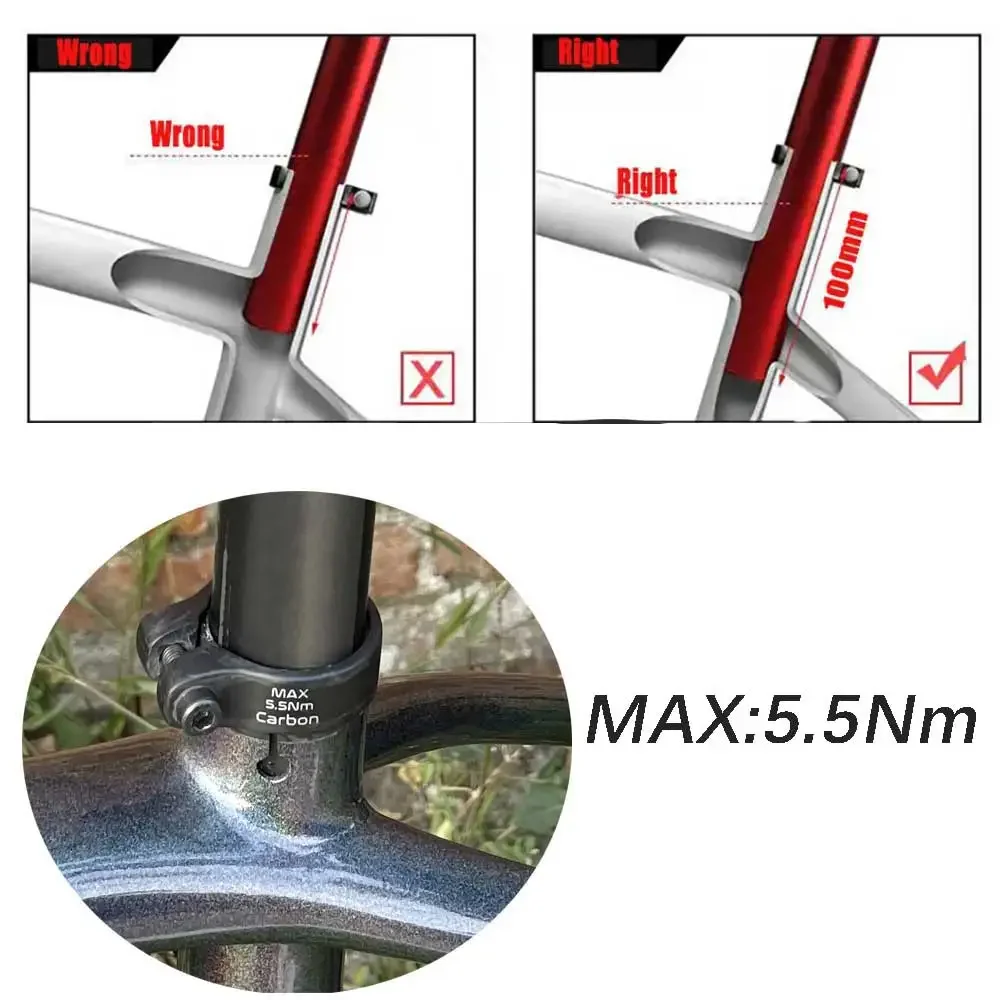

Ensure that the clamp opening is offset from the frame opening during installation to avoid concentrated stress that may cause the seat post to crack.

(NOTICE:For openings at both front and rear, the seat post clamp should be offset to the side.)

Suggestion: Insert the seat post into the frame 10 cm.

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.
