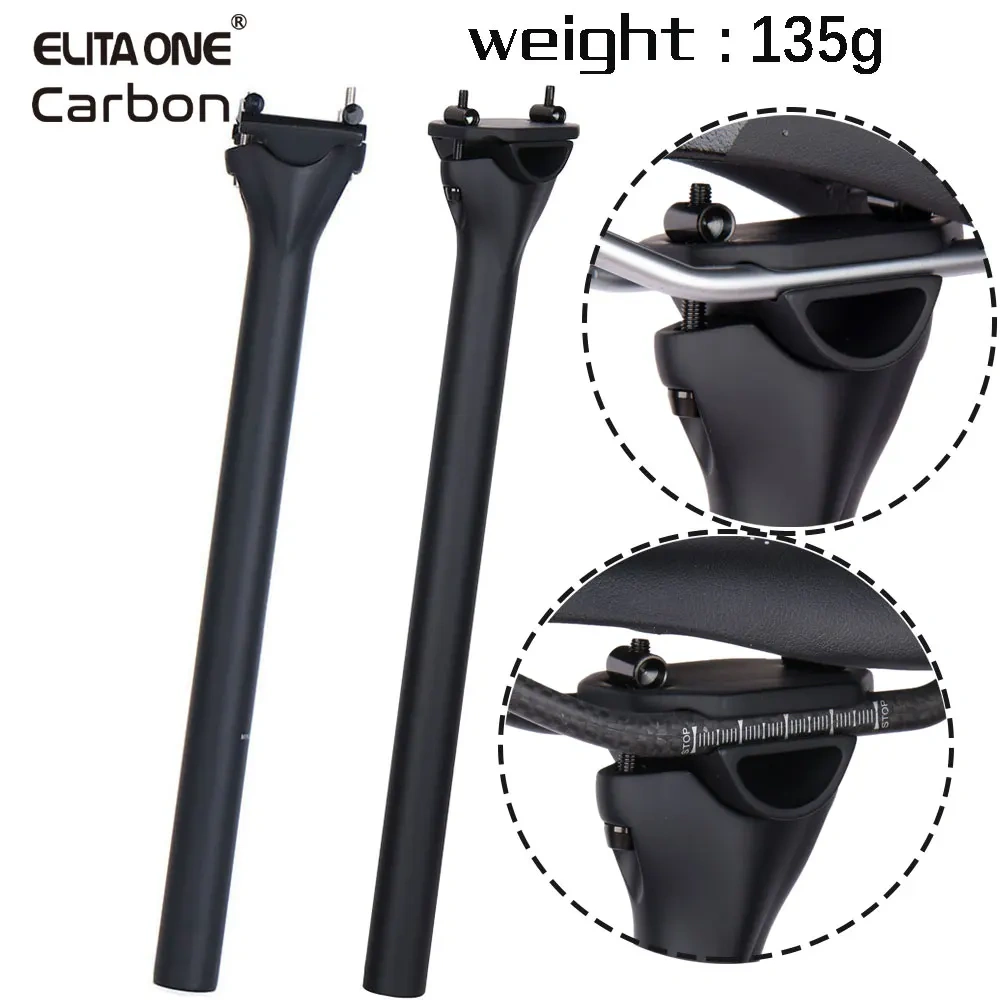

ELITA ONE MTB Carbon Fiber Seat Post 27.2/30.9/31.6mm Mountain/Road Bike Seatpost UD Matte ELITAONE Bicycle Parts

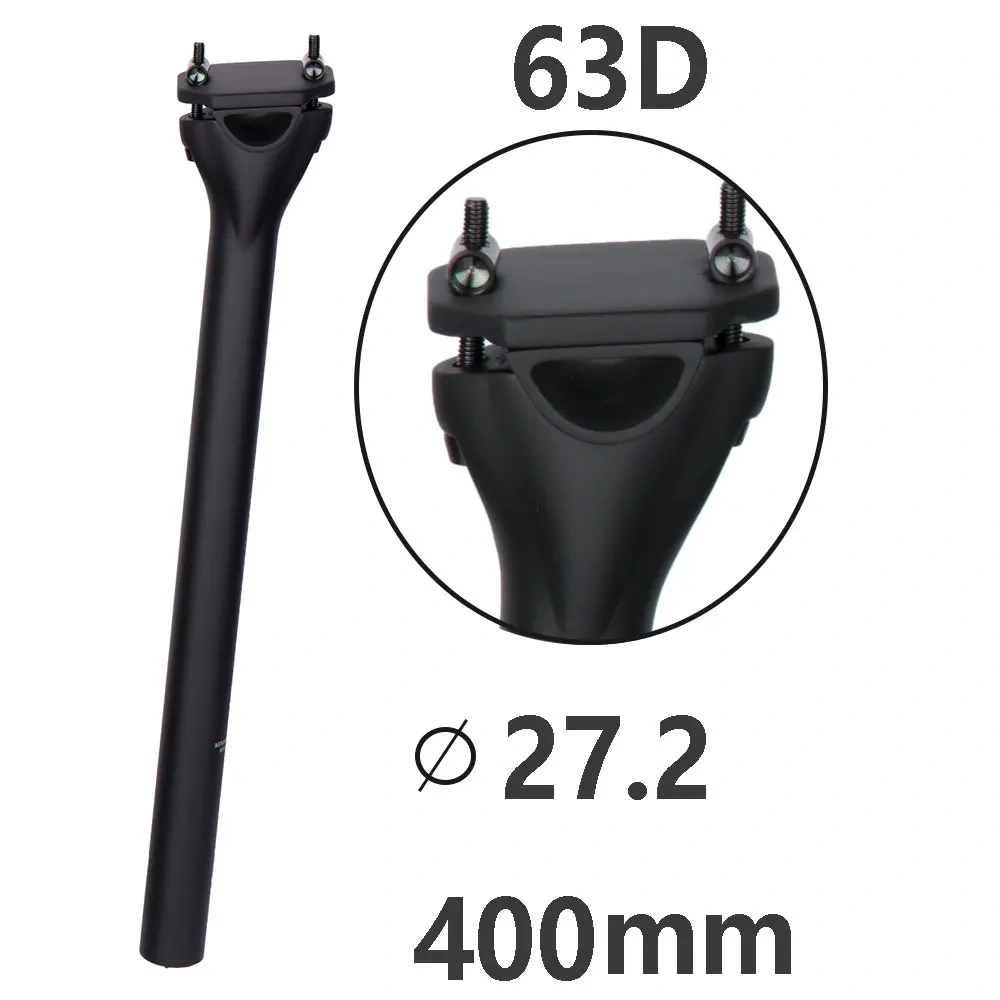

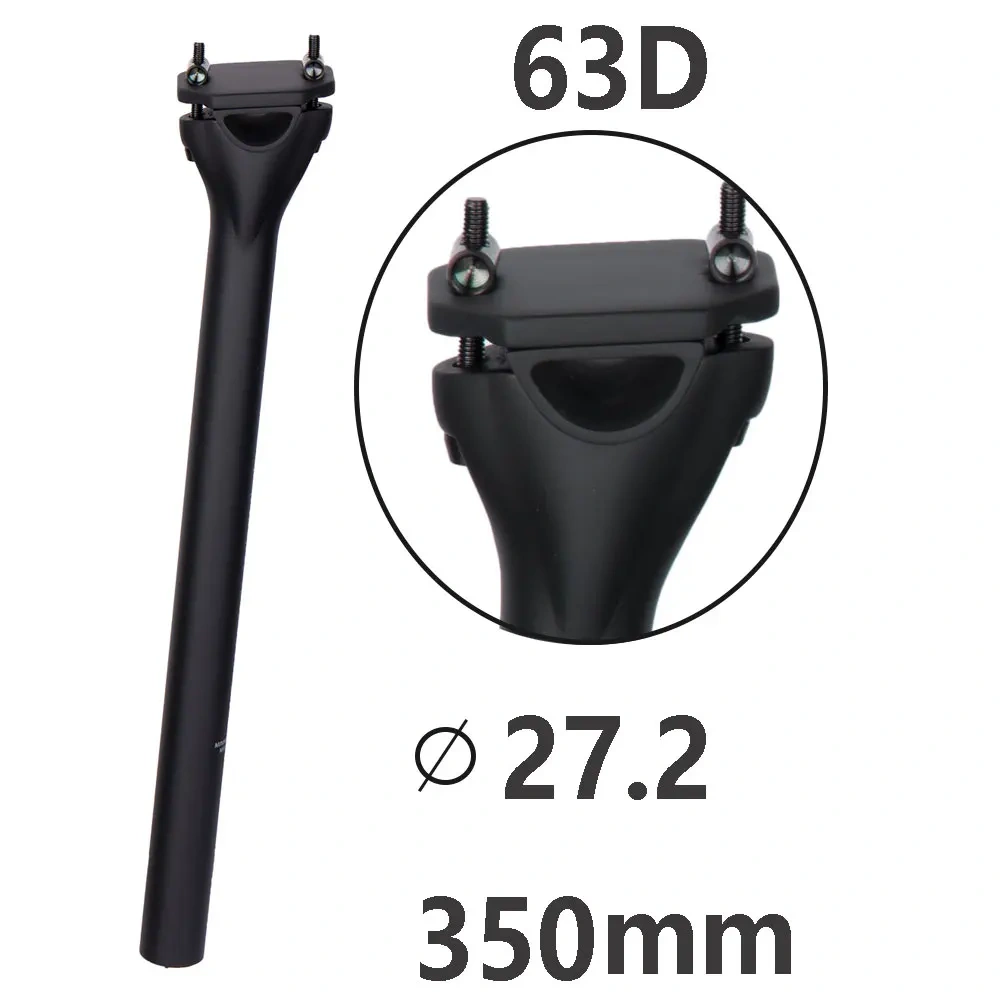

ELITA ONE Carbon fiber Seatpost 63D.
ELITA ONE Carbon fiber Seatpost 63D
| Item | Specification |
|---|---|
| Product Type | Seatpost |
| Material | HM carbon-fiber(Toray T800) |
| Offset | 0mm |
| Key Feature | Material: HM carbon-fiber(Toray T800) |
| Compatibility | Diameter: 27.2/30.9/31.6 |
Carbon Fiber Base; Carbon Fiber Top Cover; Protect Saddle 7x9mm Carbon Fiber Rails

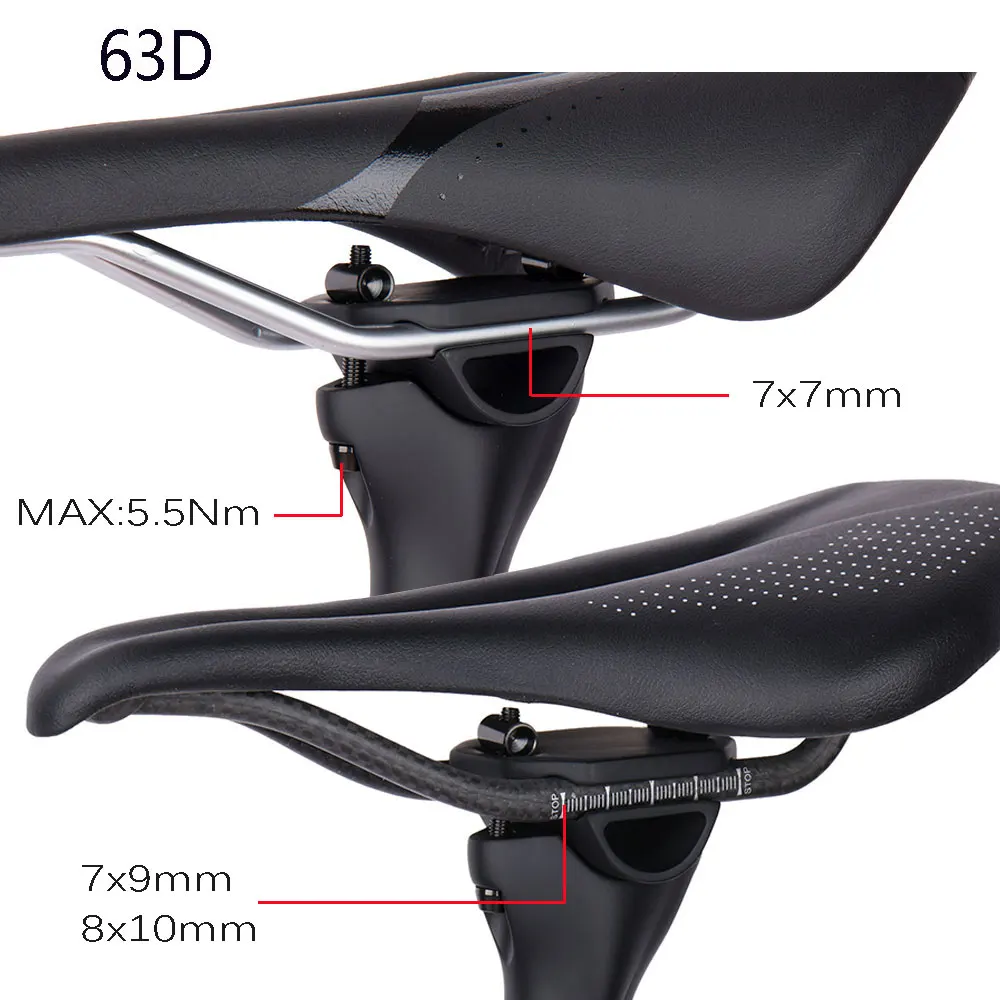

63D:Suitable for installing saddle 7x9mm carbon fiber rail

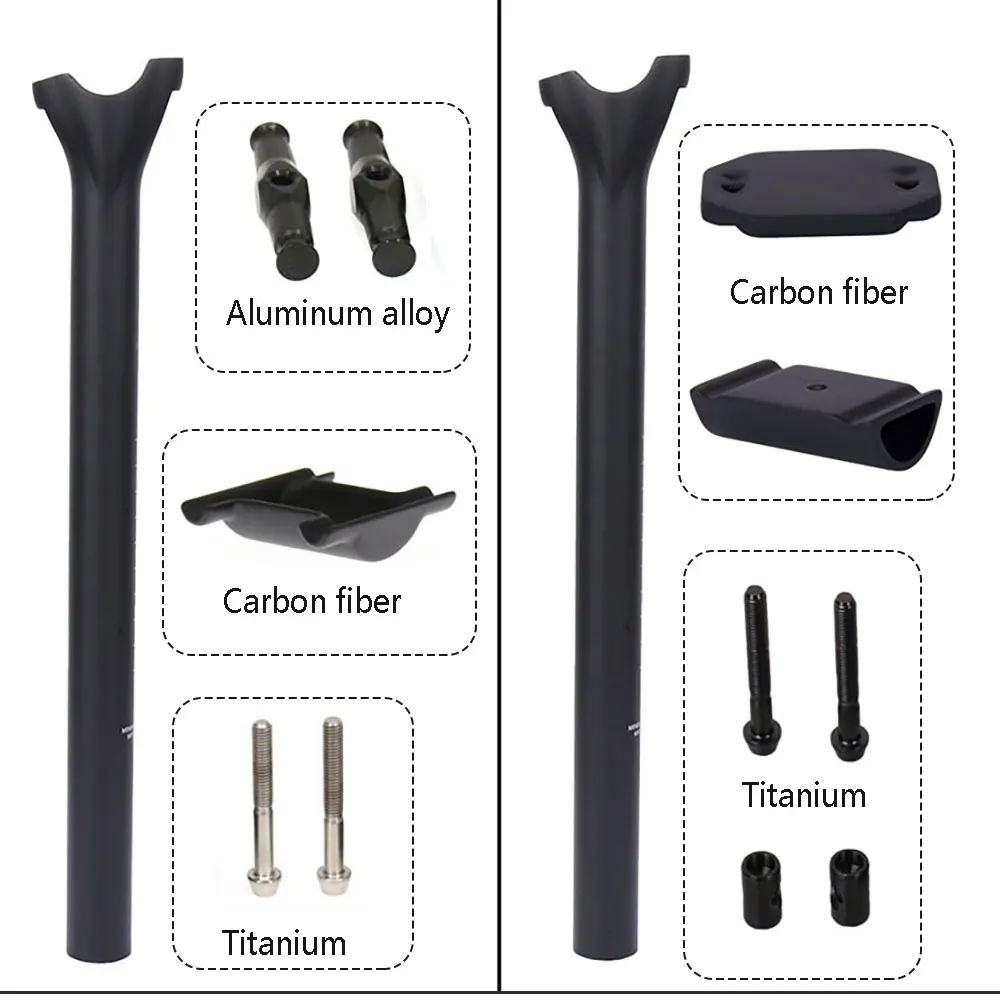

Material: HM carbon-fiber(Toray T800)
Cover: Carbon fiber
Base: Carbon fiber
Screw: Titanium
Diameter:27.2/30.9/31.6
Offset:0mm
Saddle Angle Adjustment:0-27 degrees
Length:350mm/400mm
Min Insertion:100mm
Max Insertion:210mm

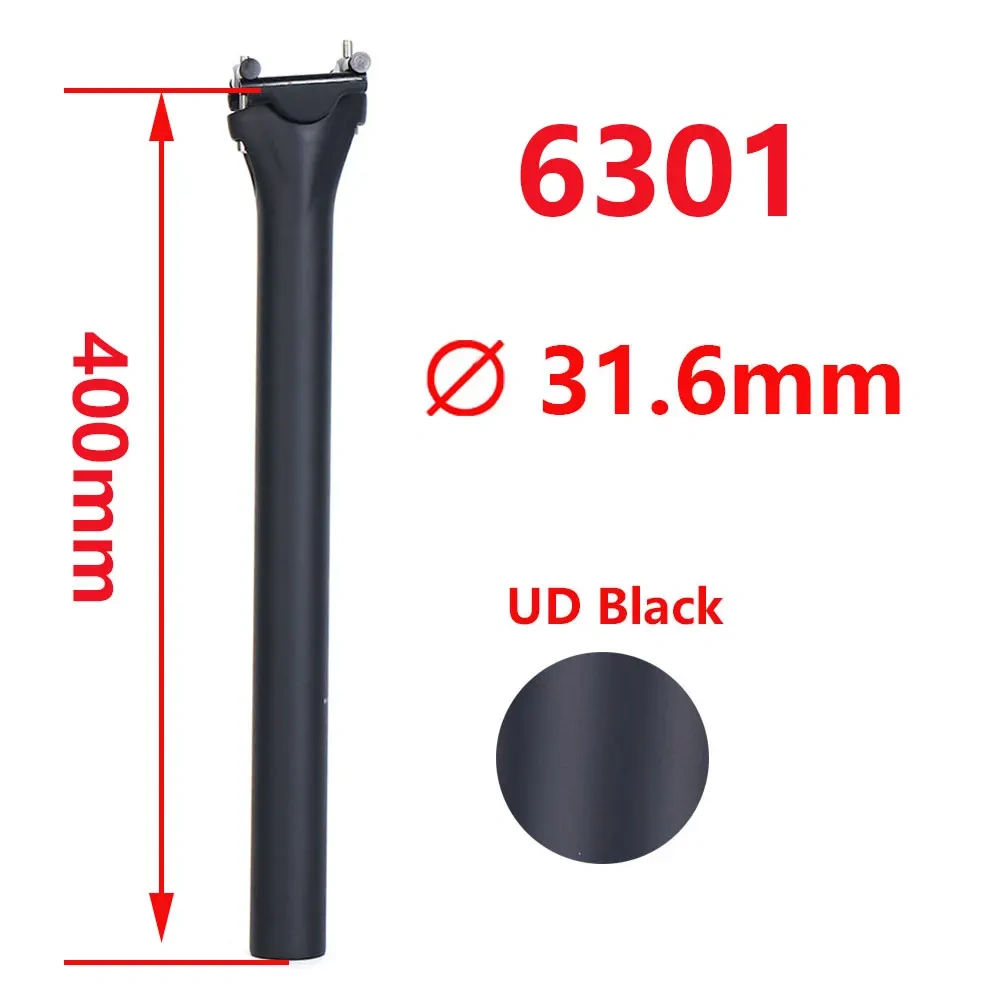

Finish: UD Matte Black
Maximum load weight::120kg

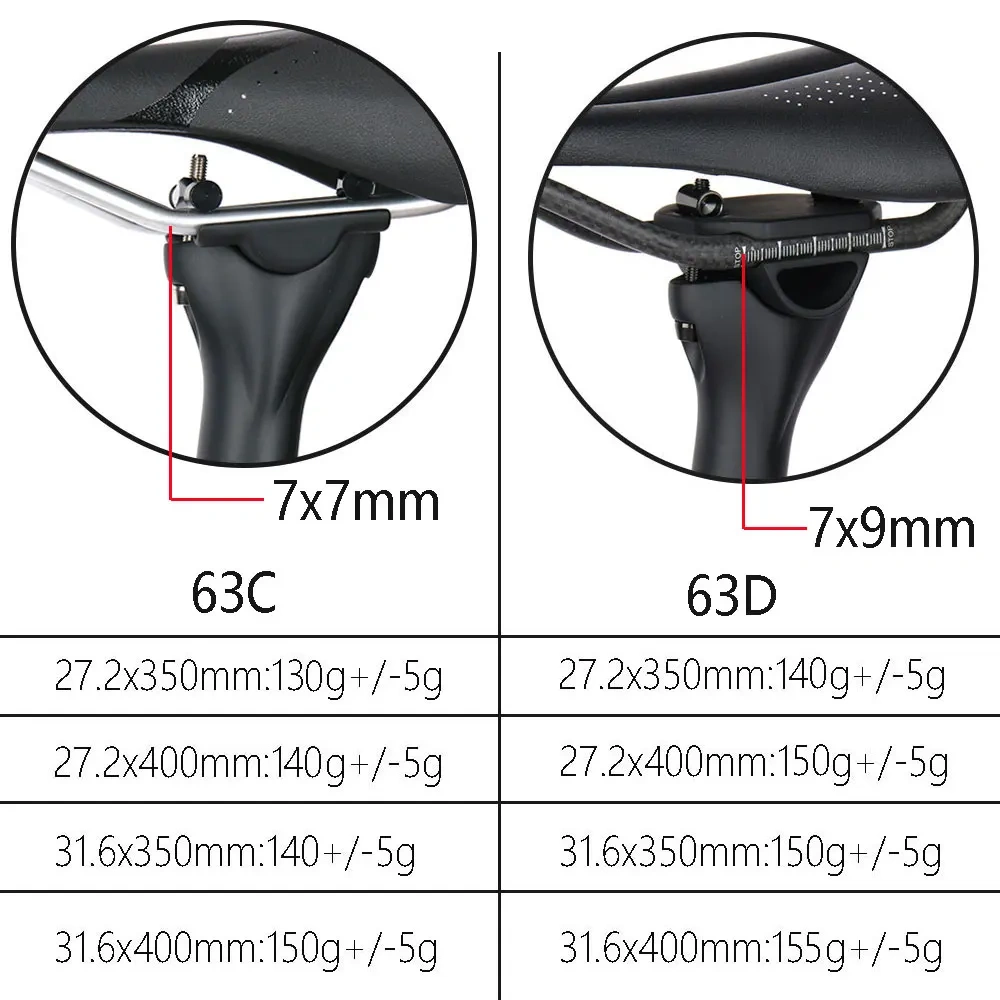

Saddle Rail Recommend:7x9mm,7x10mm Carbon Rails
Torque Spec:Saddle Rail Clamp Bolts:5.5Nm
Torque Spec:Seatpost Collar Determined by your Frame manufacture/Seatpost Collar (Recommended locking torque ≤ 5.5NM)

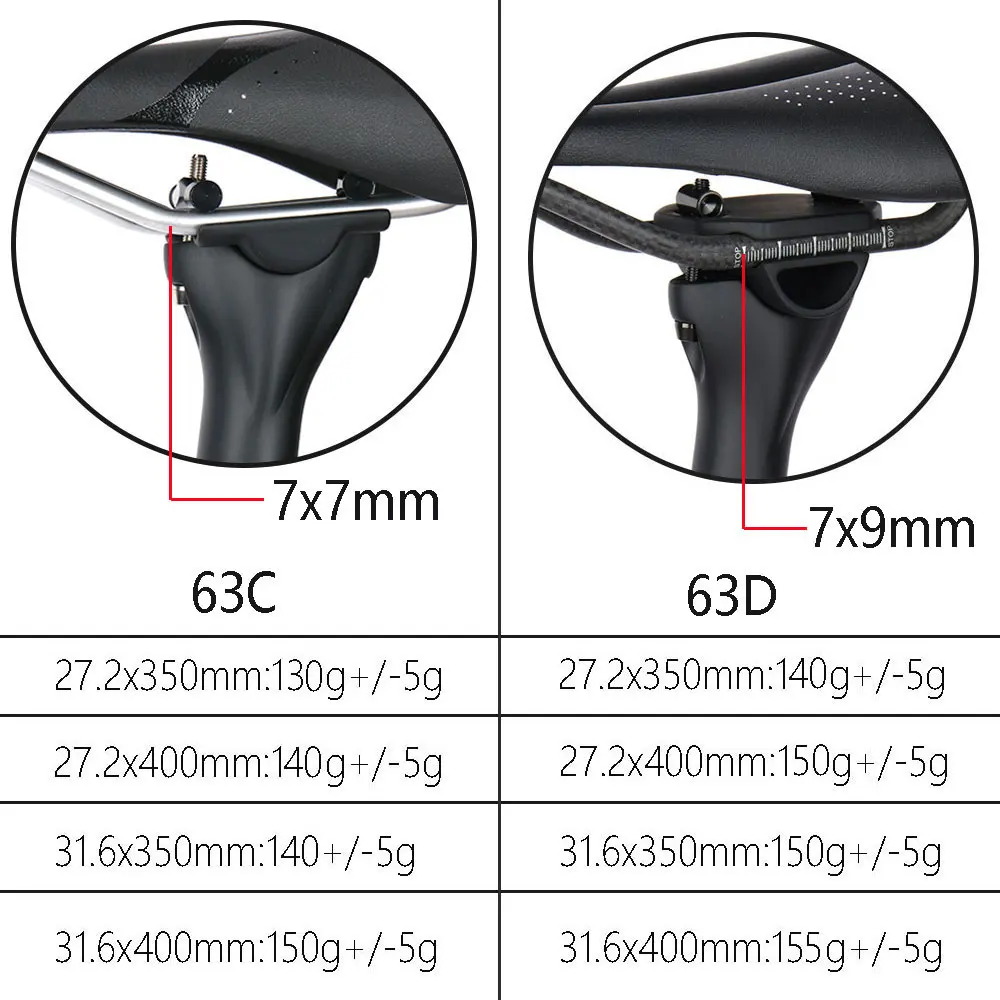

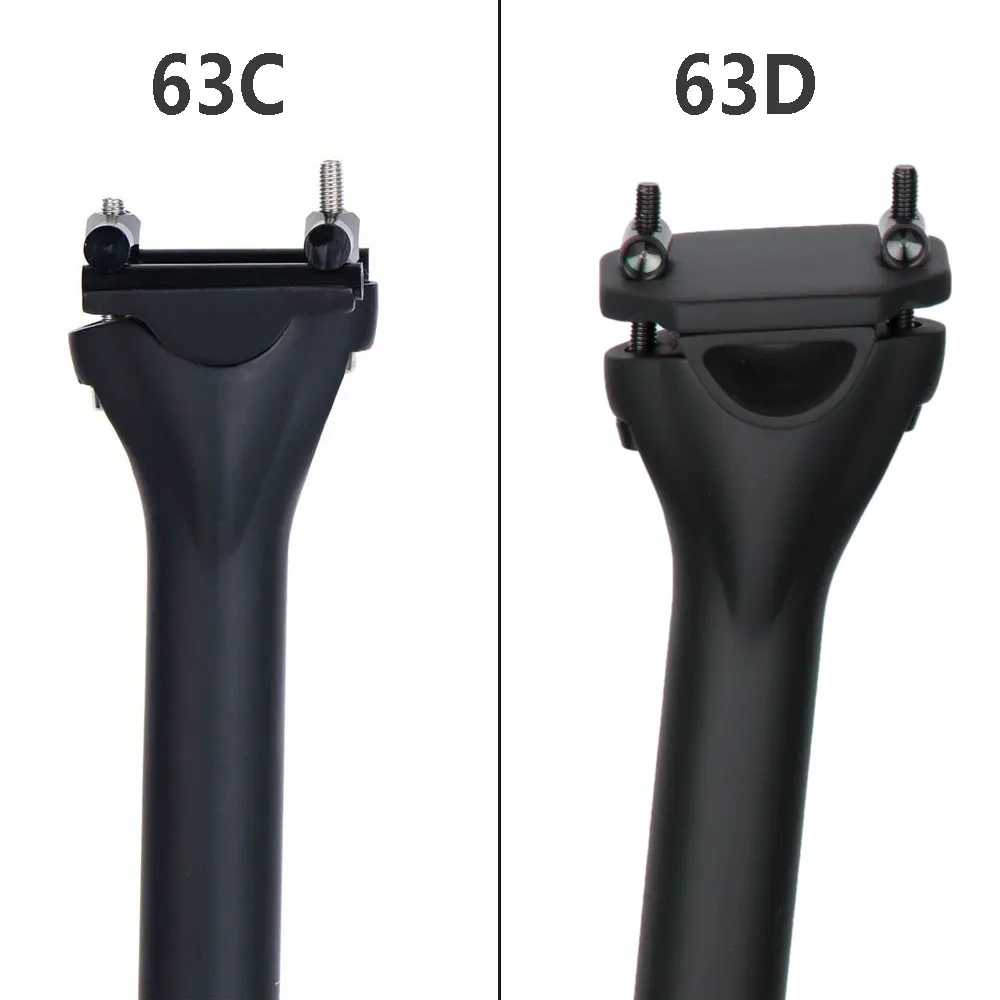

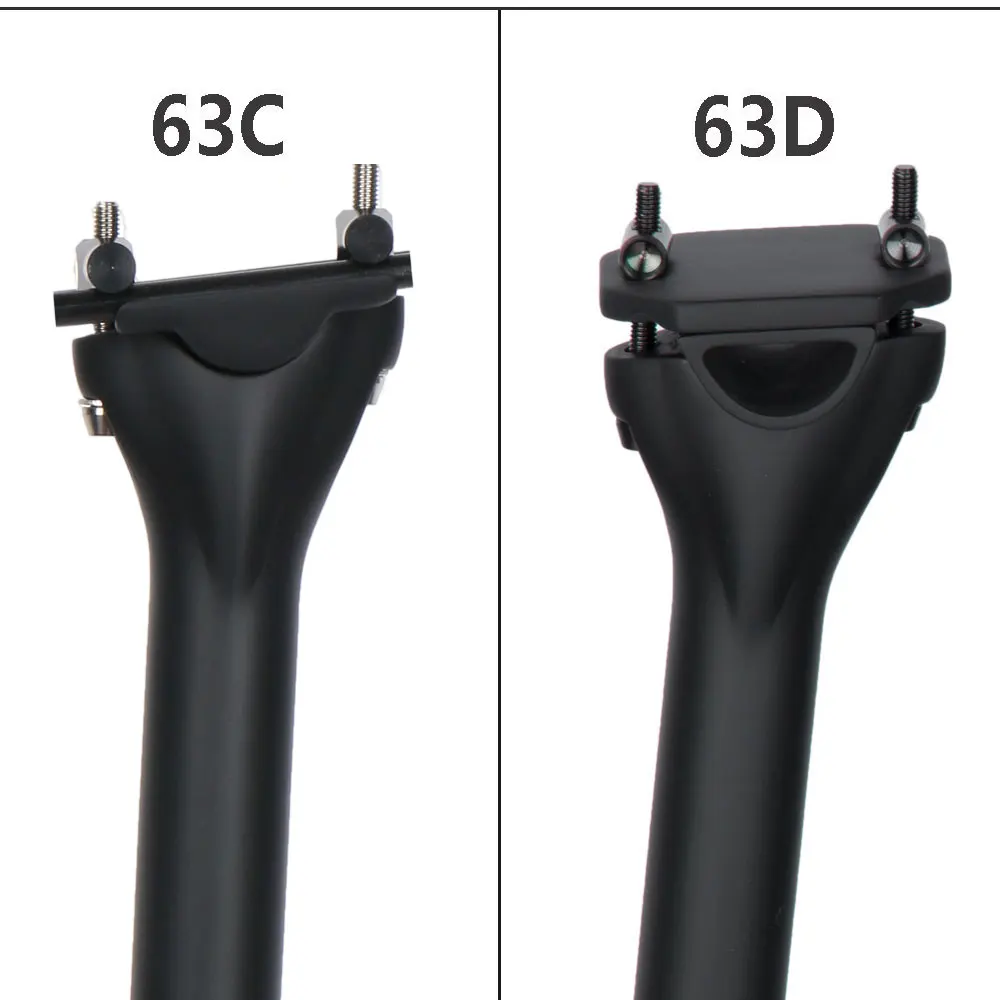

63C Cover: Aluminum alloy
Material: HM carbon-fiber(Toray T800)
Cover: Aluminum alloy
Base: Carbon fiber
Screw: Titanium
Diameter:27.2/30.9/31.6
Offset:0mm
Saddle Angle Adjustment:0-27 degrees
Length:350mm/400mm
Min Insertion:100mm
Max Insertion:210mm
Finish: UD Matte Black
Maximum load weight::120kg

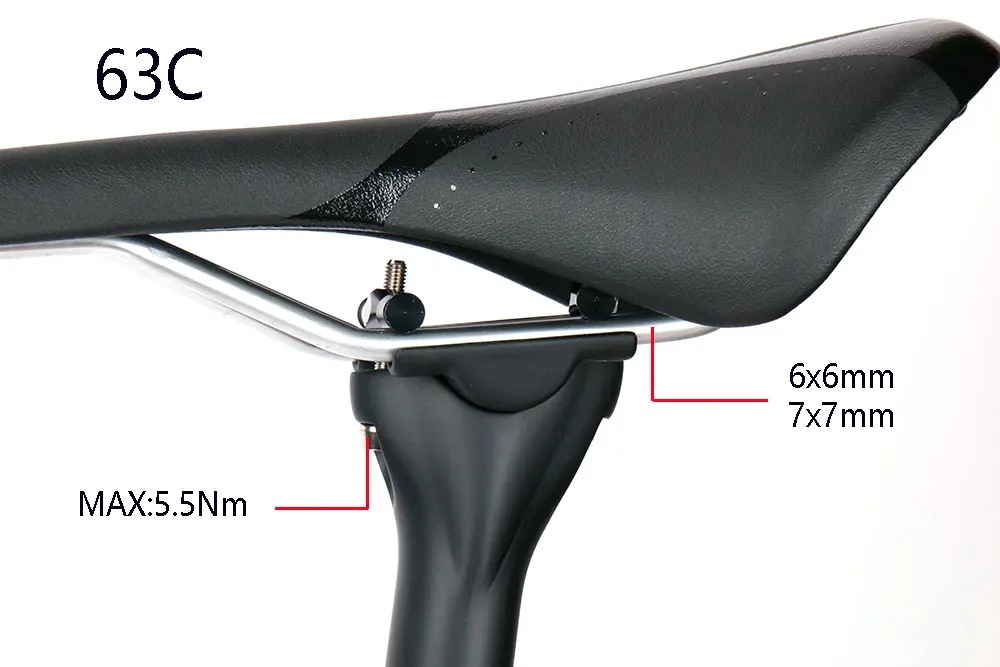

Saddle Rail Recommend: 7mm Round Alloy Rails
Torque Spec:Saddle Rail Clamp Bolts:5.5Nm
Torque Spec:Seatpost Collar Determined by your Frame manufacture/Seatpost Collar (Recommended locking torque ≤ 5.5NM)

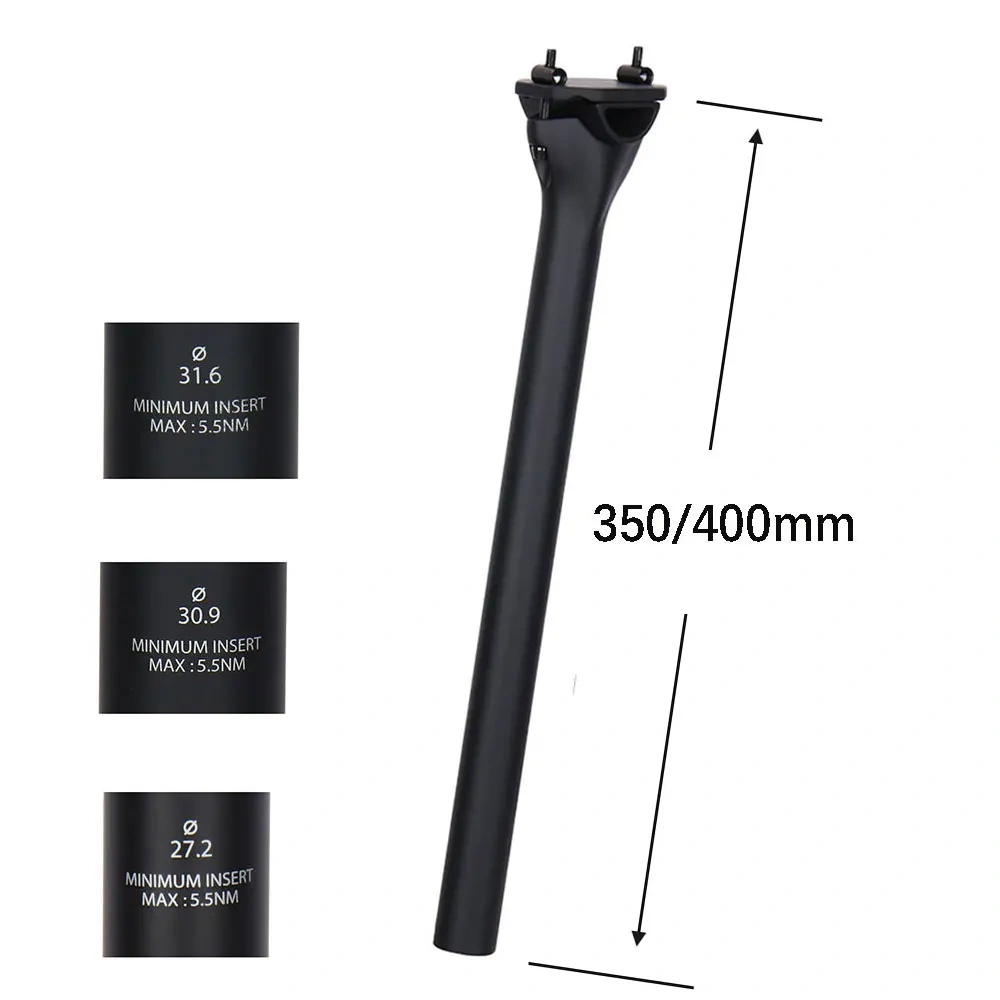

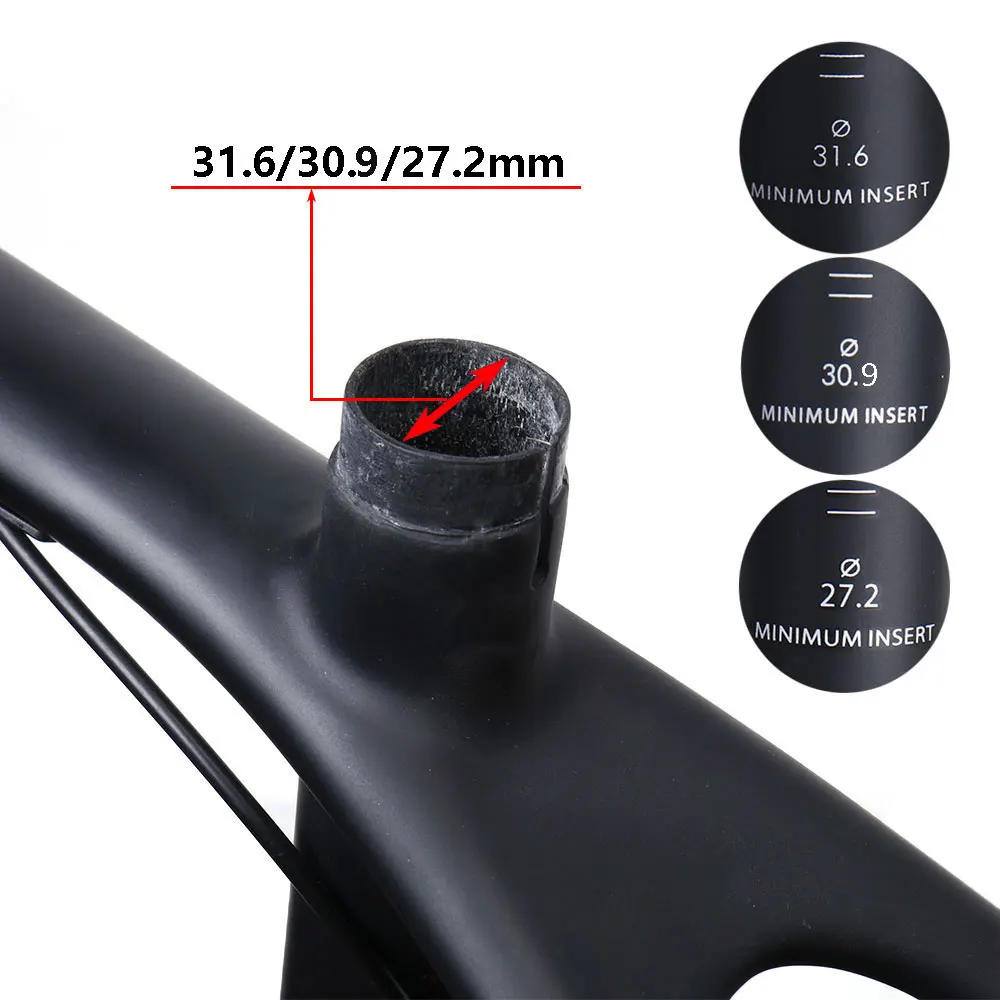

Seat post has three direct dimensions 27.2 /30.9/ 31.6mmm
Note: The seat has three direct sizes of 27.2 /30.9/ 31.6mm, please confirm the size of your car when purchasing, so as not to be unsuitable for use

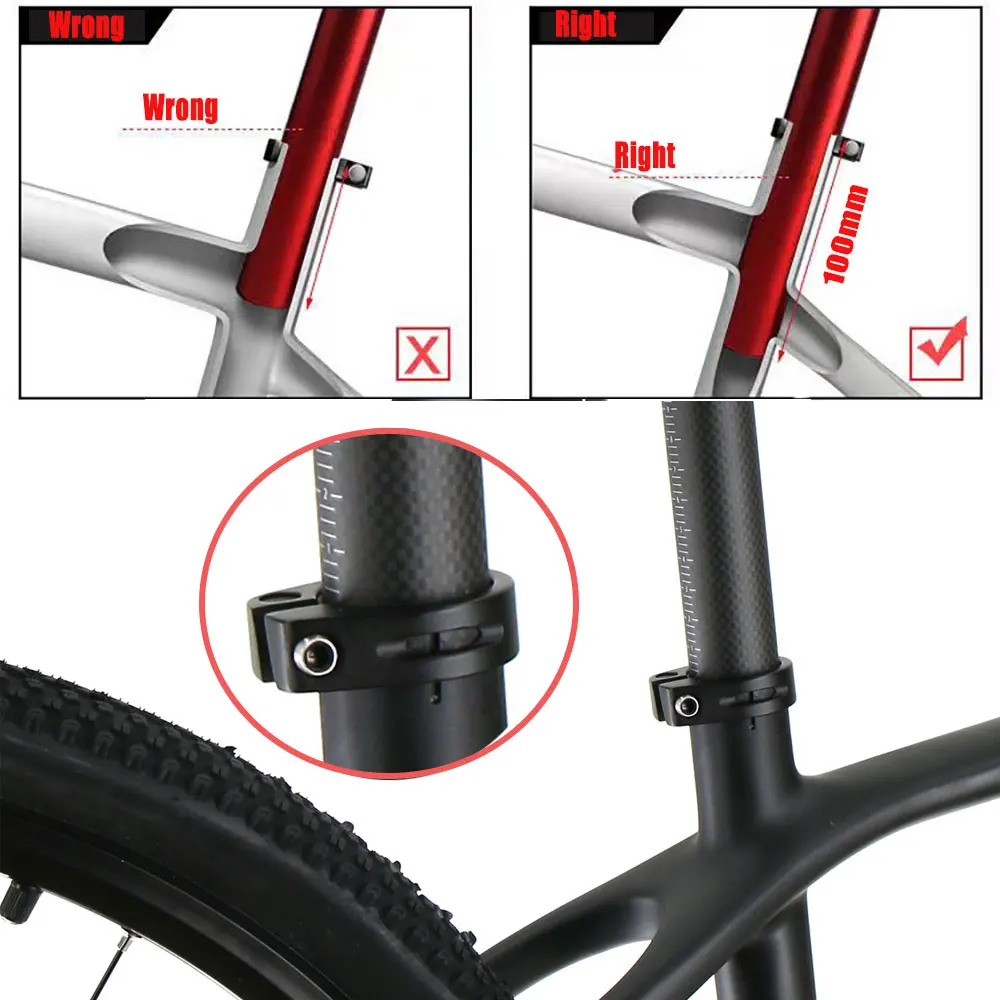

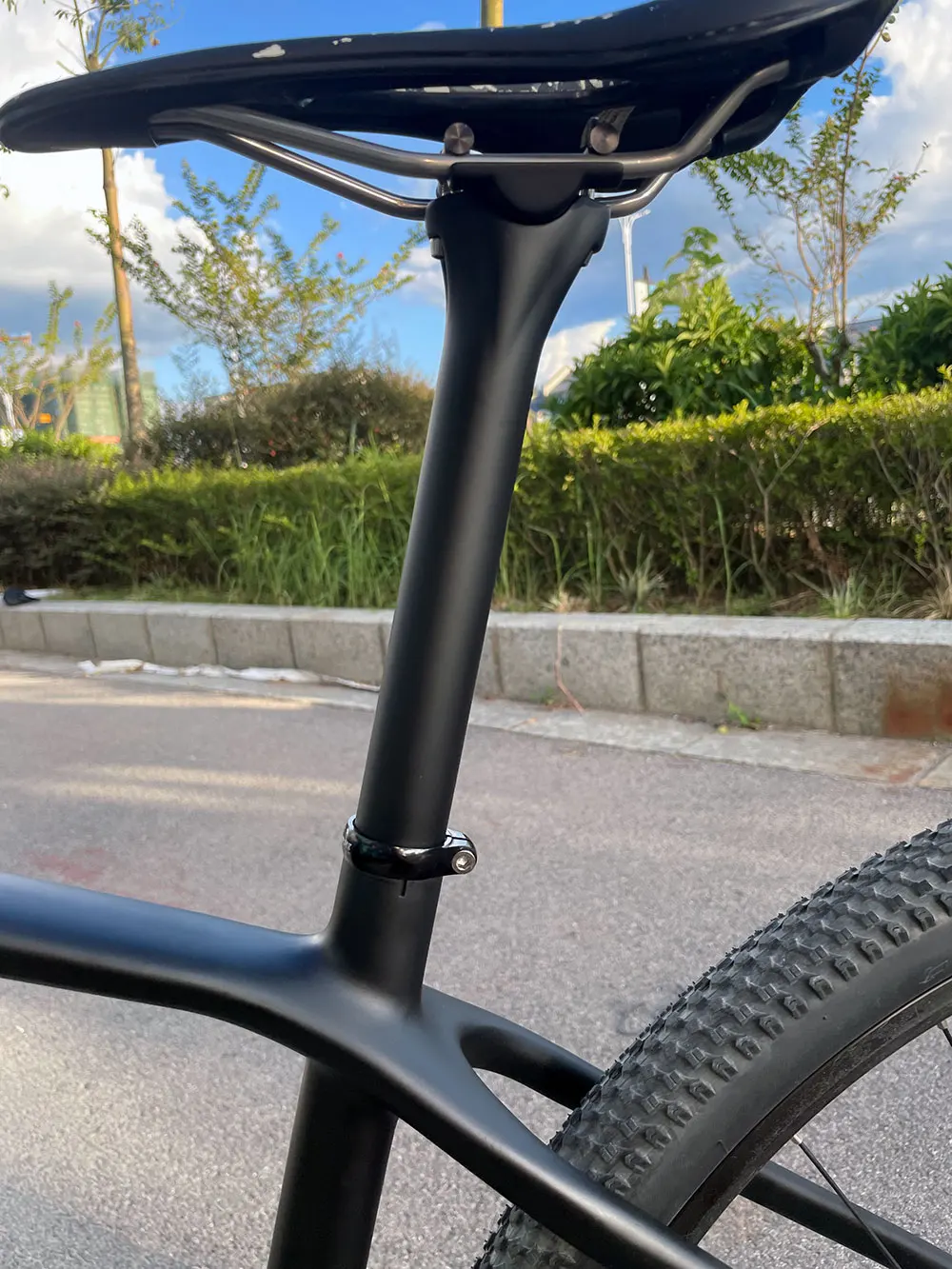

We recommend that you place the seatpost into the lower part of the frame 100mm and then tighten the seat tube clamp fixing bolts. Torque Spec:Seatpost Collar Determined by your Frame manufacture/Seatpost Collar (Recommended locking torque ≤ 5.1NM)


Each row below is one available option combination. Choose the complete combination that matches your setup.
| Option 1 |
|---|
| 27.2x350mm Alloy clamp head |
| 27.2x400mm Alloy clamp head |
| 31.6x350mm Alloy clamp head |
| 31.6x400mm Alloy clamp head |
| 27.2x350mm 63D Carbon clamp head |
| 27.2x400mm 63D Carbon clamp head |
| 31.6x350mm 63D Carbon clamp head |
| 31.6x400mm 63D Carbon clamp head |
