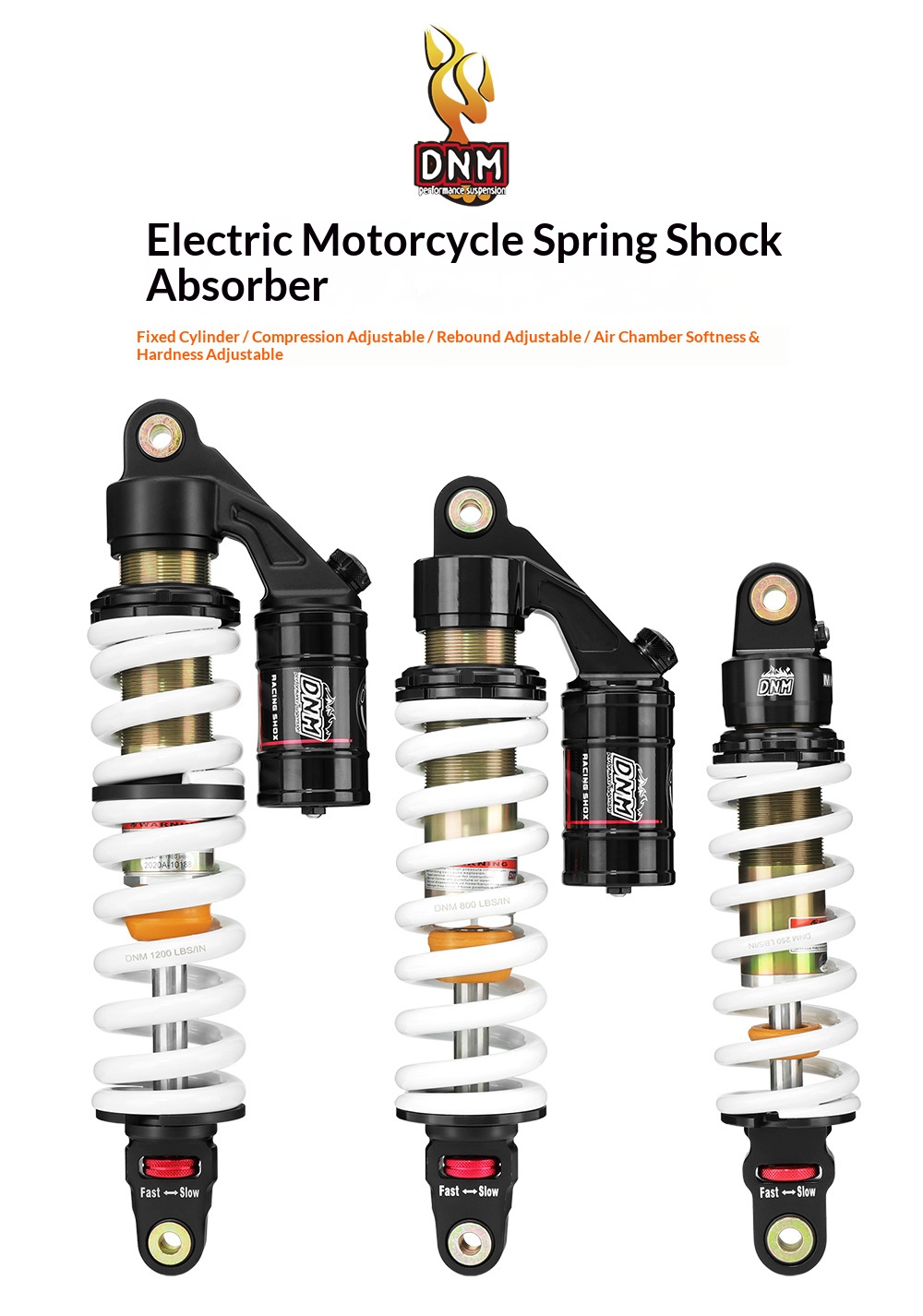

The DNM Motorcycle Rear Shock Absorber is designed for off-road motorcycles and modified suspension setups. Built with a strong coil spring and hydraulic damping system, it provides reliable shock absorption, improved stability, and better riding control on rough roads, trails, and uneven terrain.
Depending on the model, this rear shock supports rebound adjustment, spring preload adjustment, compression adjustment, and air chamber firmness adjustment. Selected models are equipped with a fixed or remote reservoir to improve damping performance and heat control during demanding rides.

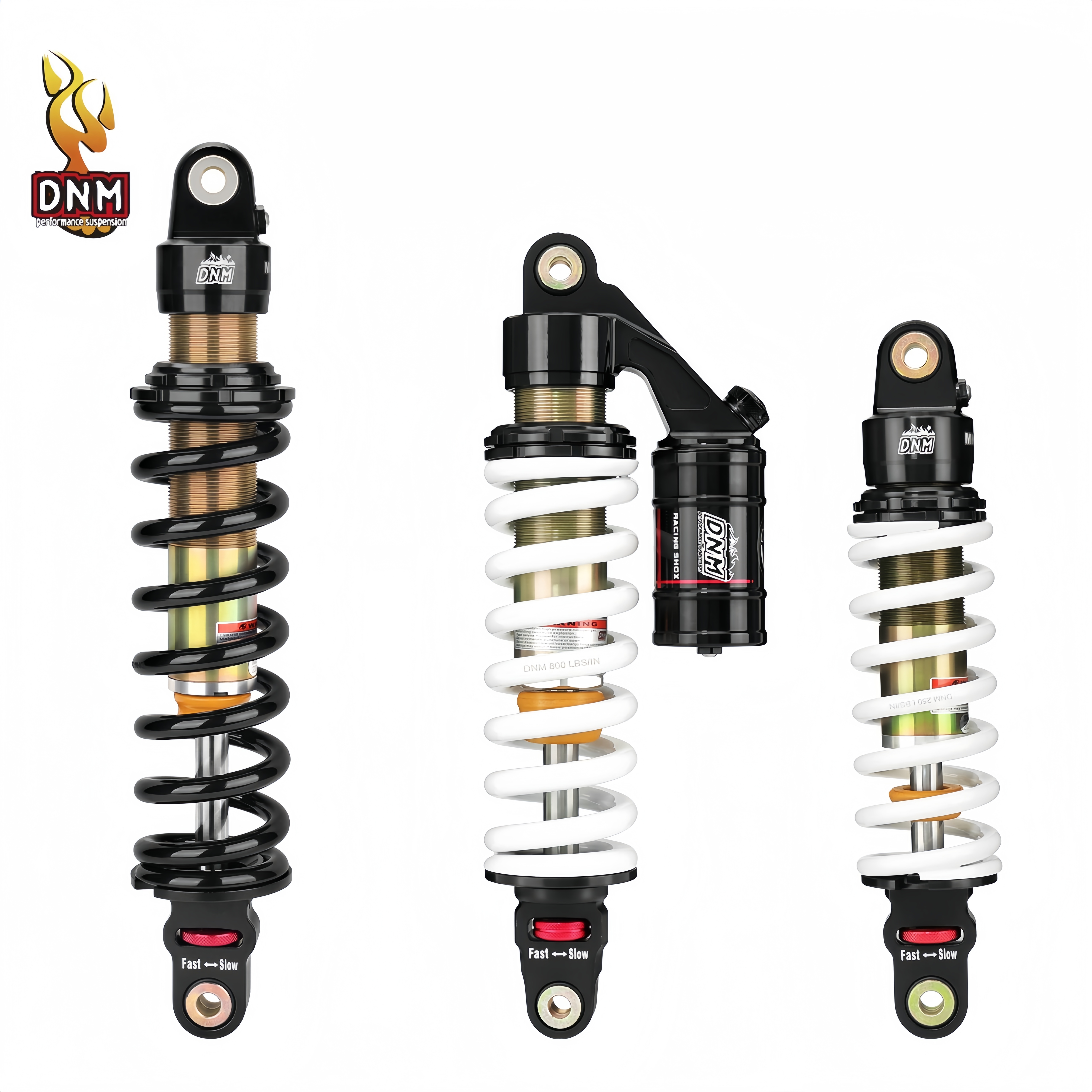

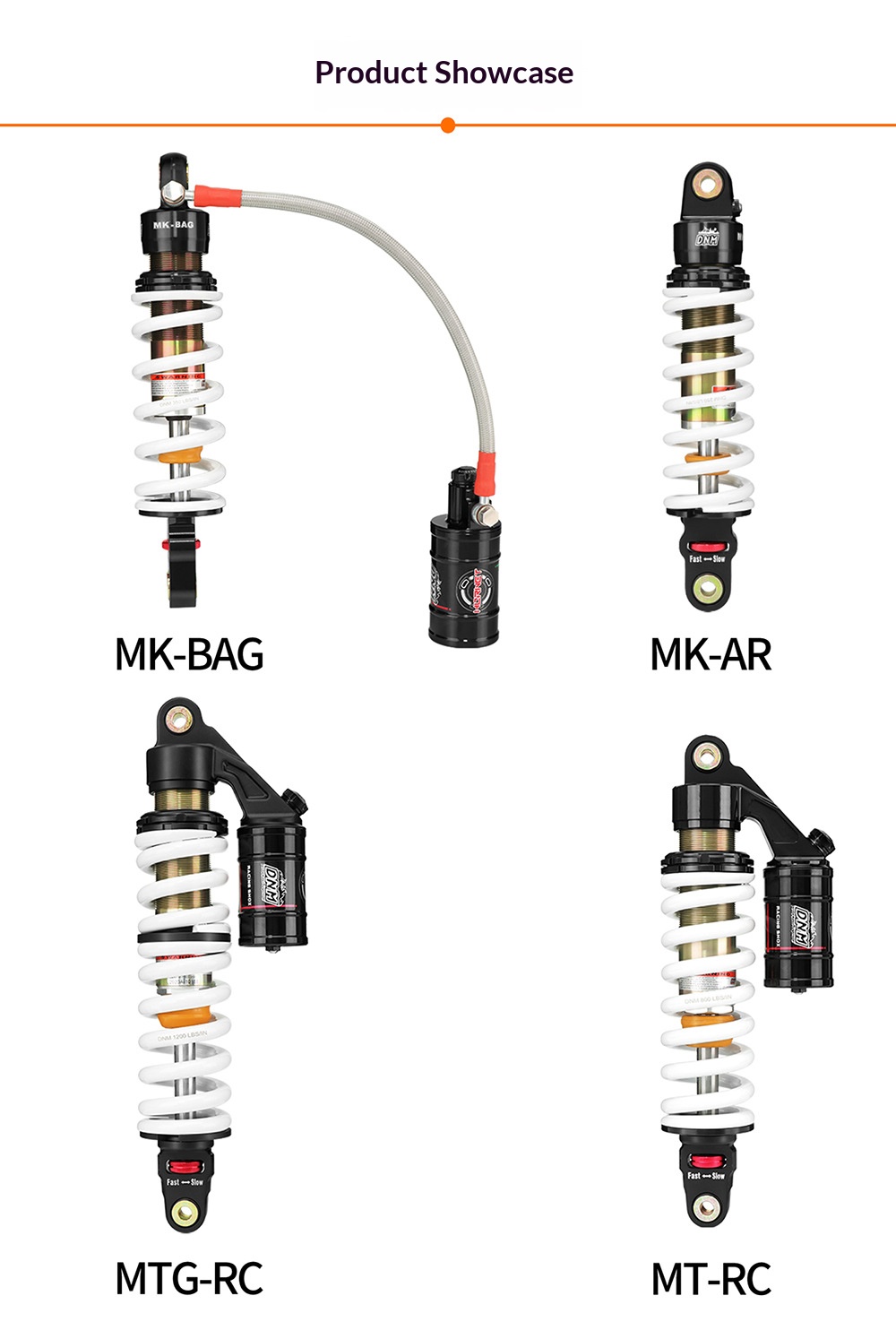

Available models include MK-AR, MK-BAG, MT-RC, and MTG-RC, with multiple lengths and spring rates for different motorcycle setups.

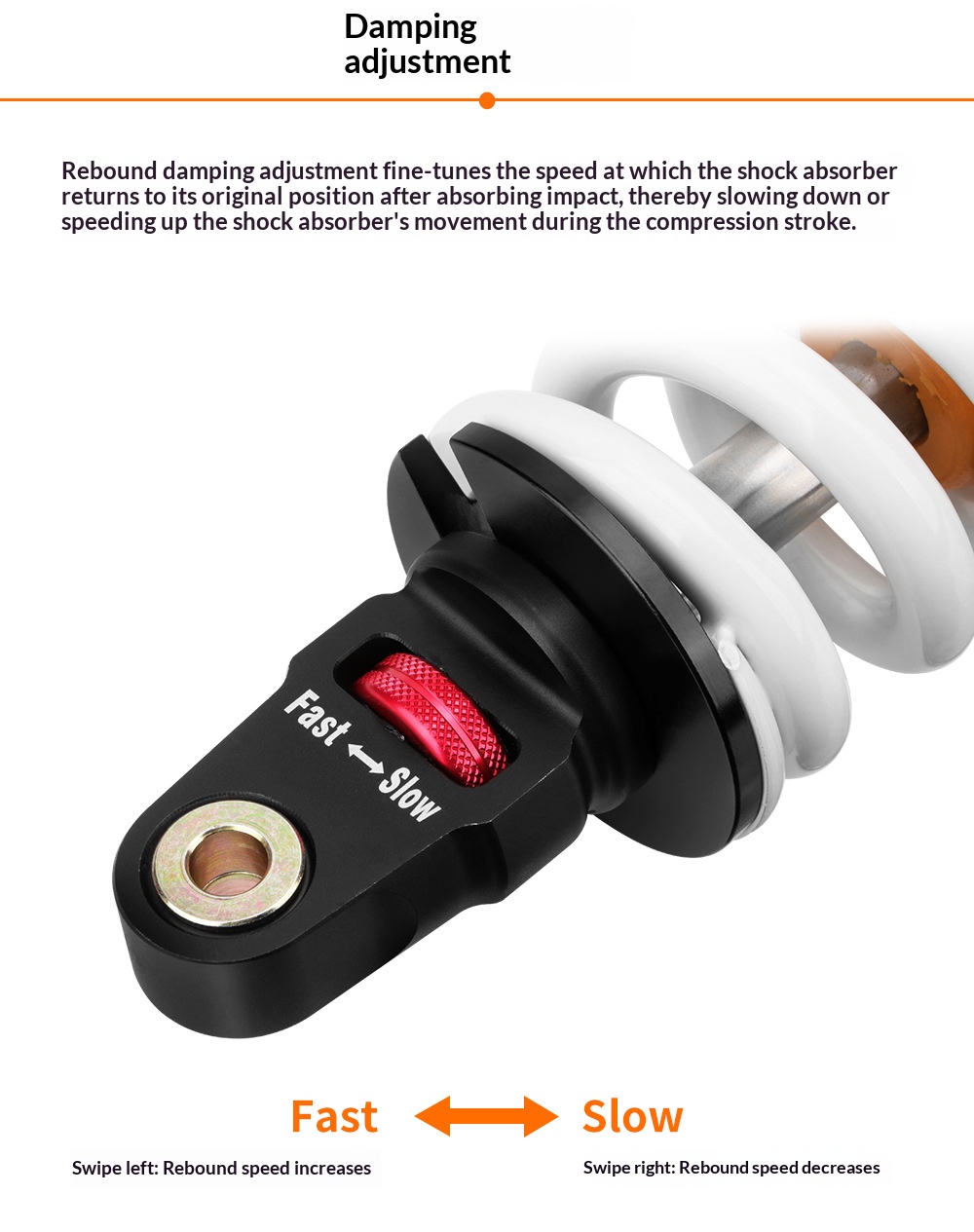

Adjustable Rebound Damping
Helps control how quickly the shock returns after compression, improving riding stability.

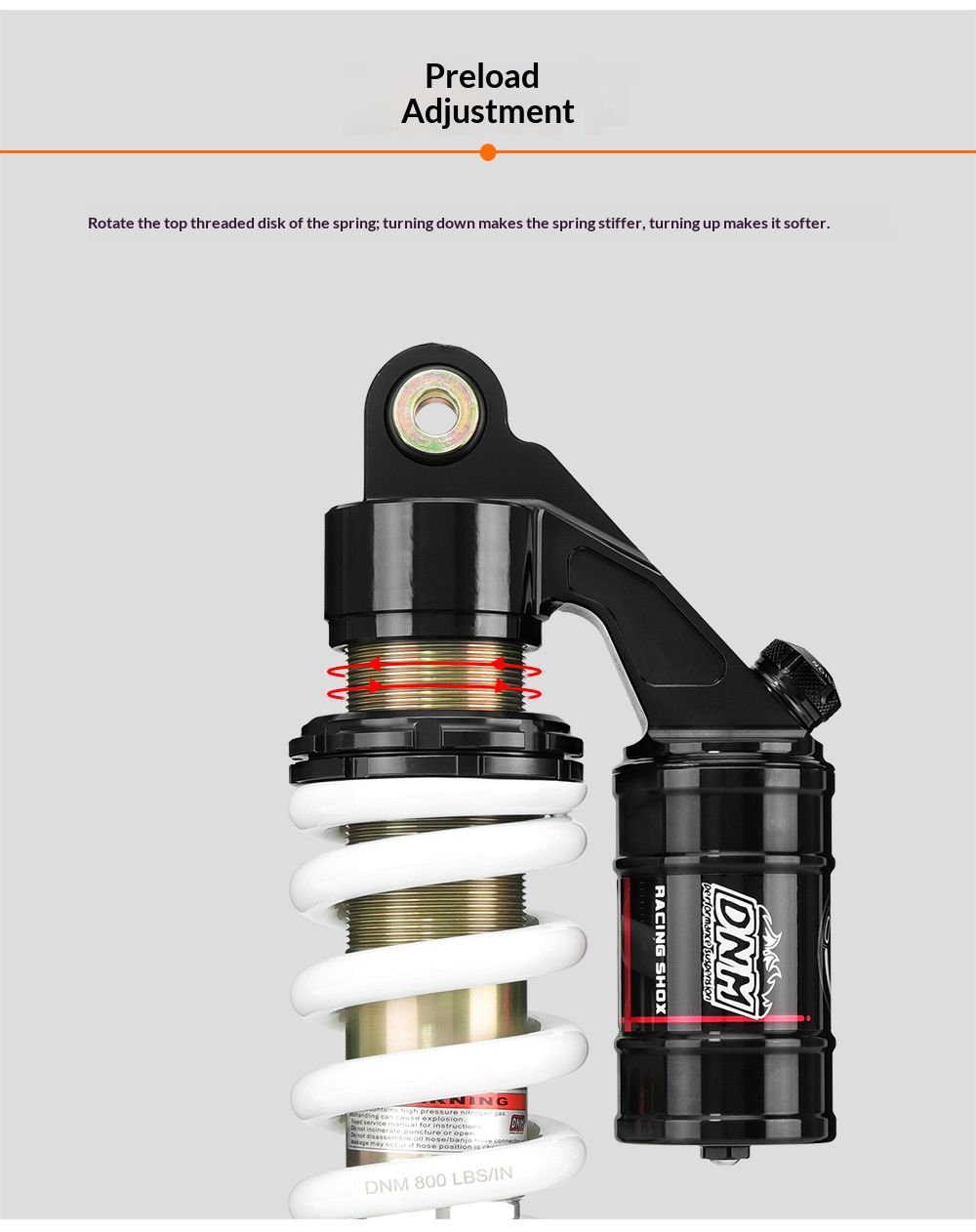

Spring Preload Adjustment
Allows the spring stiffness to be adjusted according to rider weight and road conditions.

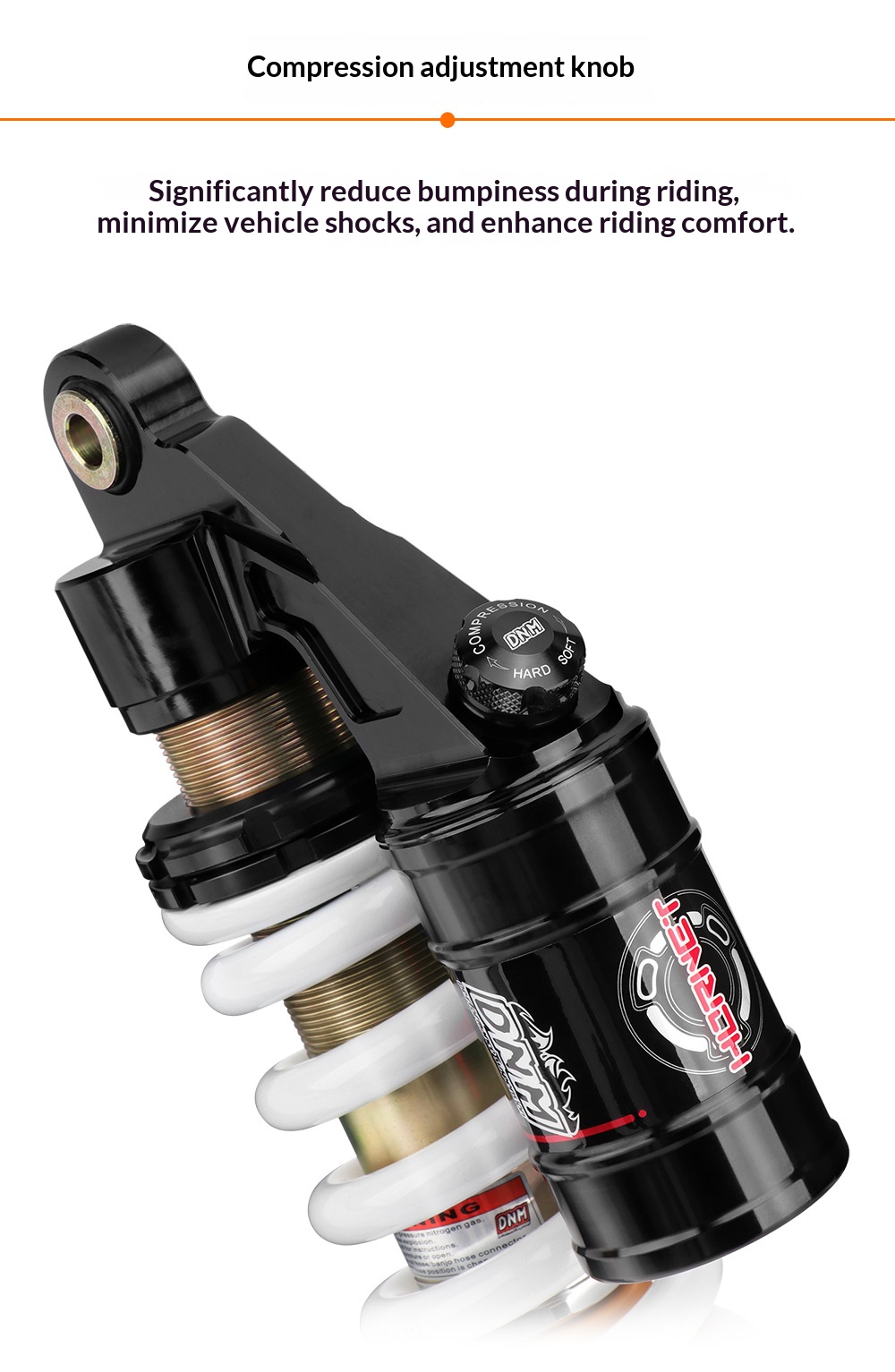

Compression Adjustment on Selected Models
Helps reduce harsh impact from bumps and improves riding comfort.

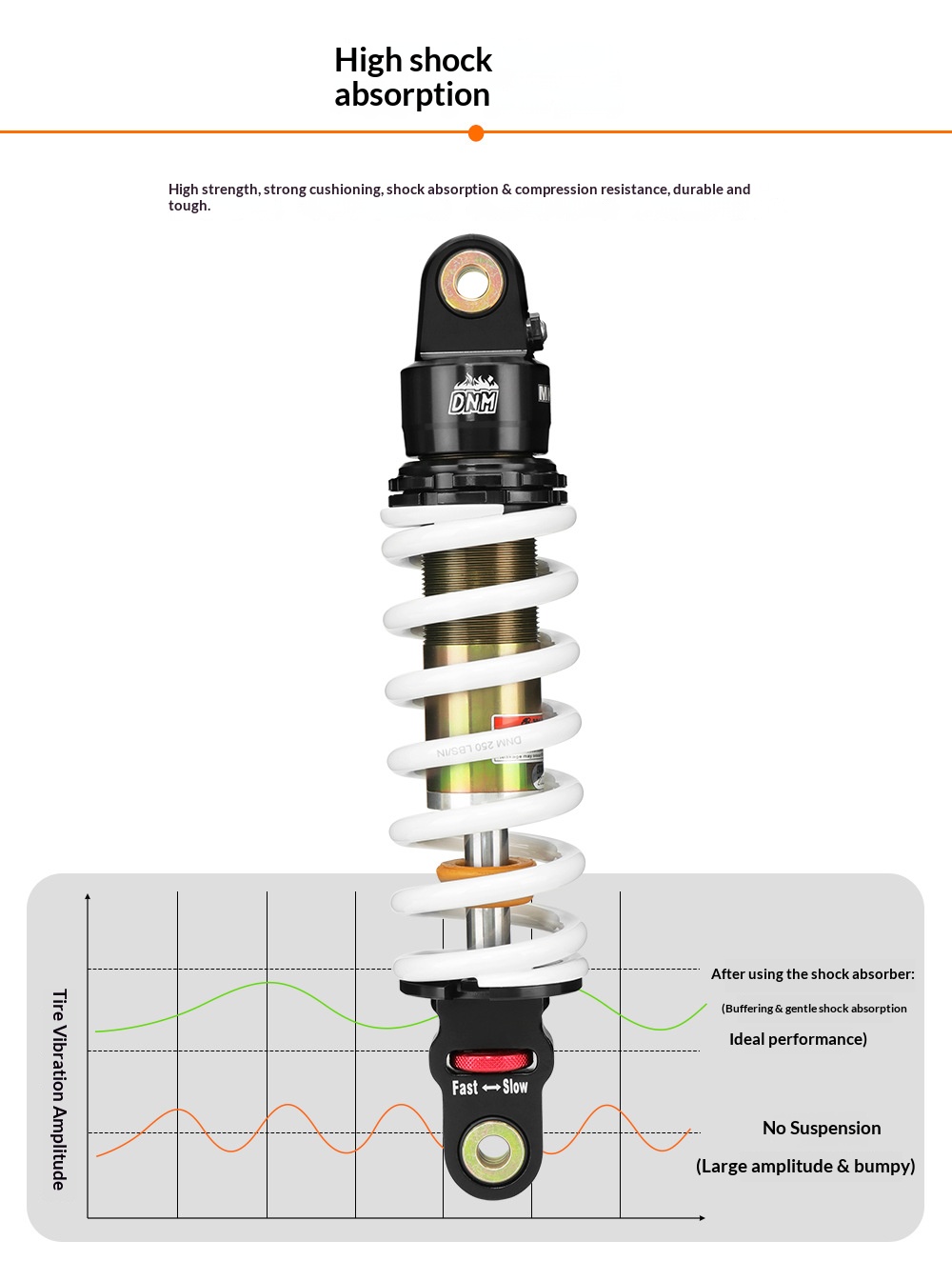

Oil and Air Pressure Suspension Structure
Provides strong cushioning performance and stable shock absorption.
Heavy-Duty Coil Spring
Designed for off-road riding and high-impact conditions.

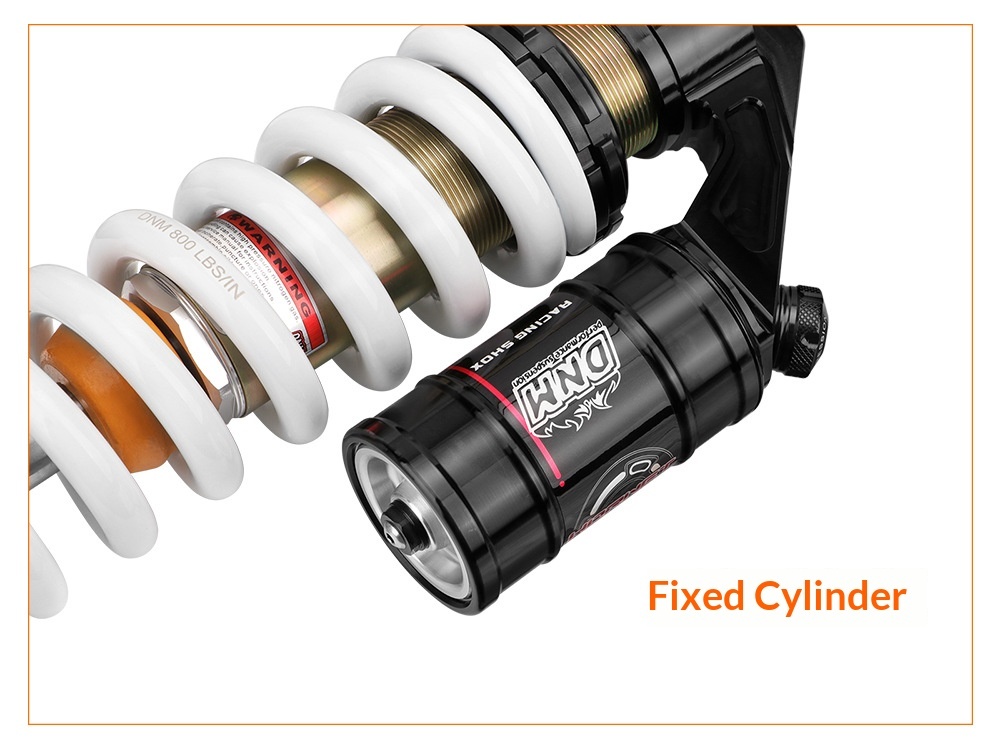

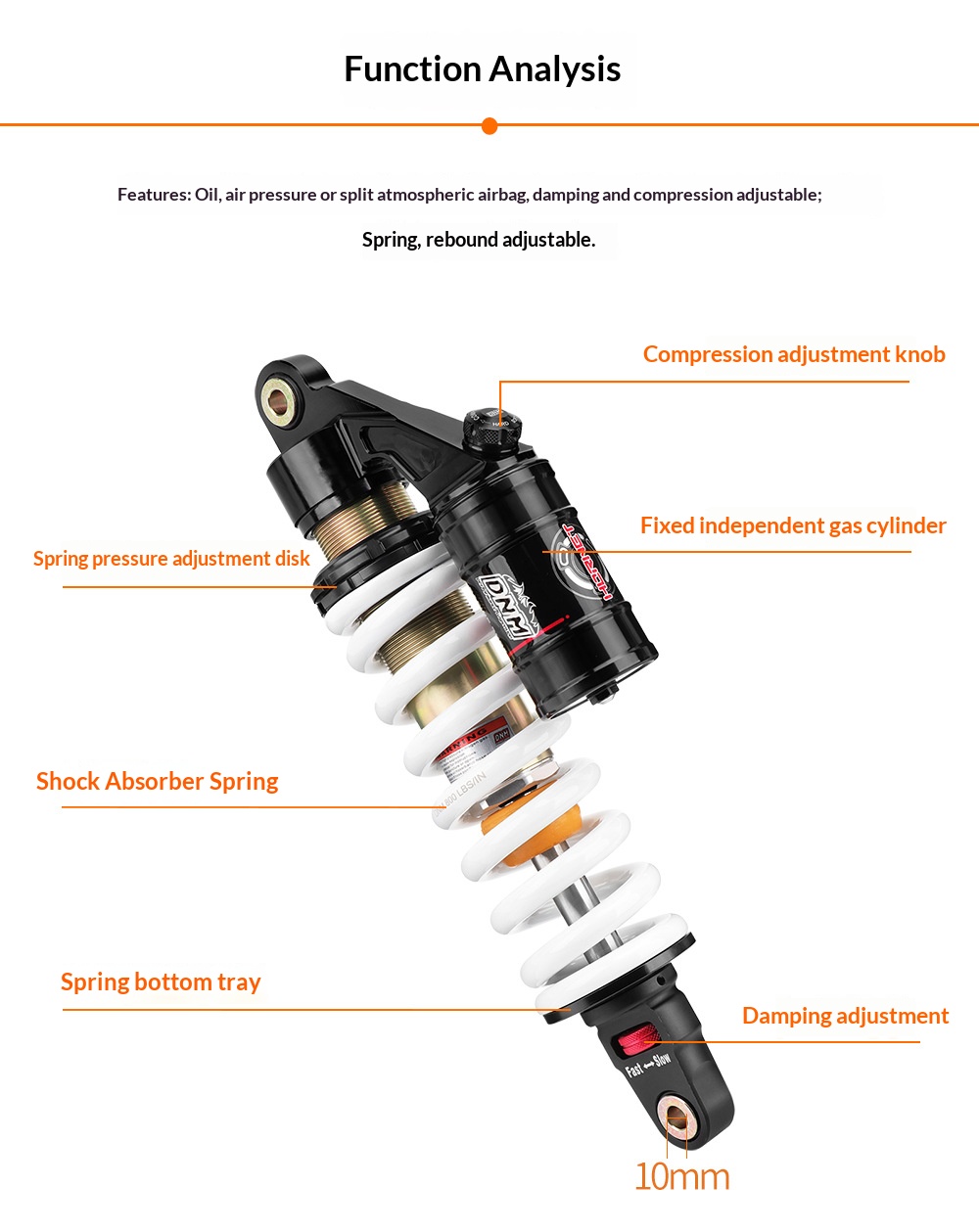

Reservoir Design on Selected Models
Fixed or remote reservoir improves damping performance and supports more consistent suspension response.

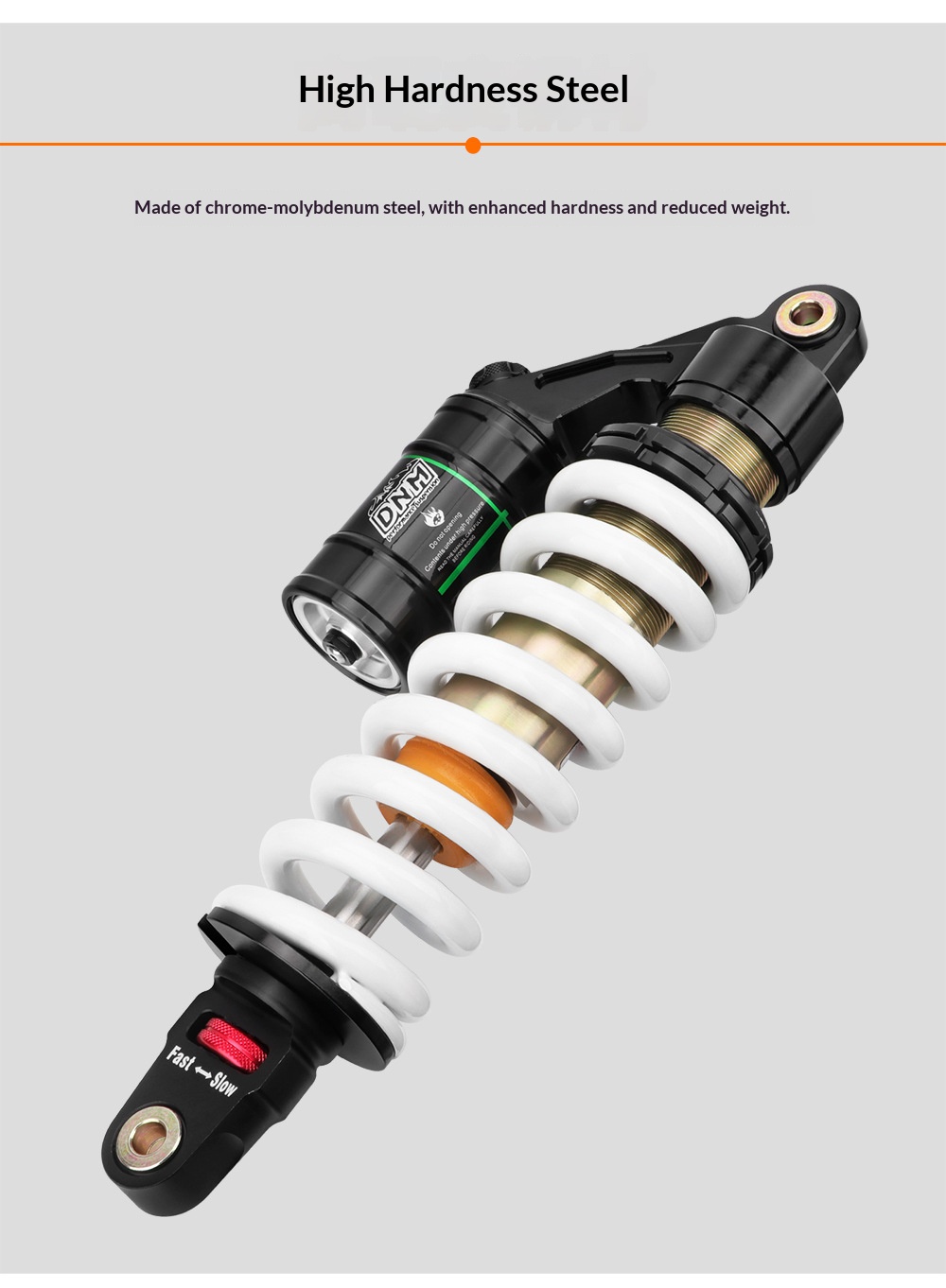

Chromoly Steel Material
High-strength steel construction for durability, impact resistance, and long service life.
| Item | Details |
|---|---|
| Brand | DNM |
| Product Code | DNM Motorcycle Shock Absorber |
| Models | MK-AR / MK-BAG / MT-RC / MTG-RC |
| Type | Rear Coil Shock Absorber |
| Suspension Type | Oil / Air Pressure / Coil Spring |
| Material | Chromoly Steel |
| Installation Diameter | Upper 10mm / Lower 20mm |
| Adjustment | Rebound / Preload / Compression depending on model |
| Spring Color | White / Black depending on option |
| Application | Off-road motorcycle rear suspension |

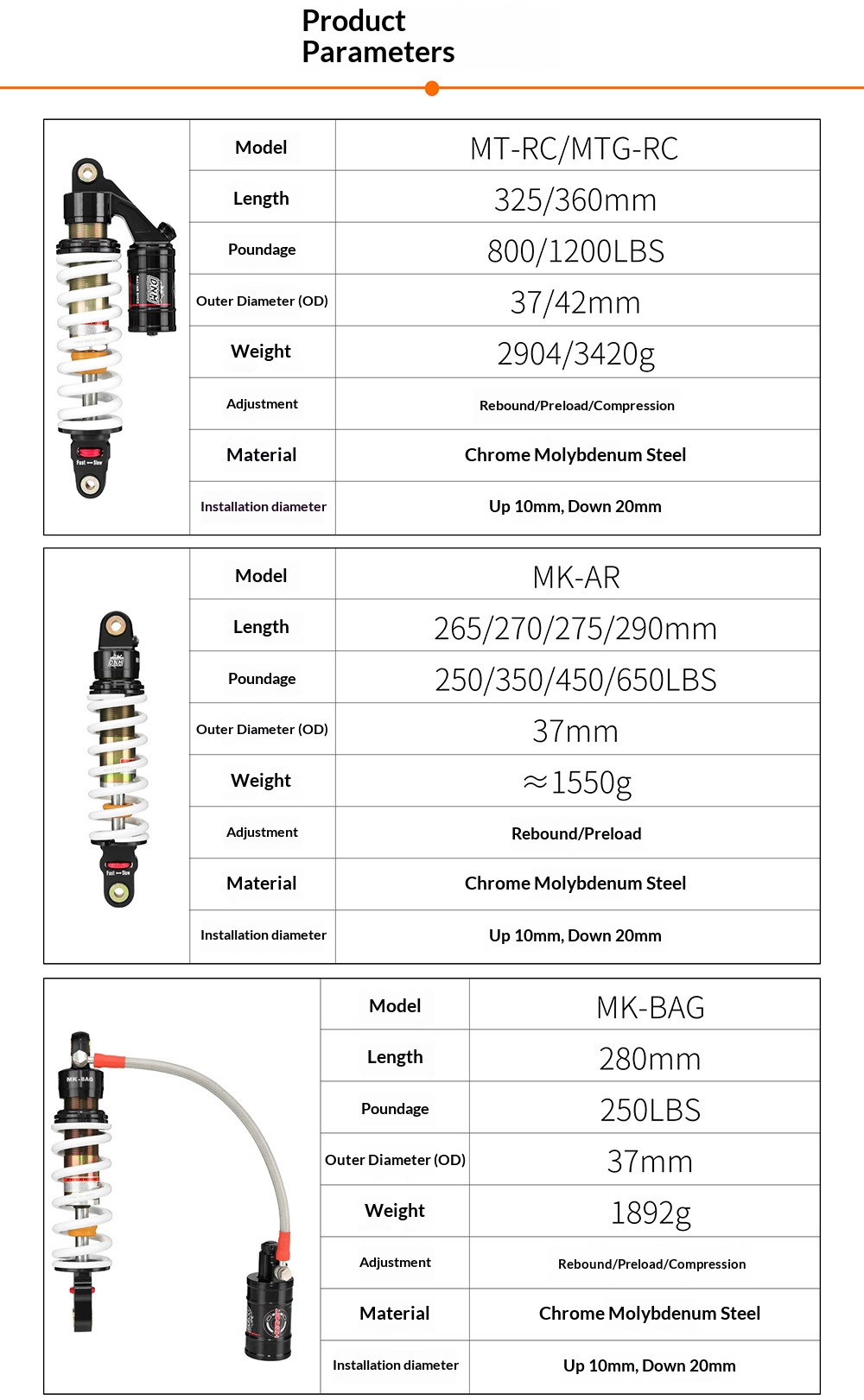

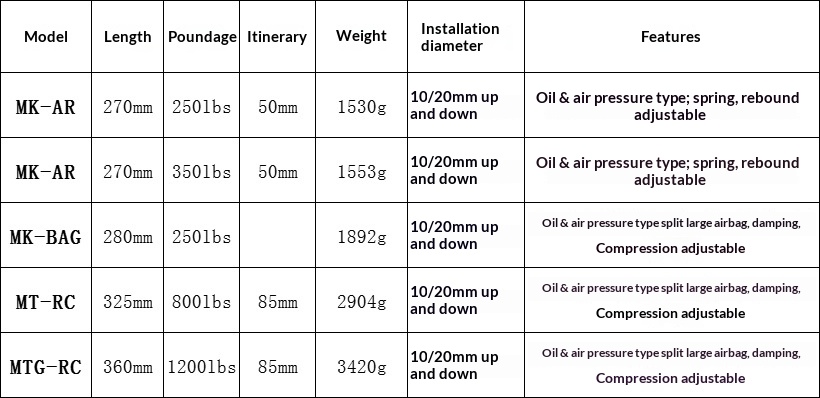

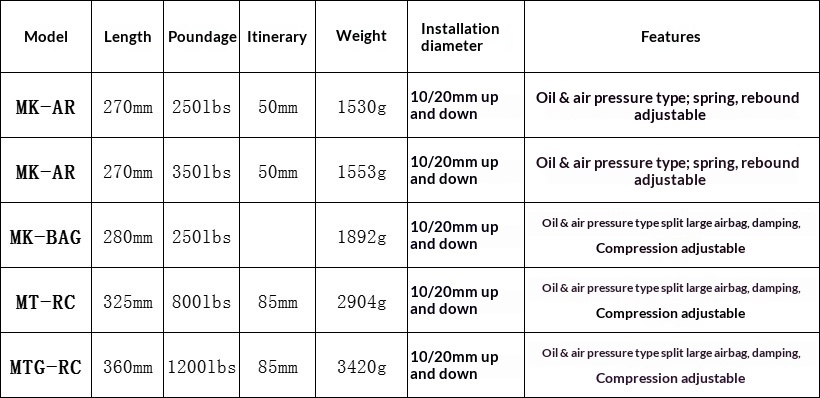

| Model | Length | Spring Rate | Travel | Weight | Features |
|---|---|---|---|---|---|

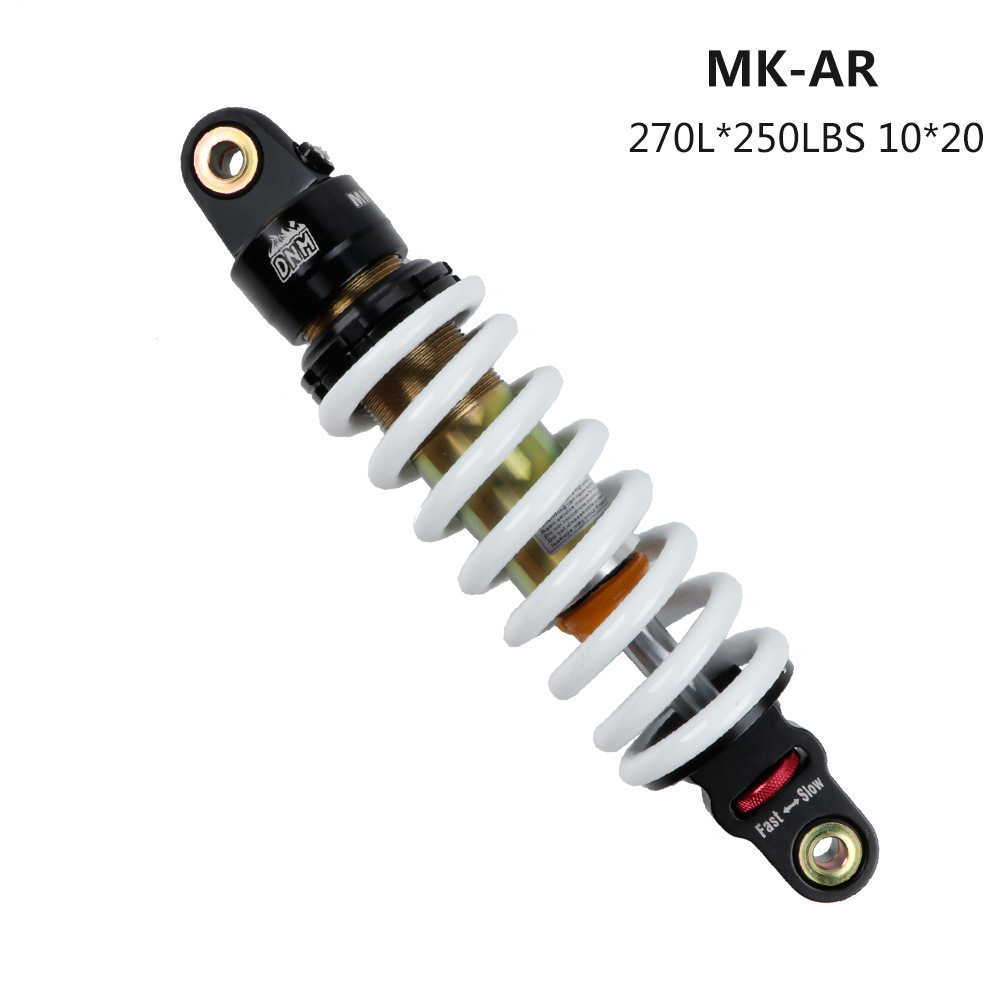

| MK-AR | 270mm | 250lbs | 50mm | 1530g | Oil-air type, coil spring, rebound adjustable |

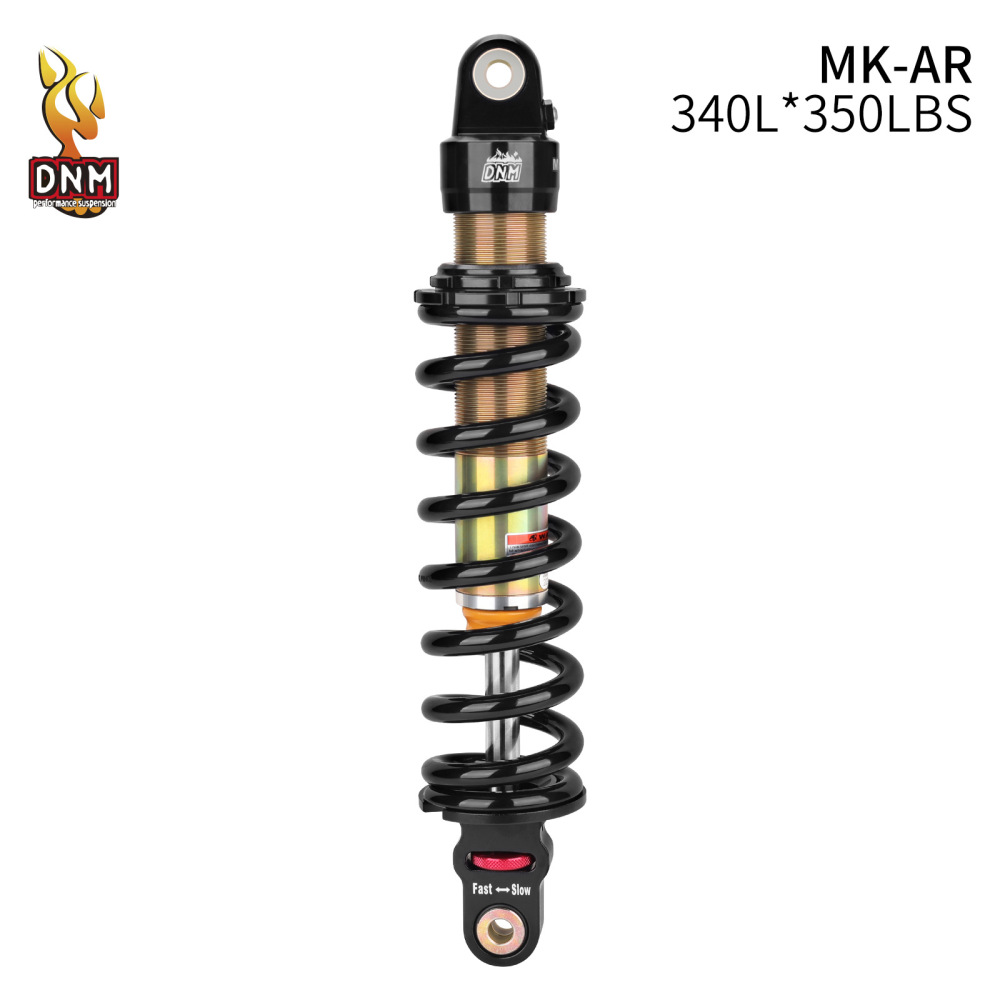

| MK-AR | 340mm | 350lbs | 50mm | 1553g | Oil-air type, coil spring, rebound adjustable |

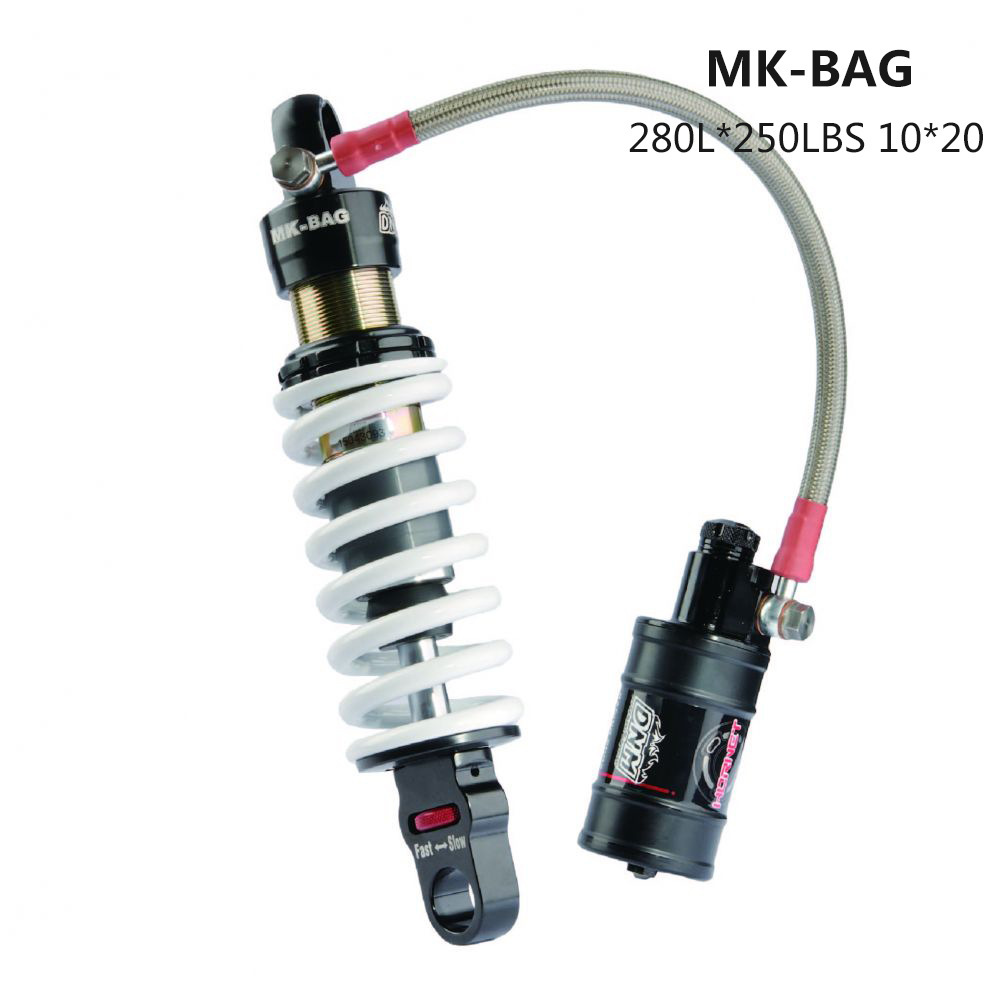

| MK-BAG | 280mm | 250lbs | Not specified | 1892g | Remote large air reservoir, rebound/preload/compression adjustable |

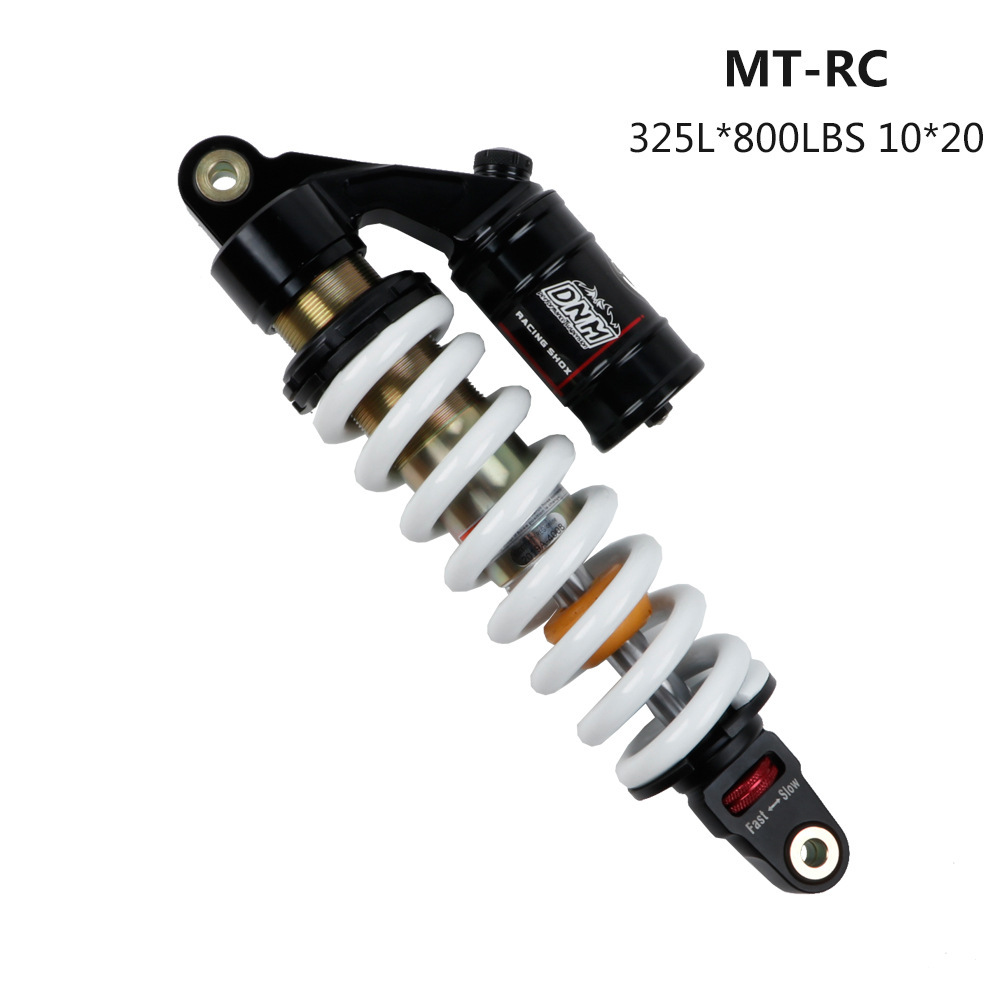

| MT-RC | 325mm | 800lbs | 85mm | 2904g | Separate air reservoir, rebound/preload/compression adjustable |

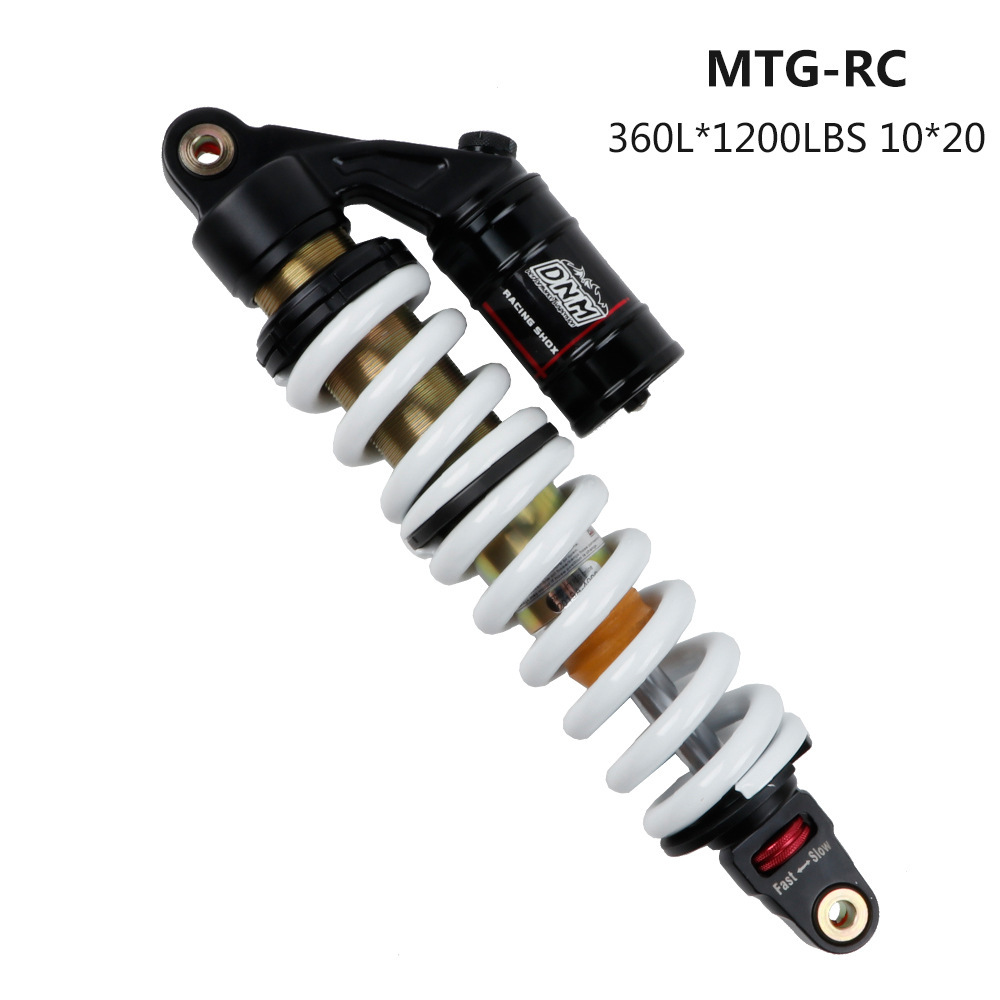

| MTG-RC | 360mm | 1200lbs | 85mm | 3420g | Separate air reservoir, rebound/preload/compression adjustable |
