TOOPRE Crank Puller for Square Taper and Splined Cranks, Puller and Top Cap Options, Hardened High-Carbon Steel

Name: TOOPRE Crank Puller for Square Taper and Splined Cranks, Puller and Top Cap Options, Hardened High-Carbon Steel
Brand: DJC Bikes - DJC Components
Price: 8.57 USD
Availability: InStock
Rating: 5 (25 reviews)

$8.57 ~~$11.90~~

-28%

TOOPRE Crank Puller for Square Taper and Splined Cranks, Puller and Top Cap Options, Hardened High-Carbon Steel.

Options: crank puller, crank puller with top cap, or two top caps only. Choose the complete item you need.

The source specifies operation without the top cap for square taper systems and with the top cap for compatible splined systems. Check the crank thread and axle contact before use.

GET $3.00 OFF ON ORDERS OVER $19.00

Get it

H321TIB9

GET $5.00 OFF ON ORDERS OVER $48.00

Get it

U00EEOSX

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites

1/1

Specifications
Warranty FAQ

TOOPRE Crank Puller for Square Taper and Splined Cranks, Puller and Top Cap Options, Hardened High-Carbon Steel

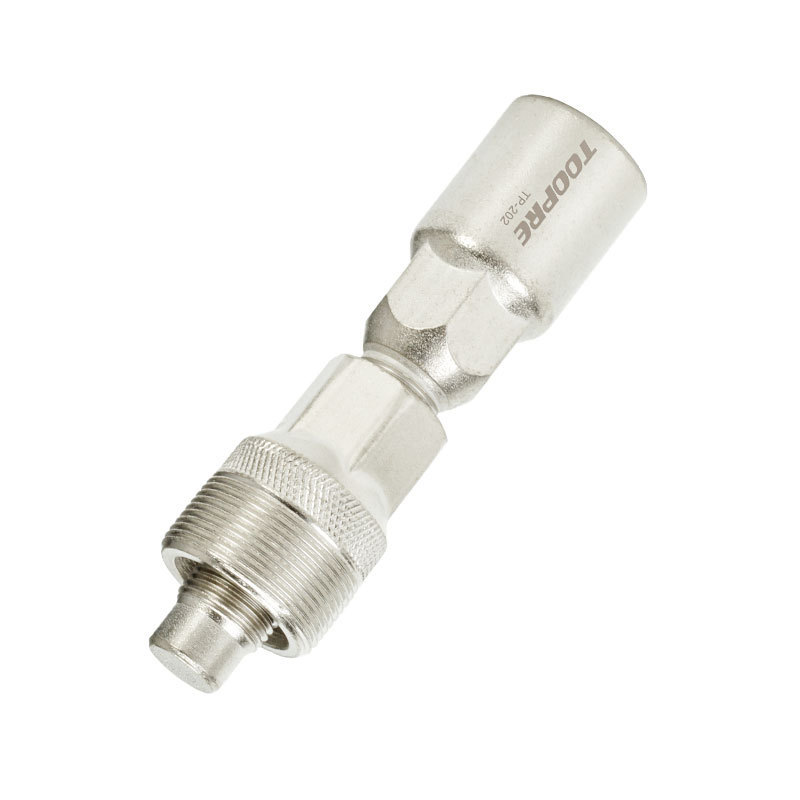

The TOOPRE Bicycle Crank Puller is designed for removing crank arms during bicycle maintenance, crankset replacement or chainring service. Made from high-carbon steel with heat treatment and an electroplated finish, it is suitable for compatible square taper and splined crank systems.

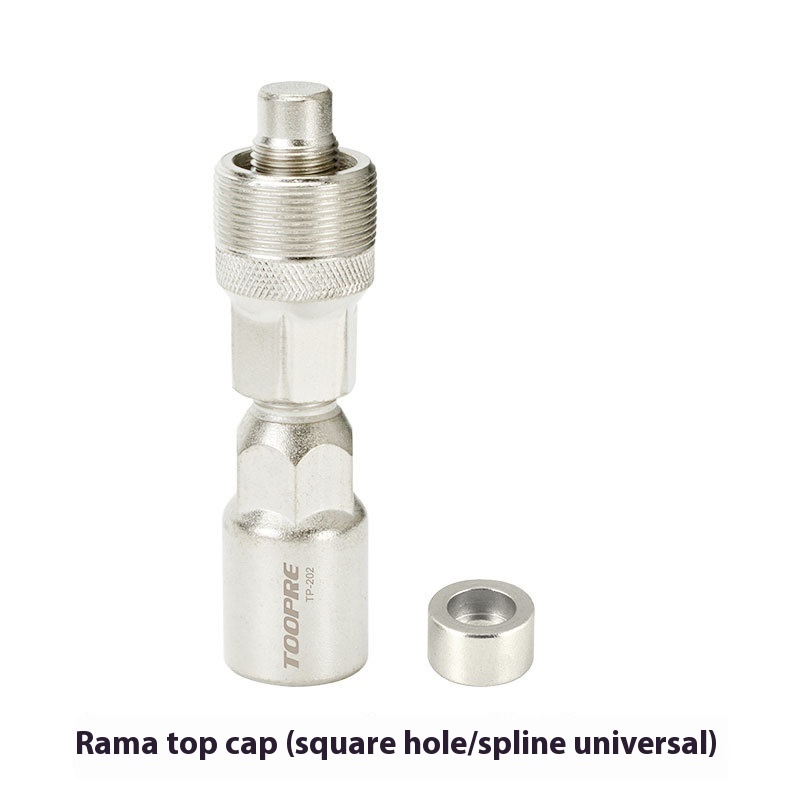

The puller can be used directly with square taper bottom bracket axles. For compatible splined or hollow axle crank systems, use the included thickened top cap to provide a proper contact surface during crank arm extraction.

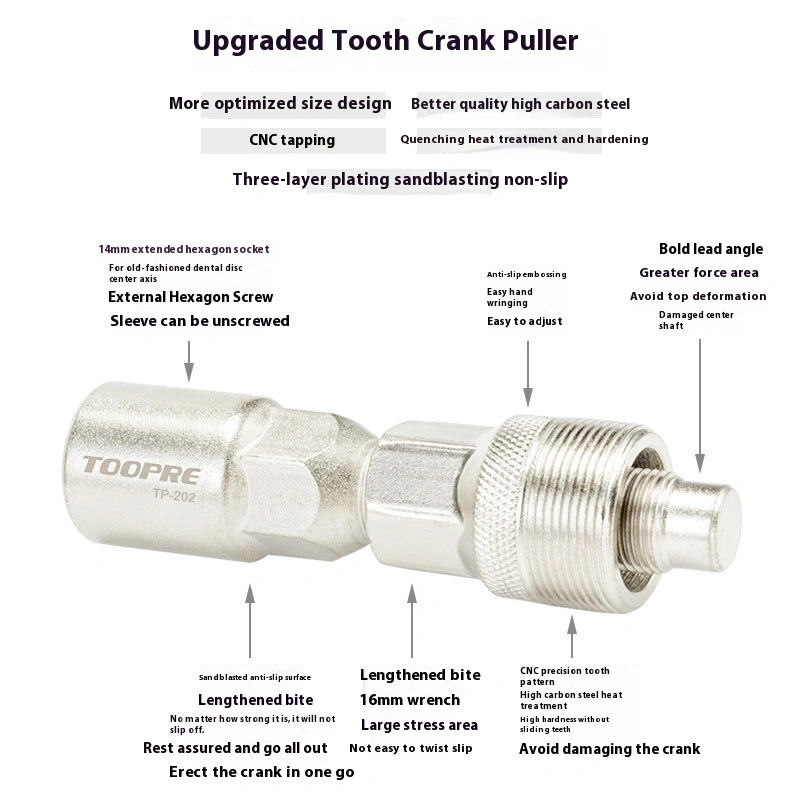

Key Features

High-Carbon Steel Construction: Made from high-carbon steel with quenching and hardening heat treatment for strength and durability.
Dual-Compatibility Design: Use the puller alone for compatible square taper bottom bracket axles; use it with the included top cap for compatible splined or hollow axle crank systems.

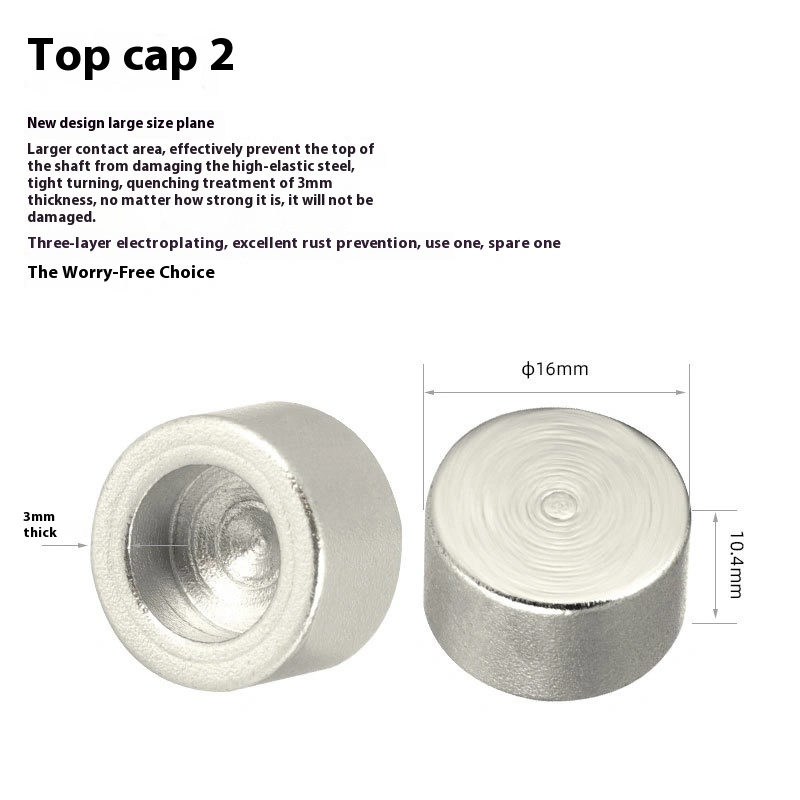

Thickened Top Cap: The 16mm diameter top cap provides a wider contact surface when used with compatible splined axle systems.
CNC Threading: Precision threaded construction is designed for stable engagement with compatible crank arms.
Sandblasted Surface: Sandblasted finish and textured gripping edges help improve handling during use.

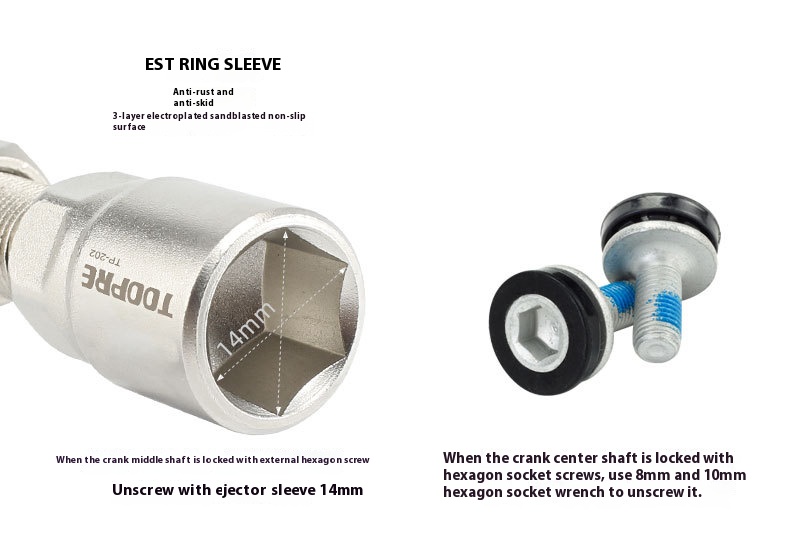

14mm Sleeve Function: The top rod sleeve can also be used as a 14mm socket for compatible external-hex crank bolts.

Compatibility

Square Taper Bottom Bracket: Use the puller without the top cap.
Splined / Hollow Axle Crank Systems: Use the included top cap before operating the puller.
Suitable Bicycle Types: MTB, road bikes and urban commuter bikes with compatible crank arms.

Compatibility notice: Please verify that your crank arm has the correct extractor threads and confirm your bottom bracket axle type before purchase. This tool is not suitable for every crankset design.

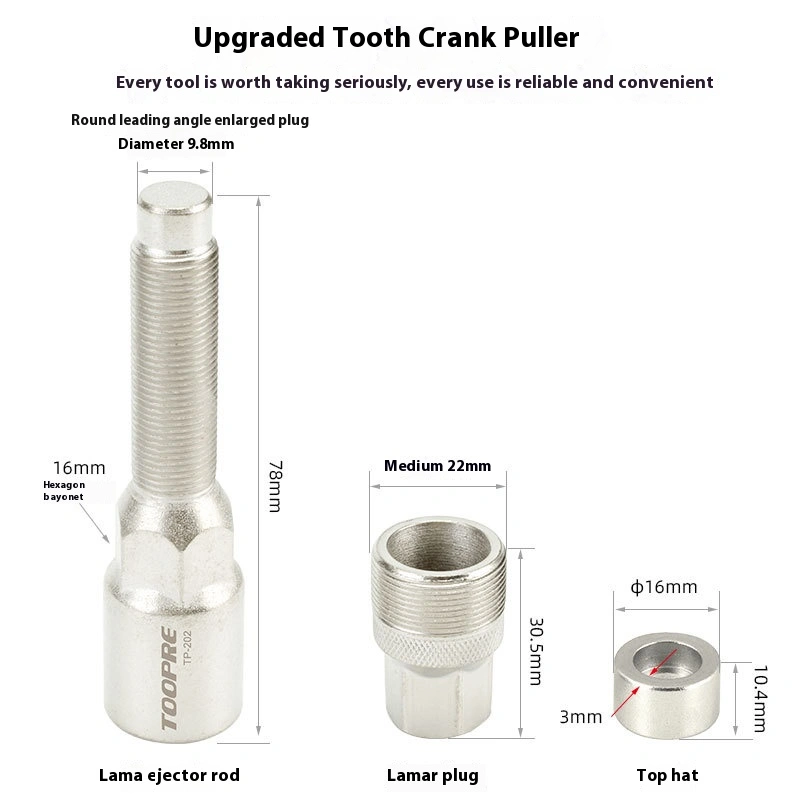

Specifications

Brand	TOOPRE
Product Type	Bicycle Crank Puller / Crank Arm Extraction Tool
Material	Hardened High-Carbon Steel
Surface Treatment	Electroplated and Sandblasted Surface
Tool Weight	Approx. 115.2g
Weight with Packaging	Approx. 130g
Puller Length	78mm
Top Cap Size	16mm × 10.4mm
Packaging Size	90mm × 25mm × 140mm
Key Feature	High-Carbon Steel Construction: Made from high-carbon steel with quenching and hardening heat treatment for strength and durability. Dual-Compatibility Design: Use the puller alone for compatible square taper bottom bracket axles; use it with the included top cap for compatible splined or hollow axle crank systems.
Compatibility	Dual-Compatibility Design: Use the puller alone for compatible square taper bottom bracket axles; use it with the included top cap for compatible splined or hollow axle crank systems. Compatibility notice: Please verify that your crank arm has the correct extractor threads and confirm your bottom bracket axle type before purchase. This tool is not suitable for every crankset design. For Compatible Splined or Hollow Axles: Remove the crank bolt or nut. Place the included top cap into the axle opening first, then thread the puller body fully into the crank arm and operate the inner pressing rod to remove the crank arm.

How to Use

For Square Taper Axles: Remove the crank bolt or nut. Thread the outer body of the puller fully into the crank arm extractor threads. Turn the inner pressing rod to push against the axle and extract the crank arm. No top cap is required.
For Compatible Splined or Hollow Axles: Remove the crank bolt or nut. Place the included top cap into the axle opening first, then thread the puller body fully into the crank arm and operate the inner pressing rod to remove the crank arm.

Installation tip: Apply suitable lubricant to the tool threads before use. Ensure the puller body is fully threaded into the crank arm before applying force to help prevent damage to the crank arm threads.

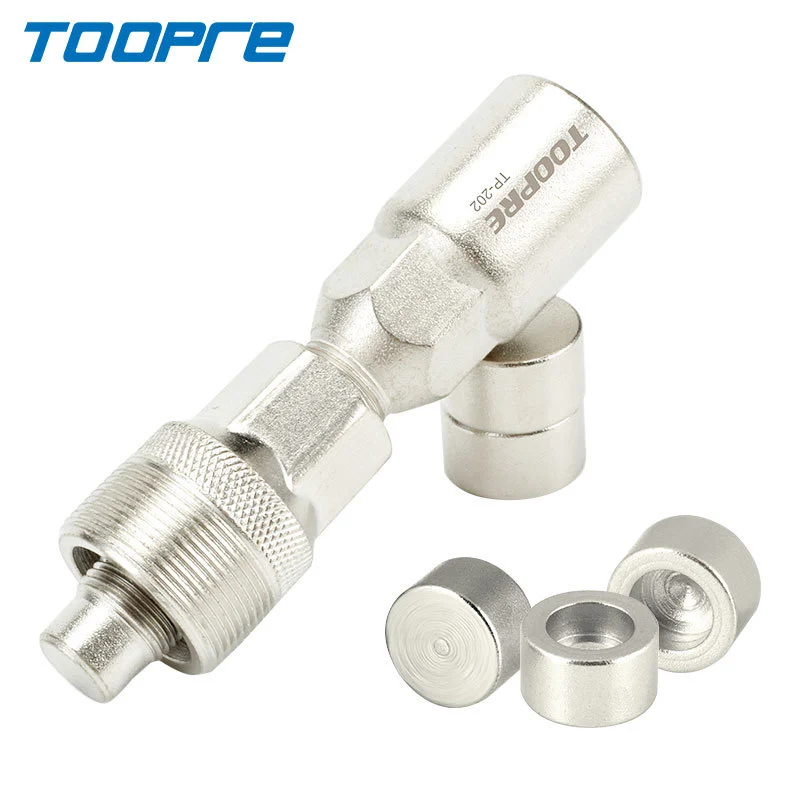

Package Includes

1 × TOOPRE Bicycle Crank Puller Tool with Top Cap

TOOPRE Bicycle Crank Puller Removal Tool | Heavy Duty Mountain Bike Crankset Extractor for Square Taper & Splined Bottom

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.

Option 1
Crank Puller
Crank Puller + Top Cap
2 Top Caps
