110BCD 4 Bolt Wave Pattern Narrow Wide Chainring, 40T-58T, 3mm Offset; 3 / 8-bolt Adapter Options, CNC Machined

110BCD 4-bolt Wave-Pattern Narrow-Wide Chainring, 40T-58T, 3mm Offset; 3 / 8-bolt Adapter Options, CNC Machined

Choose one aluminum Narrow-Wide chainring in Black, Red, Purple or Pink, or a separately sold 3-bolt or 8-bolt crank adapter. Each option supplies one selected item.

Technical Specifications

Features

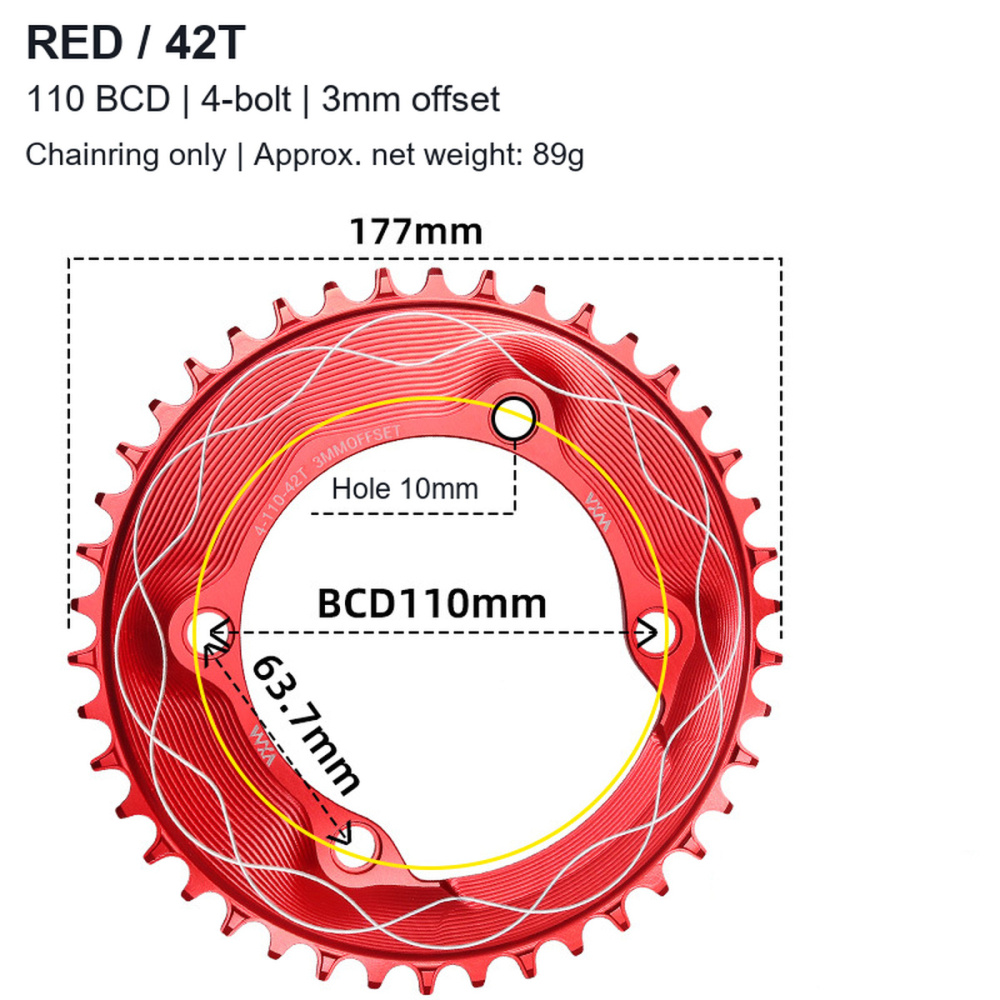

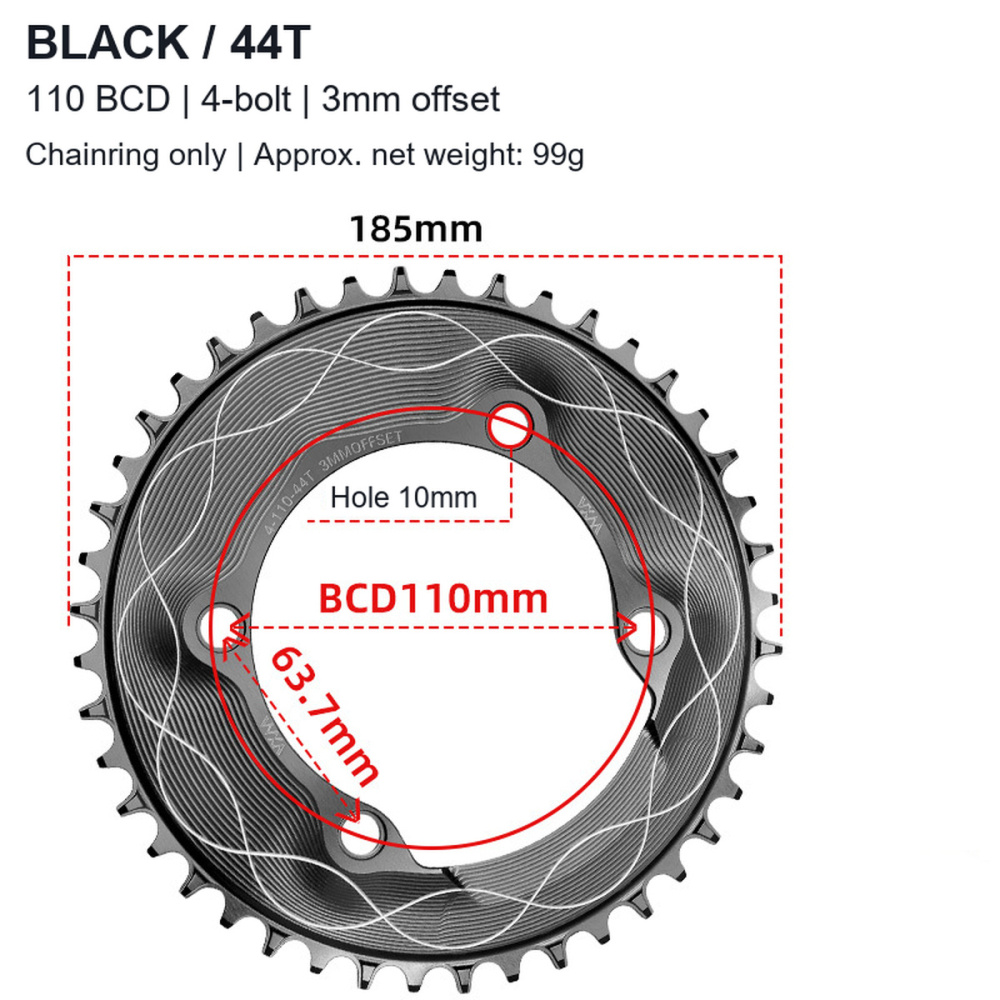

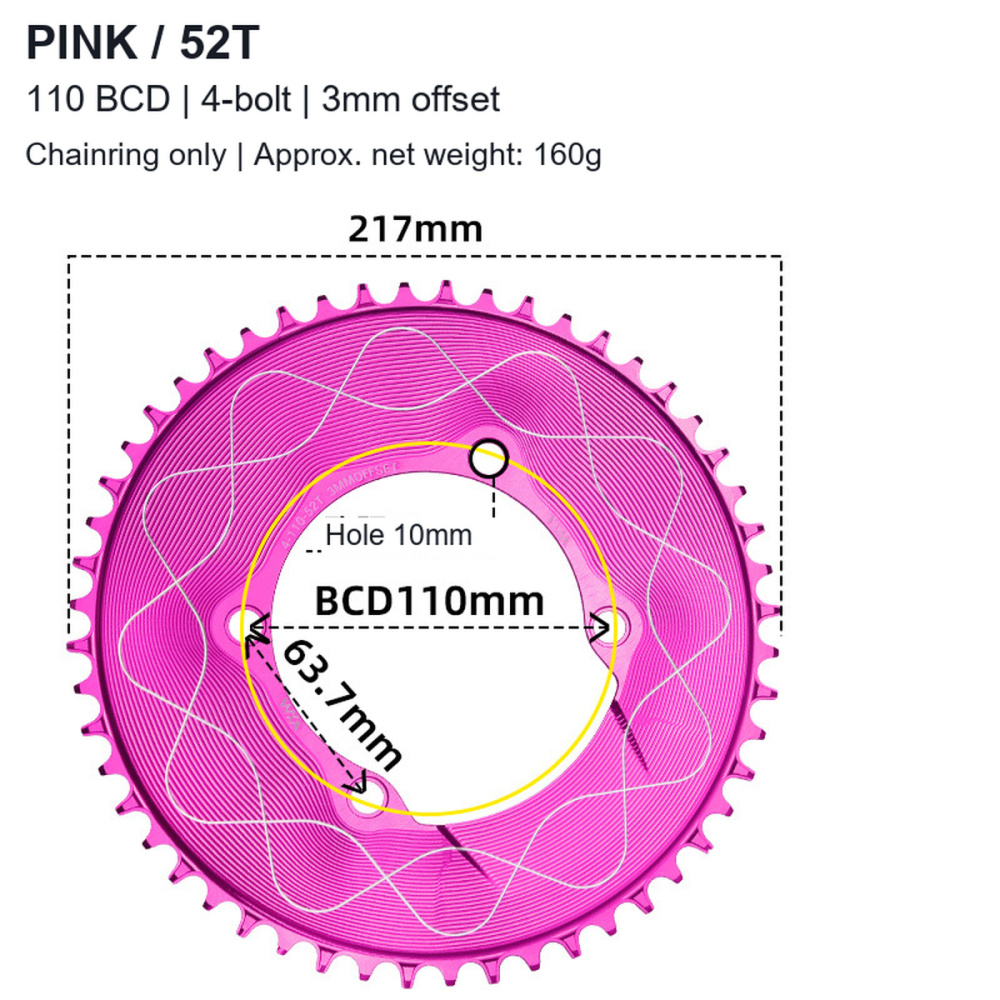

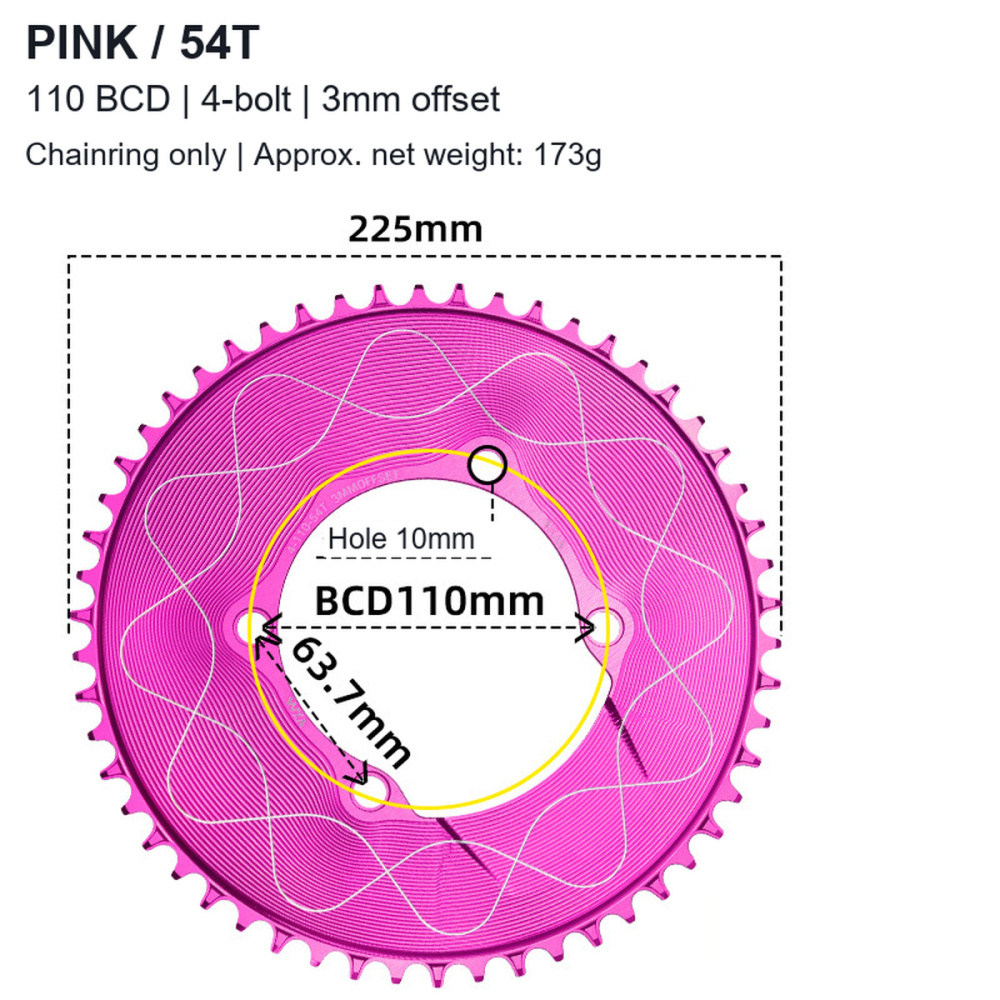

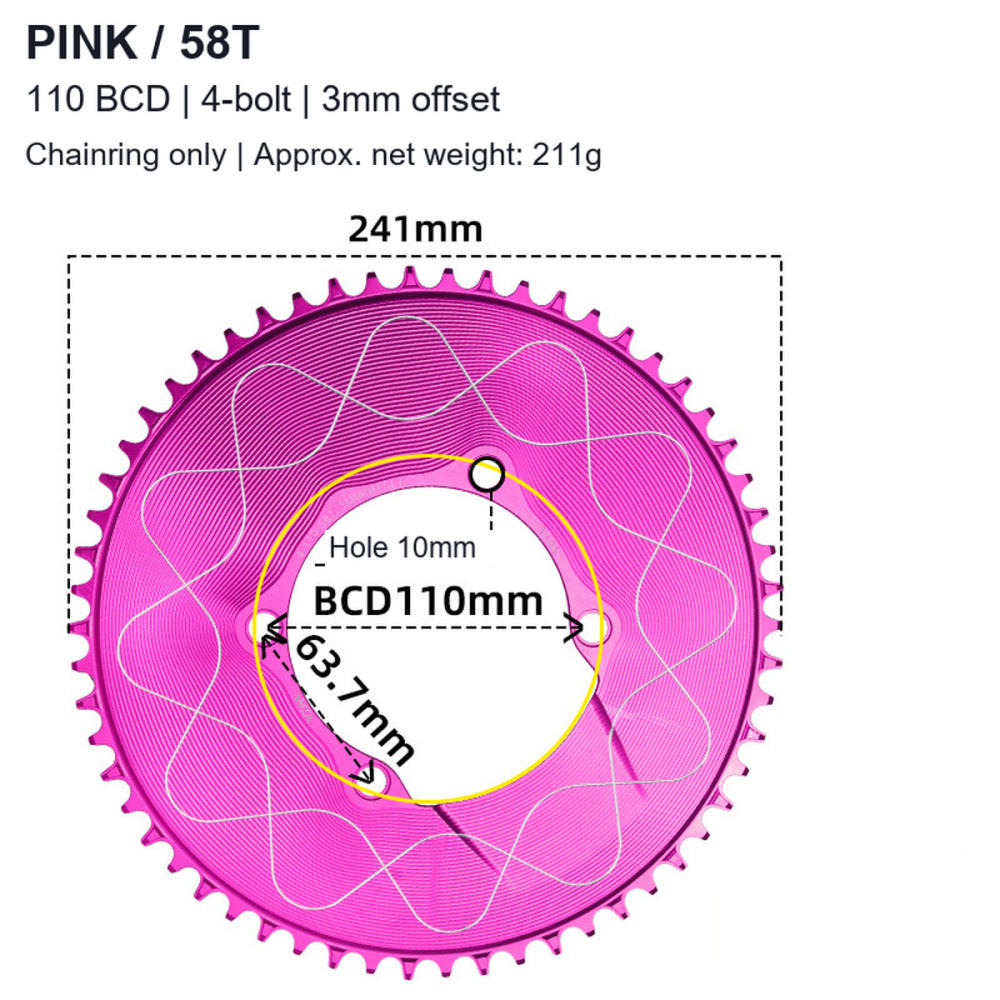

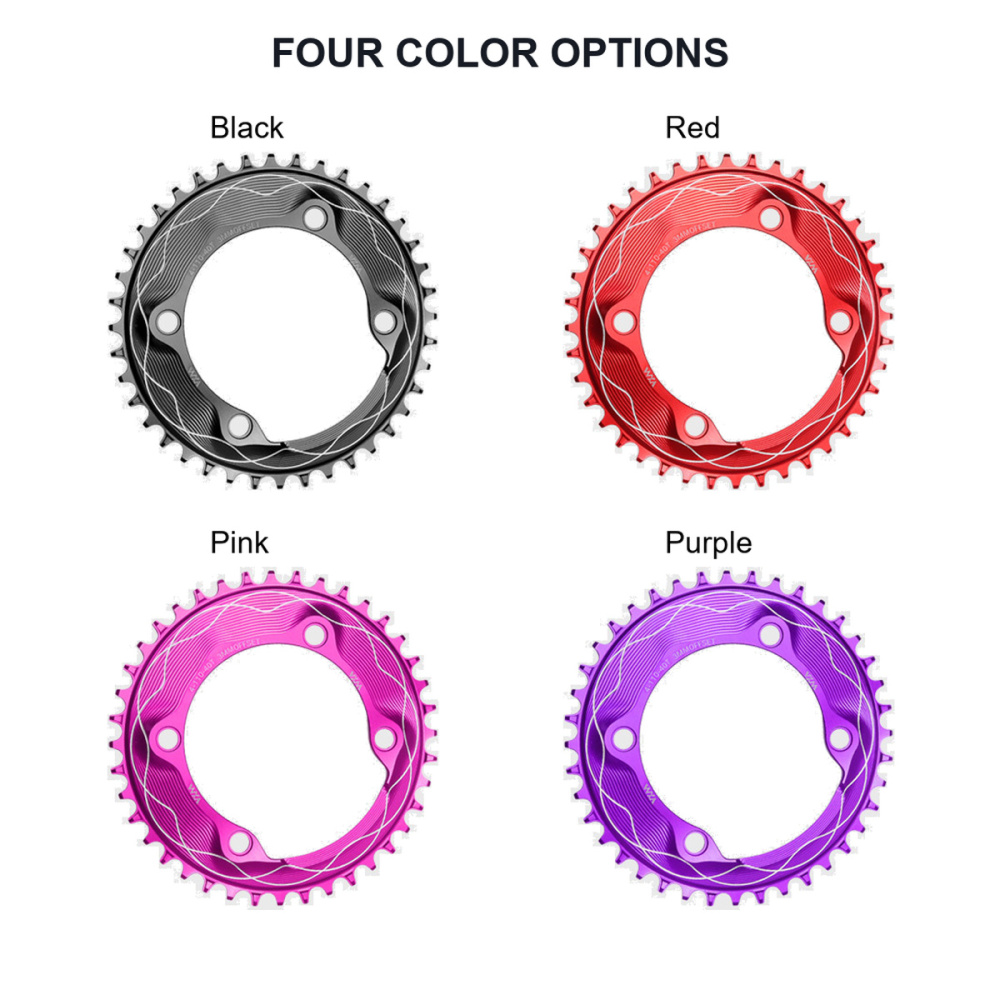

• 40T to 58T in two-tooth increments, with four anodized color choices.

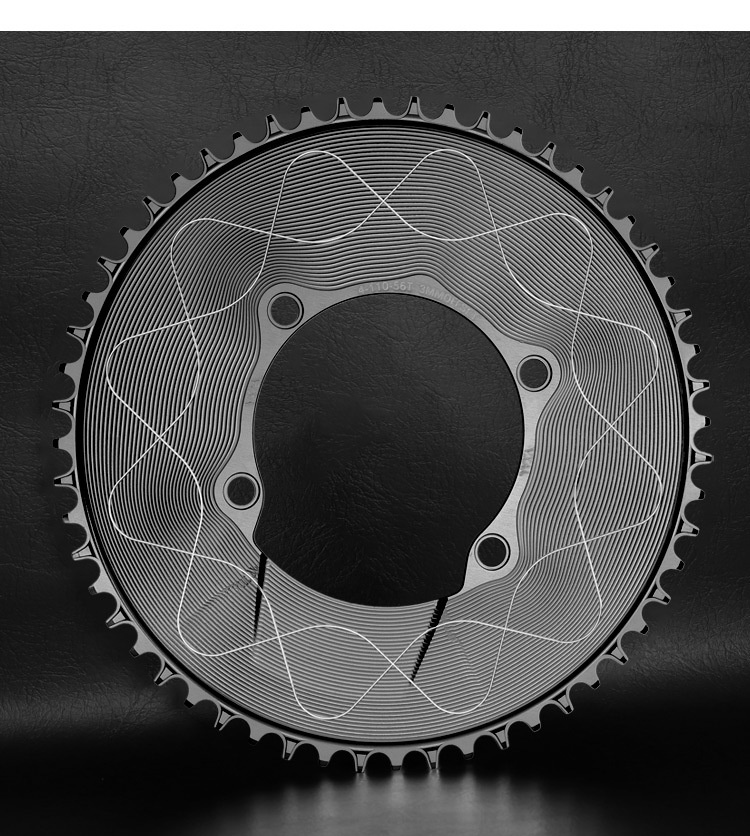

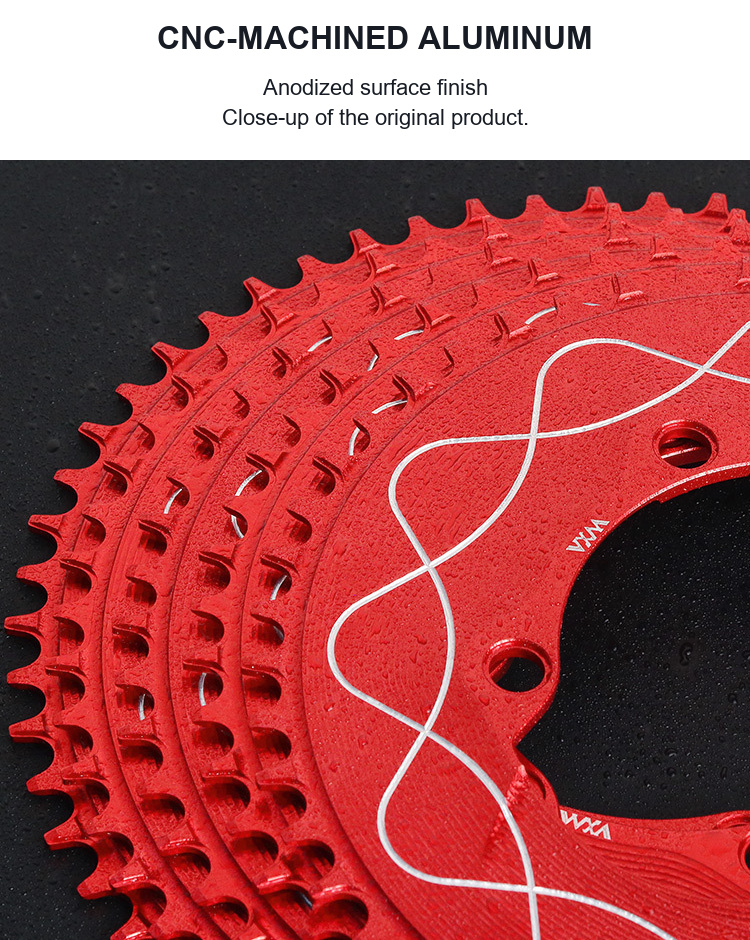

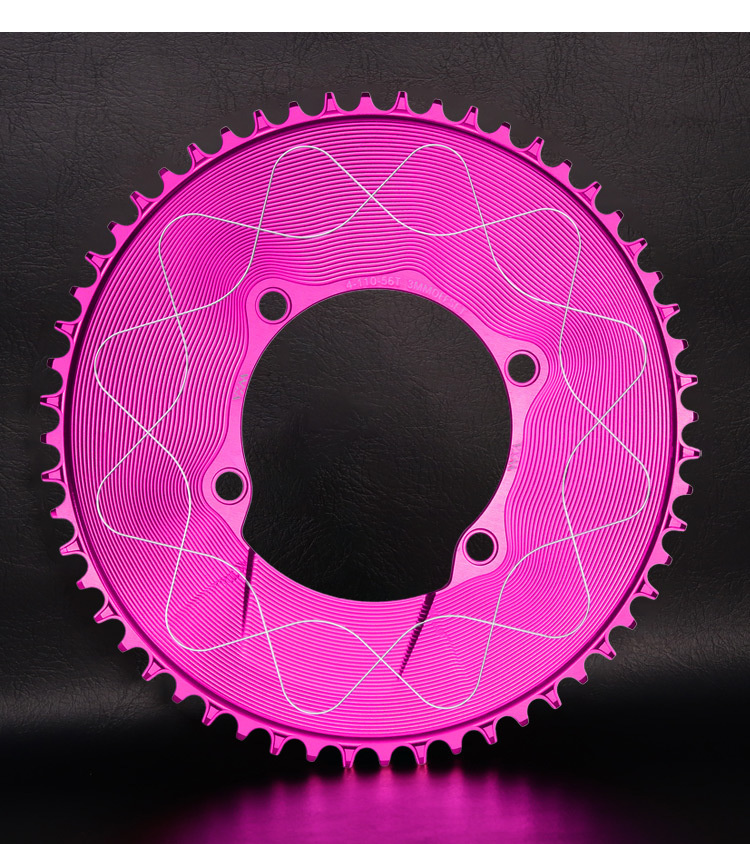

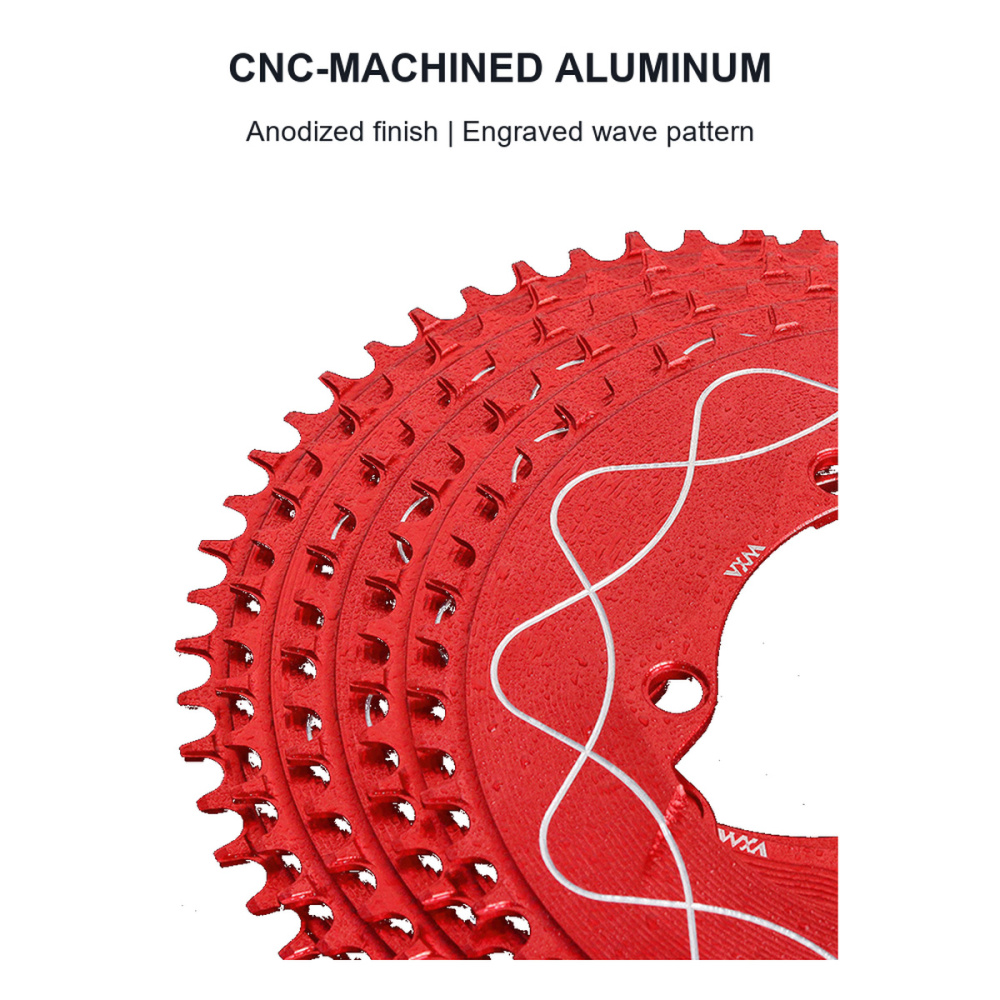

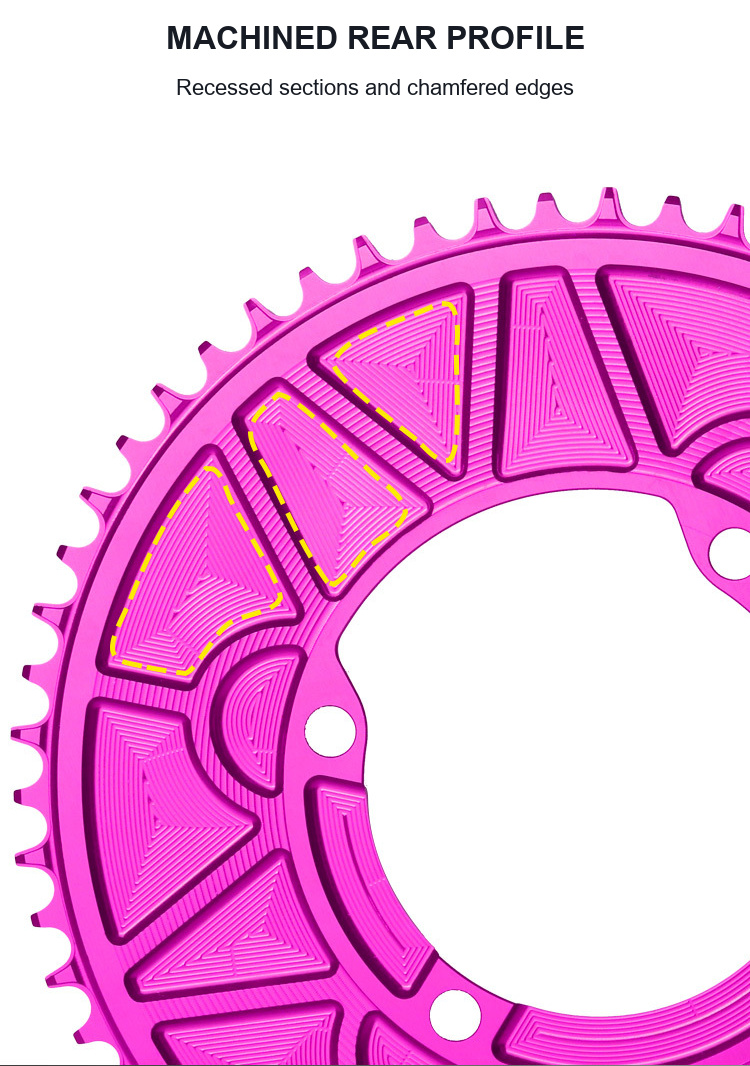

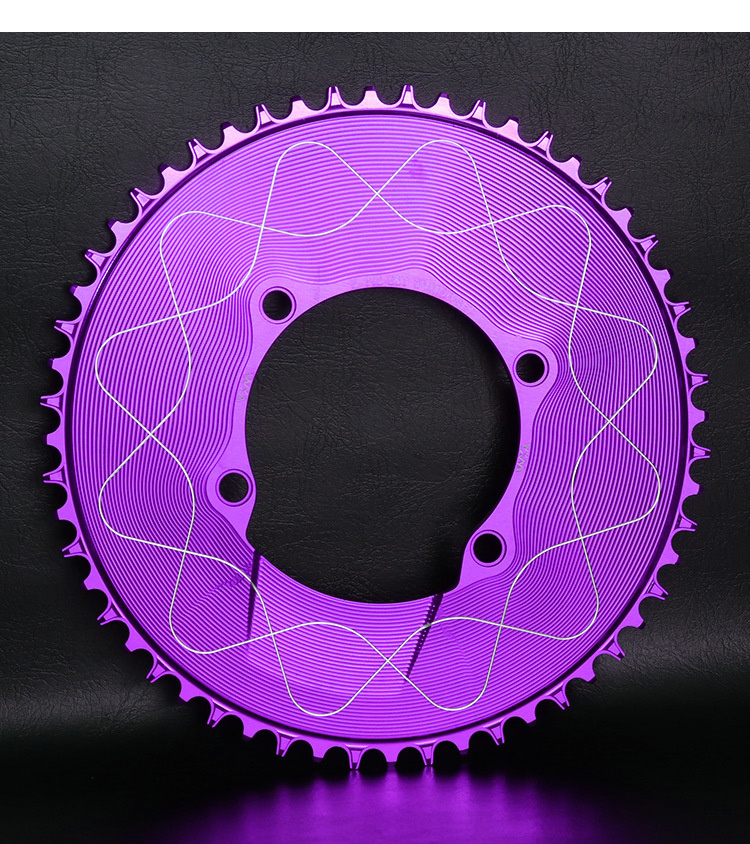

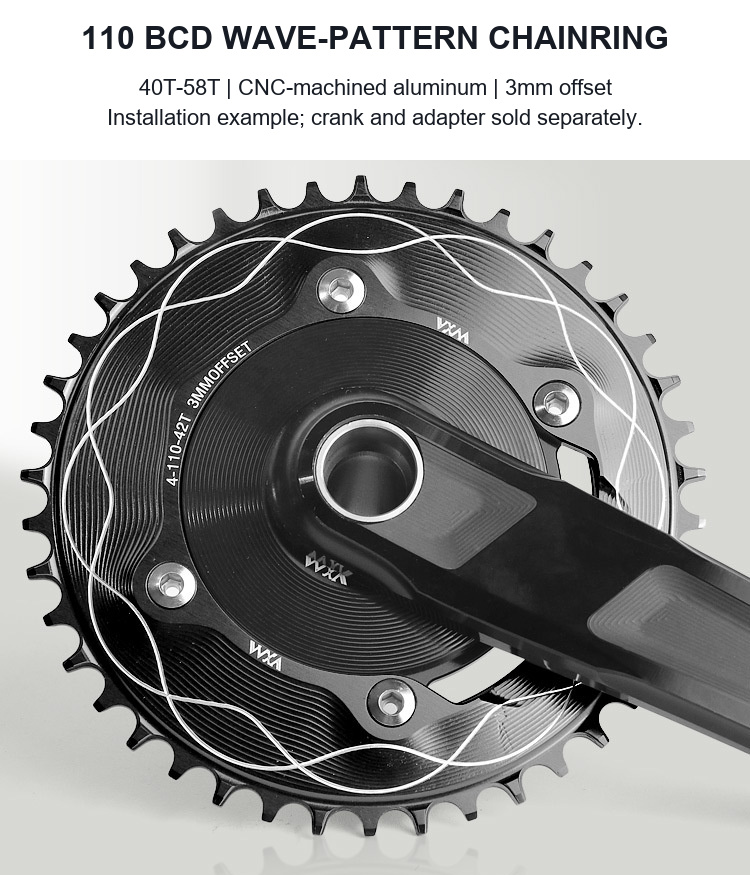

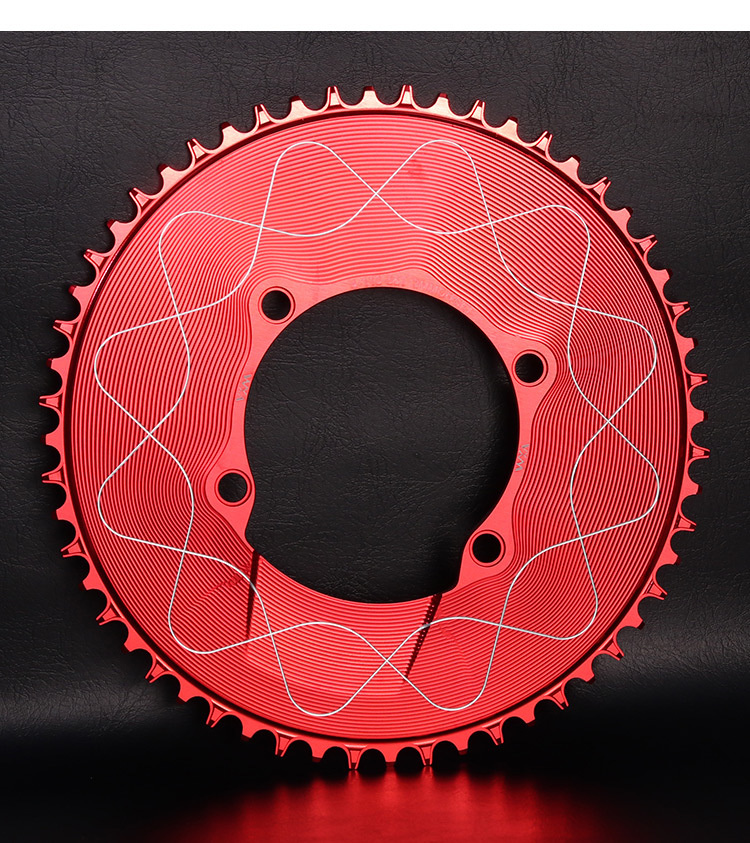

• CNC-machined aluminum chainring with an engraved wave pattern.

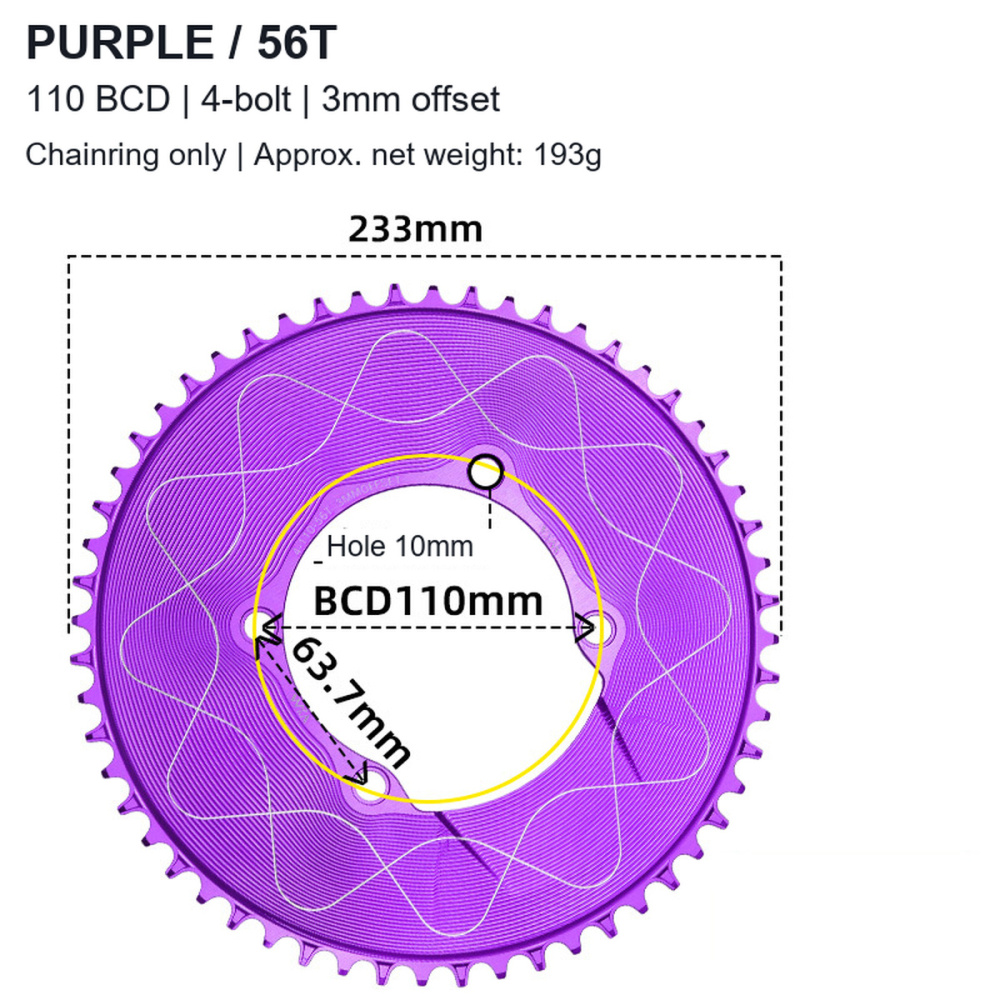

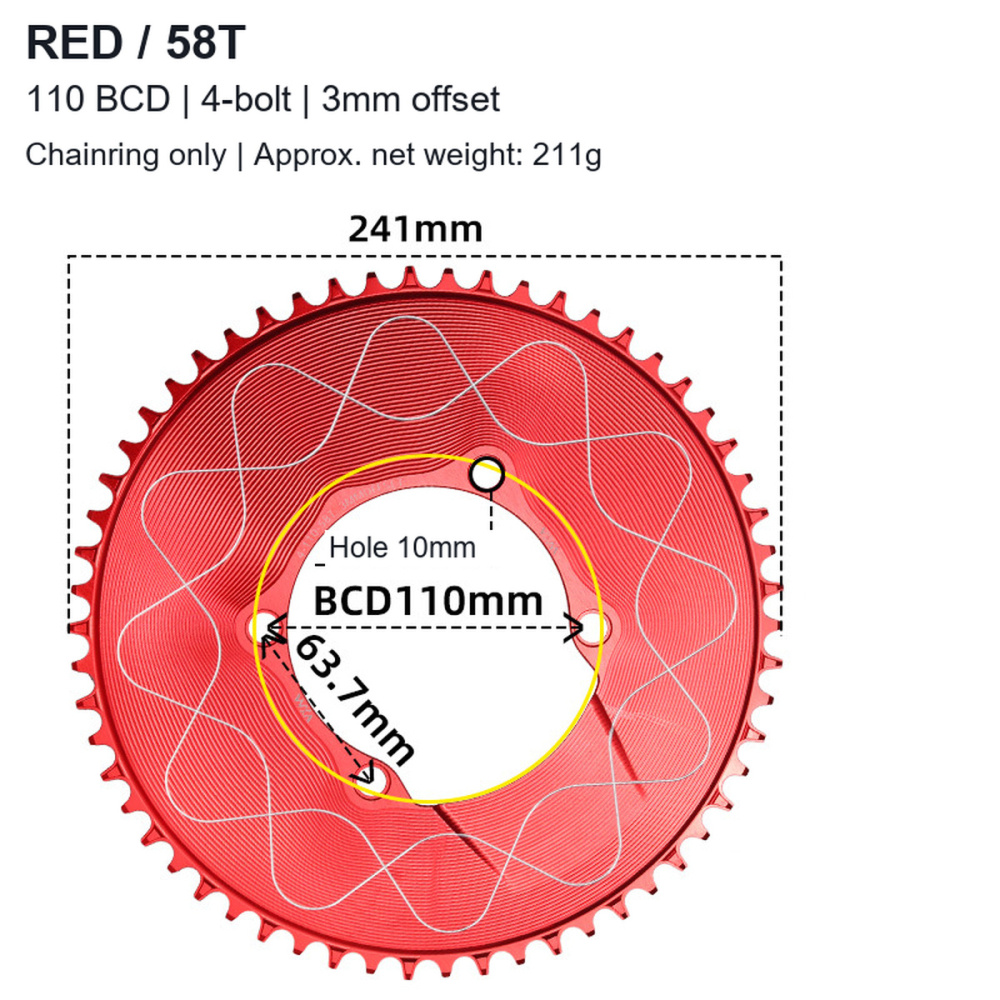

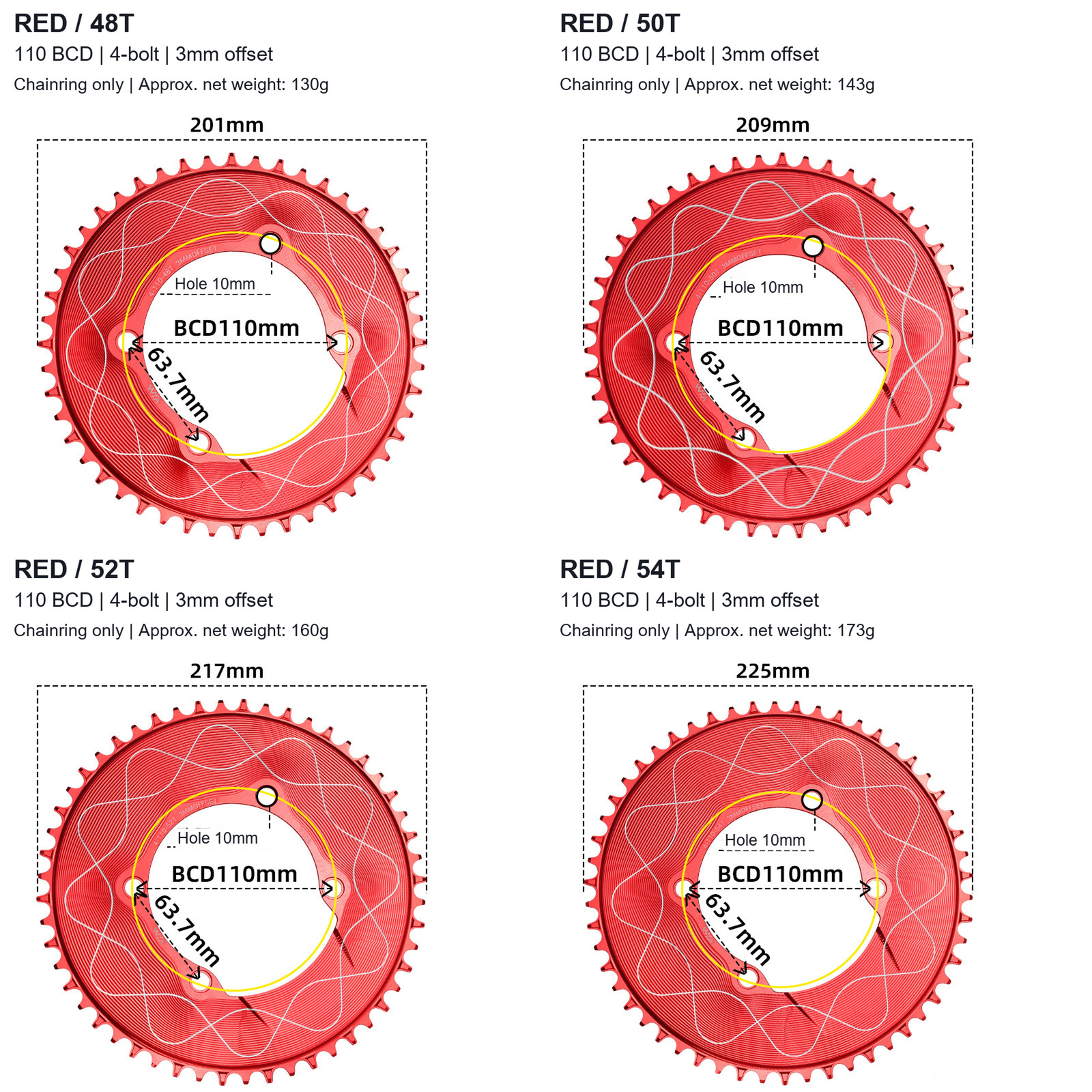

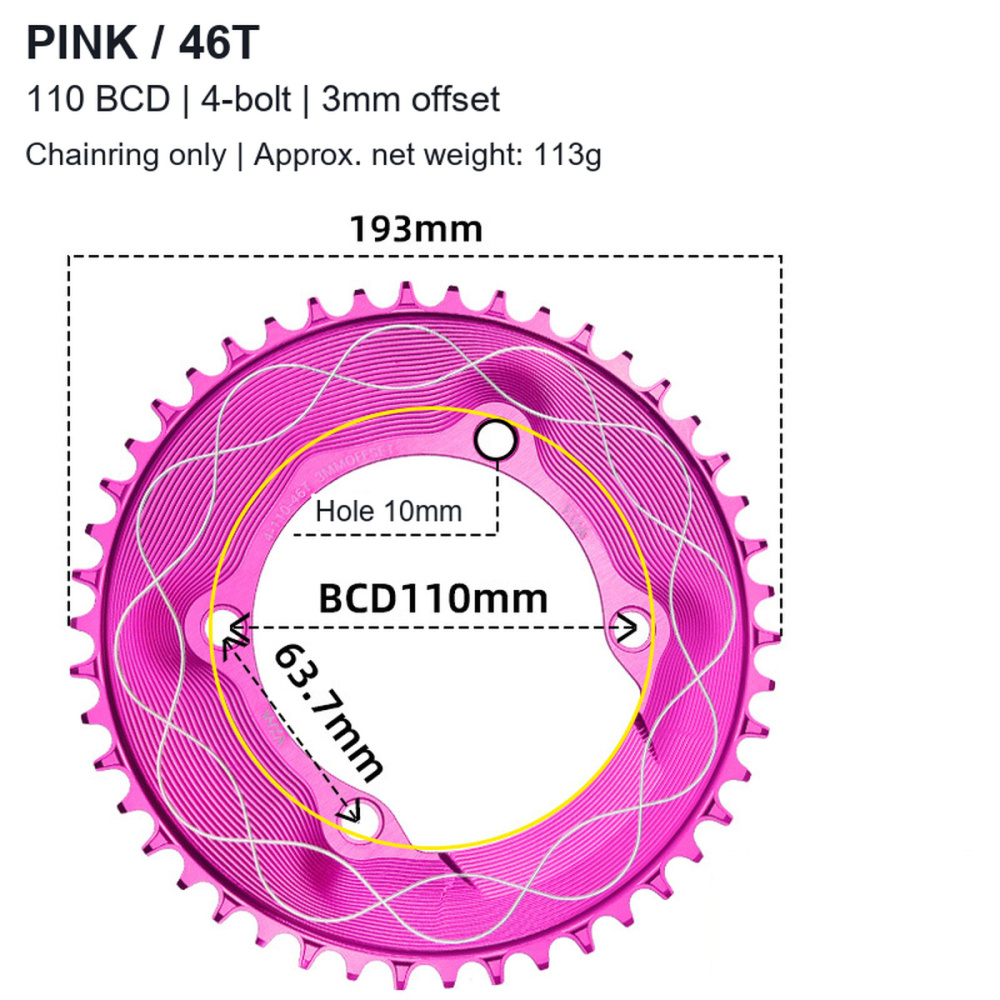

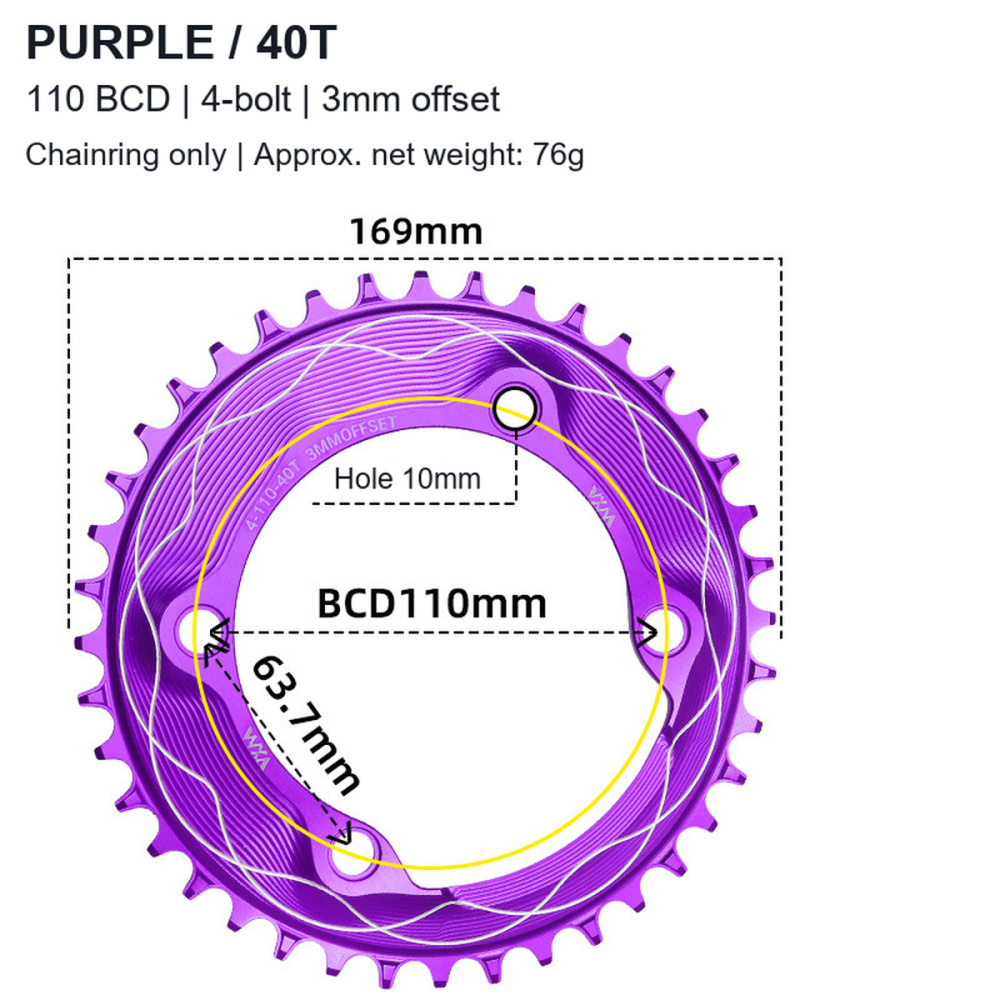

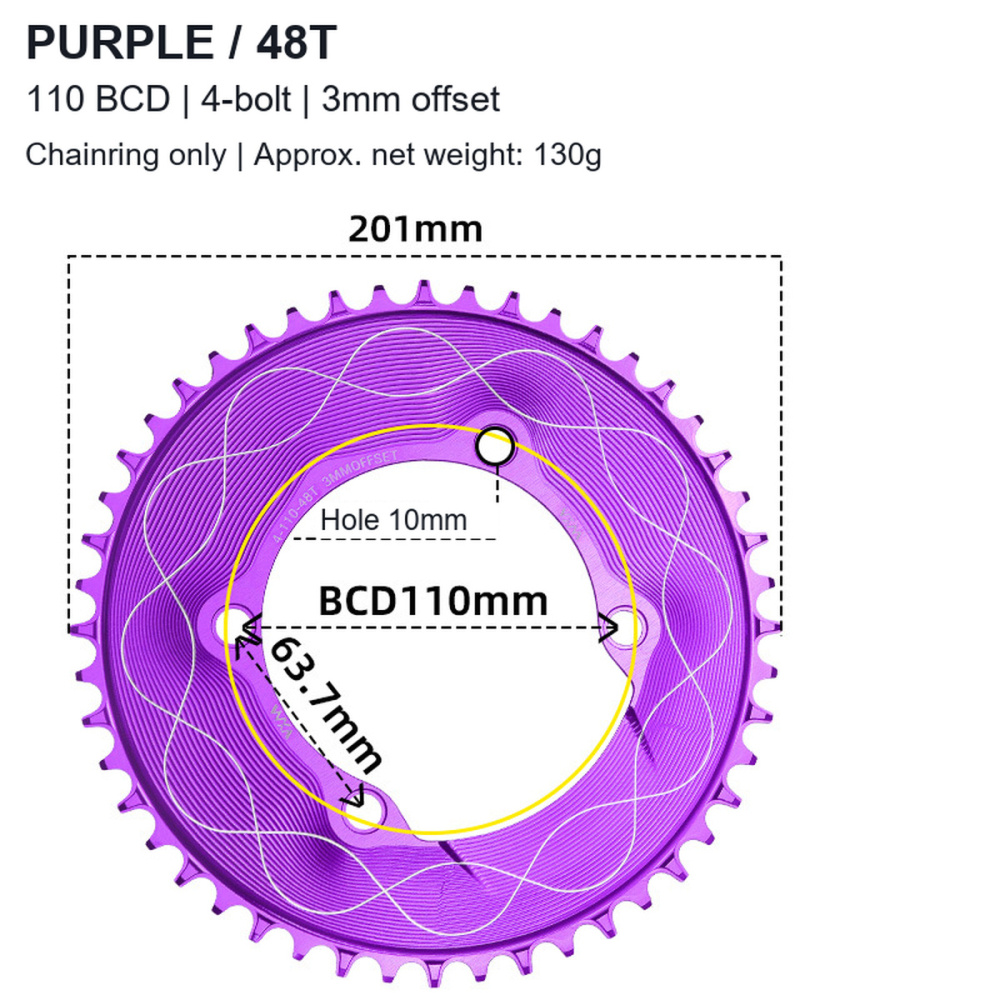

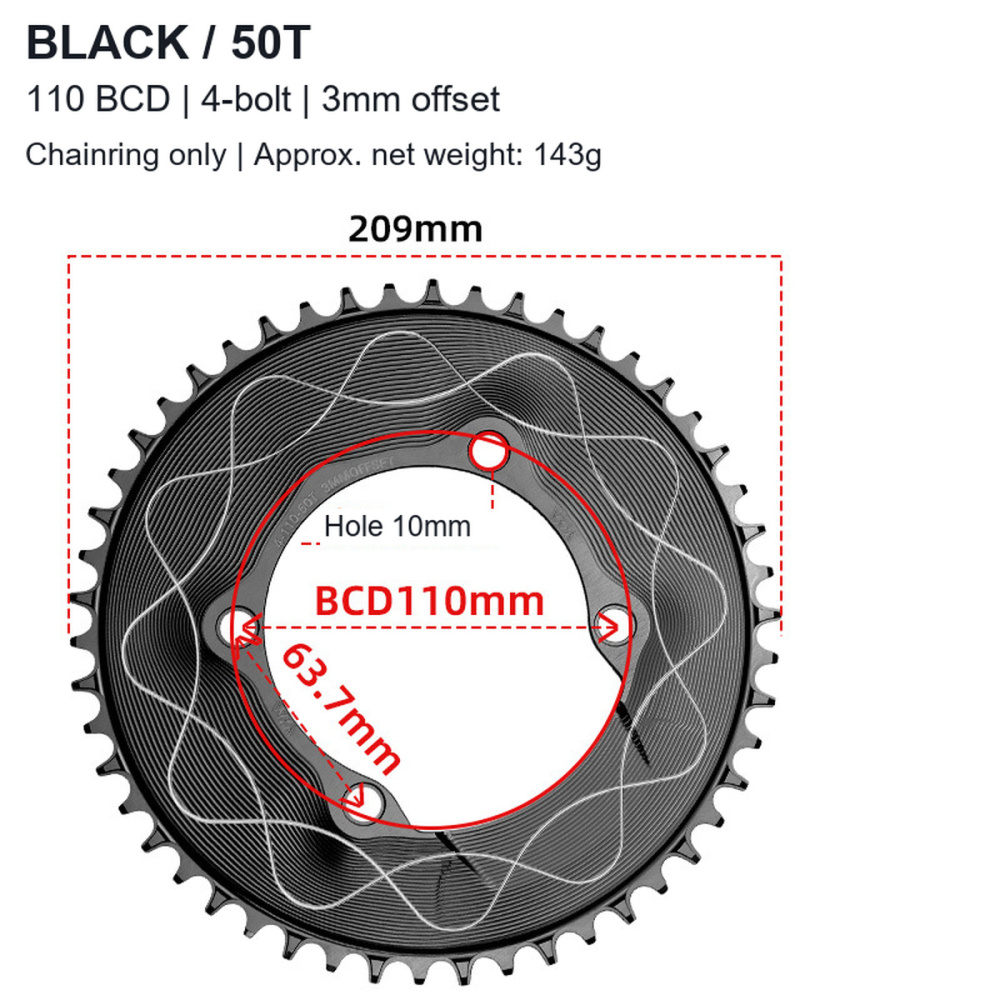

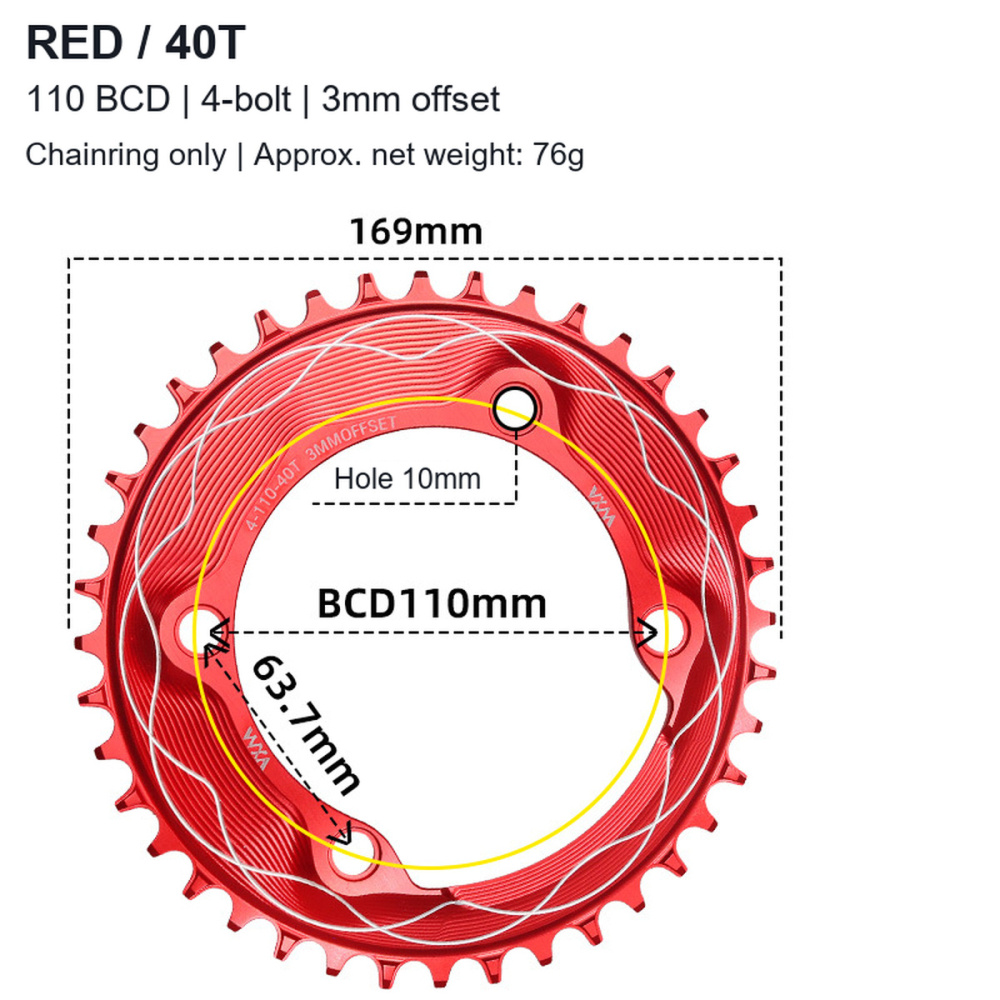

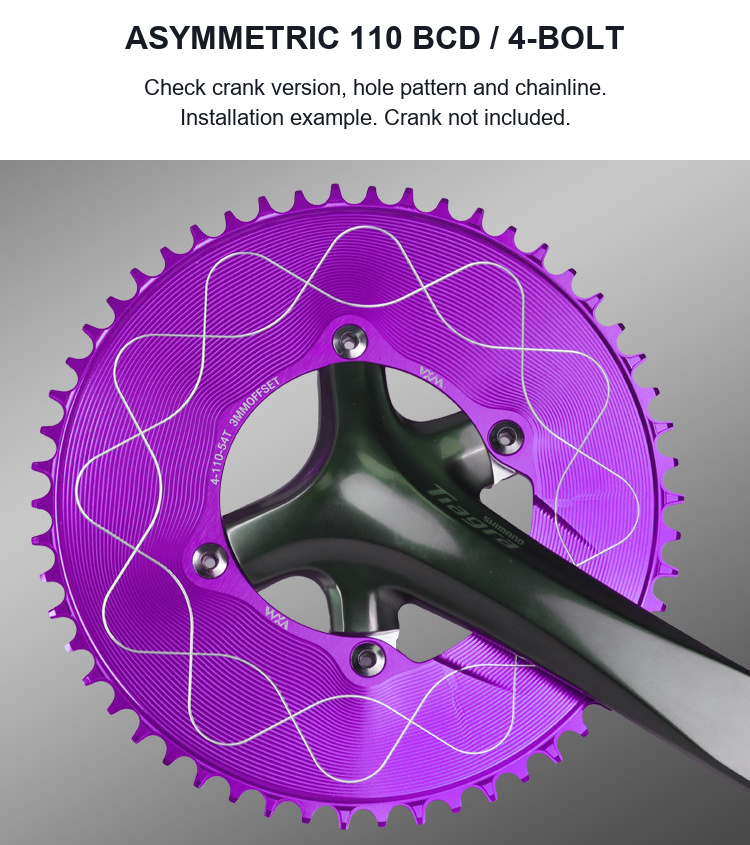

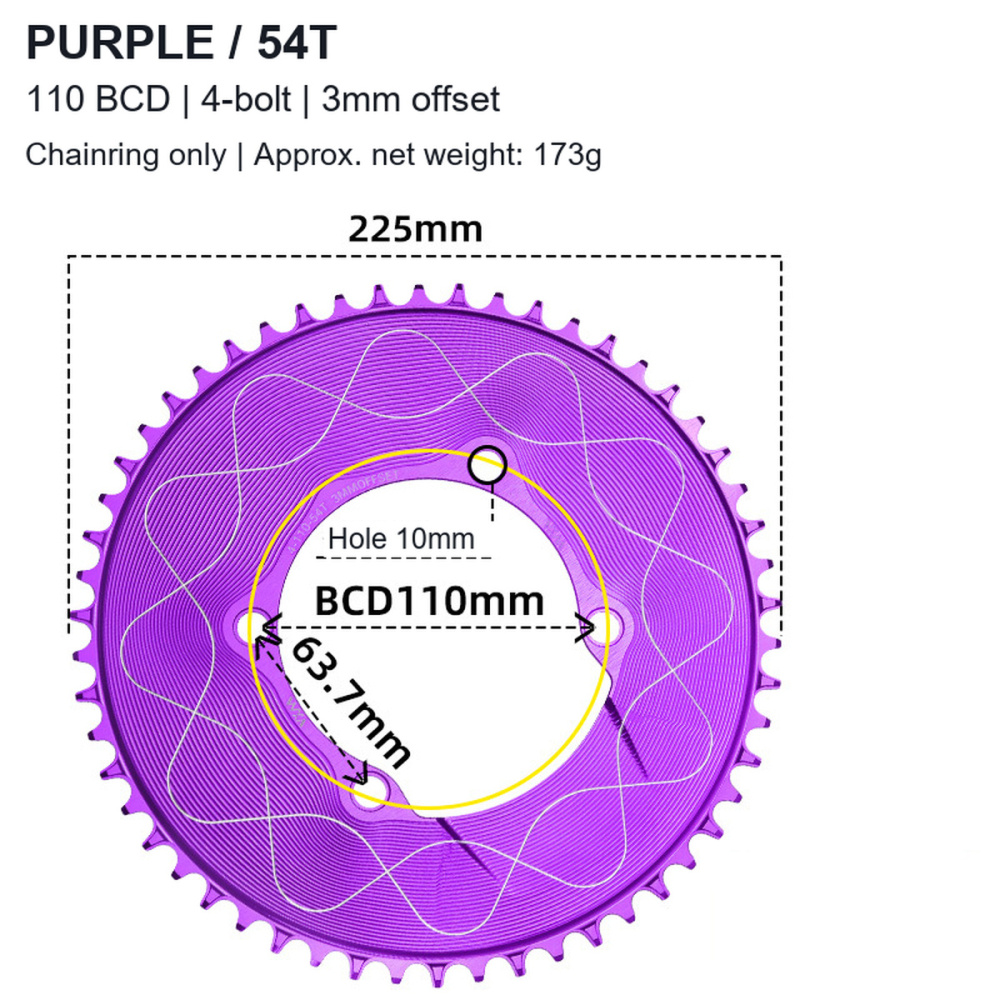

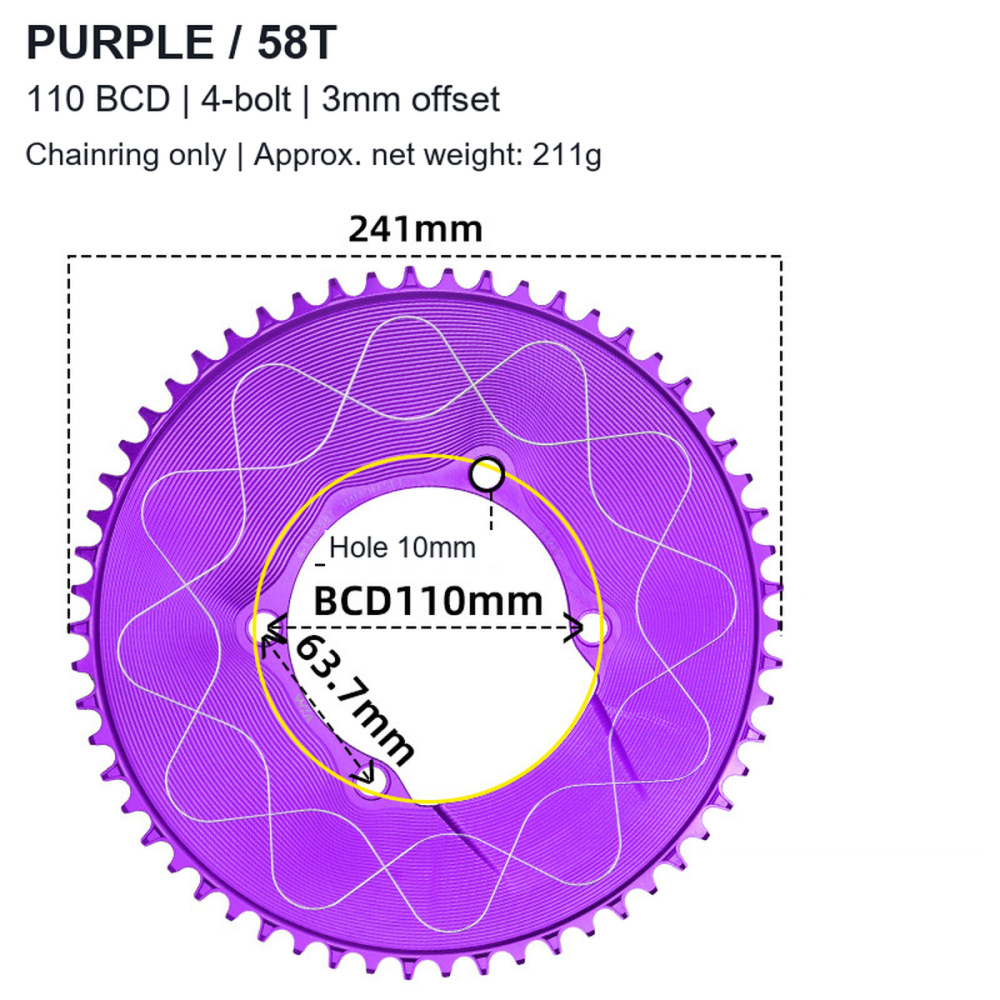

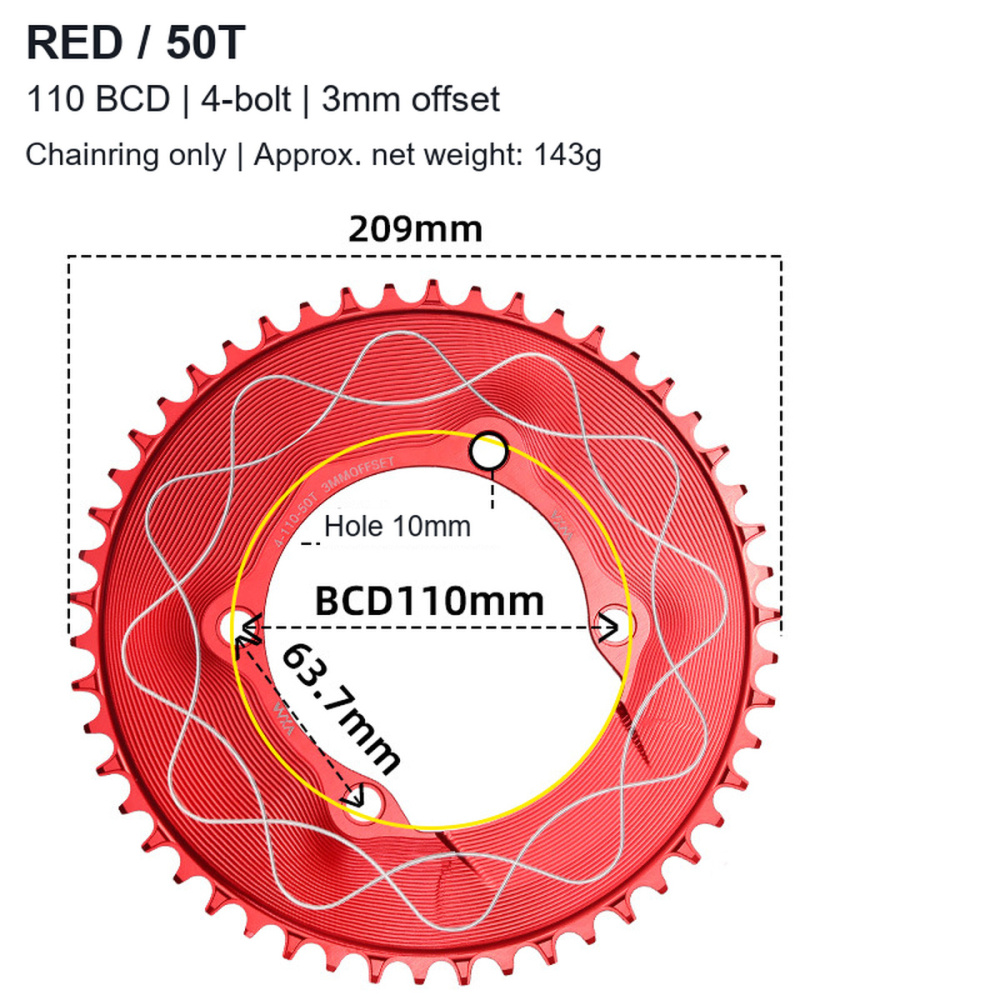

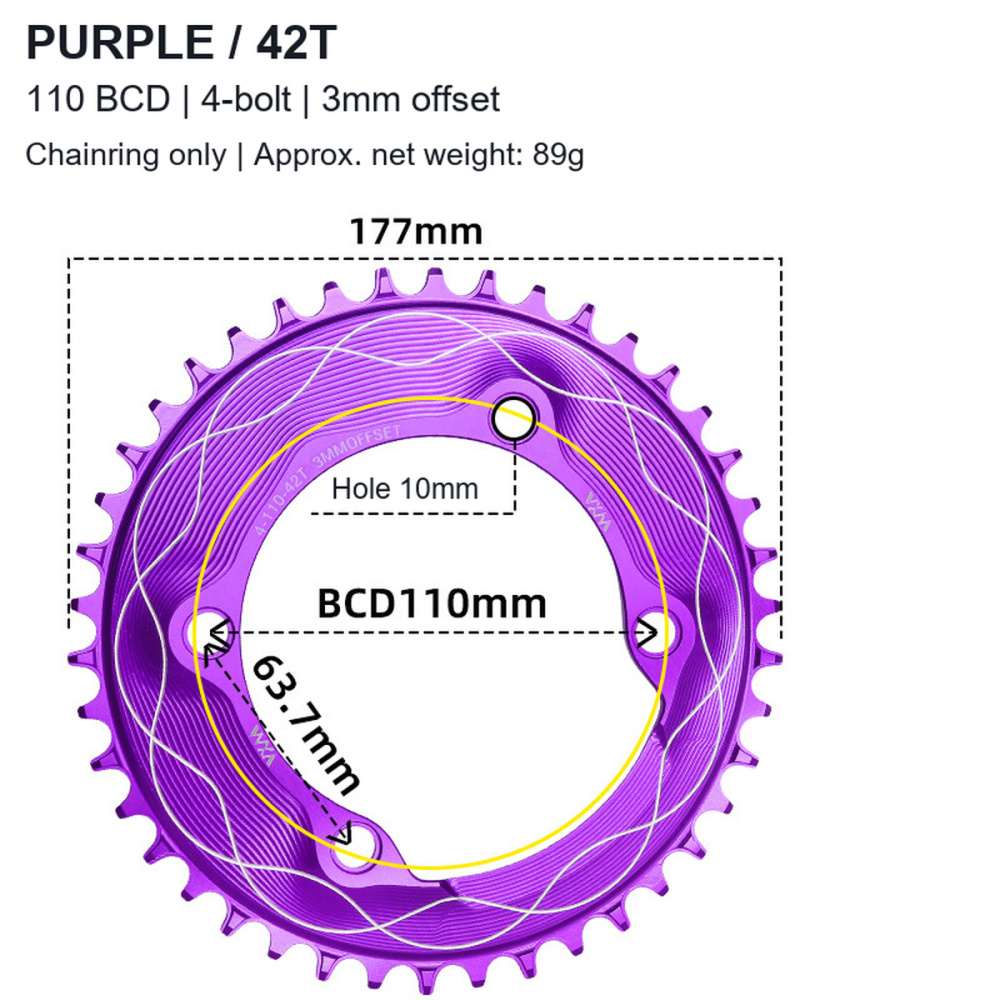

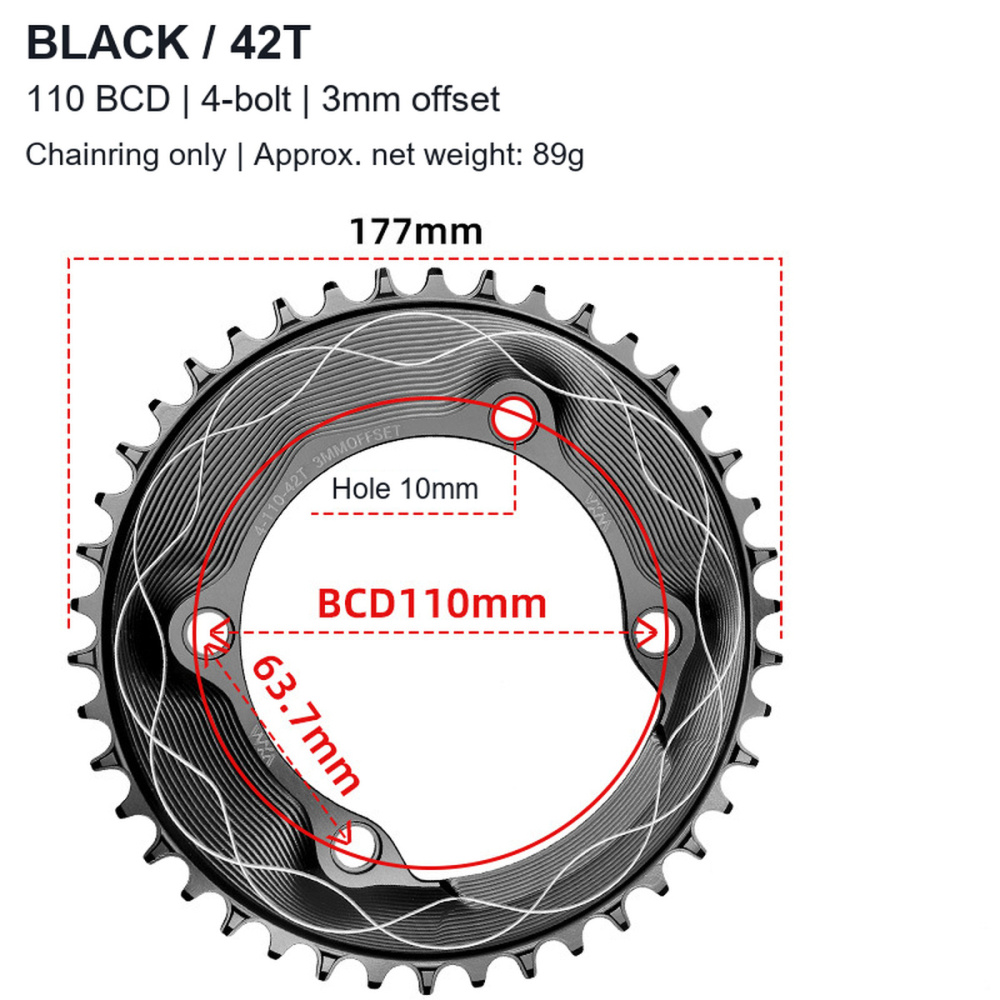

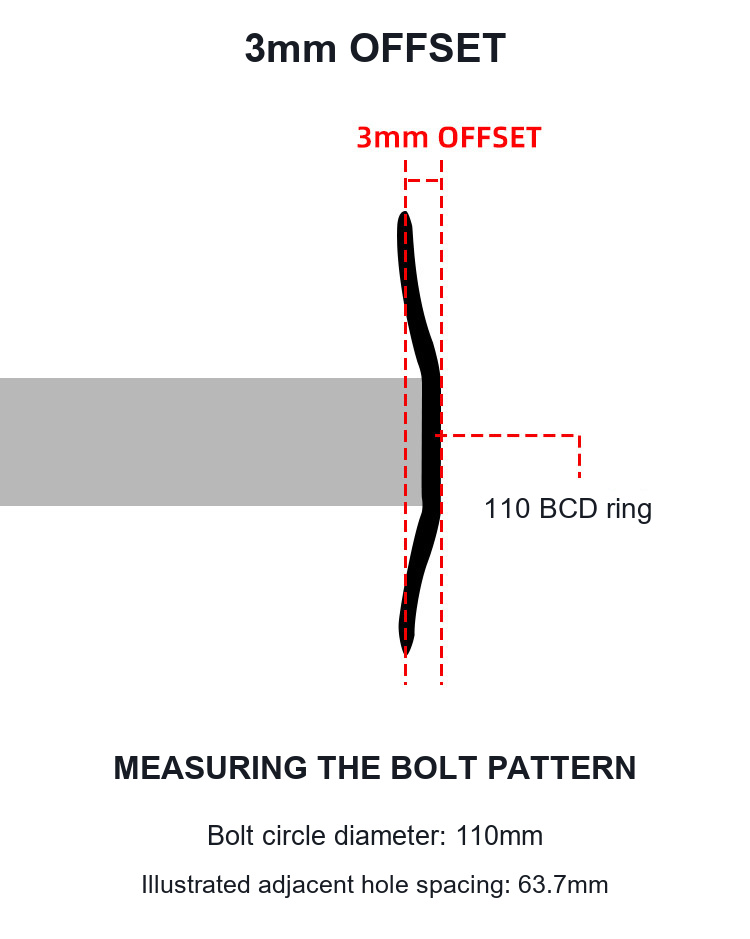

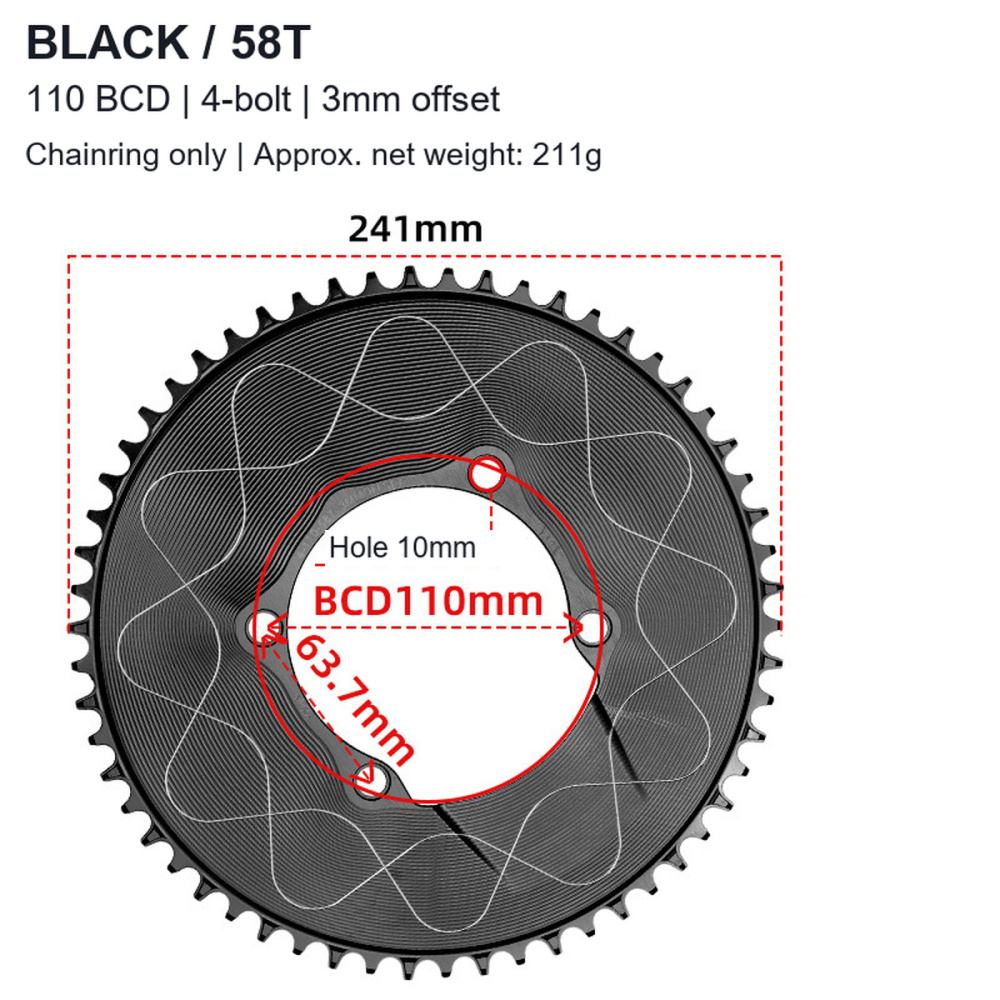

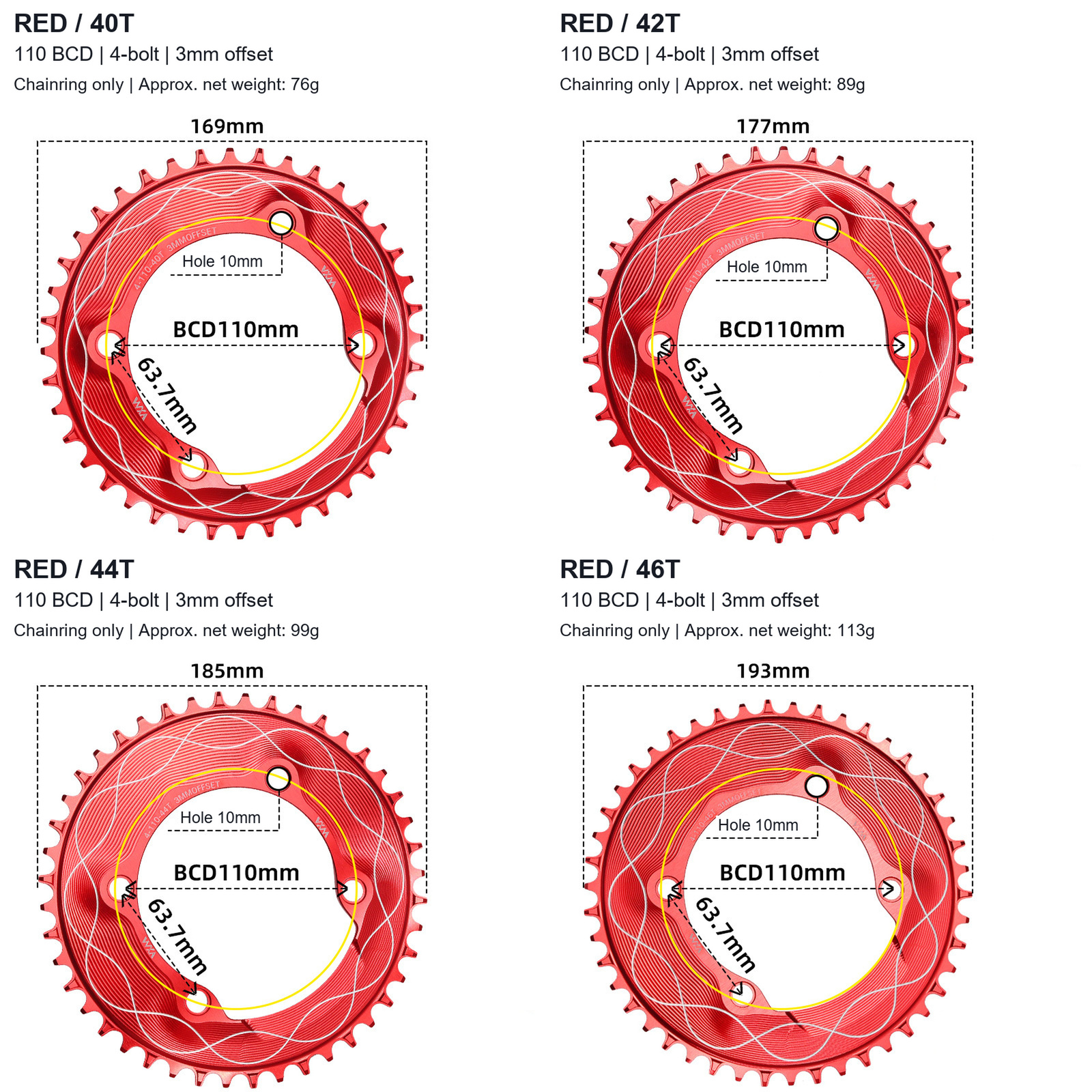

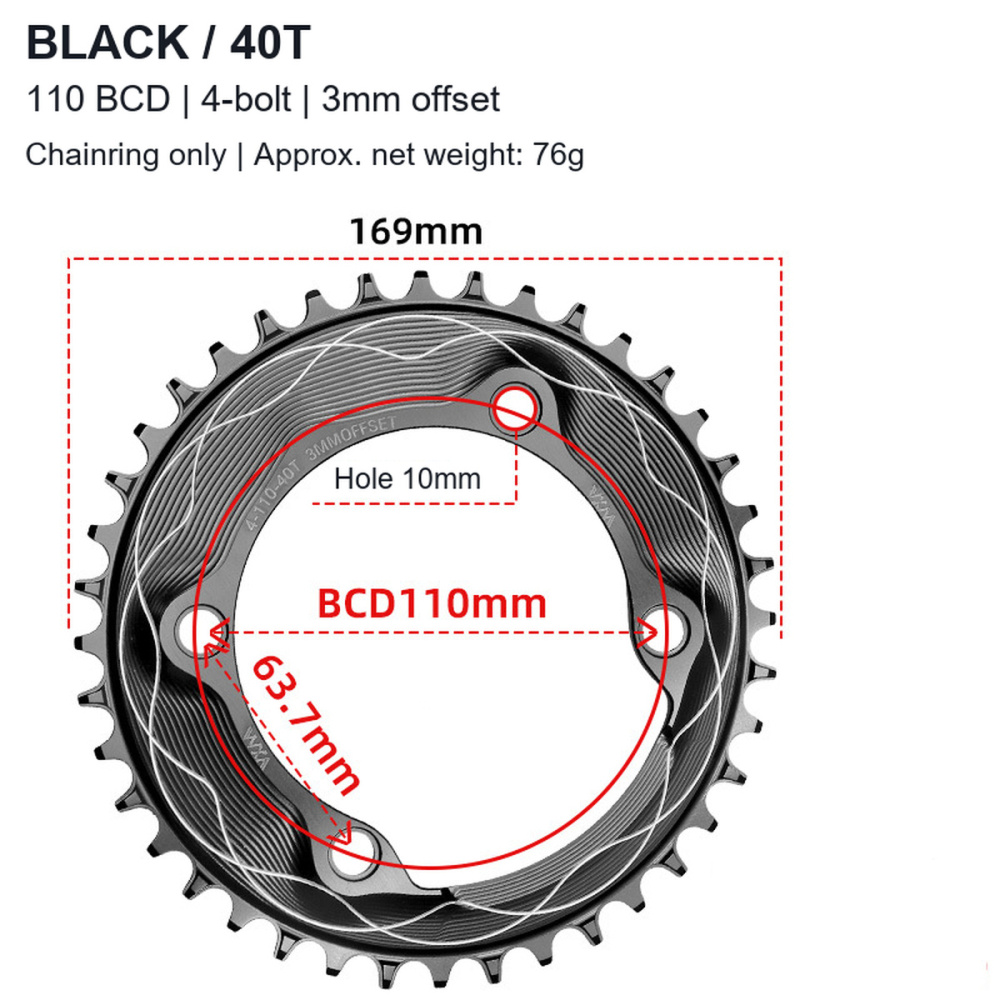

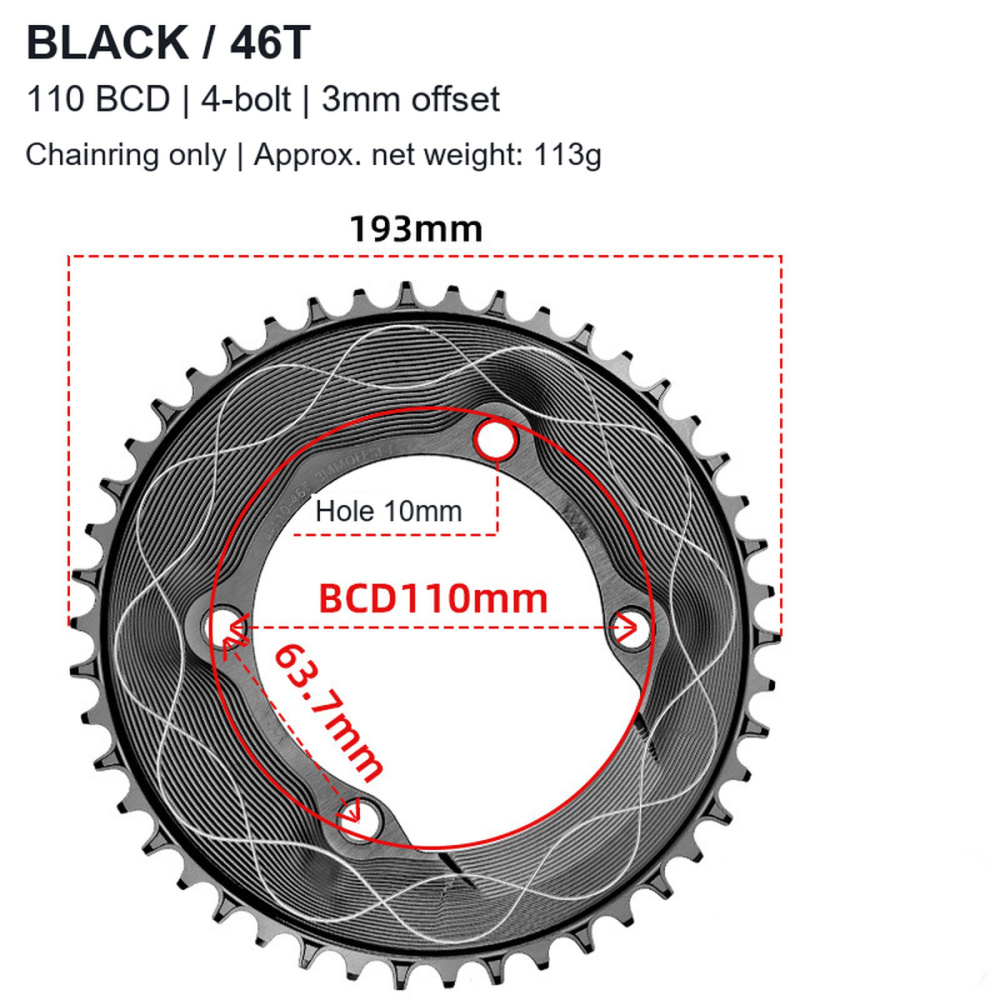

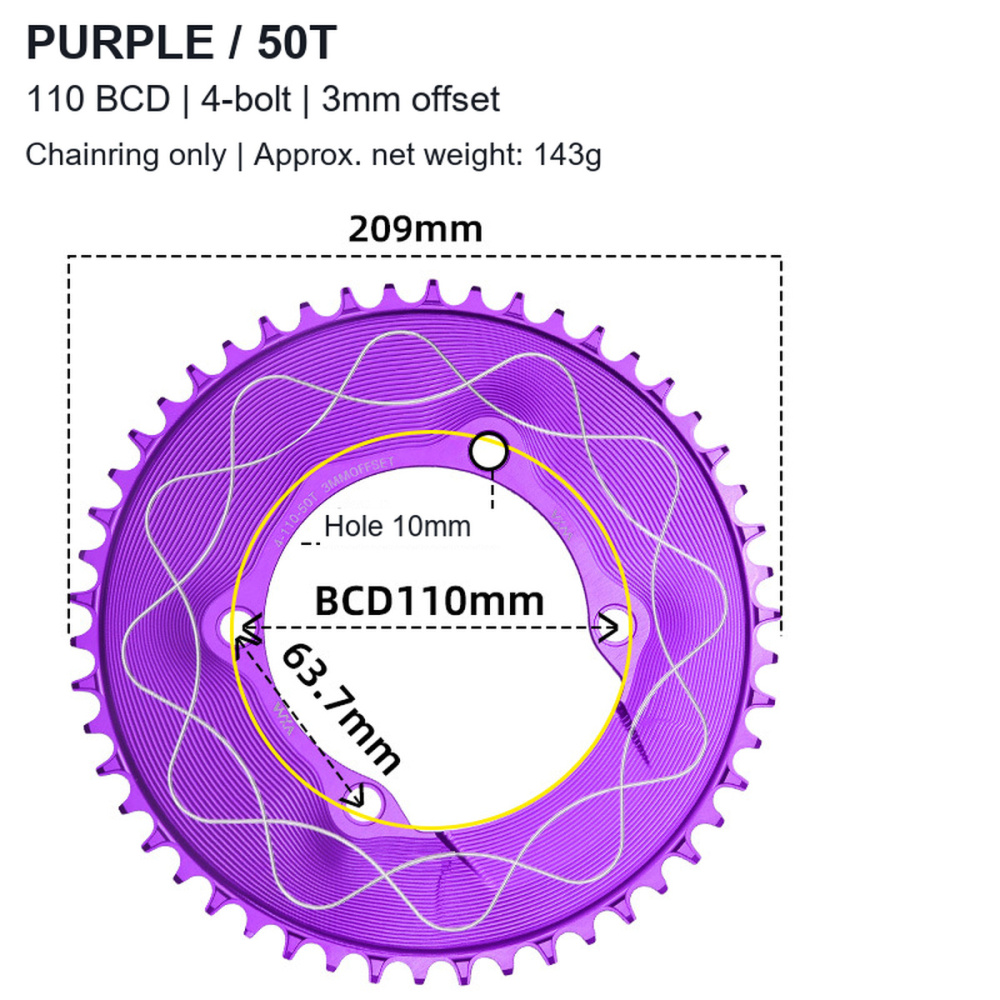

• Asymmetric 110BCD four-bolt mounting pattern and supplier-stated 3mm offset.

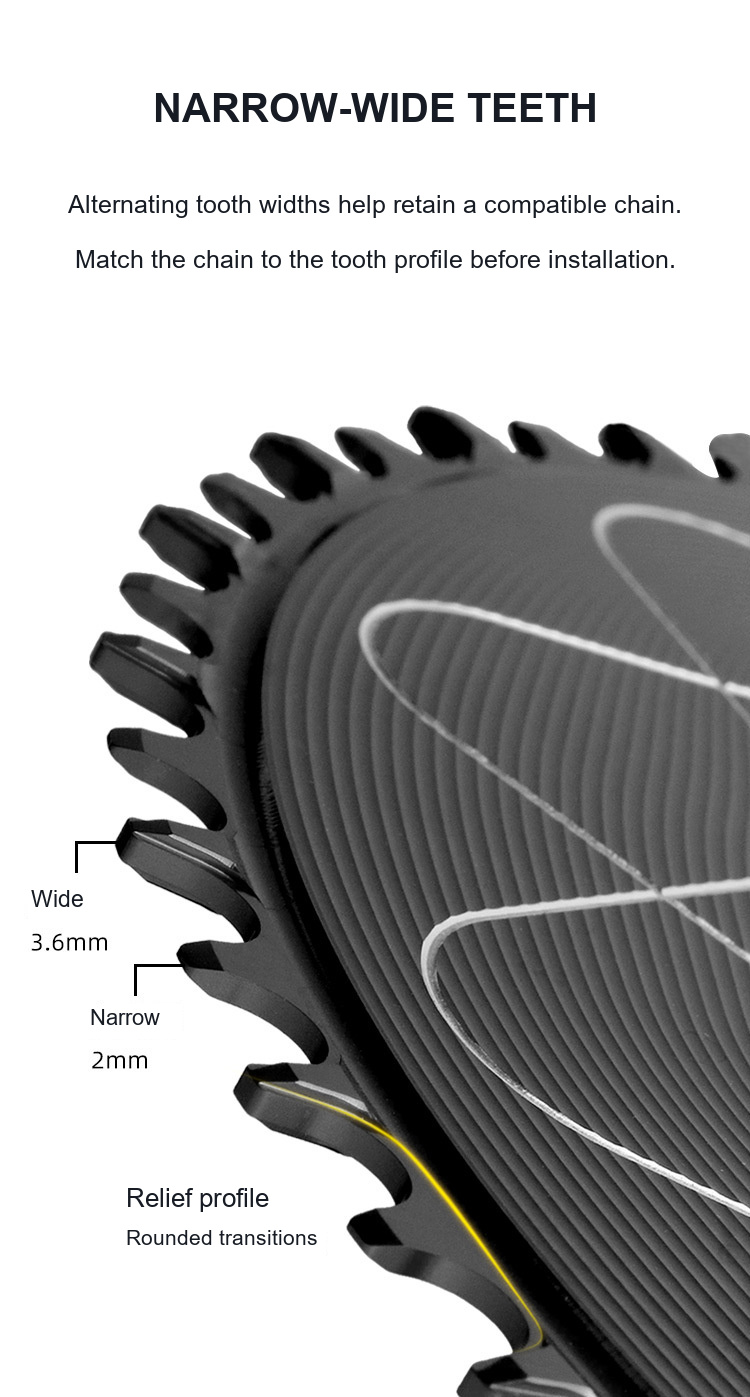

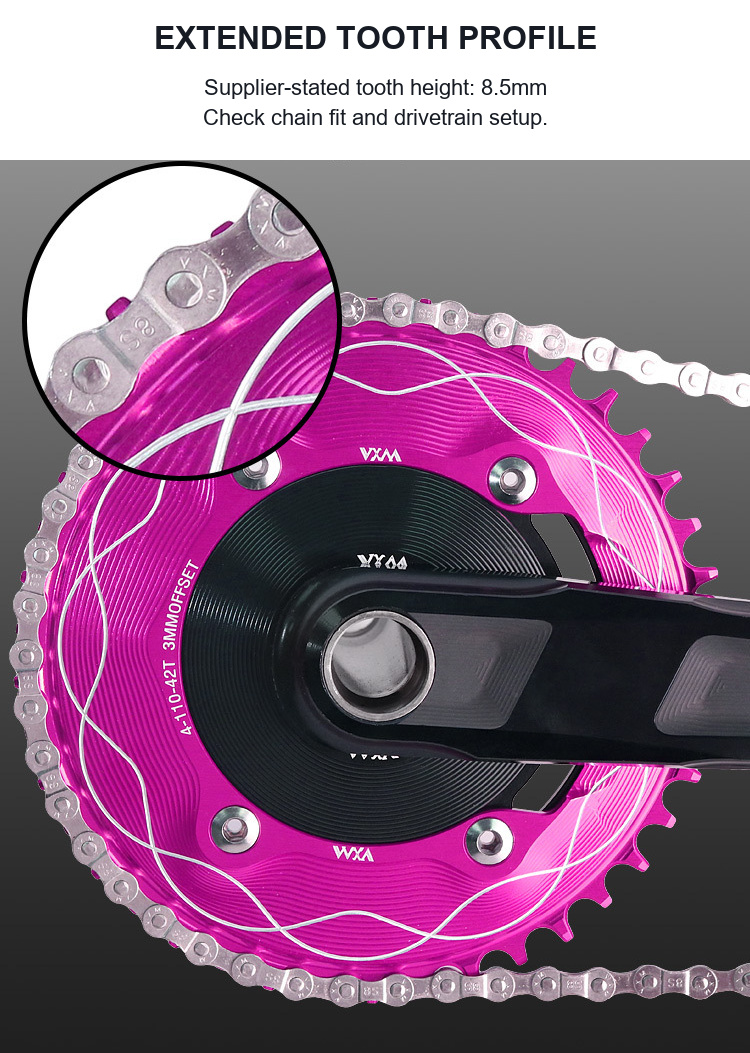

• Alternating narrow and wide teeth for a compatible single-chainring drivetrain.

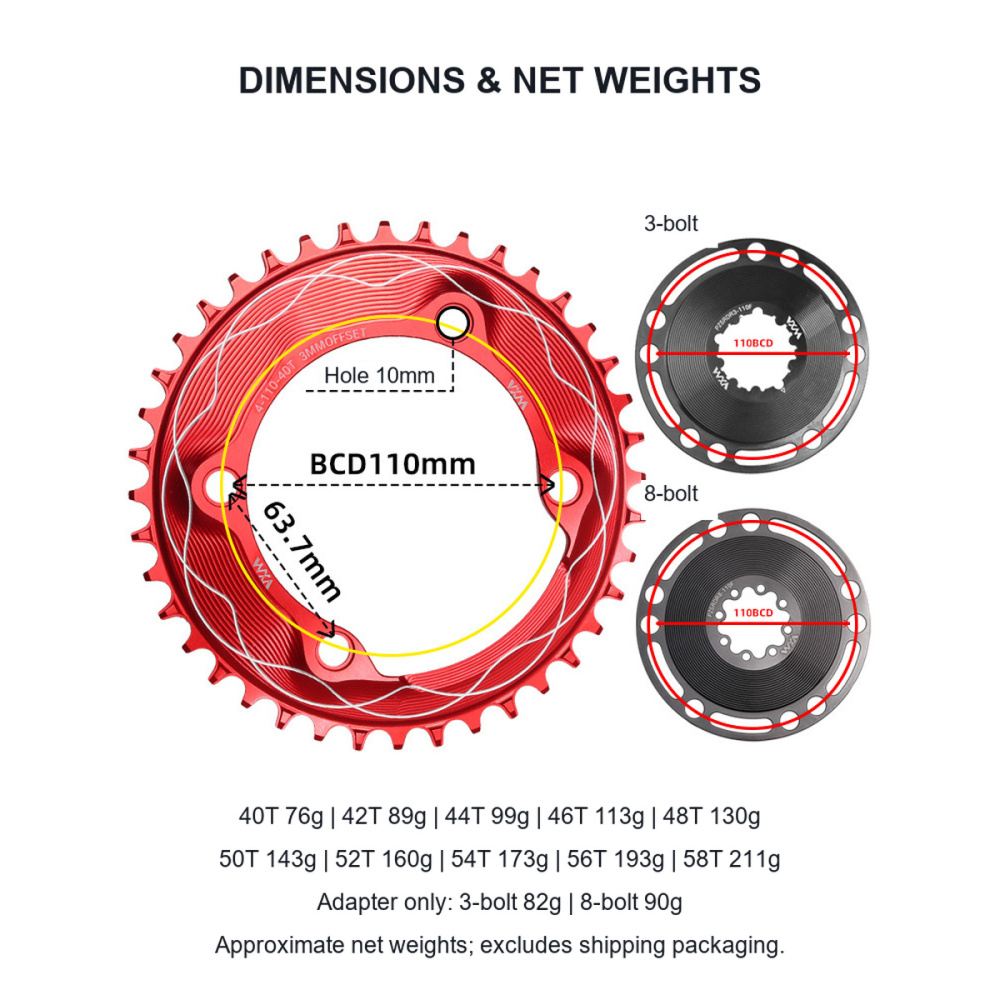

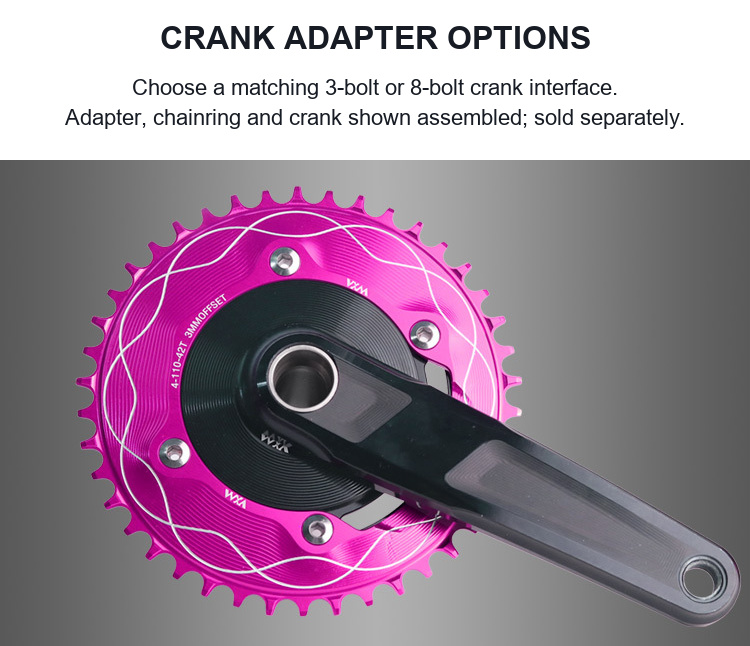

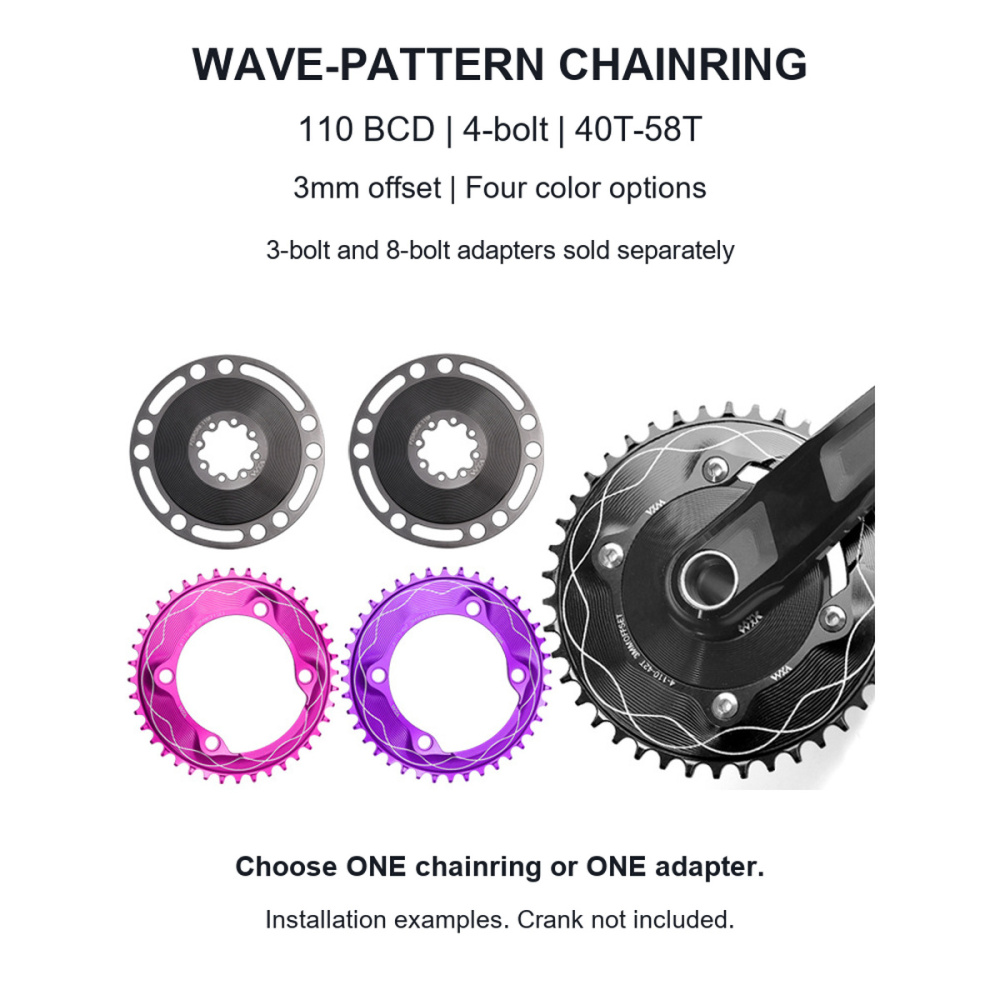

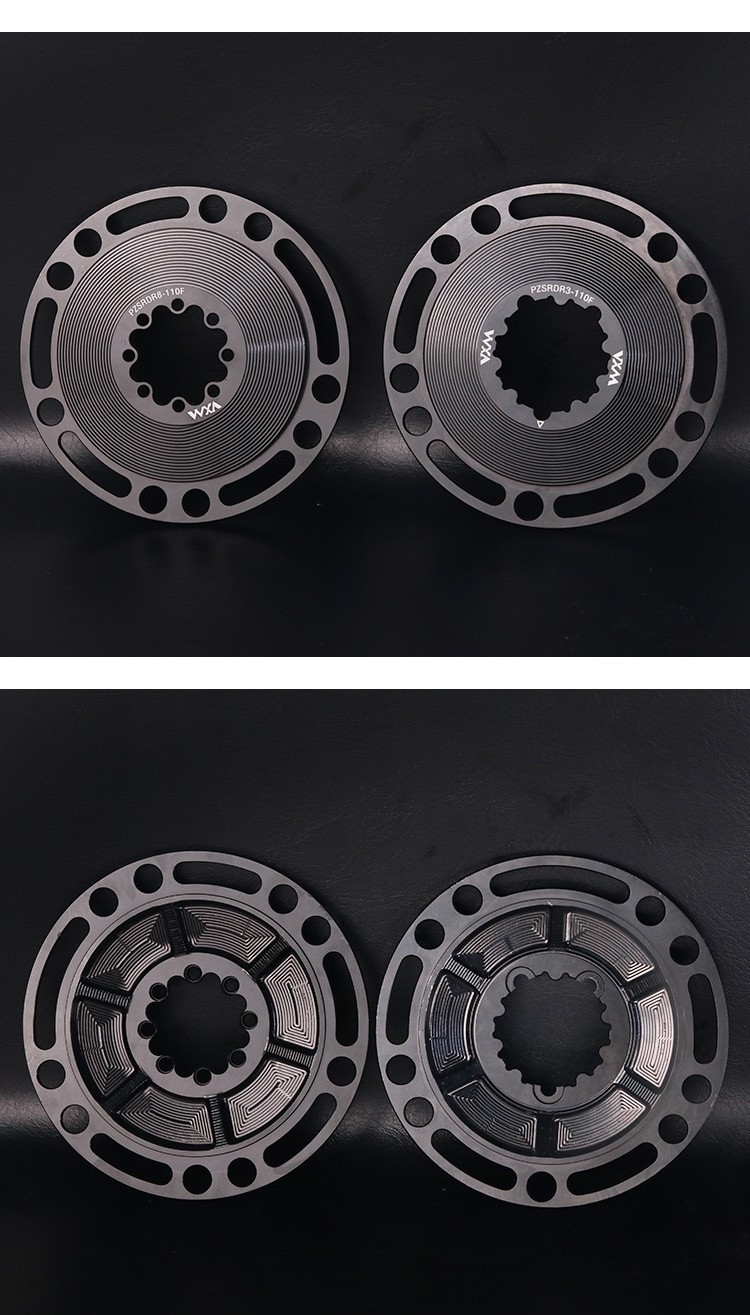

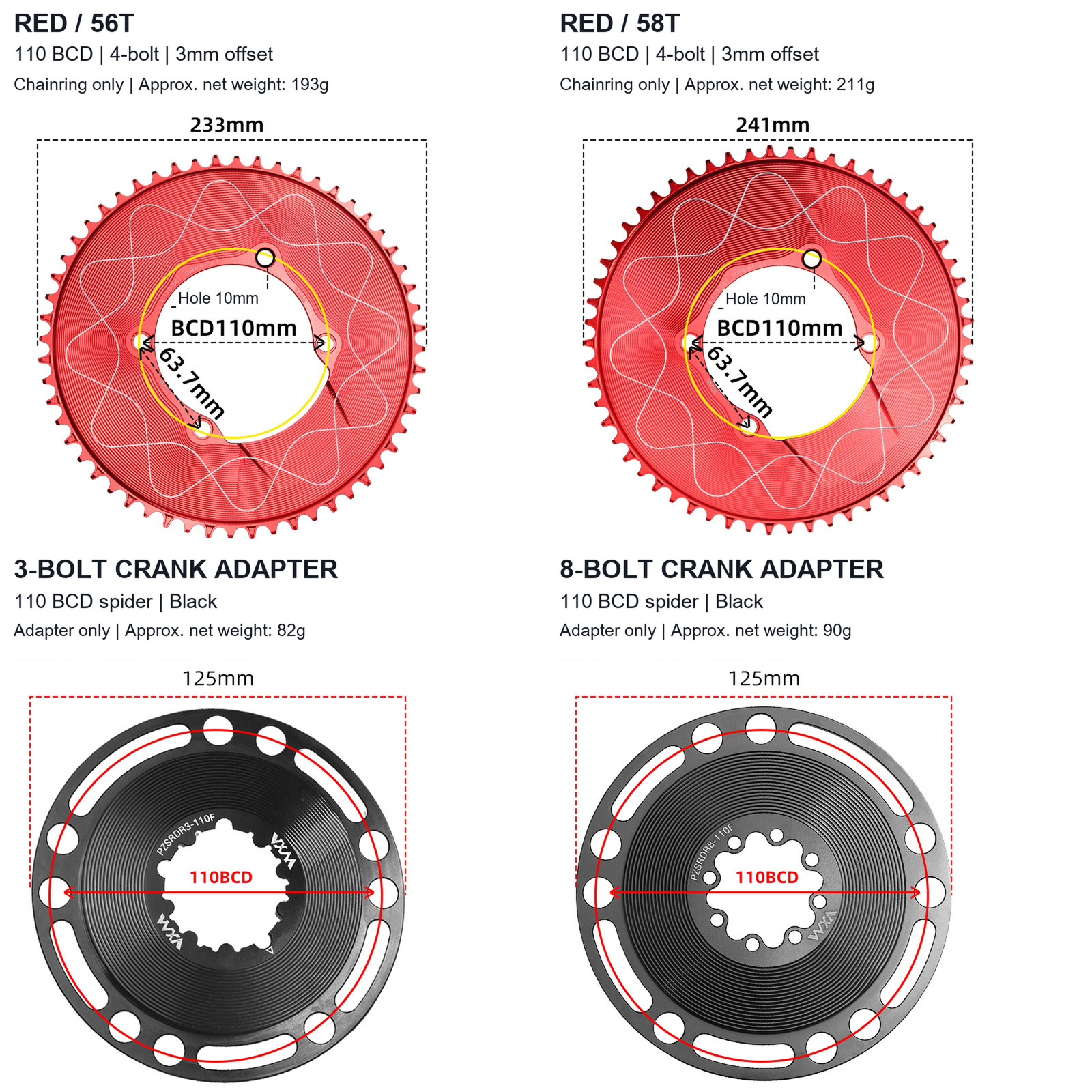

• Separate black 3-bolt and 8-bolt crank adapter options; choose the interface that matches your crank.

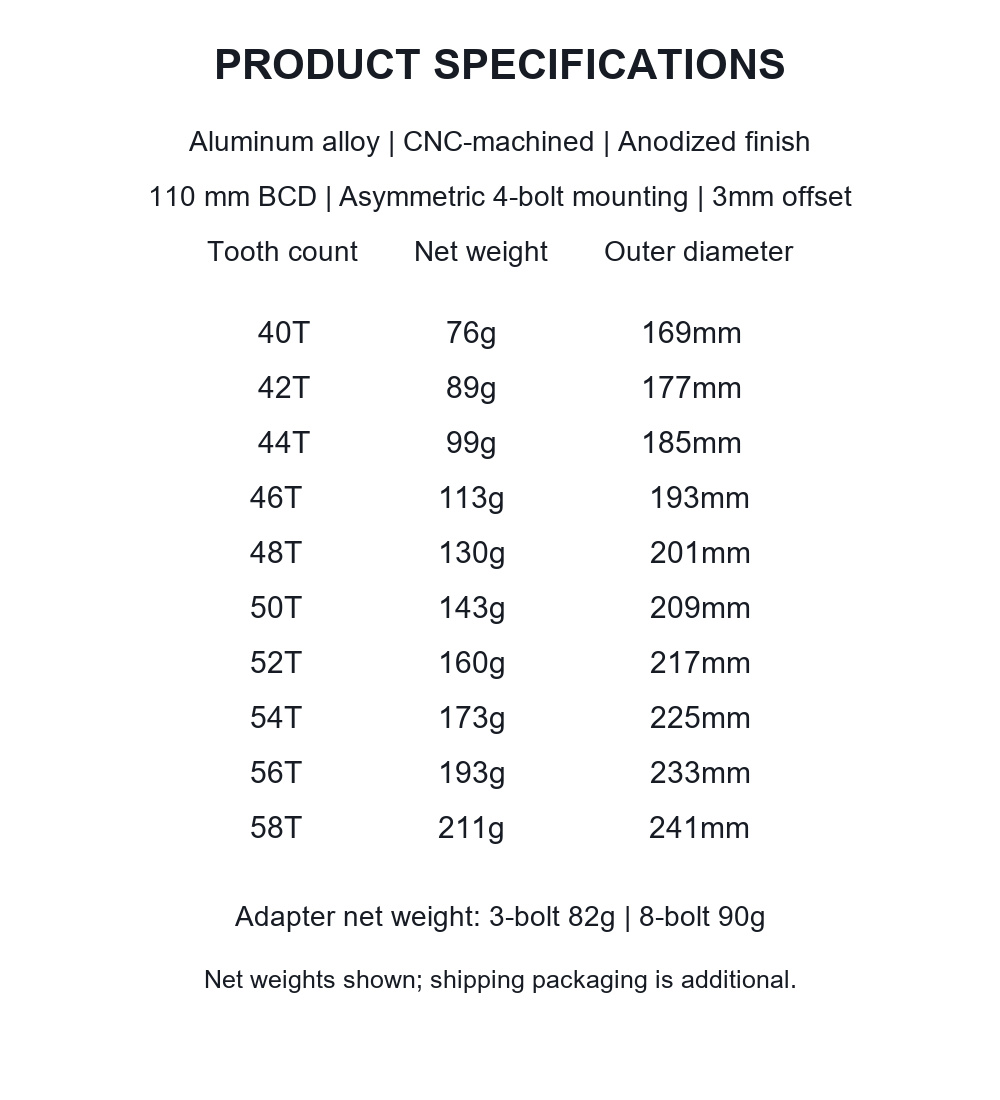

Specifications

Fit and supplied item

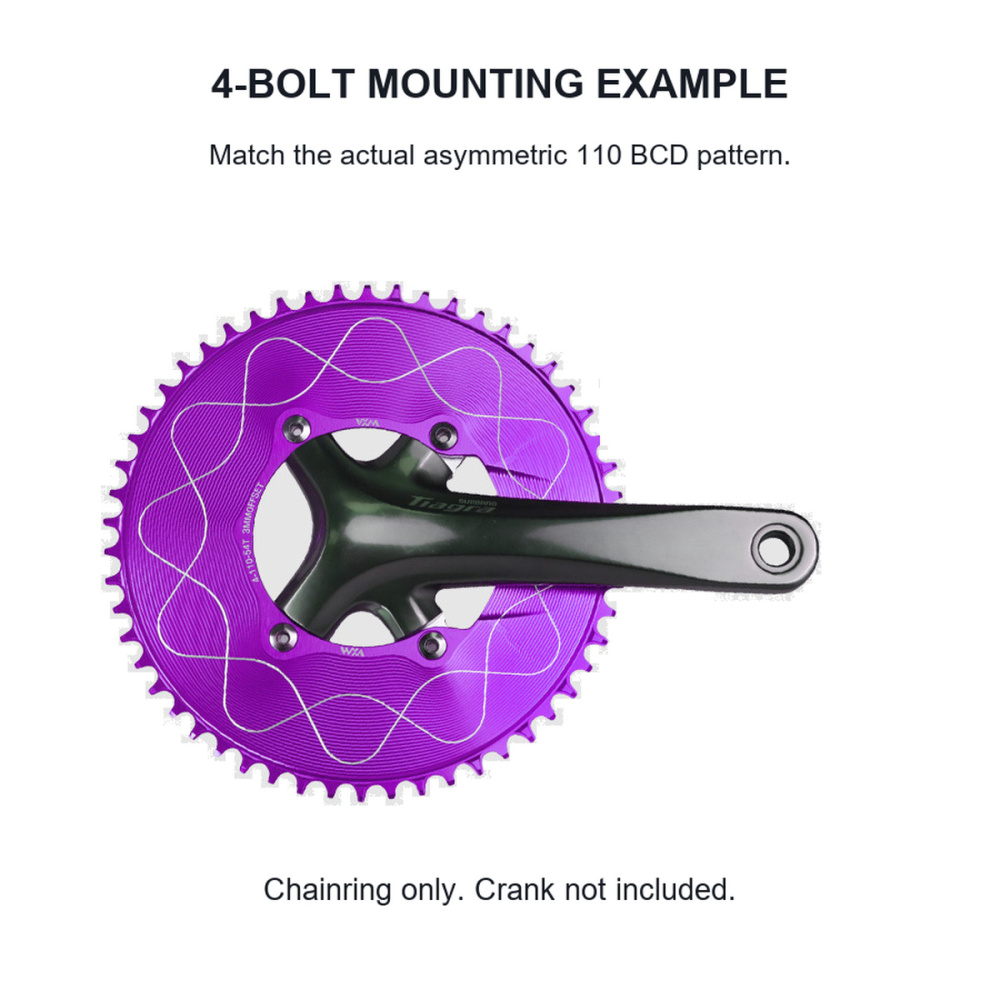

Match the actual bolt-hole pattern, crank interface, chainline, chain and frame clearance before ordering. A shared BCD alone does not establish compatibility. The 3-bolt and 8-bolt adapters are separate variants, not included with a chainring. Installation photos show examples only. Cranks, power meters, chainring bolts and tools are not included.

Crank compatibility by component

Chainring - supplier-listed models: for Shimano 110BCD 4-Arms versions: CLARIS FC-R2000; SORA FC-R3000; TIAGRA FC-4700; 105 FC-5800 / FC-R7000 / FC-R7100; ULTEGRA FC-6800 / FC-R8000 / FC-R8100; Dura-Ace FC-9000 / FC-R9100 / FC-R9200; FC-RS510; GRX FC-RX600 / FC-RX810 (check exact version and chainline).

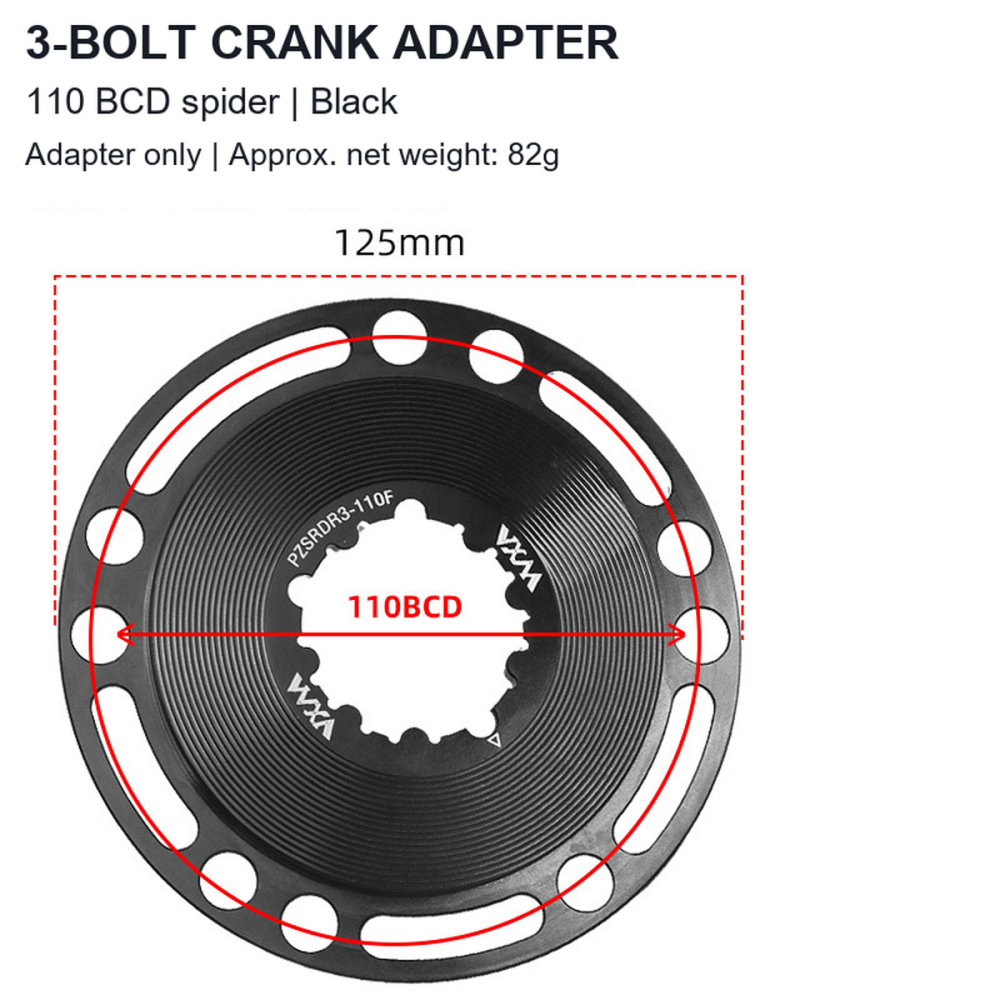

3-bolt adapter - matching crank interfaces: for SRAM 3-bolt Direct Mount versions, including GX Eagle GXP (FC-GX-1-A1), GX Eagle DUB (FC-GX-1-C1), NX Eagle DUB (FC-NX-1-C1) and X01 Eagle DUB (FC-X0-1-C1 / C3).

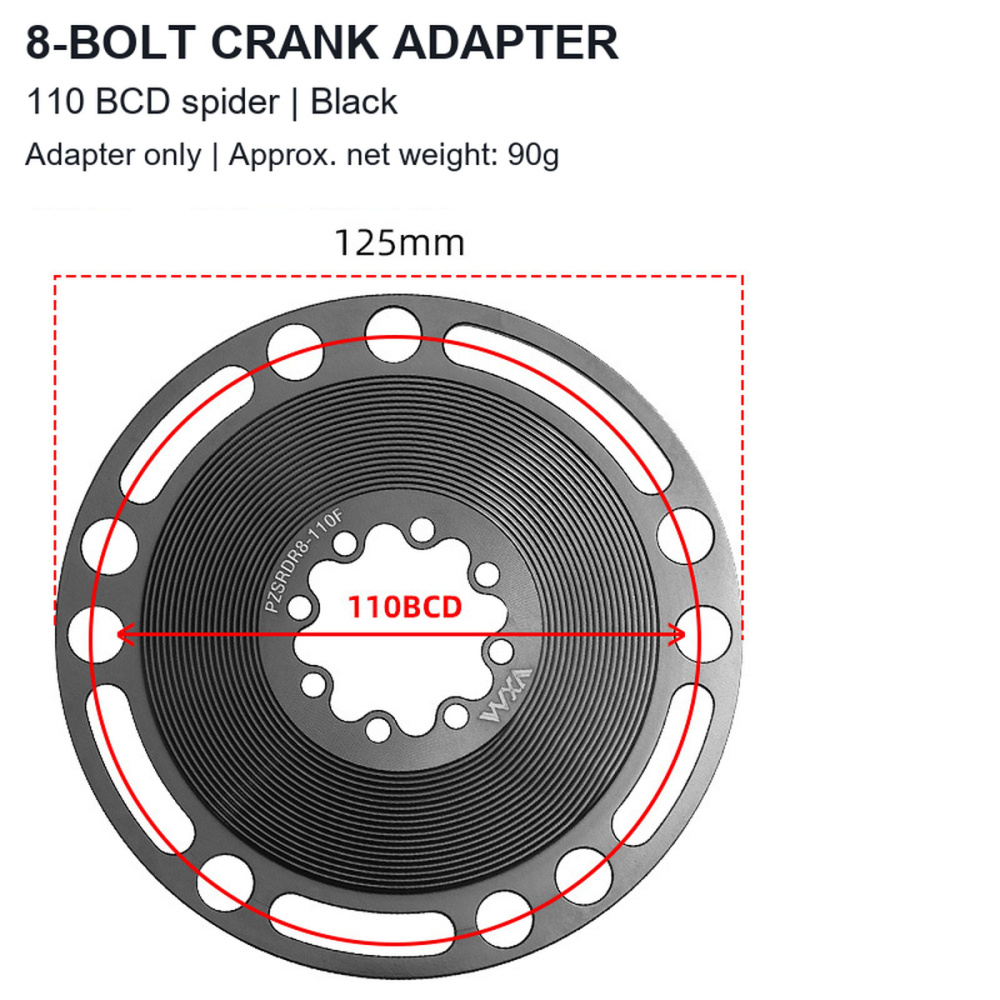

8-bolt adapter - matching crank interfaces: for SRAM 8-bolt Direct Mount versions: RED AXS and Force AXS 12-speed; Rival and Apex 1x 12-speed with a removable 8-bolt ring/spider interface.

Fit conditions: One selected chainring OR adapter, sold separately. Model references identify mounting-interface candidates; verify the actual bolt pattern, mounting face, chainline, chain and frame clearance. SORA FC-R3000-CG 5-Arms and fixed-spider cranks do not match these interfaces. A crank model name alone does not confirm complete drivetrain compatibility.

Available Options

Each row below is one available option combination. Choose the complete combination that matches your setup.
